Description
Notes:
- The HBC (High Base Convexity) variant is specifically optimised for LGA1700 processors that are used with full ILM pressure or have become permanently deformed in long-term use, providing excellent contact quality despite the CPU’s concave shape.
SPECIFICATION
| Cooler Specification | |
| Socket compatibility | AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 |
| Height (without fan) | 168 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 127 mm |
| Weight (without fan) | 1180 g |
| Height (with fan) | 168 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 152 mm |
| Weight (with fan) | 1525 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 228 |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 (optional NA-SFC12 fan clips required) |

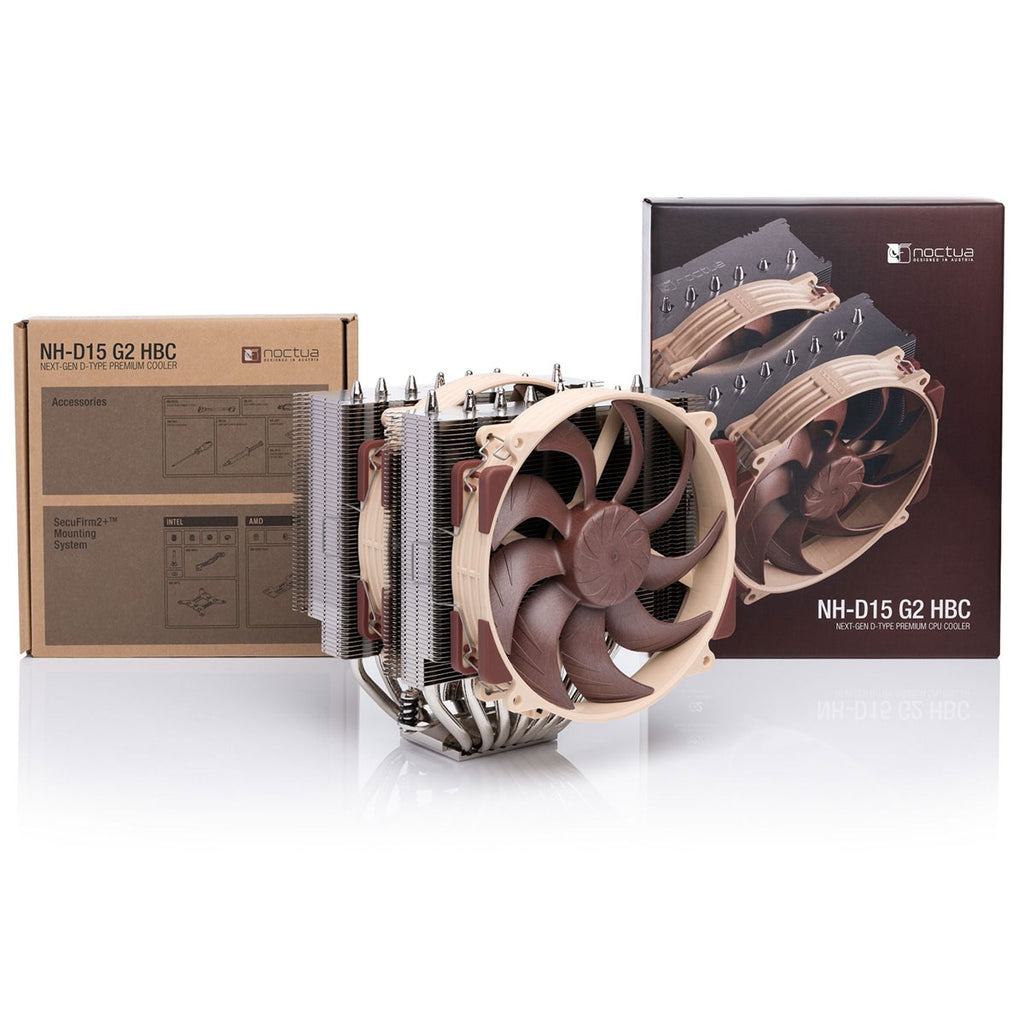

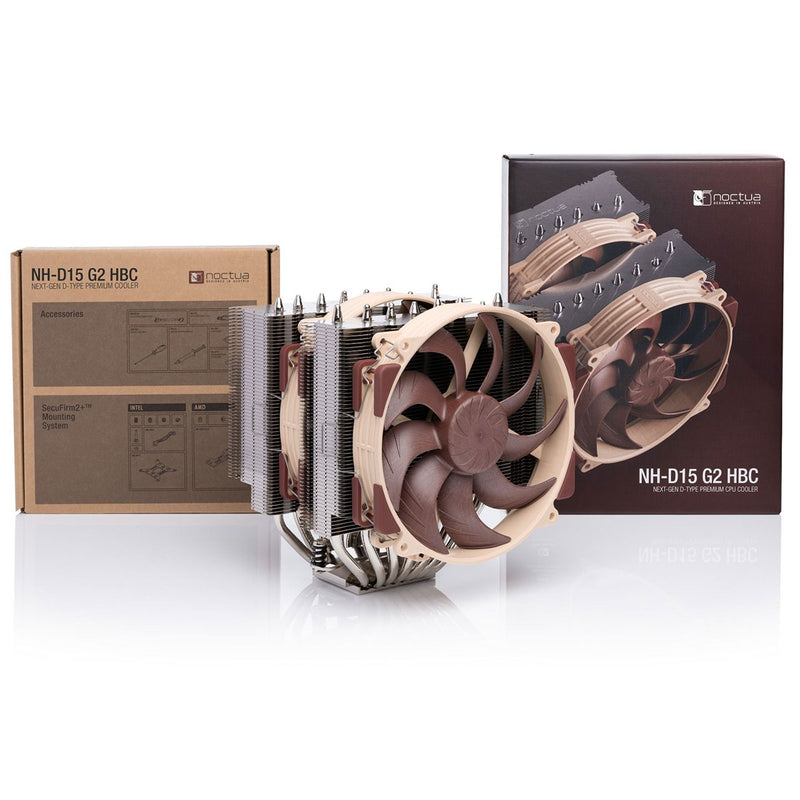

| Scope of delivery | 2x NF-A14x25r G2 PWM premium fan |
| 2x NA-RC16 Low-Noise Adaptor (L.N.A.) | |
| NA-YC1 4-pin PWM splitter cable | |
| NT-H2 high-grade thermal compound | |
| NA-TPG1 thermal paste guard for AM5 | |
| NA-CW1 cleaning wipe | |
| SecuFirm2+™ multi-socket mounting system | |
| 4x NM-ISW1 shim washers for LGA1700 | |
| NM-SD1 Torx® T20 screwdriver | |
| Noctua metal case-badge | |
| FAN Specification | |
| Model | 2x NF-A14x25r G2 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1250 RPM |
| Max. airflow | 155.6 m³/h |
| Max. airflow with L.N.A. | 127.1 m³/h |
| Max. acoustical noise | 24.8 dB(A) |
| Max. acoustical noise with L.N.A. | 19.7 dB(A) |
| Blade geometry | Progressive-Bend impeller |
| Acoustical noise | 24.8 dB(A) |
| Input power (max.) | 2.28 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
