Description
The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance
Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.
Specifications:

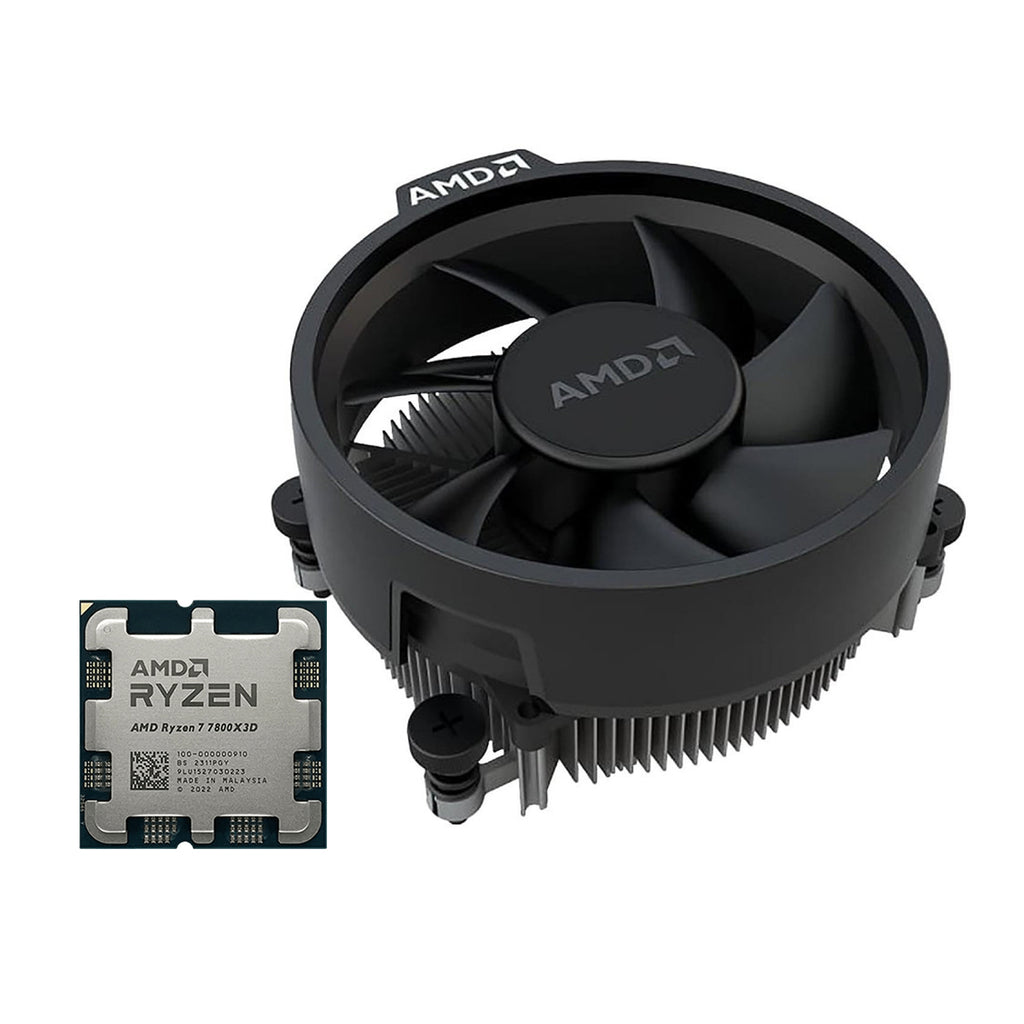

| Name | AMD Ryzen™ 7 7800X3D |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 5 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| CPU Core Tech | TSMC 5nm FinFET |
| I/O Die Tech | TSMC 6nm FinFET |
| CCD Size | 71mm² |
| IOD Size | 122mm² |
| Package Die Count | 2 |
| AMD EXPO™ Support | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer | Yes |
| Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature | 89°C |
| OS Support | Windows 11/10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit |
