Description

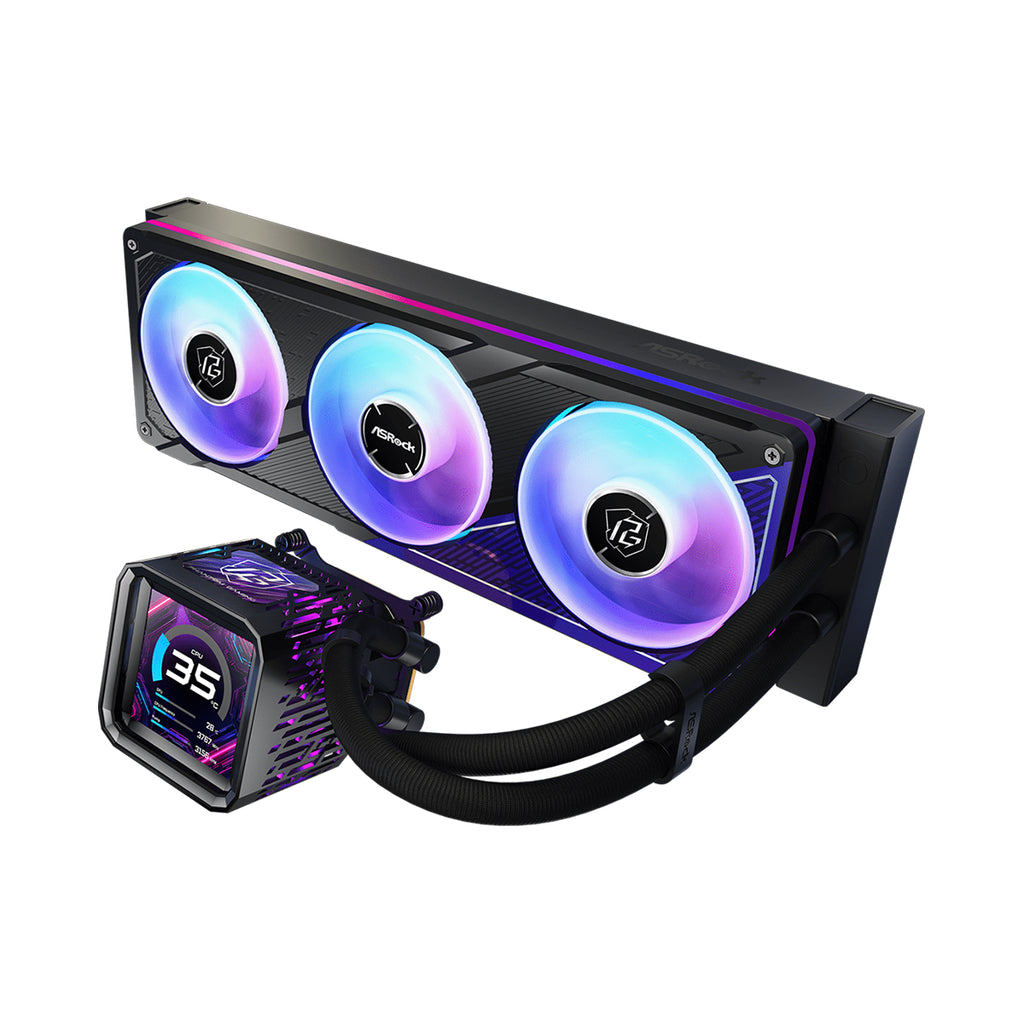

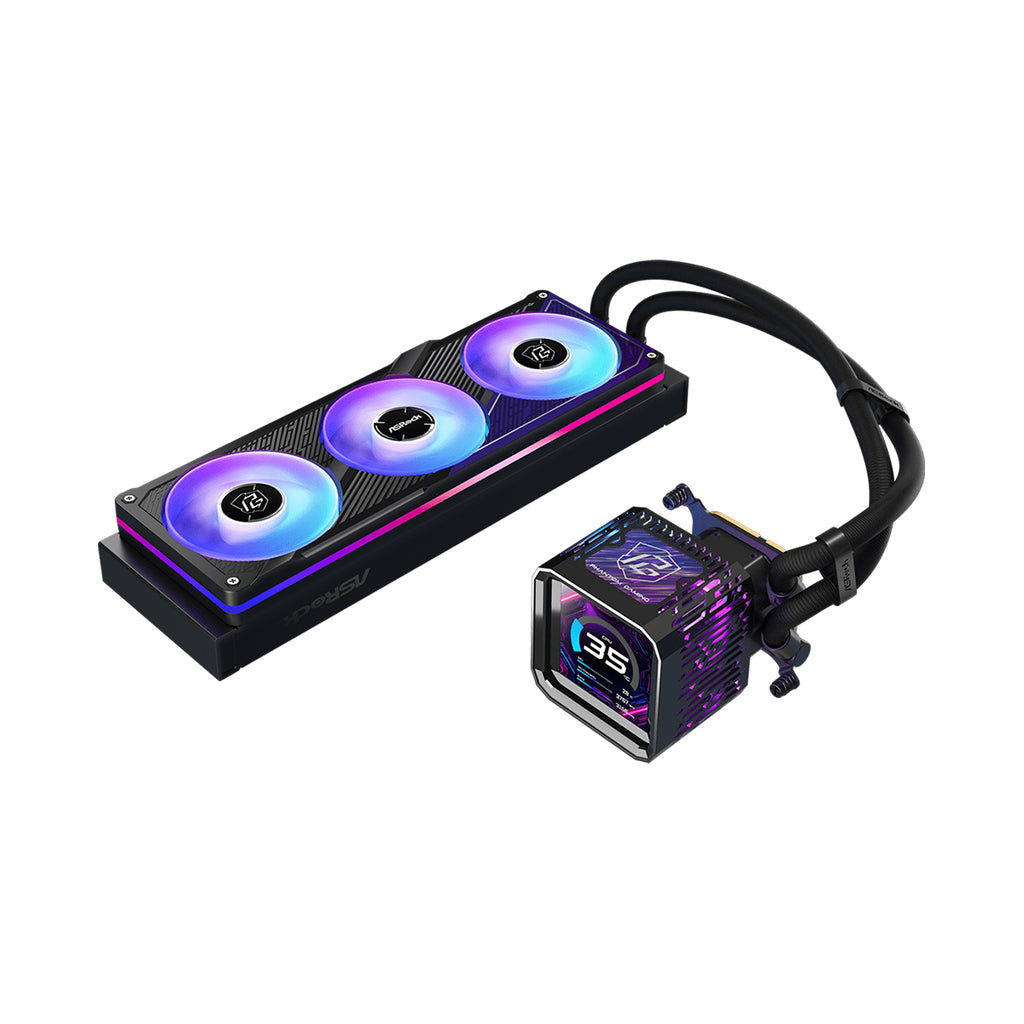

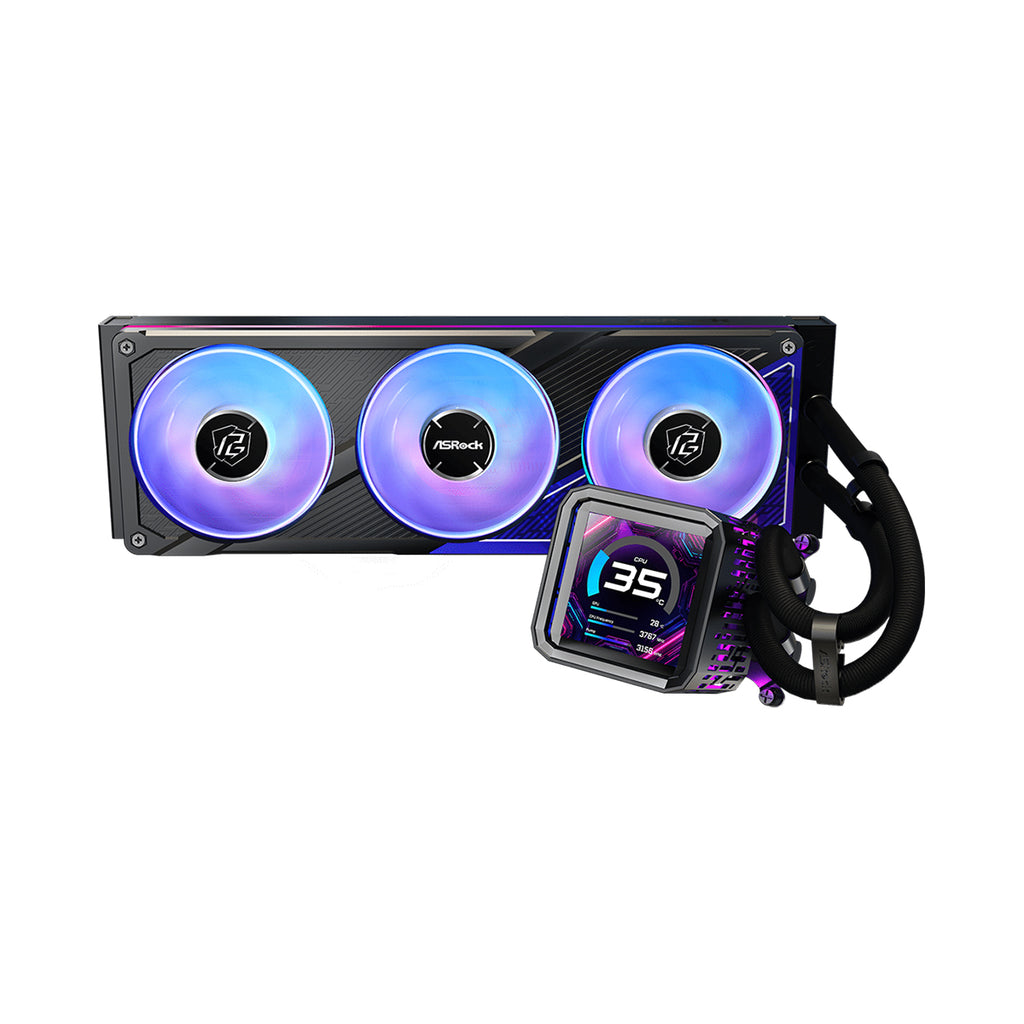

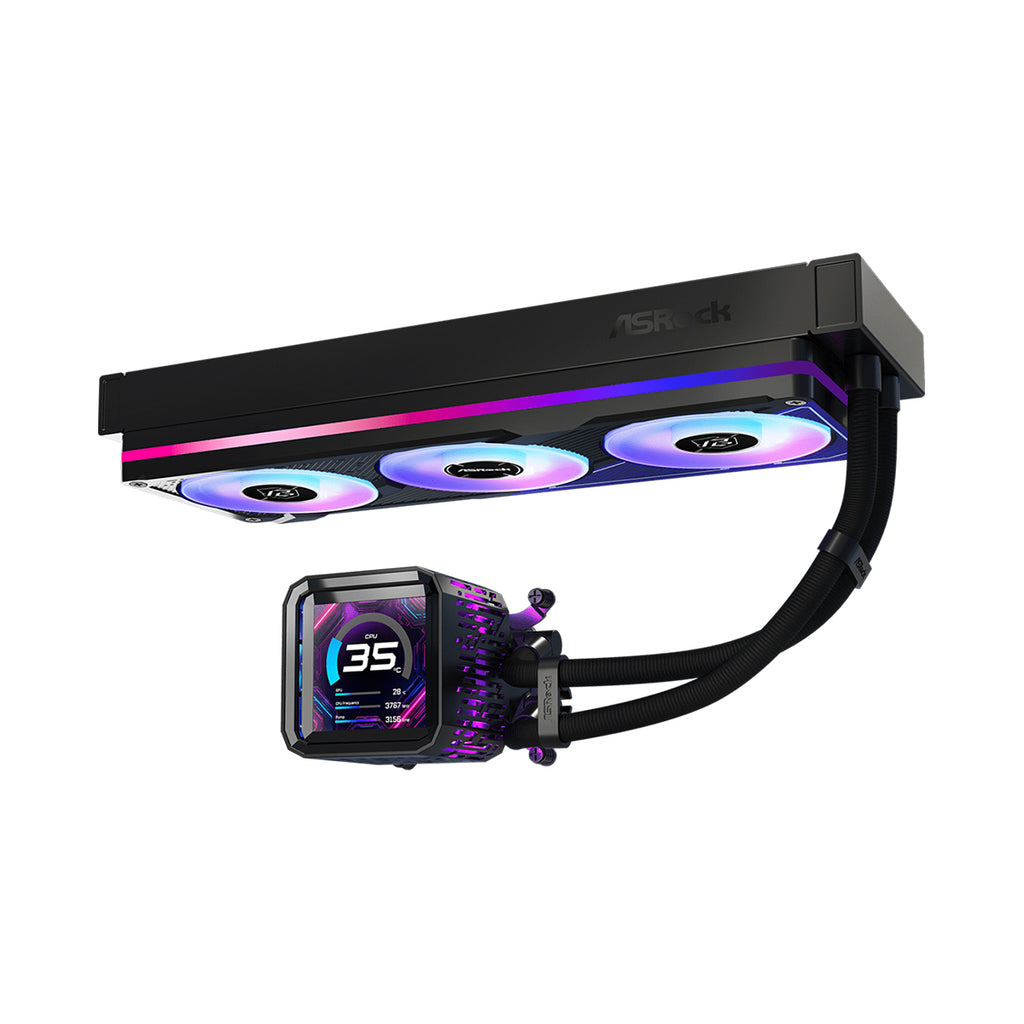

Phantom Gaming 360 LCD
PRODUCT BRIEF:
- 3.4” Full-Color LCD Display
- 3-Phase 6-Slot Pump
- Dual-inlet Cooling Path
- 360° Halo ARGB Fan
- High-performance FDB Fans
- RGB Lighting Ecosystem
- 0dB Silent Cooling
- IIR+EPDM Tubing
- Effortless Installation
- High Conductivity Thermal Grease
Specification:
| Compatibility | |
| AMD | ：AM5, AM4 |
| Intel | ：LGA1851, 1700 |

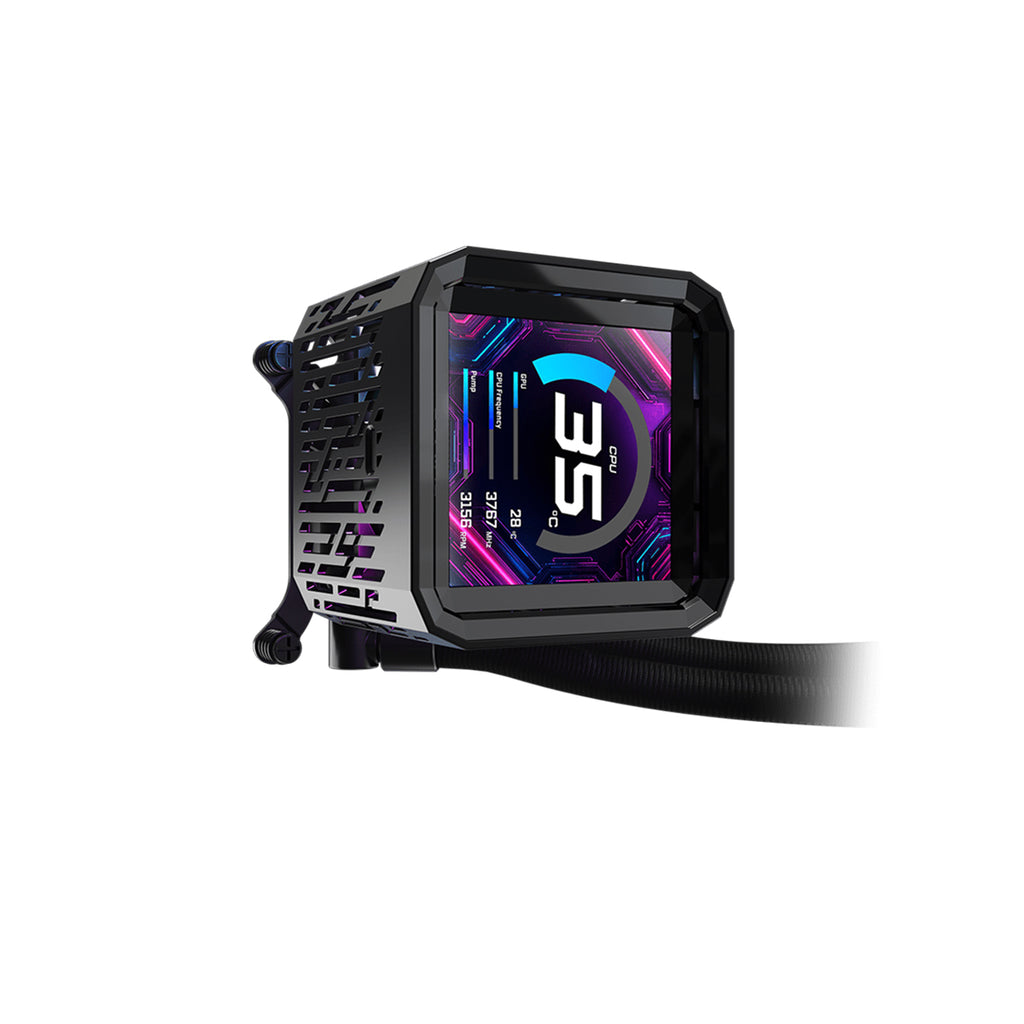

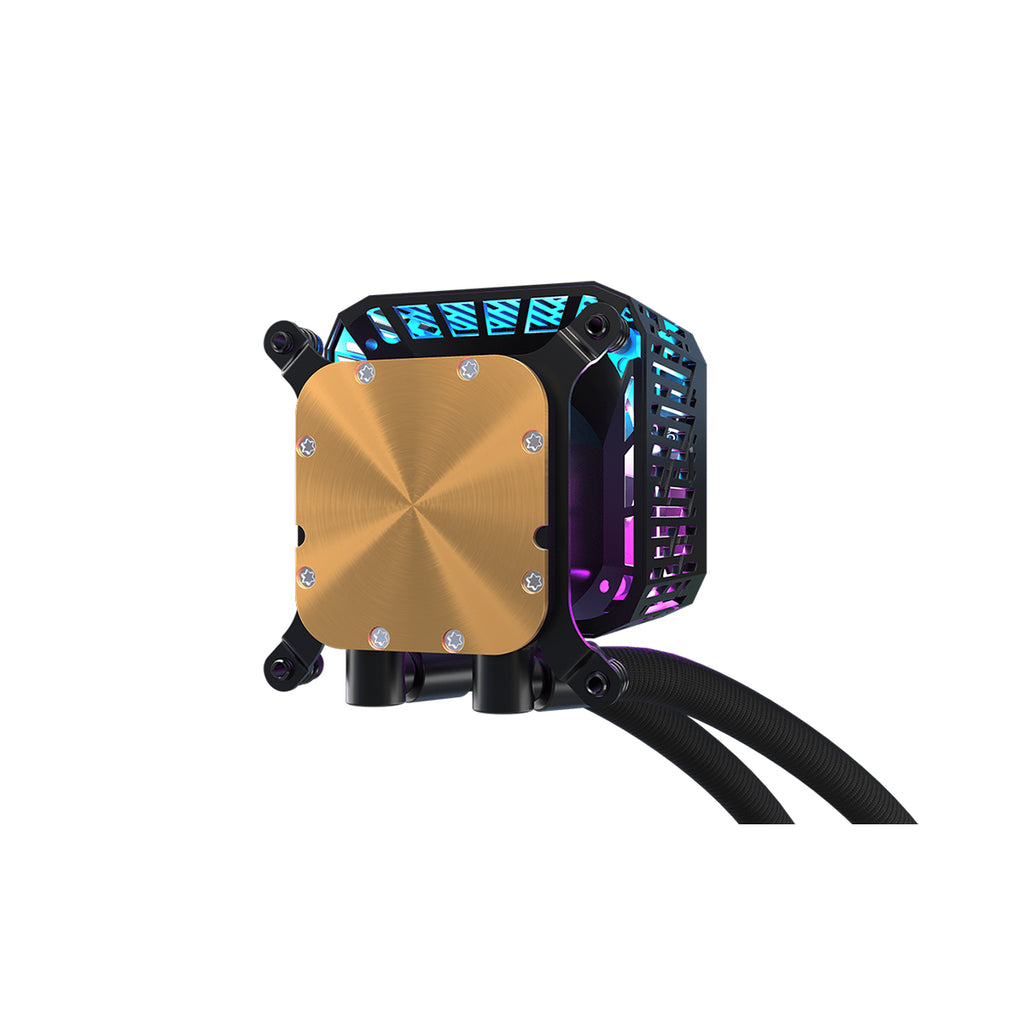

| Water Block | |
| Dimension | ：(L)100.4 x (W)86 x (H)107.6 mm |
| Material (Cold Plate) | ：Copper |
| LEDs | ：ARGB |

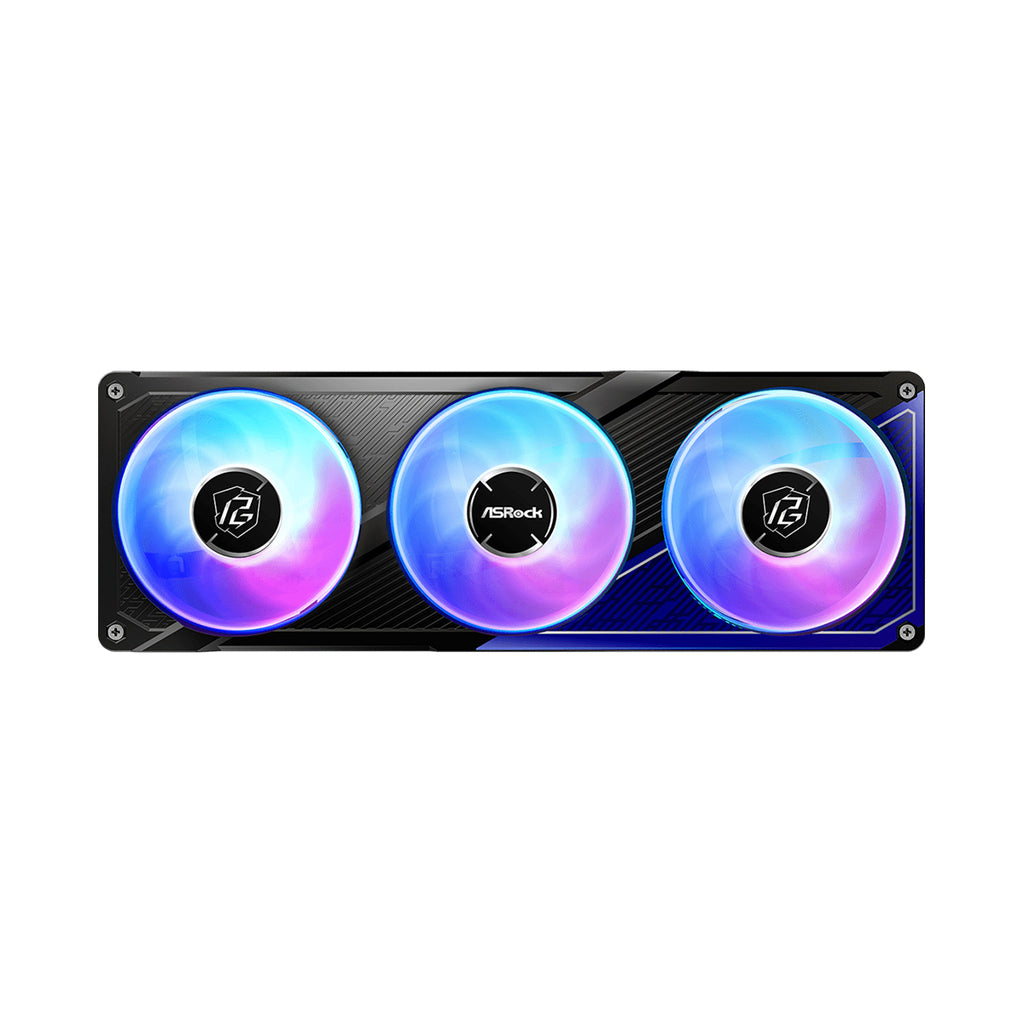

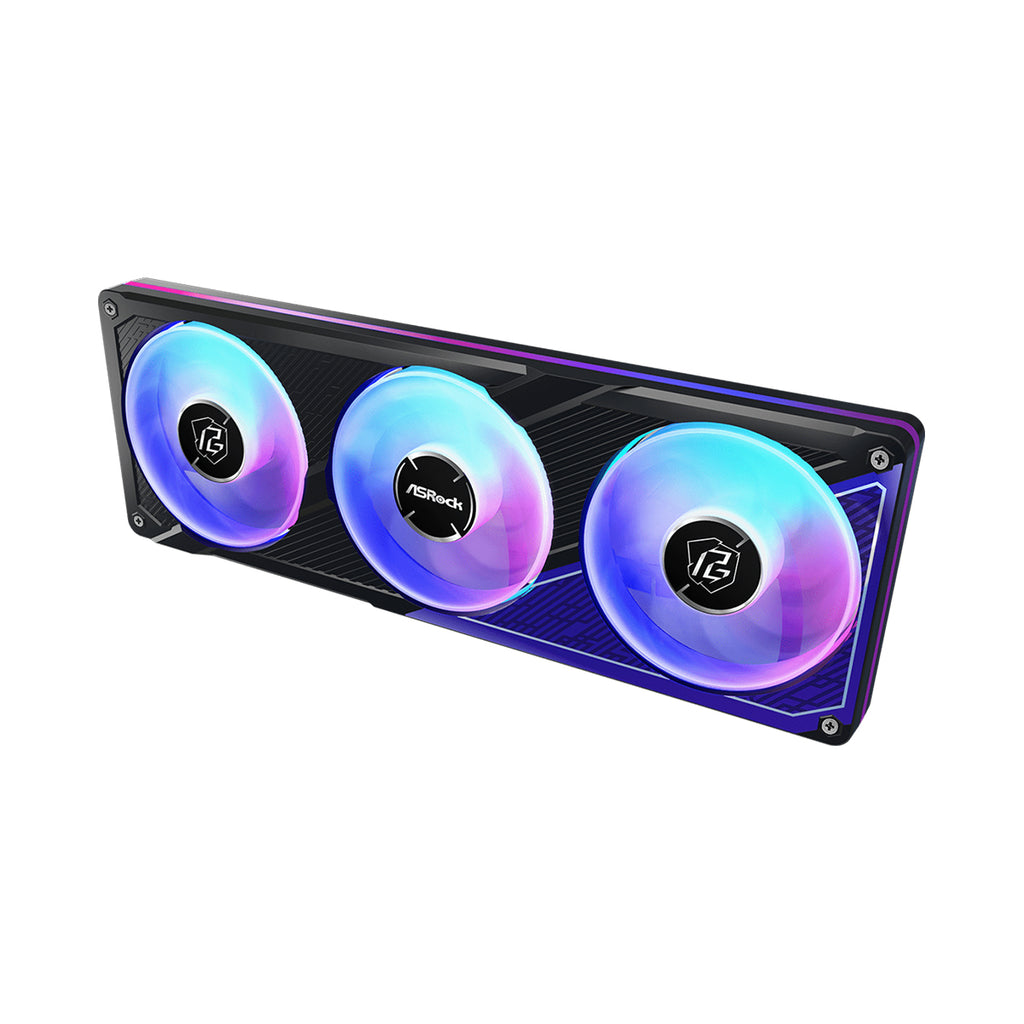

| Radiator | |
| Dimension | ：(L)397 x (W)120 x (H)32 mm |
| Material | ：Aluminum |
| Pump | |
| Speed | ：1200 - 3100 ± 10% RPM |
| Current/ Voltage | ：0.38A/ 12V |
| Connector | ：PWM (4-Pin) |
| VRM Fan | |
| Dimension | ：(L)70 x (W)70 x (H)25 mm |
| Speed | ：(Max.) 3000 ± 10% RPM |
| Connector | ：PWM (4-Pin) |
| Current/ Voltage | ：0.12A/ 12V |

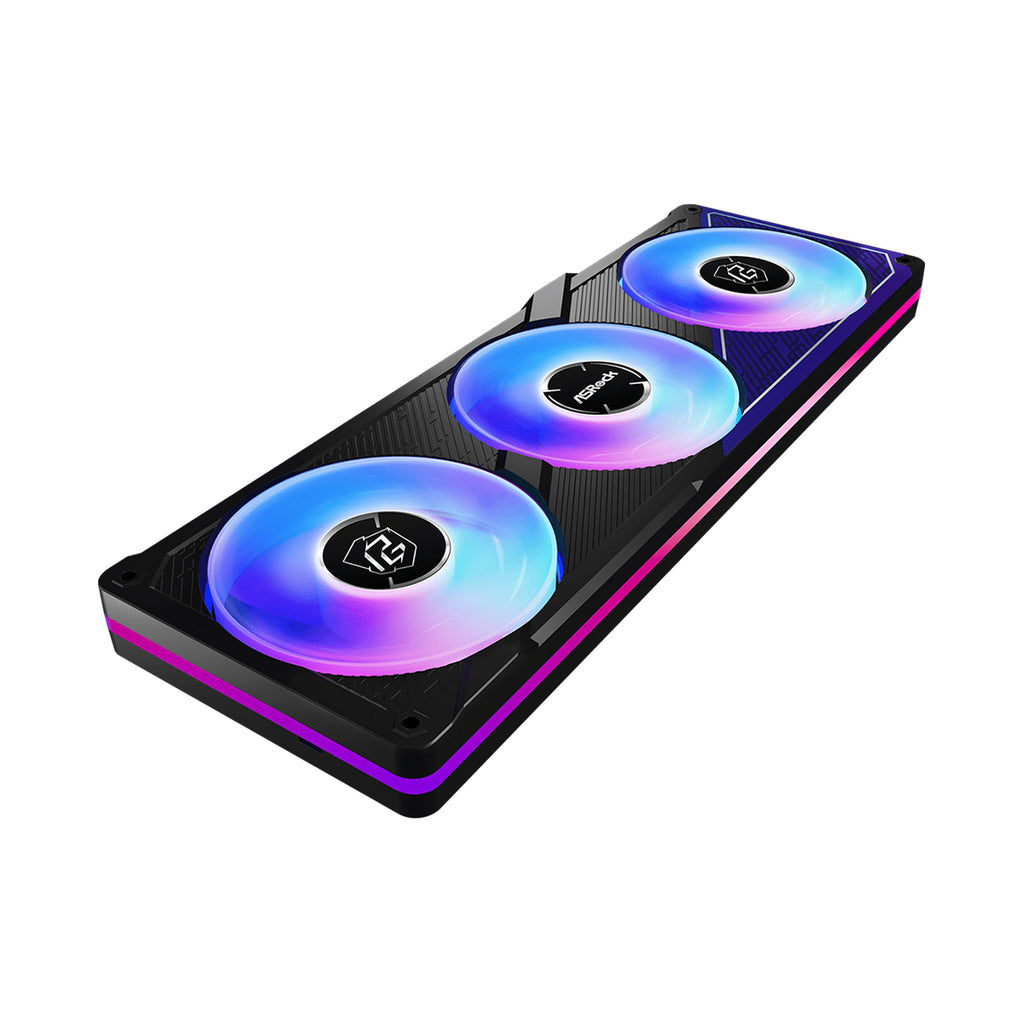

| Radiator Fan | |
| Dimension | ：(L)362 x (W)123 x (H)28 mm |
| Speed | ：0 - 2400 ± 10% RPM |
| Air Flow | ：(Max.) 61.28 CFM |
| Air Pressure | ：(Max.) 3.11 mmH20 |
| Noise | ：(Max.) 31.4 dB(A) |
| Connector | ：PWM (4-Pin) |
| Current/ Voltage | ：0.84A/ 12V |
| Bearing | ：Fluid Dynamic Bearing |
| LEDs | ：ARGB Gen1 |

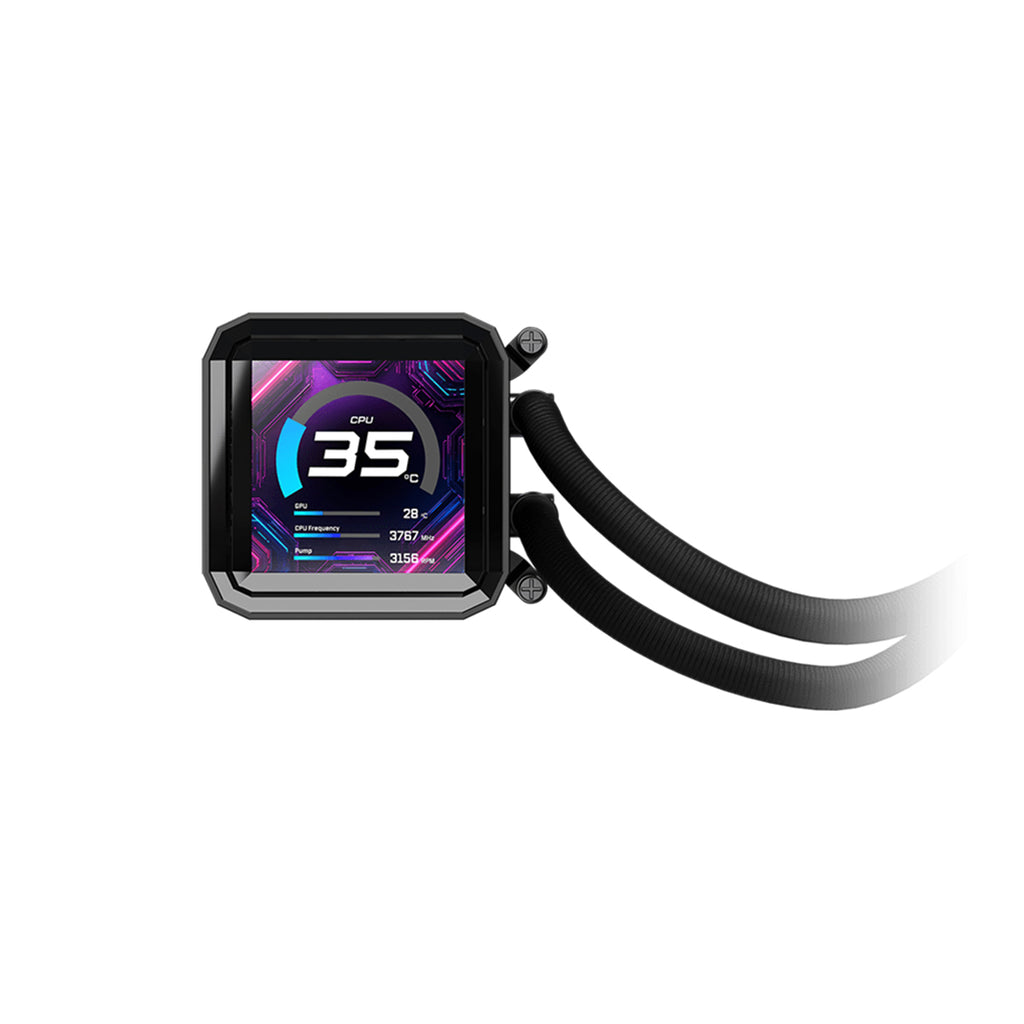

| Screen | |
| Type | ：IPS LCD |
| Size | ：3.4" |
| Resolution | ：480 x 480 |
| Display Colors | ：24-bit |
| Brightness | ：250 cd/m² |
| Refresh Rate | ：60 Hz |
| Frames Per Second (FPS) | ：60 FPS |
| Connector | ：USB Type-C to Motherboard 9-Pin |
| Tubing | |
| Material | ：IIR + EPDM |
| Length | ：450mm |
