Description

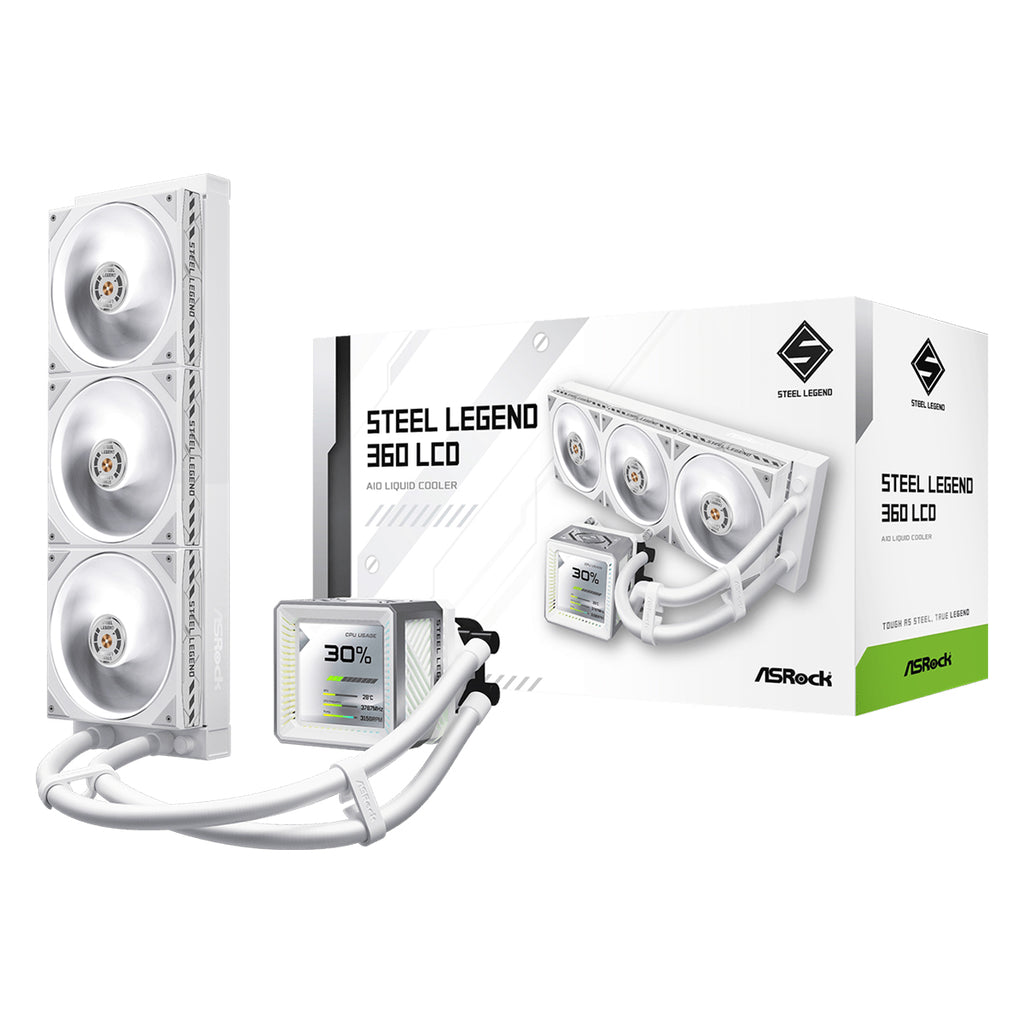

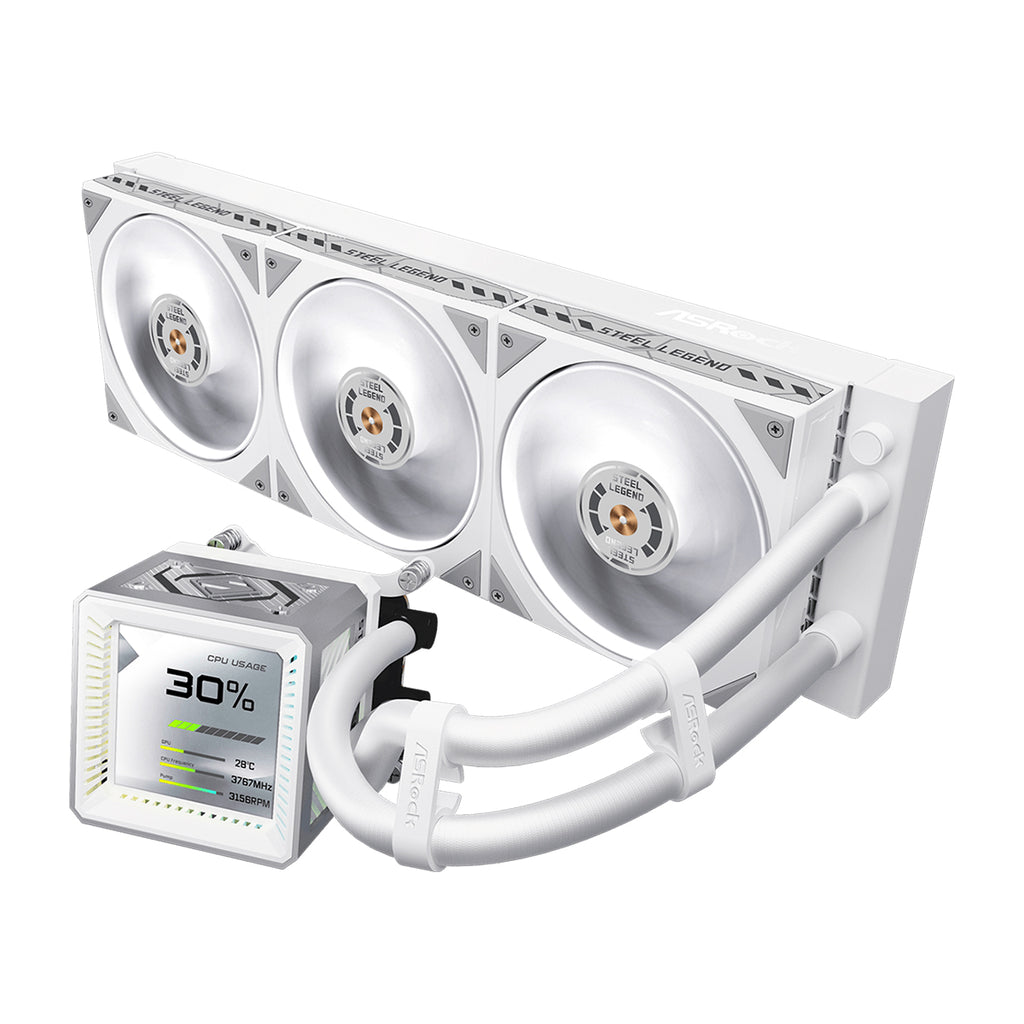

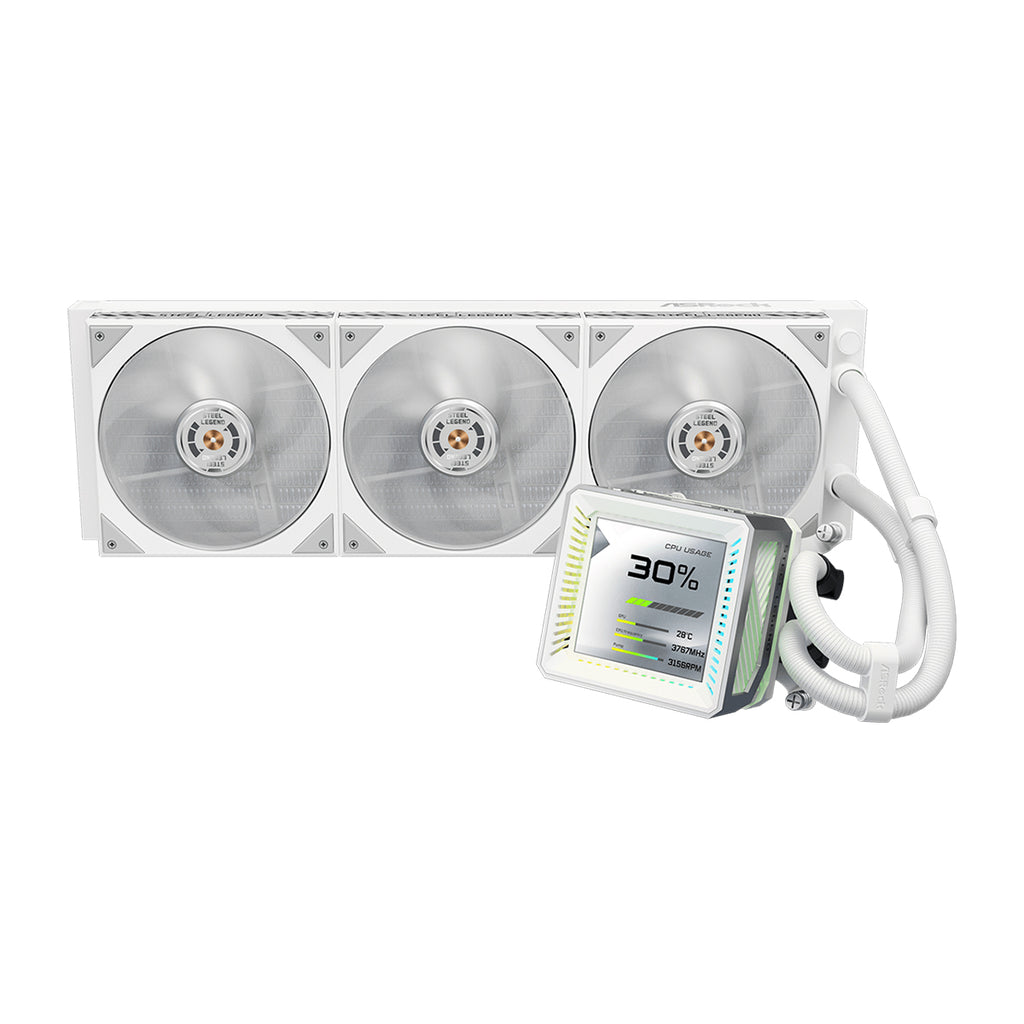

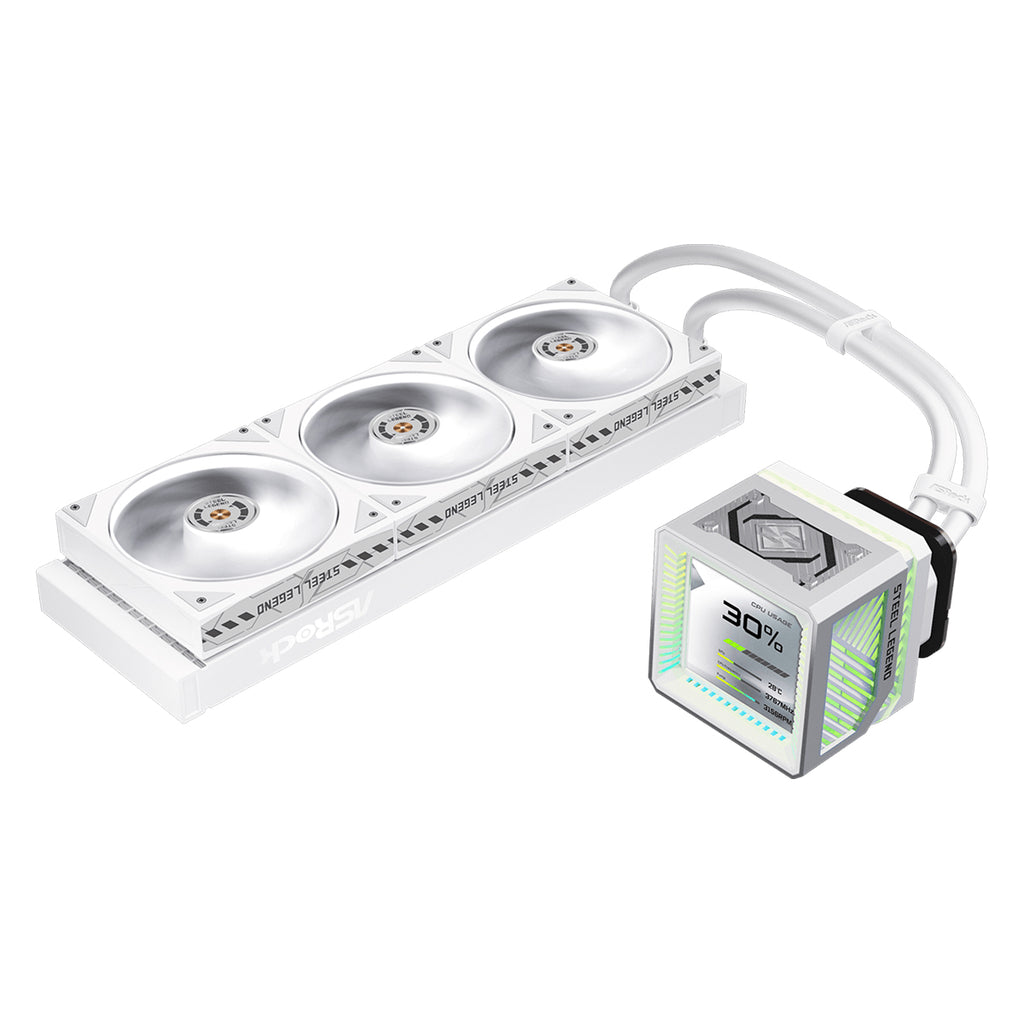

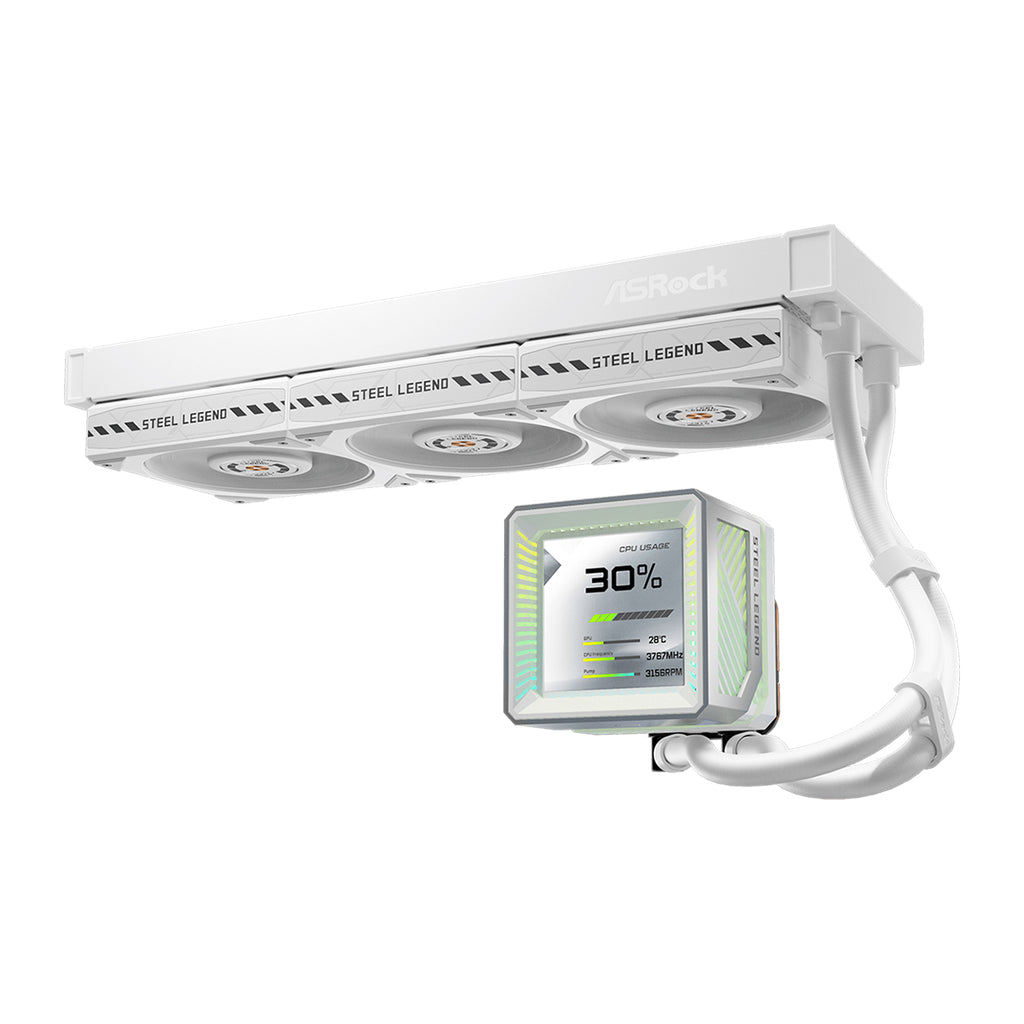

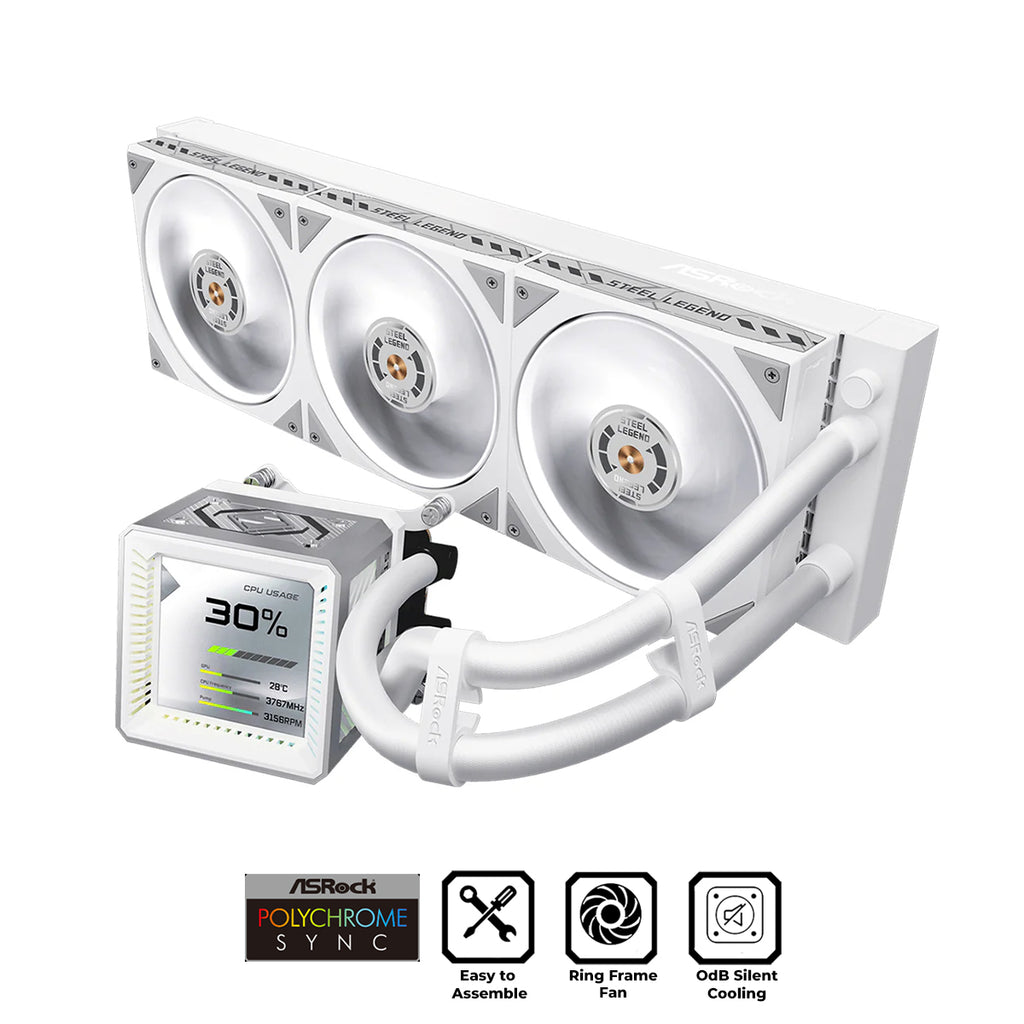

Steel Legend 360 LCD
- 3.4” Full-Color LCD Display
- 3-Phase 6-Slot Pump
- Dual-inlet Cooling Path
- Industrial-grade Dual-ball Bearing
- Aerospace-grade LCP Fan
- RGB Lighting Ecosystem
- 0dB Silent Cooling
- IIR+EPDM Tubing
- Effortless Installation
- High Conductivity Thermal Grease
Specification:
| Model Number | 90-ASLA36-WAAGA5 |
| Compatibility | AMD：AM5, AM4 Intel：LGA1851, 1700 |

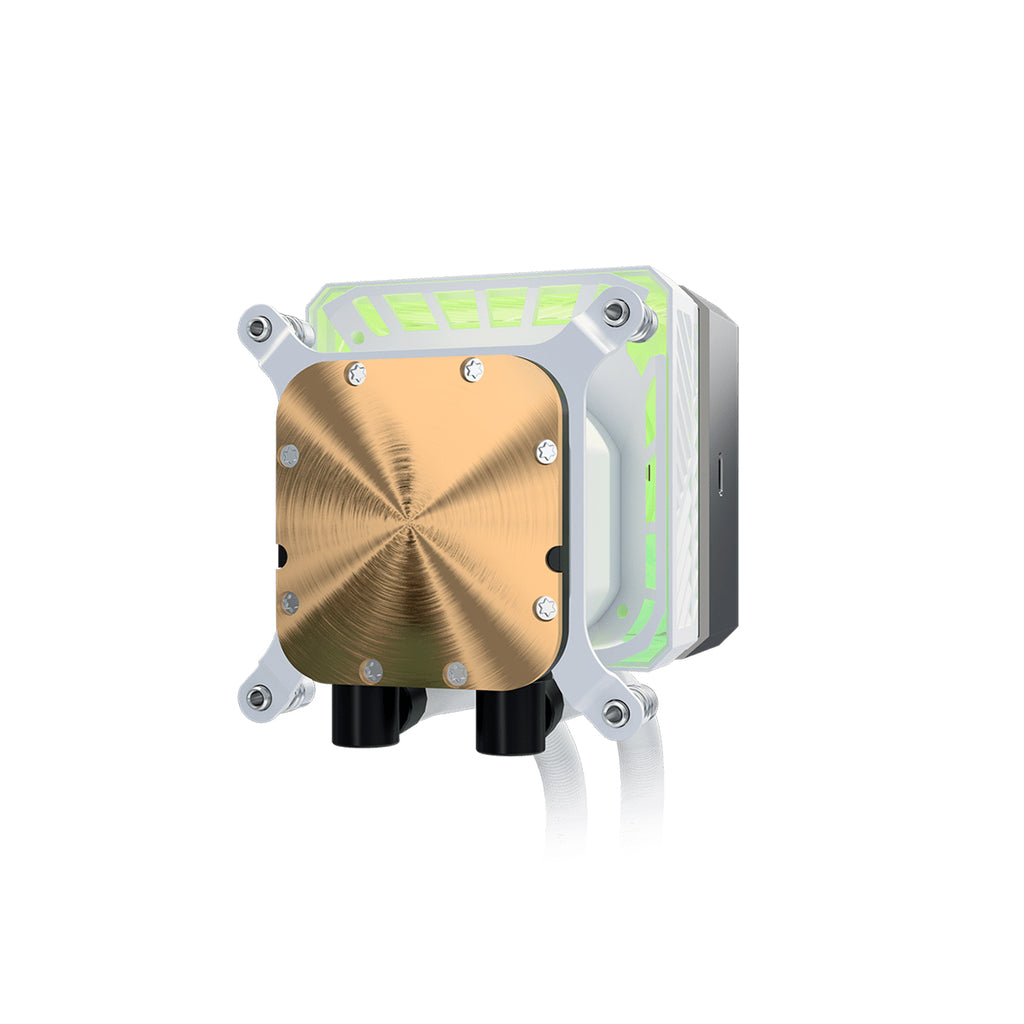

| Water Block | Dimension：(L)100.4 x (W)86 x (H)107.6 mm Material (Cold Plate)：Copper LEDs ：ARGB |
| Radiator | Dimension：(L)397 x (W)120 x (H)27 mm Material：Aluminum |
| Pump | Speed：1200 - 3100 ± 10% RPM Current/ Voltage：0.38A/ 12V Connector：PWM (4-Pin) |
| VRM Fan | Dimension：(L)70 x (W)70 x (H)25 mm Speed：(Max.) 3000 ± 10% RPM Connector：PWM (4-Pin) Current/ Voltage：0.12A/ 12V |

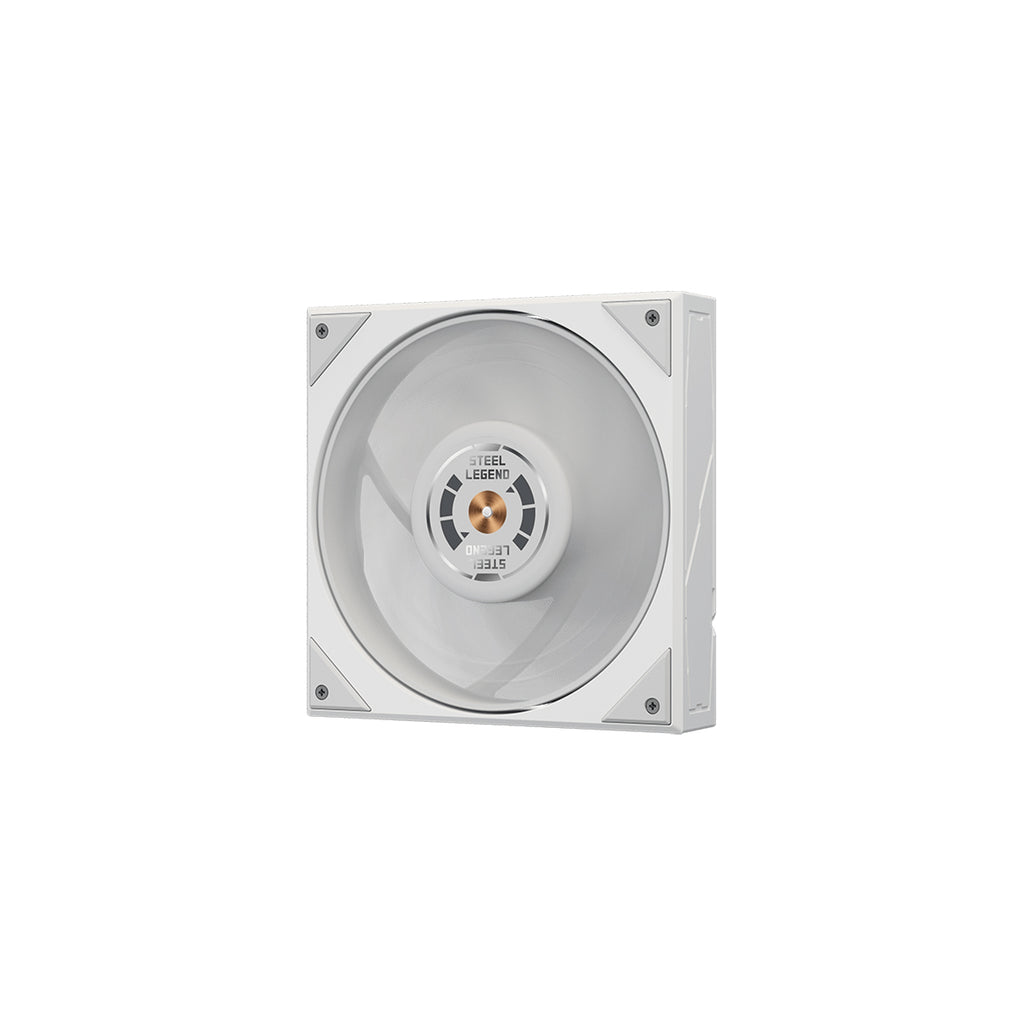

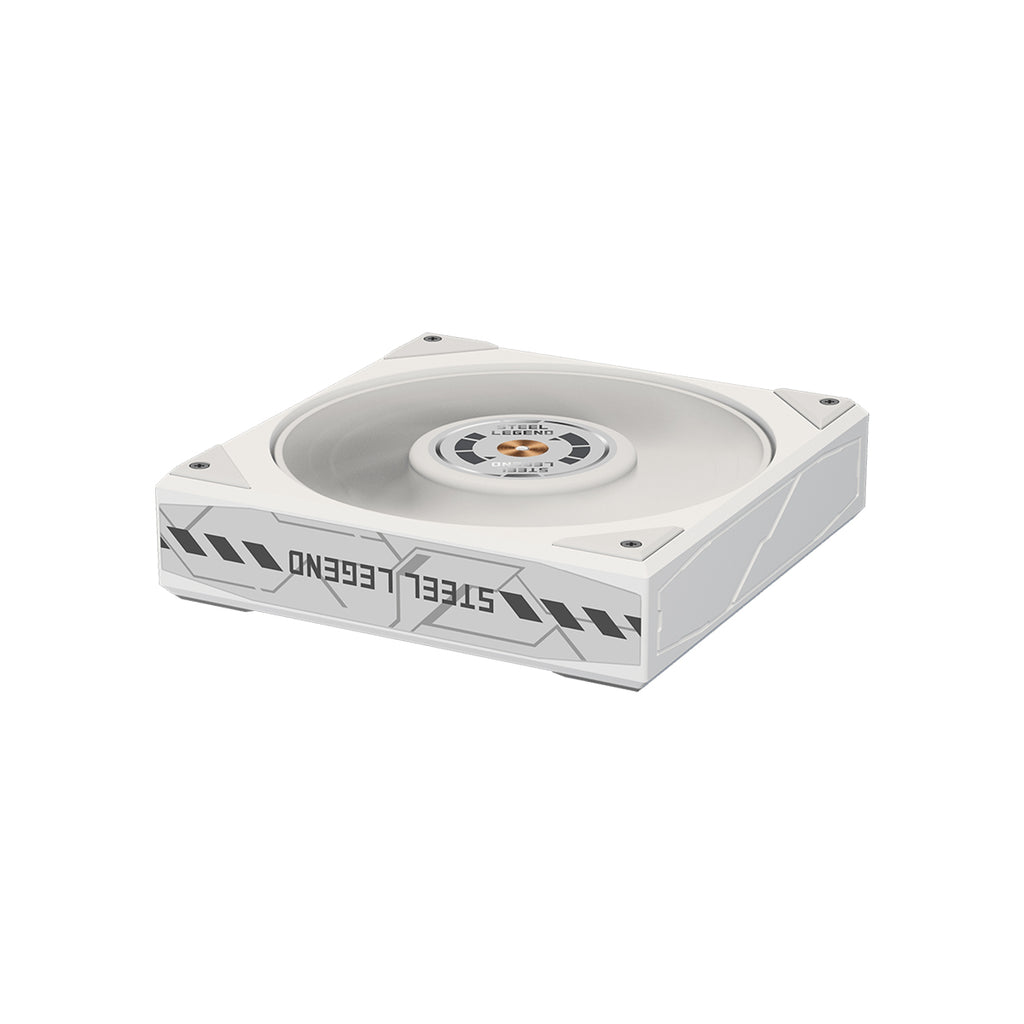

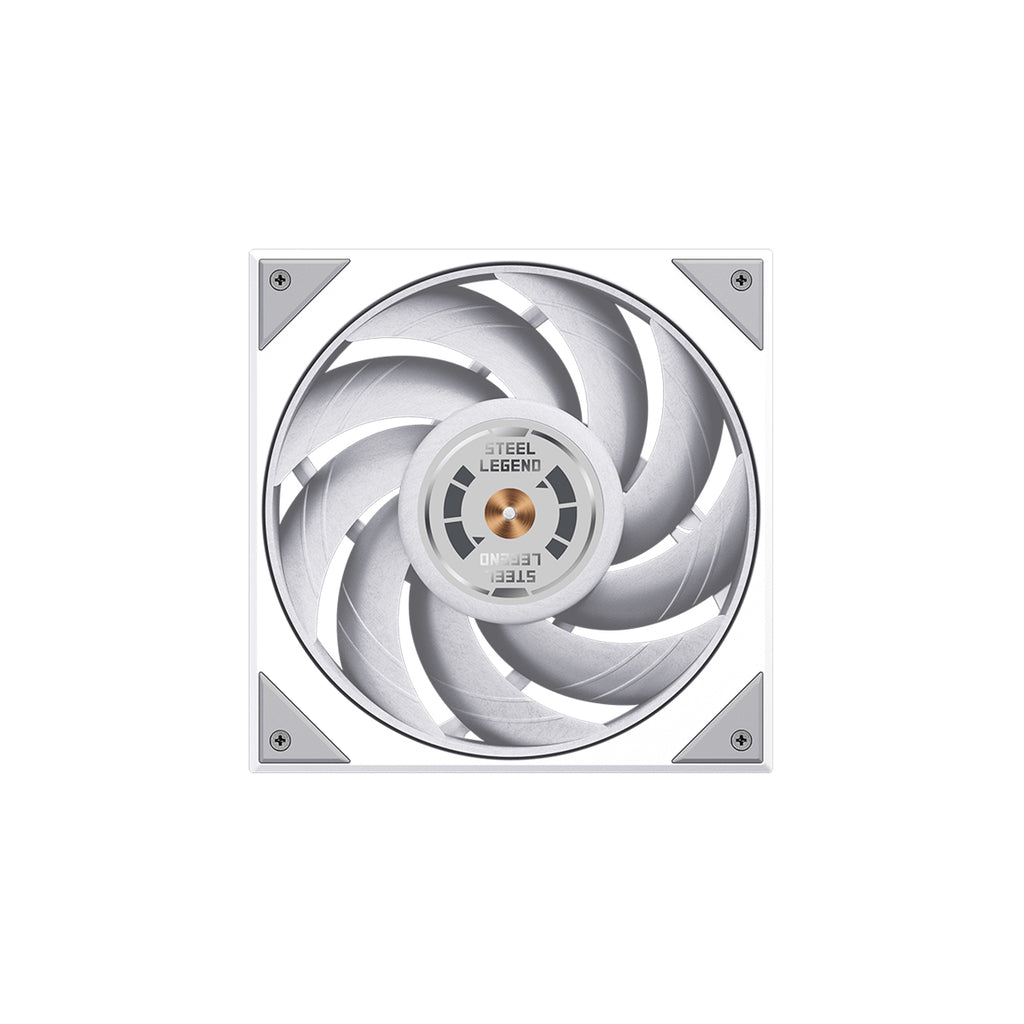

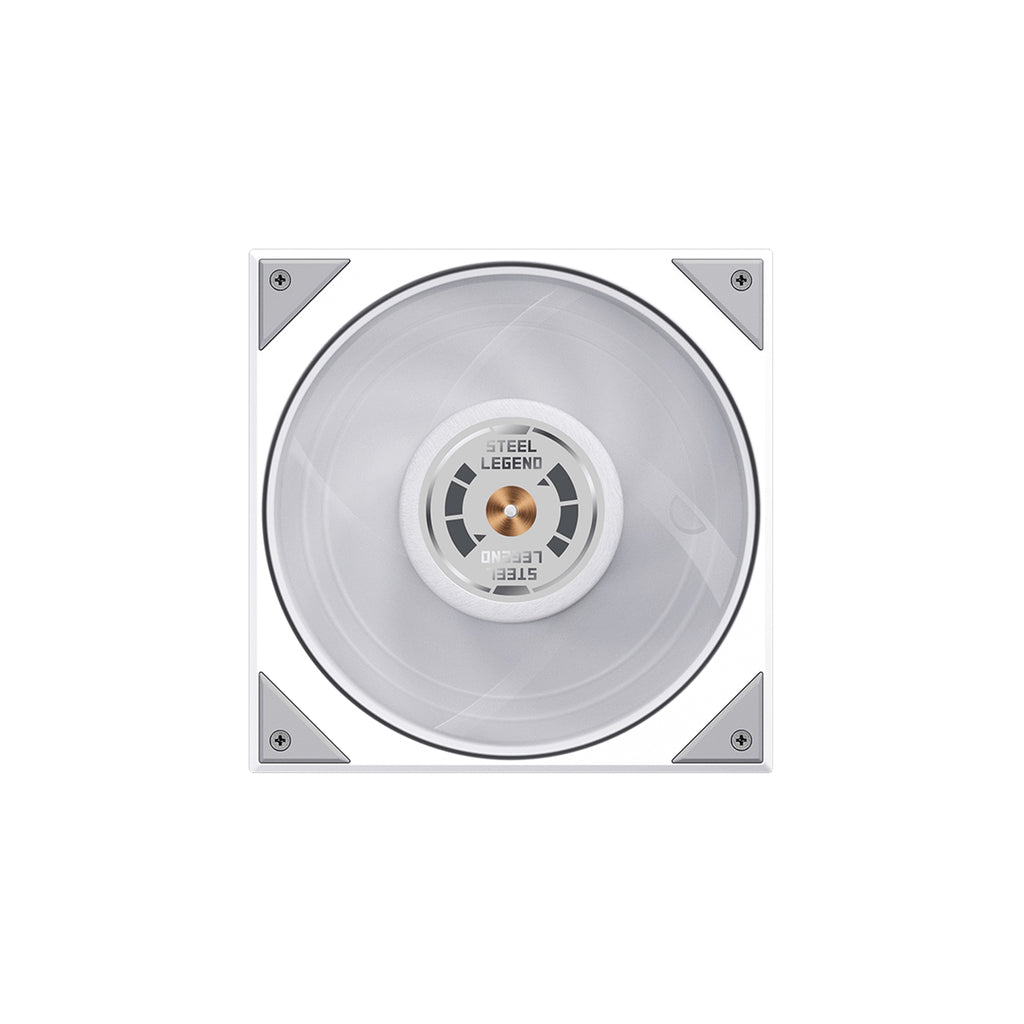

| Radiator Fan | Dimension：(L)120 x (W)120 x (H)28 mm Speed：0 - 2500 ± 10% RPM Air Flow：(Max.) 76.7 CFM Air Pressure：(Max.) 4.16 mmH20 Noise：(Max.) 38.3 dB(A) Connector：PWM (4-Pin) Current/ Voltage：0.30A/ 12V Bearing：Dual-ball Bearing |

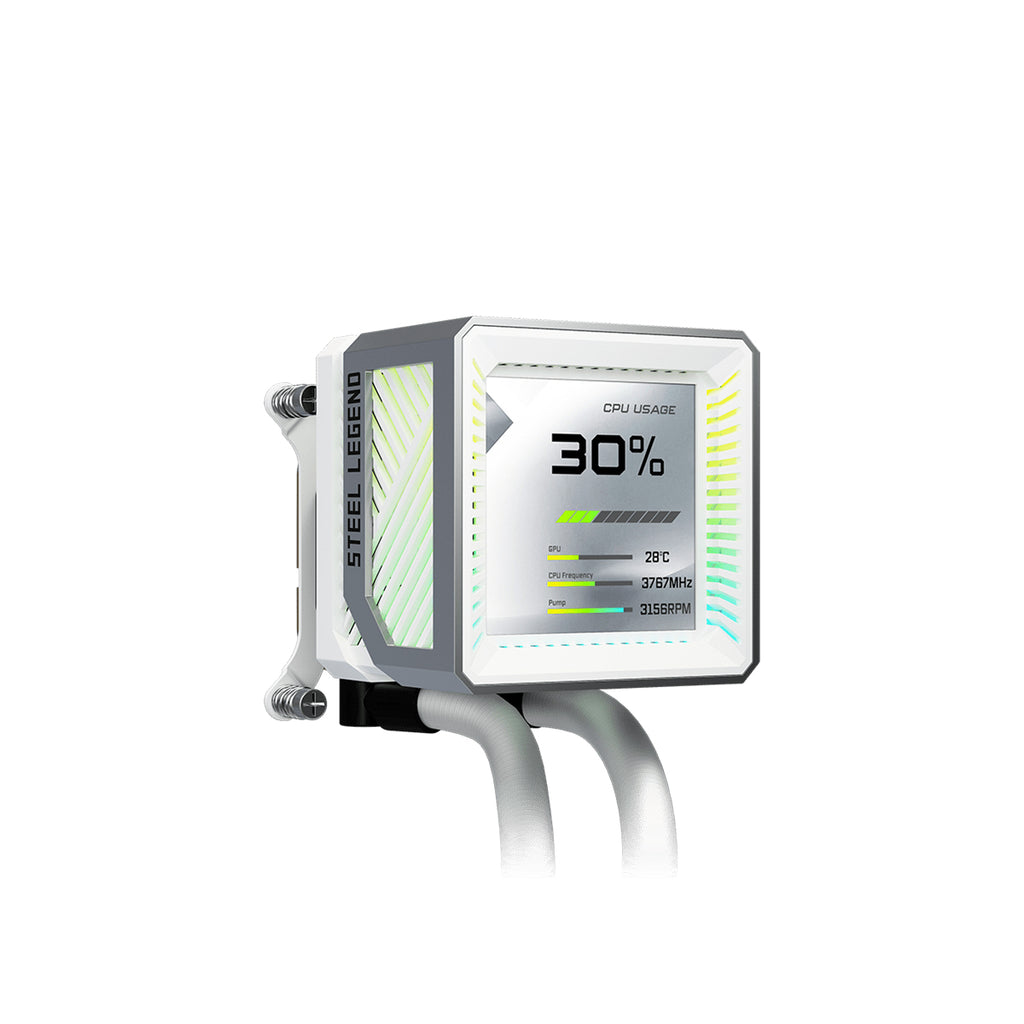

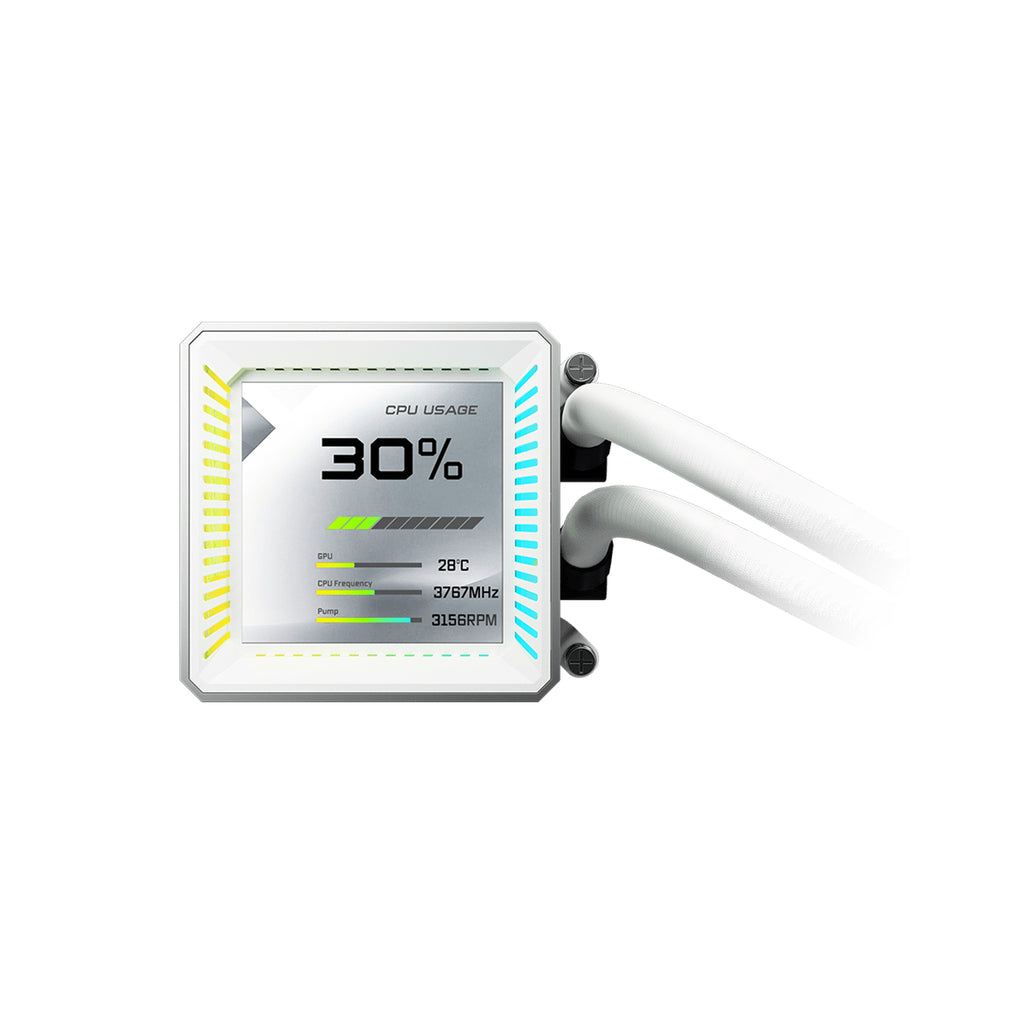

| Screen | Type：IPS LCD Size：3.4” Resolution：480 x 480 Display Color：24-bit Brightness：250 cd/m² Refresh Rate：60 Hz Frames Per Second (FPS)：60 FPS Connector：USB Type-C to Motherboard 9-Pin |
| Tubing | Material：IIR + EPDM Length：450mm |
