Description
| General Information | |
|---|---|
| Model Number | 90-ASLA36-BAAGA5 |
| Compatibility | AMD: AM5, AM4 Intel: LGA1851, 1700 |

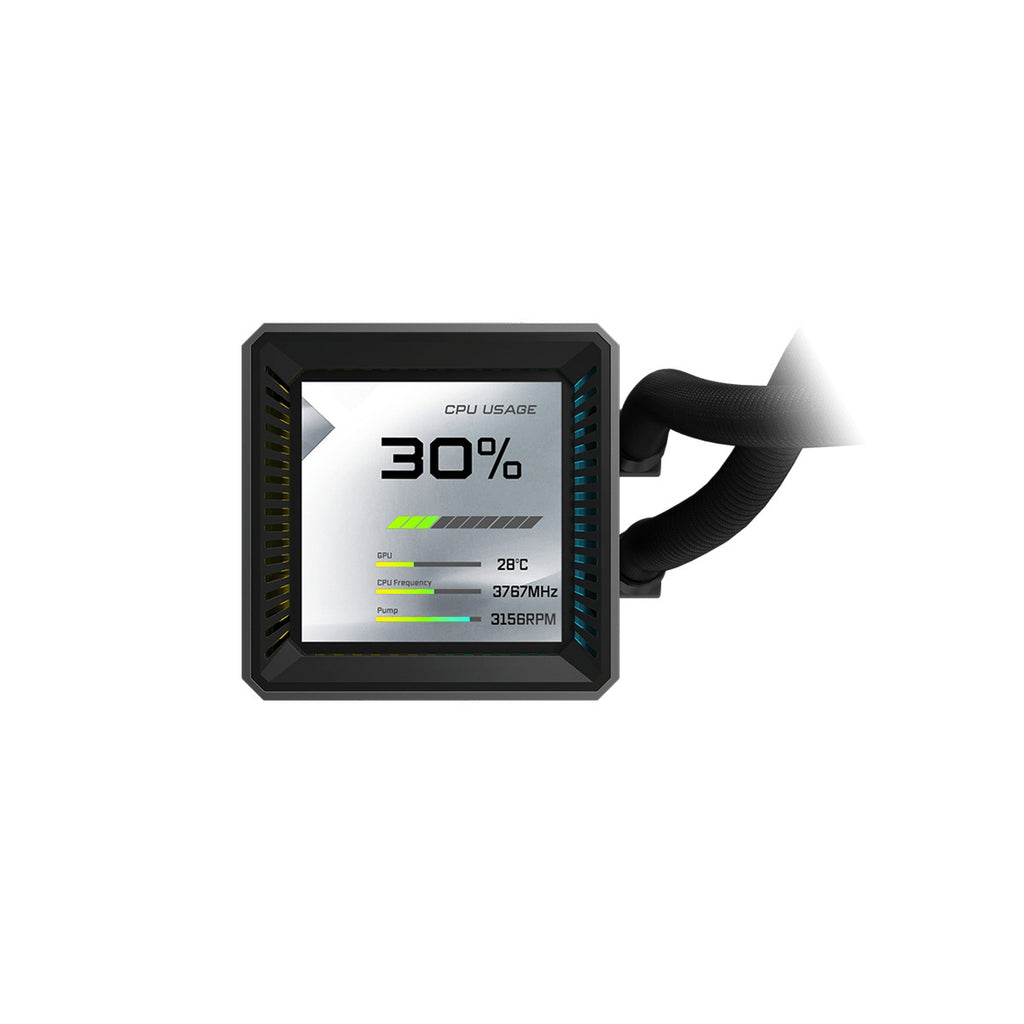

| Display Module | |
| Screen Type | 3.4” IPS LCD |
| Resolution / Color | 480 x 480 / 24-bit |
| Performance | Refresh Rate: 60 Hz | Frames Per Second: 60 FPS |
| Brightness | 250 cd/m² |
| Connector | USB Type-C to Motherboard 9-Pin |
| Cooling Components | |

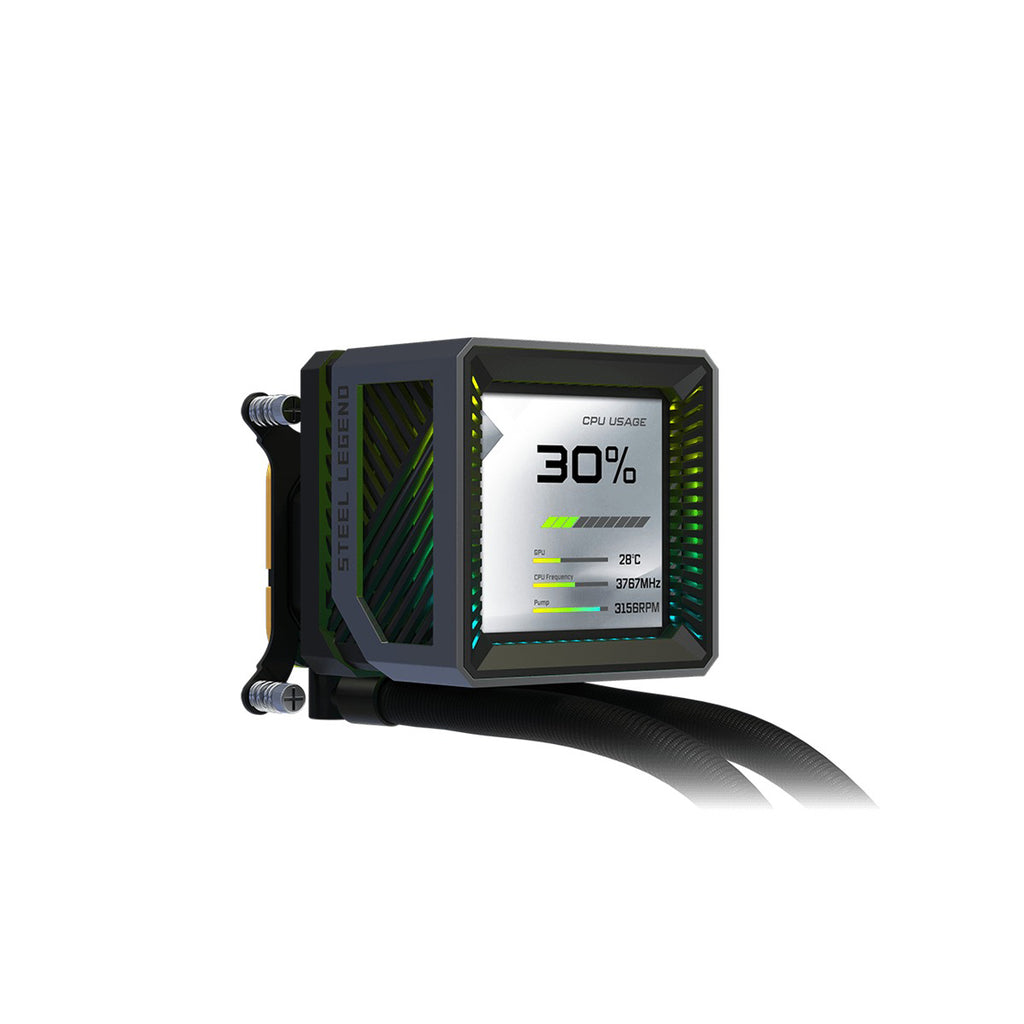

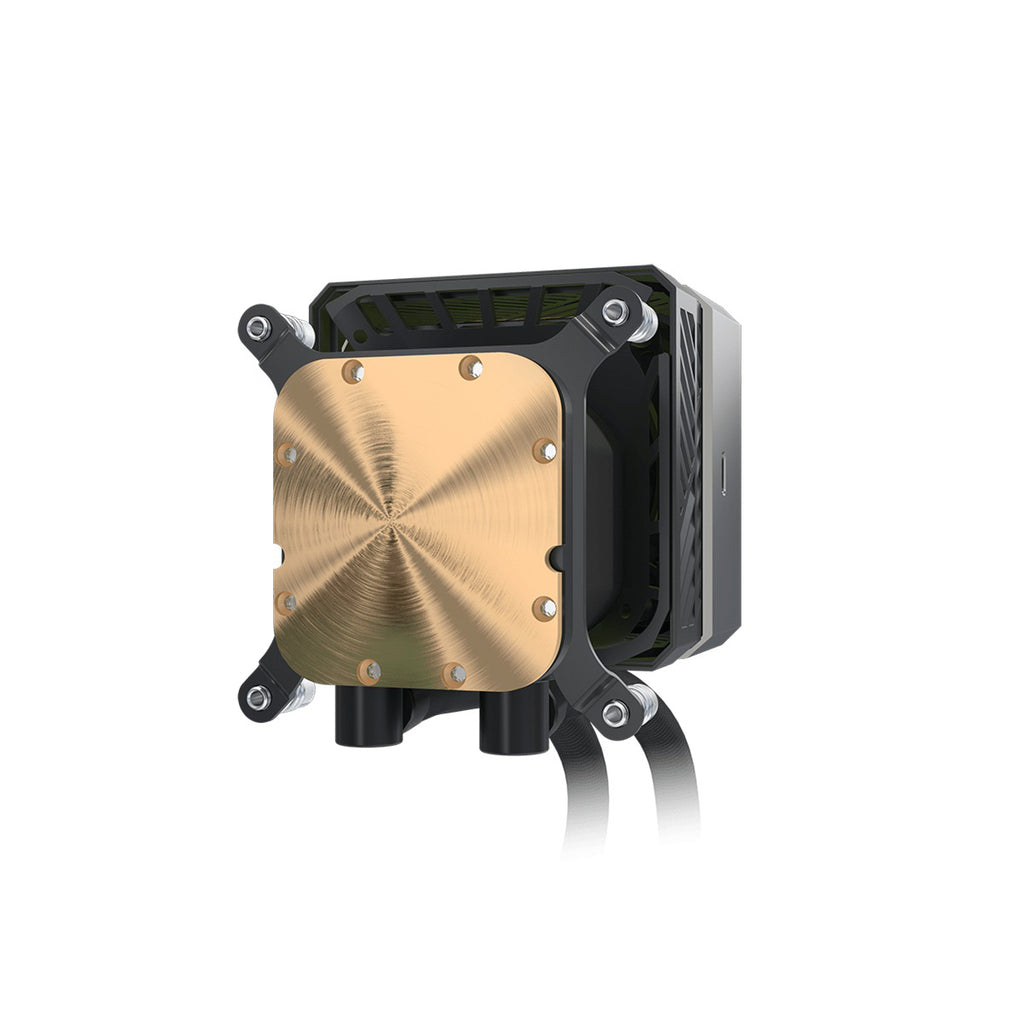

| Water Block | (L)100.4 x (W)86 x (H)107.6 mm | Copper Cold Plate | ARGB LEDs |
| Pump | 1200 - 3100 ± 10% RPM | 0.38A / 12V | PWM (4-Pin) |
| Radiator | (L)397 x (W)120 x (H)27 mm | Aluminum |
| Tubing | Material: IIR + EPDM | Length: 450mm |
| Fans | |

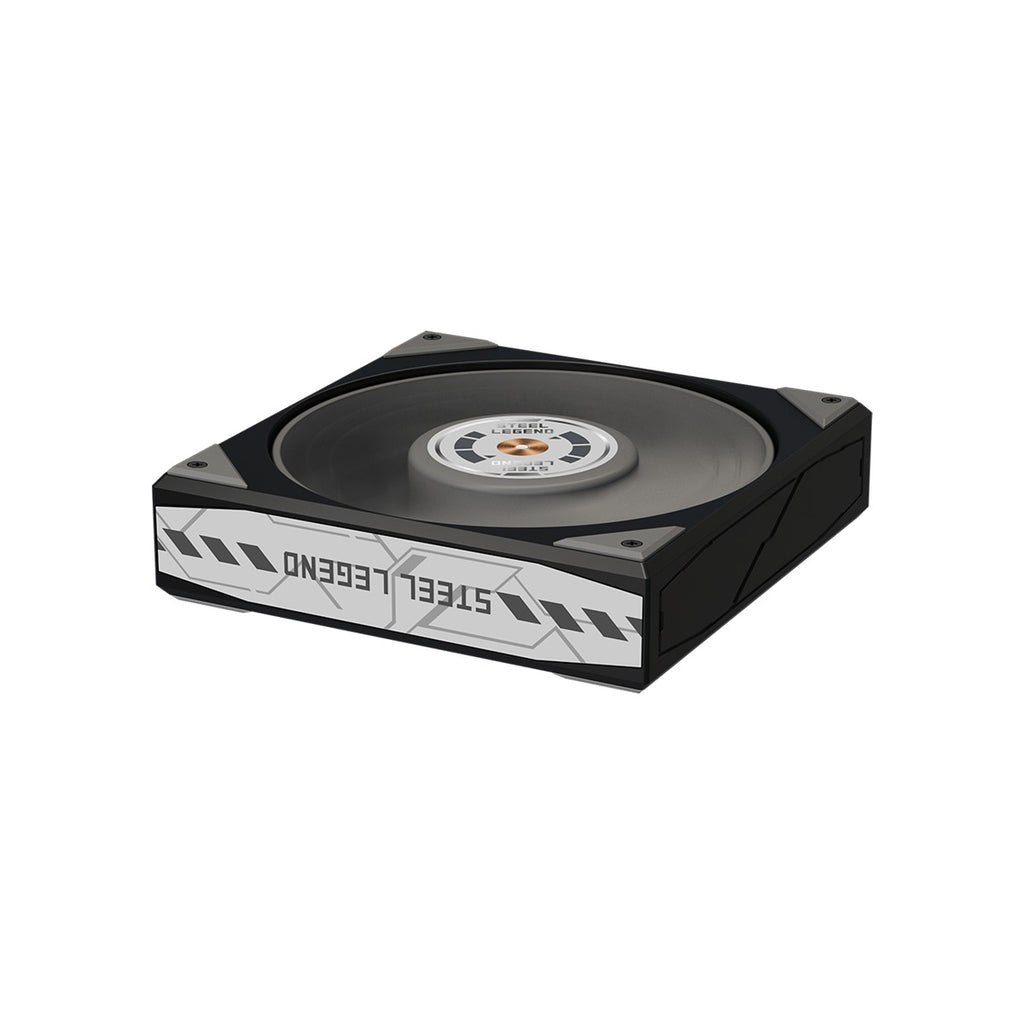

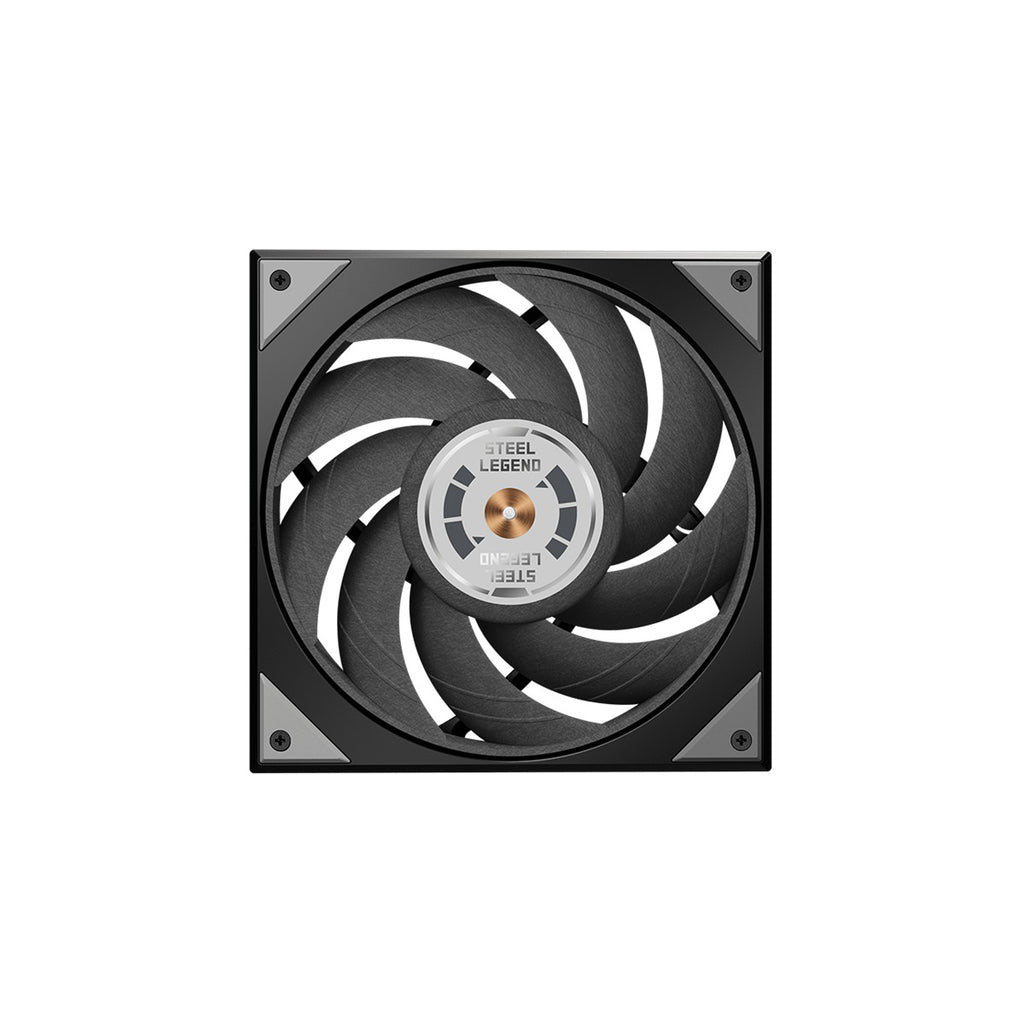

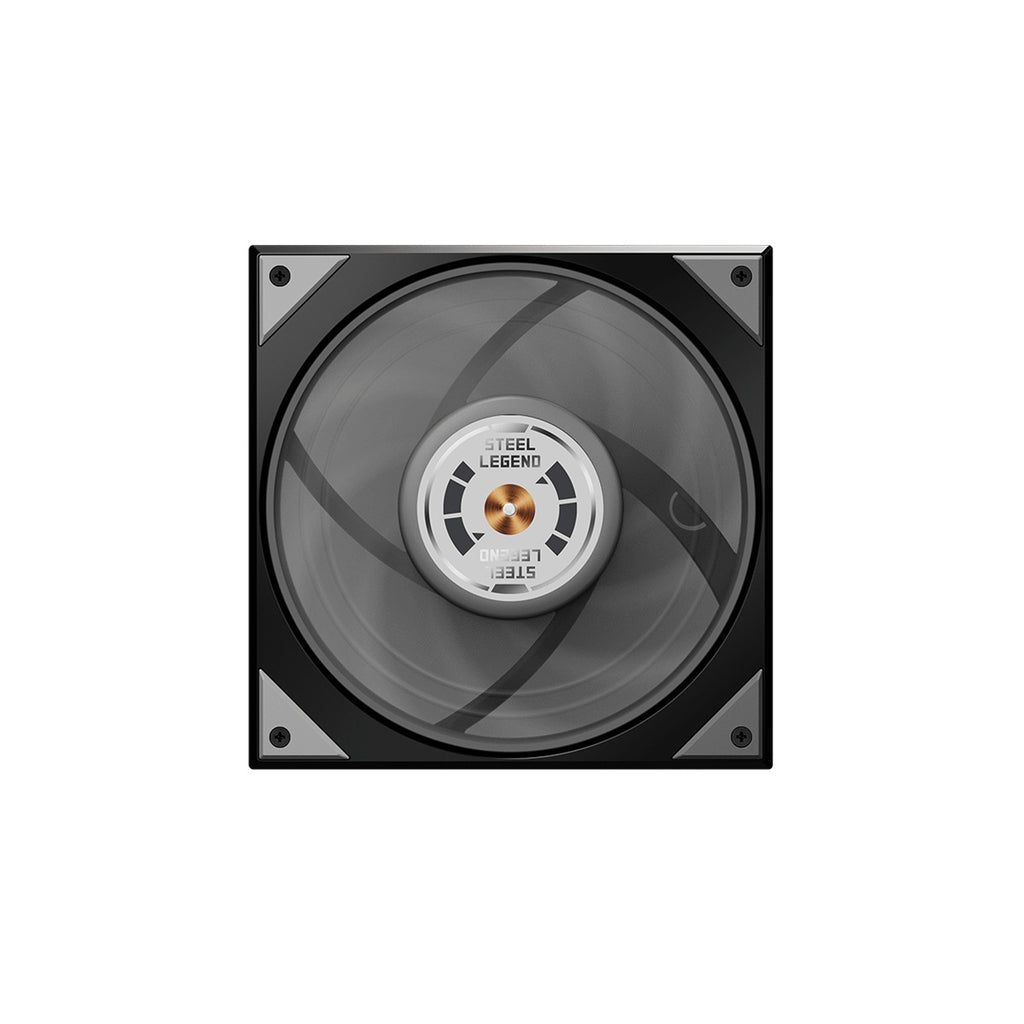

| Radiator Fan | Dimension: (L)120 x (W)120 x (H)28 mm Speed: 0 - 2500 ± 10% RPM Air Flow: (Max.) 76.7 CFM | Air Pressure: (Max.) 4.16 mmH20 Noise: (Max.) 38.3 dB(A) | Dual-ball Bearing |
| VRM Fan | (L)70 x (W)70 x (H)25 mm | Speed: (Max.) 3000 ± 10% RPM | 0.12A / 12V |
