Description
- PROCESSOR: AMD Ryzen™ 9 5900HS
- DISPLAY: 14 WQHD (2560 x 1440) 16:9 120Hz
- MEMORY: 8GB DDR4 on board + 8GB DDR4-3200 SO-DIMM
- STORAGE: 512GB M.2 NVMe™ PCIe® 3.0 SSD
- GPU: NVIDIA® GeForce RTX™ 3060 Laptop GPU
- OS: Win 10 Home
- COLOR: Eclipse Gray
SPECIFICATIONS
| Model Name | GA401QM-K2284T |
| Marketing Name | ROG Zephyrus G14 |
| Color | Eclipse Gray |
| Dimension (W x D x H) | 32.4 x 22.2 x 1.79 ~ 1.79 cm |
| Weight | 1.60 Kg |
| Processor | AMD Ryzen™ 9 5900HS Processor 3.1 GHz (16M Cache, up to 4.5 GHz) |
| Chipset | N/A |
| Discrete/Optimus | Optimus |
| Graphic | NVIDIA® GeForce RTX™ 3060 Laptop GPU |
| Graphic Wattage | With ROG Boost up to 1382MHz at 60W (80W with Dynamic Boost) |
| Graphic Memory | 6GB GDDR6 |
| IGPU | AMD Radeon™ Graphics |
| Panel Size | 14-inch |
| Resolution | WQHD (2560 x 1440) 16:9 |
| Refresh Rate | 120Hz |
| Viewing Angle | 170/170 |
| Panel Tech | IPS-level |
| Brightness | 300 |
| Contrast | 1000:1 |
| DCI-P3 % | 100% |
| Anti glare | anti-glare display |
| Adaptive-Sync technology | Adaptive-Sync |
| Pantone Validated | Yes |
| Total System Memory | 8GB DDR4 on board + 8GB DDR4-3200 SO-DIMM |
| On board memory | 8GB DDR4 on board |
| Memory Slot | 1x SO-DIMM slot |
| DIMM Memory | 8GB DDR4-3200 SO-DIMM |
| Memory Max. | 24GB |
| System Storage Installed | 512GB M.2 NVMe™ PCIe® 3.0 SSD |
| M.2 slots support either SATA or NVMe | 1 |
| M.2 SSD Support List | 1TB M.2 NVMe PCIe 3.0 SSD 512GB M.2 NVMe PCIe 3.0 SSD |
| Expansion Slot (includes used) | 1x DDR4 SO-DIMM slot 1x PCIe |
| LAN | N/A |
| Wi-Fi/Bluetooth | Wi-Fi 6(802.11ax)+Bluetooth 5.1 (Dual band) 2*2 (*BT version may change with OS upgrades.) |

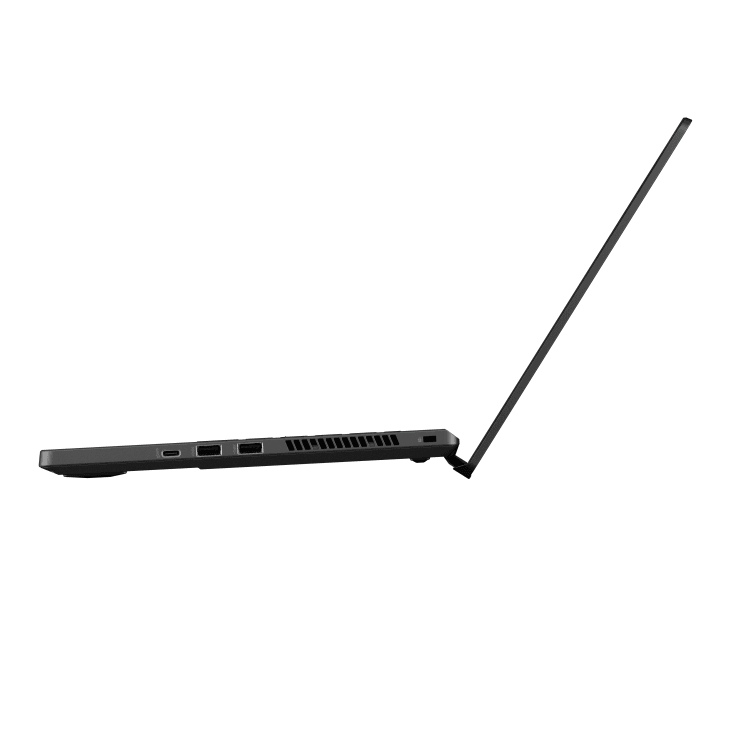

| I/O Ports | 1x USB 3.2 Gen 2 Type-C 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC 2x USB 3.2 Gen 1 Type-A//1x 3.5mm Combo Audio Jack |
| Thunderbolt | N/A |
| Display output | 1x HDMI 2.0b |
| Mic | Built-in array microphone |
| Keyboard Type | Backlit Chiclet Keyboard |
| NumberPad | N/A |
| Aura Sync | N/A |
| Speakers | 2x 0.7W tweeter 2x 2.5W speaker with Smart Amp Technology |
| Audio Tech | Audio by Dolby Atmos Smart Amp Technology AI mic noise-canceling |
| Operating System | Windows 10 Home - ASUS recommends Windows 10 Pro for business |
| Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
| FingerPrint | YES |
| Security | BIOS Administrator Password and User Password Protection Kensington Lock |
| Battery | 76WHrs, 4S1P, 4-cell Li-ion |
| Power | ø6.0, 180W AC Adapter, Output: 20V DC, 9A, 180W, Input: 100~240V AC, 50/60Hz universal |
