Description
- PROCESSOR: AMD Ryzen™ 7 5700U
- DISPLAY: OLED FHD (1920 x 1080) 16:9
- MEMORY: 8GB LPDDR4X
- STORAGE: 512GB M.2 NVMe™ PCIe® 3.0 SSD
- GPU: AMD Radeon™ Graphics
- OS: Win 10 Home
- COLOR: Pine Grey
SPECIFICATIONS
| Part No | 90NB0TR1-M02280 |
| Operating System | Windows 10 Home - ASUS recommends Windows 10 Pro for business |
| LCD cover-material | Aluminum |
| LCD cover-color | Pine Grey |
| Top case-material | Aluminum |
| Top case-color | Pine Grey |
| Bottom case-material | Aluminum |
| Bottom case-color | Pine Grey |
| Military grade | US MIL-STD 810H military-grade standard |
| Panel Size | 13.3-inch |
| OLED | OLED |
| Brightness | 400nits |
| Resolution | FHD (1920 x 1080) 16:9 |
| Glare | Glossy display |
| Color gamut | DCI-P3: 100% |
| Touch Panel | N/A |
| Screen-to-body ratio | 88 ％ |
| Pantone | Pantone Validated |
| Processor | AMD Ryzen™ 7 5700U Processor 1.8GHz (8M Cache, up to 4.3GHz, 8 cores) |
| Chipset | N/A |
| Discrete/Share | Share |
| Intergrated GPU | AMD Radeon™ Graphics |
| VRAM | N/A |
| Expansion Slot(includes used) | N/A |
| Total System Memory | 8GB LPDDR4X on board |
| On board memory | 8GB LPDDR4X on board |
| Storage | 512GB M.2 NVMe™ PCIe® 3.0 SSD |
| Front-facing camera | HD camera with IR function to support Windows Hello |
| on board Wireless | Wi-Fi 5(802.11ac)+Bluetooth 4.2 (Dual band) 2*2 |

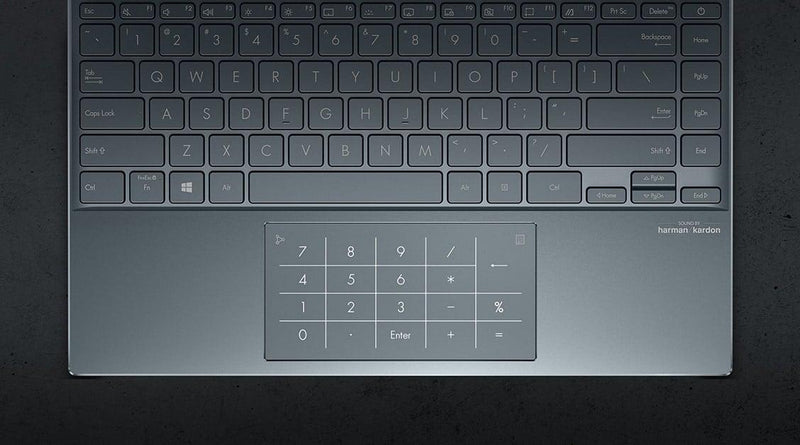

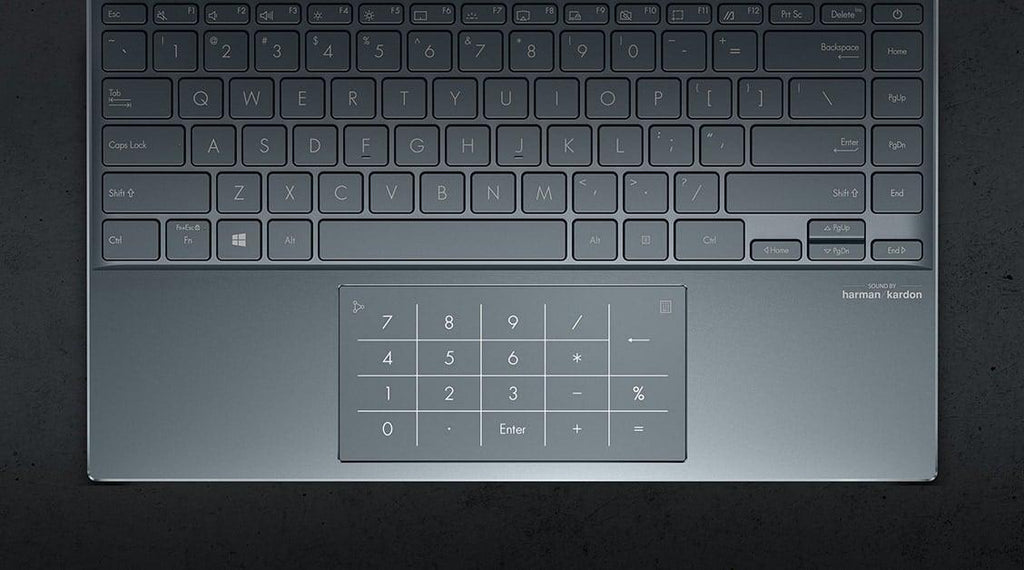

| NumberPad | Support NumberPad |
| ScreenPad™ | N/A |
| FingerPrint | N/A |
| I/O ports | 1x HDMI 2.1//1x USB 3.2 Gen 1 Type-A 2x USB 3.2 Gen 2 Type-C support display / power delivery//Micro SD card reader |
| Audio | Smart Amp Technology Built-in speaker Built-in array microphone//harman/kardon (Premium) |
| Voice control | with Cortana and Alexa voice-recognition support |
| AC Adapter | ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240V AC 50/60Hz universal |
| Battery | 67WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery | No |

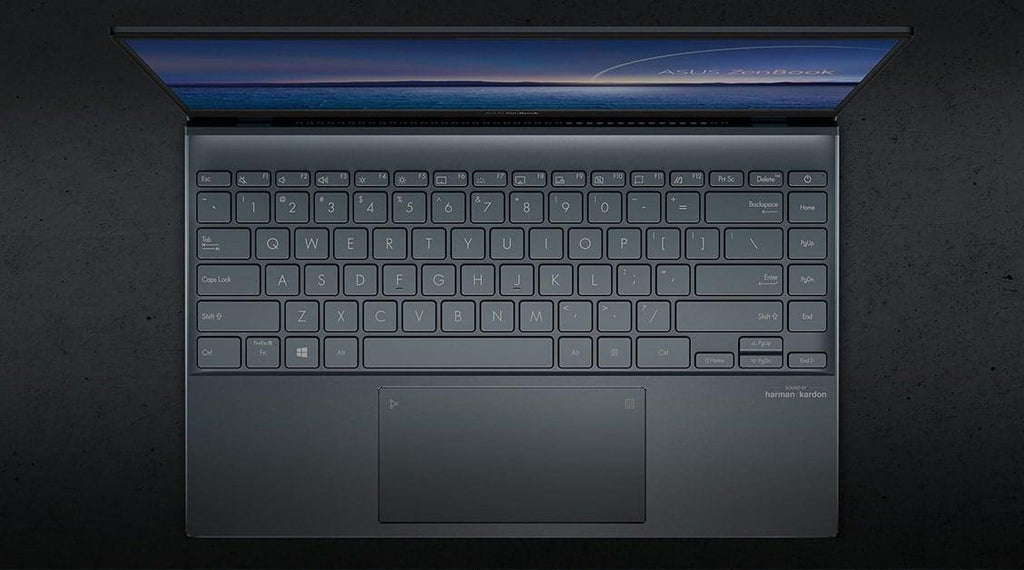

| Keyboard type | Backlit Chiclet Keyboard |
| Dimension (WxHxD) | 30.40 x 20.30 x 1.39 ~ 1.39 cm |
| Weight (with Battery) | 1.14 kg |
| Weight (without Battery) | 0.89 kg |
| Security | IR webcam with Windows Hello support Trusted Platform Module (Firmware TPM) |
| MyASUS feature | Wi-Fi SmartConnect (All models) System Diagnosis (All models) Battery Health Charging (All models) Fan mode (All models) Splendid (All models) Function key lock (All models) WiFi roaming optimization (All models) Link to MyASUS (All models, Bluetooth needed) |
