Description

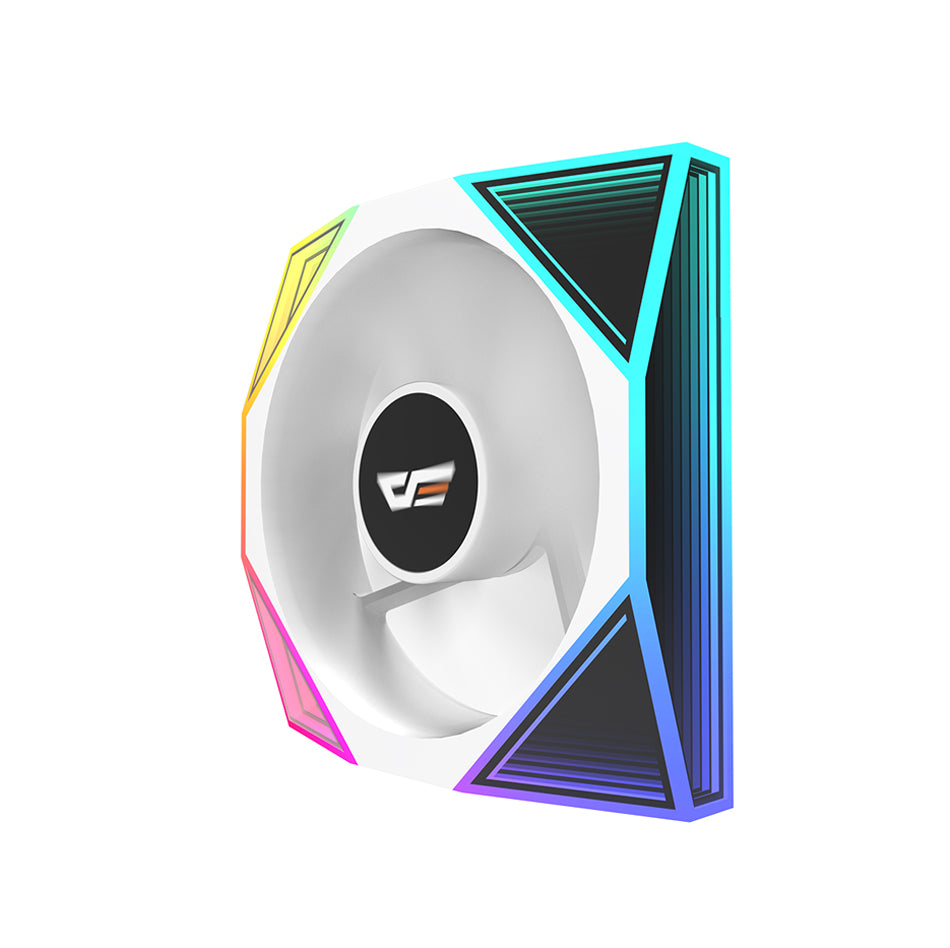

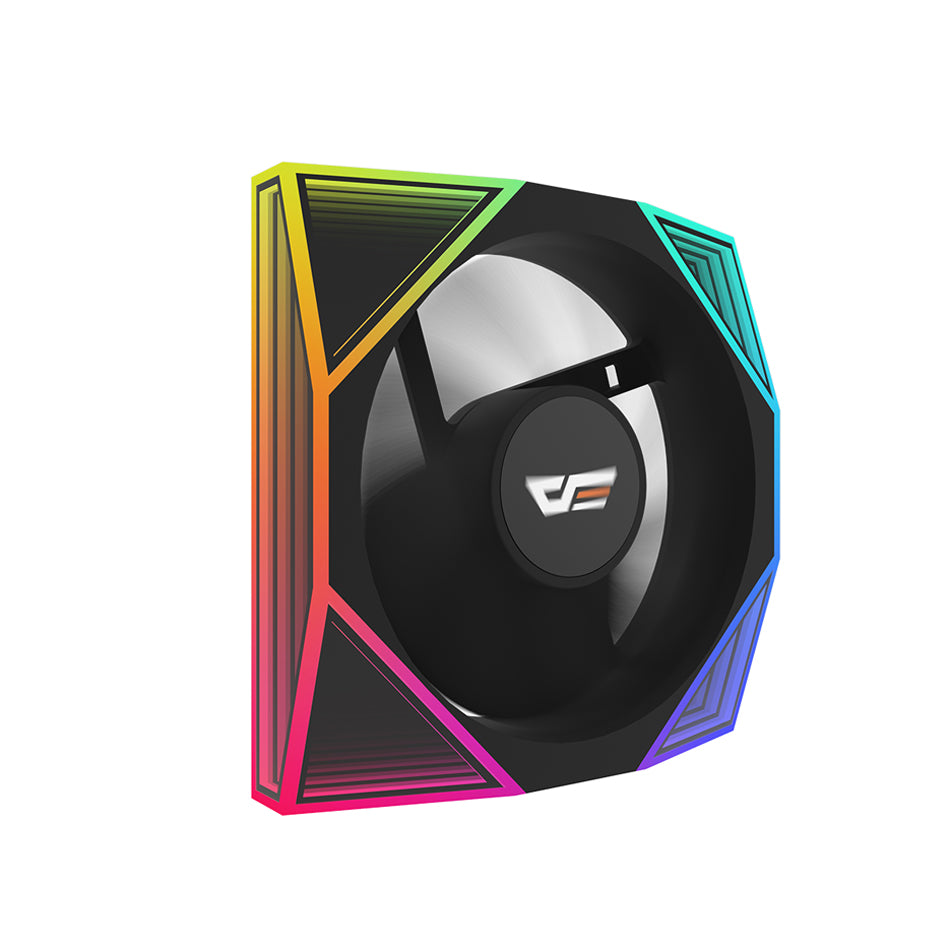

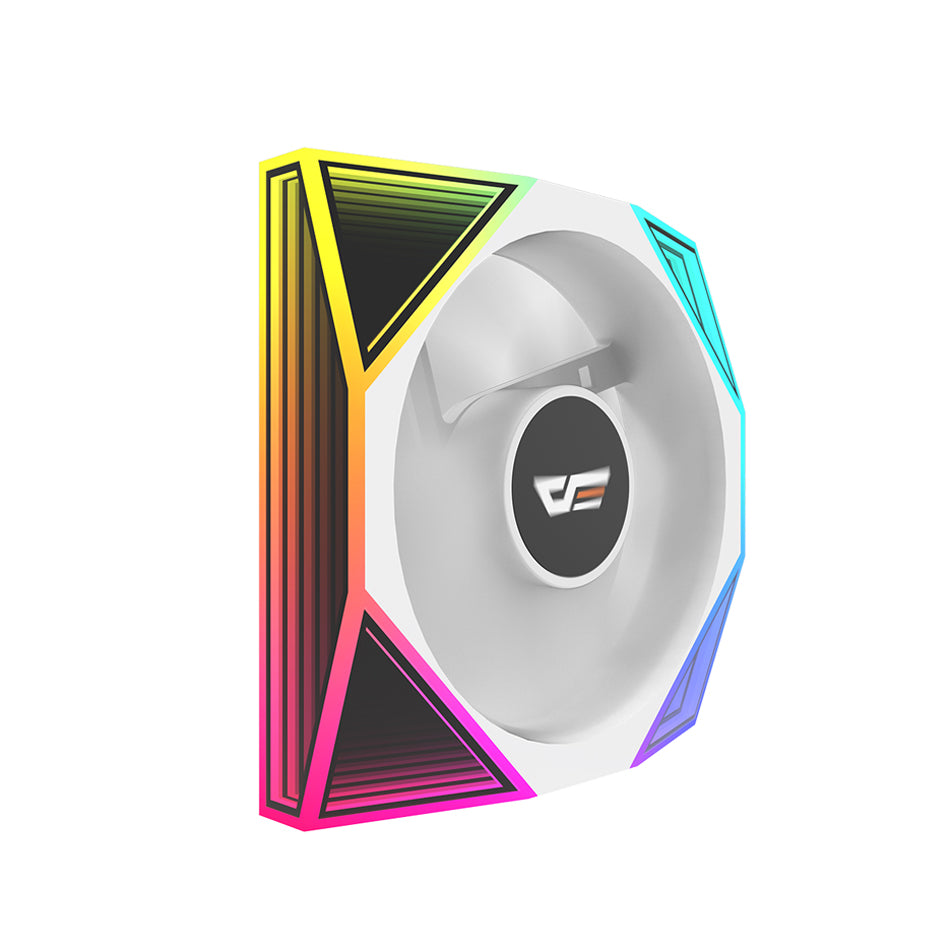

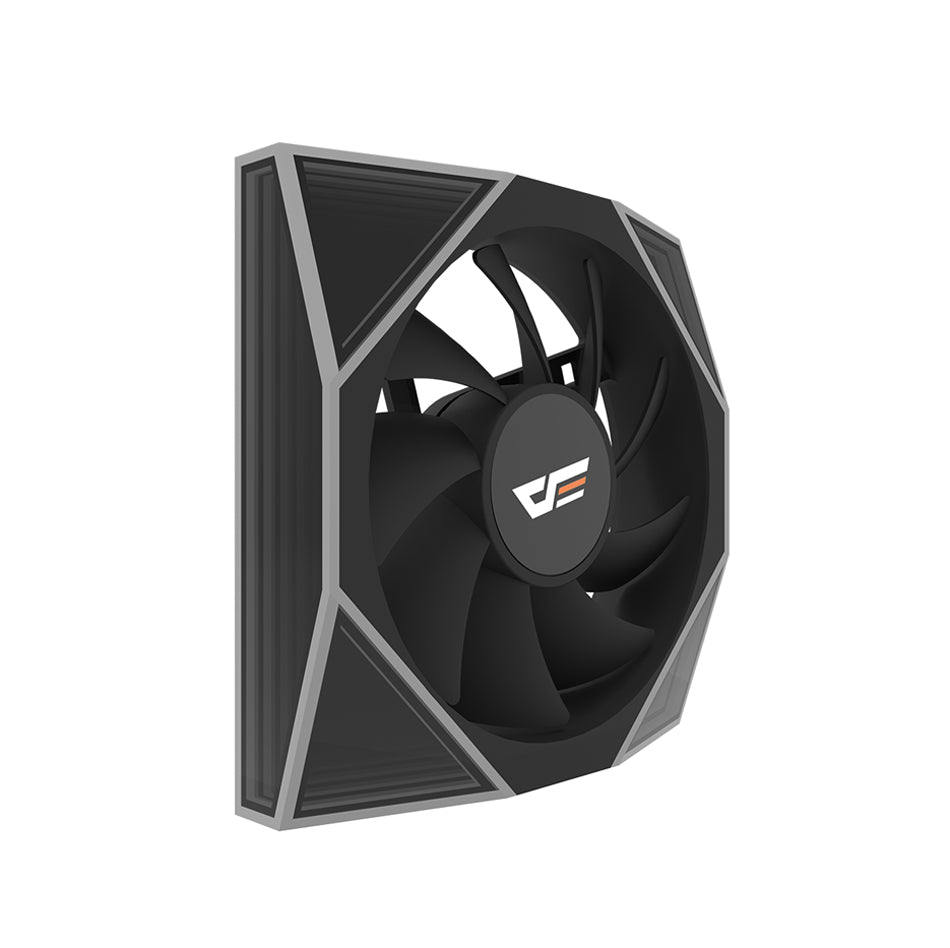

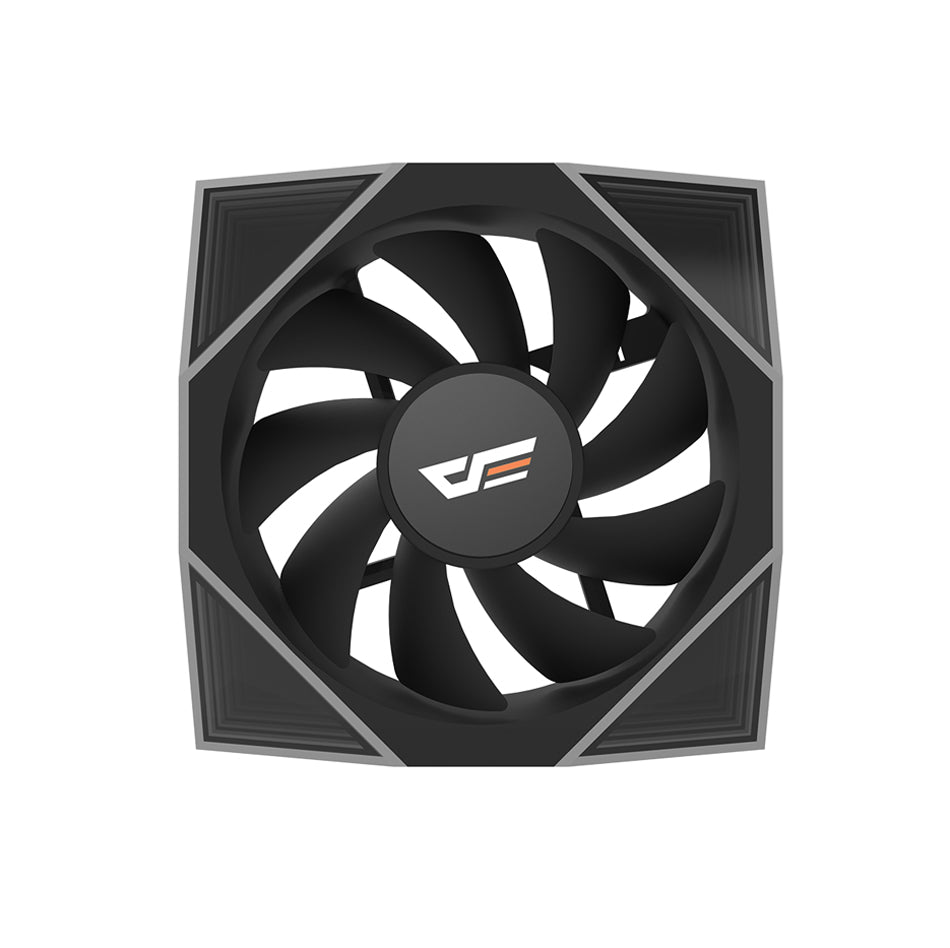

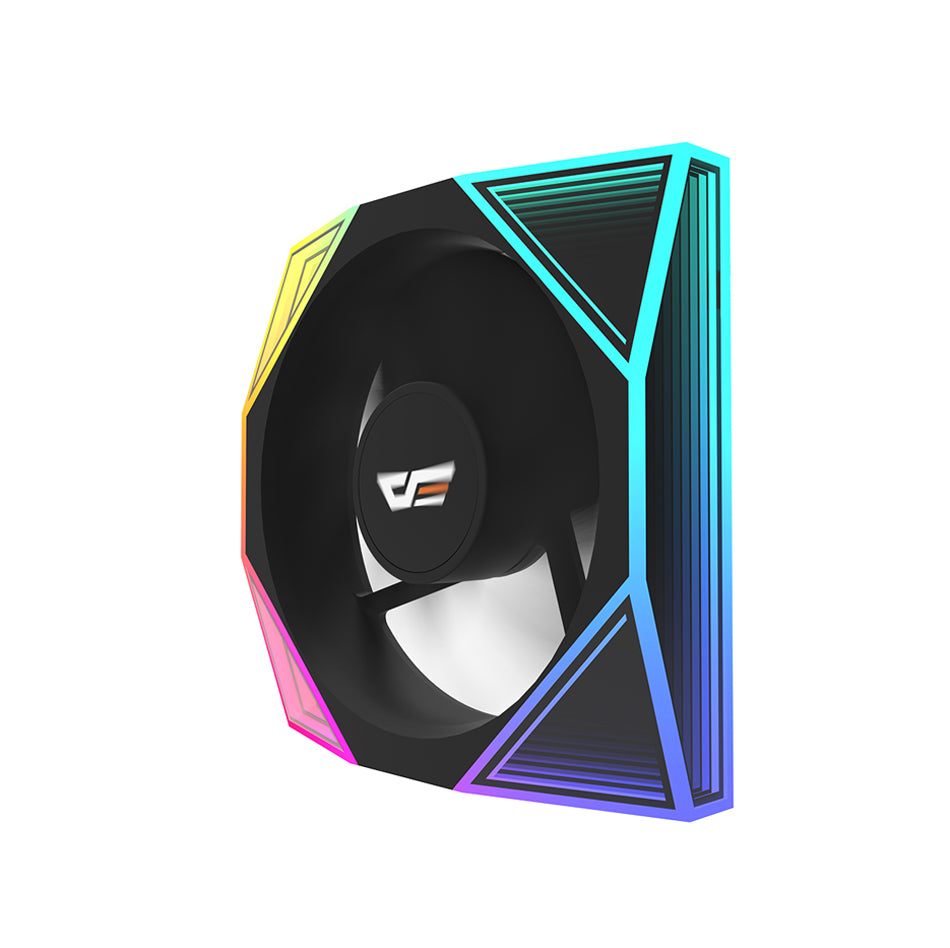

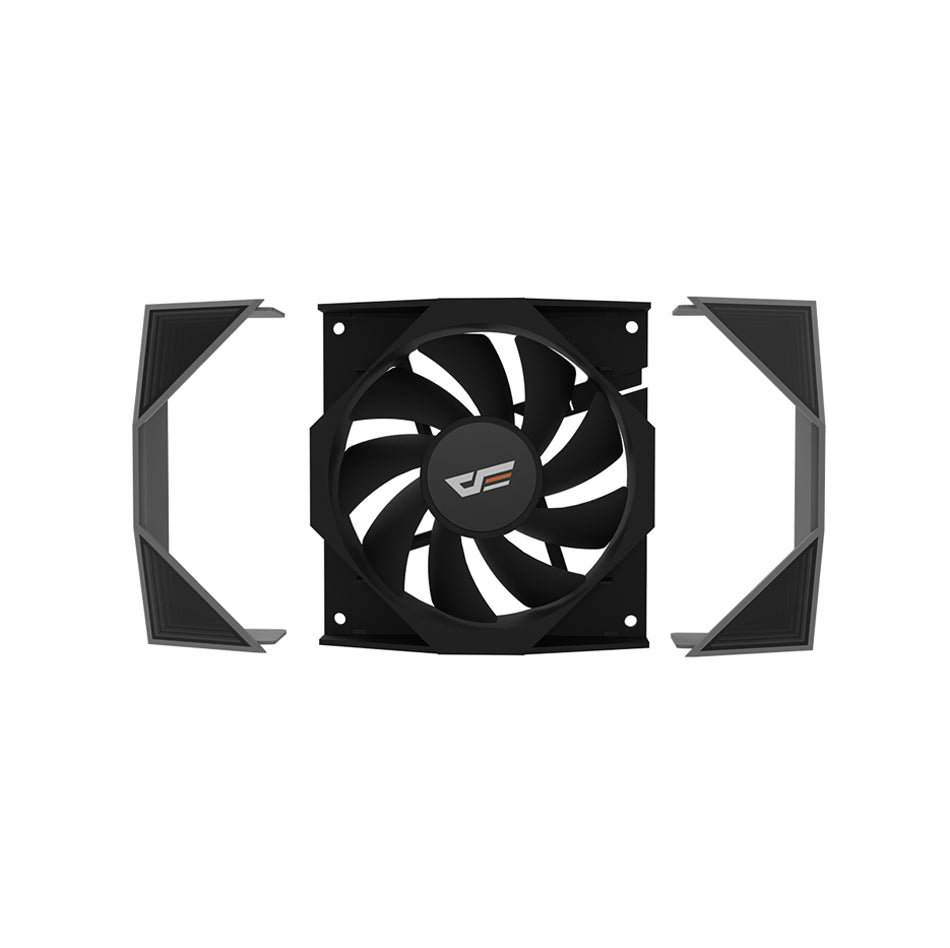

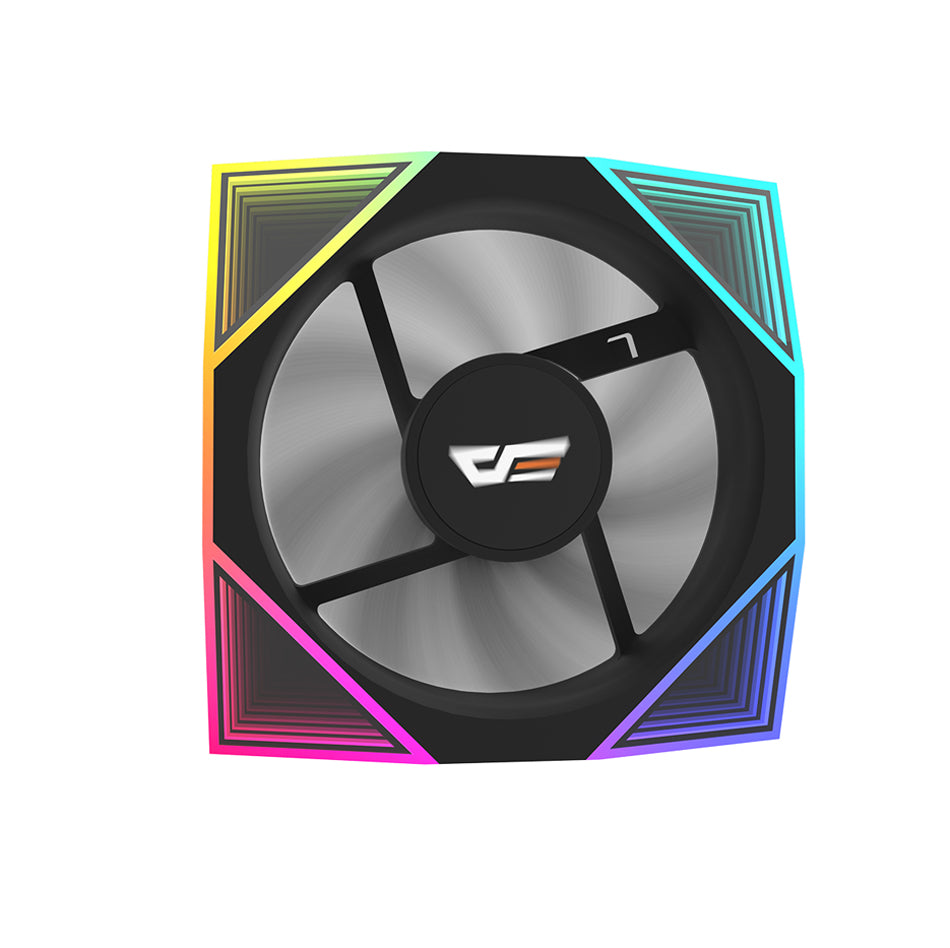

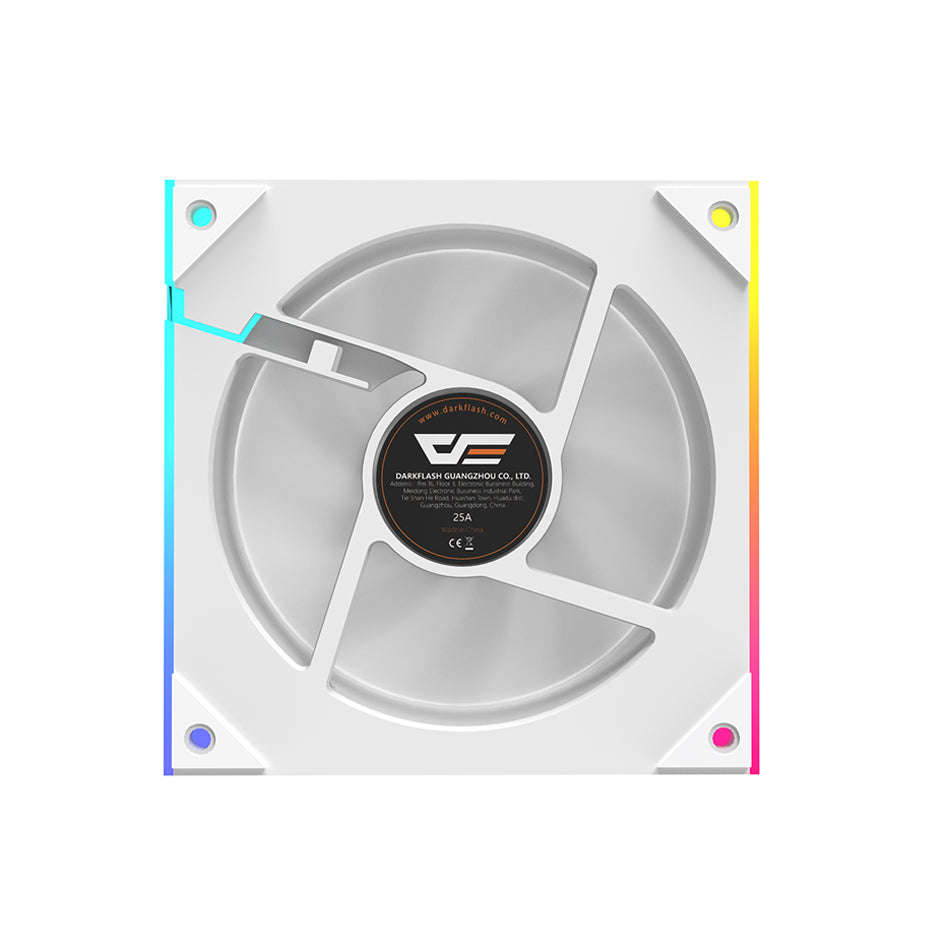

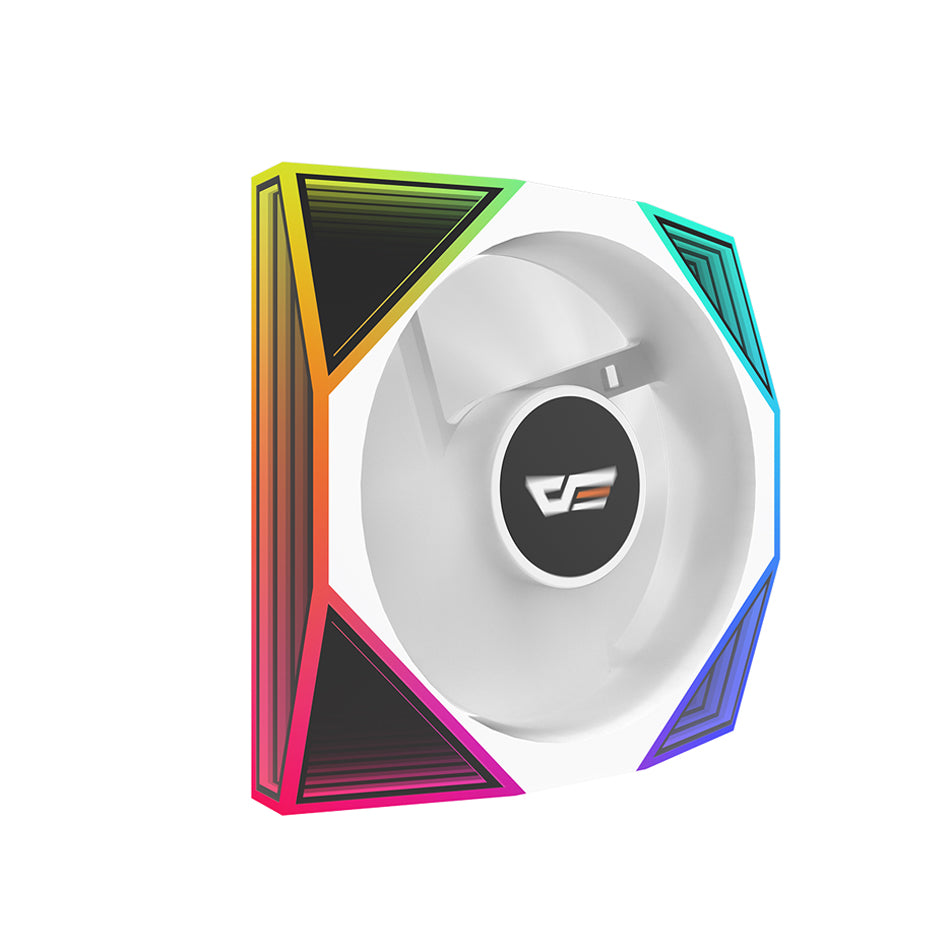

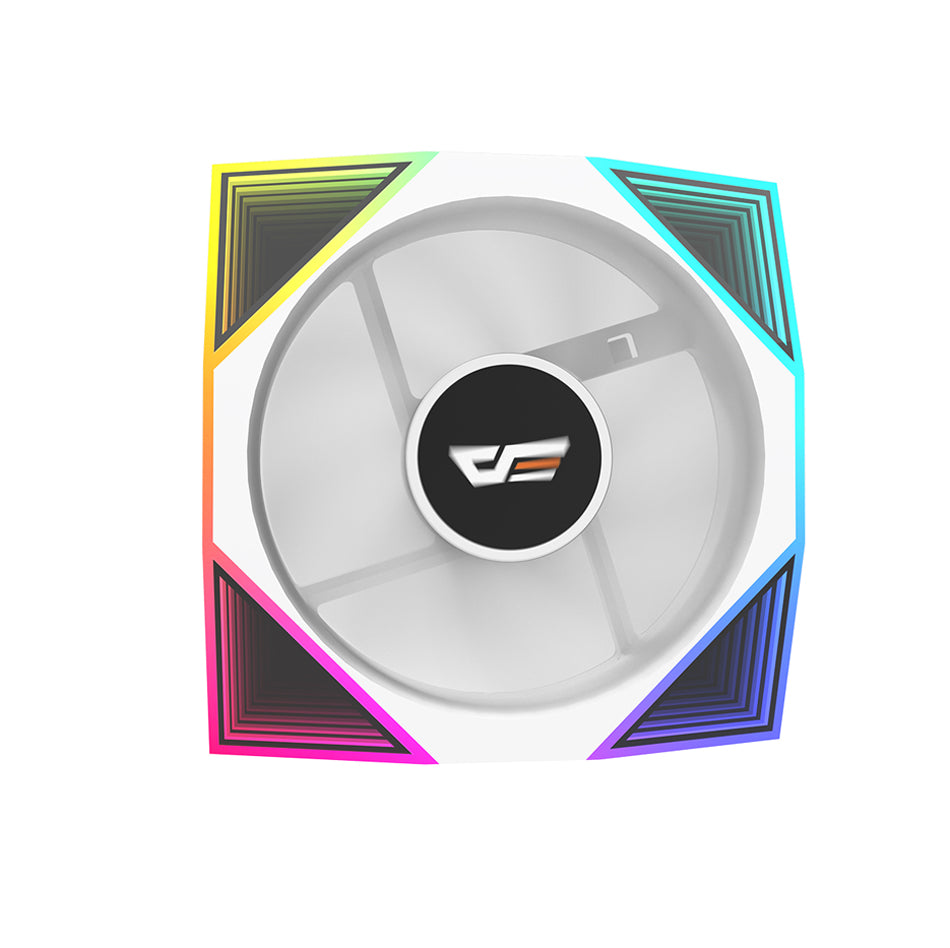

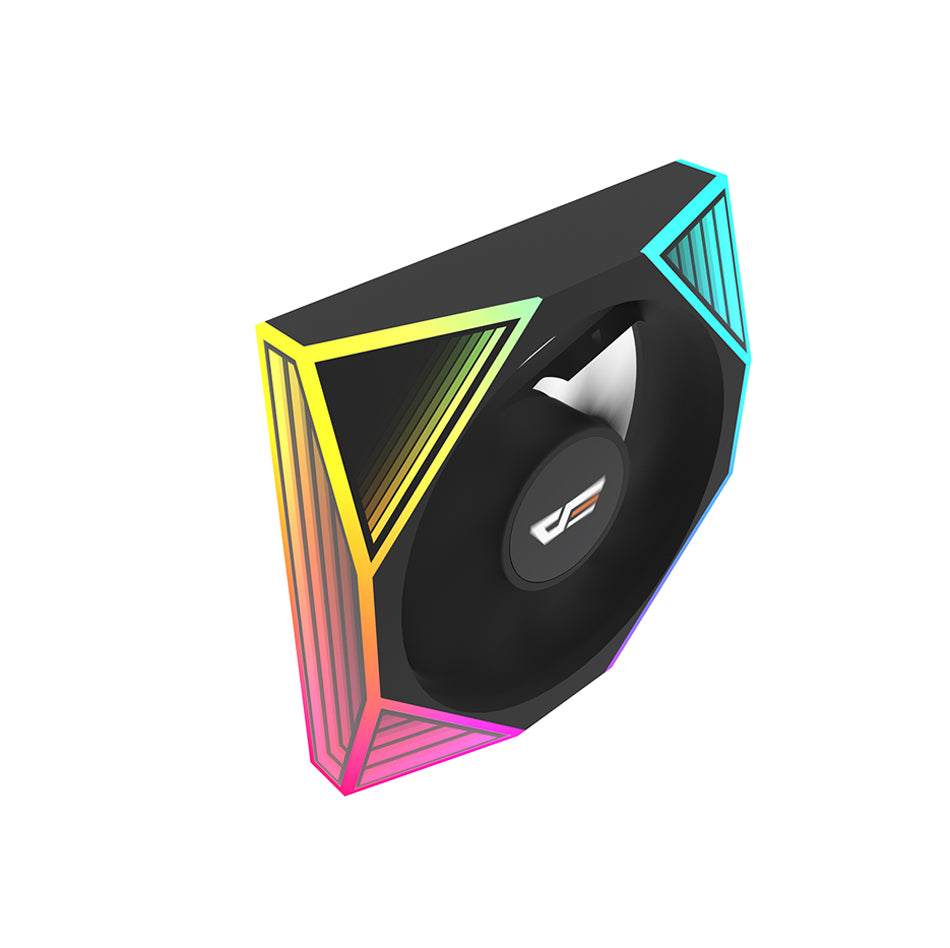

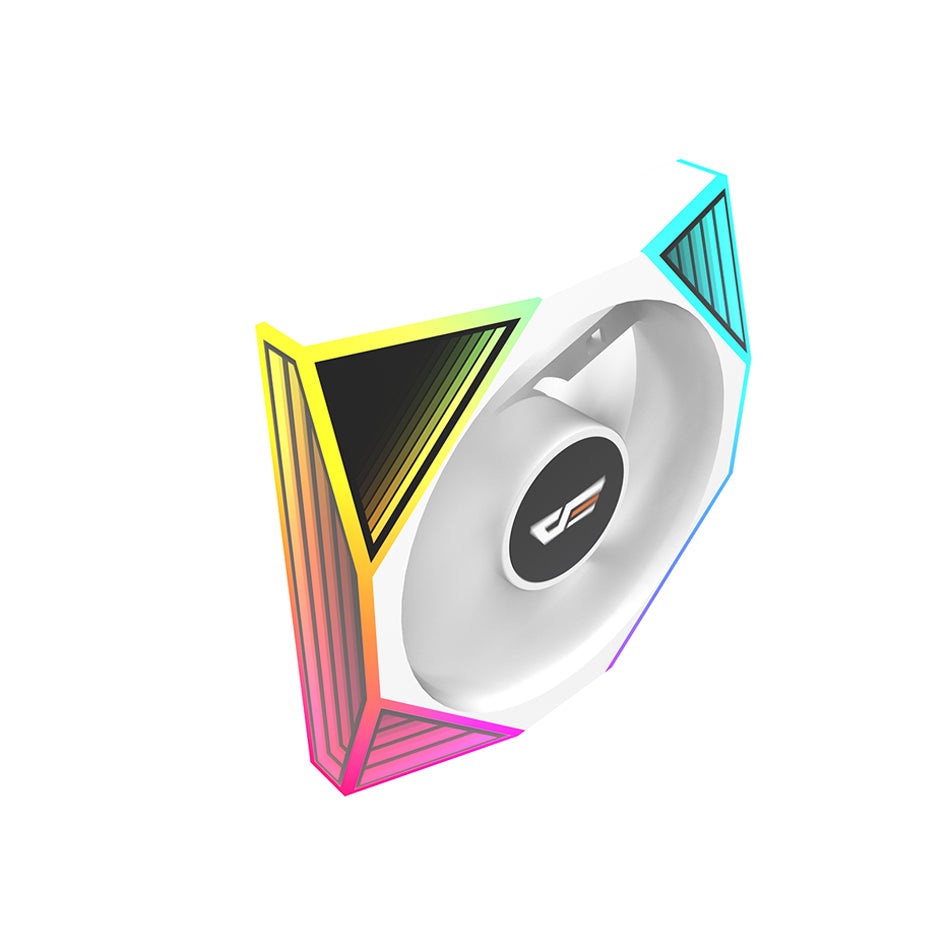

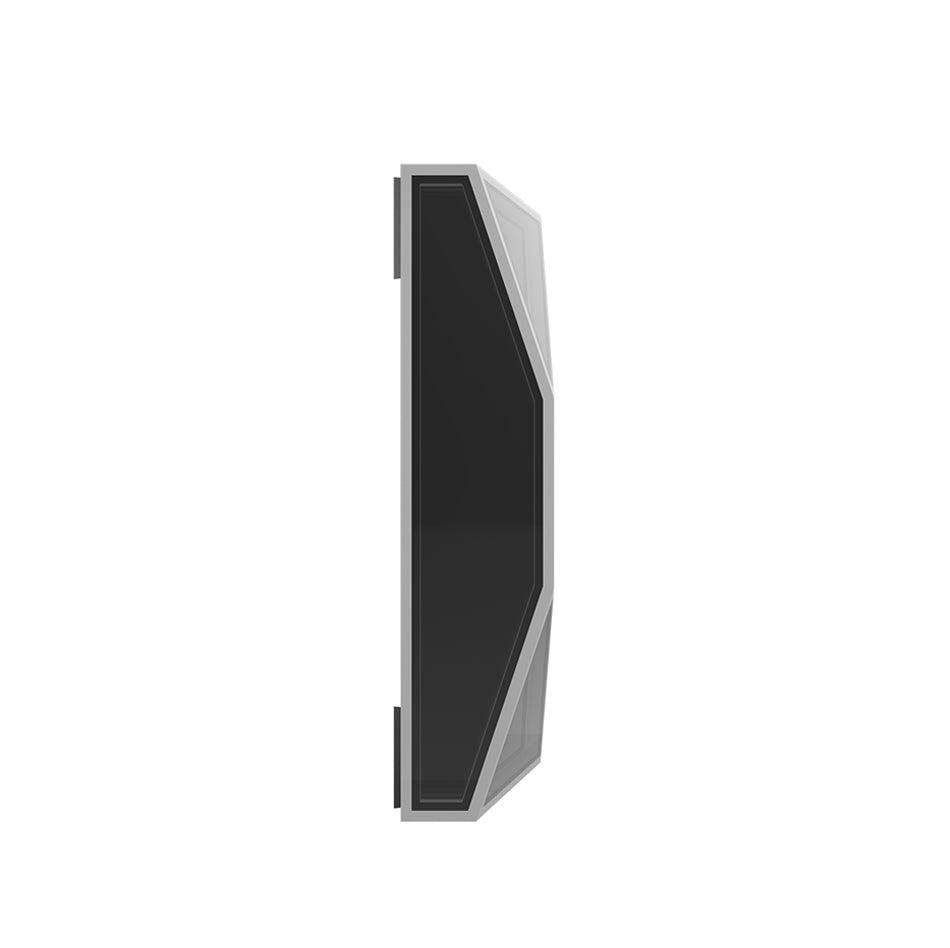

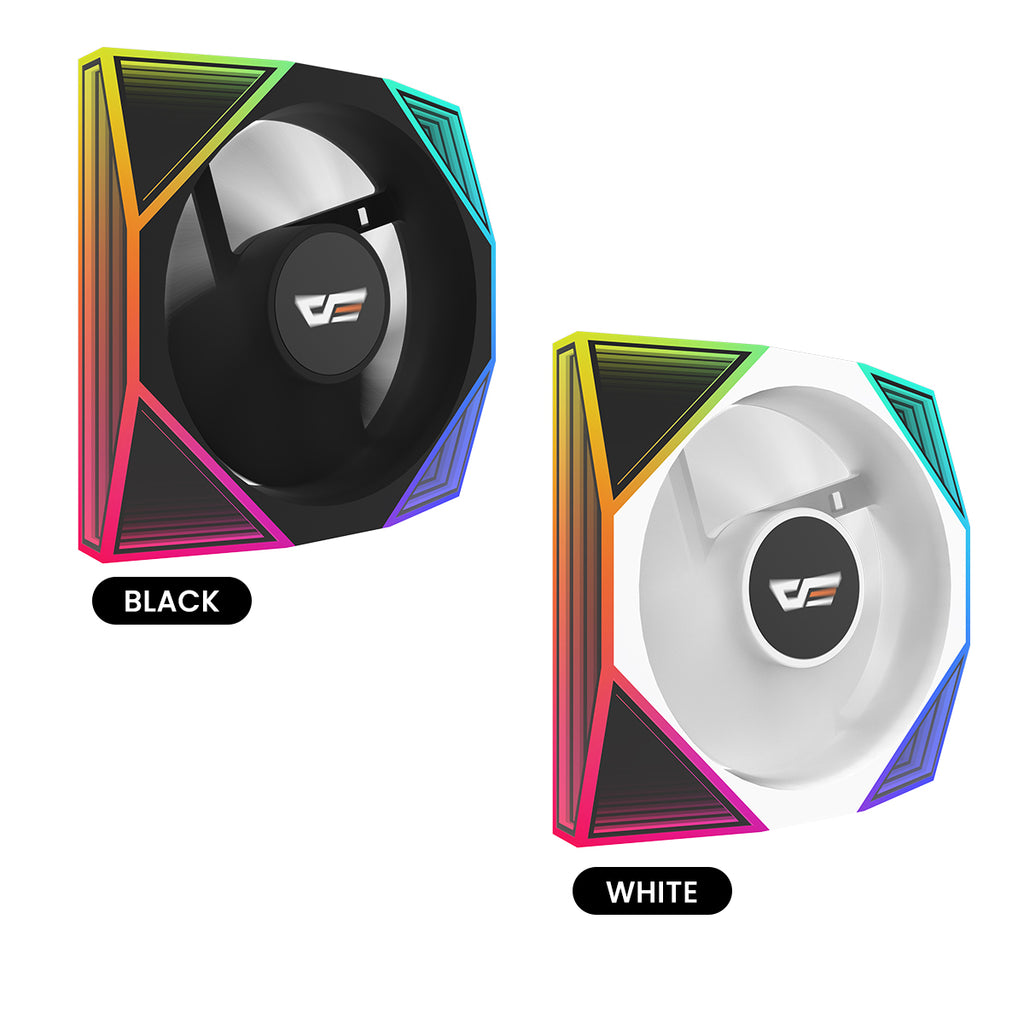

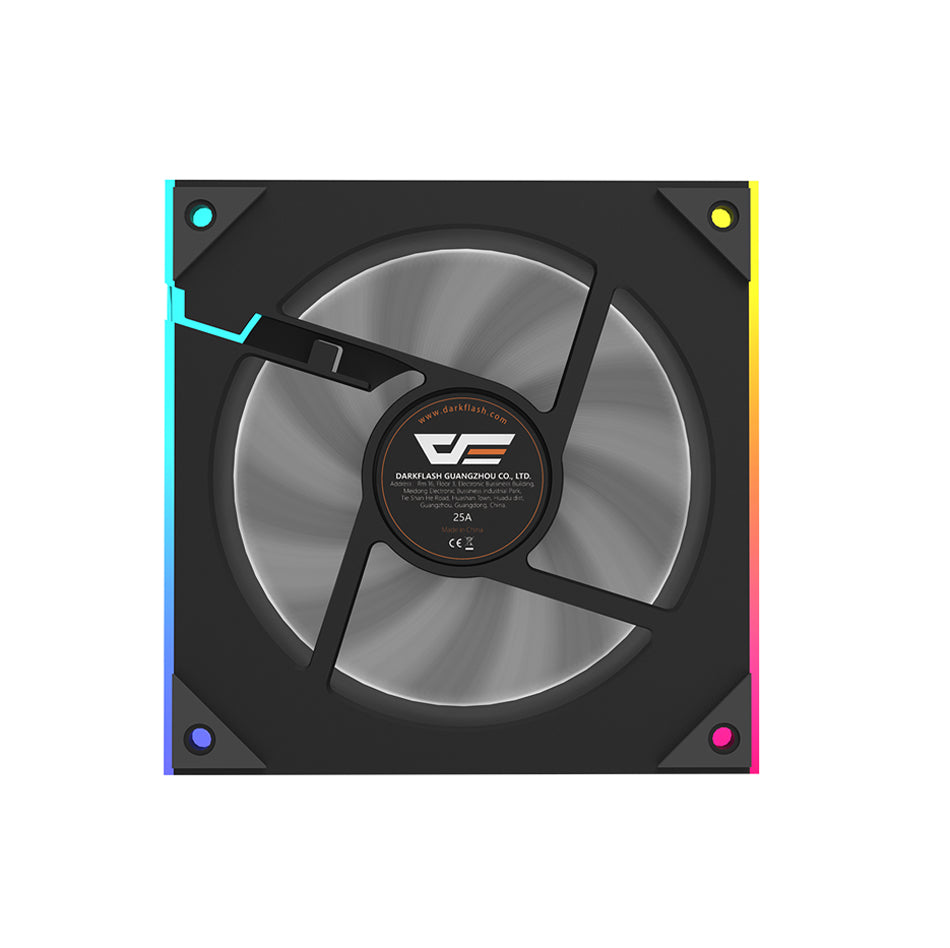

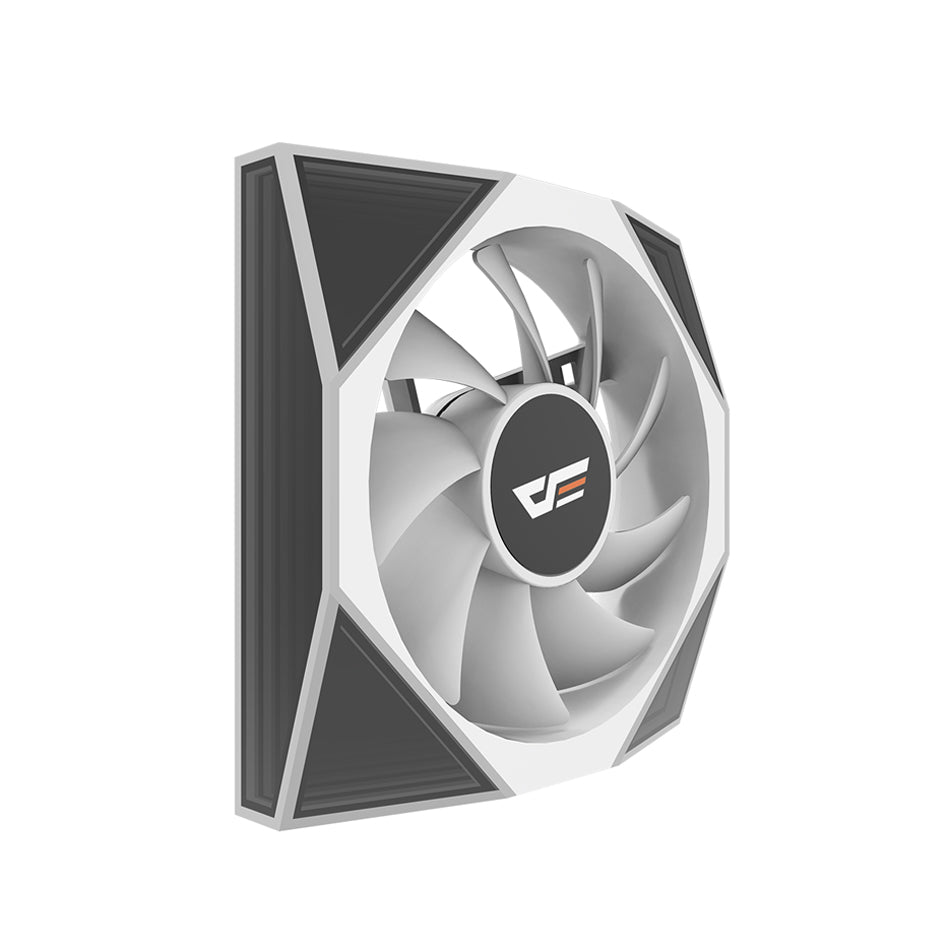

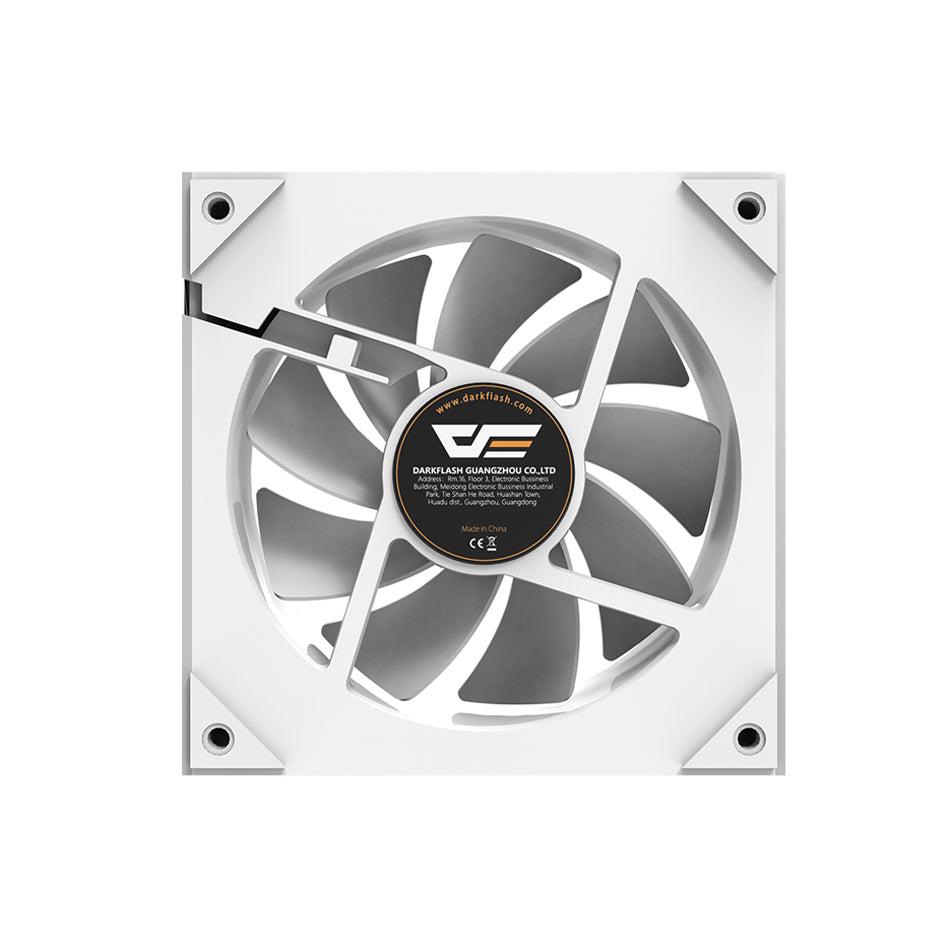

Engineered for efficient thermal management and visual impact, this 120 × 120 × 28 mm cooling fan delivers a strong balance of airflow, pressure, and low-noise operation. Designed with a durable hydro bearing, it ensures smooth rotation, reduced friction, and long-term reliability for sustained system performance.
Operating at an adjustable speed range of 800–1600 RPM (±10%), the fan provides up to 58.0 CFM of airflow and a maximum static pressure of 1.8 mmH₂O, making it well suited for both case ventilation and heatsink or radiator applications. Even at full speed, noise levels are kept under control at a maximum of 33.6 dBA, supporting quieter builds.

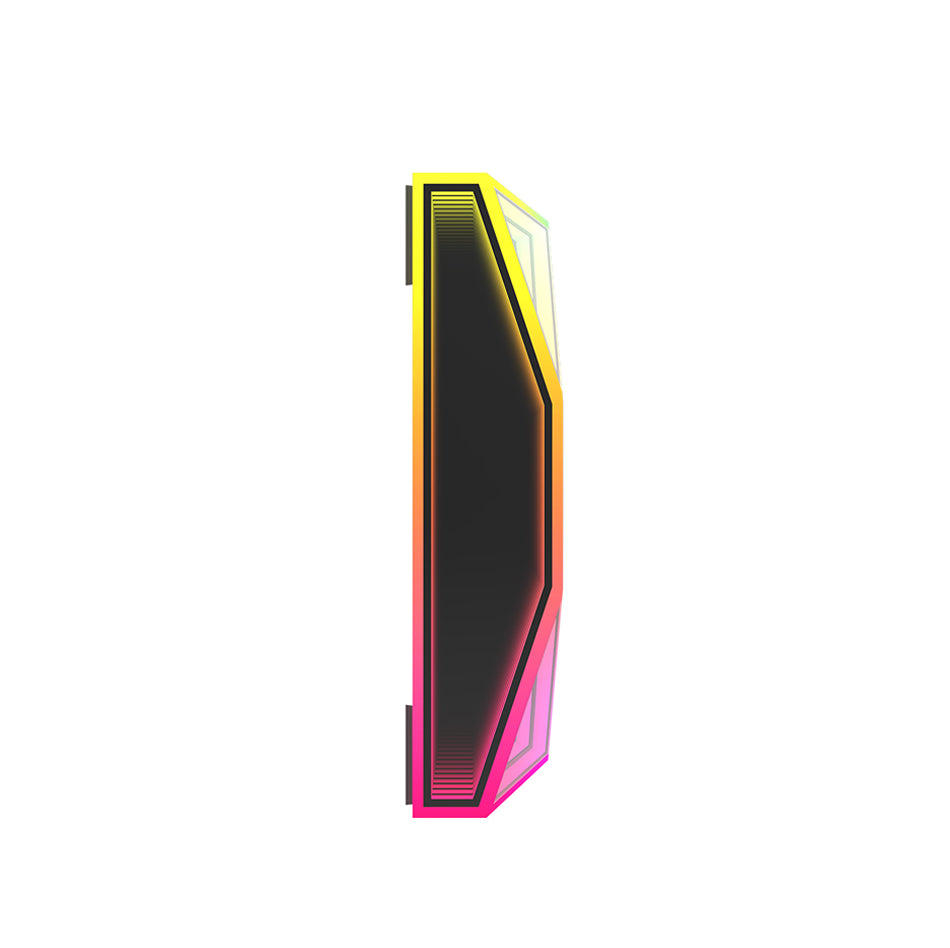

The fan features a PWM 4-pin connector for precise speed control and a 3-pin ARGB connector for vivid, customizable lighting. RGB lighting operates on a safe and efficient 5V design, delivering bright effects with low power consumption.
| Fan Size | 120 * 120 * 28 mm |
| Fan Bearing | Hydro Bearing |
| Fan Speed | 800 - 1600 RPM ± 10% |
| Airflow | 58.0 CFM (Max) |
| Fan Noise | 33.6 dBA (Max) |
| Static Pressure | 1.8 mmH2O (Max) |
| Fan Connector | PWM 4Pin + ARGB 3Pin |
| Fan Input Power | 1.32 W |
| Fan Starting Voltage | 7V |
| Fan Operating Voltage | 12V DC |
| Fan Input Current | 0.11A |
| RGB Power Consumption | 0.75W |
| RGB Rated Voltage | 5V |
| RGB Rated Current | 0.15A |
