Description

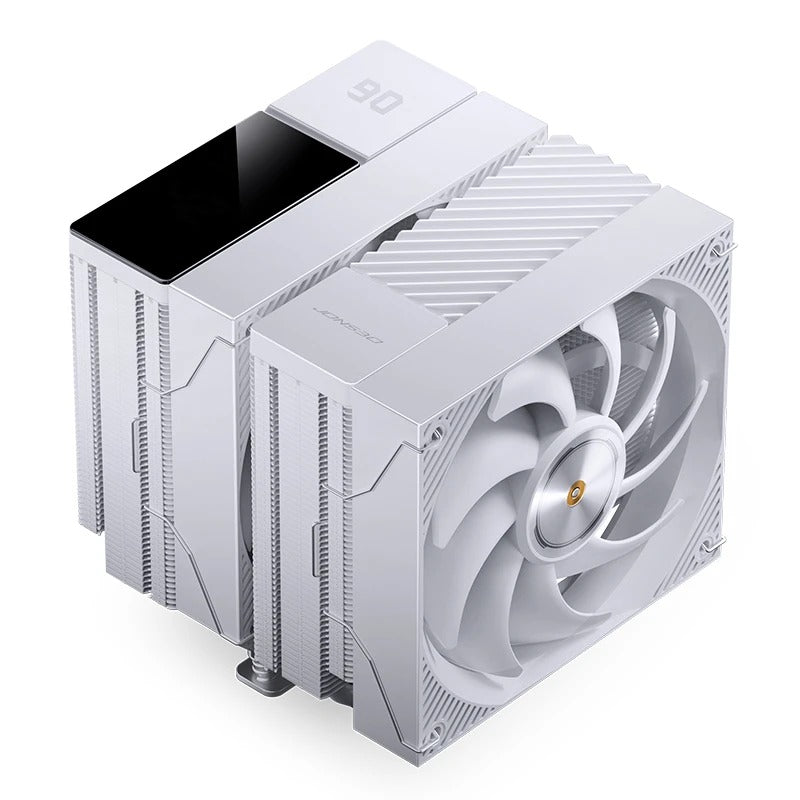

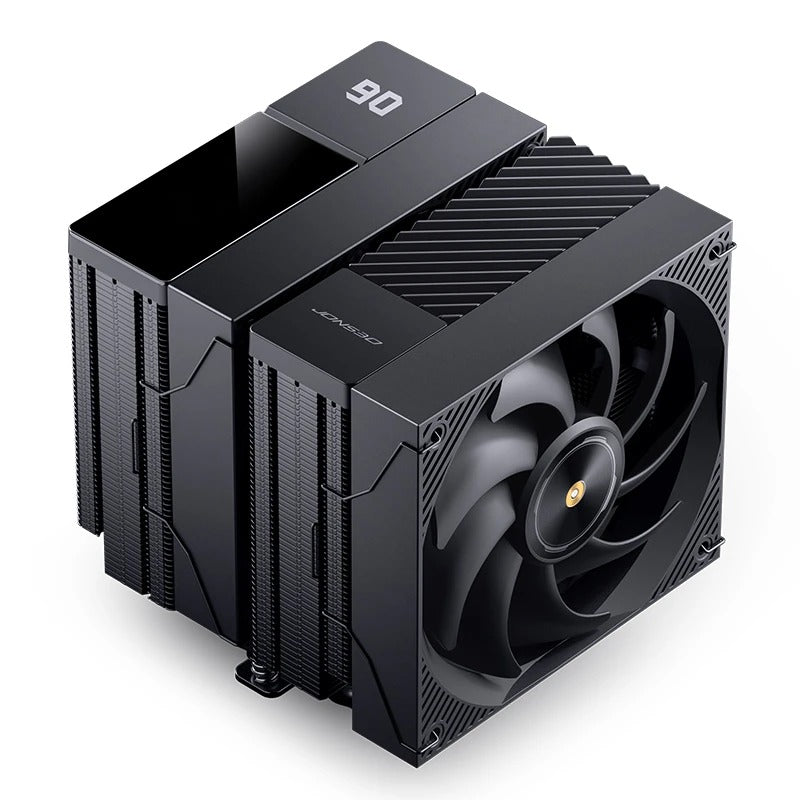

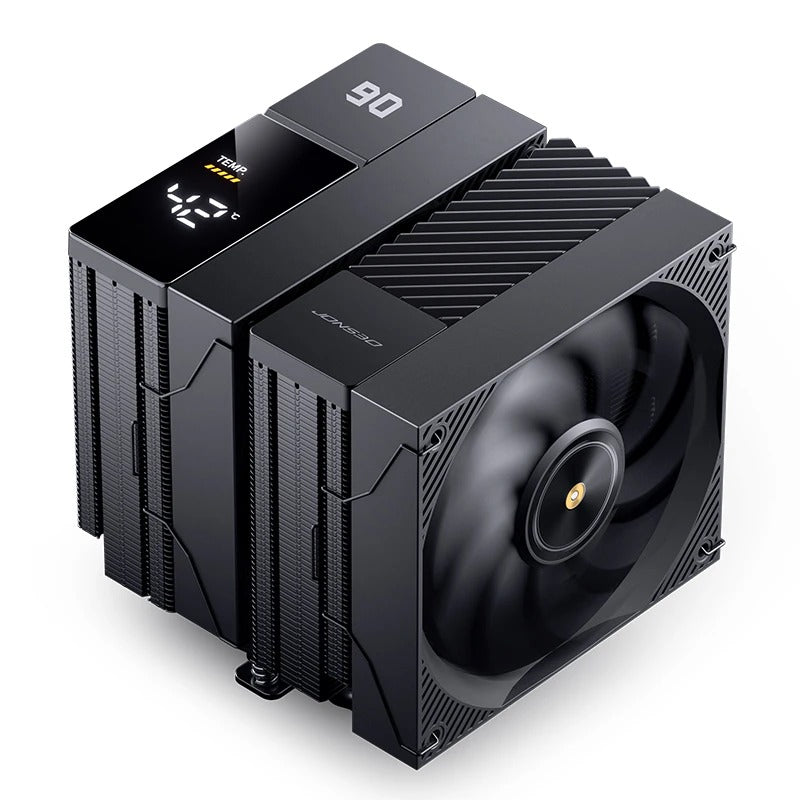

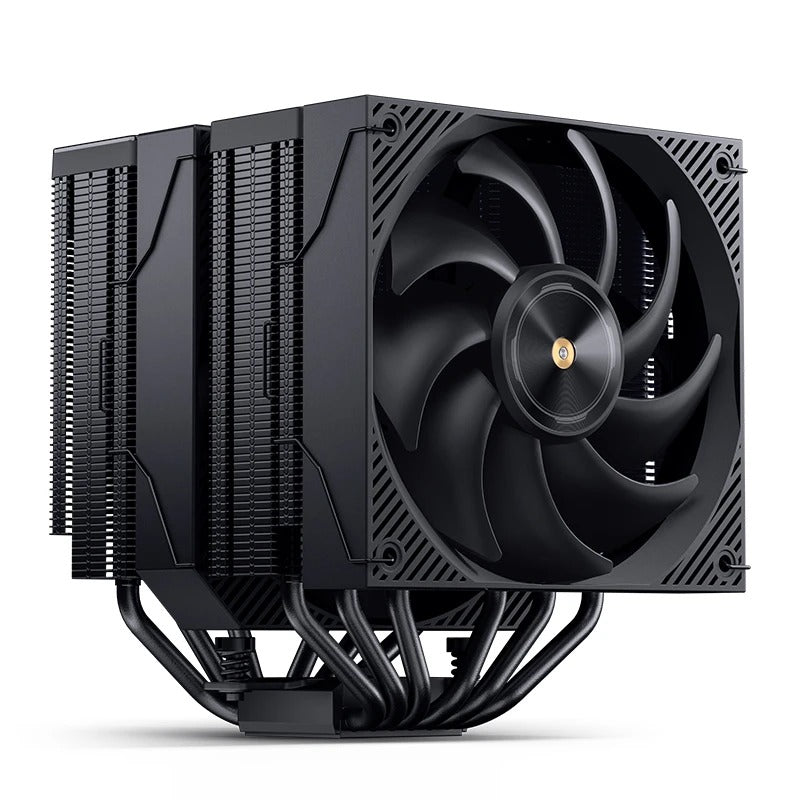

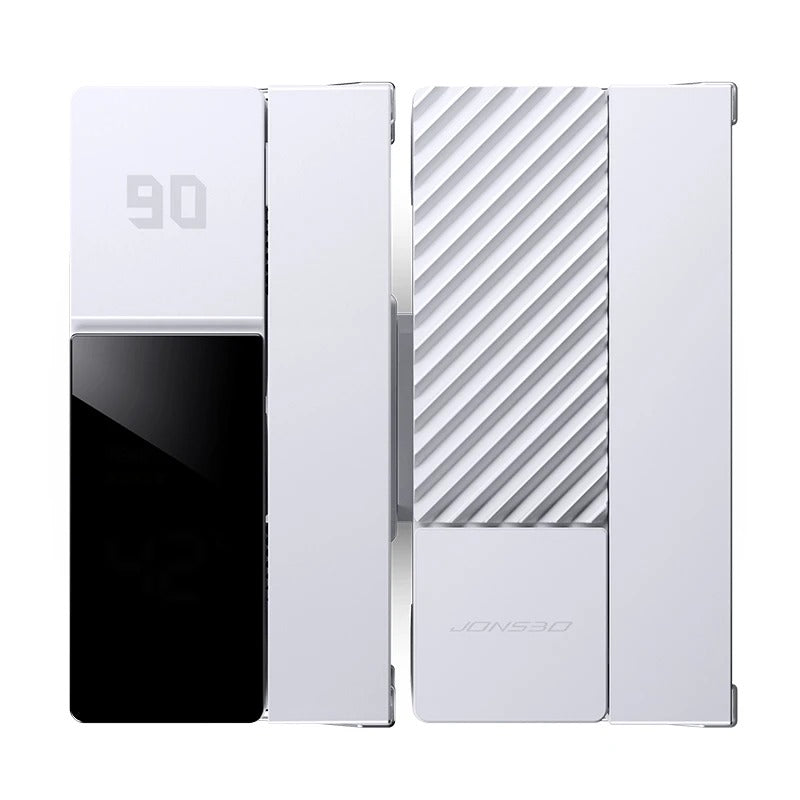

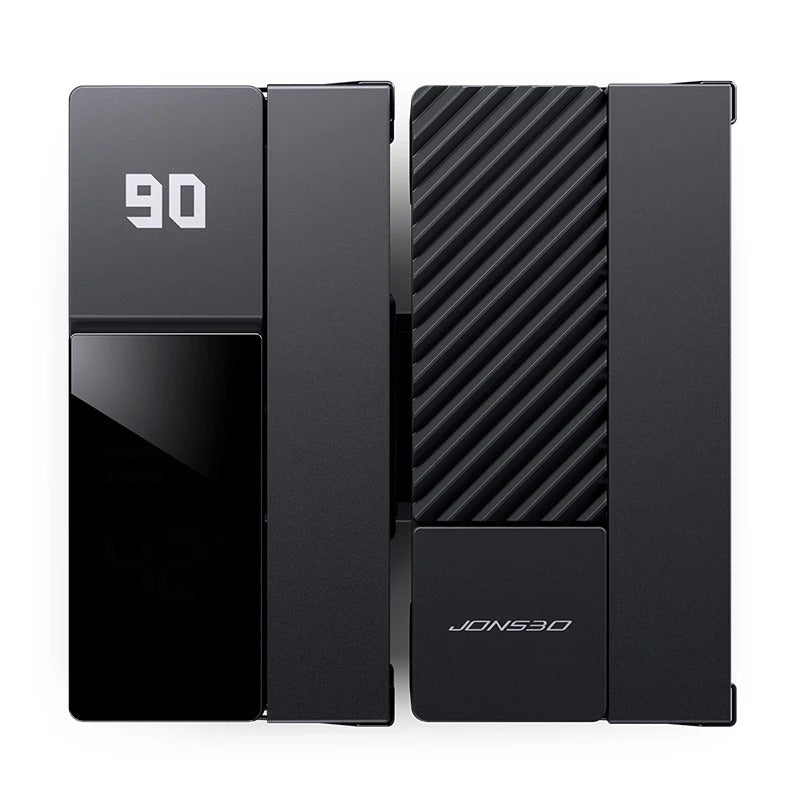

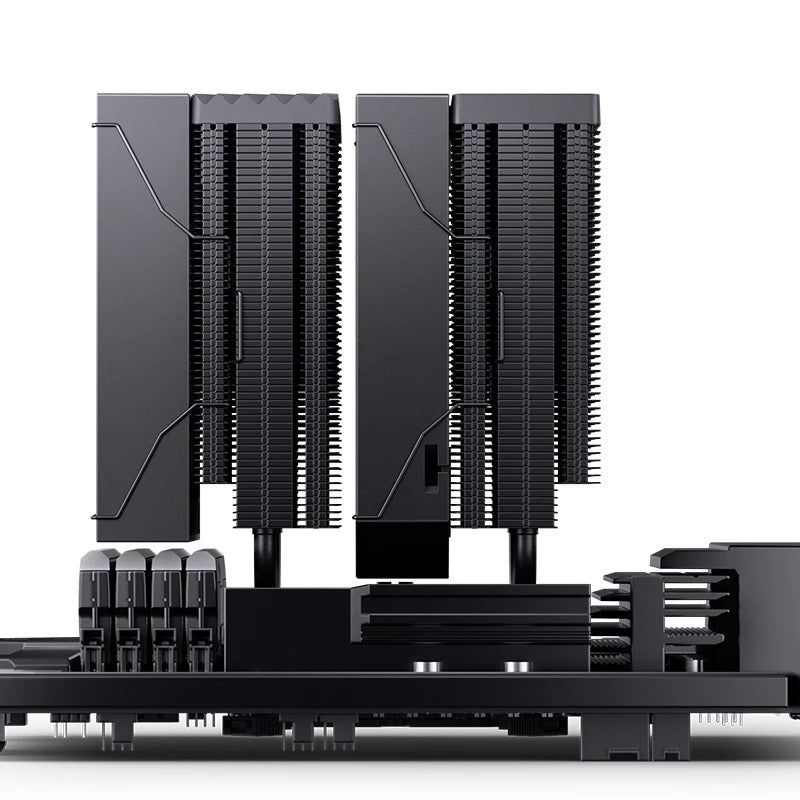

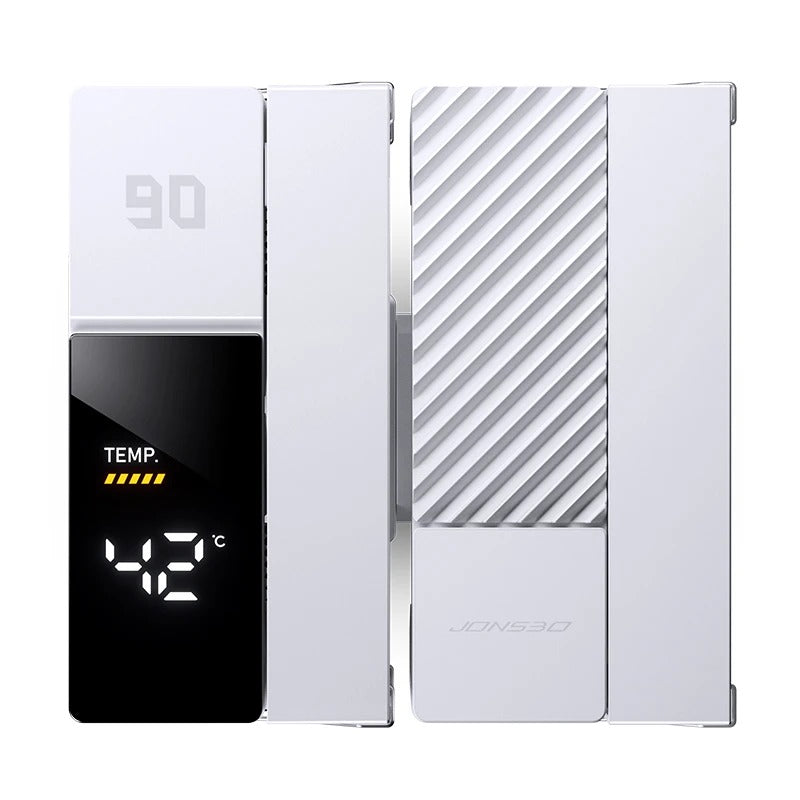

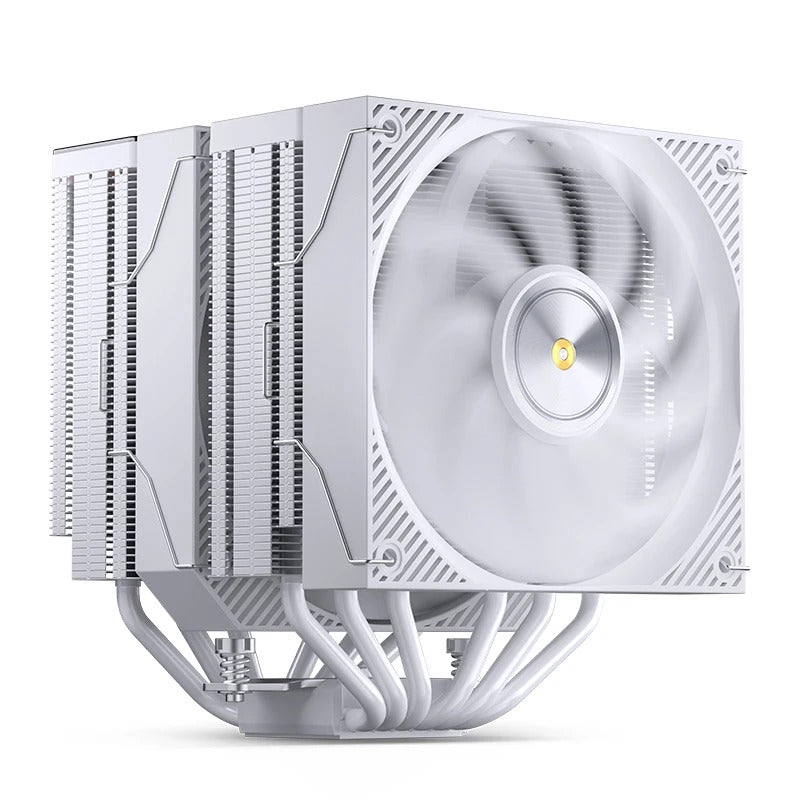

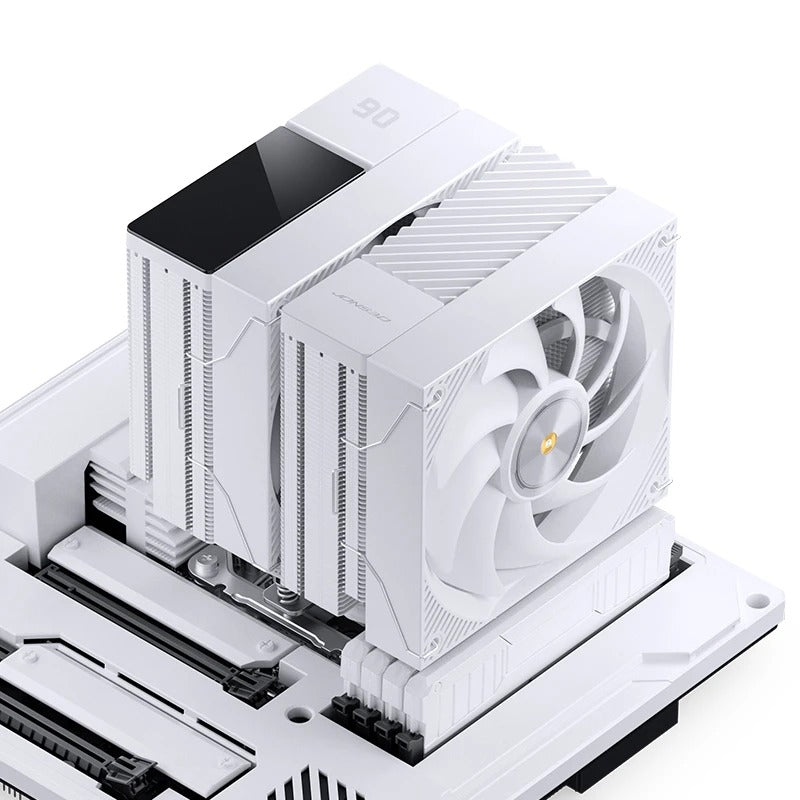

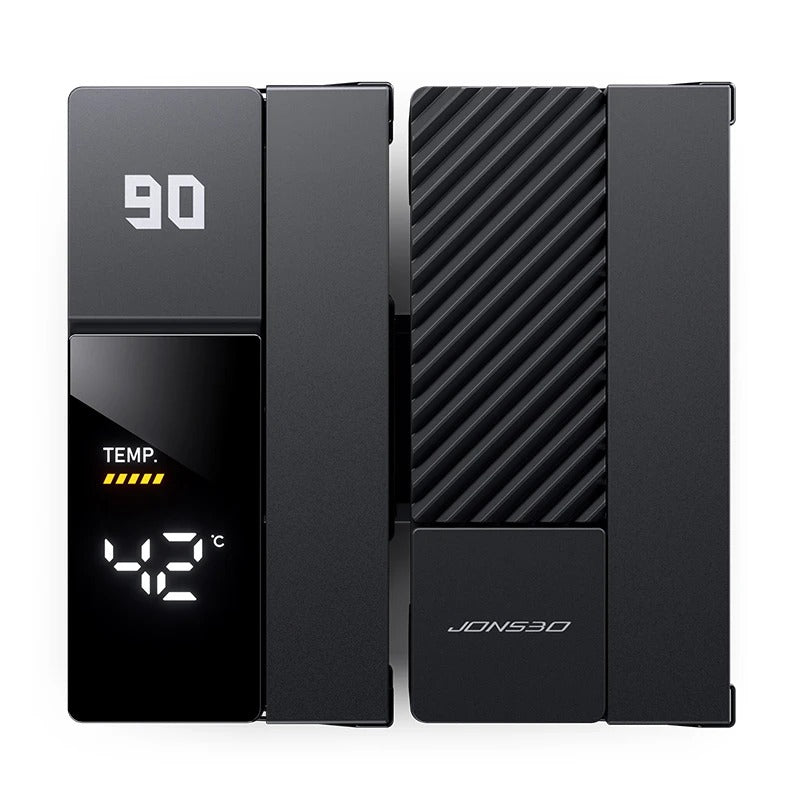

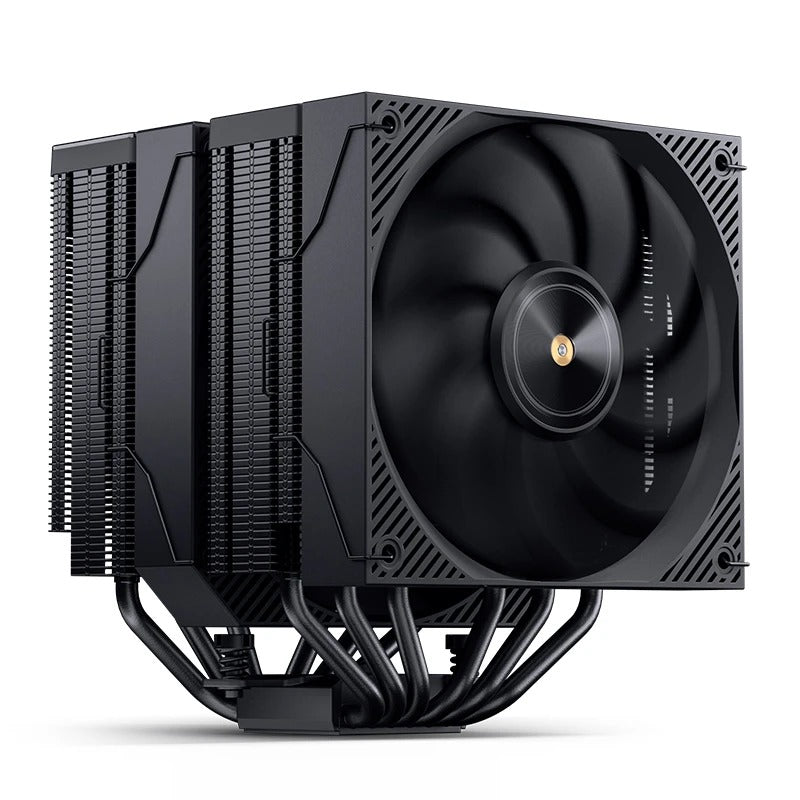

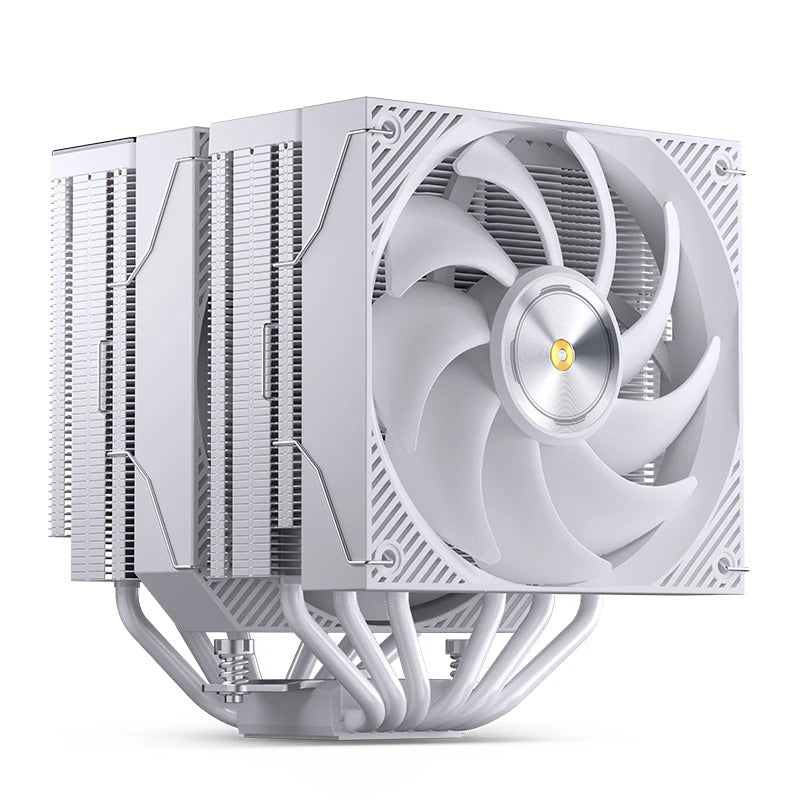

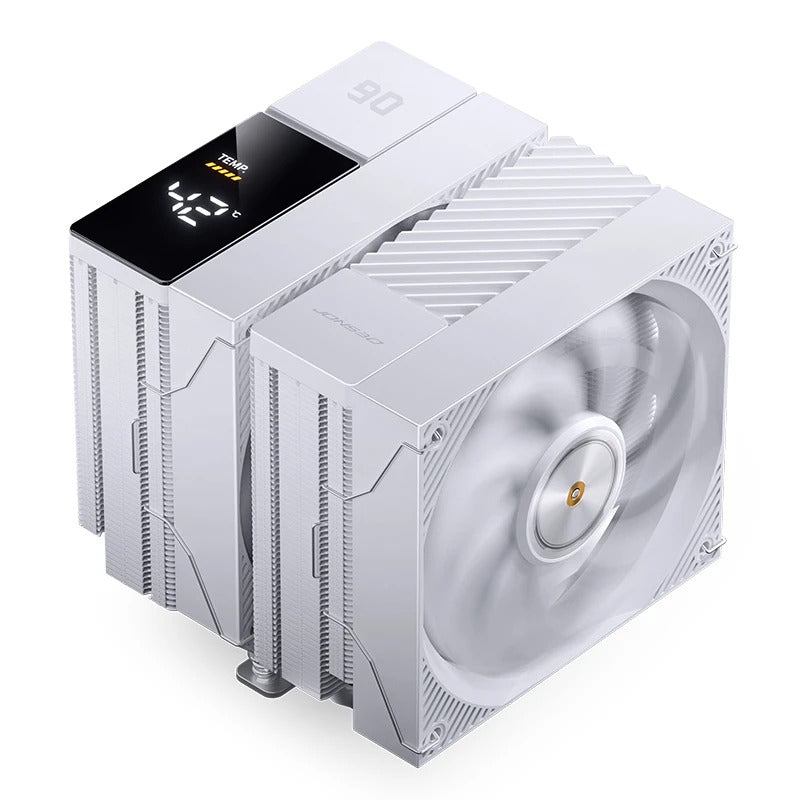

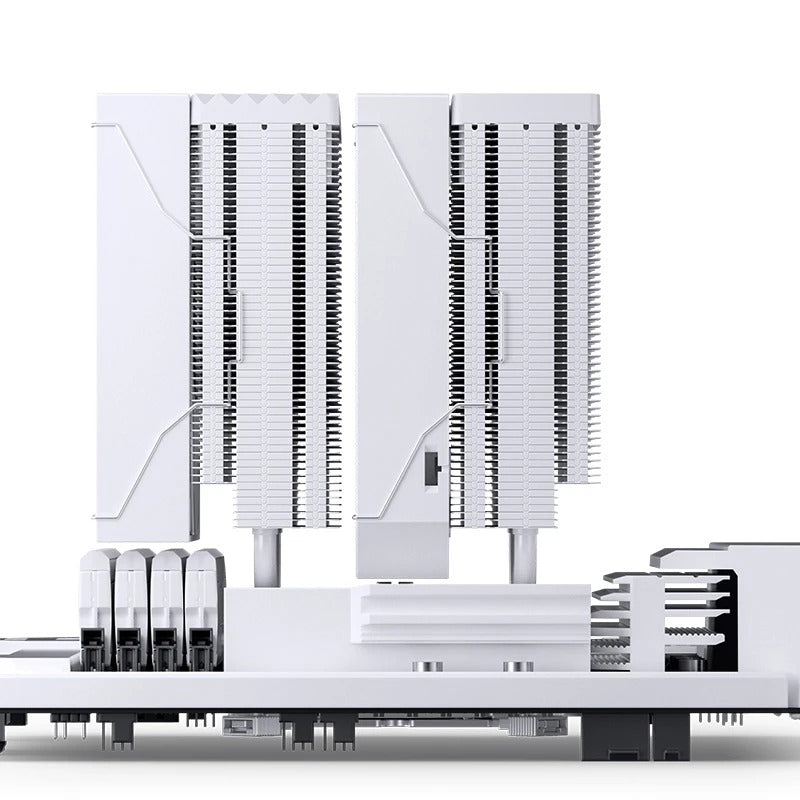

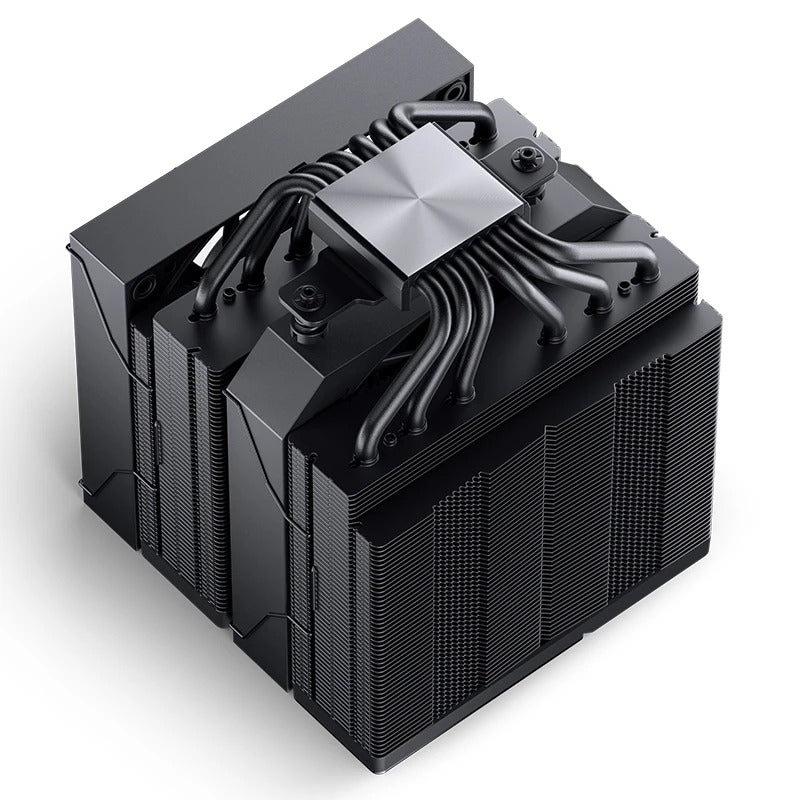

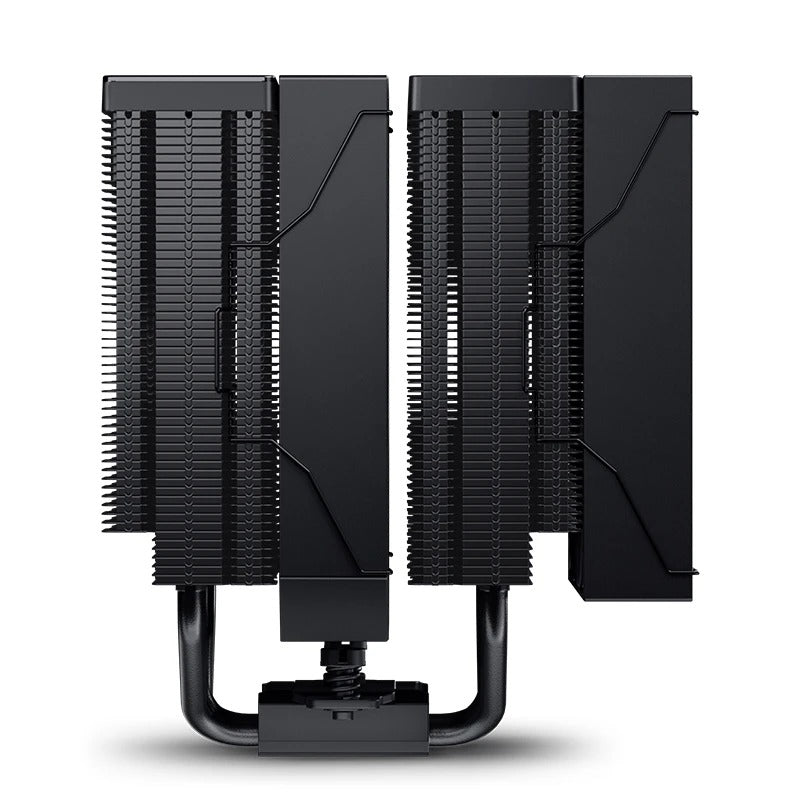

The Jonsbo CC90 is a premium dual-tower air cooler built for users who need strong thermal performance with a sleek modern design. Featuring a digital display for real-time CPU temperature monitoring, it combines powerful cooling efficiency with a stylish, high-end appearance that fits perfectly in gaming and performance-focused PC builds.

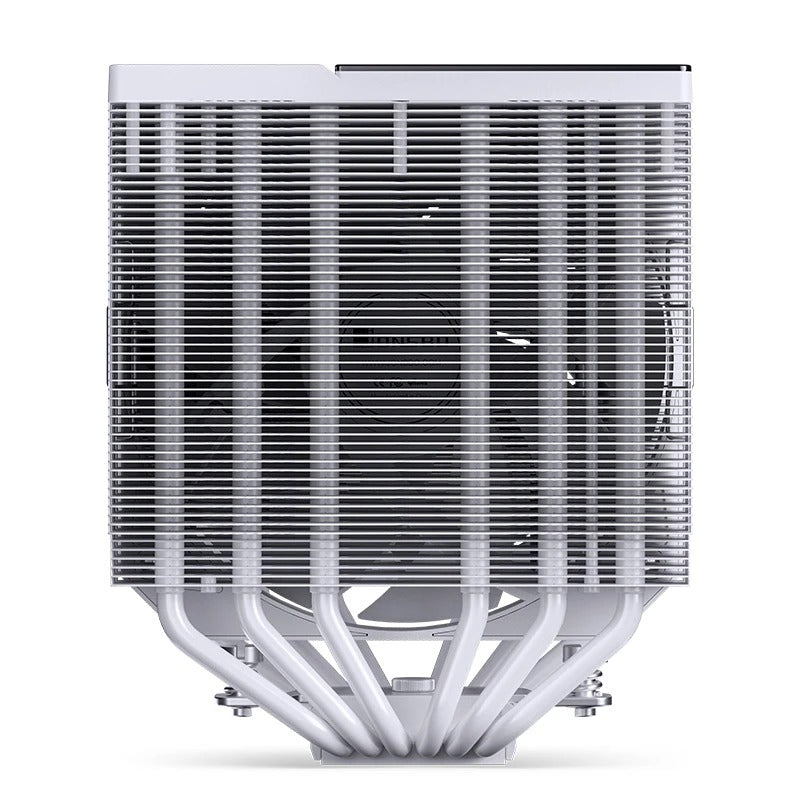

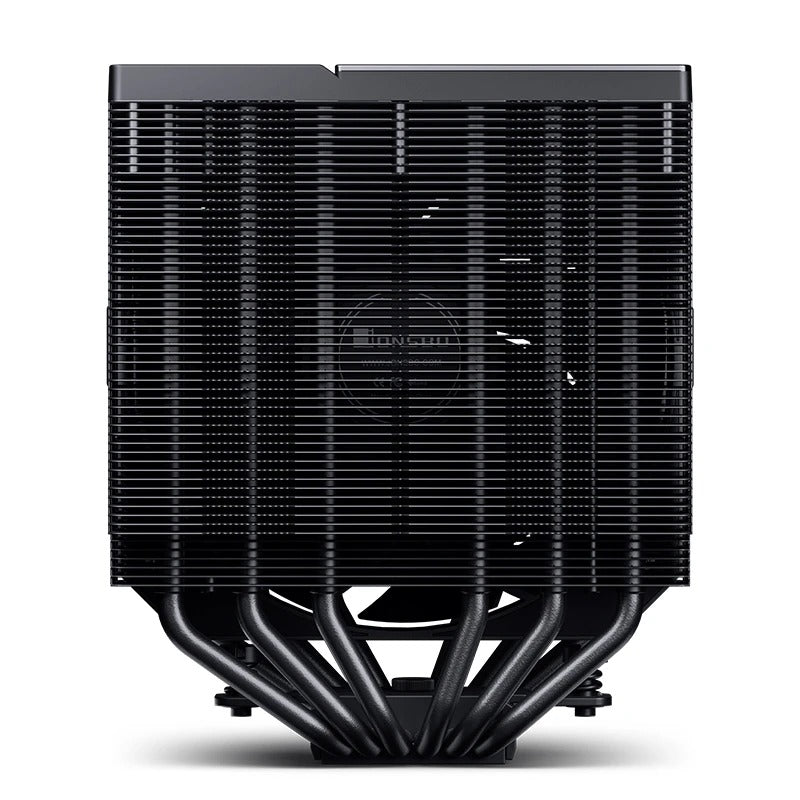

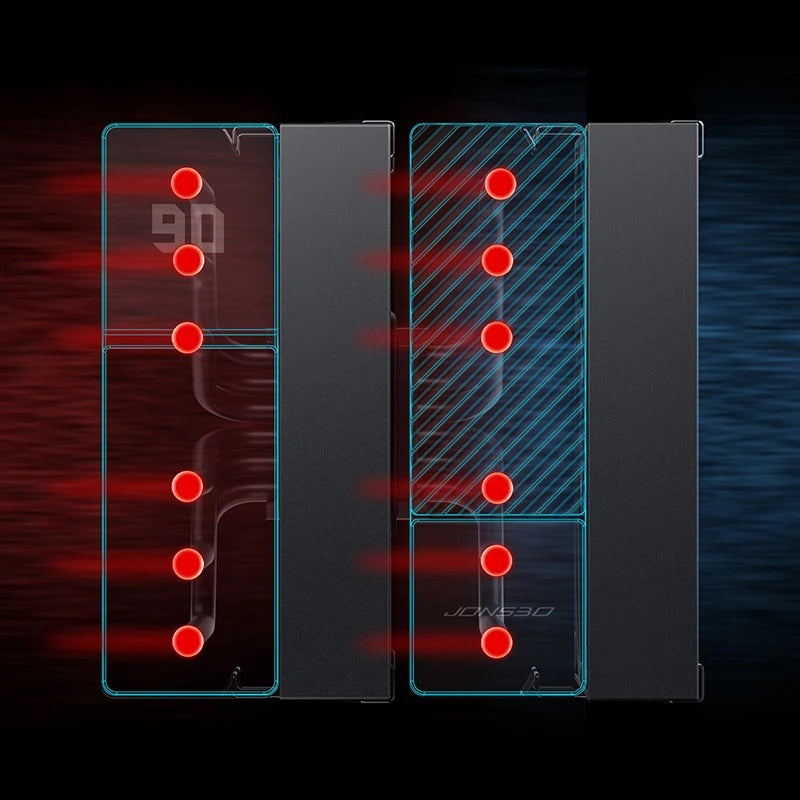

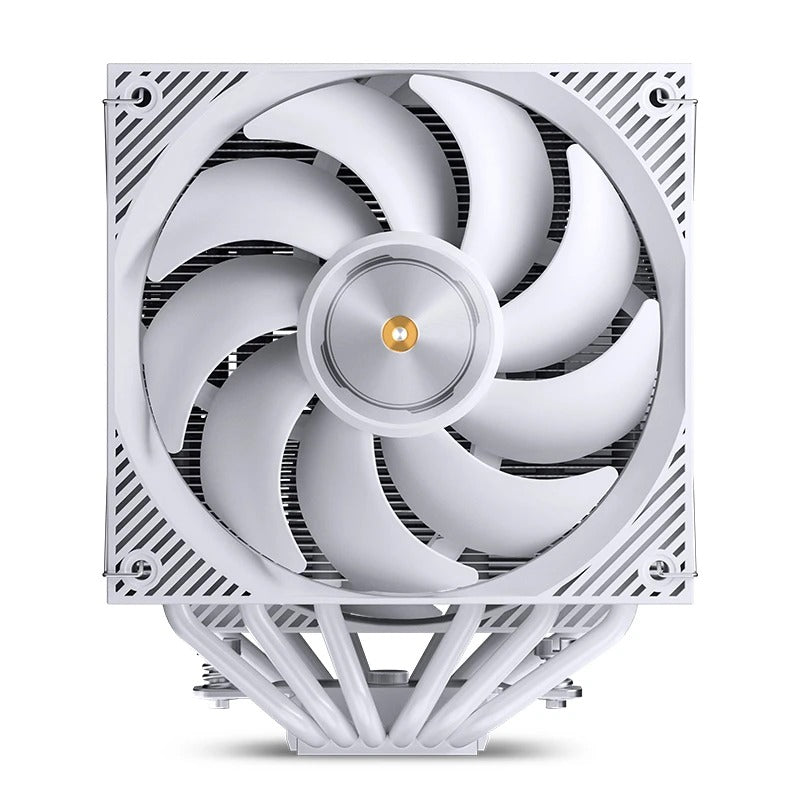

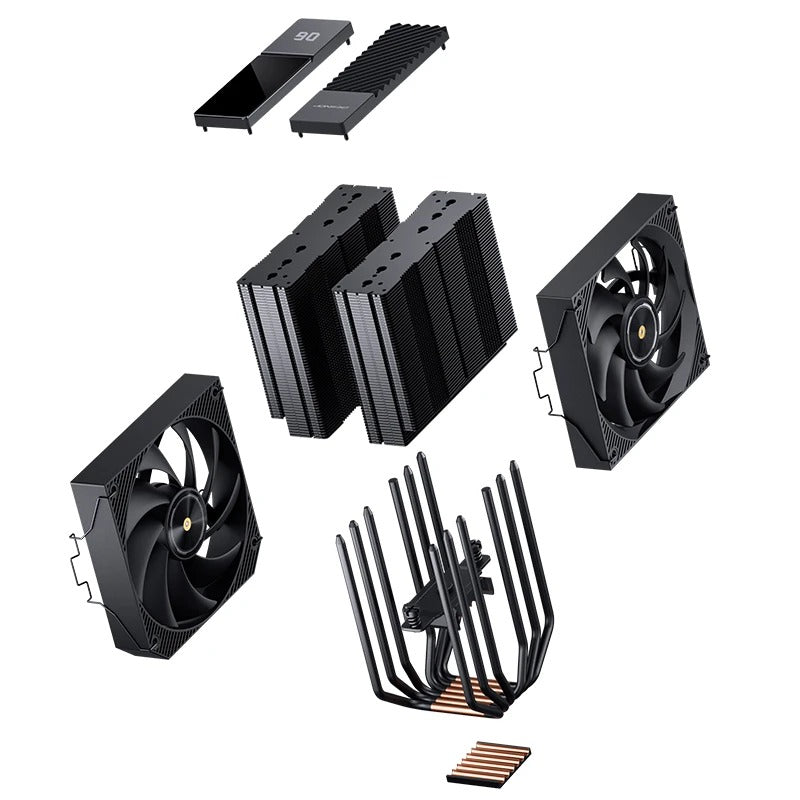

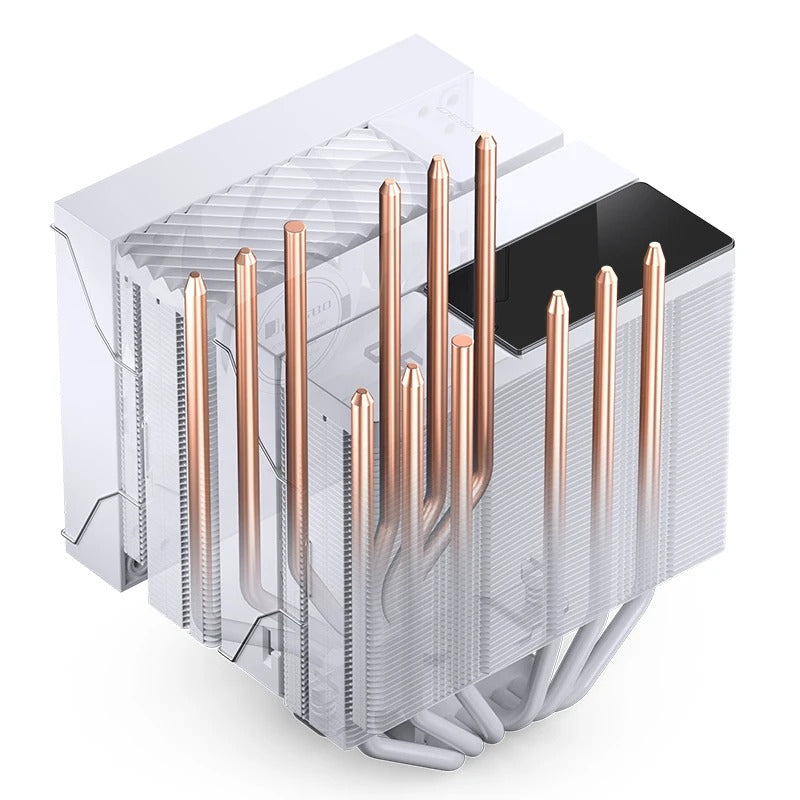

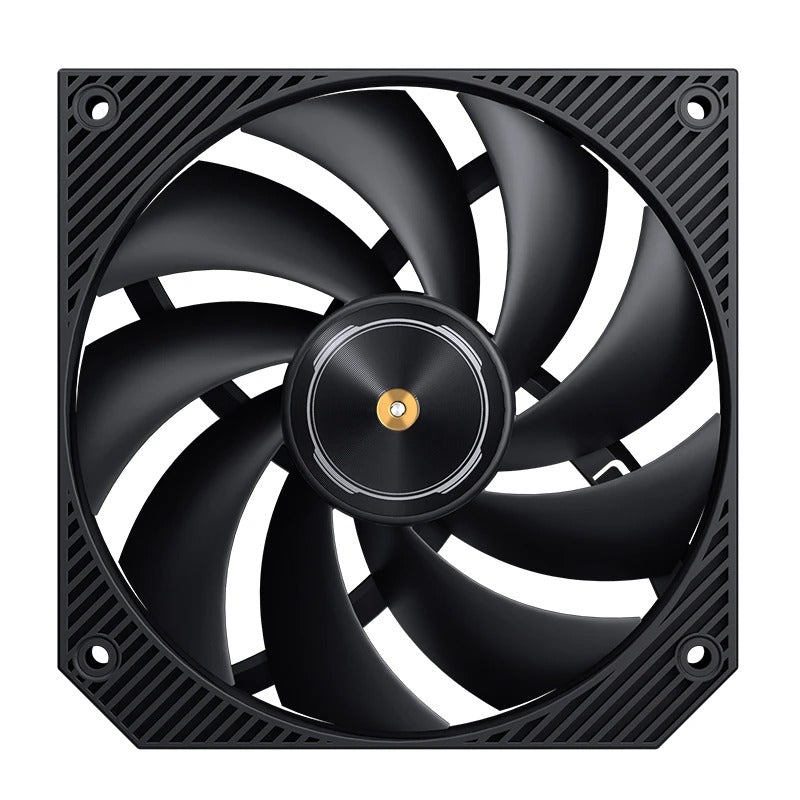

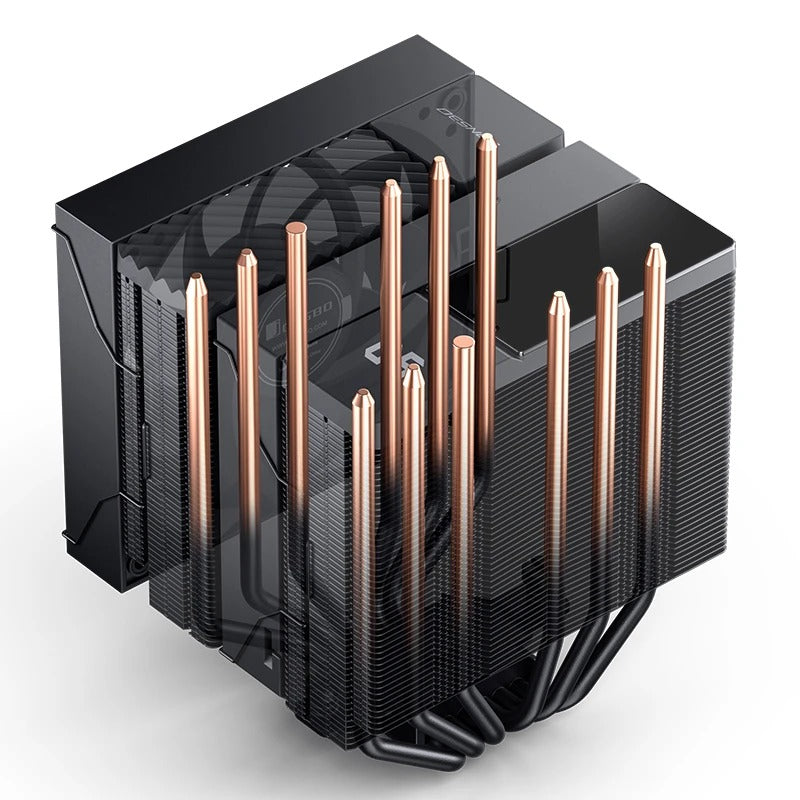

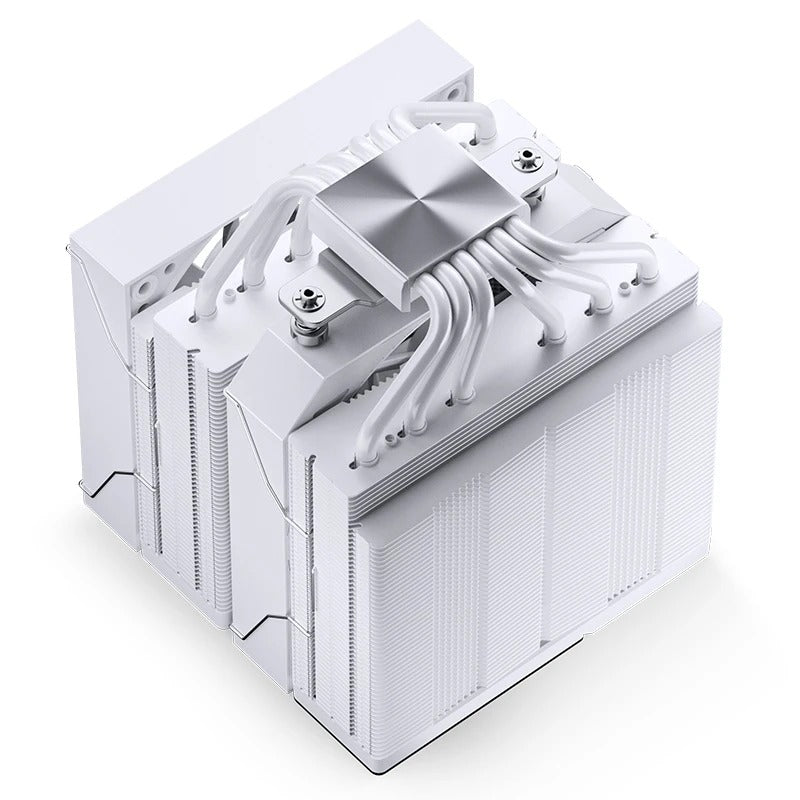

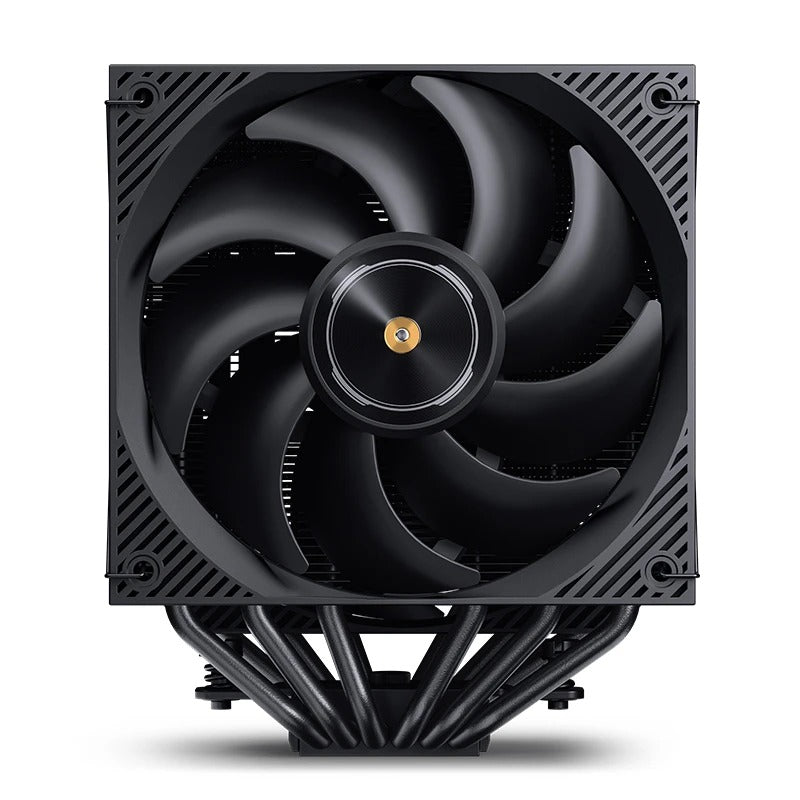

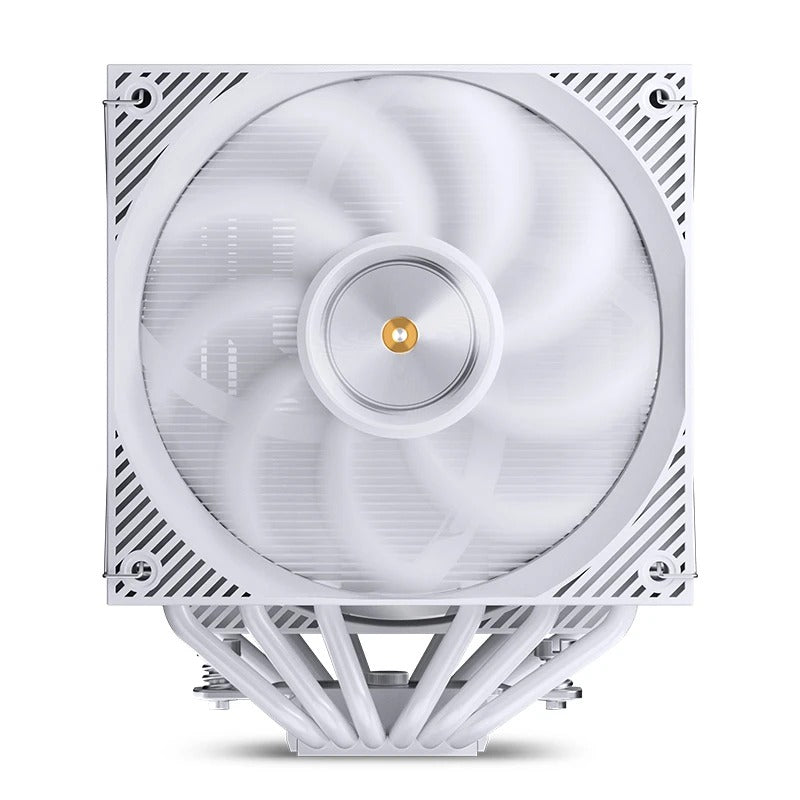

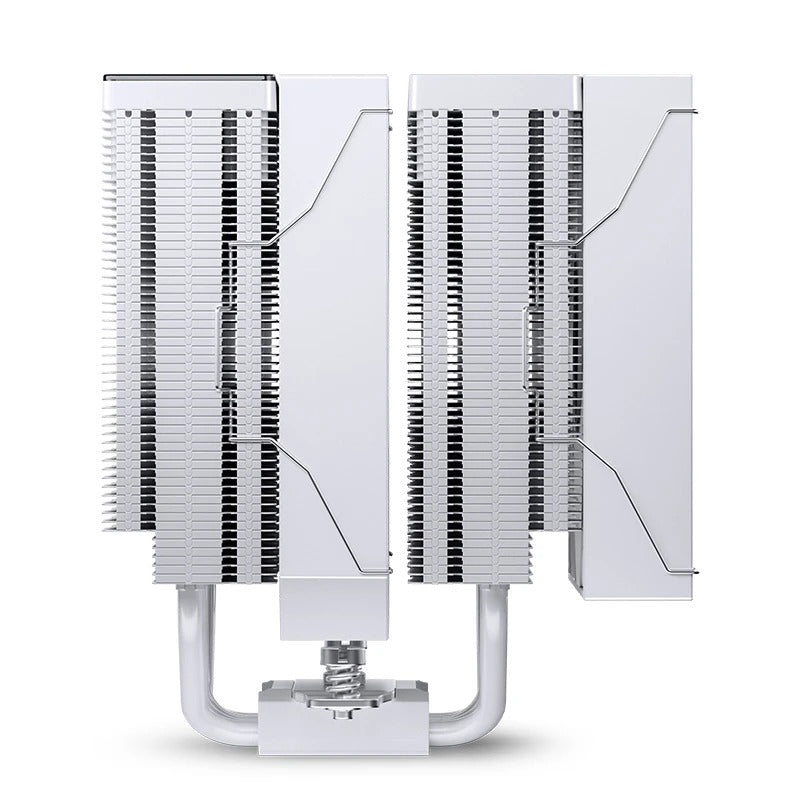

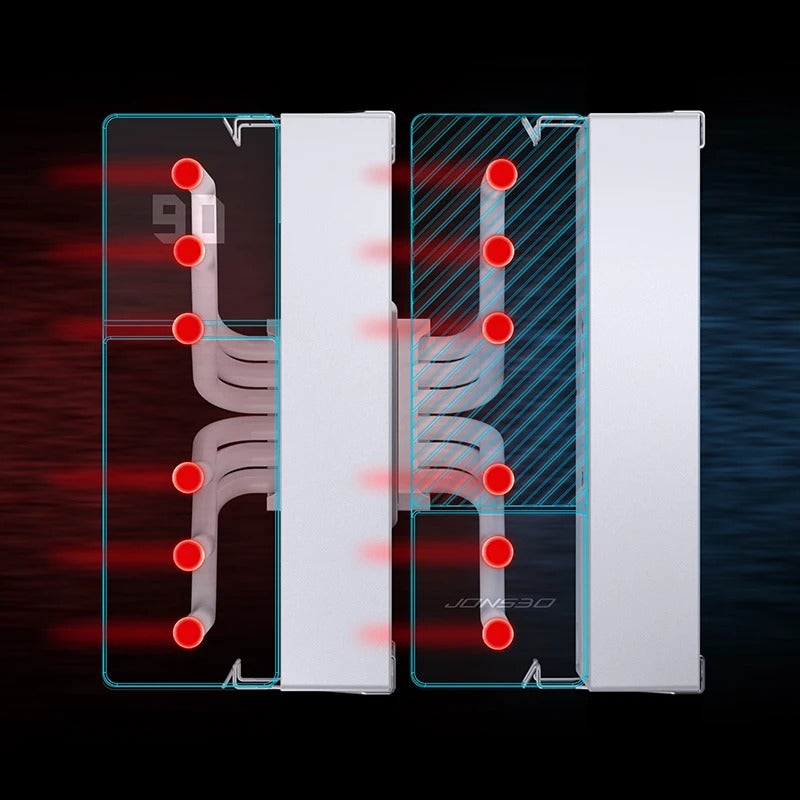

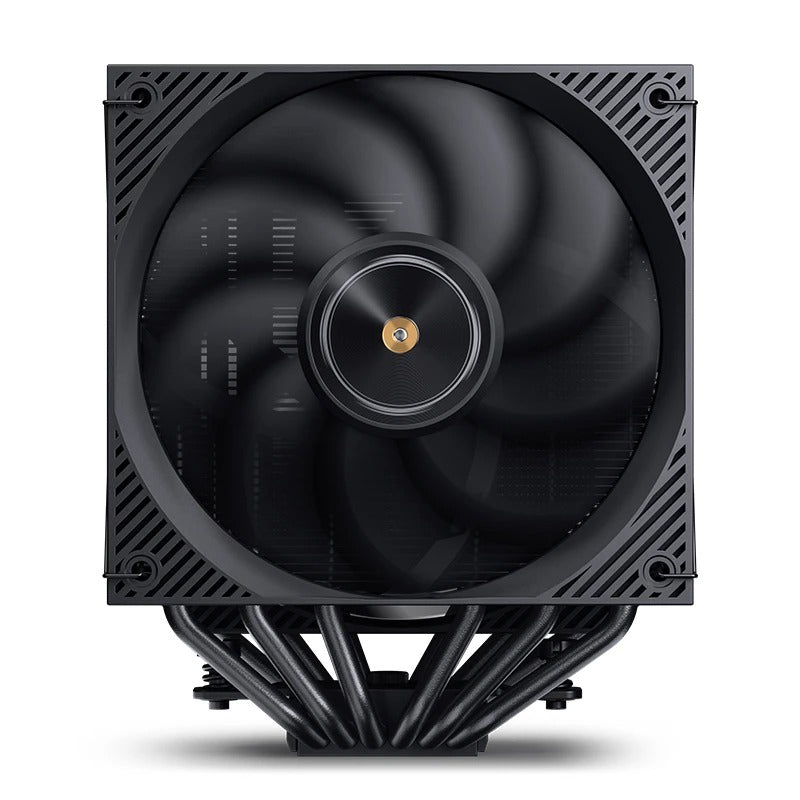

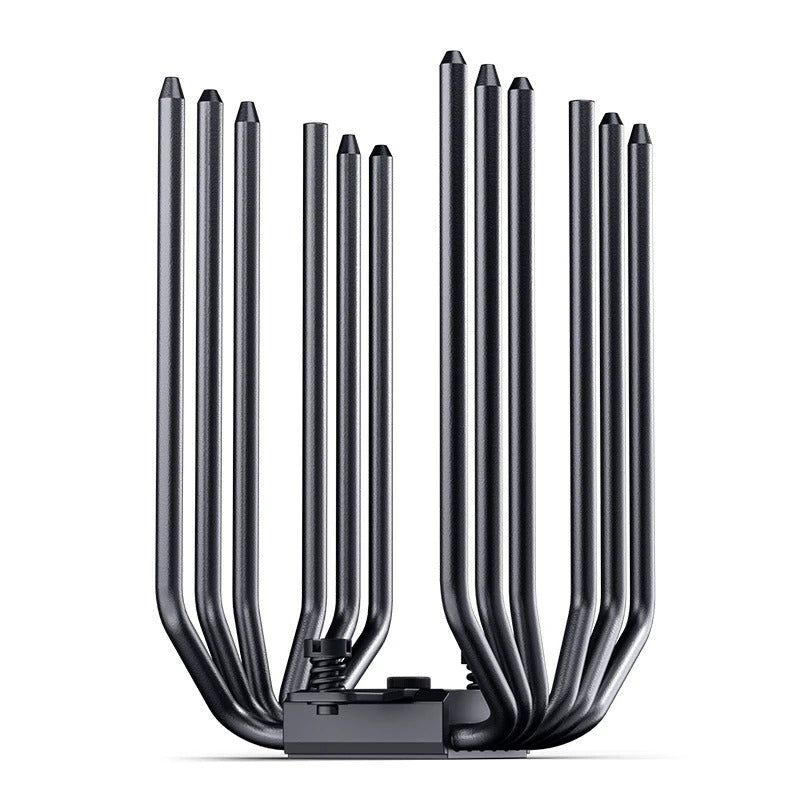

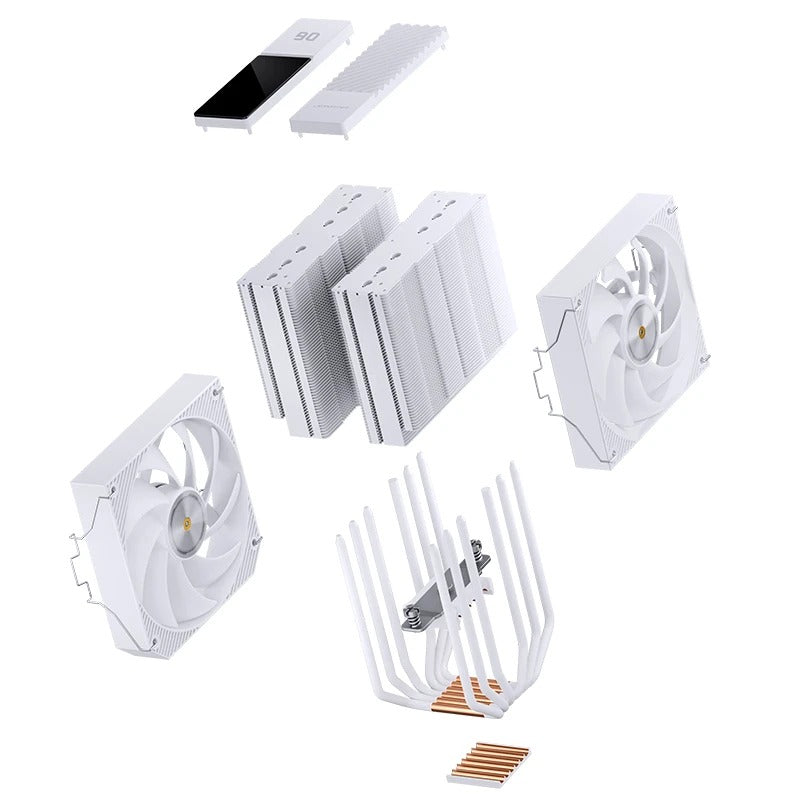

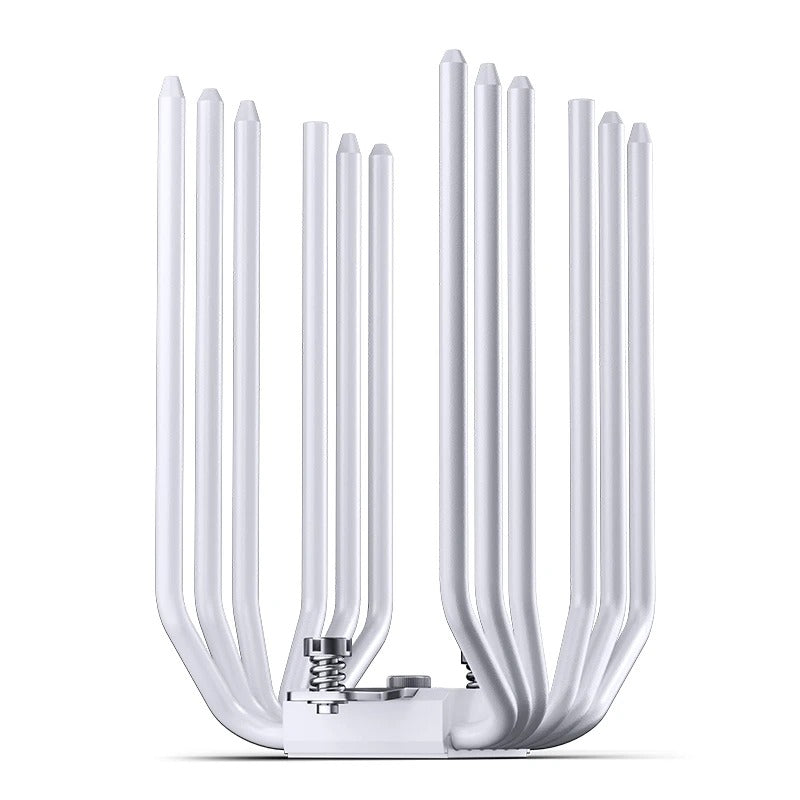

Designed with 6 optimized 6mm heatpipes and a precision CNC-machined base, the CC90 quickly absorbs and transfers heat away from the CPU for stable operation even under heavy workloads. Its dual-fan setup includes a 130mm and 120mm PWM fan, delivering excellent airflow while maintaining quiet performance. With a D-TDP rating of up to 285W, it is ideal for high-performance processors used in gaming, streaming, content creation, and multitasking. Official specs list support for Intel LGA 115X / 1200 / 1700 / 1851 and AMD AM4 / AM5 platforms.
Specification:

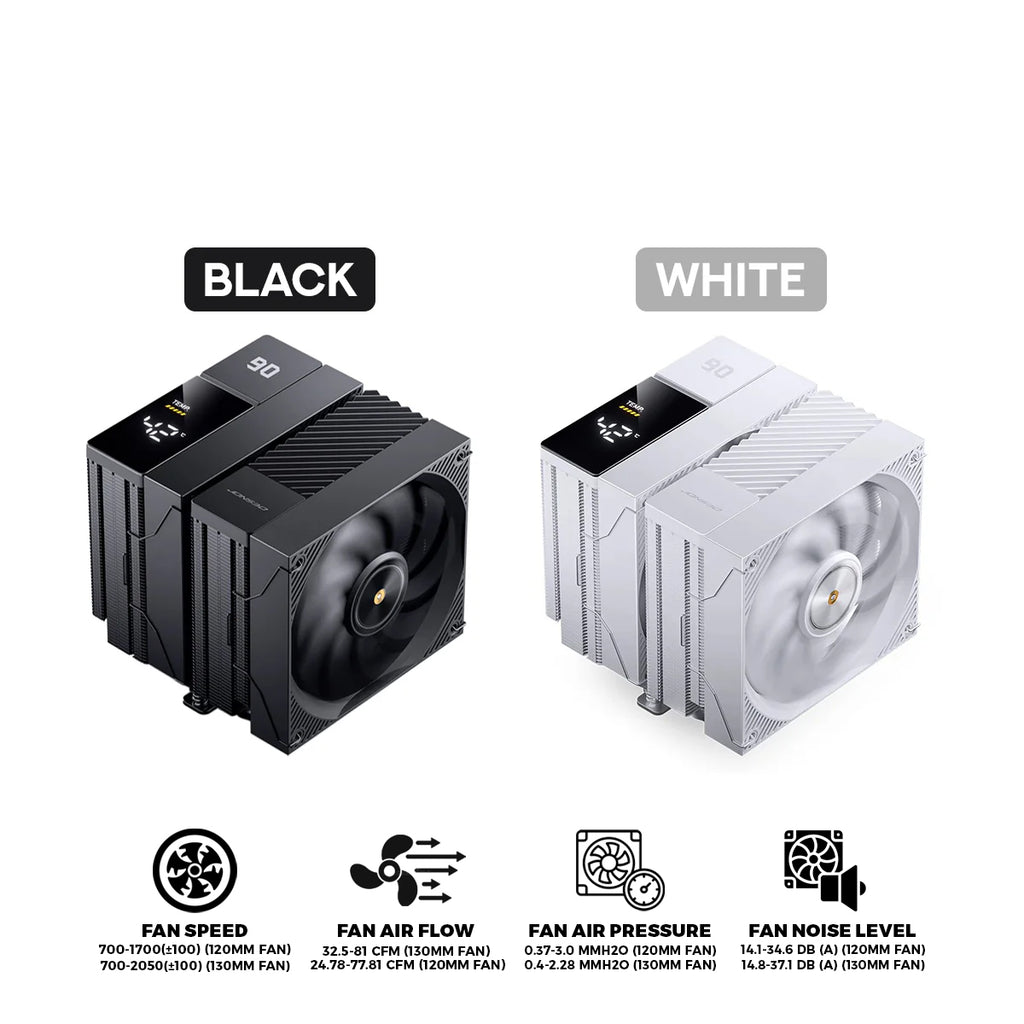

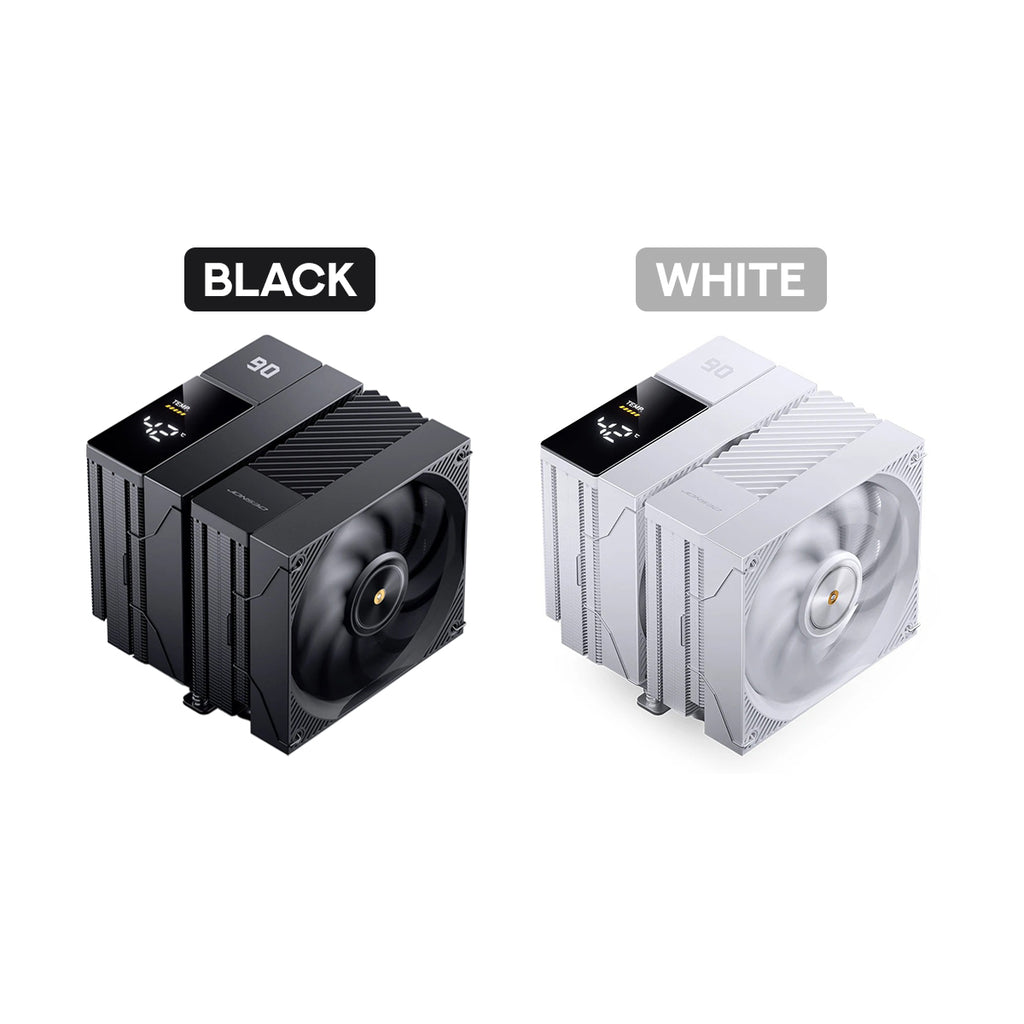

| Model | CC90 Black | CC90 White |

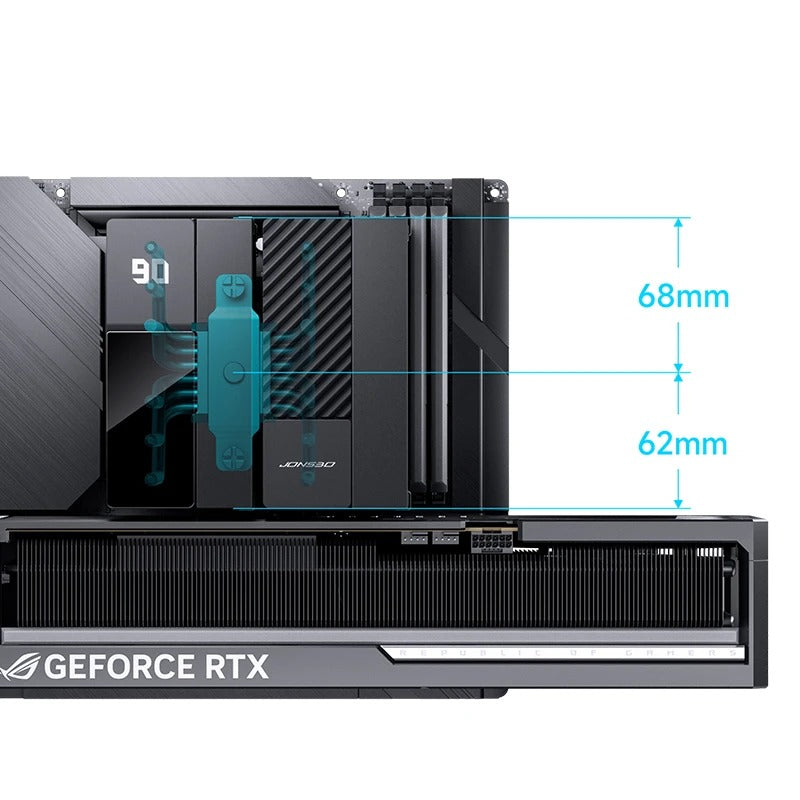

| Dimensions | 135 mm(L)*130mm(W)*158mm(H) |
| Heatpipe size | Φ6mm*6 PCS |
| D-TDP | 285W |

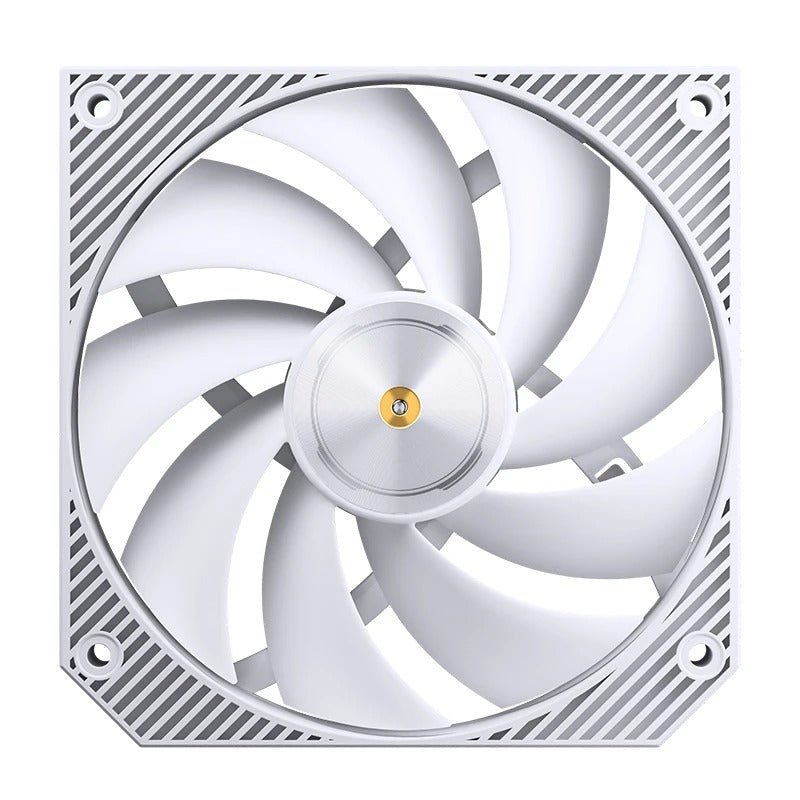

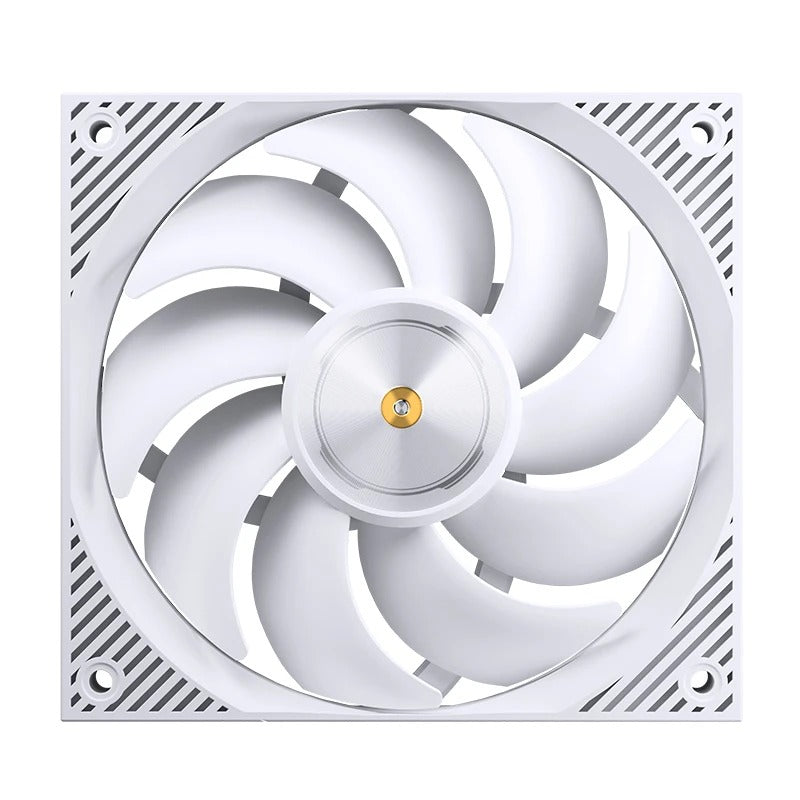

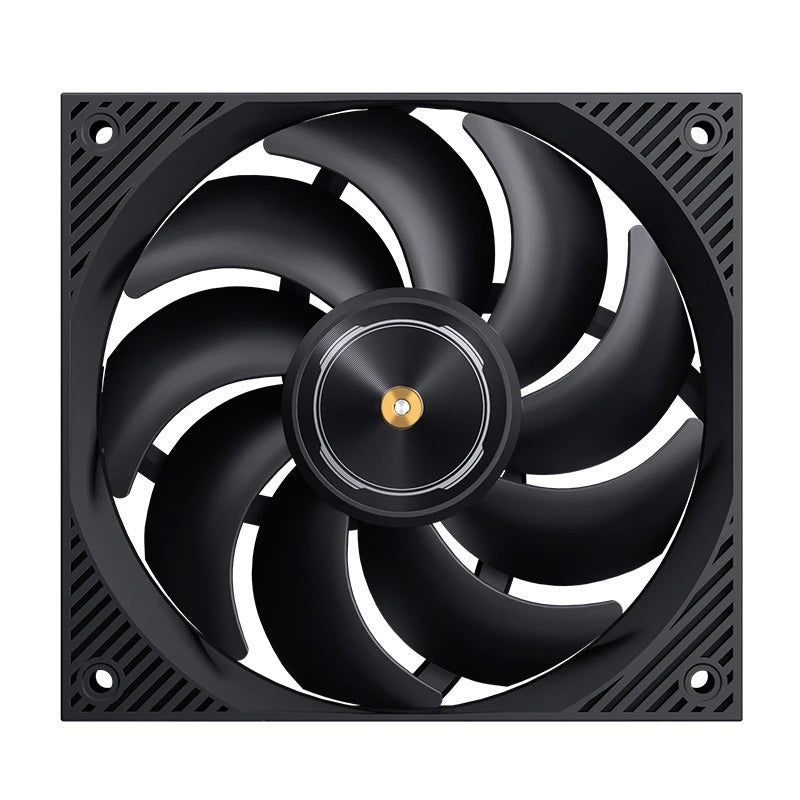

| Fan Dimensions | 130mm*130mm*25.5mm（130mm Fan） 130mm*120mm*25mm（120mm Fan） |
| Fan Speed | 700-1700(±100) RPM (130mm Fan) 700-2050(±100) RPM (120mm Fan) |
| Fan Air Flow | 32.5-81 CFM（130mm Fan） 24.78-77.81 CFM（120mm Fan） |
| Fan Air Pressure | 0.4-2.28 mmH2O (130mm Fan) 0.37-3.0 mmH2O (120mm Fan) |
| Fan Noise Level | 14.8-37.1 dB(A)（130mm Fan） 14.1-34.6 dB(A)（120mm Fan） |
| Fan MTTF | 50,000 Hours, at 40℃, 15%-65%RH |
| Connector | PWM 4PIN（130mm Fan） PWM 4PIN（120mm Fan） |
| Rated Current | FAN 0.18A (MAX: 0.25A)（130mm Fan） FAN 0.18A (MAX: 0.25A)（120mm Fan） |
| Rated Voltage | FAN 12V DC（130mm Fan） FAN 12V（120mm Fan） |
| Power Consumption | Fan 2.16W (MAX: 3.0W)（130mm Fan） Fan 2.16W (MAX: 3.0W) LED 1.5W（120mm Fan） |
| Scope of Application | INTEL: LGA 115X/1200/1700/1851 AMD: AM4/AM5 |
