Description

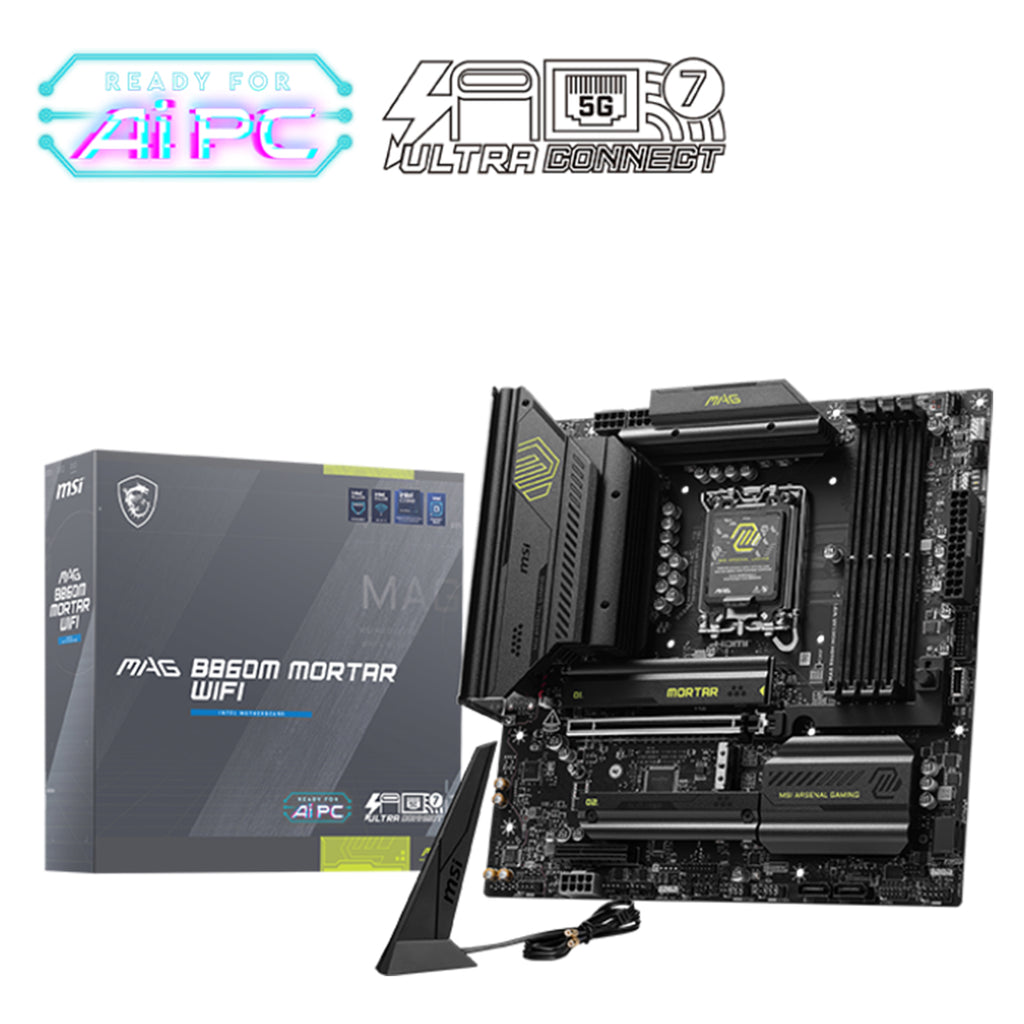

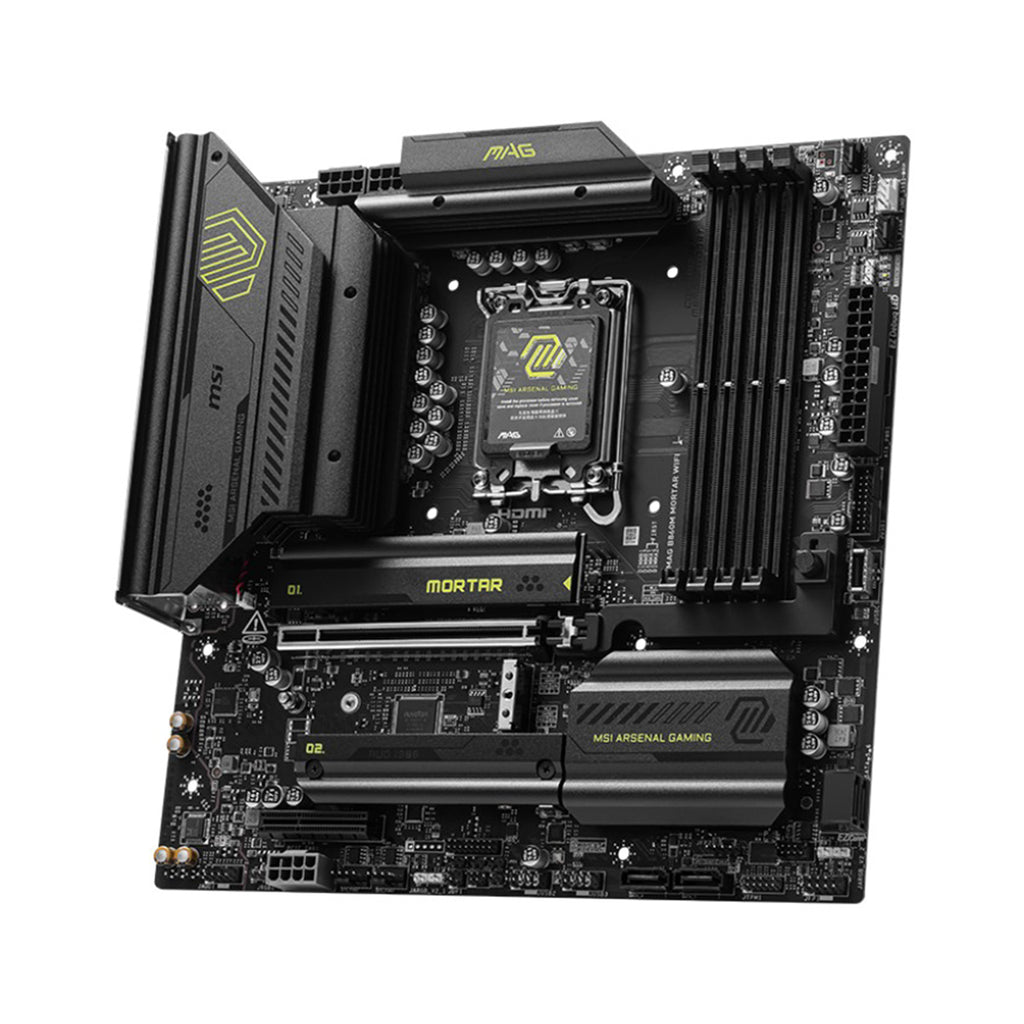

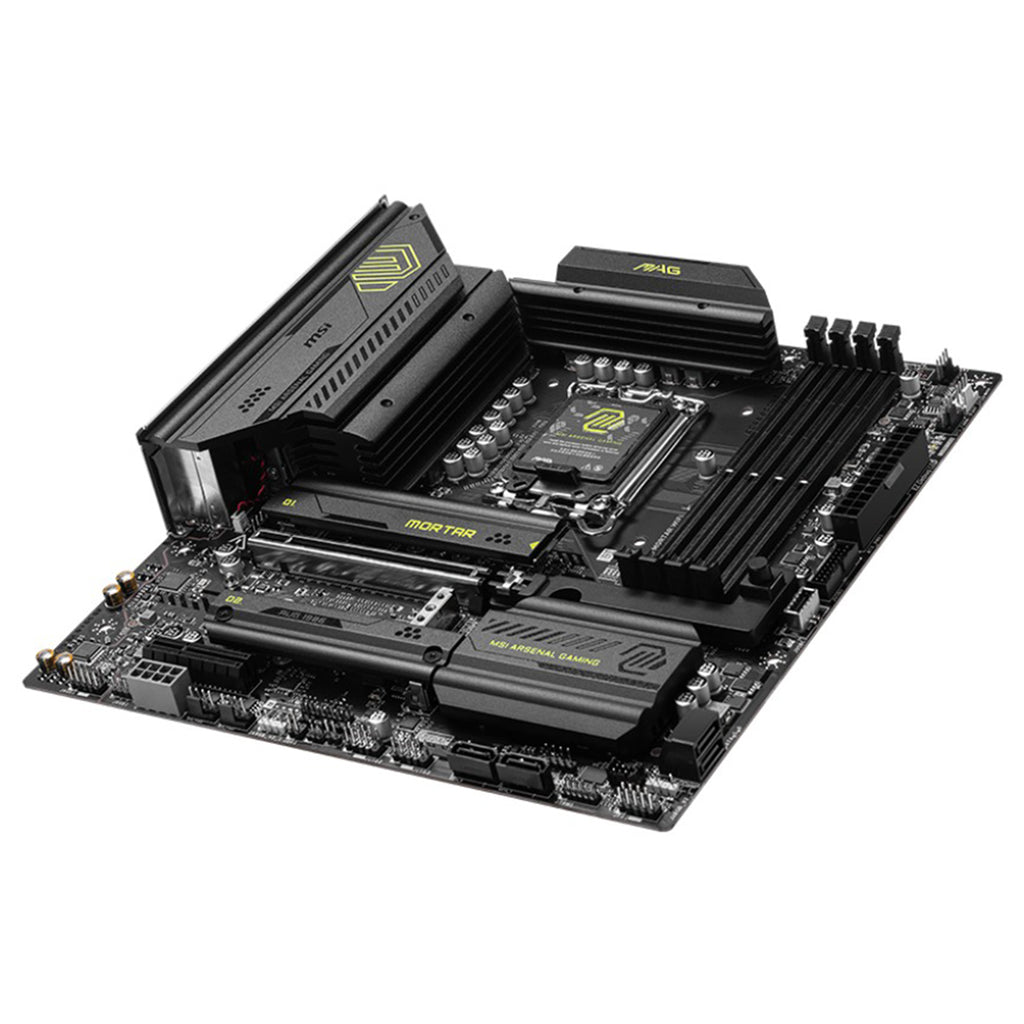

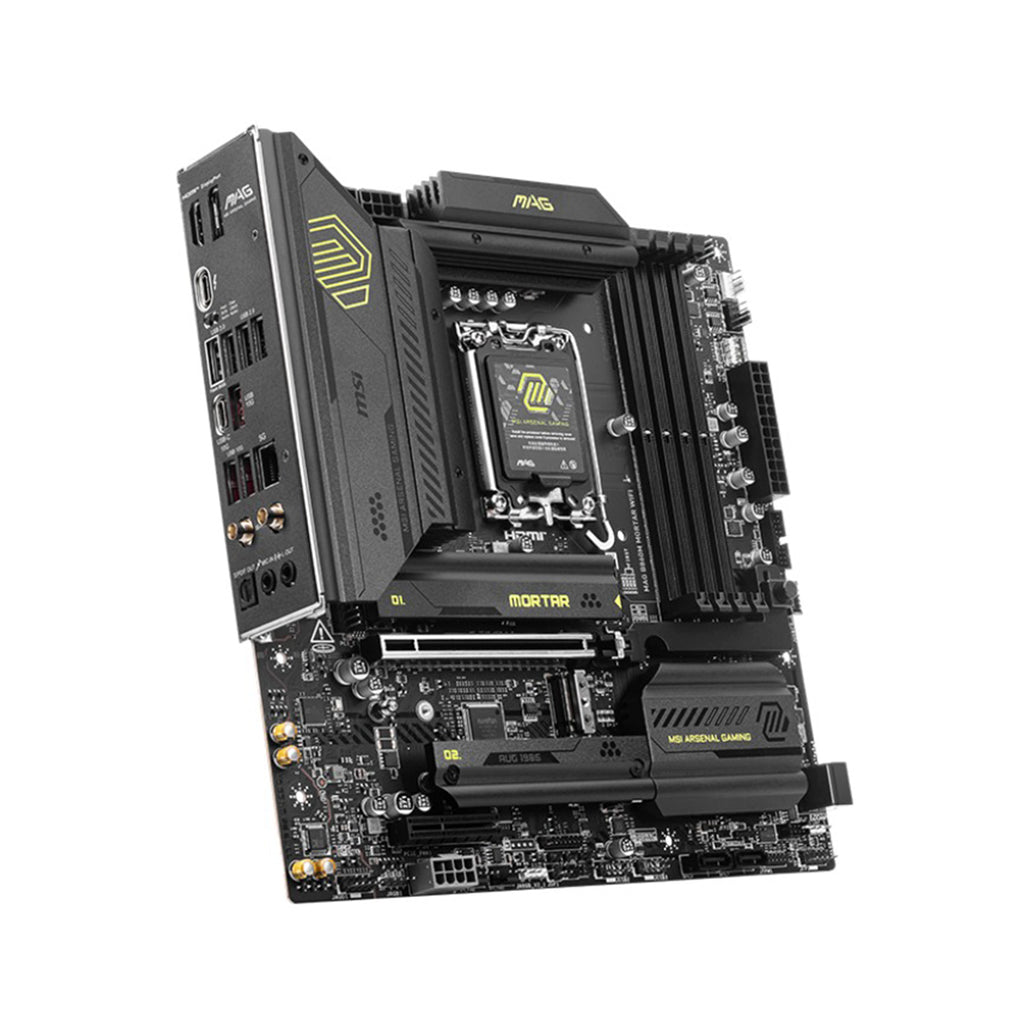

MAG B860M MORTAR WIFI
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 12+1+1+1 Duet Rail Power System 60A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification:
| Chipset | INTEL B860 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, up to 256GB 9066–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s 1DPC 1R: up to 9200+ MT/s 1DPC 2R: up to 7200+ MT/s 2DPC 1R: up to 6400+ MT/s 2DPC 2R: up to 5600+ MT/s Supports Intel® XMP 3.0, Dual-Channel, Non-ECC, Un-buffered memory, CUDIMM |
| Onboard Graphics | 1x HDMI™ 2.1 (8K@60Hz) 1x DisplayPort 1.4 (4K@60Hz) 1x USB Type-C with Thunderbolt™ 4 (DP 2.1, up to 8K@60Hz) *Available only with CPUs that have integrated graphics |
| Expansion Slots | 1x PCI-E x16 (Gen 5.0) 1x PCI-E x4 (Gen 4.0) |
| Audio | Realtek® ALC897, 7.1 HD, S/PDIF Out |
| Storage | 3x M.2 (PCIe 5.0 x4 & PCIe 4.0 x4) 4x SATA 6G RAID 0/1/5/10 for SATA |
| Thunderbolt | 1x Thunderbolt 4 (40Gbps) USB4: 20Gbps USB 3.2: 10Gbps Up to 15W charging Daisy-chain up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices Supports 8K display |
| USB Ports | Rear: 4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Wi-Fi & Bluetooth | Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth® 5.4 MU-MIMO, 2.4/5/6GHz, up to 5.8Gbps |
| Internal I/O | Thunderbolt 5 connector, ATX_PWR, CPU_PWR x2, PCIE_PWR (8-pin), CPU Fan, Combo Fan, 4x System Fan, JAUD, TPM, RGB headers, JDASH, EZ Conn-header, Front Panel connectors |
| LED Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |

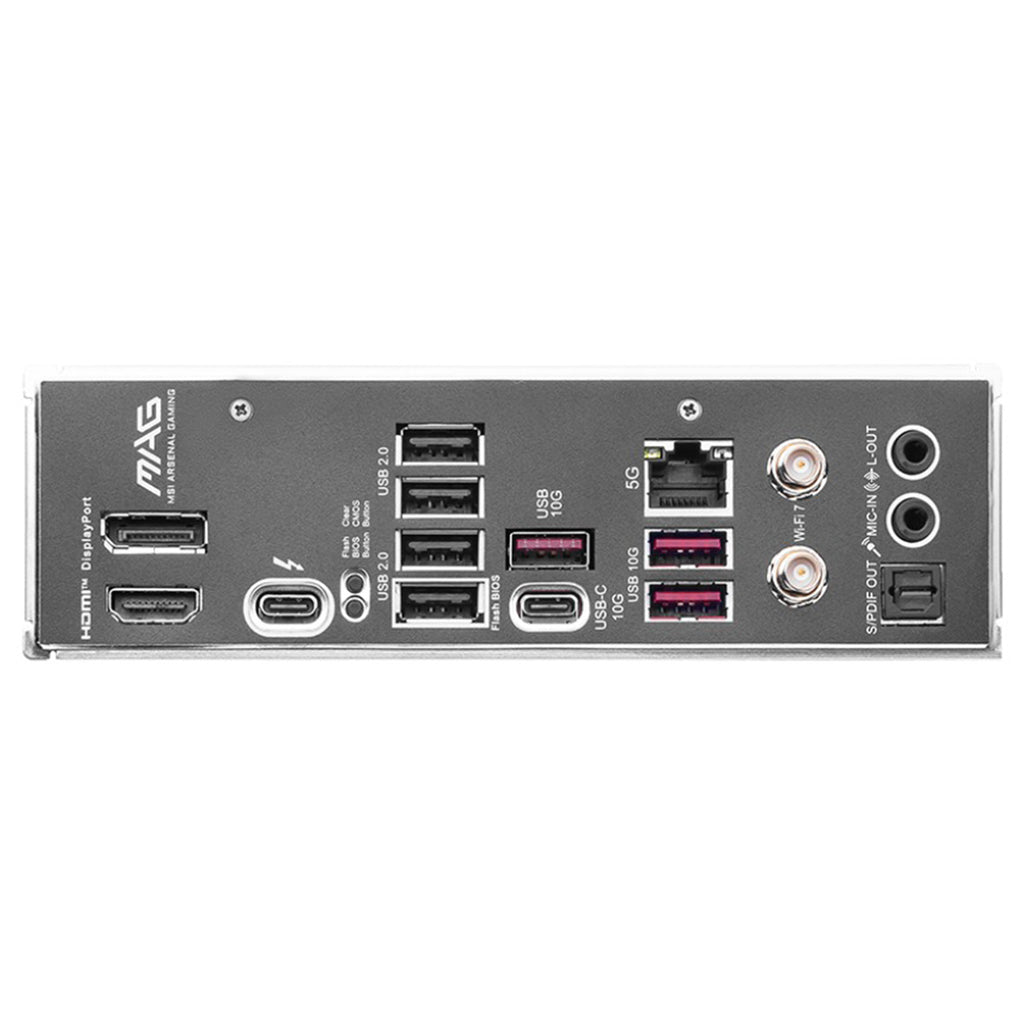

| Back Panel Ports | DisplayPort, HDMI™, Thunderbolt™ 4 (USB-C), USB 10Gbps (Type-A & C), USB 2.0, 5G LAN, Wi-Fi/Bluetooth antenna, Audio connectors, S/PDIF Out, Flash BIOS Button, Clear CMOS Button |
| Operating System | Windows® 11 64-bit |
| Form Factor | mATX (243.84mm x 243.84mm) |
