Description
SPECIFICATION

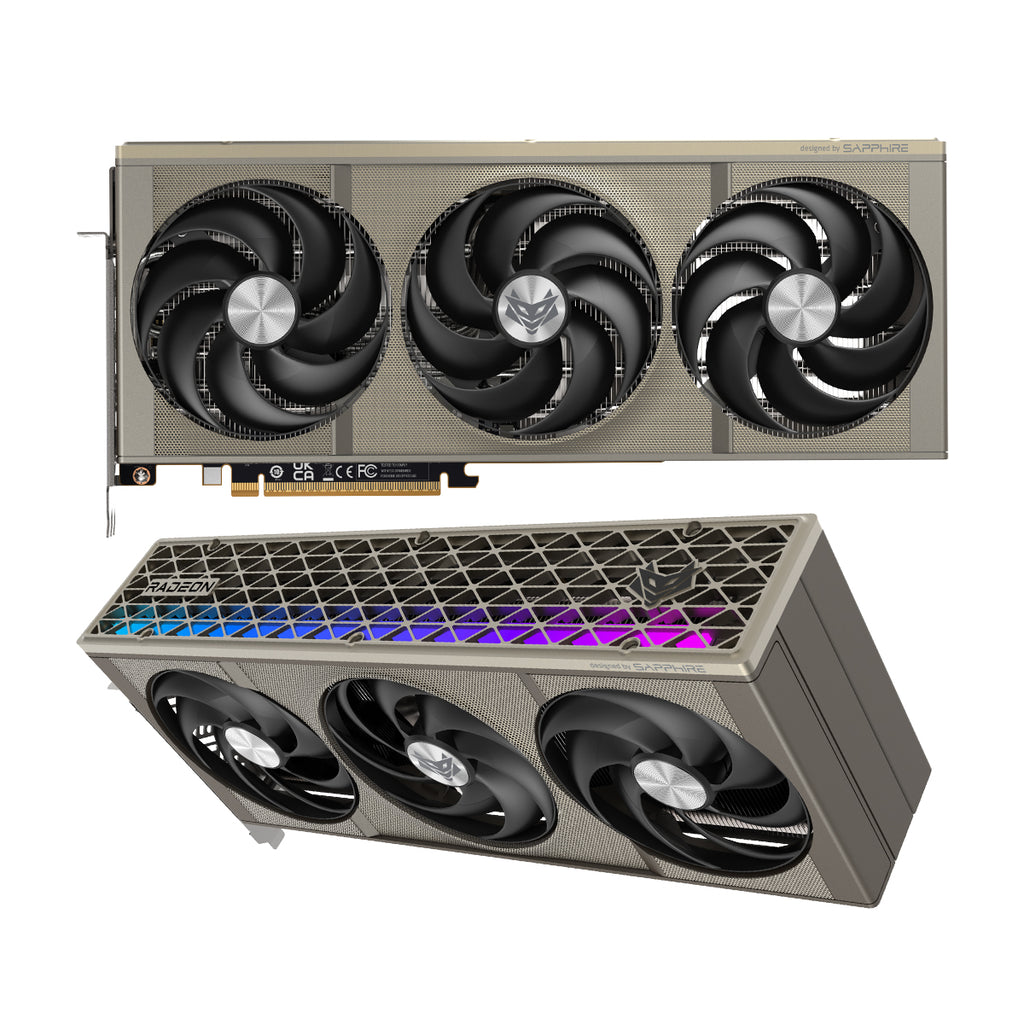

| GPU | AMD Radeon™ RX 9070 XT Graphics Card |
| AMD RDNA™ 4 Architecture | |
| Engine Clock | Boost Clock: Up to 3060 MHz |
| Game Clock: Up to 2520MHz | |
| Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. | |
| Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. | |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 64 |
| AI Accelerator | 128 |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI®: 7680×4320 |
| DisplayPort™ 2.1a: 7680×4320 | |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® |
| 2x DisplayPort™ 2.1a | |
| BIOS Support | UEFI |
| Game Index | 4K |
| Sapphire Features | Quick Connect MagniPlate |
| STEALTH Hidden Power Cable | |
| 12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6) | |
| Honeywell PTM7950 Thermal Interface Material (TIM) | |
| AeroCurve Fan Blade | |
| Free Flow | |
| FrameDefense | |
| Integrated Cooling Module | |
| Cold Rolled Steel Frame | |
| Tri-X Cooling Technology | |
| High TG Copper PCB | |
| Optimized Composite Heatpipes | |
| Metal Backplate | |
| ARGB Light Bar | |
| Fan Quick Connect | |
| Two-Ball Bearing Fans | |
| Premium 16-Phase Digital Power Design | |
| Fuse Protection | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| TriXX Supported | |
| Performance vs. Efficiency Quicksets | |
| Glow! | |
| Fan Check | |
| TriXX Boost | |
| External RGB LED MB Synchronization | |
| Accessories Bundled | L-Shape Support Bracket |
| 3pin 5V ARGB Cable | |
| Magnetic Backplate | |
| 12V-2x6(H++) to PCI Express 3x8-pin power adapter | |
| AMD Features | AMD RDNA™ 4 Architecture |
| 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) | |
| AMD HYPR-RX with AFMF 2 | |
| AMD FidelityFX™ Super Resolution 4 with AI Upscaling | |
| DisplayPort™ 2.1a | |
| AMD Radiance Display™ Engine | |
| AMD Fluid Motion Frames 2 technology | |
| AMD Radeon™ Anti-Lag 2 technology | |
| AV1 Encode/Decode | |
| AMD FidelityFX™ technologies | |
| Microsoft® DirectX® 12 Ultimate | |
| AMD Noise Suppression | |
| AMD Freesync™ technology | |
| 16 GB of GDDR6 on 256-bit Memory Bus | |
| AMD smart technologies | |
| AMD Software: Adrenalin Edition™ application | |
| Cooler Type | Tri-X Cooling |
| AeroCurve Fan Blade | |
| Free Flow | |
| Integrated Cooling Module | |
| High TG Copper PCB | |
| Optimized Composite Heatpipes | |
| Two-Ball Bearing | |
| Form Factor | 3.2 slot, ATX |
| Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm | |
| Power Consumption | 330W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 750 Watt Power Supply |
| 12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6) | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. |
Customer Reviews
Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Goods
L
While I haven’t had the chance to fully test the RX 9070 XT yet, my early experience has been incredibly promising. I ran a benchmark using Cyberpunk 2077 at 2K resolution with ray tracing and frame generation enabled—and I’m thrilled to be getting over 100 FPS. The performance is smooth, responsive, and visually stunning, especially for such a demanding title.
Can’t wait to see how it handles other AAA games and workloads. This card is shaping up to be a beast.
