Description
- GPU: Boost Clock: Up to 2970 MHz
- GPU: Game Clock: Up to 2400 MHz
- Memory: 16GB/256 bit DDR6. 20Gbps Effective
- Stream Processors: 4096
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 64

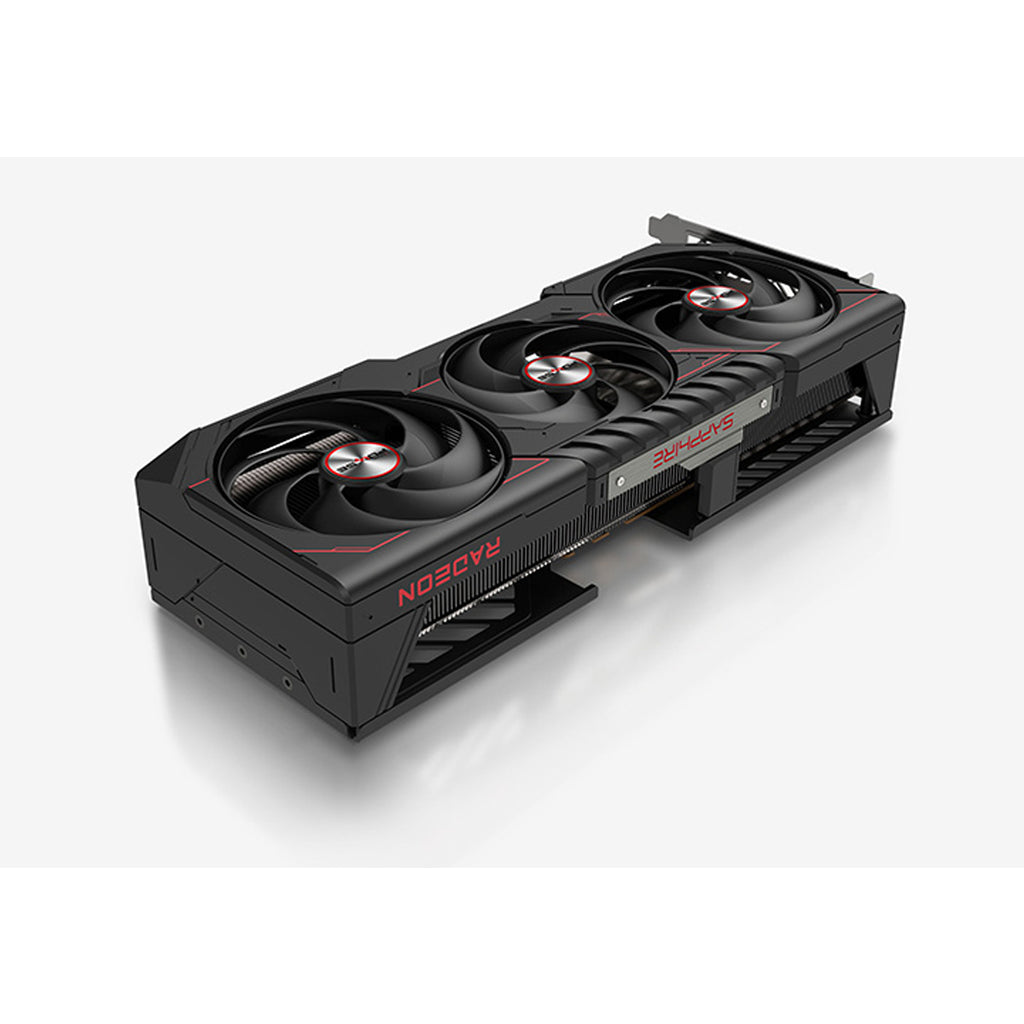

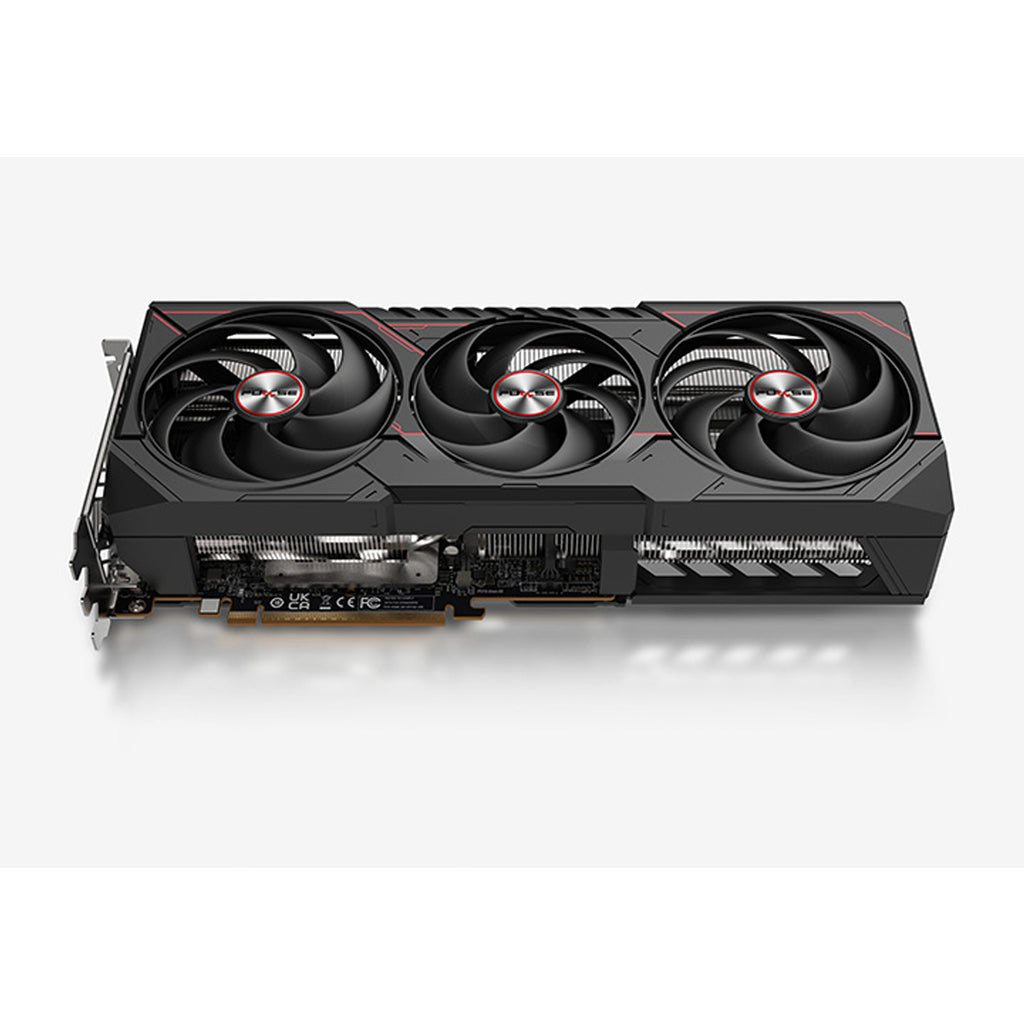

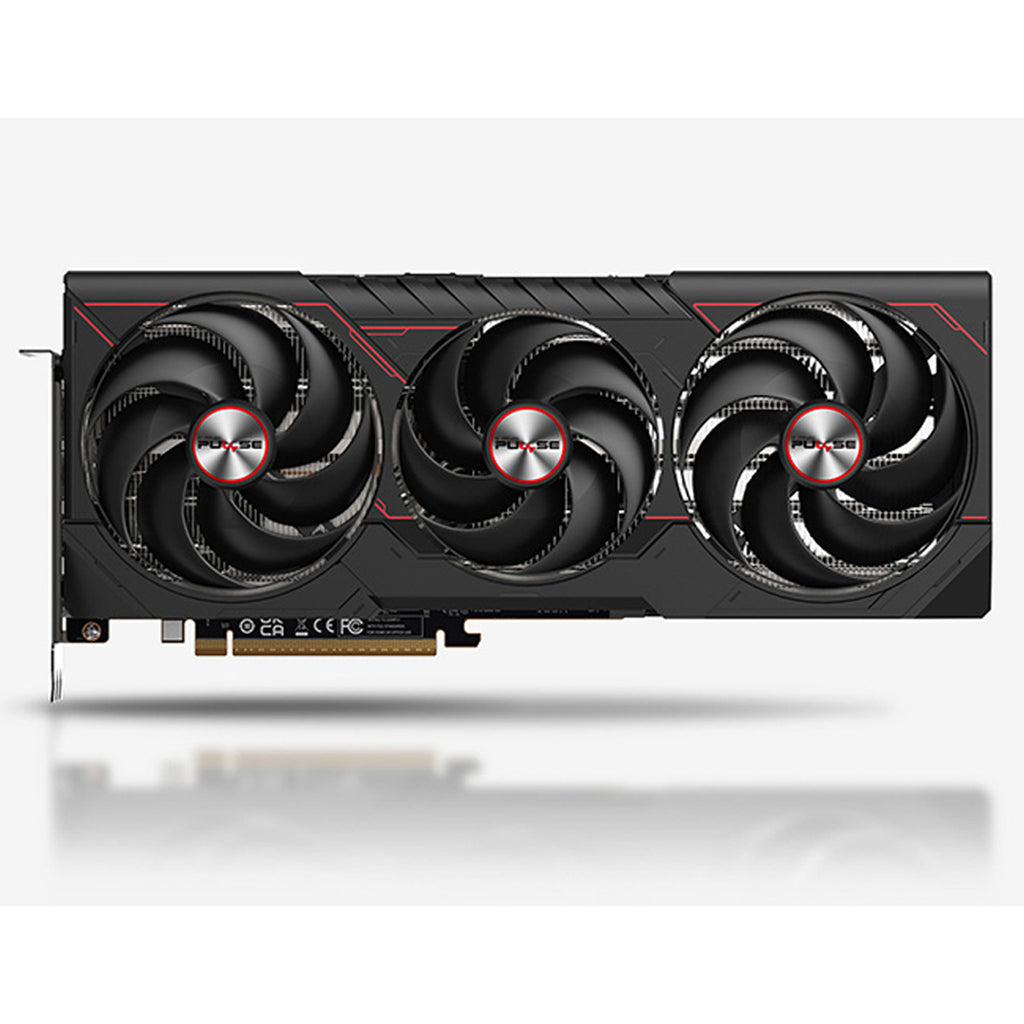

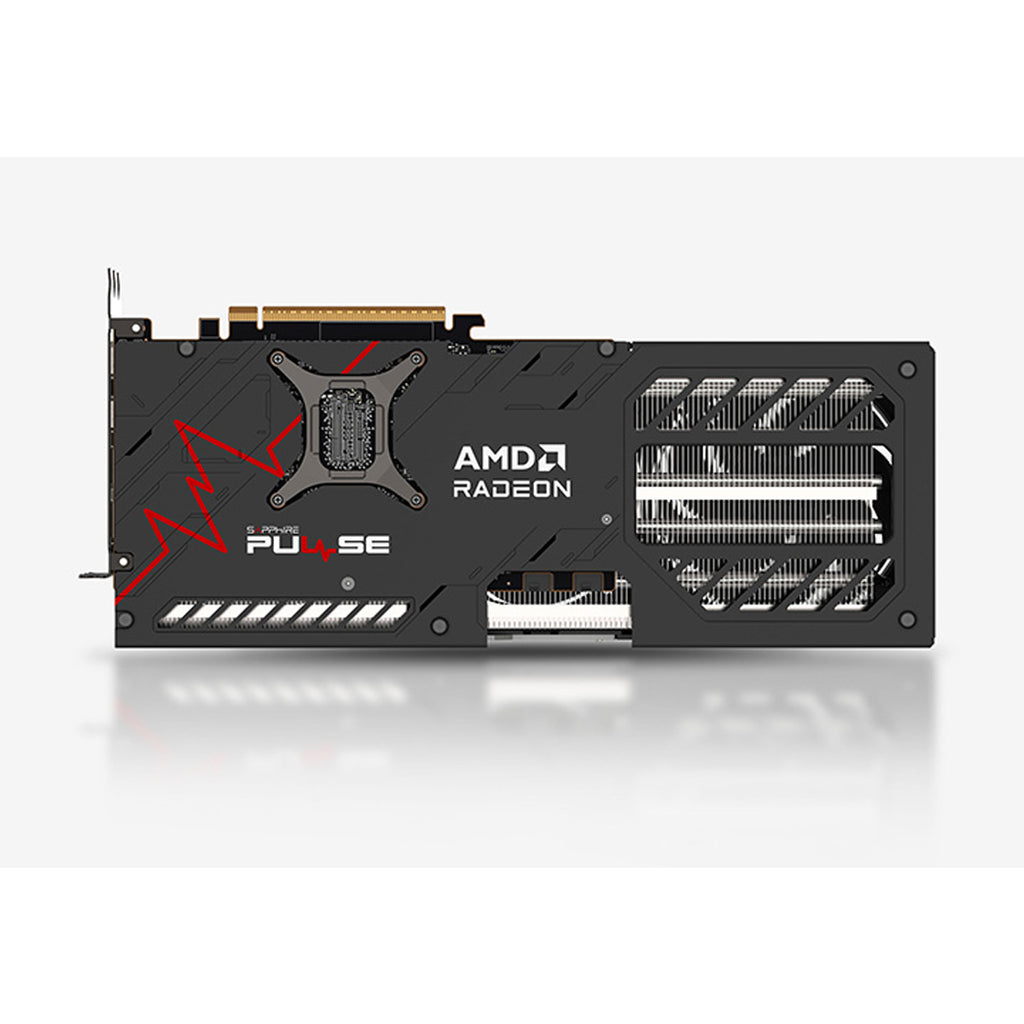

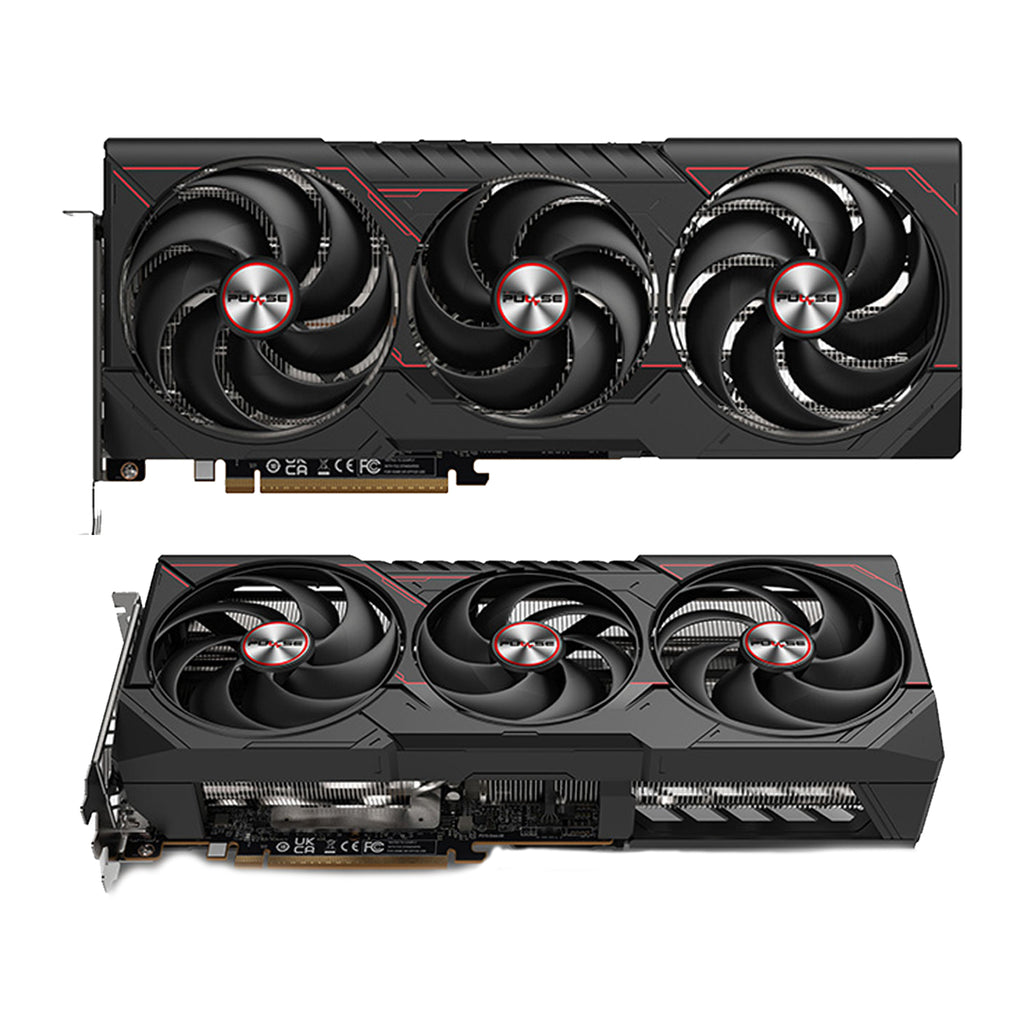

| GPU | AMD Radeon™ RX 9070 XT Graphics Card |
|---|---|
| Architecture | AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2970 MHz Game Clock: Up to 2400 MHz |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 64 |
| AI Accelerator | 128 |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |

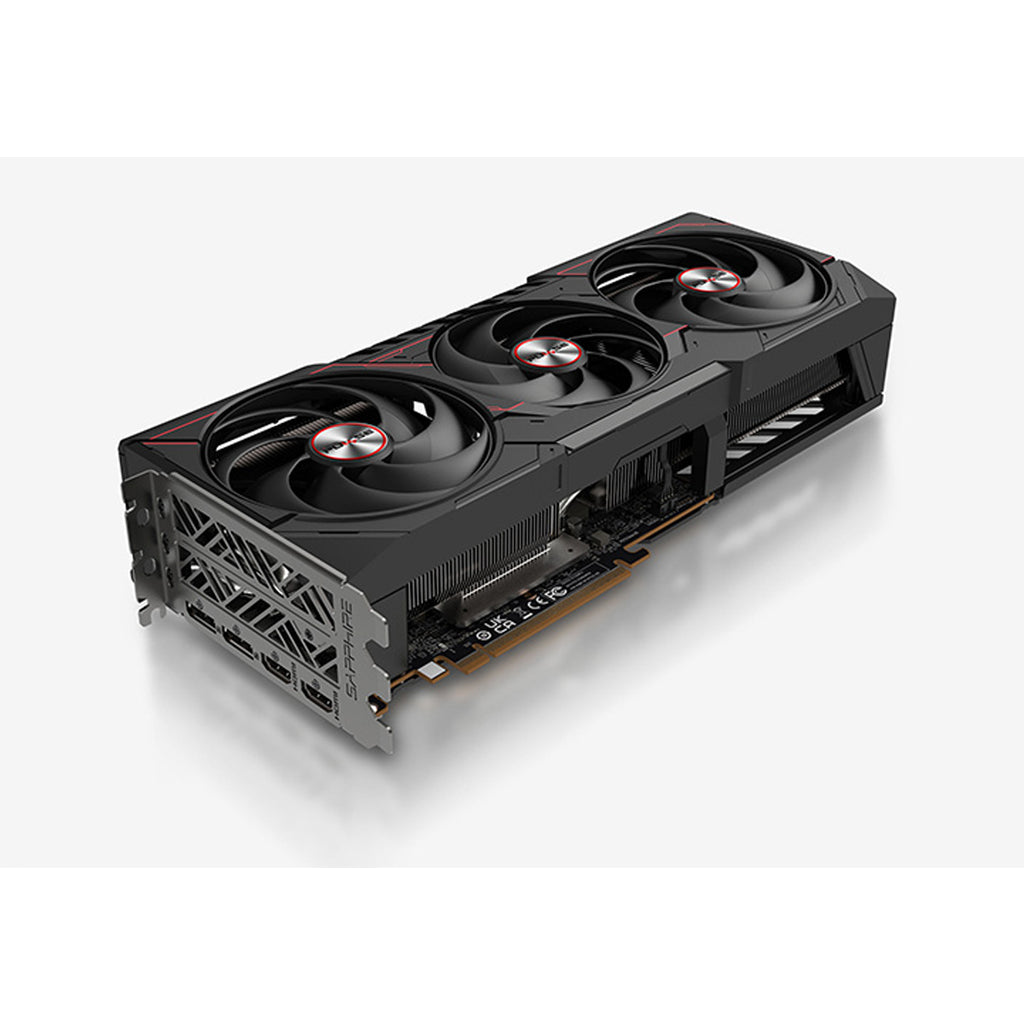

| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate Two-Ball Bearing Fans 14-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost |
| Accessories Bundled | L-Shape Support Bracket |
| AMD Features | AMD RDNA™ 4 Architecture 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
| Cooler Type | Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 3 slot, ATX Dimension: 320(L) x 120.25(W) x 61.6(H) mm |
| Power Consumption | 304W Typical Board Power |
| Operating Systems | Linux®, Windows® 10, and Windows 11 (64-bit required) |
| System Requirement | Minimum 750 Watt Power Supply 2 x 8-pin Power Connector PCI Express® based PC with one X16 lane graphics slot Minimum 8GB system memory (16GB recommended) |
Customer Reviews
Runs quiet at 55C while under 90% load. Best higher end price to performance in the market right now
Immediately ordered after getting an email on availability.
Great alternative to the high priced Team Green VC.
No driver issue, missing ROPS and melting power cable
Feels cheap, as the shroud consist of thin plastic. Also the length is not accurate. I’m using a4h2o, gpu supported length is 323mm, it maxes out the 323mm and bulge a bit at the end so its not really 320mm. Still a good buy as the cooler works well.
This was sold out everywhere. So glad we snagged one when stock was refreshed here. 😭 So far, it's working well. Took less than a week to arrive to Davao.
I upgraded from an RTX 2060 to RX 9070 XT and obviously, the difference is colossal. Sapphire's Pulse series is the most budget-friendly card I believe, and honestly I don't think I need the higher tiers, at least for me who games only on 1440P.
