Description

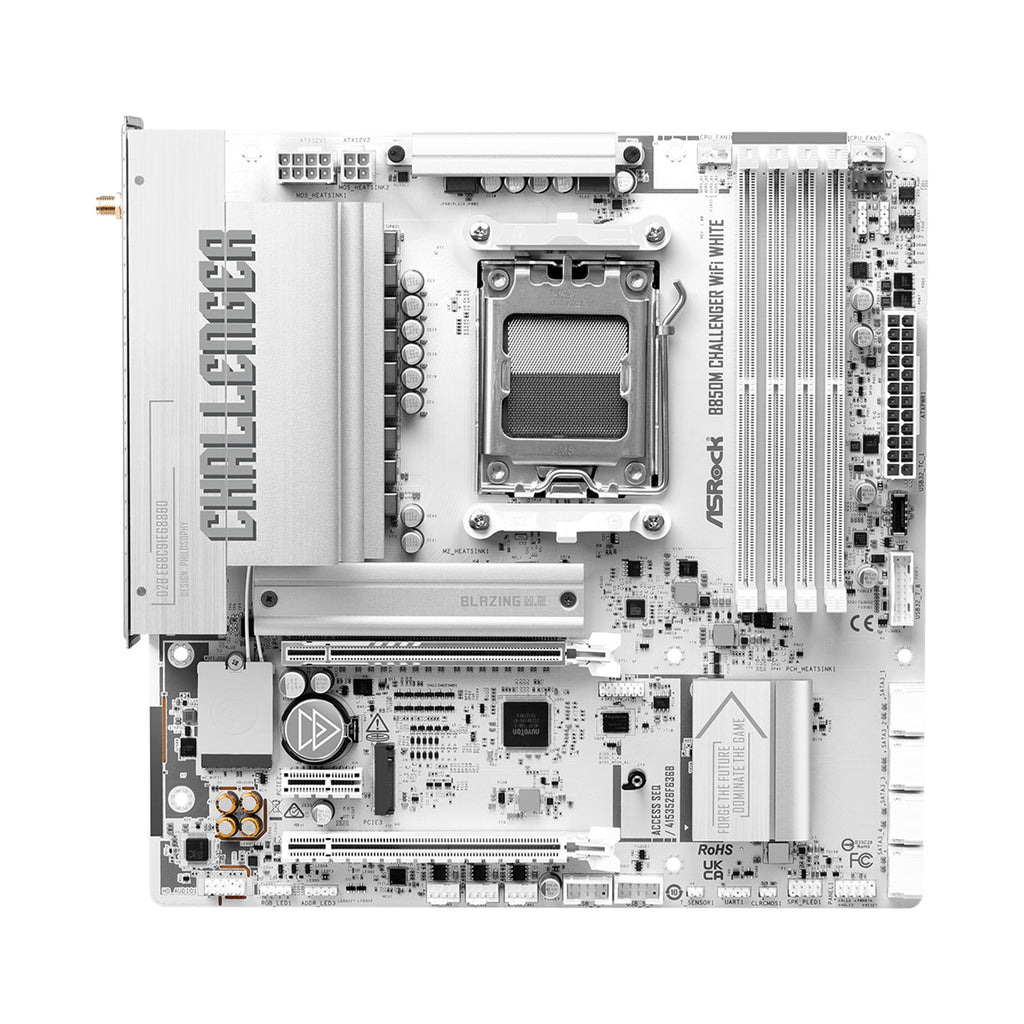

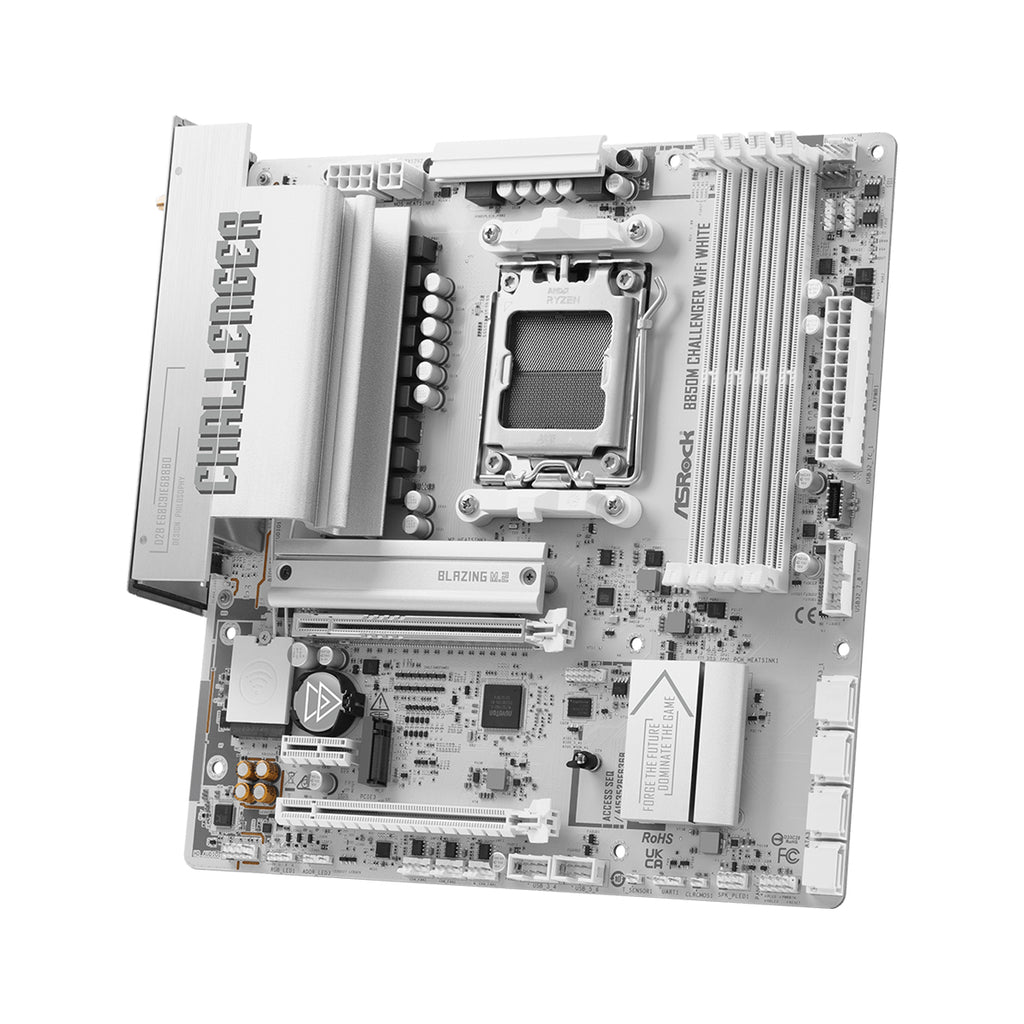

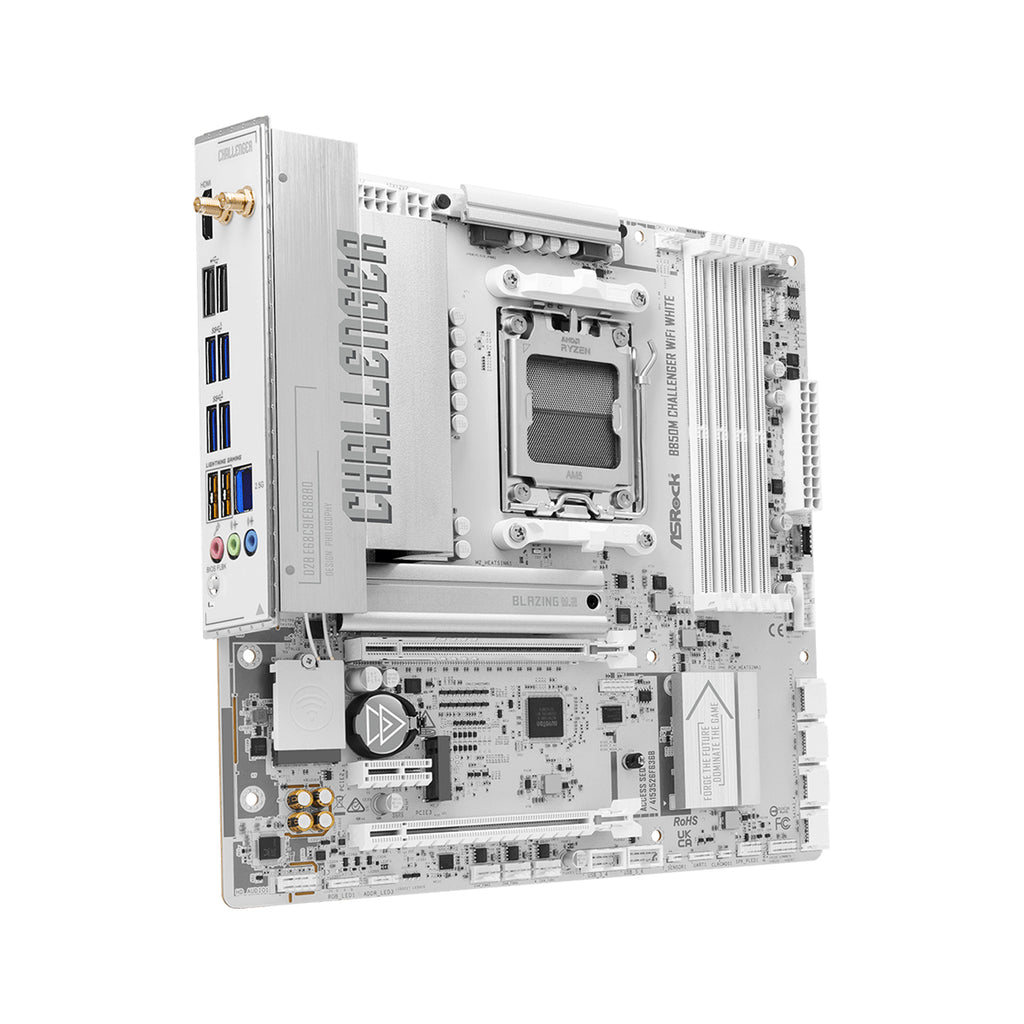

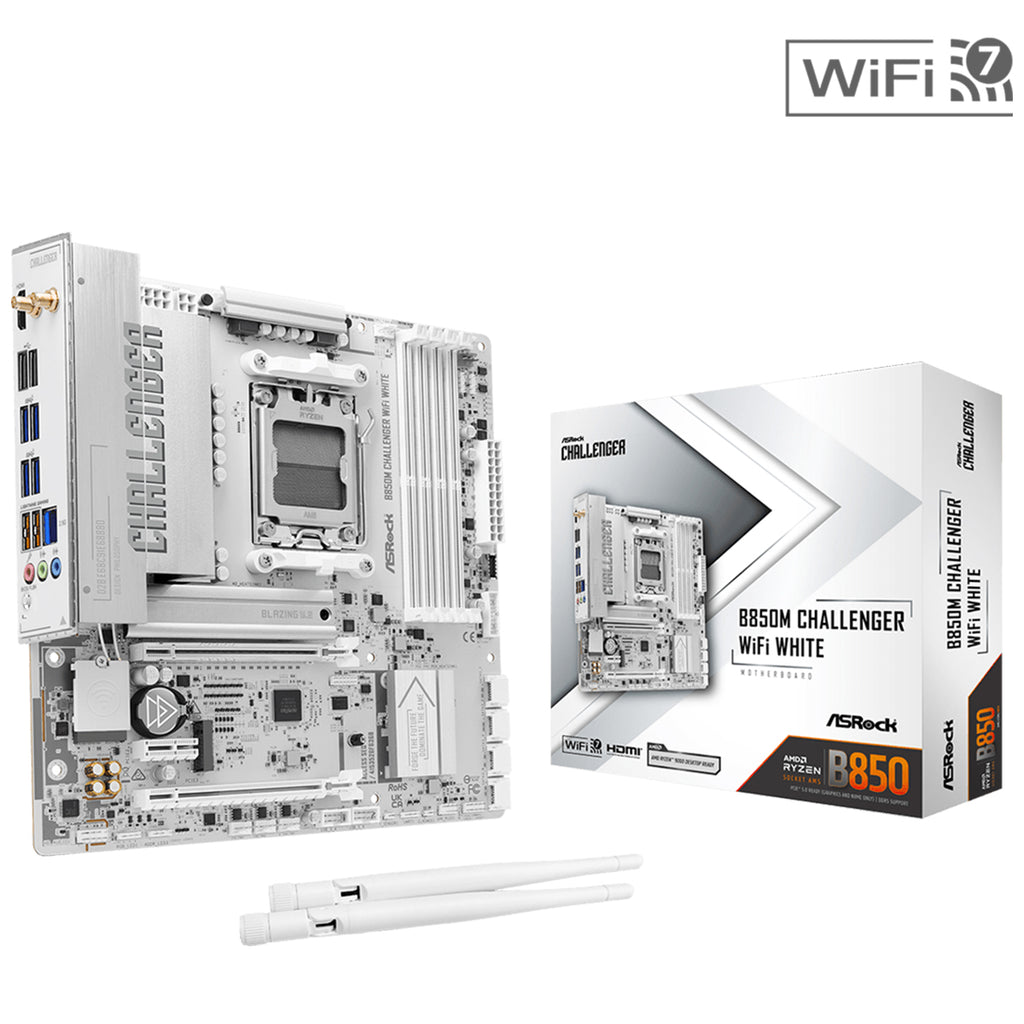

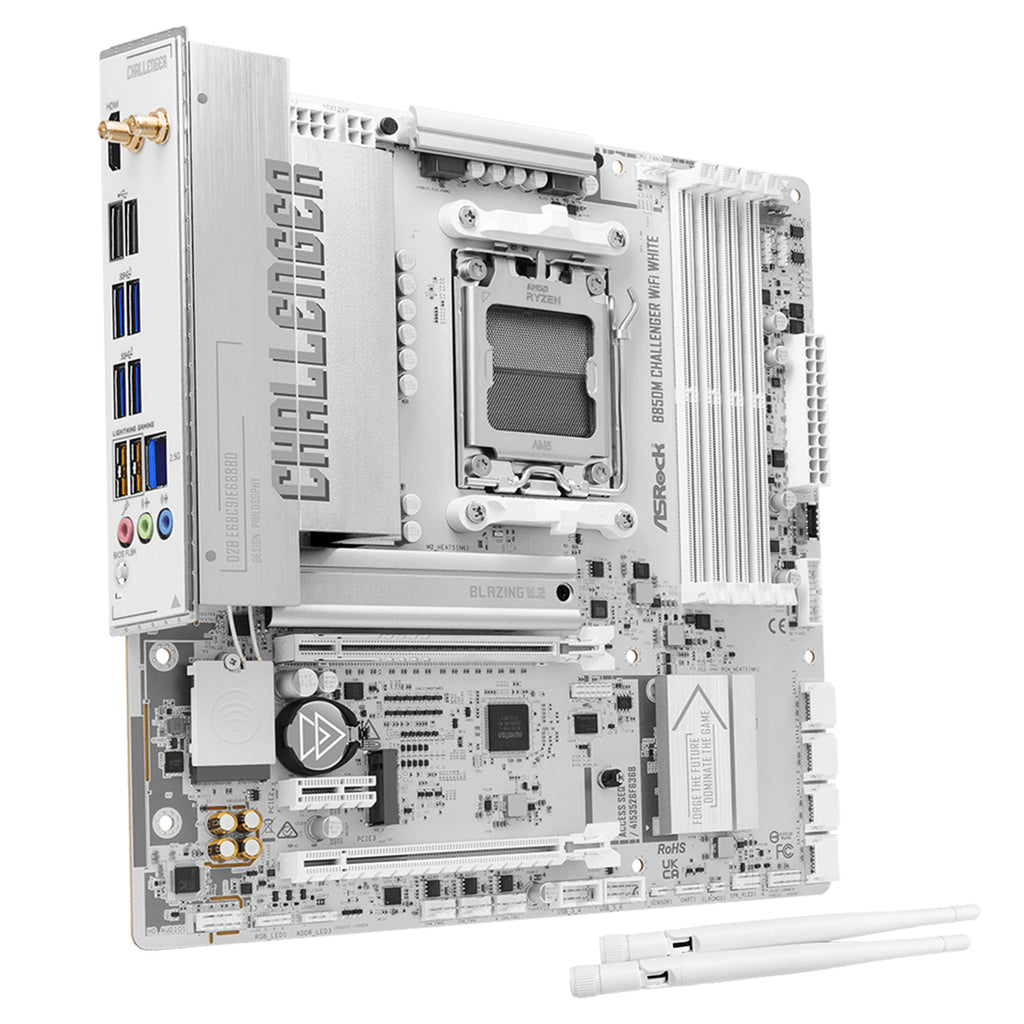

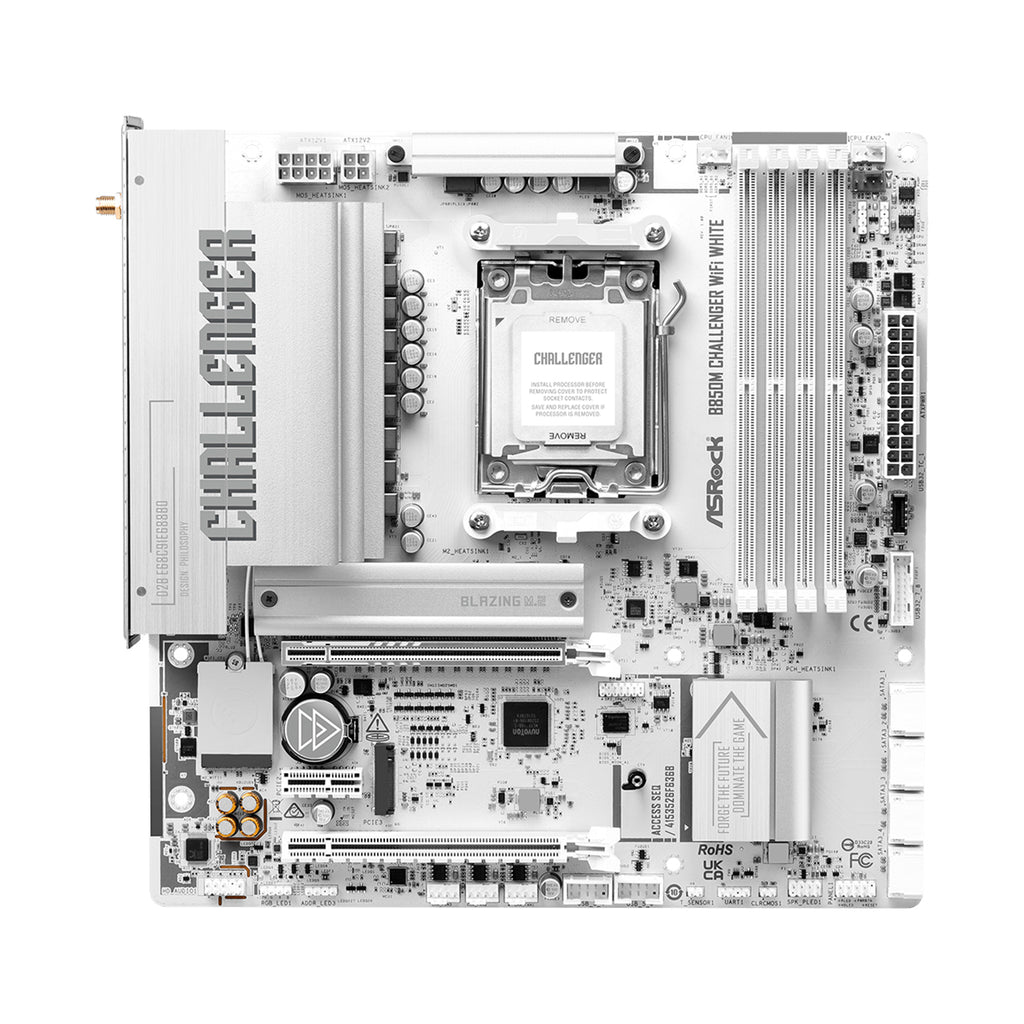

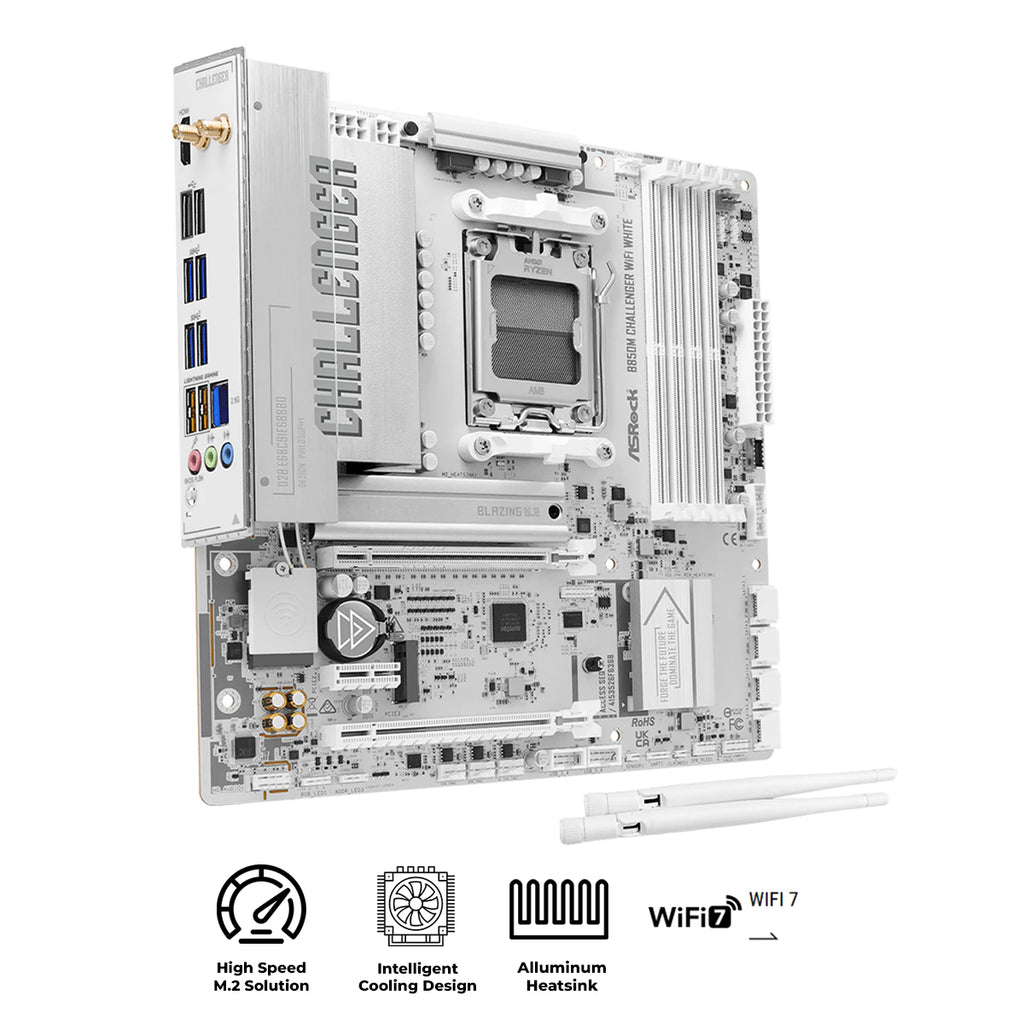

B850M Challenger WiFi White
The Challenger Series motherboard represents fearless play, bold breakthroughs, and relentless evolution, delivering robust specs with Wi-Fi 7 and gamer-centric specs. Featuring an elegant design with comprehensively pure white components, it stands as the visual centerpiece for pristine white gaming builds.
| CORE SPECIFICATIONS | |
|---|---|
| Model | ASRock B850 (Likely Challenger series based on specs) |
| CPU Socket | AMD AM5 (Supports Ryzen 9000, 8000, & 7000 Series) |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM (Max 256GB), Supports EXPO & XMP |
| Form Factor | Micro ATX (9.6" x 9.6") |
| EXPANSION & STORAGE | |
| PCIe Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
| M.2 Slots | 2 x Total (1 x Blazing Gen5x4, 1 x Hyper Gen4x4) |
| SATA | 4 x SATA 6Gb/s |
| CONNECTIVITY & AUDIO | |
| Ethernet | Dragon RTL8125BG 2.5GbE |
| Wireless | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Rear USB | 6 x USB 3.2 Gen1, 2 x USB 2.0 |
| Audio | Realtek ALC897 7.1 CH HD Audio (Nahimic) |
| INTERNAL HEADERS | |
| Fan/Cooling | 2 x CPU, 3 x Chassis, 1 x AIO Pump |
| USB Headers | 1 x Front Type-C (3.2 Gen1), 1 x USB 3.2 Gen1, 2 x USB 2.0 |
| RGB | 1 x RGB Header, 3 x Addressable LED Headers |
| SPECIAL FEATURES | |
| EZ DIY/Troubleshoot | BIOS Flashback, Auto Driver Installer, Post Status Checker |
| Durability | 8+1+1 Power Phase (Dr.MOS), Pre-installed I/O shield |
