Description

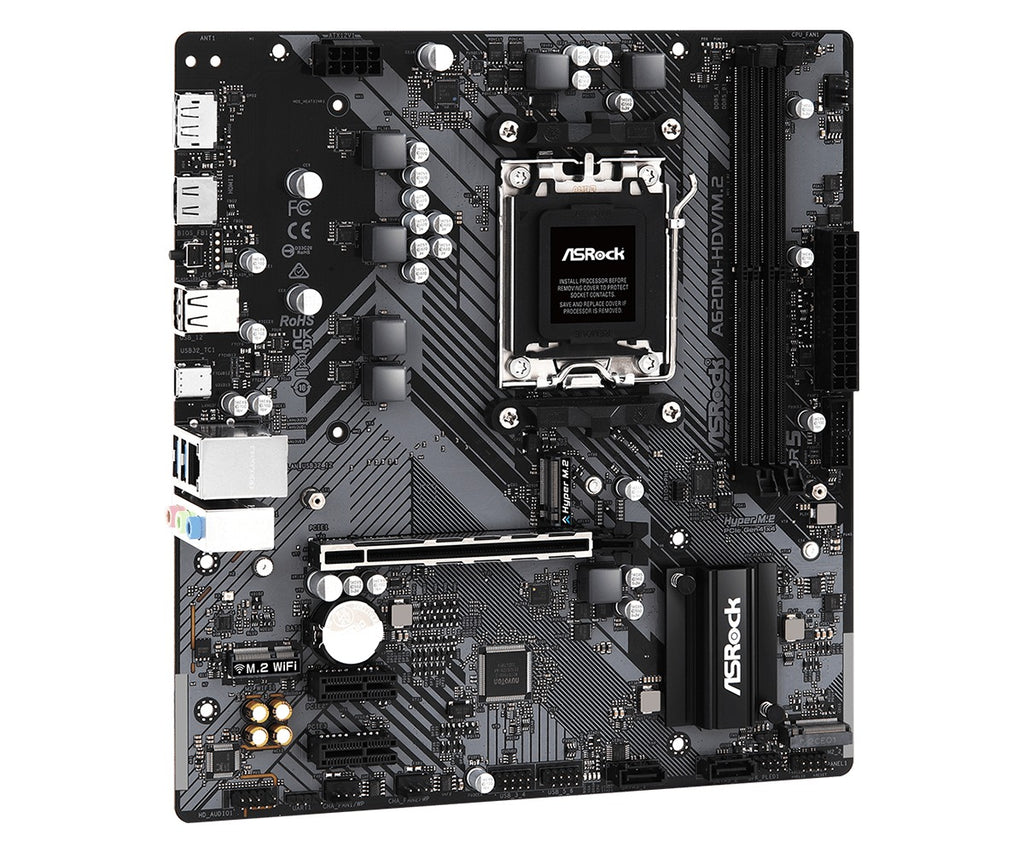

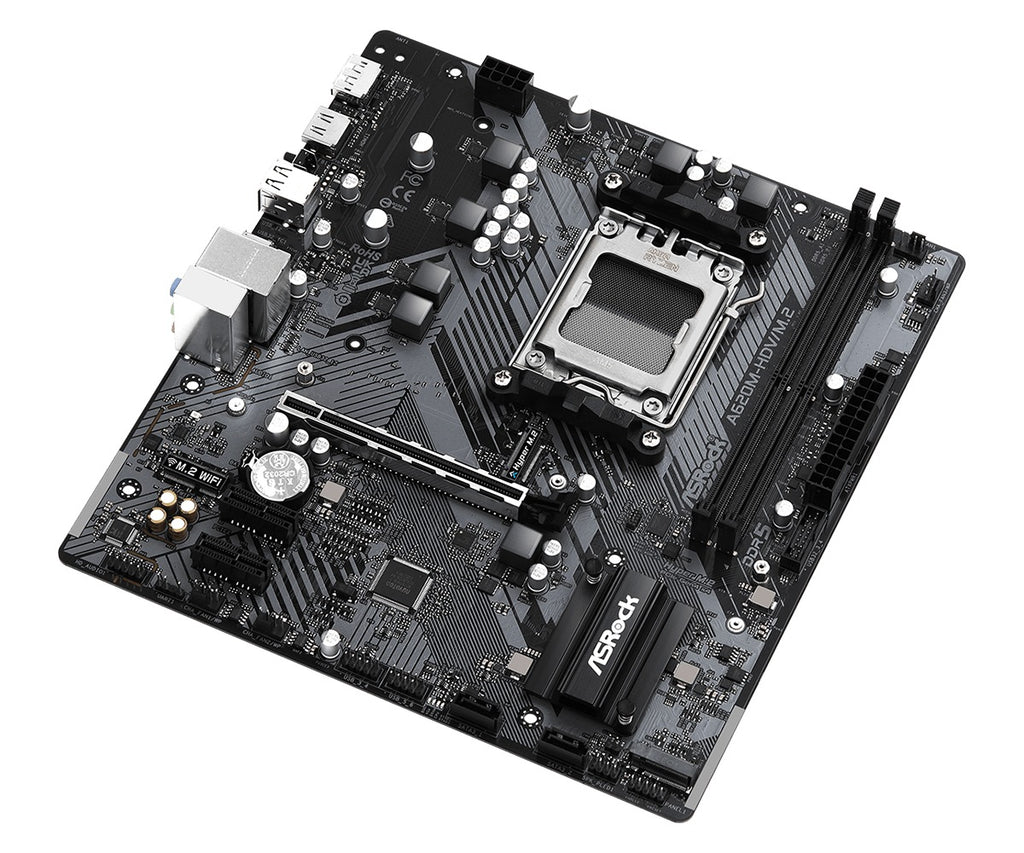

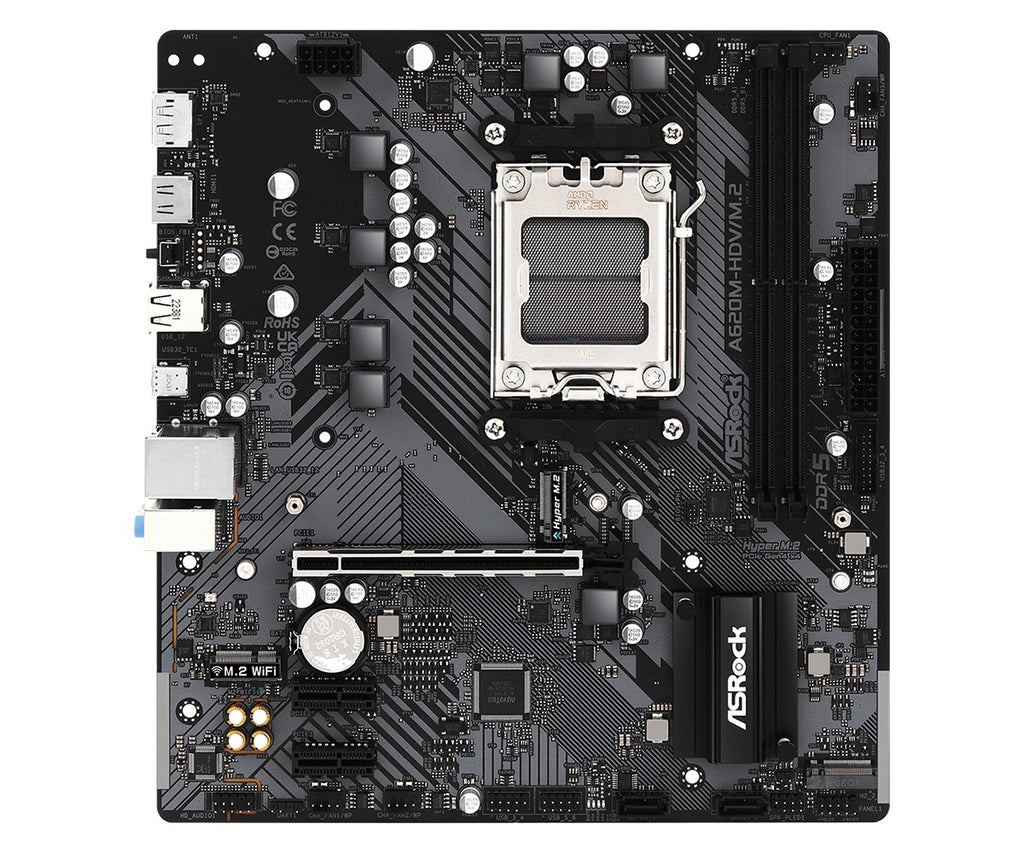

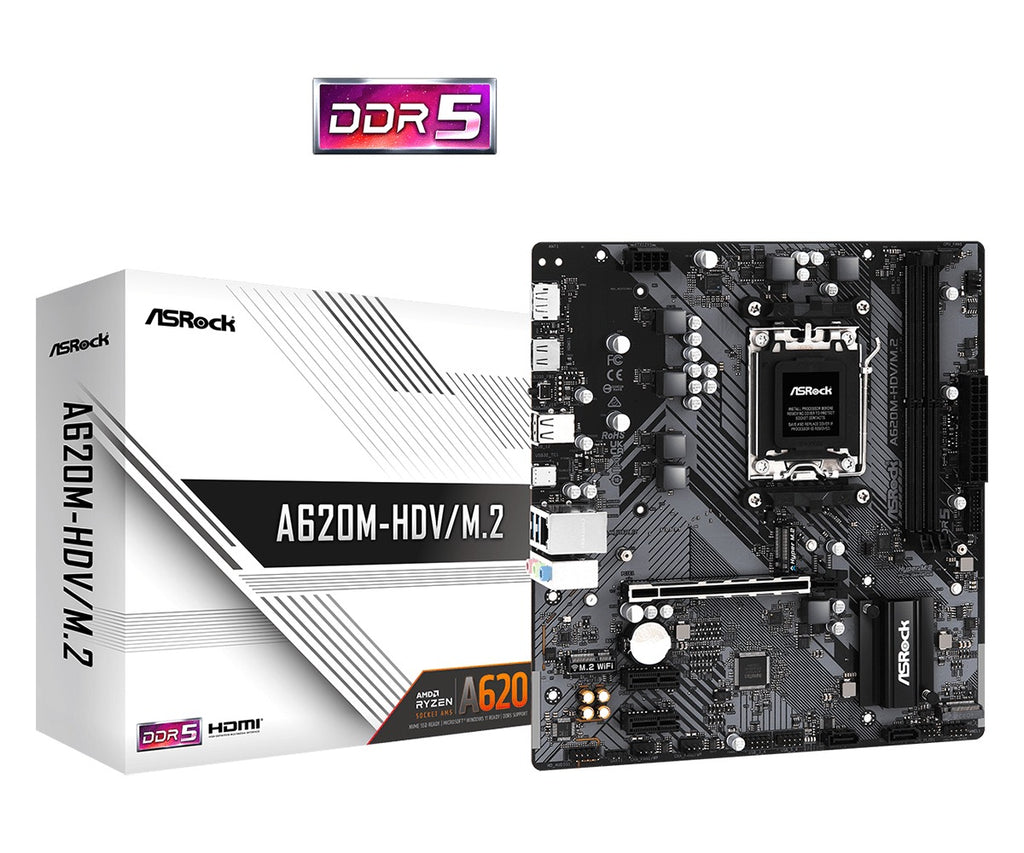

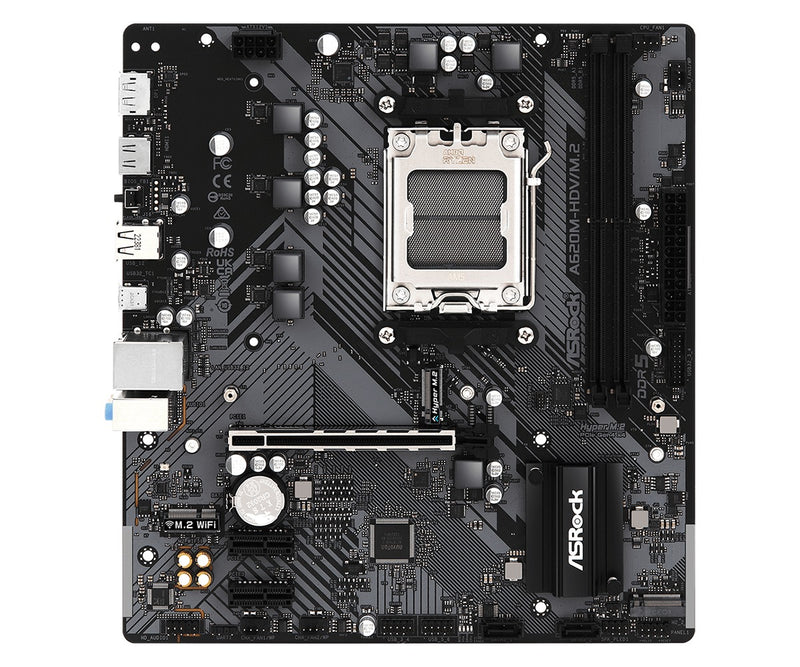

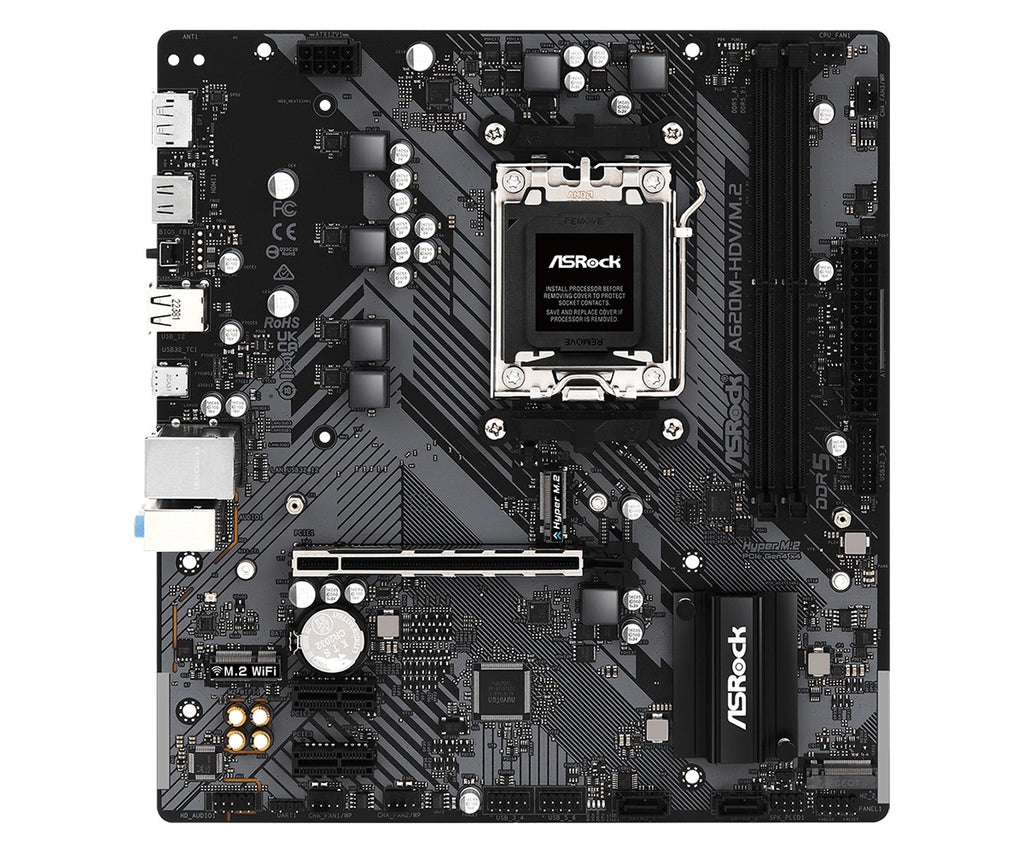

ASRock A620M-HDV/M.2 DDR5 Motherboard
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 4+1+1 Power Phase, Dr.MOS
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 6400+ (OC) - 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics*
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 2 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2)
- 5 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
*Actual support may vary by CPU
Specification:
| Unique Features | Superb Productivity: Dual Channel DDR5; Rock-Solid Durability: 4+1+1 Power Phase, 50A Dr.MOS for VCore; EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer; EZ Troubleshooter: ASRock Post Status Checker |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000, 7000 Series Processors* |
| Chipset | AMD A620 |
| Memory | Dual Channel DDR5; 2 × DDR5 DIMM Slots; Up to DDR5-6400+(OC) non-ECC, un-buffered; Max 128GB; Supports XMP & EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI |
| Graphics | Integrated AMD RDNA™ Graphics (varies by CPU); HDMI 2.1 TMDS/FRL 8G (HDR, HDCP 2.3, 4K @ 120Hz); DisplayPort 1.4 with DSC (HDCP 2.3, 4K @ 120Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897); Nahimic Audio |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| Expansion Slots | 1 × PCIe 4.0 x16 (CPU, x16 mode, 15μ Gold Contact); 2 × PCIe 3.0 x1 (Chipset); 1 × M.2 (Key E, 2230) for WiFi/BT |
| Storage | CPU: 1 × Hyper M.2 (M2_1, 2280, PCIe Gen4x4, 64 Gb/s); Chipset: 1 × M.2 (M2_2, 2260/2280, SATA3 & PCIe Gen3x2, 16 Gb/s), 2 × SATA3 6 Gb/s; NVMe boot support |
| RAID | RAID 0/1 for SATA; RAID 0/1/10 for NVMe* |
| USB | 1 × USB 3.2 Gen1 Type-C (Rear), 4 × USB 3.2 Gen1 Type-A (2 Rear, 2 Front), 6 × USB 2.0 (2 Rear, 4 Front), all ESD protected |
| Internal Connectors | Power LED & Speaker Header; 1 × CPU Fan (4-pin, 1A/12W); 3 × Chassis/Water Pump Fans (4-pin, 2A/24W, auto detect 3/4-pin); 1 × 24-pin ATX Power; 1 × 8-pin 12V Power; Front Audio; 2 × USB 2.0 Headers (4 ports); 1 × USB 3.2 Gen1 Header (2 ports) |

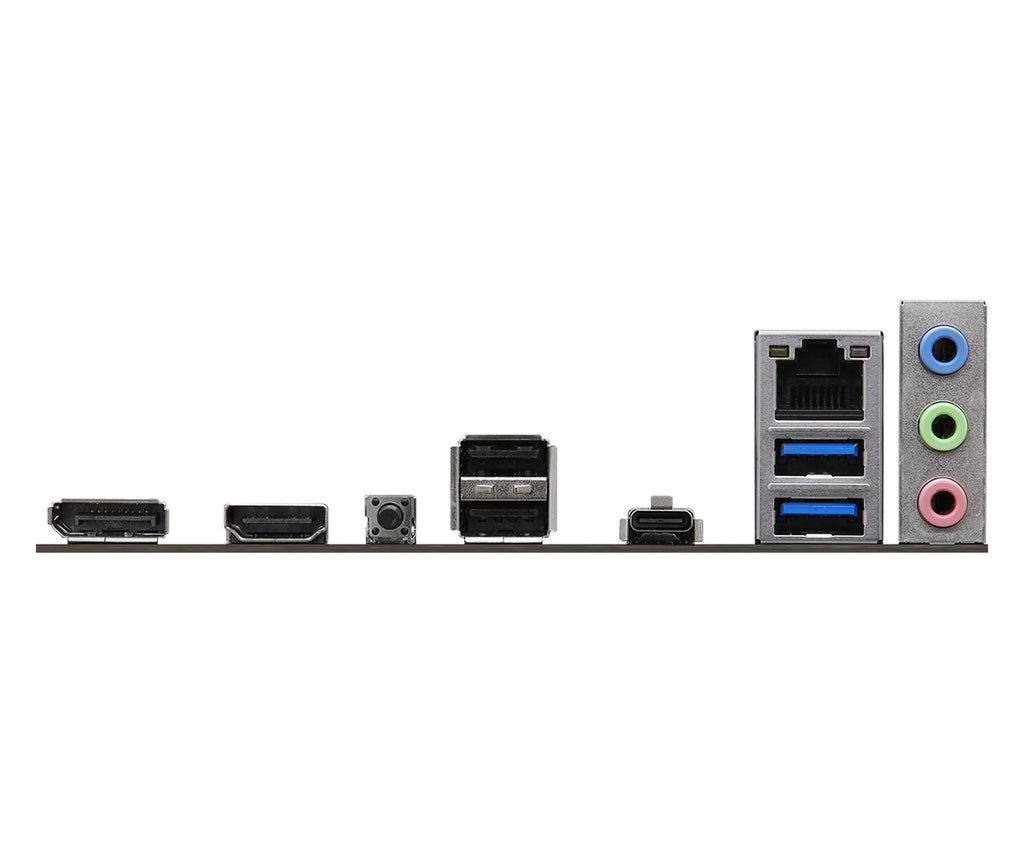

| Rear I/O | 2 × Antenna Mounts; 1 × HDMI; 1 × DisplayPort 1.4; 1 × USB 3.2 Gen1 Type-C; 2 × USB 3.2 Gen1 Type-A; 2 × USB 2.0; 1 × RJ-45 LAN; 1 × BIOS Flashback Button; HD Audio jacks (Line-In, Front Speaker, Mic) |
| Software | ASRock A-Tuning |
| UEFI | ASRock Full HD UEFI; Auto Driver Installer; Instant Flash |
| Accessories | User Manual; I/O Shield; 2 × SATA Data Cables; 3 × M.2 Screws |
| Form Factor | Micro ATX, 24.4 × 22.6 cm; 2oz Copper PCB |
| Operating System | Windows 10 64-bit / Windows 11 64-bit |
| Certifications | FCC, CE; ErP/EuP Ready |
