Description
CLOCK: GPU / MEMORY
Boost Clock*: Up to 3290 MHz/ 20Gbps
Game Clock**: 2700 MHz/ 20Gbps
KEY SPECIFICATIONS:

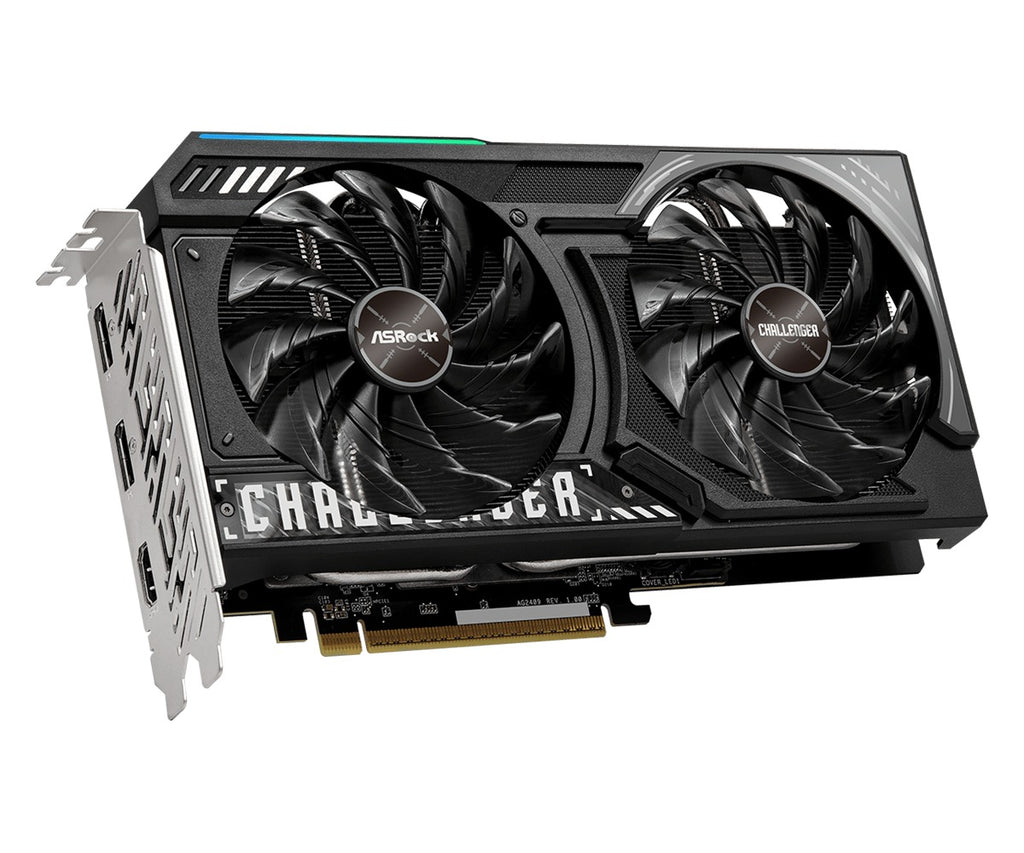

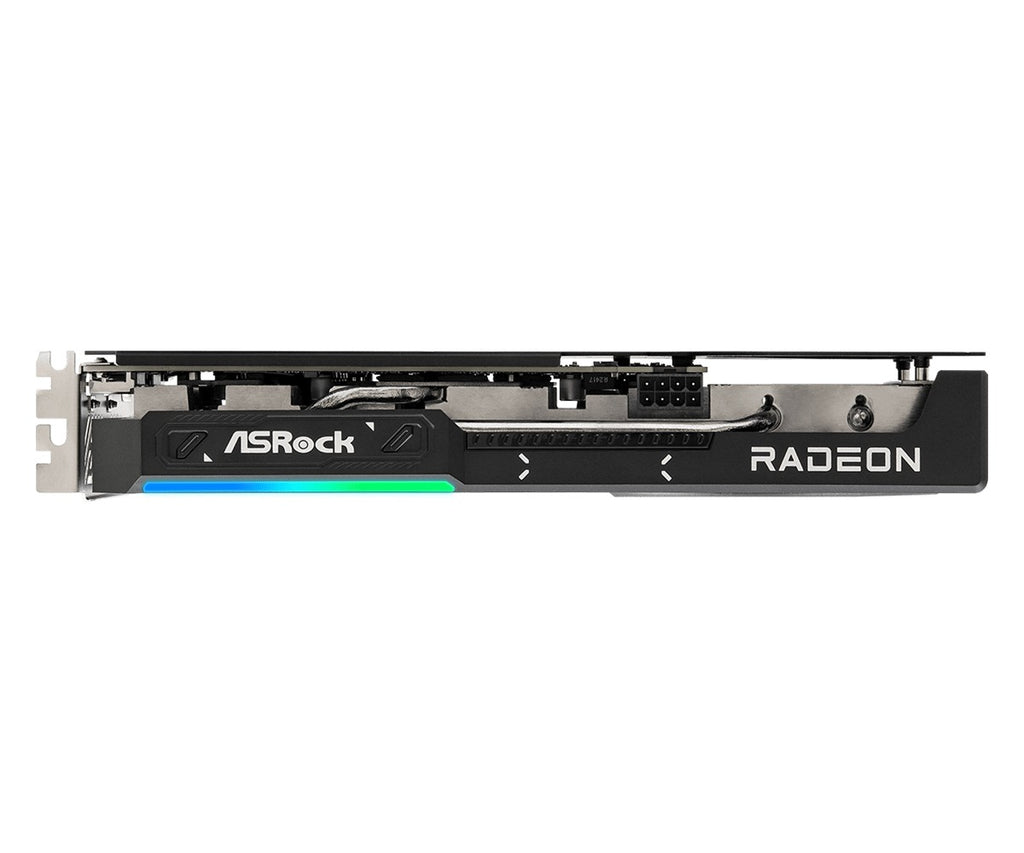

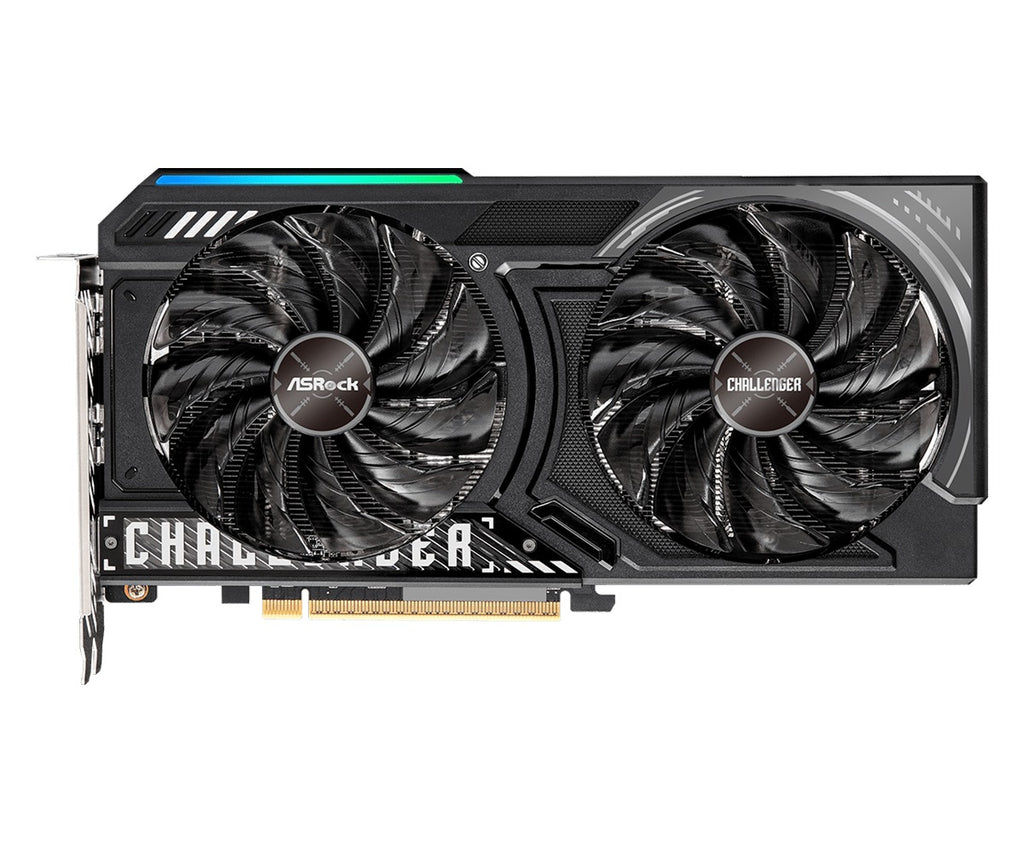

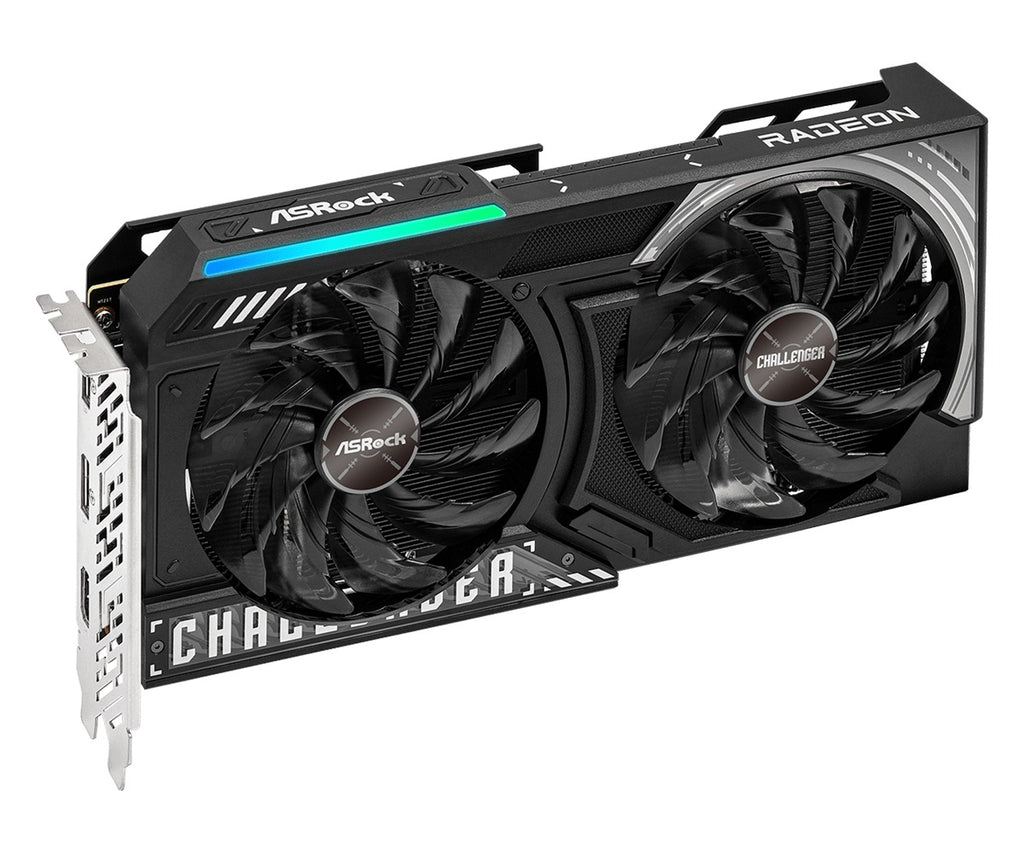

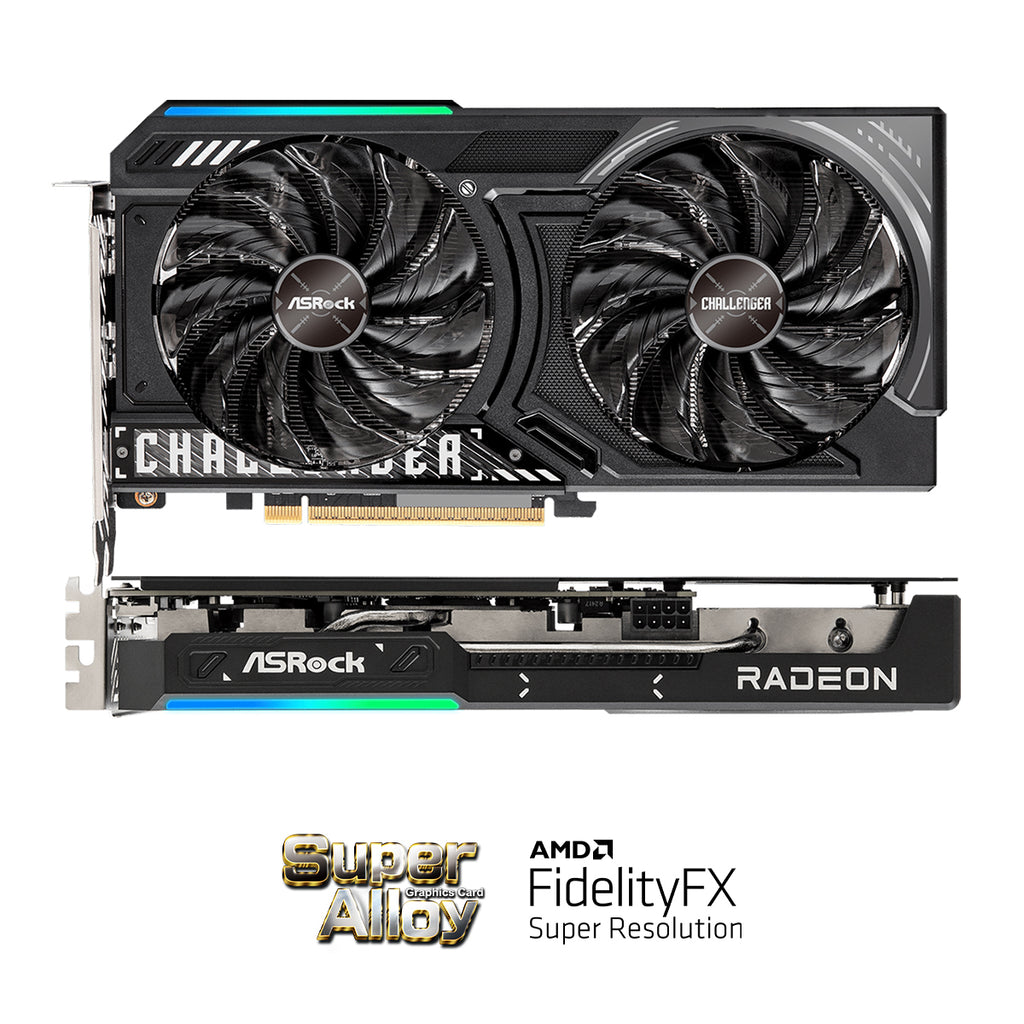

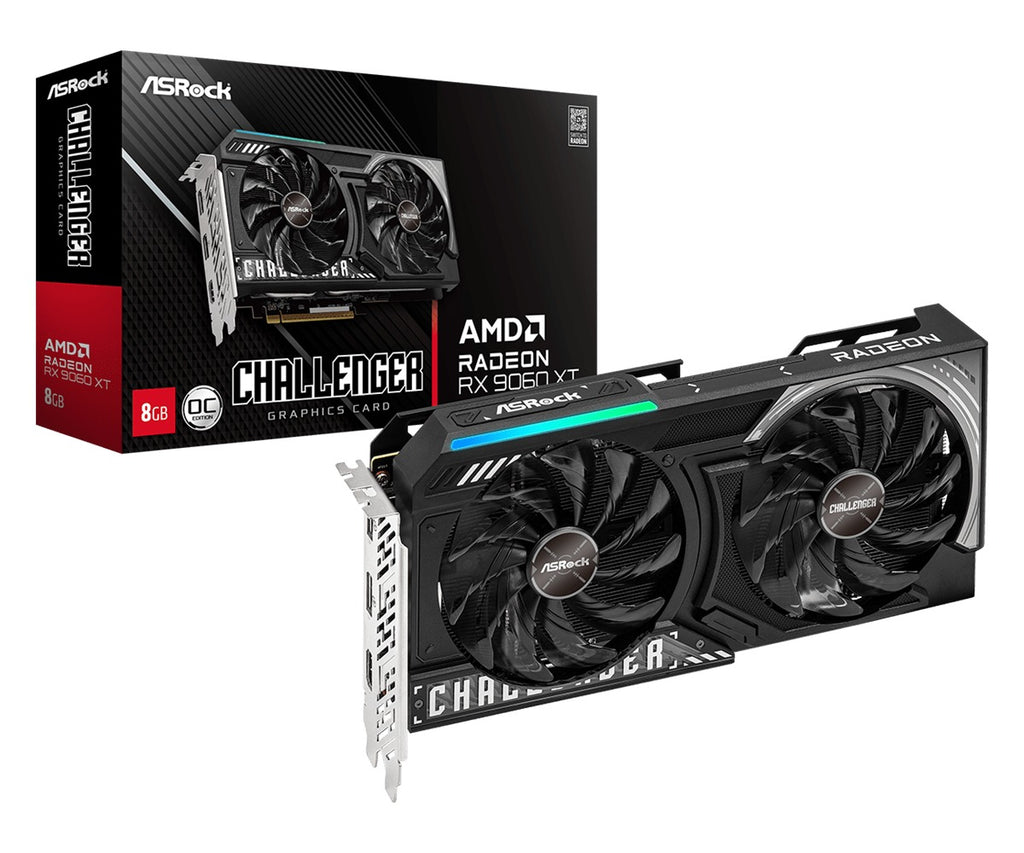

AMD Radeon™ RX 9060 XT GPU
8GB GDDR6 on 128-bit Memory Bus
AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express5.0 Support
1 x 8-pin Power Connectors
2 x DisplayPort™ 2.1a / 1 x HDMI™ 2.1b
CLOCK: GPU / MOMORY
Dual Fan Design

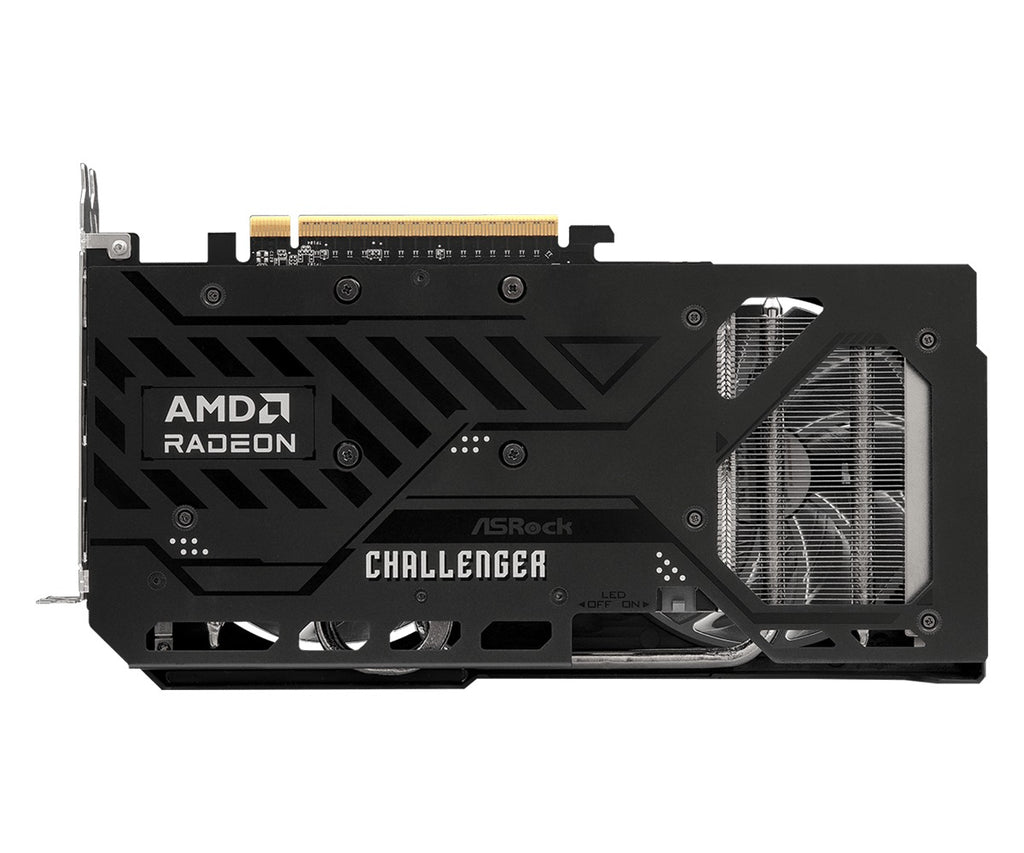

Stylish Metal Backplate
LED Indicator
LED On/Off Switch
Striped Axial Fan
0db Silent Cooling
Super Alloy Graphic Card
| ASRock AMD Radeon RX 9060 XT Specifications | |
|---|---|
| Graphics Engine | AMD Radeon™ RX 9060 XT |
| Bus Standard | PCI® Express 5.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 8GB |
| Engine Clock | Boost Clock: 3290 MHz Game Clock: 2700 MHz |
| Stream Processors | 2048 |
| Compute Units | 32 |
| Memory Clock | 20Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution: 7680x4320 |
| Interface | 1 x HDMI™ 2.1b 2 x DisplayPort™ 2.1a |
| HDCP | Yes |
| Multi-view | 3 |
| Recommended PSU | 550W |
| Power Connector | 1 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 249 x 132 x 41 mm |
| Net Weight | 645 g |
