Description
Clock: GPU / Memory
Boost Clock*: Up to 3320 MHz / 20 Gbps
Game Clock**: 2780 MHz / 20 Gbps
Key Specification

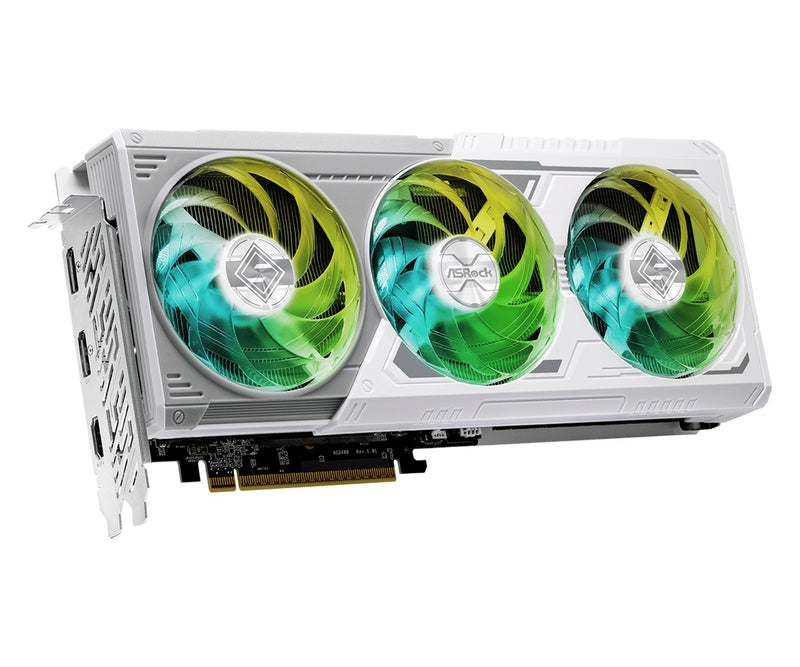

AMD Radeon™ RX 9060 XT GPU
8GB GDDR6 on 128-Bit Memory Bus
AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 5.0 Support
1 x 8-pin Power Connector
2 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b
Key Features

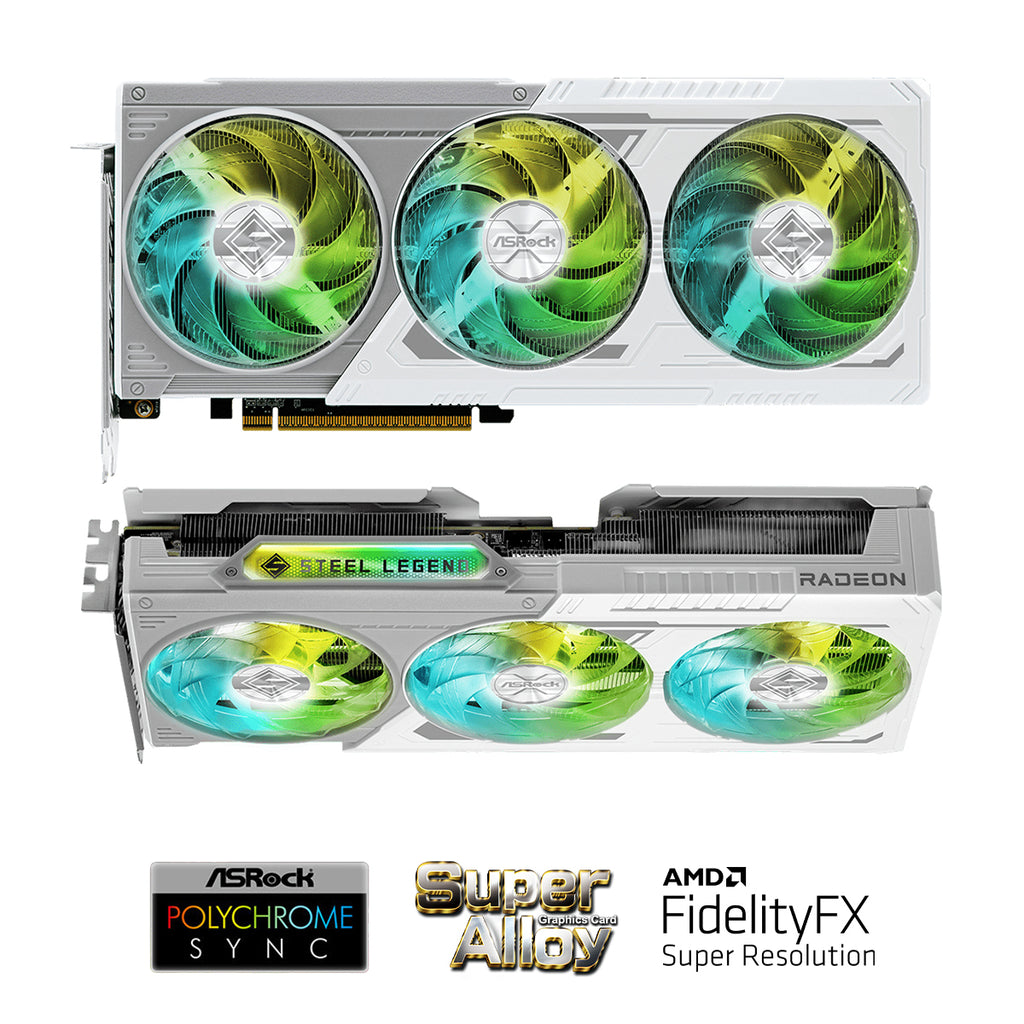

Polychrome SYNC

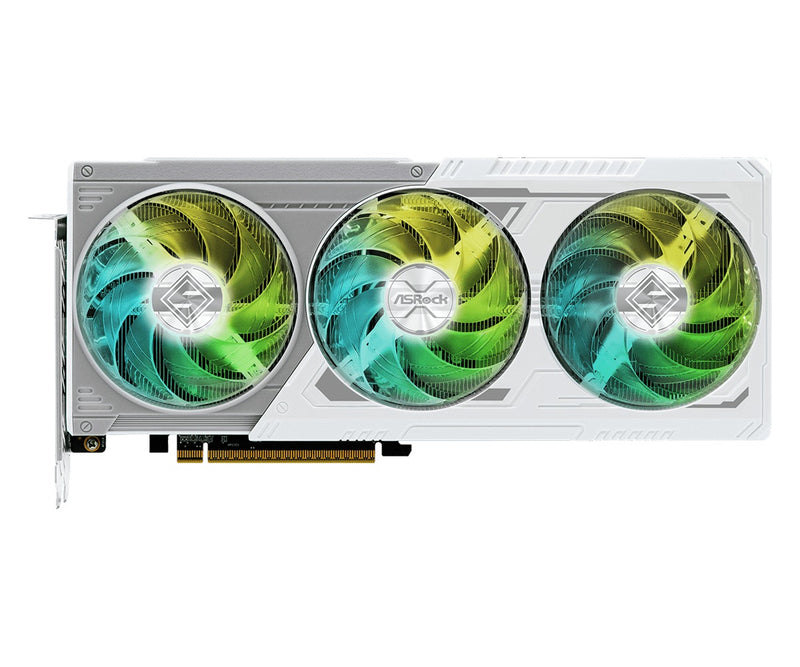

Triple Fan Design
Striped Ring Fan

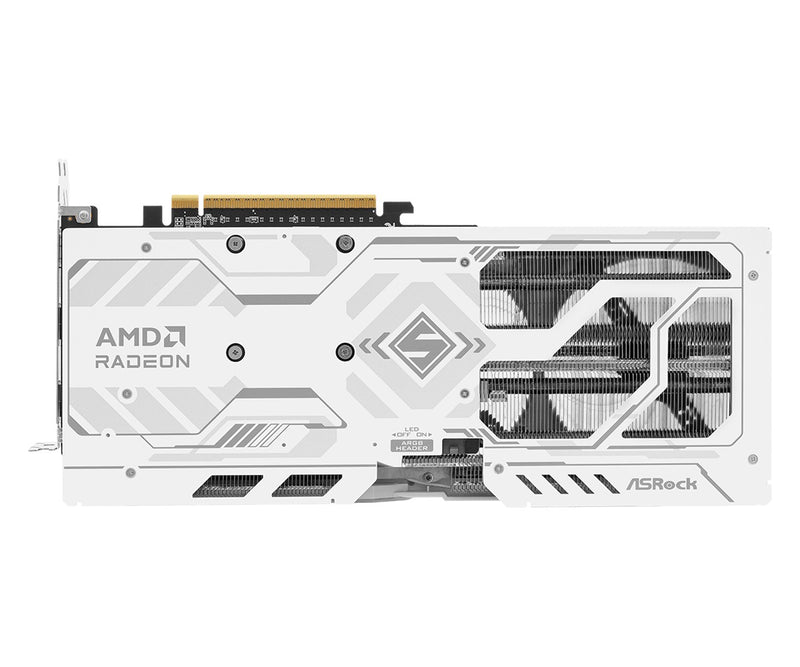

Stylish Metal Backplate
Ultra-fit Heatpipe
Air Deflecting Fin
0dB Silent Cooling
Super Alloy Graphics Card
| ASRock AMD Radeon RX 9060 XT Specifications | |
|---|---|
| Graphics Engine | AMD Radeon™ RX 9060 XT |
| Bus Standard | PCI® Express 5.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 8GB GDDR6 |
| Engine Clock | Boost Clock*: Up to 3320 MHz Game Clock**: 2780 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. **Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 2048 |
| Memory Clock | 20 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| Interface | 2x DisplayPort 2.1a 1x HDMI 2.1b |
| HDCP | Yes |
| Multi-view | 3 |
| Recommended PSU | 550W |
| Power Connector | 1x 8-pin |
| Accessories | 1x Quick Installation Guide |
| Dimensions | 298 x 131 x 51 mm, 2.55-slot |
| Net Weight | 967 g |
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A

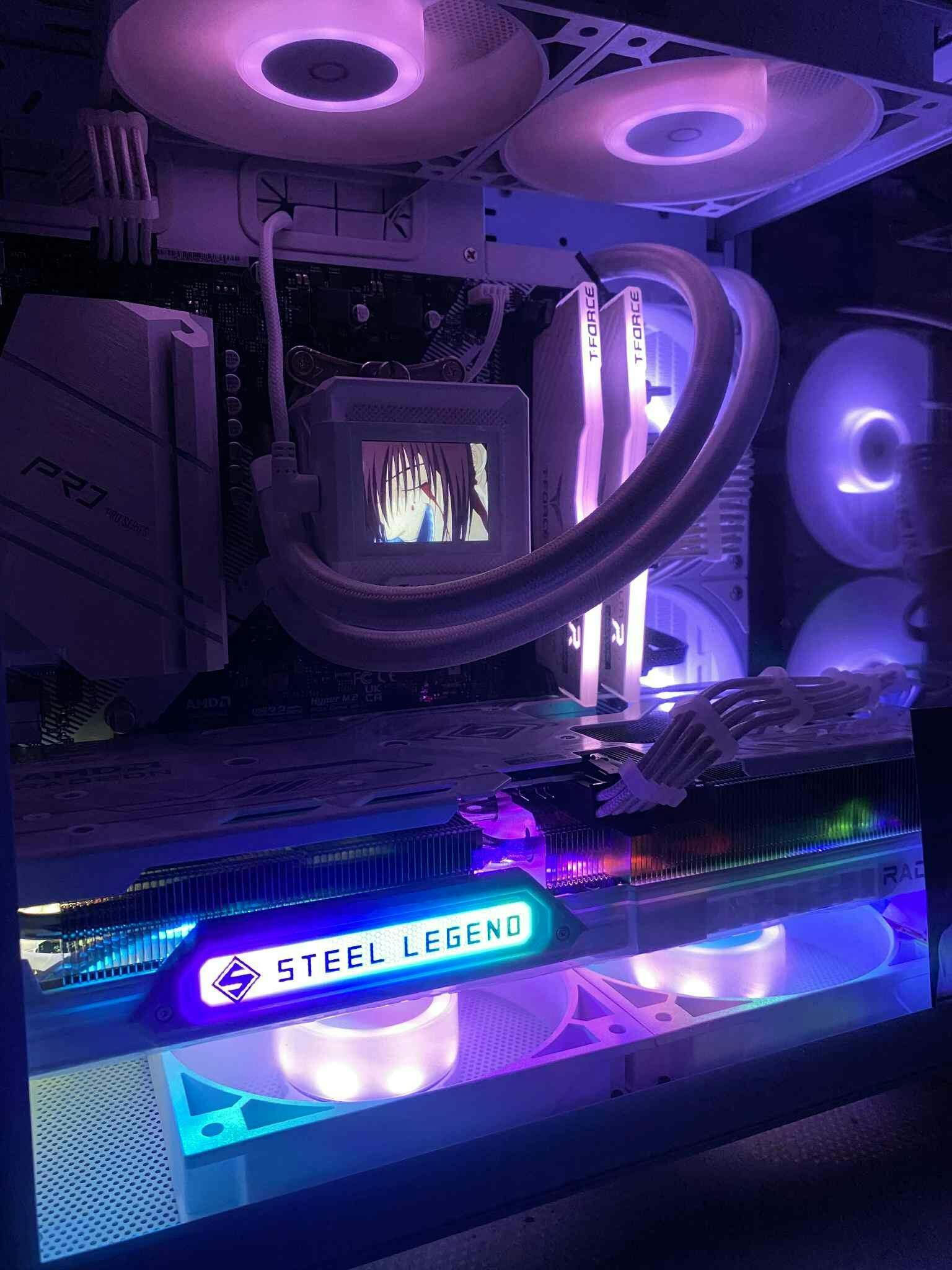

if youre a 1080p esports focused gamer and youre coming from 10 series or 16 series cards, i recommend you upgrade to this card if you want aesthetics and performance
