Description
Specifications:
| Unique Feature | |
|---|---|
| Superb Productivity | PCIe Gen5 (Graphics, M.2), Dual Channel DDR5 |
| Rock-Solid Durability | 6+1+1 Power Phase, Dr.MOS for VCore |
| Ultrafast Connectivity | 2.5G LAN, 802.11axe Wi-Fi 6E Module |
| EZ Update | BIOS Flashback Button, ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| CPU & Chipset | |
| CPU Support | AMD Socket AM5 Ryzen 9000, 8000, 7000 Series |
| Chipset | AMD B850 |
| Memory | |
| Memory Support | Dual Channel DDR5, 2 x DDR5 DIMM Slots |
| Max Capacity | 128GB |
| OC Support | Up to 8200+ (OC), ECC/Non-ECC, XMP, EXPO |
| Graphics | |
| Integrated Graphics | AMD RDNA (varies by CPU) |
| HDMI | 1 x HDMI 2.1, up to 4K 120Hz |
| DisplayPort | 1 x DP 1.4, up to 4K 120Hz |
| Audio | |
| Codec | Realtek ALC897, Nahimic Audio |
| Networking | |
| LAN | 2.5G LAN (Dragon RTL8125BG) |
| Wi-Fi | Wi-Fi 6E (802.11axe), Bluetooth 5.2, MU-MIMO |
| Expansion Slots | |
| PCIe (CPU) | 1 x PCIe 5.0 x16 |
| PCIe (Chipset) | 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 (x4) |
| M.2 (Key E) | 1 x WiFi/BT module slot |
| Storage | |
| M.2 (CPU) | 1 x PCIe Gen5x4 (2280), 1 x PCIe Gen4x4 (2280) |
| SATA | 4 x SATA3 6Gb/s |
| RAID | RAID 0/1/10 (SATA & NVMe) |
| USB Ports | |
| Rear | 1 x USB-C 3.2 Gen1, 3 x USB-A 3.2 Gen1, 2 x USB 2.0 |
| Front | 1 x USB-C 3.2 Gen1, 2 x USB-A 3.2 Gen1, 4 x USB 2.0 |
| Connectors | |
| LED Headers | 1 x RGB, 3 x ARGB |
| Fan Headers | 2 x CPU Fan, 3 x Chassis/Water Pump, 1 x AIO Pump |
| Other | TPM, Thermistor, Front Audio, 24-pin ATX, 8-pin 12V |

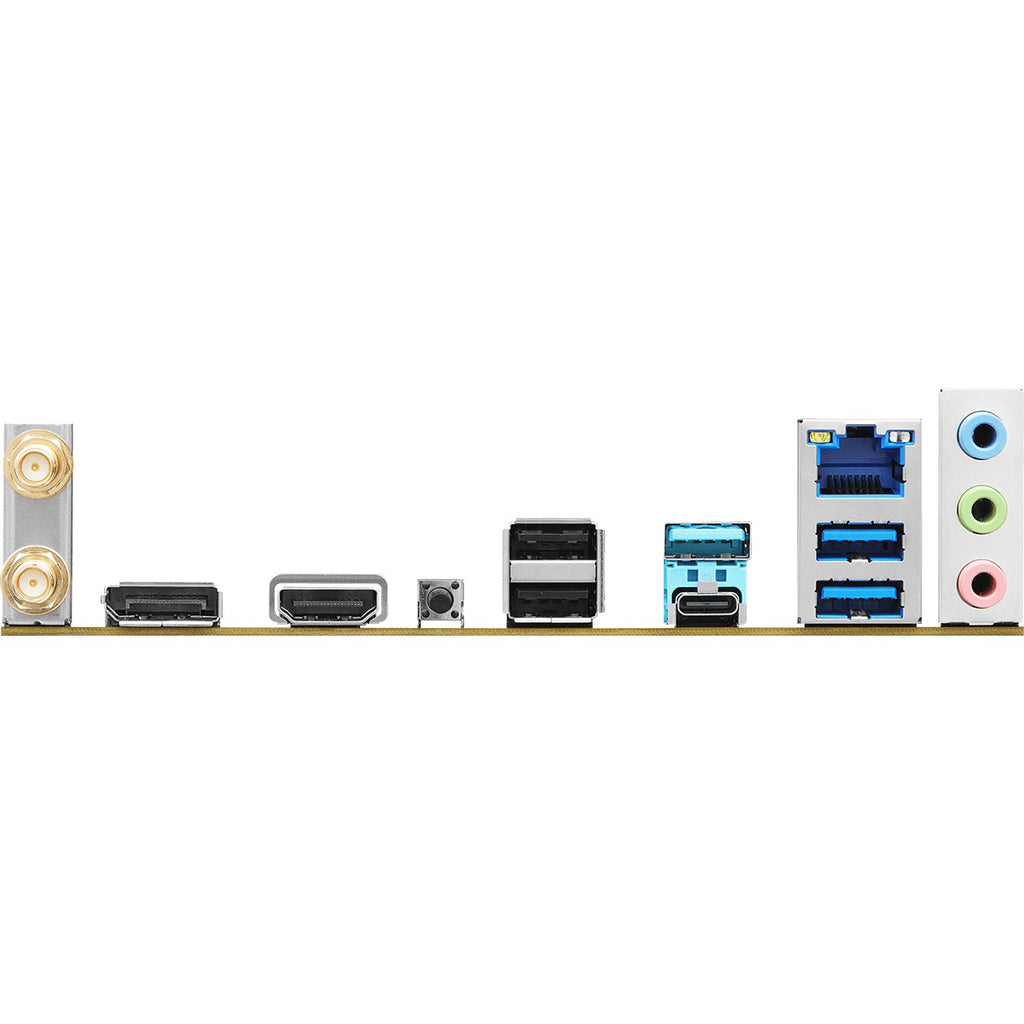

| Rear I/O | |
| Display | HDMI, DisplayPort |
| Audio | Line In, Front Speaker, Microphone |
| Networking | 2 x Antenna Ports, RJ-45 LAN |
| USB | 1 x USB-C, 3 x USB-A 3.2 Gen1, 2 x USB 2.0 |
| Others | BIOS Flashback Button |
| Software and UEFI | |
| Software | ASRock A-Tuning, Dragon LAN Software, Polychrome SYNC |
| UEFI | EZ Mode, Full HD GUI, Auto Driver Installer, Instant Flash |
| Accessories | |
| Included | I/O Shield, 2 x SATA Cables, 2 x WiFi Antennas |
| Form Factor | |
| Size | Micro ATX, 9.6 x 8.9 in (24.4 x 22.6 cm) |
| Operating System | |
| Supported OS | Windows 10/11 64-bit |
| Certifications | |
| Compliance | FCC, CE, ErP/EuP Ready |
