Description

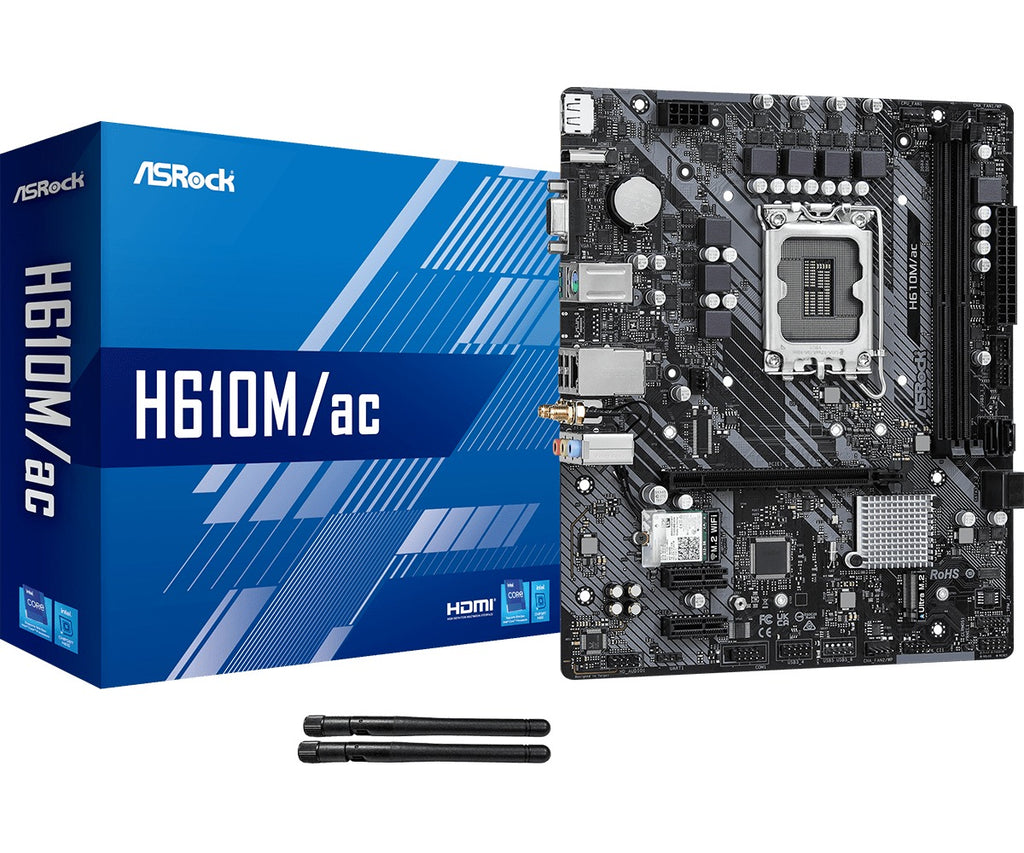

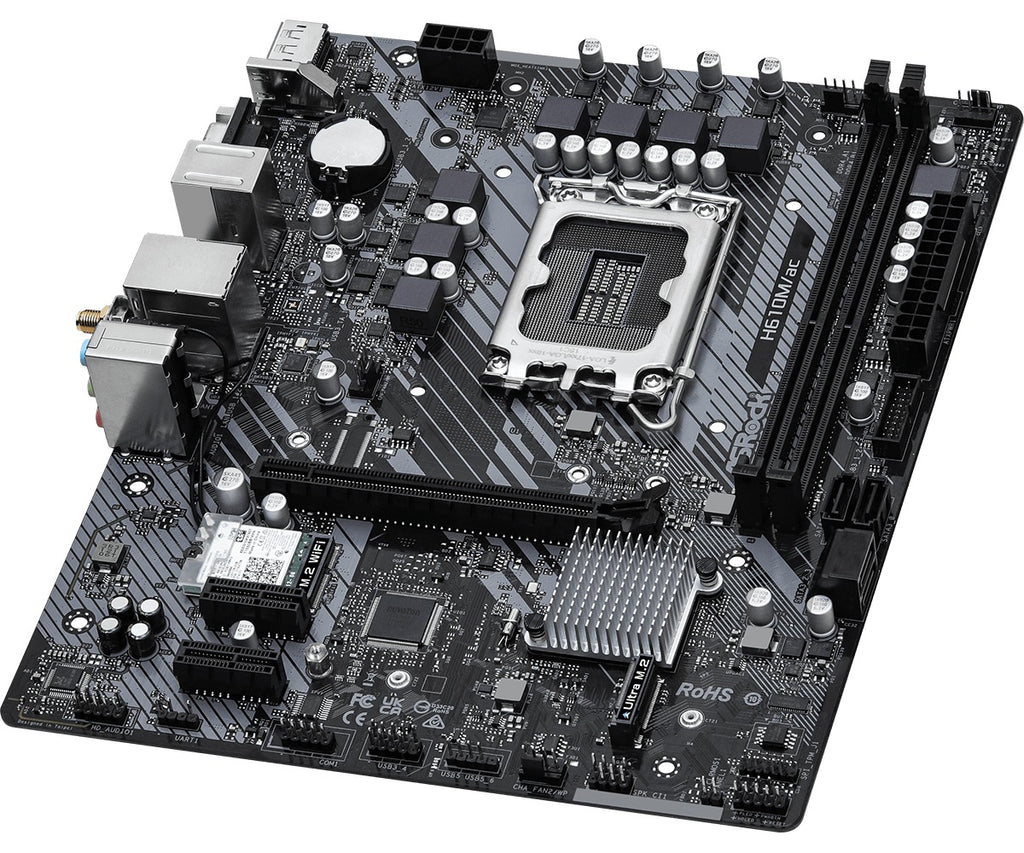

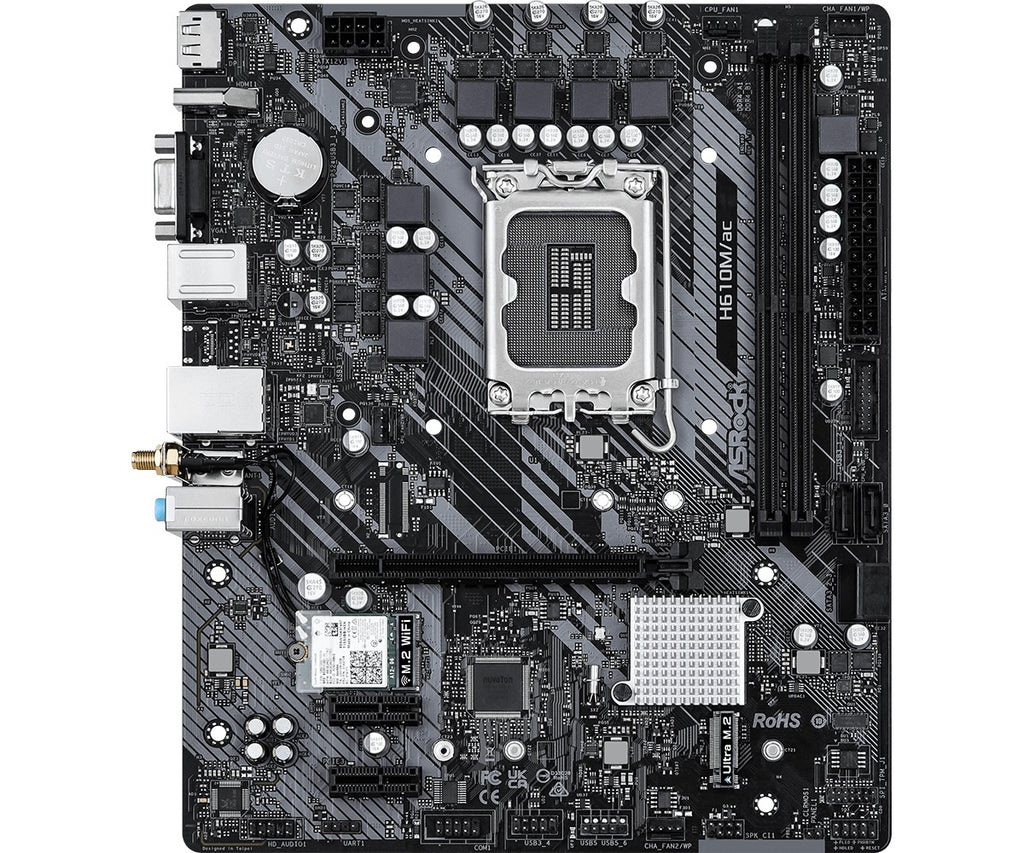

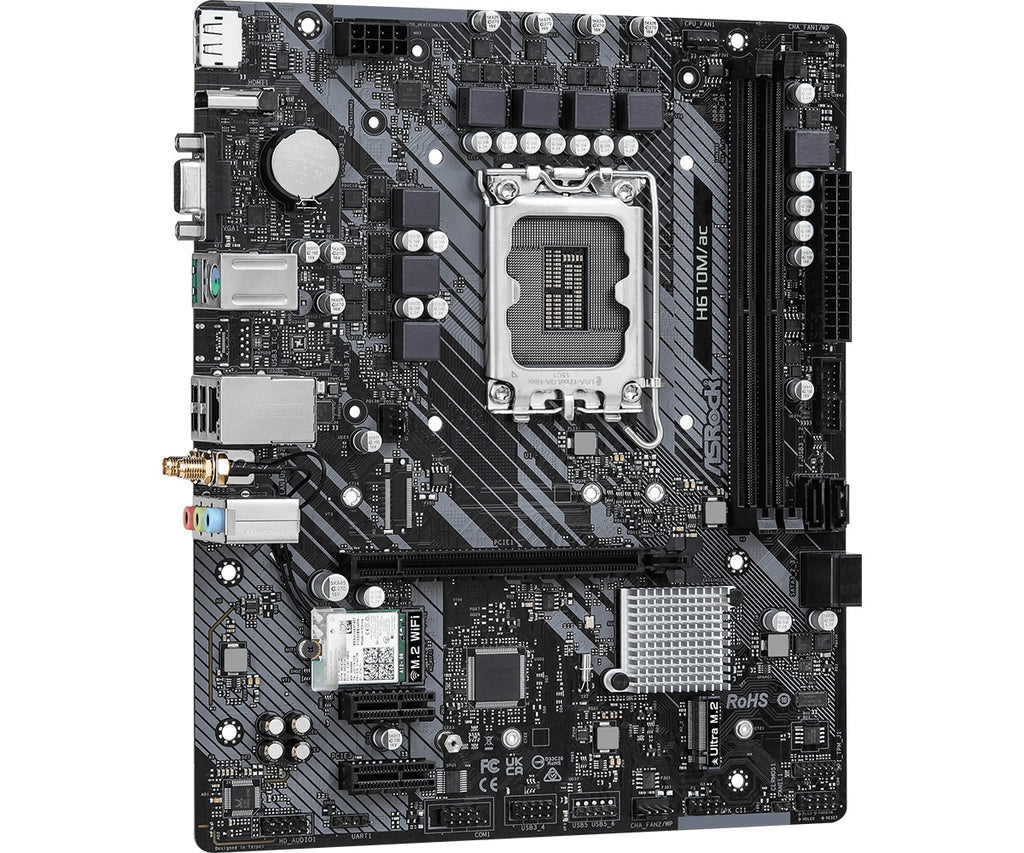

ASRock H610M/ac DDR4 Motherboard
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 6 Phase Power Design
- 2 x DDR4 DIMMs
Supports Dual Channel, up to 3200 - 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3
1 Ultra M.2 (PCIe Gen3x4 & SATA3) - 4 USB 3.2 Gen1 (2 Rear, 2 Front)
5 USB 2.0 (2 Rear, 3 Front) - Intel® Gigabit LAN
- Intel® 802.11ac WiFi + Bluetooth
Specification:
| Unique Features | ASRock Super Alloy: Premium Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB; 802.11ac WiFi; ASRock Ultra M.2 (PCIe Gen3x4 & SATA3); ASRock Full Spike Protection (USB, Audio, LAN); ASRock Live Update & APP Shop |
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700); Digi Power; 6 Power Phase Design; Intel® Hybrid Technology; Intel® Turbo Boost Max 3.0 |
| Chipset | Intel® H610 |
| Memory | Dual Channel DDR4; 2 × DDR4 DIMM slots; Up to DDR4-3200 non-ECC, un-buffered; Supports ECC UDIMM (non-ECC mode); Max 64GB; Intel® XMP 2.0 |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI; ACPI 6.0; SMBIOS 2.7; Voltage Multi-adjustment (CPU Core/Cache, CPU GT, DRAM, etc.) |
| Graphics | Intel® Xe Graphics (Gen 12); Outputs: D-Sub, HDMI 2.1 TMDS Compatible (4K @ 60Hz), DisplayPort 1.4 with DSC (8K @ 60Hz, 5K @ 120Hz); D-Sub up to 1920×1200 @ 60Hz; HDCP 2.3 (HDMI, DP); Integrated graphics support requires CPU with iGPU |
| Audio | 7.1 CH HD Audio (Realtek ALC897/887); Surge Protection |
| LAN | Intel® I219V Gigabit LAN; Wake-On-LAN; Lightning/ESD Protection; Energy Efficient Ethernet; UEFI PXE |
| Wireless | 802.11ac WiFi; Dual-Band 2.4/5 GHz; Up to 433 Mbps; Bluetooth 4.2/3.0 + HS Class II |
| Expansion Slots | 1 × PCIe 4.0 x16 (CPU, x16 mode); 2 × PCIe 3.0 x1 (Chipset); 1 × M.2 (Key E, 2230) for WiFi/BT |
| Storage | 1 × Ultra M.2 (Key M, 2260/2280, SATA3 & PCIe Gen3x4, 32 Gb/s); 4 × SATA3 6 Gb/s; NVMe boot support; ASRock U.2 Kit support; If M.2 SATA device is installed in M2_2, SATA3_3 is disabled |
| Internal Connectors | 1 × COM Port Header, 1 × SPI TPM Header, 1 × Chassis Intrusion/Speaker Header, 1 × CPU Fan (4-pin, 1A/12W max), 1 × CPU/Water Pump Fan (4-pin, 2A/24W max), 2 × Chassis/Water Pump Fans (4-pin, 2A/24W max), 1 × 24-pin ATX Power, 1 × 8-pin 12V Power, 1 × Front Audio, 2 × USB 2.0 Headers (3 ports, ESD Protected), 1 × USB 3.2 Gen1 Header (2 ports, ESD Protected) |

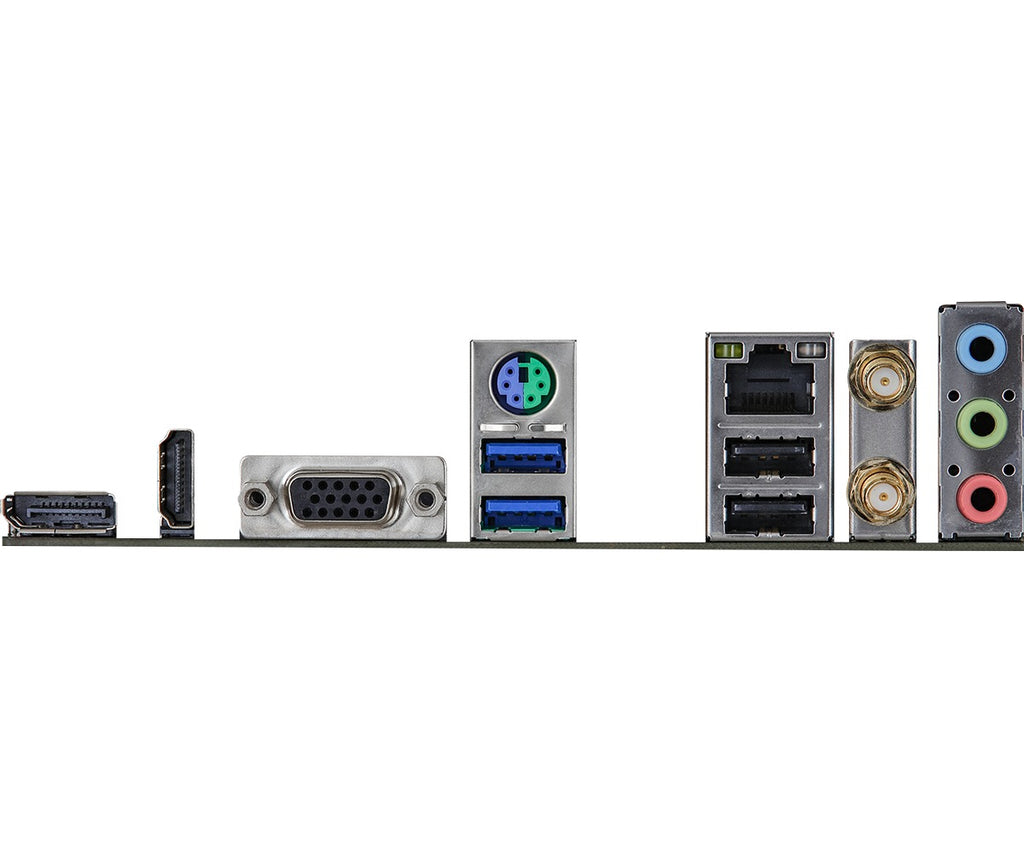

| Rear I/O | 2 × Antenna Ports, 1 × PS/2, 1 × D-Sub, 1 × HDMI, 1 × DisplayPort 1.4, 2 × USB 3.2 Gen1, 2 × USB 2.0, 1 × RJ-45 LAN (LED indicators), HD Audio jacks (Line-In, Front Speaker, Mic) |
| Software | ASRock A-Tuning |
| UEFI | ASRock EZ Mode; Full HD UEFI; My Favorites; Instant Flash |
| Accessories | I/O Shield, 2 × SATA Data Cables, 2 × ASRock WiFi 2.4/5 GHz Antennas, 1 × M.2 Screw |
| Hardware Monitor | Fan Tachometer (CPU, CPU/Water Pump, Chassis/Water Pump); Quiet Fan (Auto adjust by CPU temp); Multi-Speed Control; Case Open detection; Voltage monitoring (CPU Vcore, PCH, DRAM, etc.) |
| Form Factor | Micro ATX, 24.4 × 20.1 cm; Solid Capacitor Design |
| Operating System | Windows 10 64-bit / Windows 11 64-bit |
| Certifications | FCC, CE; ErP/EuP Ready |
