Description
Specifications:
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
|---|---|
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Max. capacity of system memory: 128GB Supports XMP and EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics 1 x HDMI 2.1 (4K 120Hz) 1 x USB 3.2 Gen2 Type-C with DP 1.4 HBR3 (4K 60Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC1220) Impedance Sensing, Individual PCB Layers, Nahimic Audio |
| LAN | 2.5 Gigabit LAN (Killer E3100G) Killer LAN Software support |
| Wireless LAN | 802.11axe Wi-Fi 6E Dual-Band 2x2 Bluetooth 5.2 MU-MIMO support Windows 11 only for 6GHz |
| Slots | CPU: 1 x PCIe 5.0 x16 Slot (x16/x8/x4 depending on CPU) Chipset: 1 x Vertical M.2 Socket (Key E) for WiFi/BT module |
| Storage | CPU: 1 x M.2 Gen5x4 Chipset: 1 x M.2 Gen4x4, 2 x SATA3 Supports NVMe SSD boot |
| RAID | SATA: RAID 0, 1 M.2: RAID 0, 1, 10 (with expansion cards) |
| USB | CPU: 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen2 Type-A Chipset: 1 x USB 3.2 Gen1 Type-C (Front), 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 6 x USB 2.0 (4 Rear, 2 Front) |
| Connector | Thermistor Header, 2x ARGB Headers, CPU Fan, Chassis Fan, AIO Pump (Smart Fan Control) 24-pin ATX, 8-pin 12V Front Audio, USB 2.0, USB 3.2 Gen1, Front Panel USB-C Header |

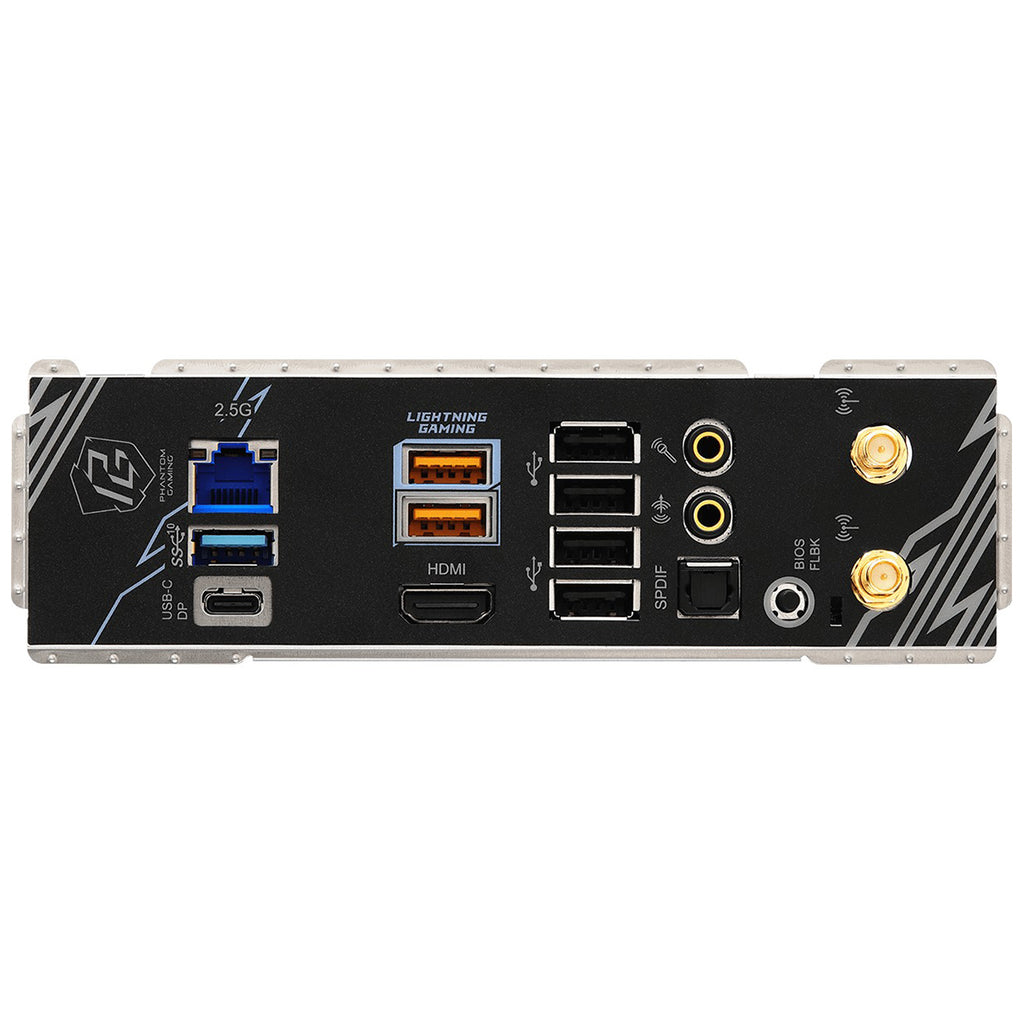

| Rear Panel I/O | 2 x Antenna Ports 1 x HDMI 1 x Optical SPDIF 2 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen1 4 x USB 2.0 1 x RJ-45 LAN BIOS Flashback Button Line Out + Mic In (Gold Audio Jacks) |
| Software and UEFI | ASRock Utility, Killer Control Center, Polychrome SYNC UEFI EZ Mode, Full HD BIOS, Instant Flash, Auto Driver Installer |

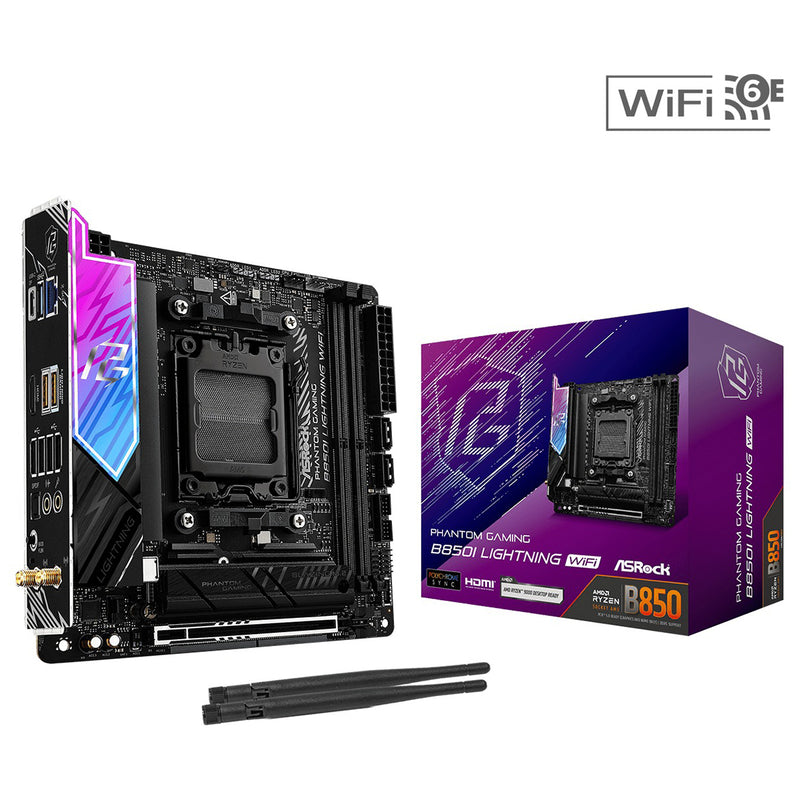

| Accessories | 2 x SATA Cables 2 x WiFi Antennas 2 x M.2 Screws 1 x Thermistor Cable |
| Form Factor | Mini-ITX (6.7"x6.7"), 8 Layer PCB |
| OS | Windows 10 64-bit / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
