Description

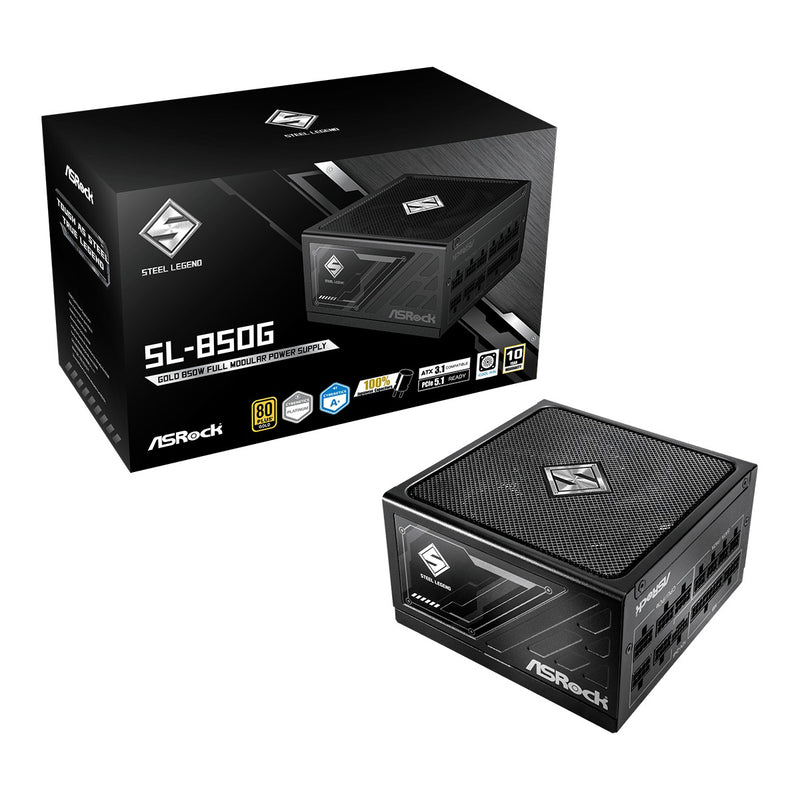

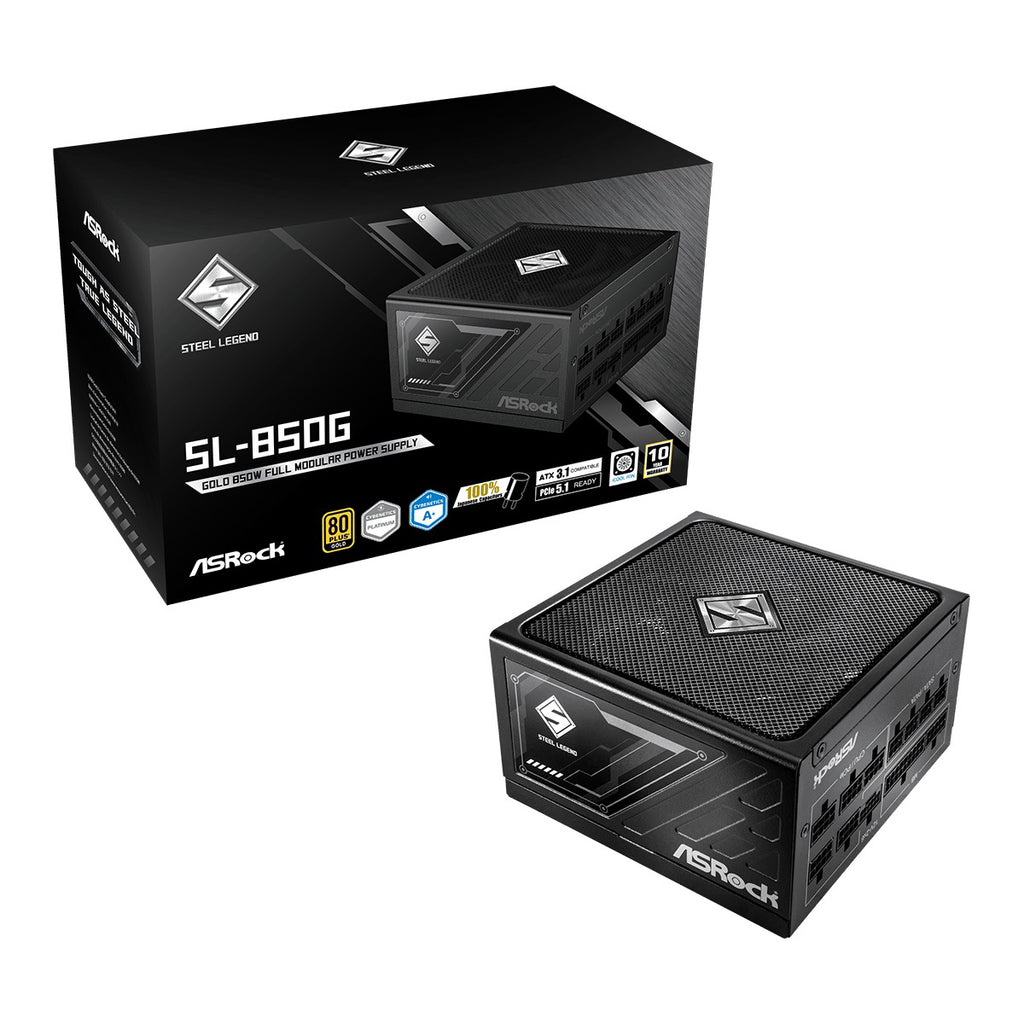

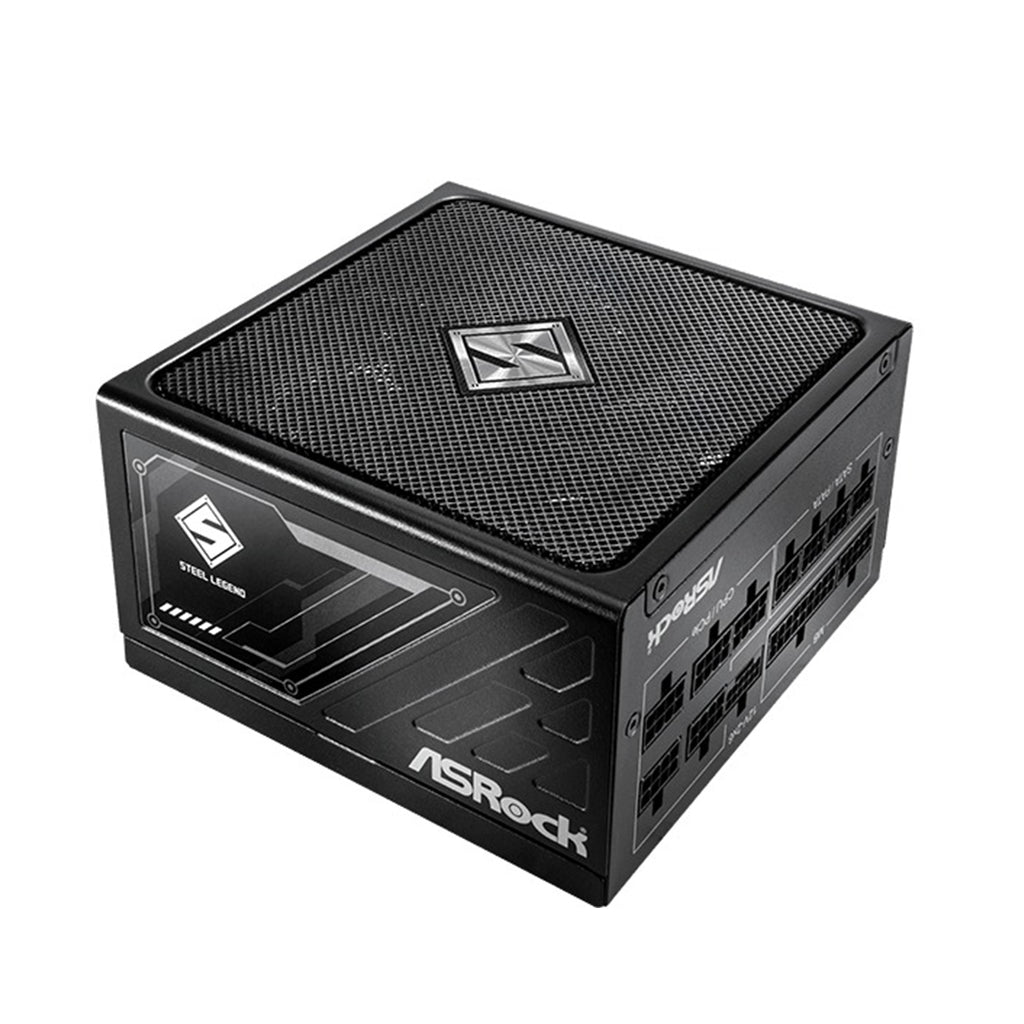

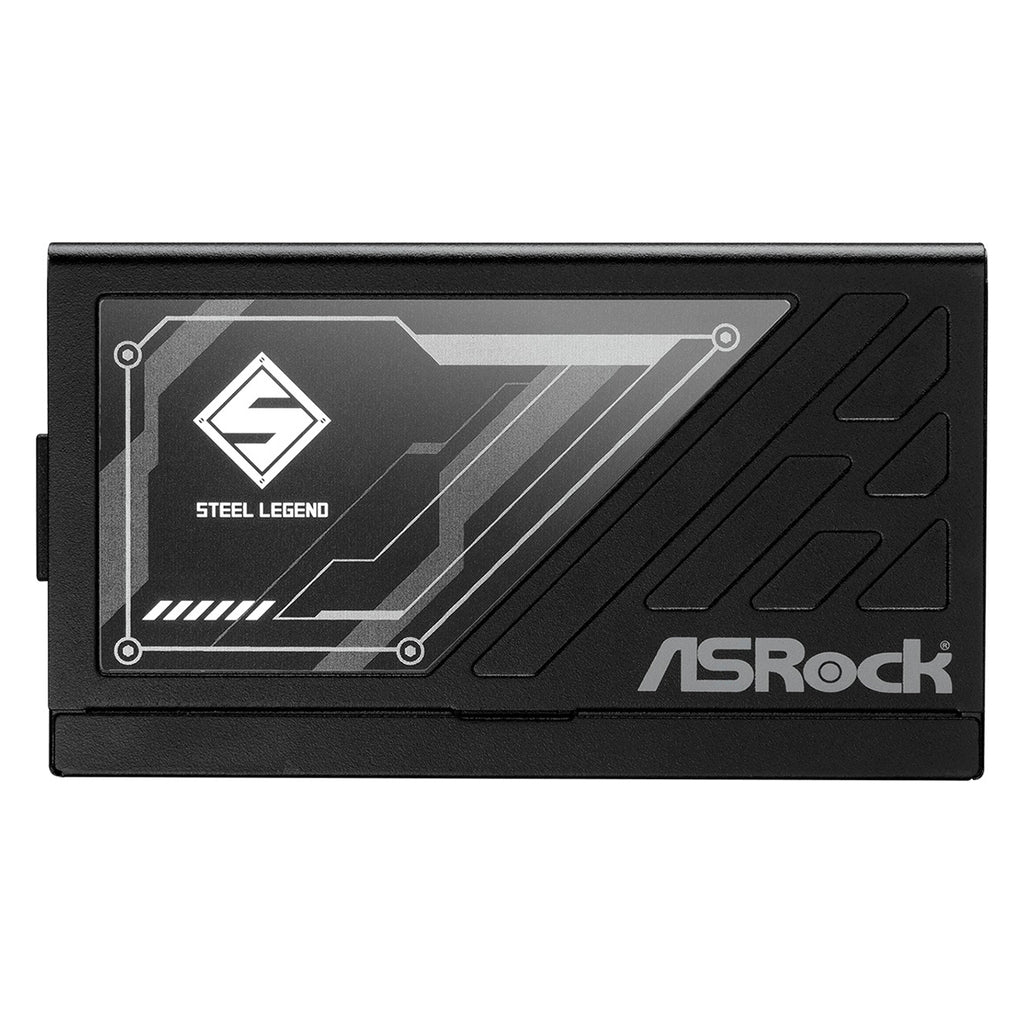

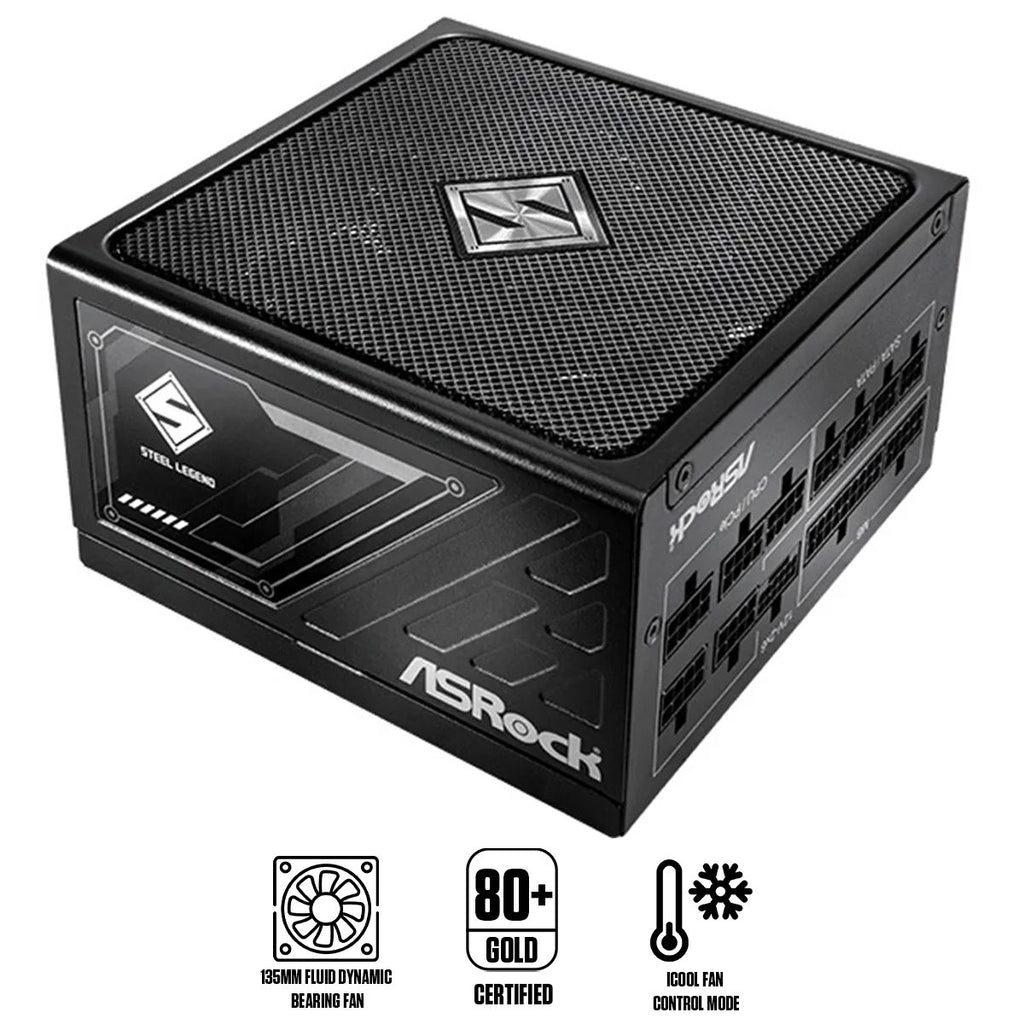

SL-850G
- 80 PLUS® GOLD Certified*
- Cybenetics PLATINUM and LAMBDA A+ Certified
- ATX3.1 & PCIe5.1 Ready

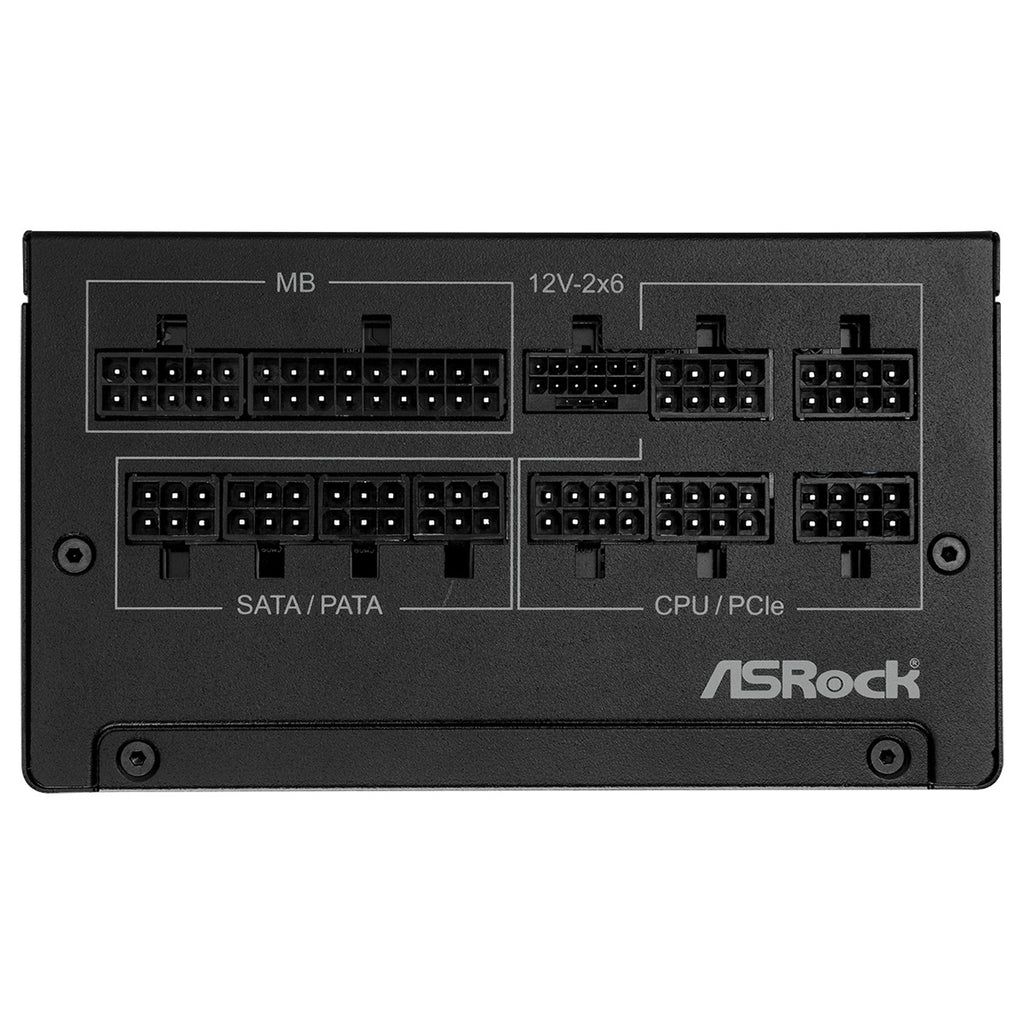

- Fully Modular Cable Design
- Native 12V-2x6 Connector Dual Color Design
- 100% Highly Reliable Japanese Capacitors

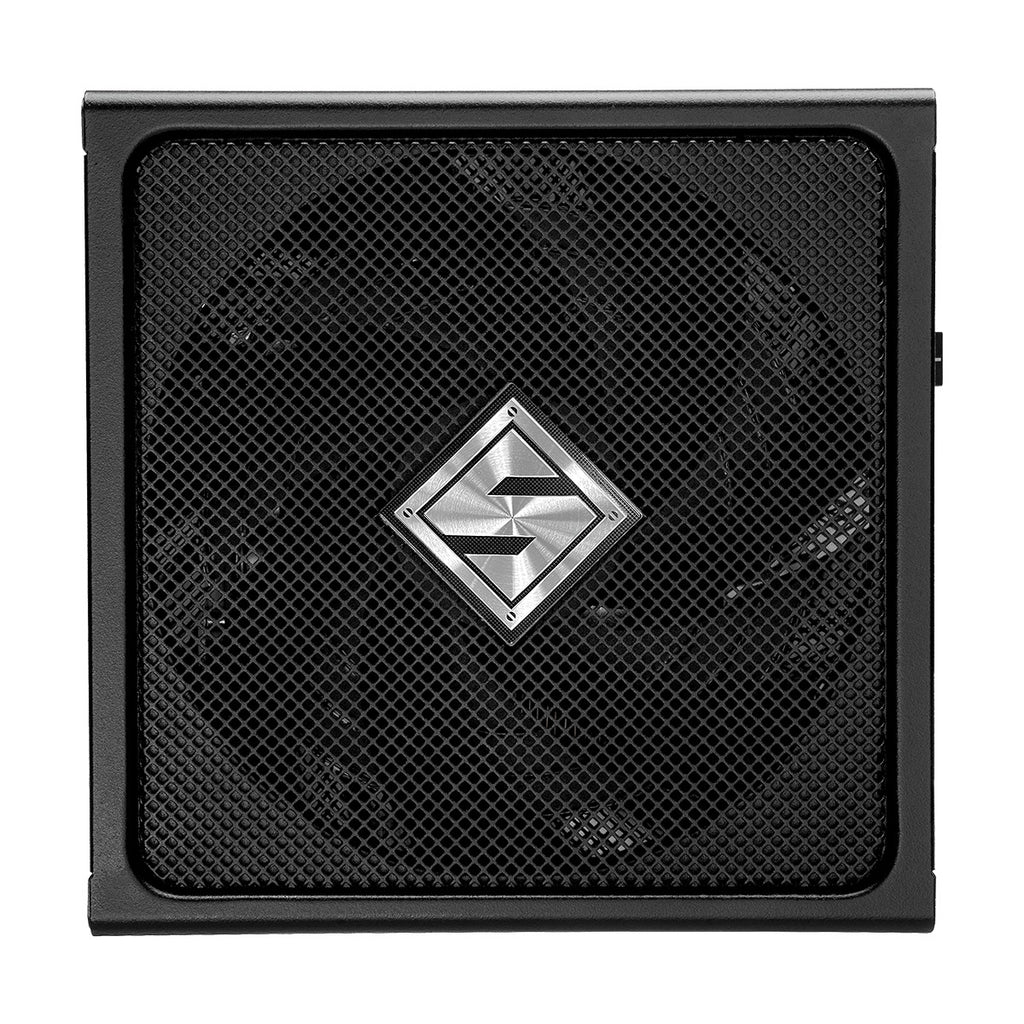

- 135mm Striped Axial FDB Fan
- iCool Intelligent Fan Control Mode
- Built-in 5V BOOST function
*The Cybenetics certification on the packaging has been updated. Some earlier units may not show the badge. For the latest certification details, please visit the official Cybenetics website. Product specifications and performance remain unchanged.
Specification:
| 80 Plus Efficiency | GOLD |
|---|---|
| Cybenetics (ETA/LAMBDA) | PLATINUM / A+ |
| ATX 12V Version | ATX 3.1 |
| ATX | ATX 3.1 |
| Continuous 12V output | 70.9 A |
| Dimensions(L x W x H) | 150mm x 150mm x 86mm |
| Fan | 135mm Striped Axial FDB Fan |

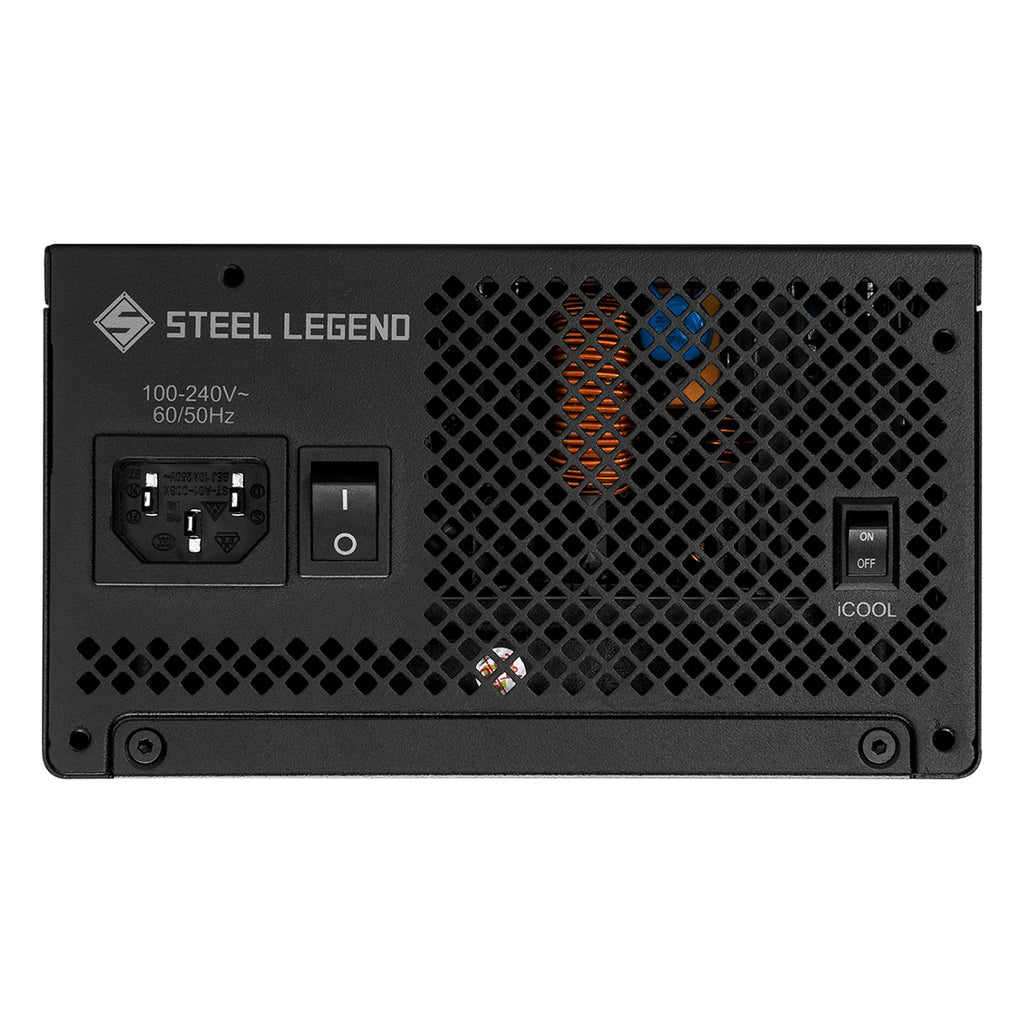

| iCOOL MODE | Yes (Switch) |
| Protections | OCP, SCP, OVP, UVP, OTP, OPP |
| Capacitors | All Japanese |
| 5V BOOST | Yes (Built-in) |
| PCIe 5.1 Cable TempGuard | No |
| Total Power Excursion | 200% |
| MTBF (Hours)@25°C | 100,000 |

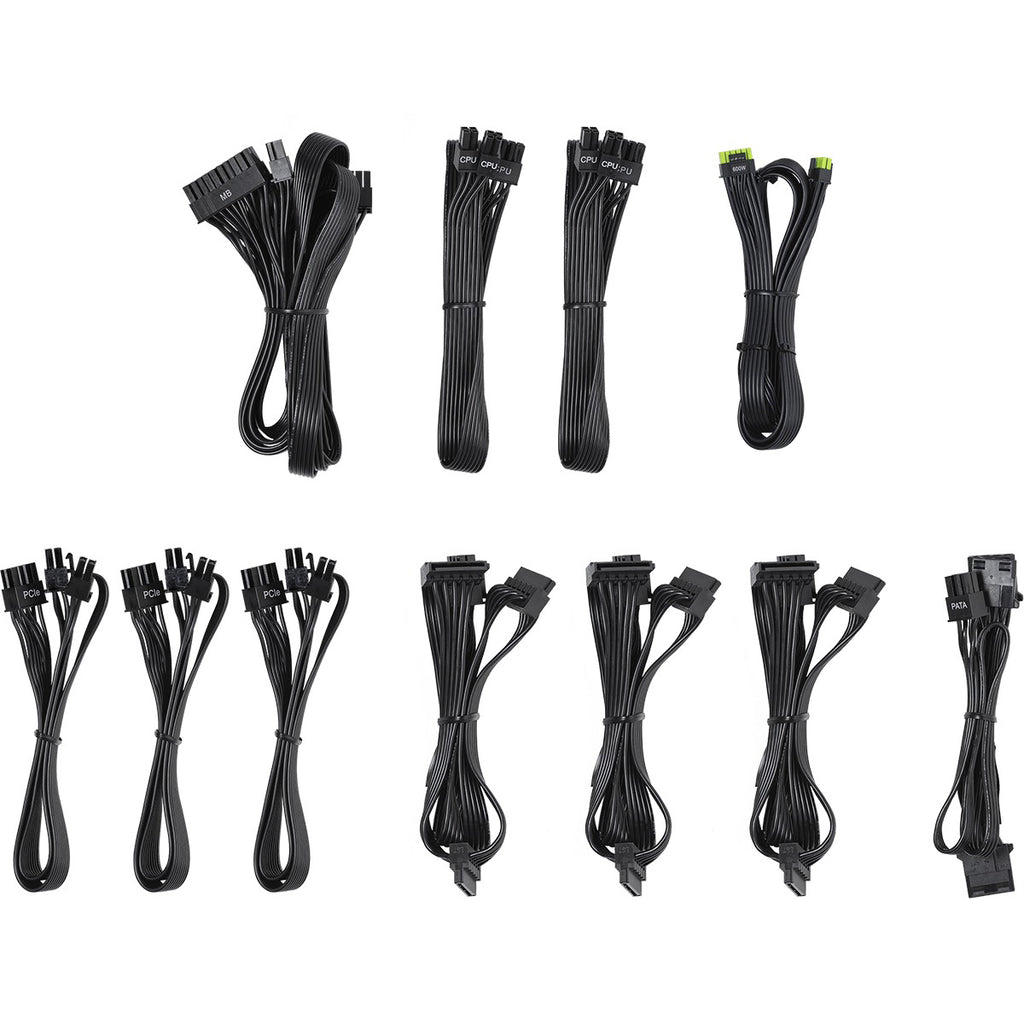

| Cable Type | Flat |

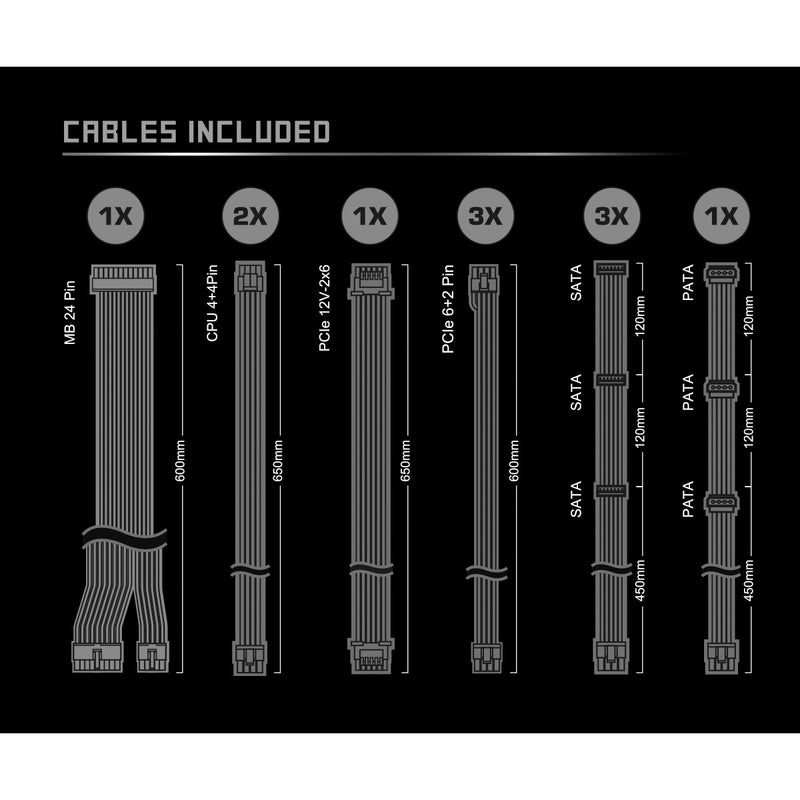

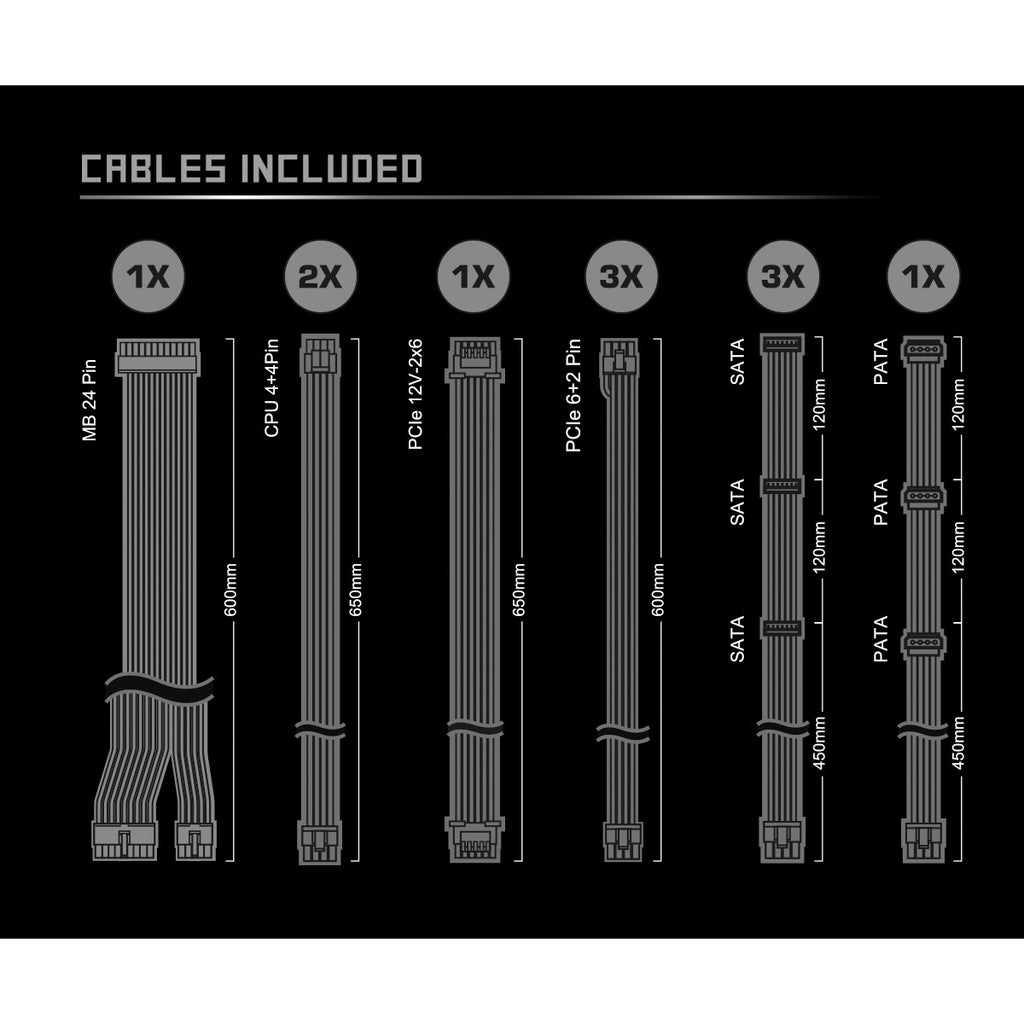

| Motherboard cable (24pin) | 1 |
| EPS 12V CPU connectors (4+4pin) | 2 |
| PCIe5.1 connectors(12+4pin) Dual Color | 1 |
| PCIe connectors (6+2pin) | 3 |
| 4-pin Peripheral connectors | 3 |
| SATA 5-pin connectors | 9 |
