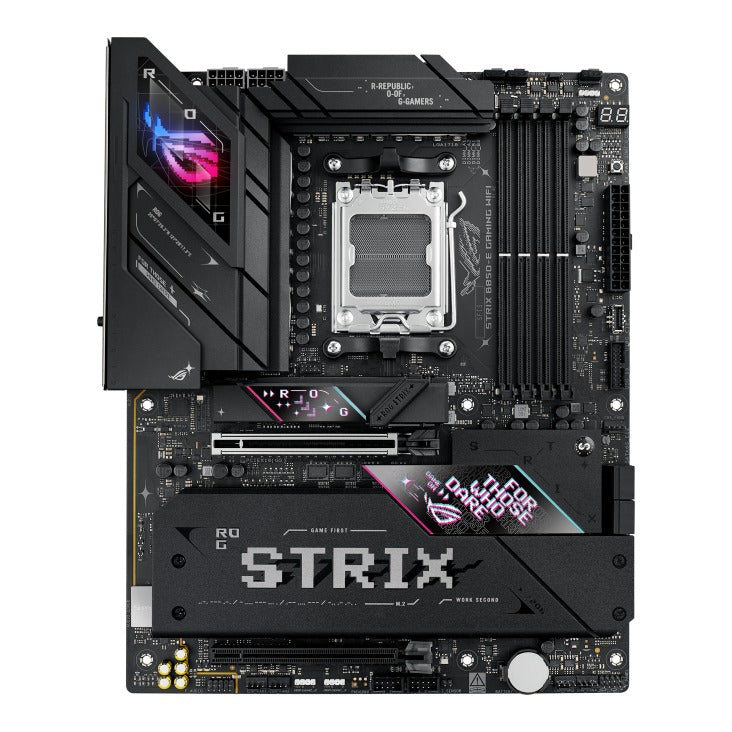

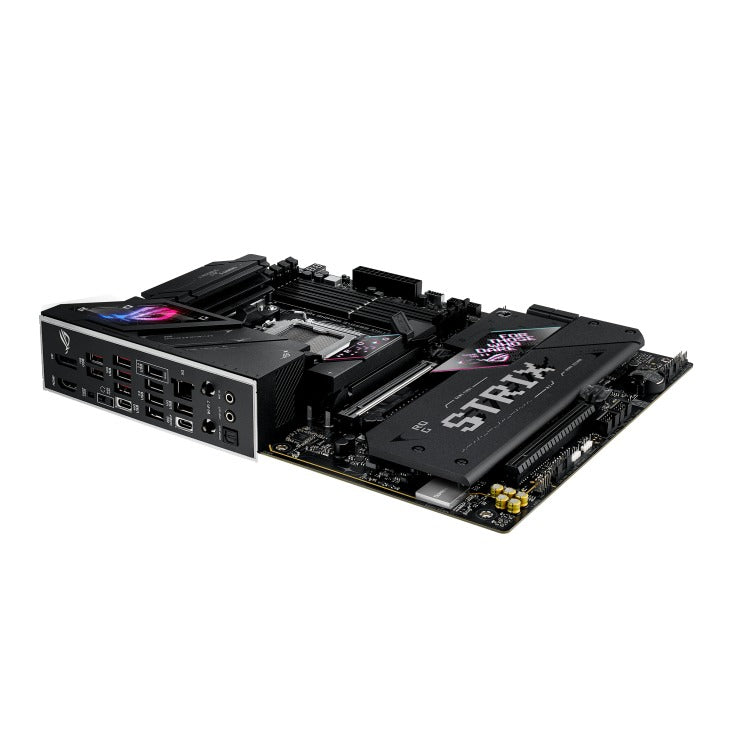

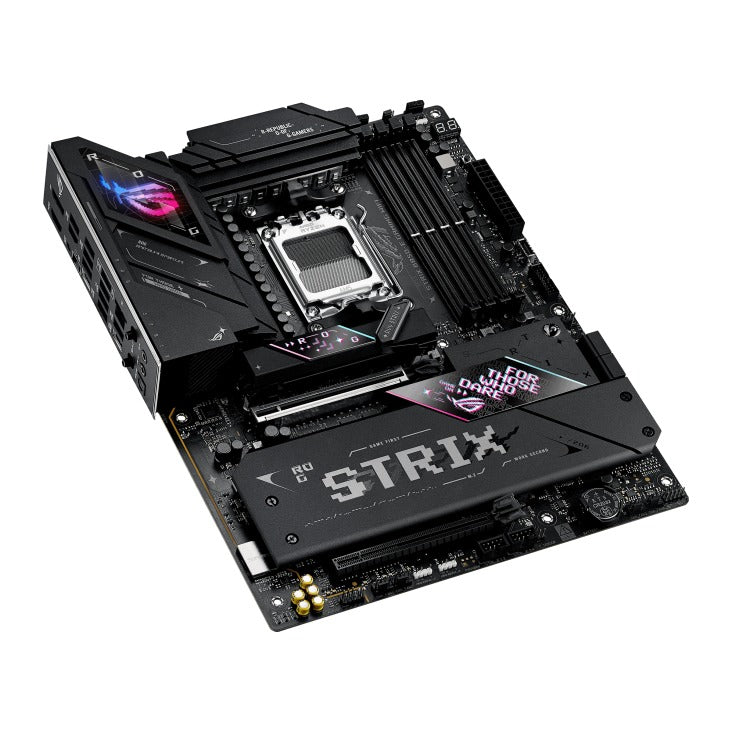

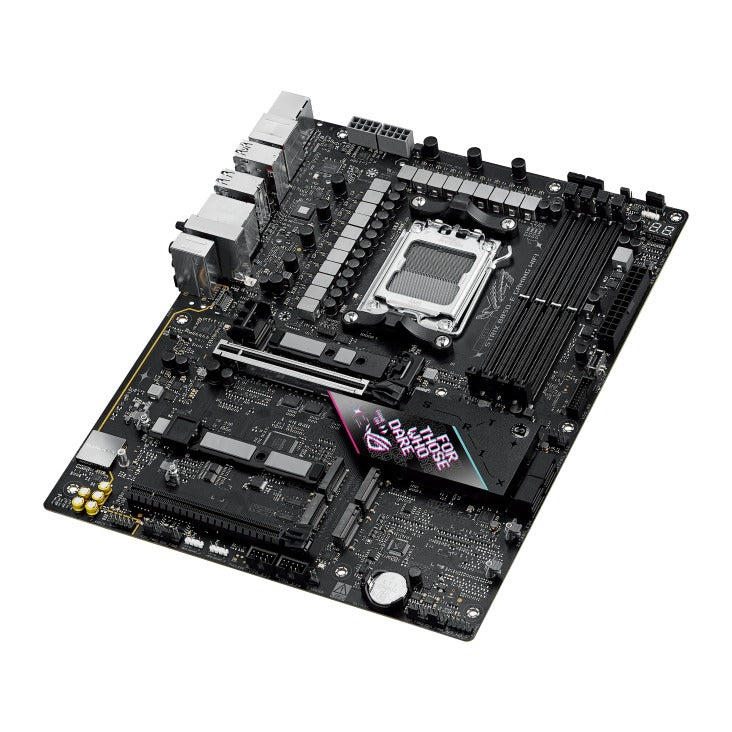

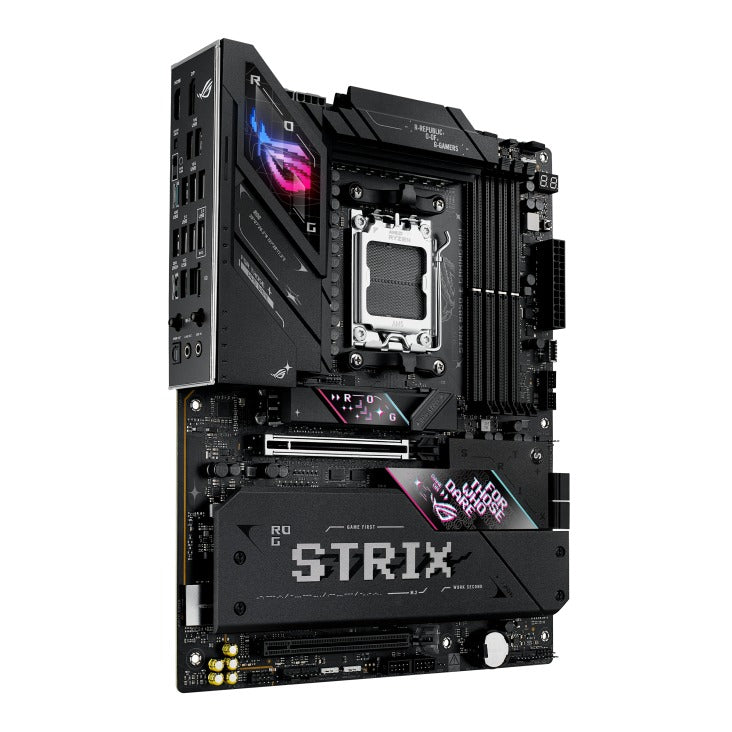

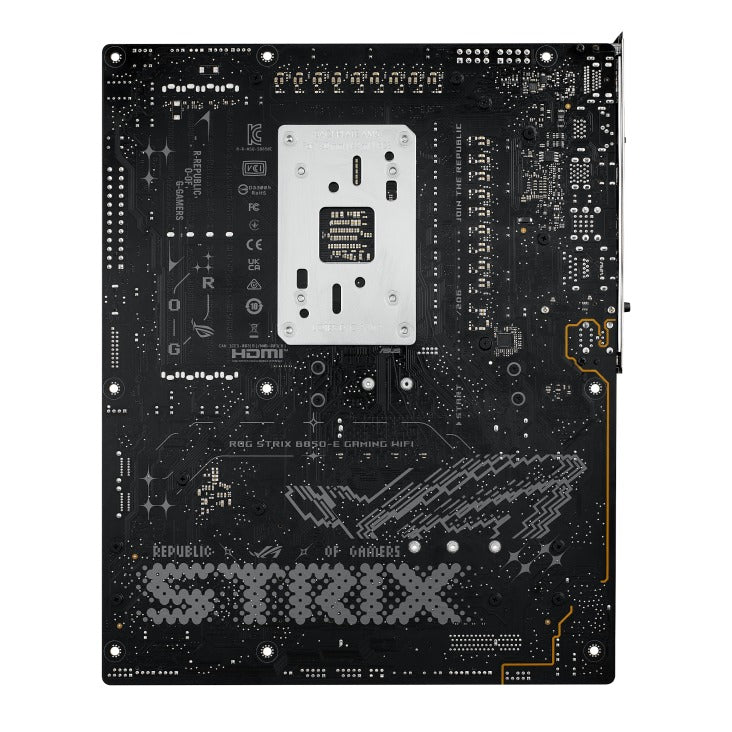

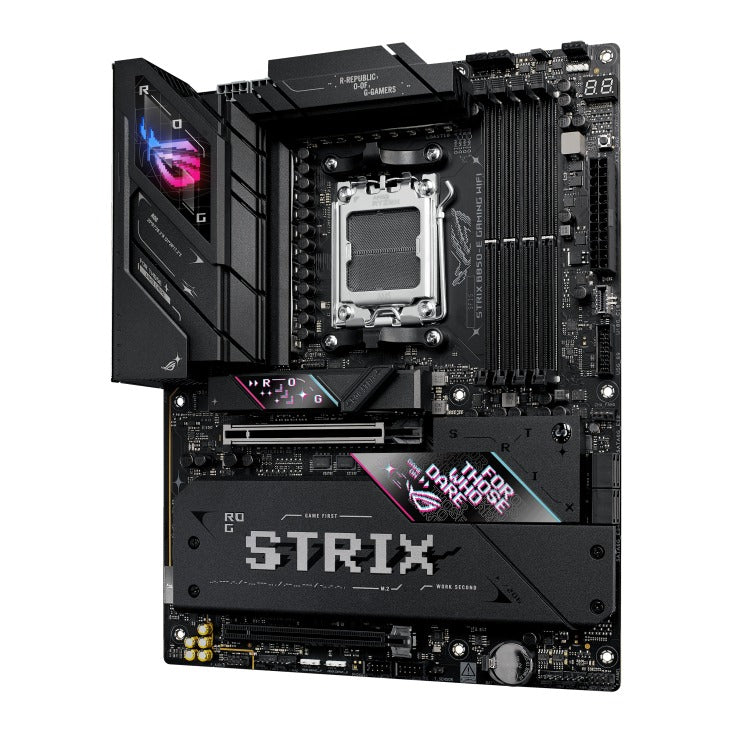

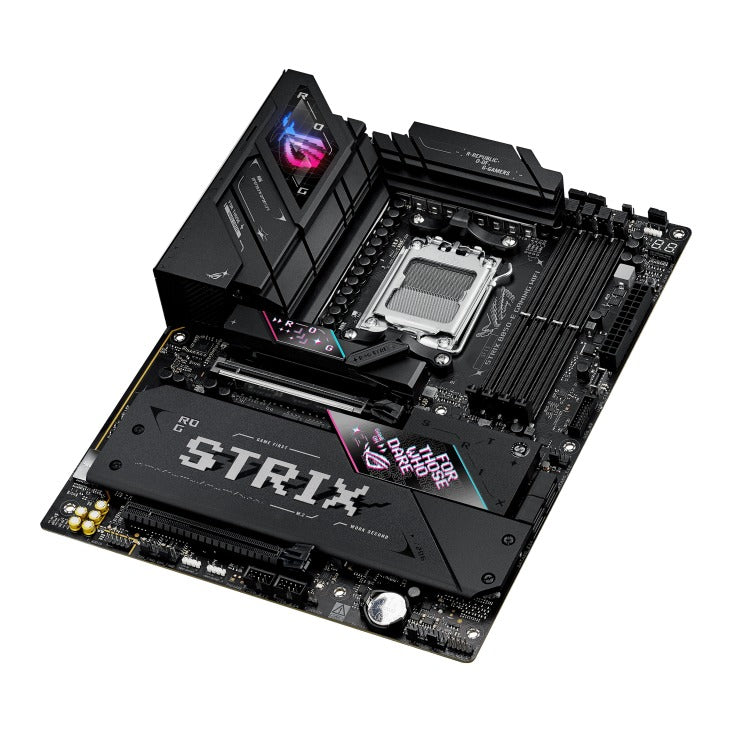

ROG STRIX B850-E Gaming WiFi
The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4® Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Specifications:
| CPU | AMD Socket AM5 for Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Chipset | AMD B850 |
| Memory | 4 x DIMM, up to 256GB DDR5, up to 8000+MT/s (OC), Dual Channel, ECC/Non-ECC, AMD EXPO, AEMP |
| Graphics | 1 x DisplayPort, 1 x HDMI, 1 x USB4 Type-C (max 8K@30Hz, 4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 5 x M.2 slots, 4 x SATA 6Gb/s, supports RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 7 (2x2), Bluetooth 5.4 |
| Rear USB | 1 x USB4 Type-C, 1 x USB 20Gbps Type-C, 6 x USB 10Gbps Type-A, 4 x USB 2.0 Type-A |
| Front USB | 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | ROG SupremeFX 7.1, ALC4080, 120 dB SNR playback, Optical S/PDIF out, Premium capacitors |

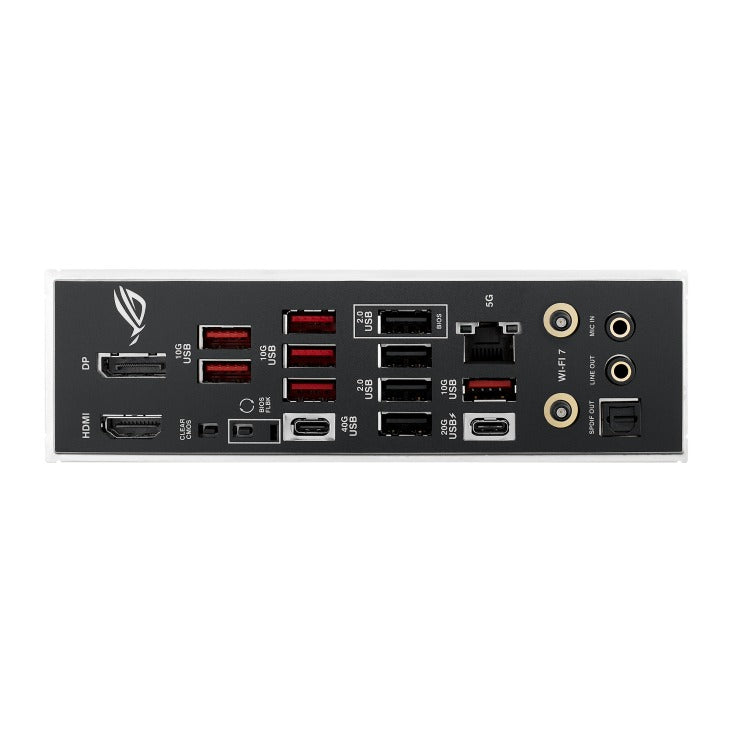

| Back Panel I/O | USB4, USB 20Gbps, USB 10Gbps, USB 2.0, DisplayPort, HDMI, Wi-Fi, Ethernet, Audio Jacks, Optical S/PDIF, BIOS FlashBack, Clear CMOS |
| Internal I/O | Fan headers, Power headers, USB headers, M.2 slots, SATA ports, Audio, Thermal sensor, RGB headers |
| Special Features | Extreme Engine Digi+, ASUS Q-Design, Thermal Solutions, EZ DIY, Aura Sync, USB PD Fast Charge |
| Software | Armoury Crate, Aura Sync, Fan Xpert 4, GameFirst, ROG CPU-Z, Dolby Atmos, Norton 360 Trial, Adobe Trial |
| UEFI BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, ASUS EZ Flash, CrashFree BIOS, AI OC, Core Flex |

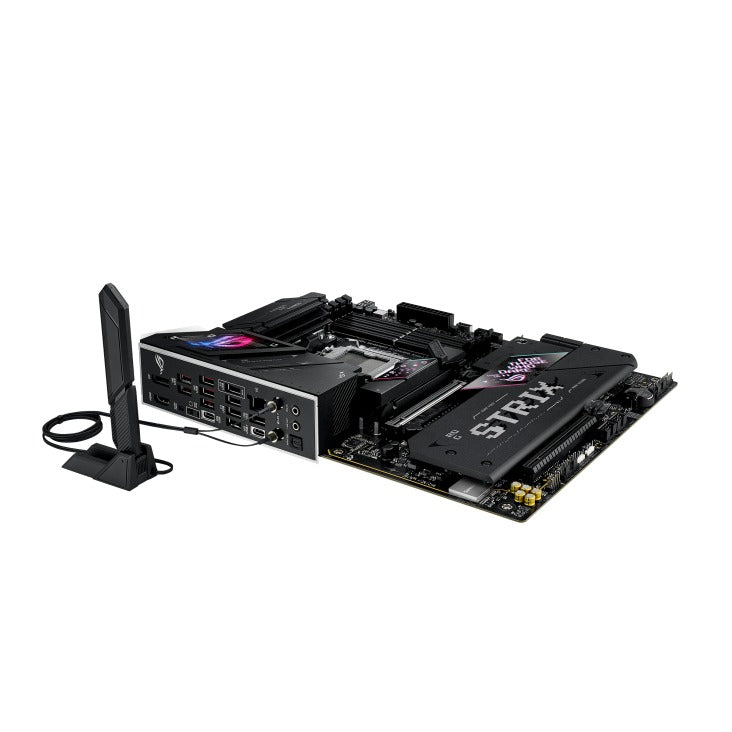

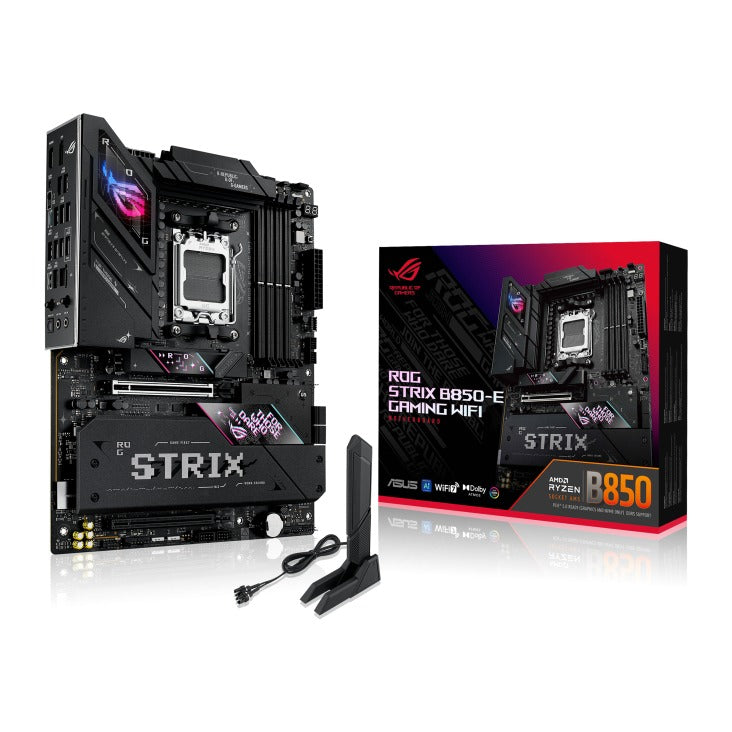

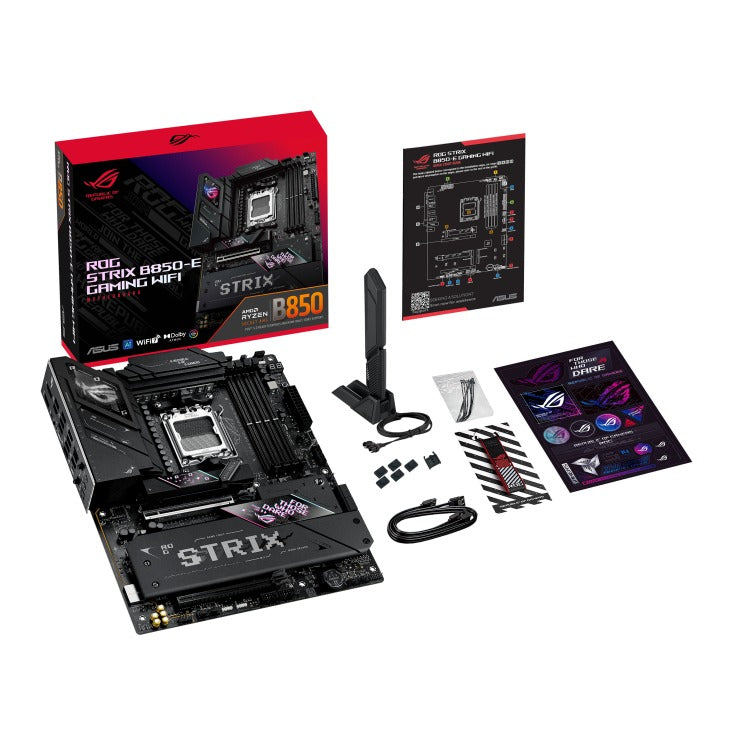

| Accessories | SATA cables, WiFi antenna, M.2 kit, Thermal pad, Cable ties, ROG stickers, Keychain, Quick guide |
| Operating System | Windows 11 |
| Form Factor | ATX (30.5 x 24.4 cm) |
