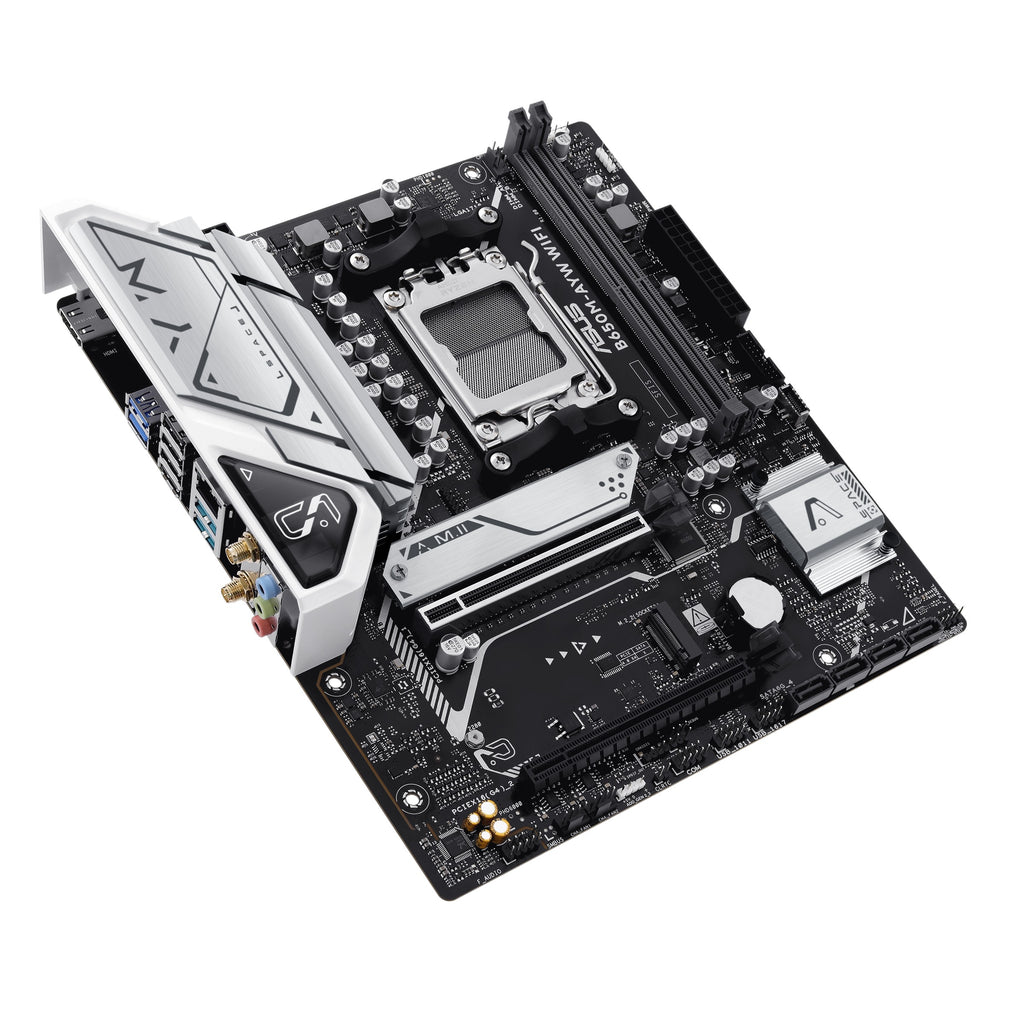

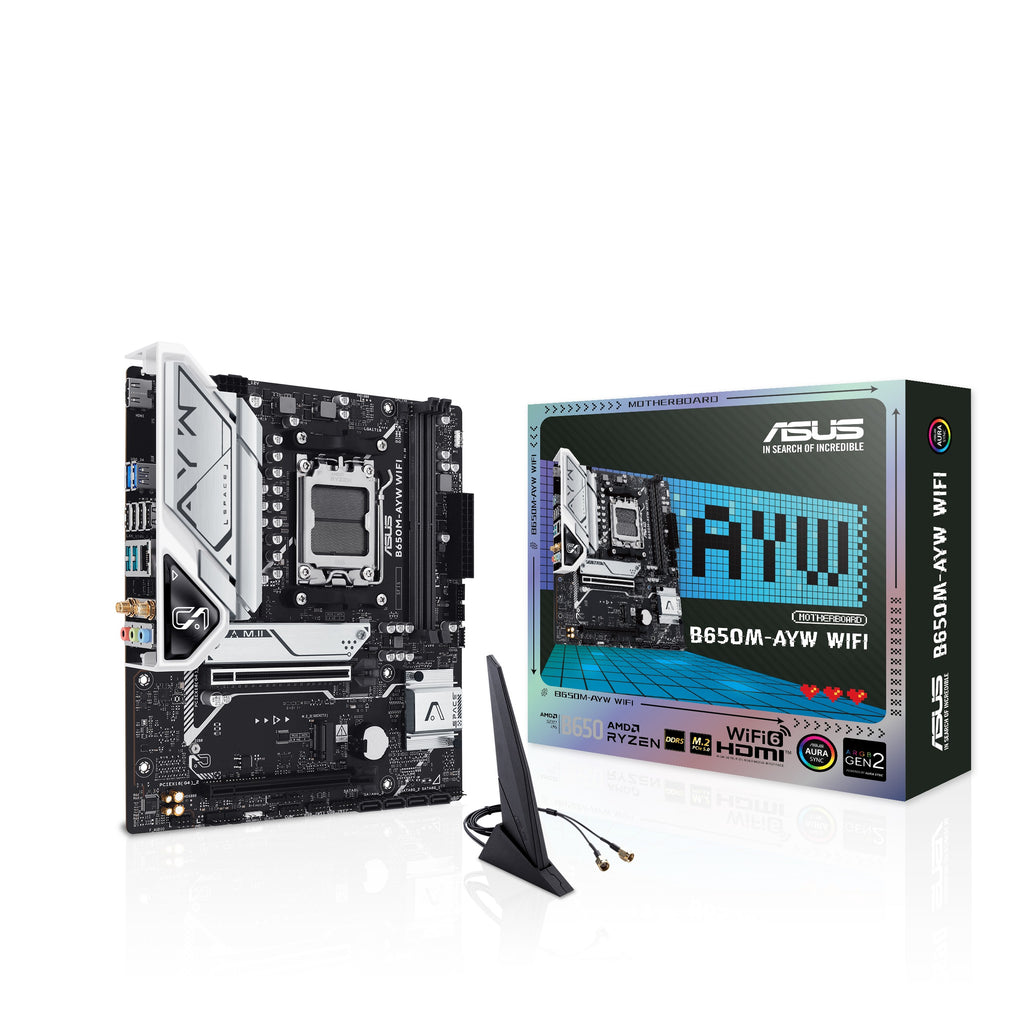

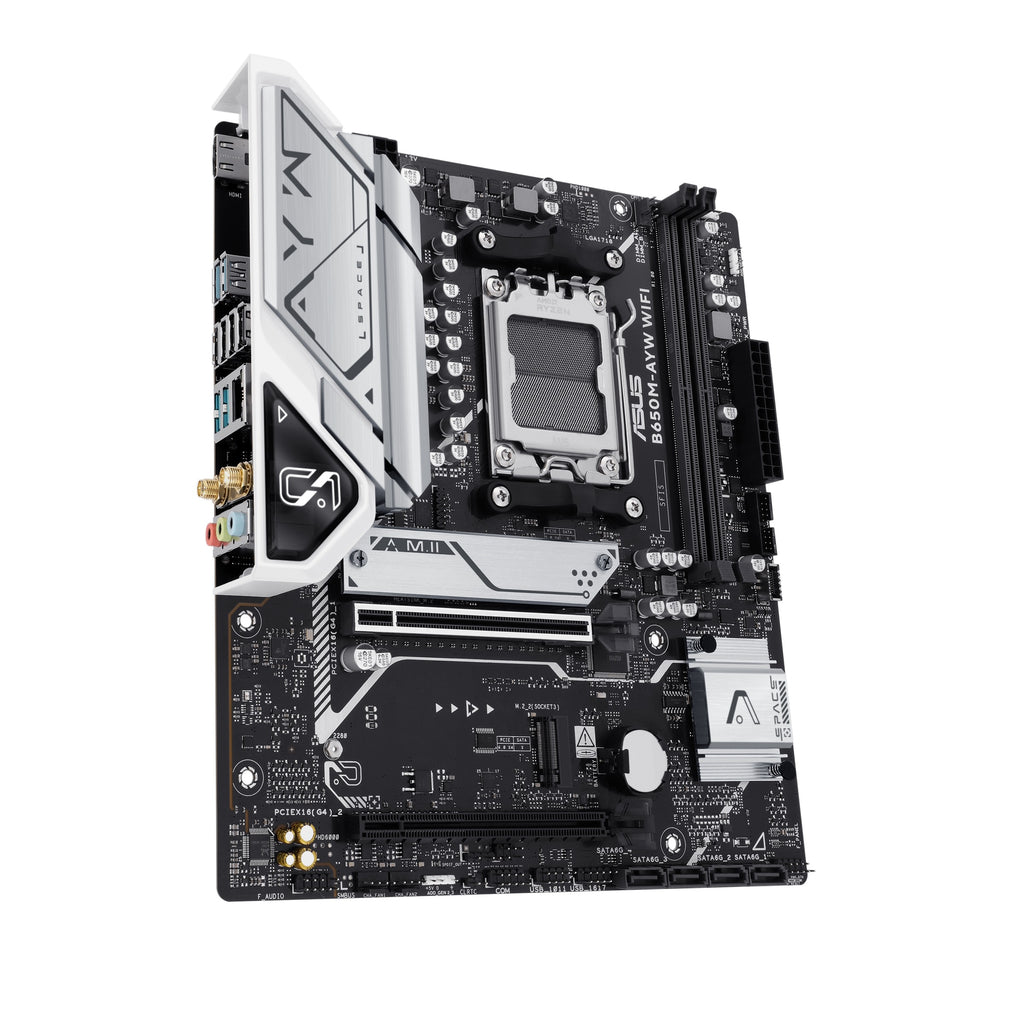

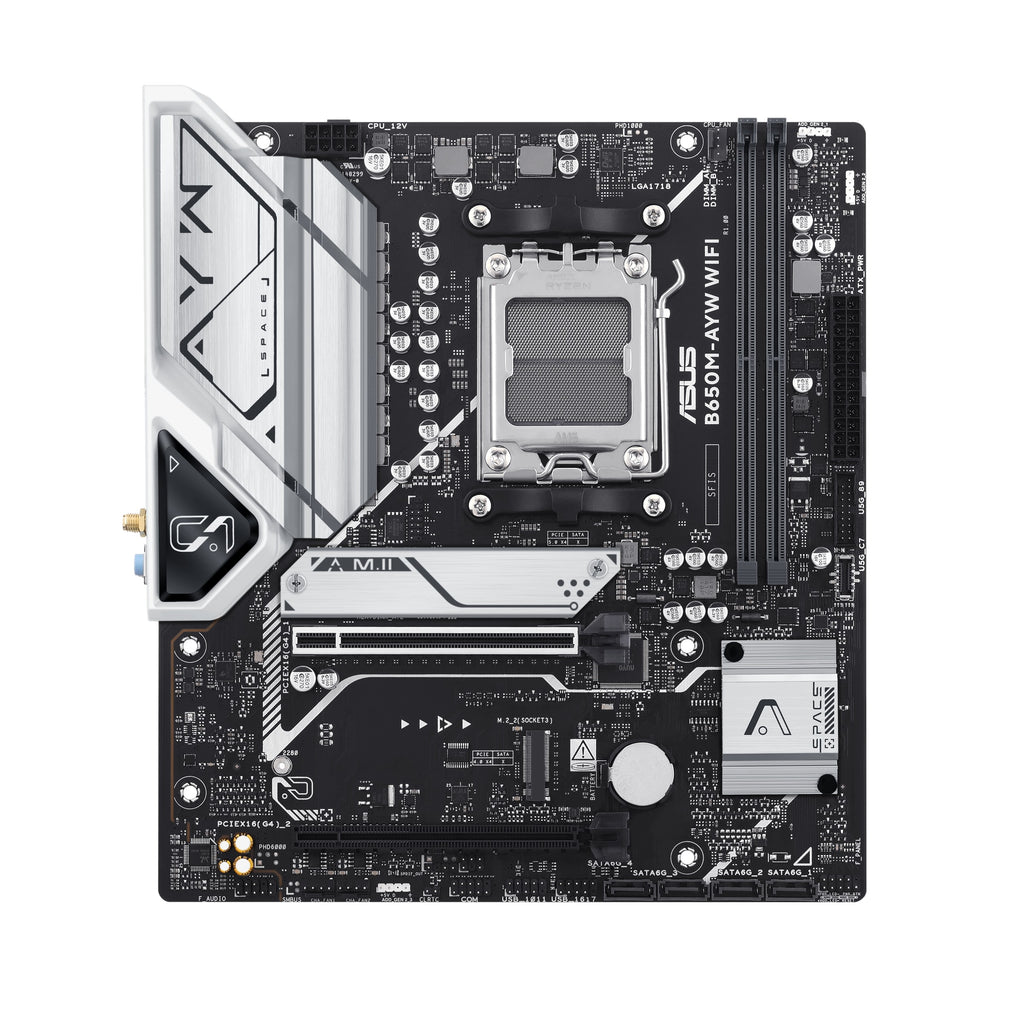

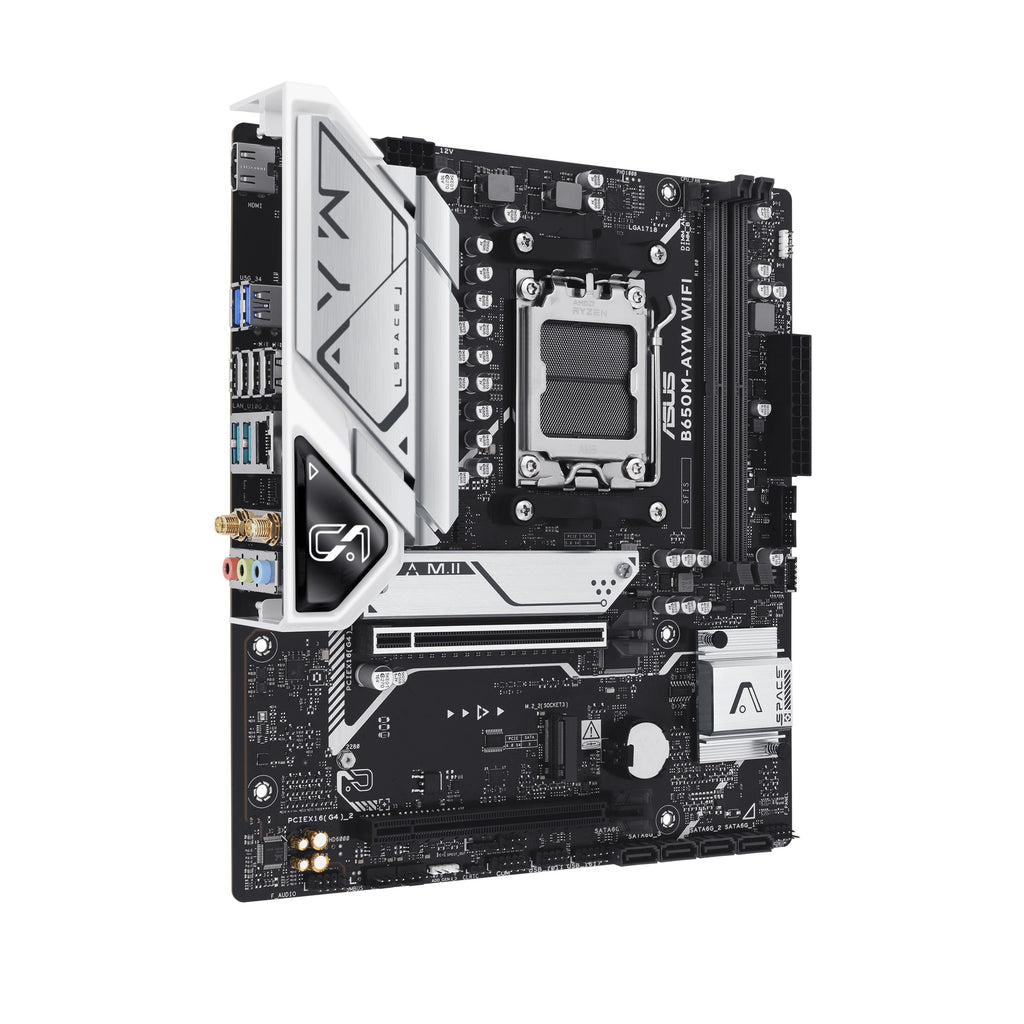

Asus B650M-AYW WiFi DDR5 AMD Motherboard
AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2 support, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 10Gbps ports, front USB 5Gbps Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
| Model | B650M-AYW WIFI |
| News & Updates: Please visit our GLOBAL website to check and download the latest updates. | |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset: AMD B650 Chipset | |
| Memory | 2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) |
| Dual Channel Memory Architecture | |
| Supports AMD EXPO™ (Overclocking) | |
| OptiMem II | |
| * Memory support depends on CPU; visit ASUS support site for details. | |
| Graphics | 1 x HDMI™ port (4K@60Hz, HDMI 2.1)** |
| * Specs may vary based on CPU used. | |
| Expansion Slots | Ryzen™ 9000 & 7000: 1 x PCIe 4.0 x16 (x16 mode) |
| Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4 mode)** | |
| B650 Chipset: 1 x PCIe 4.0 x16 (x4 mode) | |
| * See bifurcation table for full info. | |
| Storage | Supports 2 x M.2 and 4 x SATA 6Gb/s |
| Ryzen™ 9000/7000: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4) | |
| Ryzen™ 8000: M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2)** | |
| 4 x SATA 6Gb/s ports | |
| * Supports PCIe/SATA RAID 0/1/10 (RAIDXpert2) | |
| ** Specs vary by CPU. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |

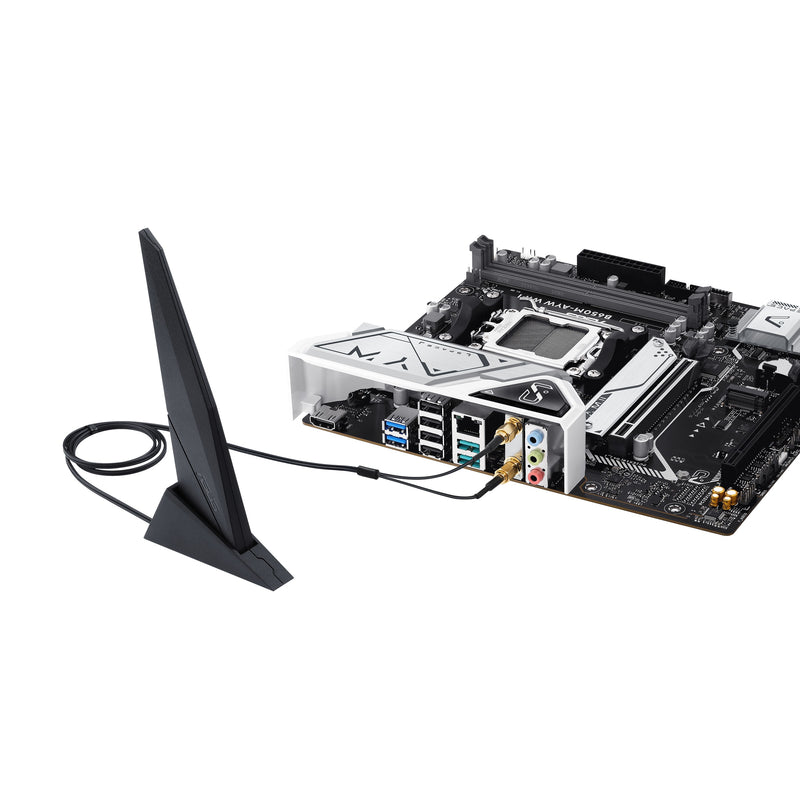

| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz |
| Bluetooth v5.3* (*Check Wi-Fi module specs) | |
| USB | Rear: 2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0 (Type-A) |
| Front: 1 x USB-C 5Gbps, 1 x header for 2 x USB 5Gbps, 2 x headers for 4 x USB 2.0 | |
| Total: 8 rear, 7 front USB ports | |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| Audio shielding, premium capacitors, 24-Bit/192kHz support | |

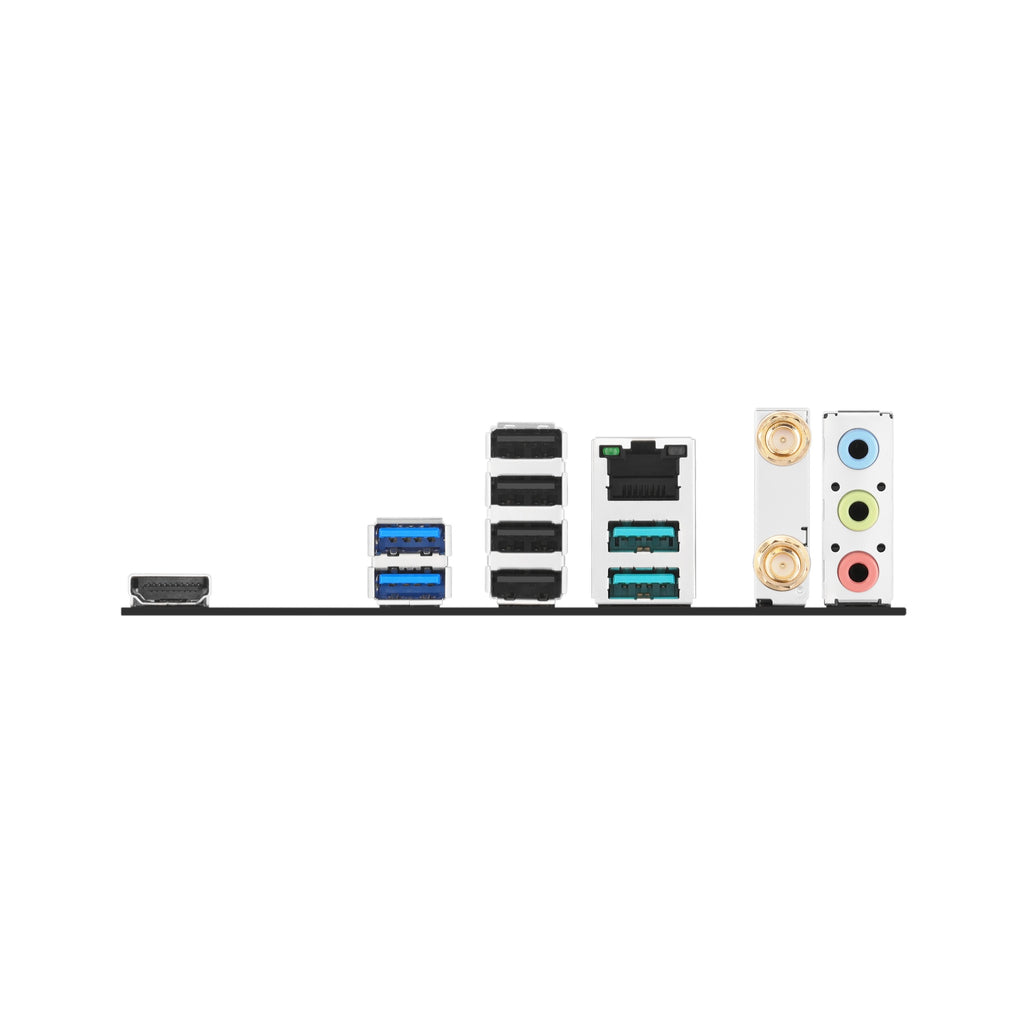

| Back Panel I/O | 2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0, HDMI, Wi-Fi Module, Ethernet, 3 x Audio jacks |
| Internal I/O | Cooling: 1 x CPU Fan, 2 x Chassis Fan |
| Power, USB, M.2, SATA, ARGB, Audio, Clear CMOS, etc. | |
| Special Features | 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, SS I/O |
| Q-Design: Q-DIMM, Q-LED Core, Q-Slot, M.2 Q-Latch | |
| Thermal: VRM & M.2 heatsinks | |
| Aura Sync with Gen 2 ARGB headers | |
| Software | Armoury Crate: Aura, Fan Xpert 2+, AI Noise Cancel, Power Save |
| AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner | |
| Also: ASUS CPU-Z, Norton 360 (60d), WinRAR (40d) | |
| BIOS | 256 Mb UEFI AMI BIOS |
| EZ DIY: CrashFree BIOS 3, EZ Flash 3, EZ Mode | |
| Manageability | WOL by PME, PXE |

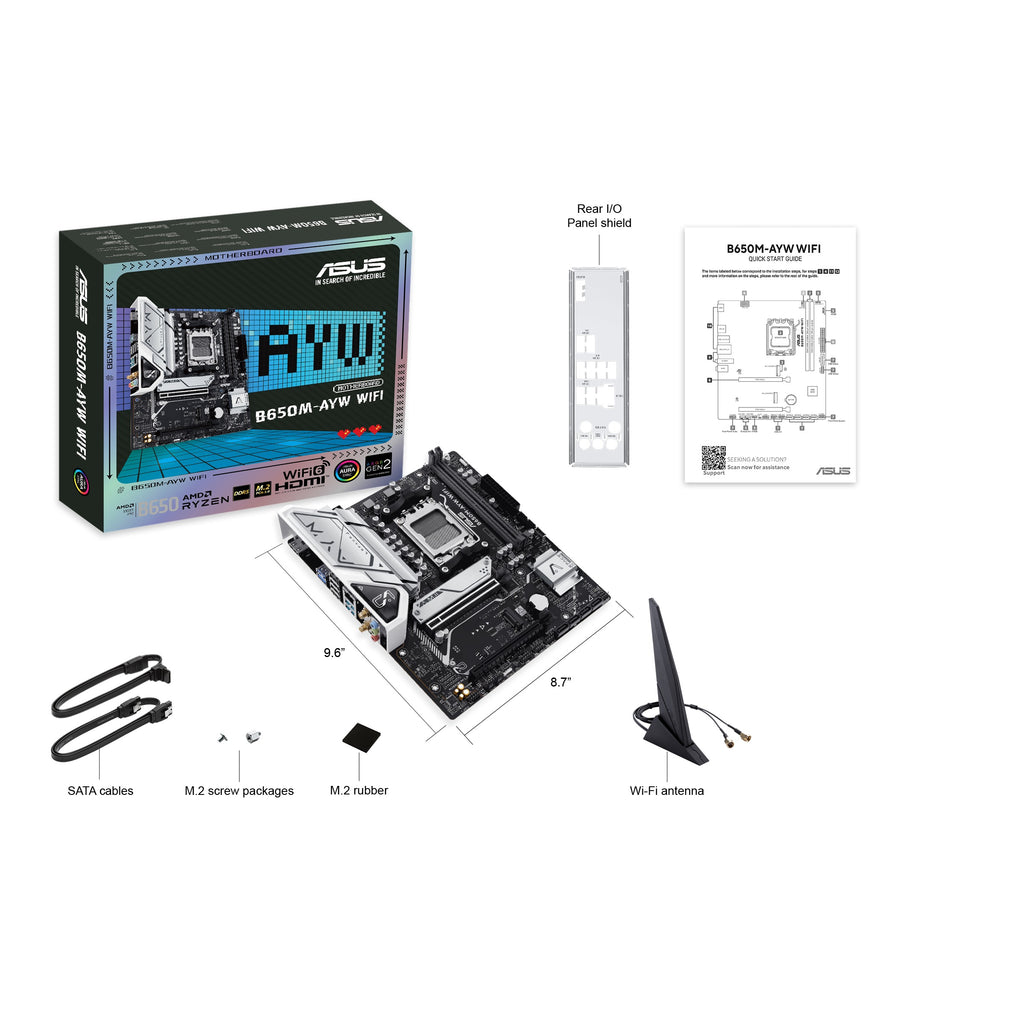

| Accessories | 2 x SATA Cables, Wi-Fi Antenna, I/O Shield, M.2 Rubber & Screw Package |
| Quick Start Guide | |
| Operating System | Windows 11 / 10 (64-bit) |
| Form Factor | micro-ATX (9.6" x 8.7" / 24.4 cm x 22.1 cm) |
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G

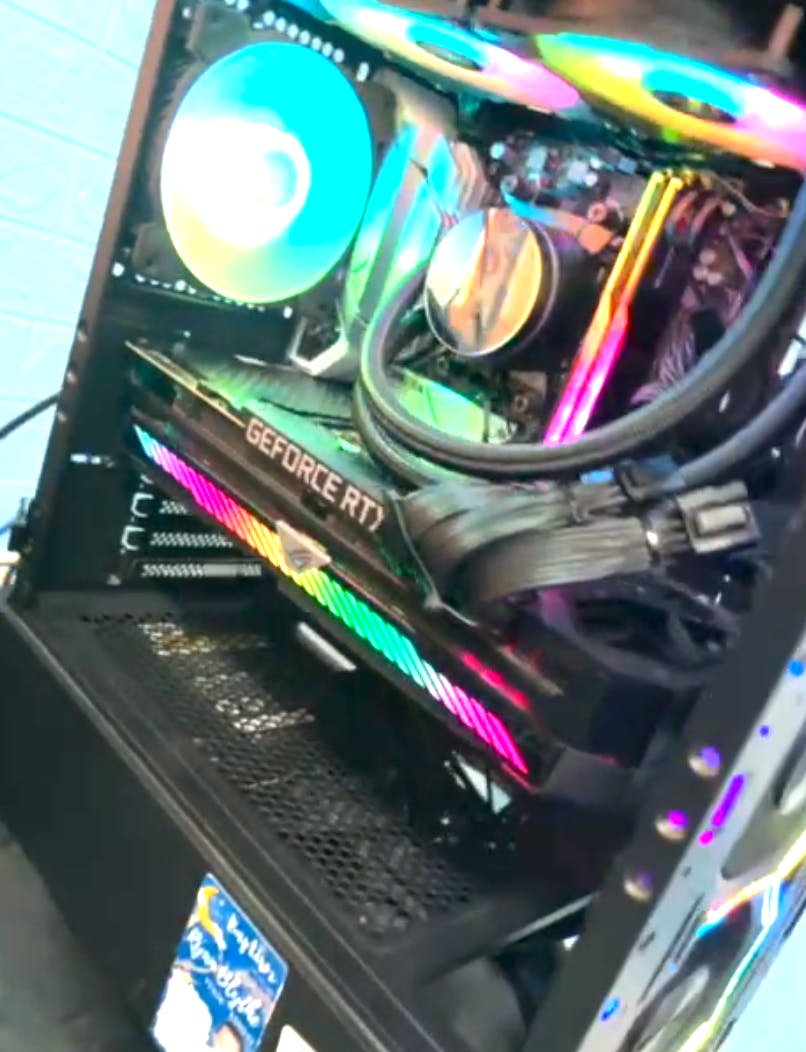

It worked. Thanks.
