Description

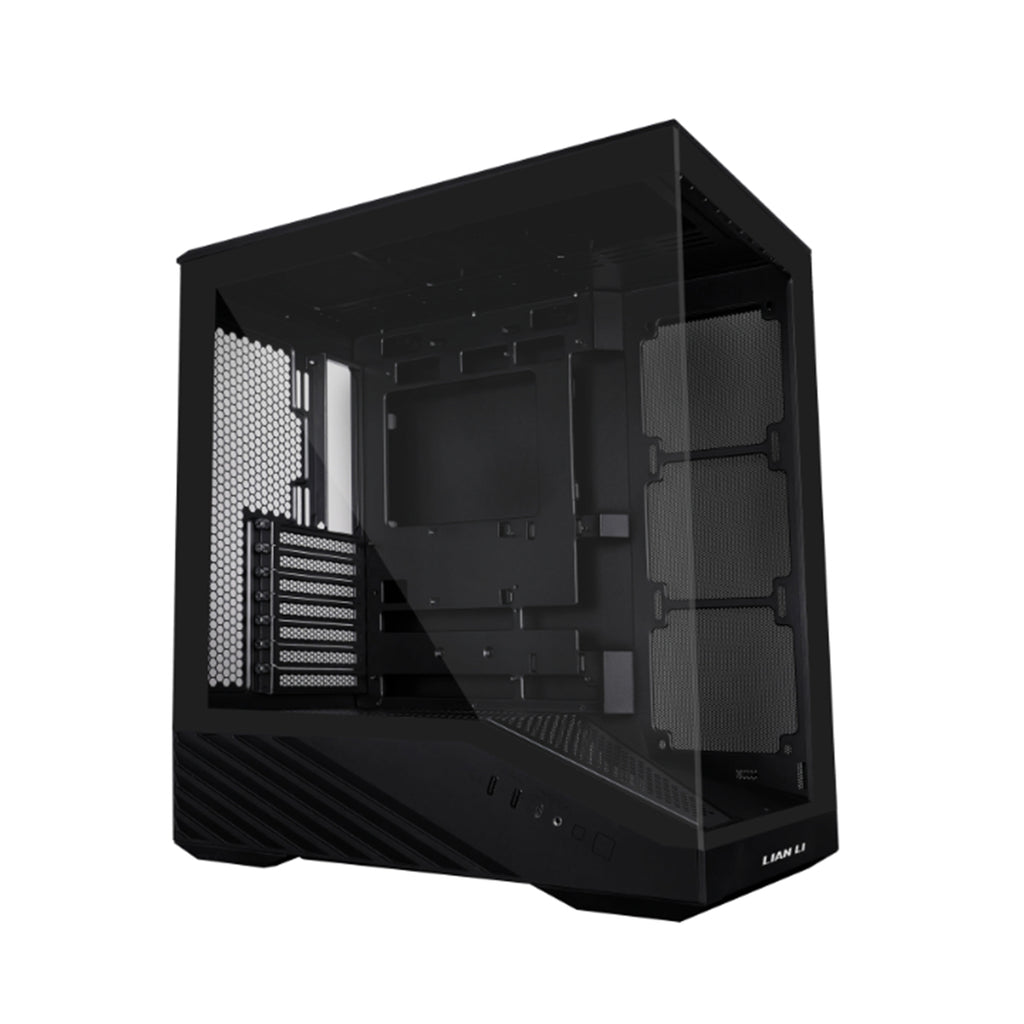

Vector V100

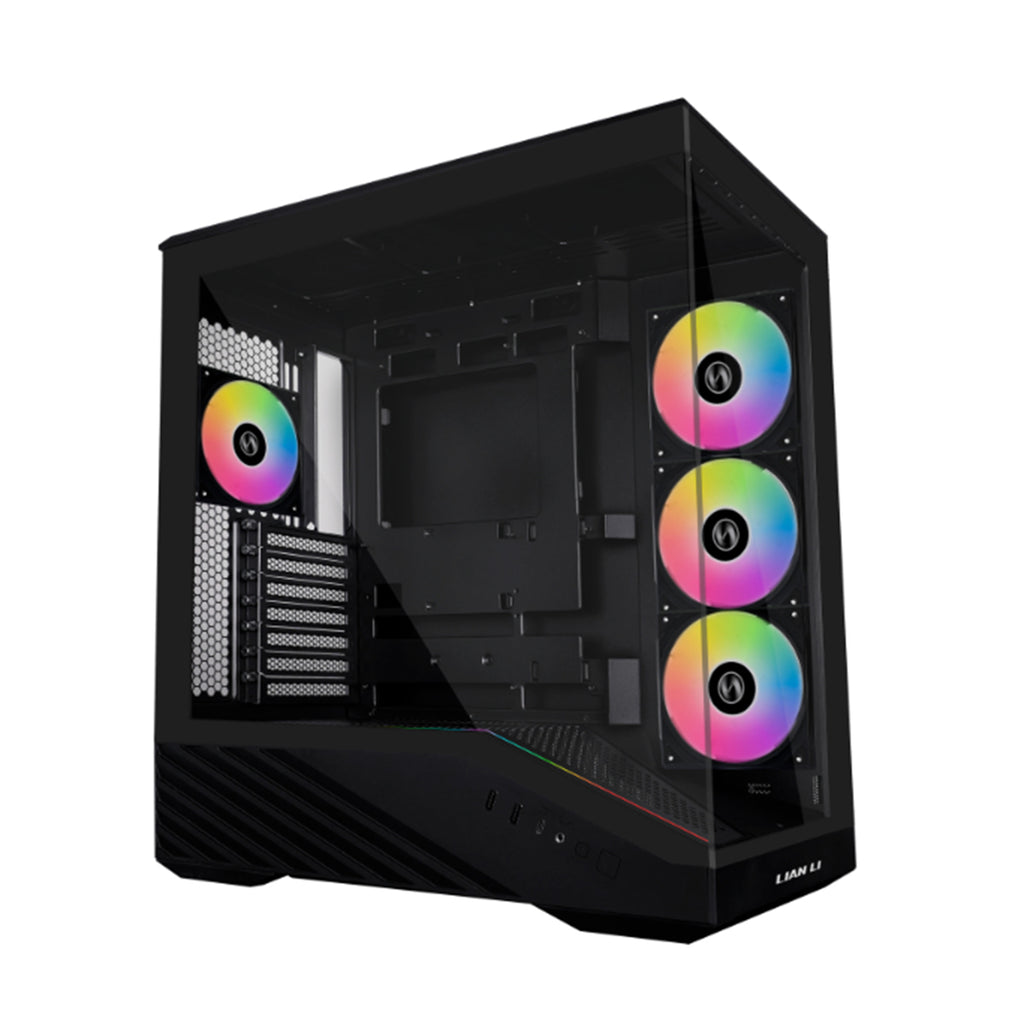

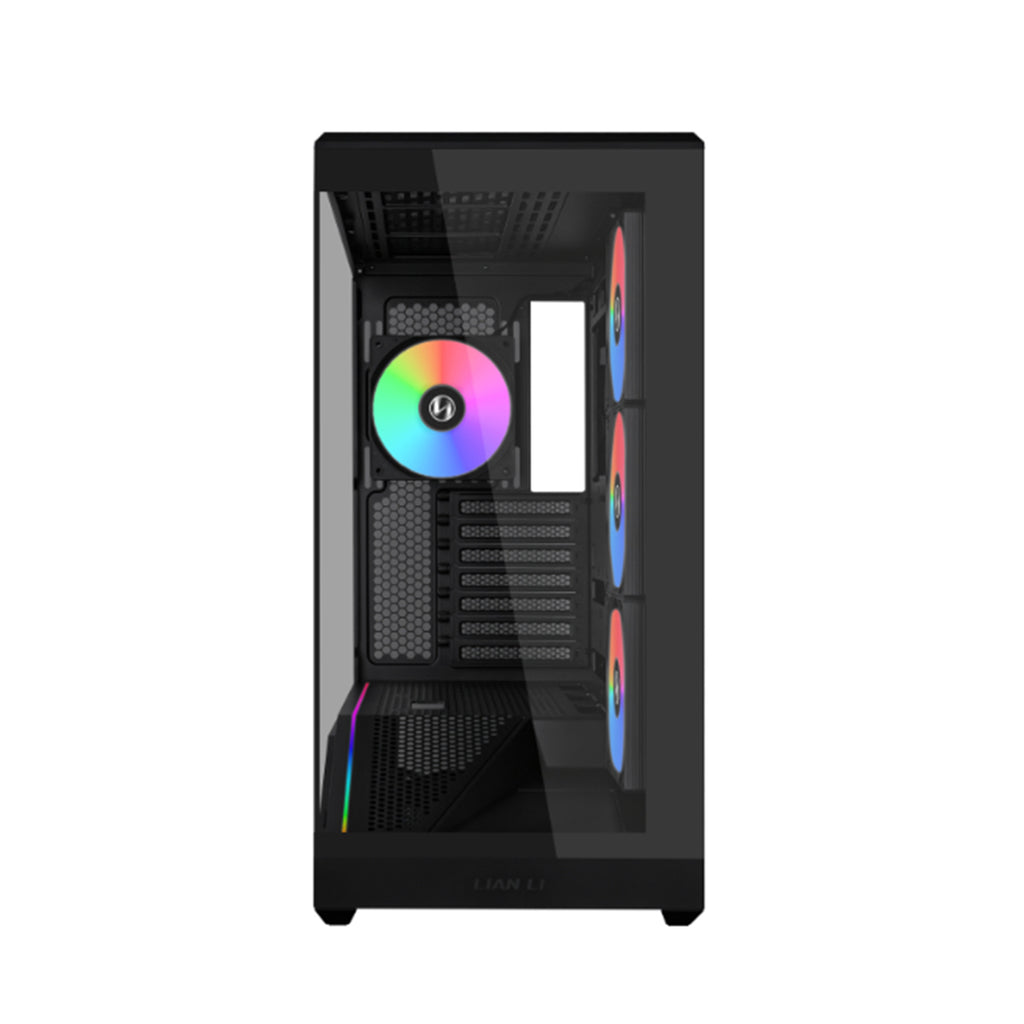

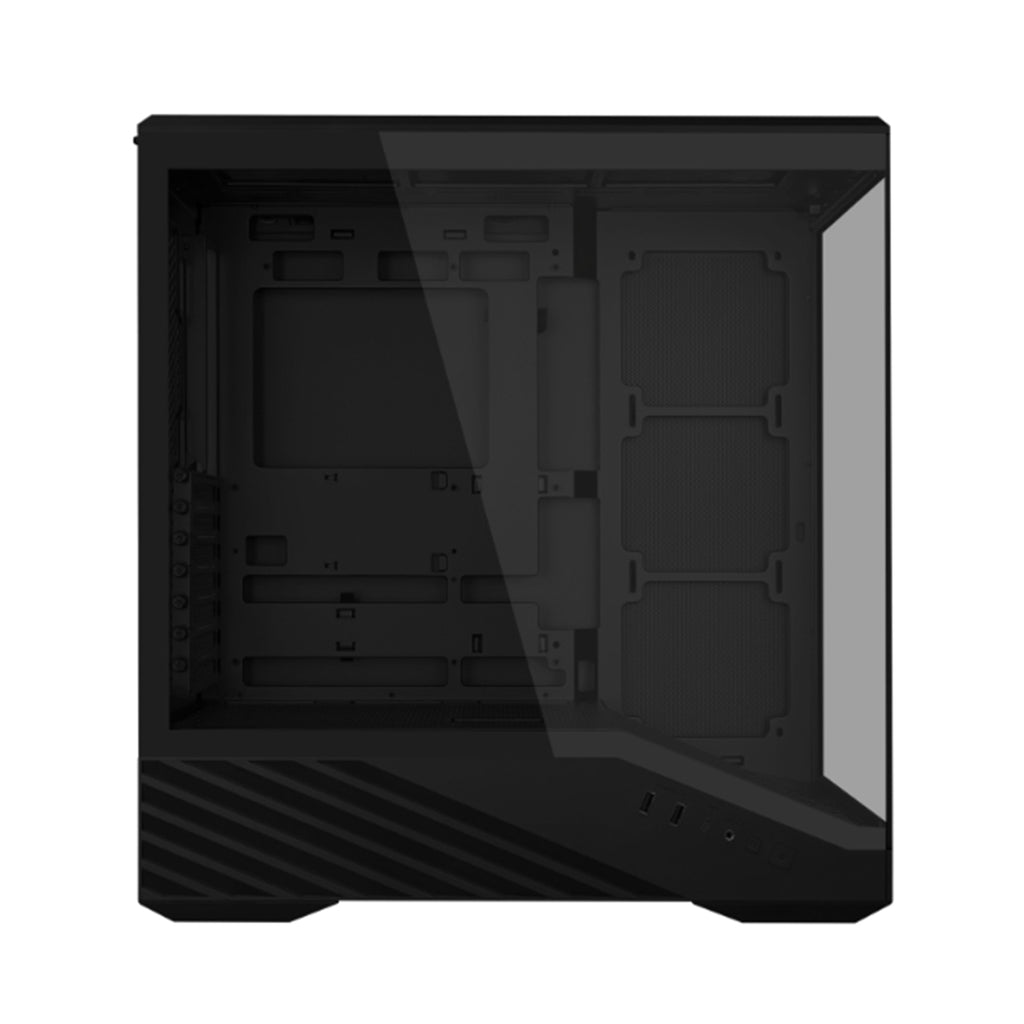

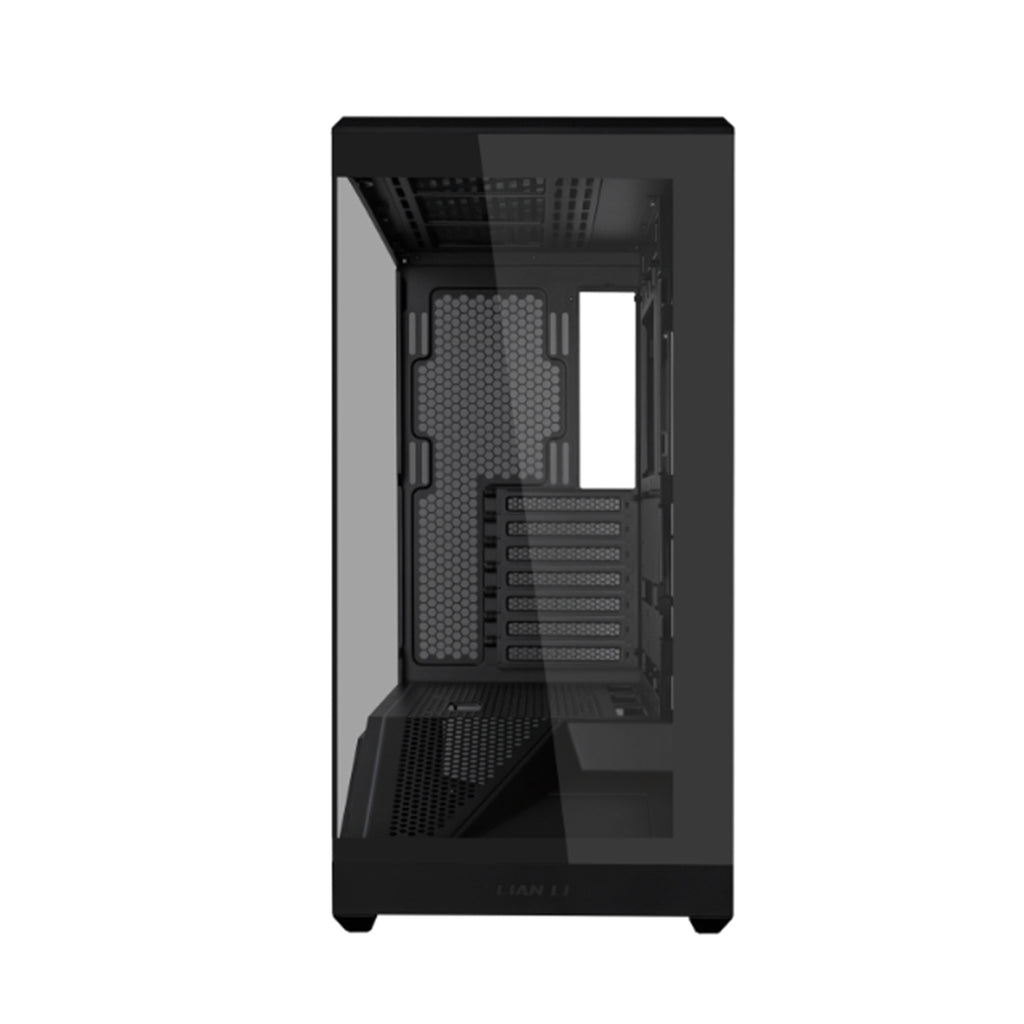

- Mid-tower chassis built for performance visualization and immersive aesthetics
Supports back-connect motherboards for optimized space and cleaner cable management - Compatible with ITX, M-ATX, ATX, and E-ATX (width < 246mm) motherboard formats

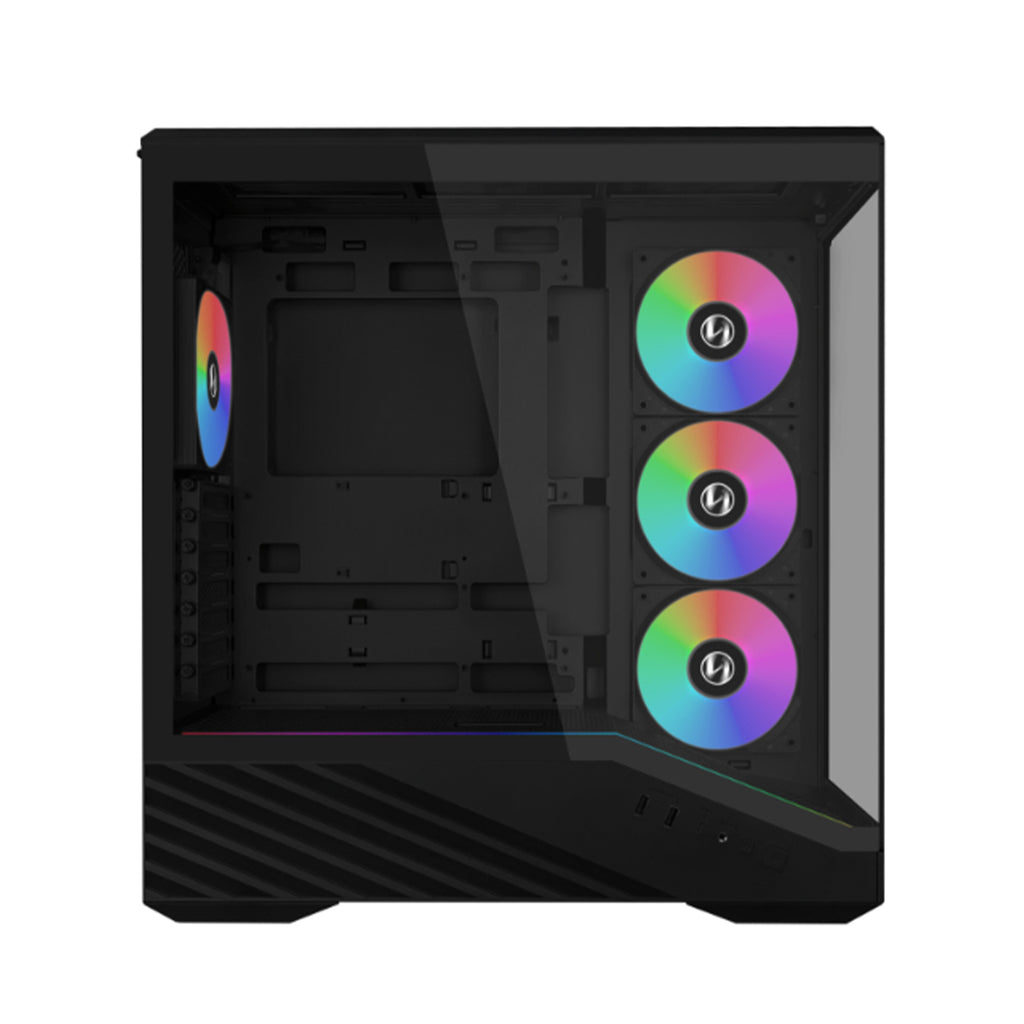

- Accommodates up to 9 fans and supports up to 360mm radiators for exceptional cooling
- Pre-installed with a GPU support bracket to prevent sag and ensure stability
- Features dual 4mm tempered glass panels for 270° unobstructed visibility
- Integrated ARGB light strip with 26 LEDs, customizable and syncable with motherboard software
- Tool-free cable management design with a dedicated front-side chamber

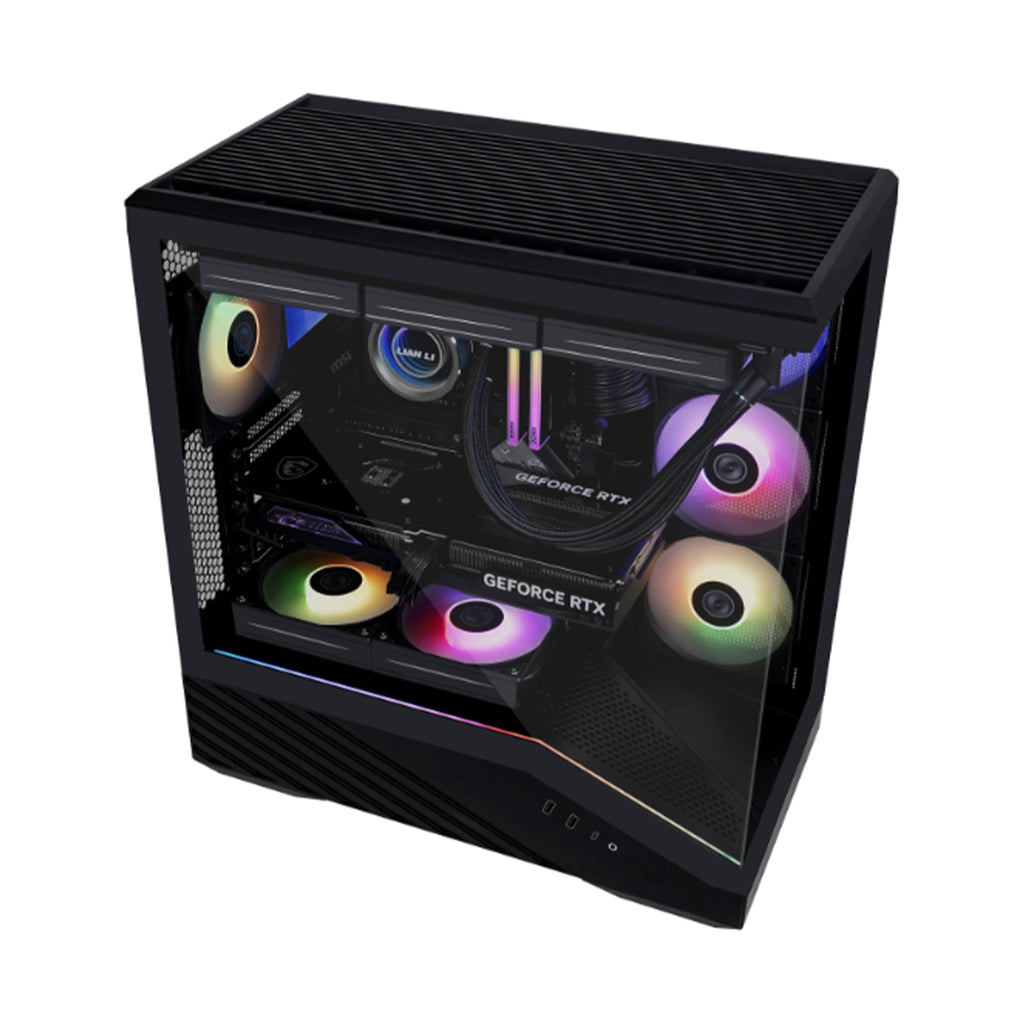

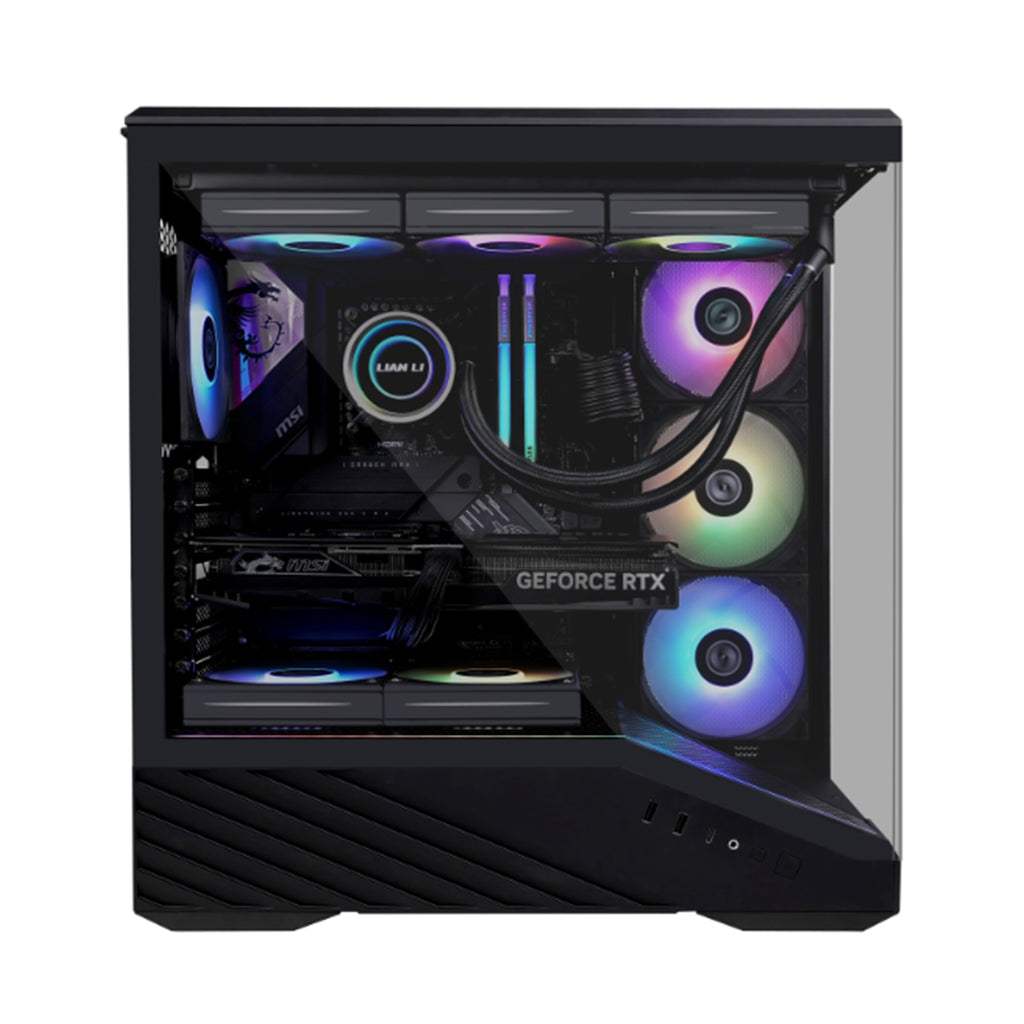

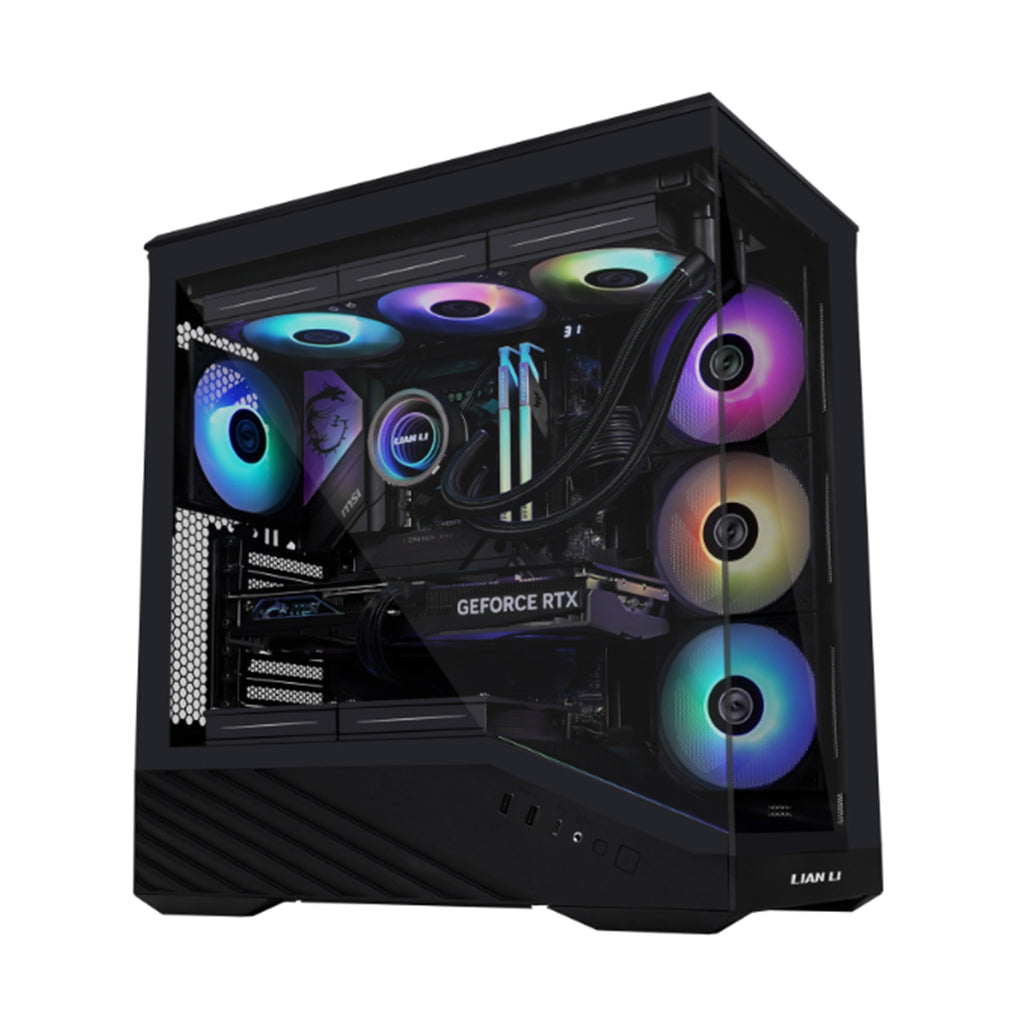

Note: Other components are not included, for illustration purposes only.
Specification:
| PRODUCT NAME | Vector V100 |
|---|---|
| MODEL NO. | V100X BLACK |
| TYPE | Mid-Tower Case |
| COLOR | BLACK |
| DIMENSIONS | 446mm (L) × 235.5mm (W) × 484.65mm (H) |
| MATERIALS | Steel, Tempered Glass, Plastic |
| MOTHERBOARD SUPPORT | E-ATX (Width < 246mm) / ATX / M-ATX / Mini-ITX |
| BACK CONNECT MOTHERBOARD SUPPORT |
ATX / M-ATX |
| POWER SUPPLY CLEARANCE | ATX (Length < 220mm) |
| FAN SUPPORT | Top: 3 × 120mm or 2 × 140mm Side: 3 × 120mm Rear: 1 × 120mm or 1 × 140mm |
| RADIATOR SUPPORT | Top: Supports up to 360mm |
| DRIVE SUPPORT | Behind Tray: 1 × 2.5″ SSD Bottom: 1 × 3.5″ HDD |
| MAXIMUM GPU LENGTH | 420mm |
| MAXIMUM CPU COOLER HEIGHT | 178mm |
| PCIE EXPANSION SLOTS | 7 |
| I/O PORTS | 2 × USB 3.0 1 × USB 3.1 Type-C 1 × Audio 1 × Power Button 1 × Reset Button |
| DUST FILTER | 1 x Bottom |
