Description

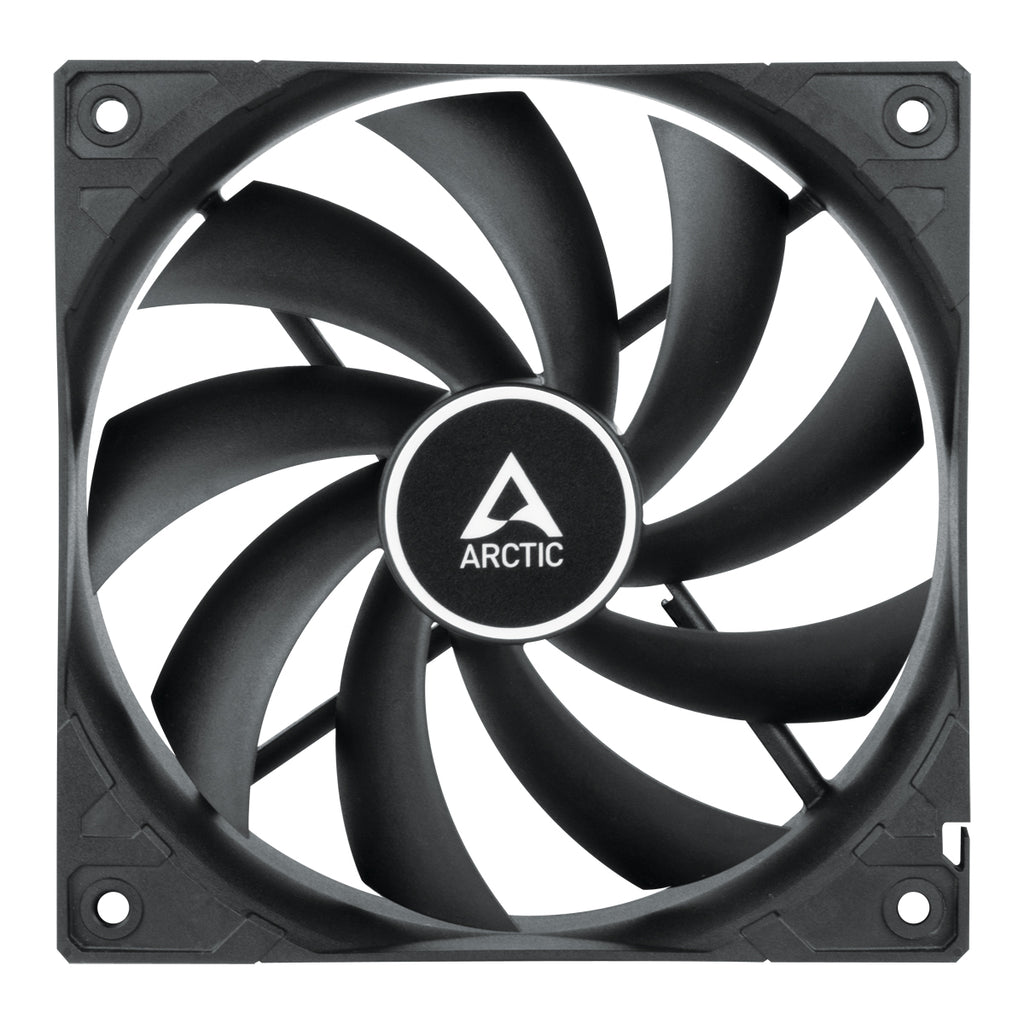

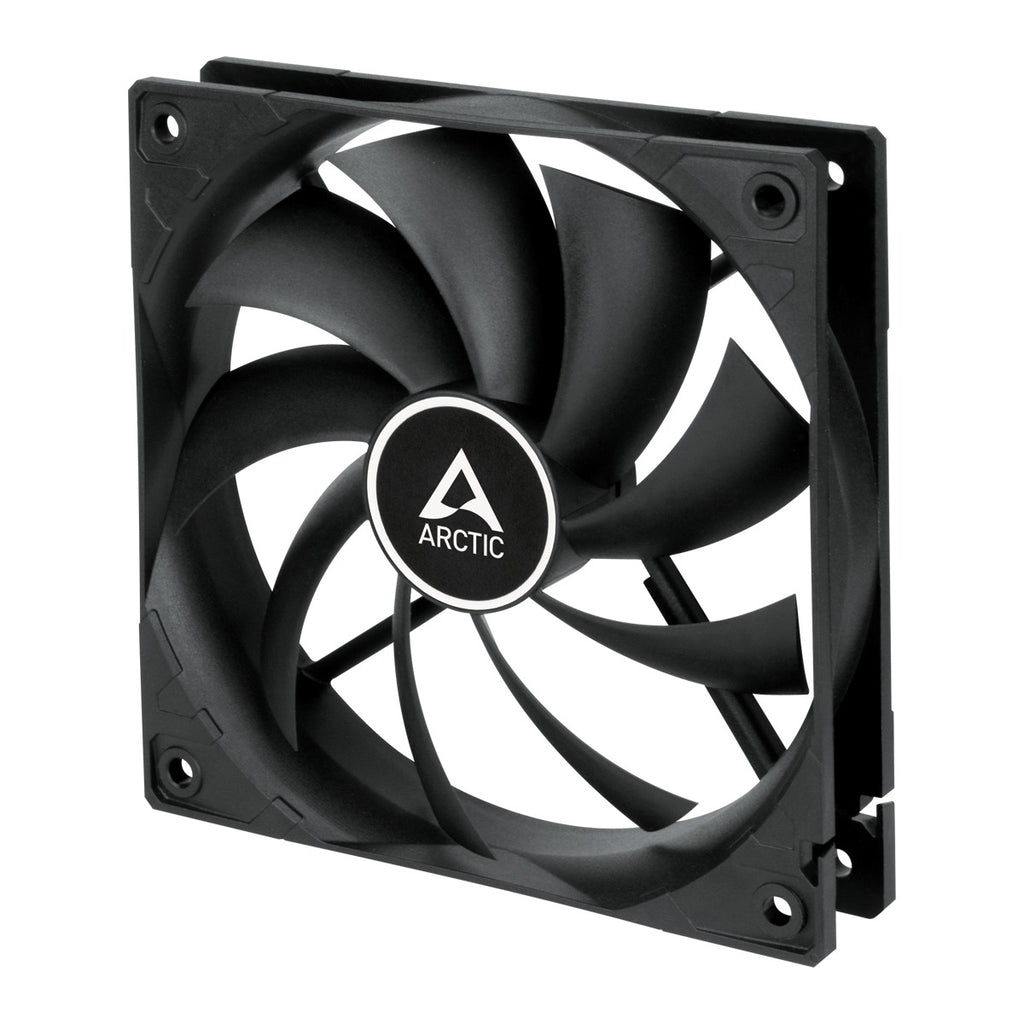

Arctic F12 120mm Single Fan
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Two Way Installation
- Blow warm air out of the case
- Draw cool air into your case
| General Specifications | |
| Performance | |
| Fan Speed | 1350 rpm |
| Airflow | 53 cfm | 90.1 m³/h |
| Static Pressure | 1.00 mmH2O |
| Noise Level | 0.3 Sone |
| Fan | |
| Fan Frame | Standard |
| Control Type | Fixed Speed |
| Connector | 3-Pin Connector |
| Fan Bearing | Fluid Dynamic Bearing |
| Operating Ambient Temperature | 0—40 °C |
| Warranty | 6 Years |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 2.7 V |
| Current | Voltage | 0.12 A | 12 V DC |
| Cable Length | 400 mm |
| Size & Weight | |
| Length | 120 mm |
| Width | 120 mm |

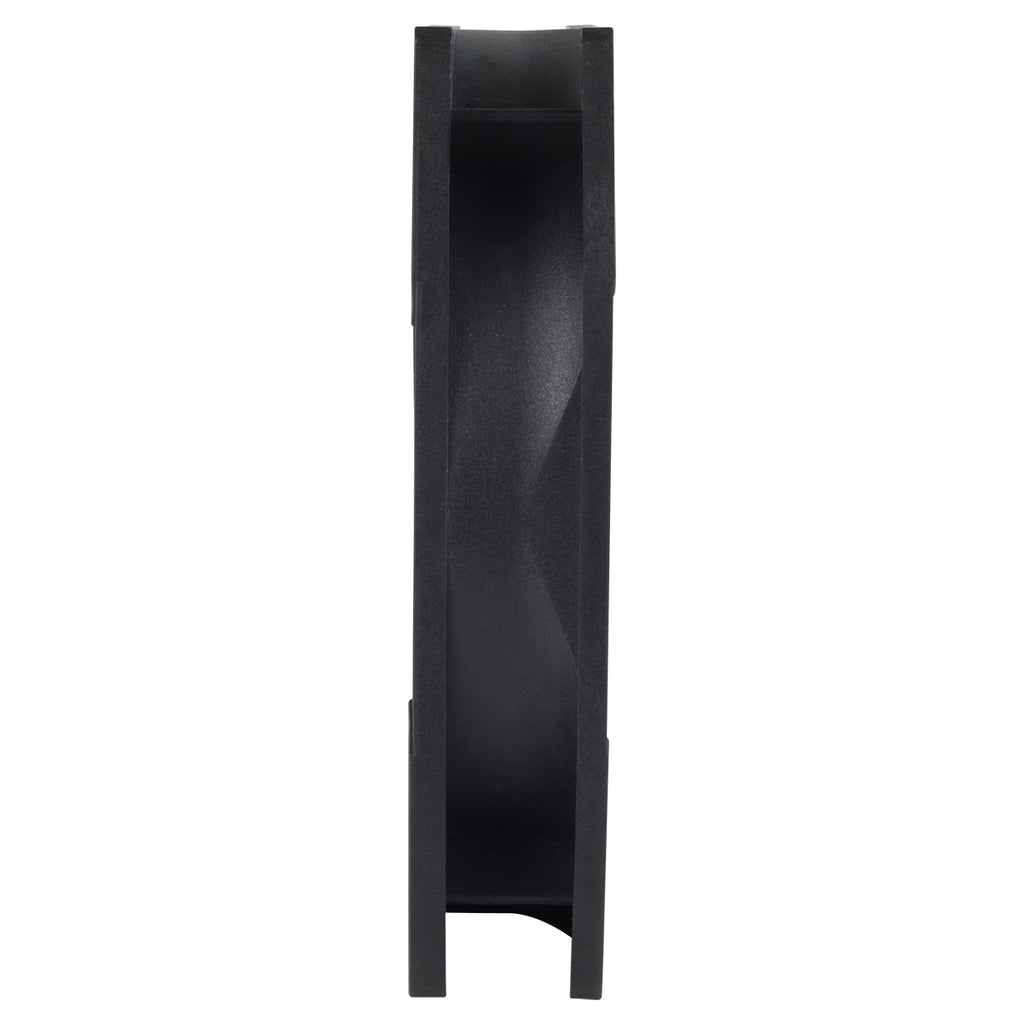

| Height | 25 mm |
| Weight | 107 g |
