Description

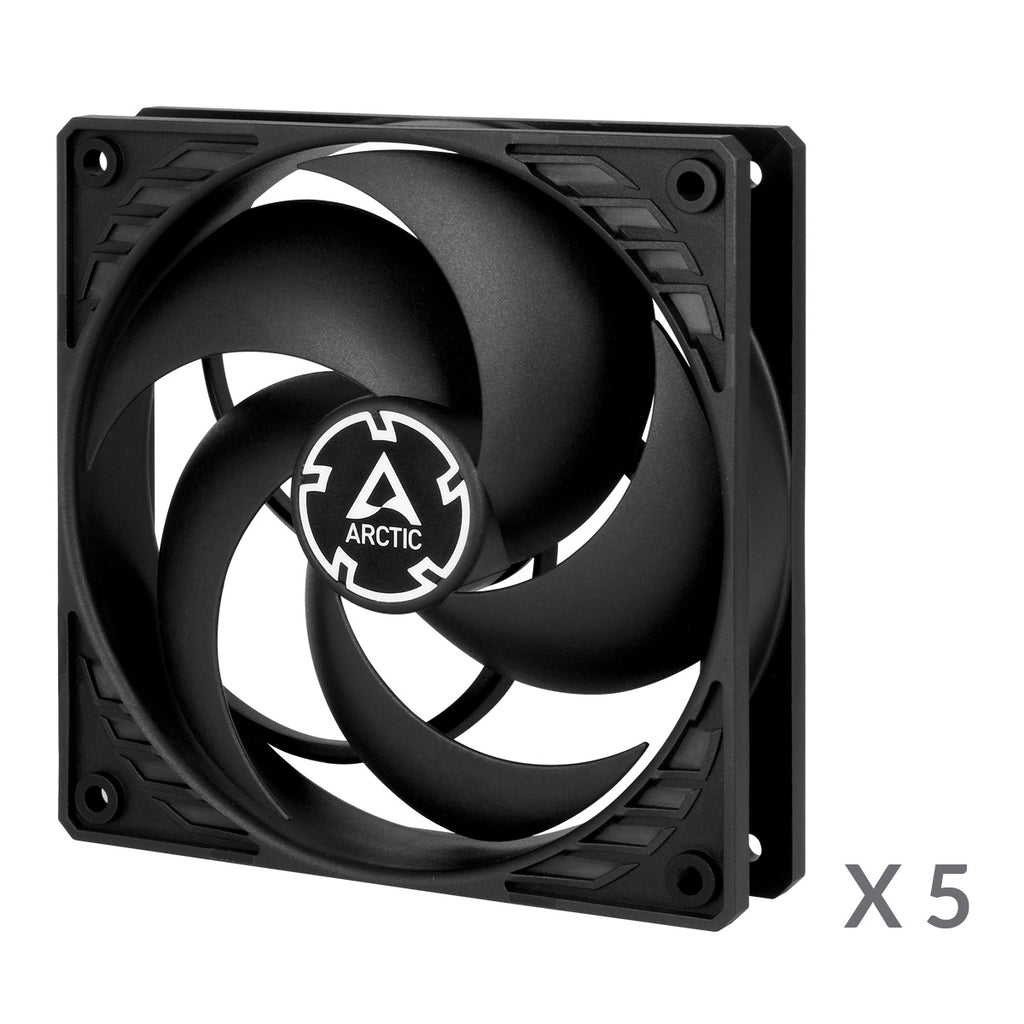

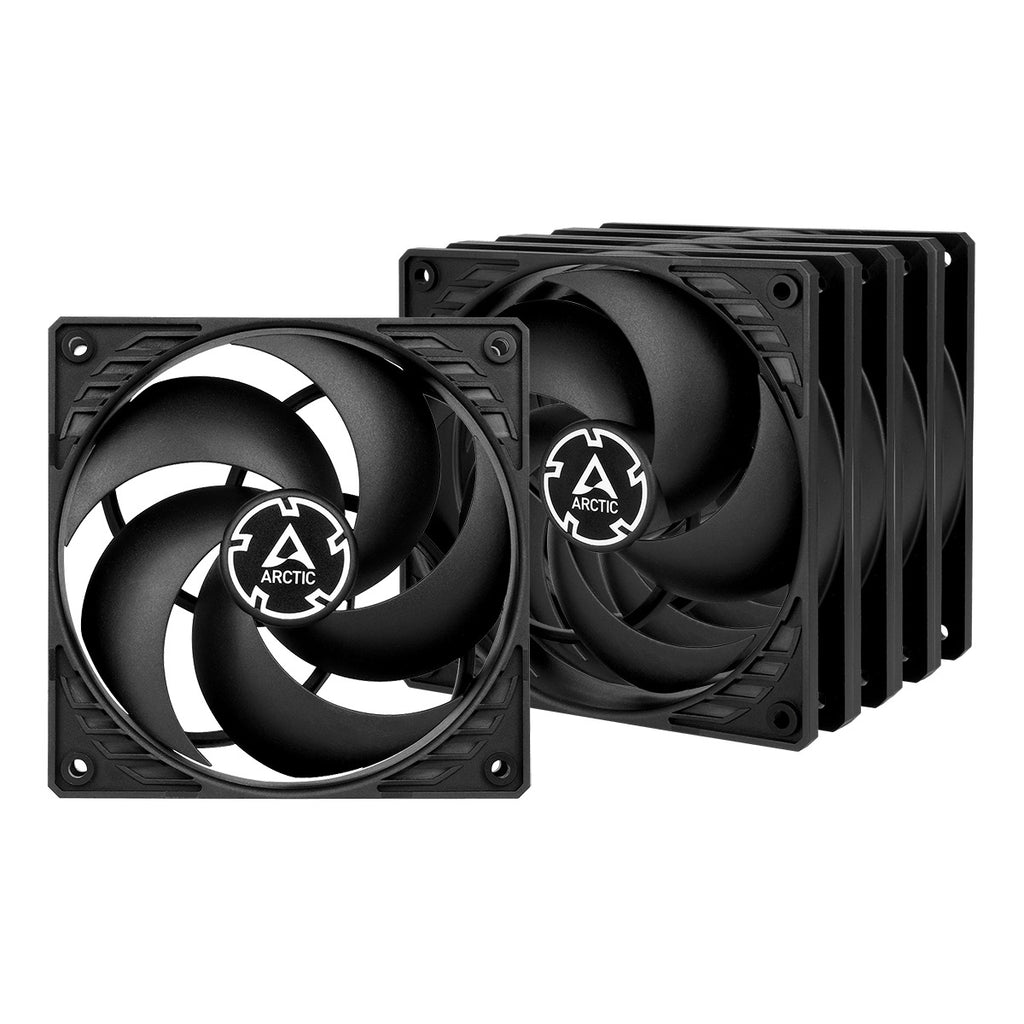

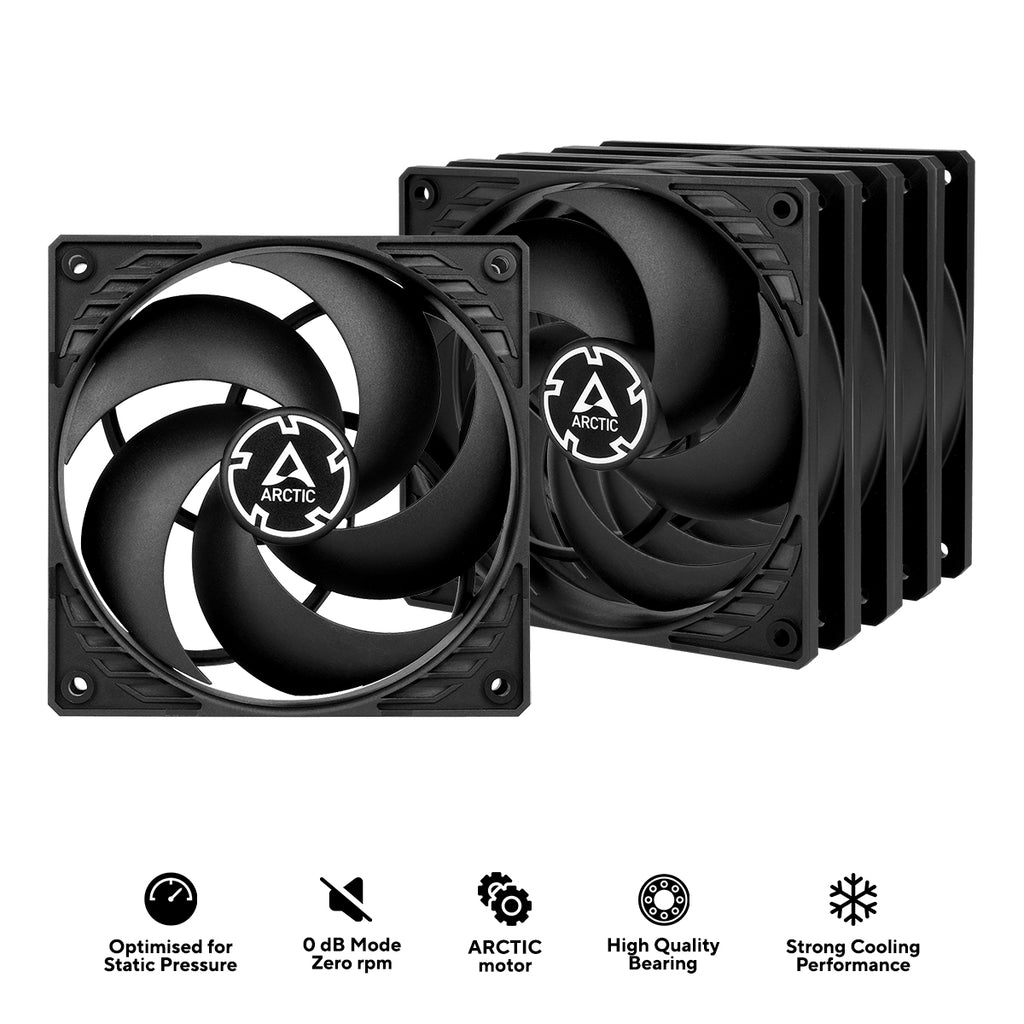

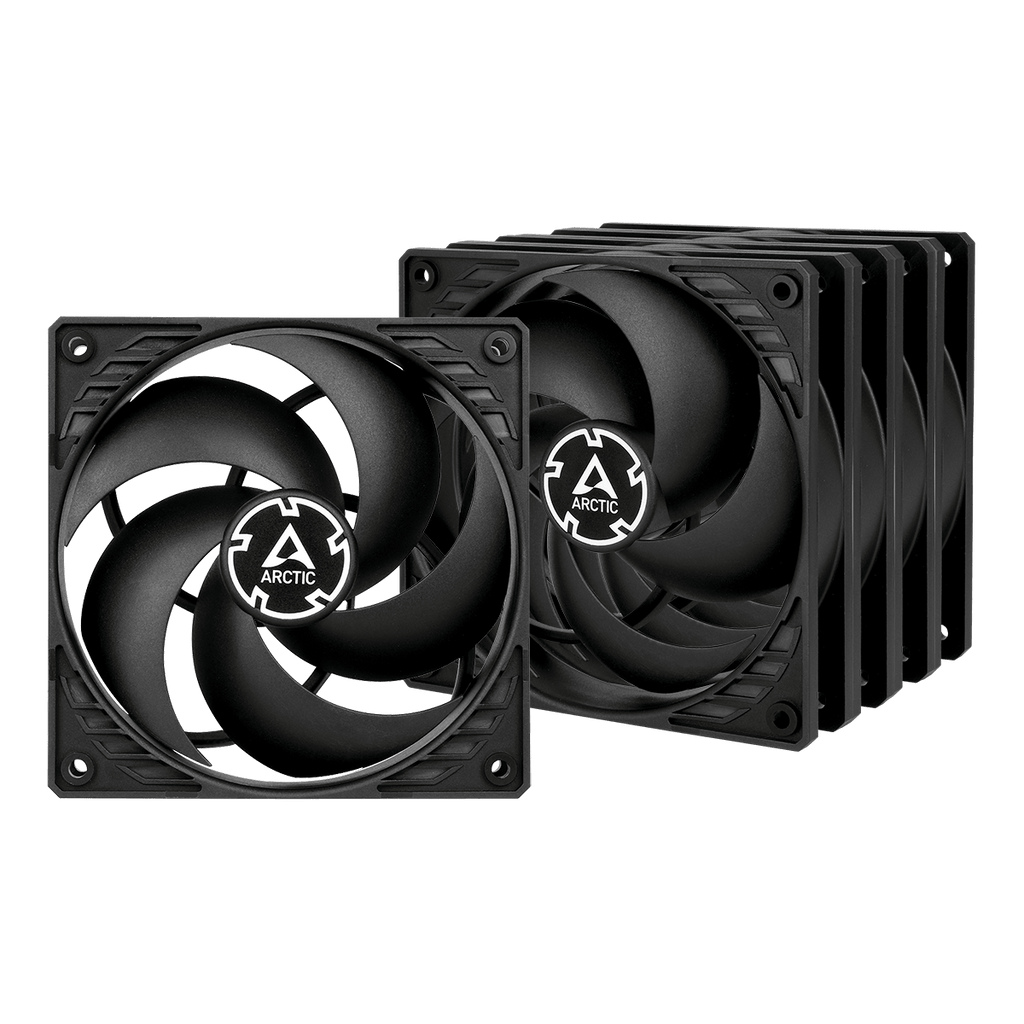

P12
120 mm Fan | 5 Pieces
 |
Optimised for Static PressureDuring the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators. |
Strong Cooling PerformanceNumerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind. |
 |
 |
High-Quality BearingThanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan. |
Two Way Installation
|
|
Specification:
| Performance | |
|---|---|
| Fan Speed | 1800 rpm |
| Airflow | 56.3 cfm | 95.7 m³/h |
| Static Pressure | 2.20 mmH2O |
| Noise Level | 0.3 Sone |
| Operating Ambient Temperature | 0—40 °C |
| Warranty | 6 Years |
| Fan | |
| Fan Frame | Standard |
| Control Type | Fixed Speed |
| Connector | 3-Pin Connector |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 2.8 V |
| Current | Voltage | 0.16 A | 12 V DC |
| Cable Length | 400 mm |
| Size & Weight | |
| Length | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 139 g |
| Packaging | |
| Width | 130 mm |
| Height | 127 mm |
| Length | 123 mm |
| Weight | 0.8 kg |
