Description

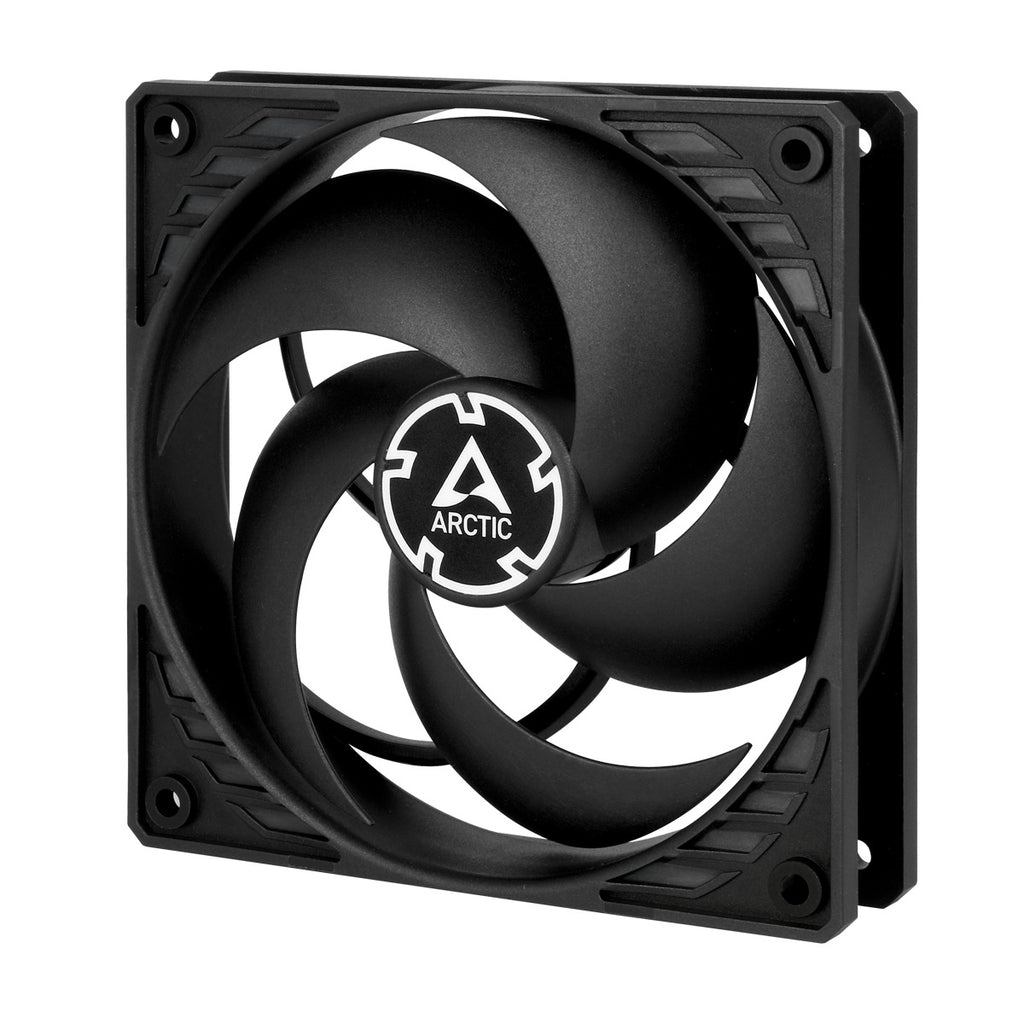

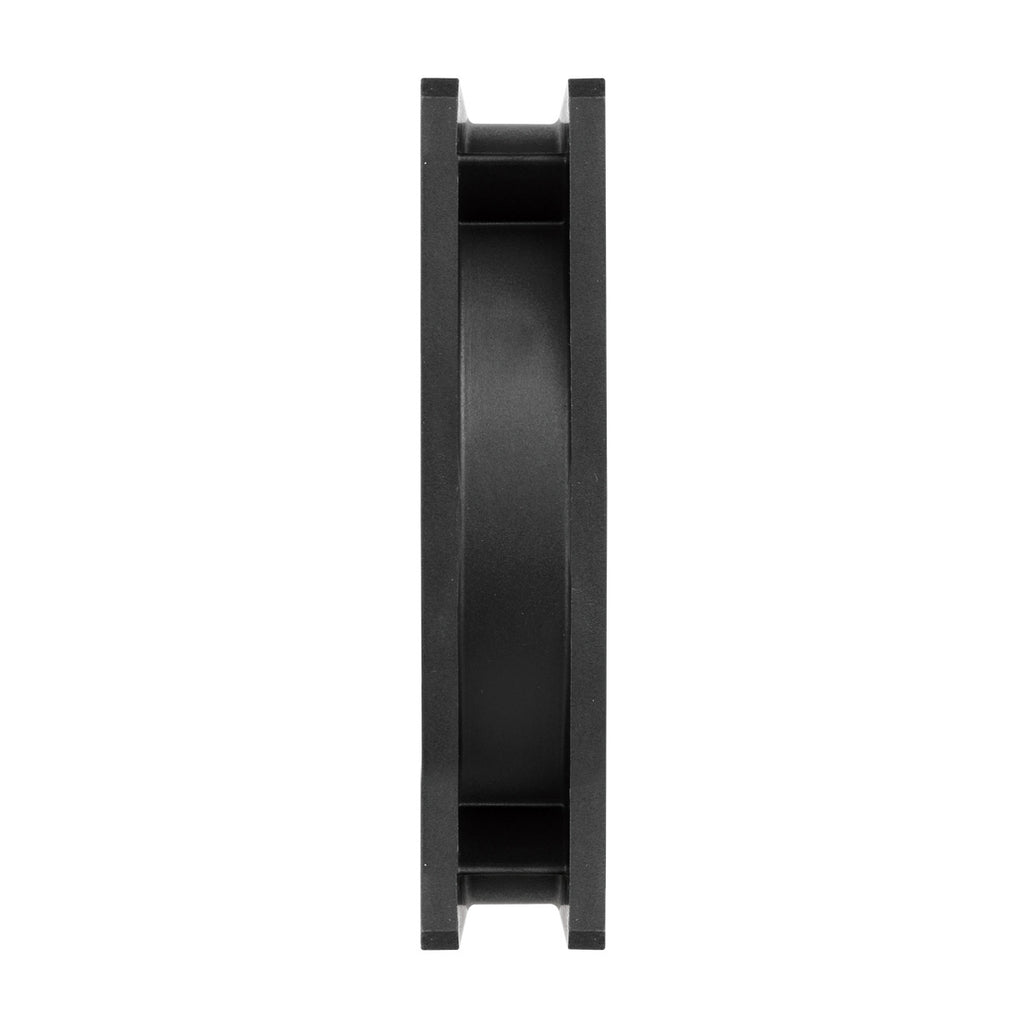

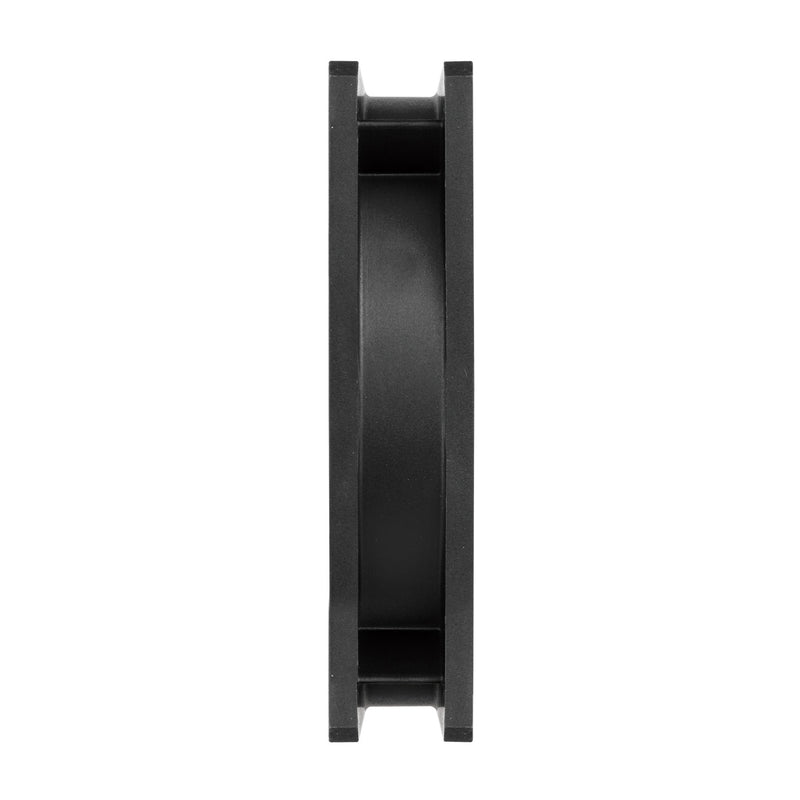

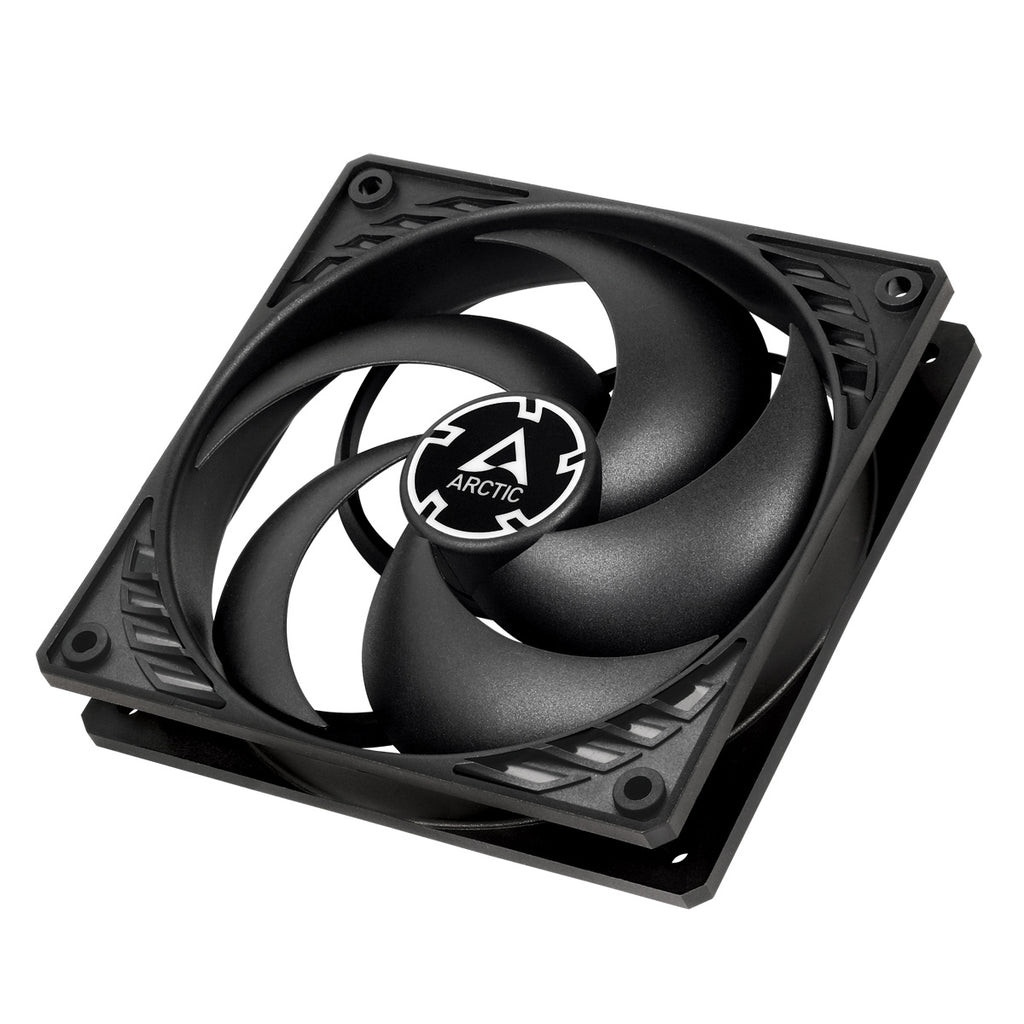

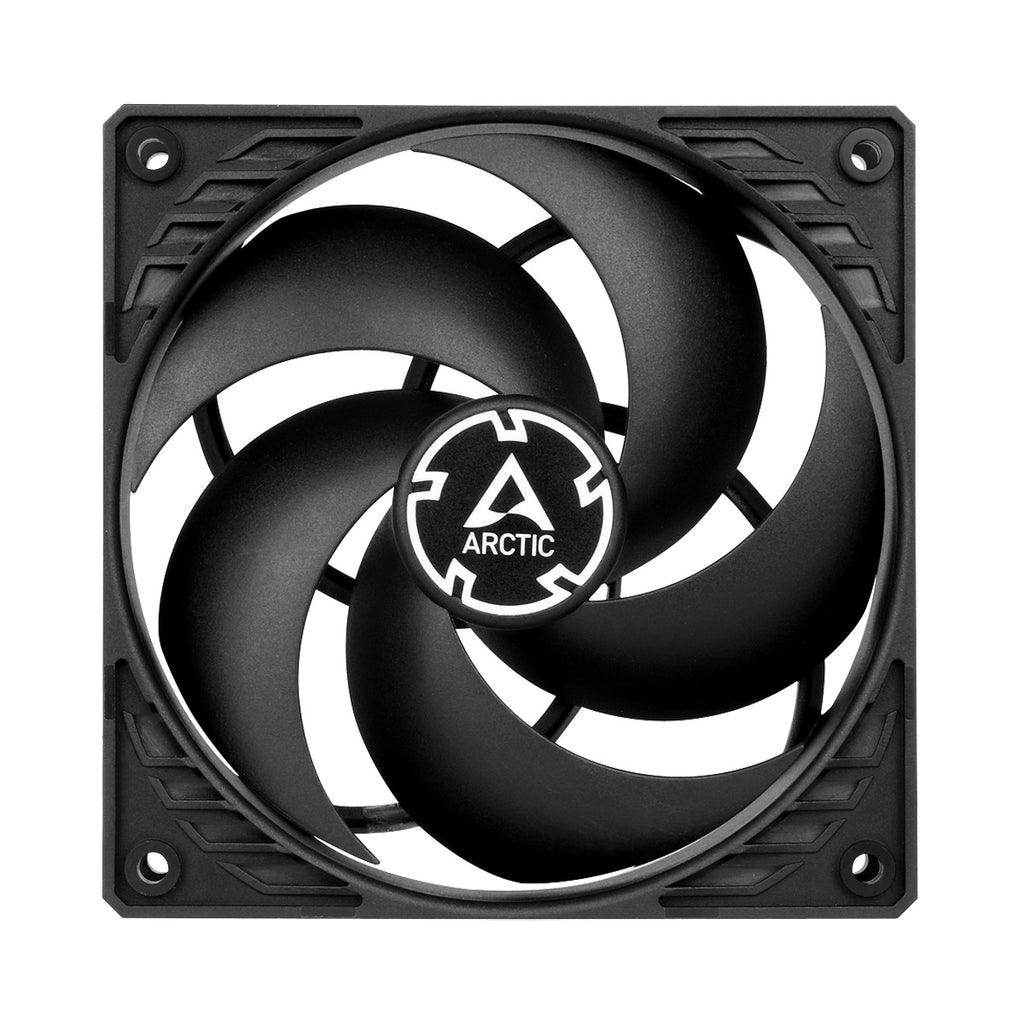

Deliver efficient cooling where it matters most with the Arctic P12, a pressure-optimized 120 mm fan engineered for effective performance on radiators, heatsinks, or cases with restrictive airflow.
Specifications:
| Performance | |
|---|---|
| Fan Speed | 1800 rpm |
| Airflow | 56.3 cfm | 95.7 m³/h |
| Static Pressure | 2.20 mmH₂O |
| Noise Level | 0.3 Sone |
| Operating Ambient Temperature | 0–40 °C |
| Fan | |
| Fan Frame | Standard |
| Control Type | Fixed Speed |
| Connector | 3-Pin Connector |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 2.8 V |
| Current | Voltage | 0.16 A | 12 V DC |
| Cable Length | 400 mm |
| Size & Weight | |
| Length | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 139 g |
