Description
- CVN series exclusive customized white motherboard
- CVN series customized frost heat dissipation armor, with full-cover condenser to enhance heat dissipation
- Adopt 9+2+1 phase enhanced power supply design (Dr MOS 60A)
- Provides 1 PCIe 5.0 x4 M.2 SSD slot and 1 PCIe 4.0 x4 M.2 SSD slots
- Equipped with Realtek 2.5G high-speed wired network card and AX210 WiFi 6E wireless network card, supports Bluetooth 5.3
- Support iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously
- I/O backplane supports one-click BIOS upgrade function
- Six major protection technologies, more stable product operation
- 200 processes strictly tested, quality guaranteed
- PCB atomization process fully upgraded
Specifications:
| Model | CVN B850I GAMING FROZEN V14 |
|---|---|
| Product Series | CVN series |
| Chipset | AMD B850 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 2 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2280 M.2 SSD (PCIe 5.0 x4, CPU channel) - M.2_2 slot: supports 2280 M.2 SSD (PCIe 4.0 x4, CPU channel) |

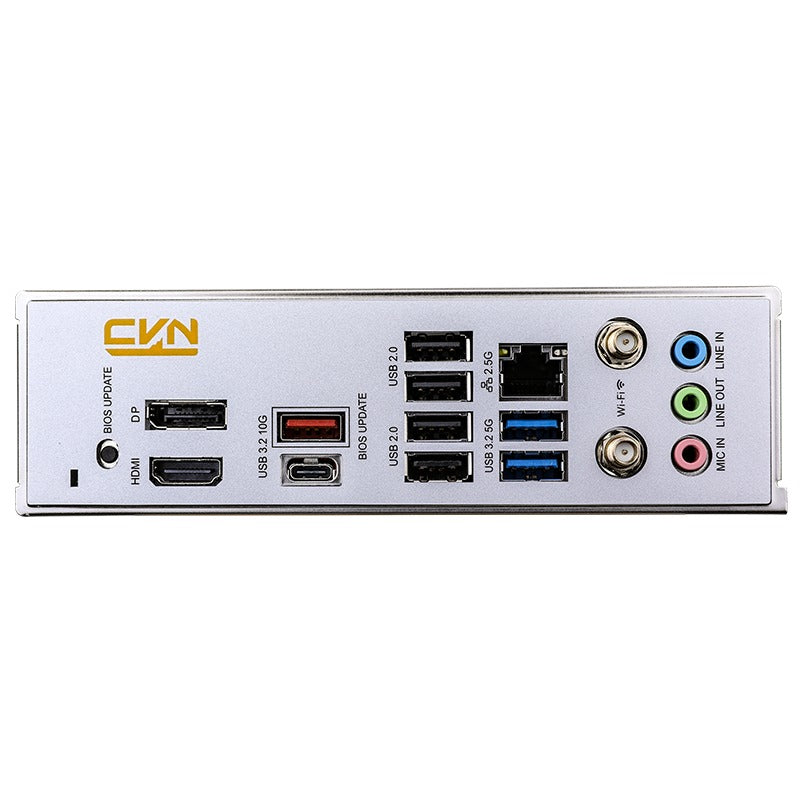

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 3.2 Gen 2 10Gbps Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1×2.5G network interface -2×WiFi 6E antenna interfaces -3×audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 Type-C slot expandable 1 USB 3.2 Gen 2 10Gbps Type-C interface -1×CPU fan pin -1×system fan pin -1×water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×front panel pin -1×speaker pin -1×Clear CMOS jumper -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN, AX210 WiFi 6E wireless network card, Bluetooth 5.3 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | ITX 170 x 170 mm |
