Description
BRAND NEW DESIGN

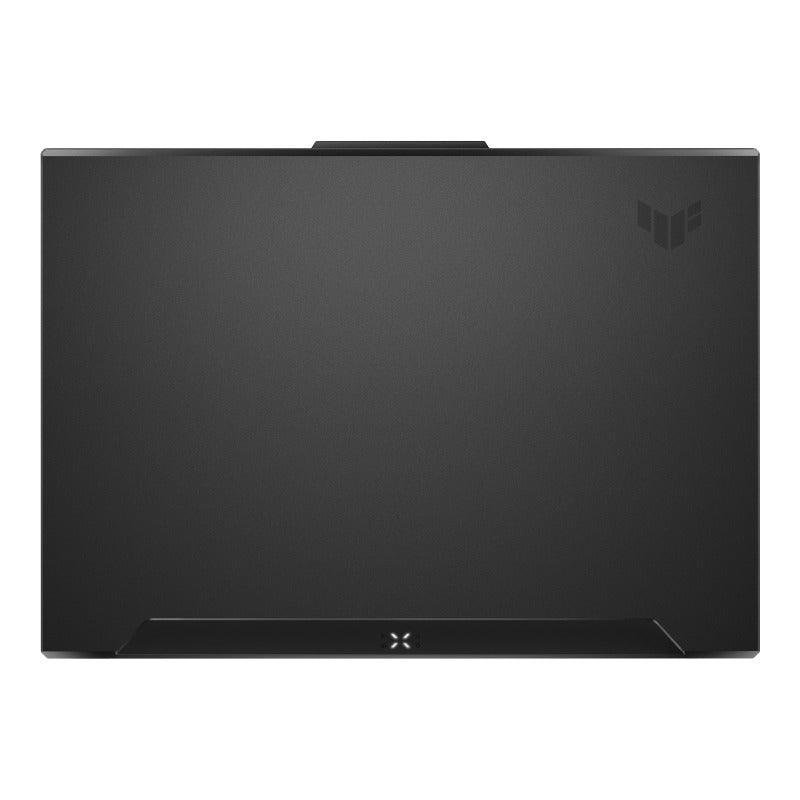

Clean lines define the look and feel of the new 2022 TUF Dash F15. A mecha-inspired aluminum top cover is available in Off Black or Moonlight White. This modern design is at home, at LAN parties and offices alike, closing down to a streamlined 19.95mm thin for portability between both. Super-narrow bezels continue the theme, maximizing screen space with minimal distraction. The dashing looks don’t compromise a classic TUF core that meets military-grade MIL-STD standards.
MUX SWITCH
Modern gaming laptops use powerful, dedicated graphics chips for high performance—but most route those frames through the CPU's integrated graphics before reaching the display. This offers better battery life, but prevents your GPU from giving its absolute best performance. So we're bringing a MUX switch to all 2022 TUF laptops. For competitive games, you can switch to a direct GPU mode that reduces latency and boosts performance by 5%~10%* on average.
SPECIFICATION
- PROCESSOR: Intel® Core™ i7-12650H
- DISPLAY: 15.6" FHD (1920 x 1080)
- MEMORY: 8GB DDR5
- STORAGE: 512GB PCIe® 3.0 NVMe™ M.2 SSD
- GPU: NVIDIA® GeForce RTX™ 3050 Ti
- OS: Windows 11 Home
- COLOR: Off Black
Product Specification
| Marketing Name | ASUS TUF Dash F15 |
| Color | Off Black |
| Dimension (W x D x H) | 35.4 x 25.1 x 1.99 ~ 2.07 cm |
| Weight | 2.00 Kg |
| Processor | 12th Gen Intel® Core™ i7-12650H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 10 cores: 6 P-cores and 4 E-cores) |
| Chipset | N/A |
| Discrete/Optimus | MUX Switch + Optimus |
| Graphic | NVIDIA® GeForce RTX™ 3050 Ti Laptop GPU |
| Graphic Wattage | 1535MHz* at 75W (1485MHz Boost Clock+50MHz OC, 60W+15W Dynamic Boost) |
| Graphic Memory | 4GB GDDR6 |
| IGPU | Intel® Iris Xᵉ Graphics |
| Panel Size | 15.6-inch |
| Resolution | FHD (1920 x 1080) 16:9 |
| Refresh Rate | 144Hz |
| Viewing Angle | 85/85/85/85 |
| Panel Tech | Value IPS-level |
| Brightness | 250 |
| Contrast | 1000:1 |
| NTSC % | 45% |
| SRGB % | 62.5% |
| Adobe % | 47.34% |
| Anti glare | anti-glare display |
| Adaptive-Sync technology | Adaptive-Sync |
| Pantone | N/A |
| Support Dolby Vision HDR | N/A |
| Total System Memory | 8GB DDR5-4800 SO-DIMM |
| On board memory | N/A |
| Memory Slot | 2x SO-DIMM slots |
| DIMM Memory | 8GB DDR5-4800 SO-DIMM |
| Memory Max. | 32GB |
| Multi-channel memory technology | Support dual channel memory |
| System Storage Installed | 512GB PCIe® 3.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe | 2 |
| M.2 SSD Support List | support PCIE Gen4x4 & Gen3x4 |
| Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots |
| LAN | 10/100/1000 Mbps |
| Wi-Fi/Bluetooth | Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.1 (*BT version may change with OS upgrades.) |

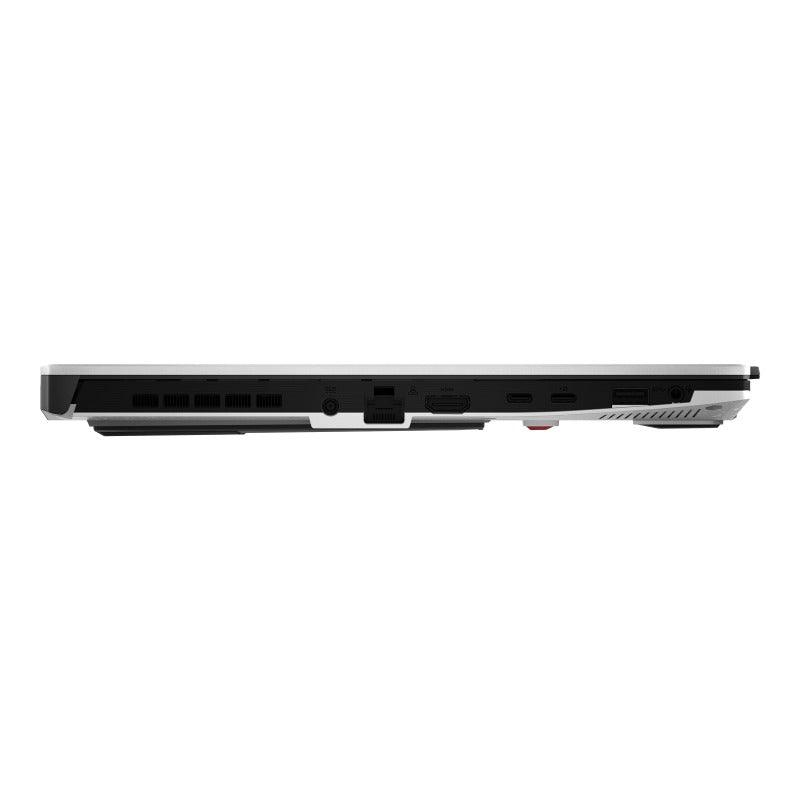

| I/O Ports | 1x RJ45 LAN port 1x Thunderbolt™ 4 support DisplayPort™ 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC 2x USB 3.2 Gen 1 Type-A |
| Display output | 1x HDMI 2.0b |
| Audio | 1x 3.5mm Combo Audio Jack |
| Webcam | 720P HD camera |
| Mic | Built-in array microphone |

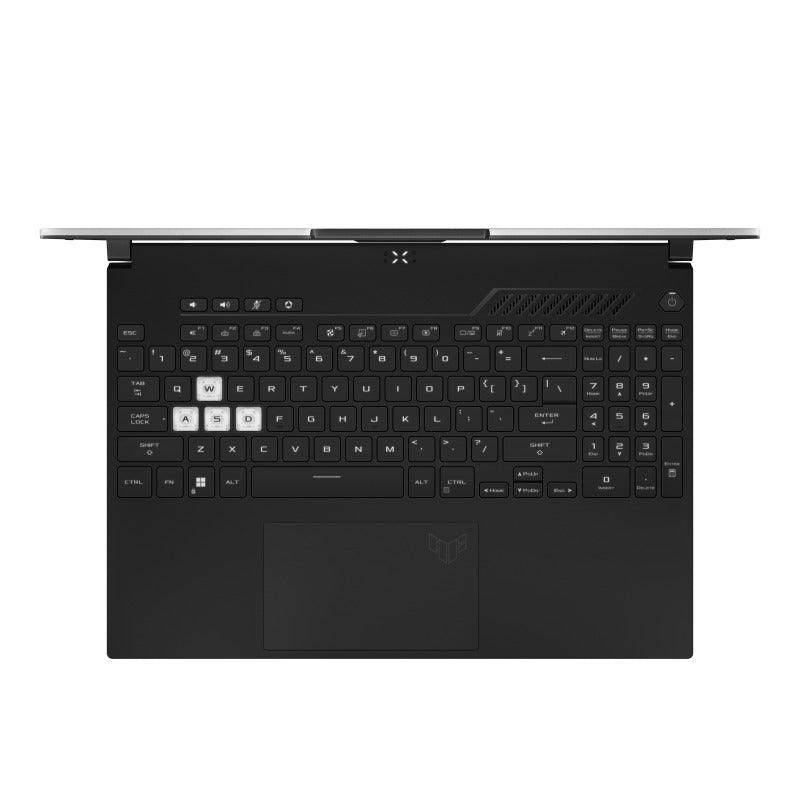

| Keyboard Type | Backlit Chiclet Keyboard Single Light |
| NumberPad | N/A |
| Aura Sync | Yes |
| Speakers | 2-speaker system |
| Audio Tech | AI noise-canceling technology Dolby Atmos Hi-Res certification |
| Operating System | Windows 11 Home |
