Description
Specifications:

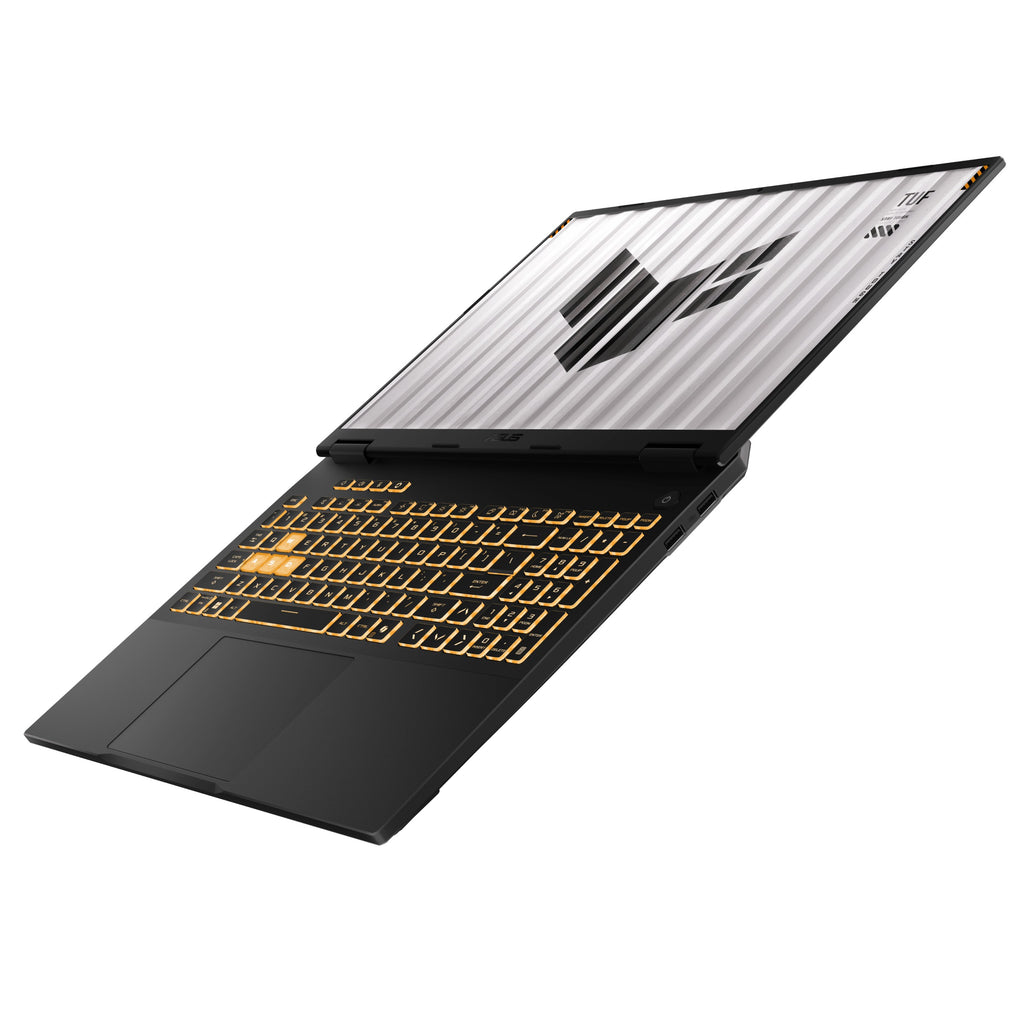

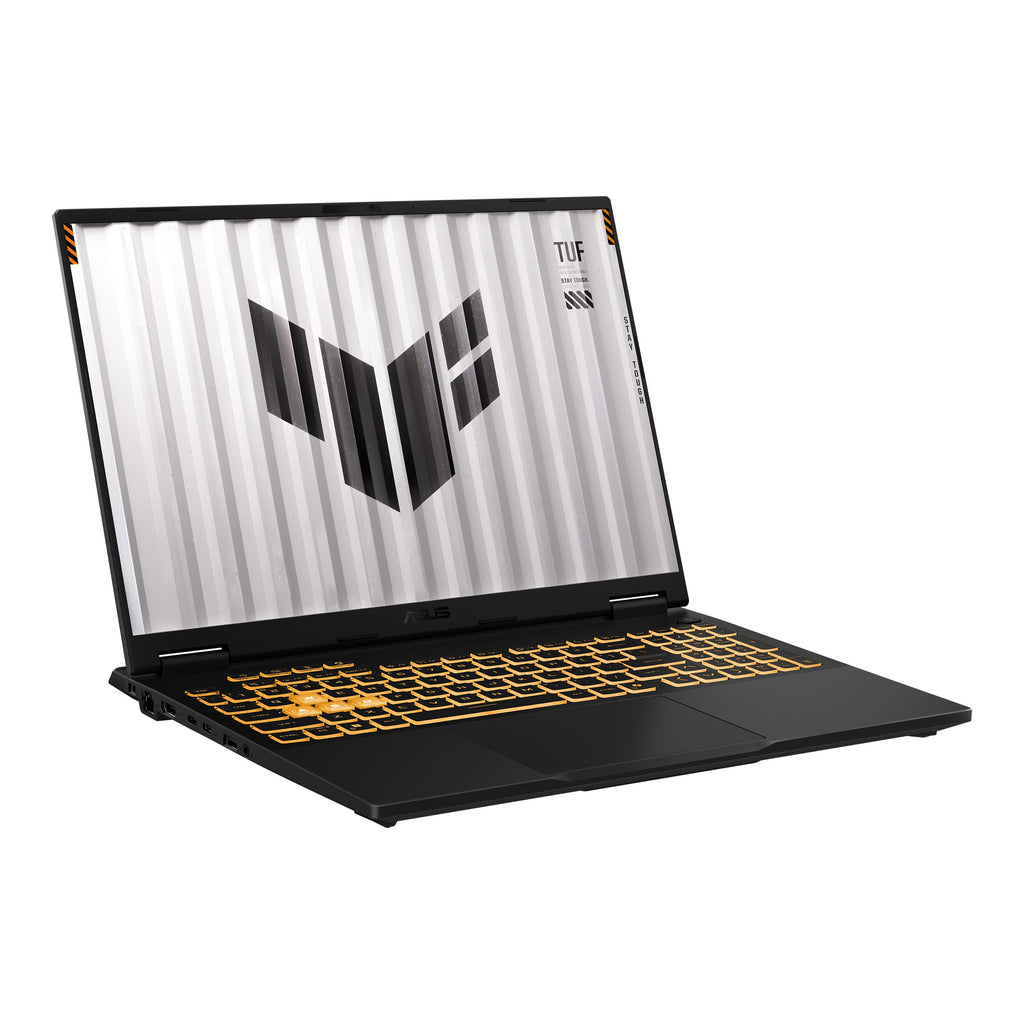

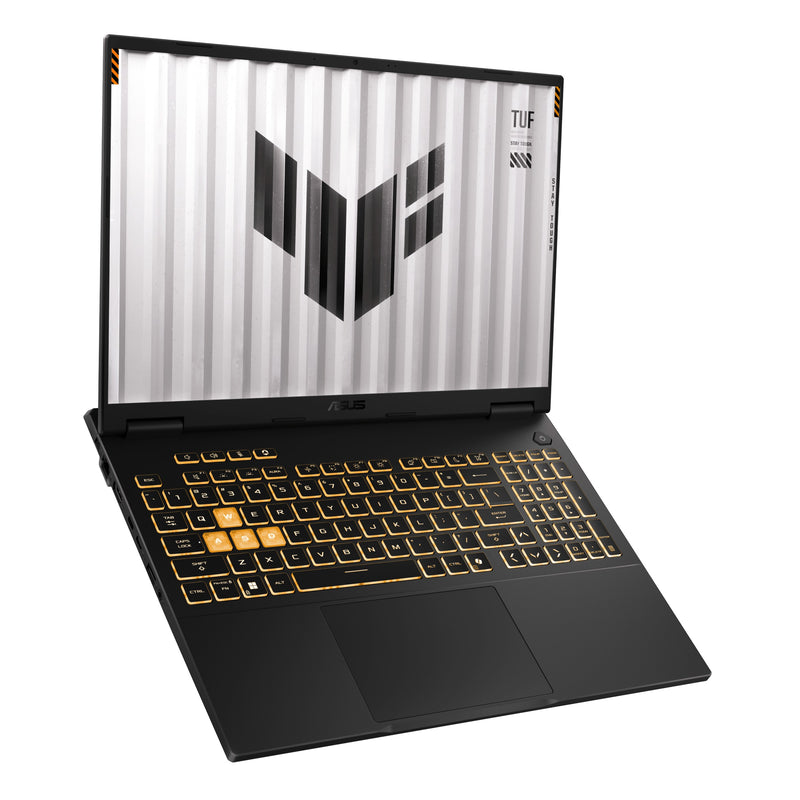

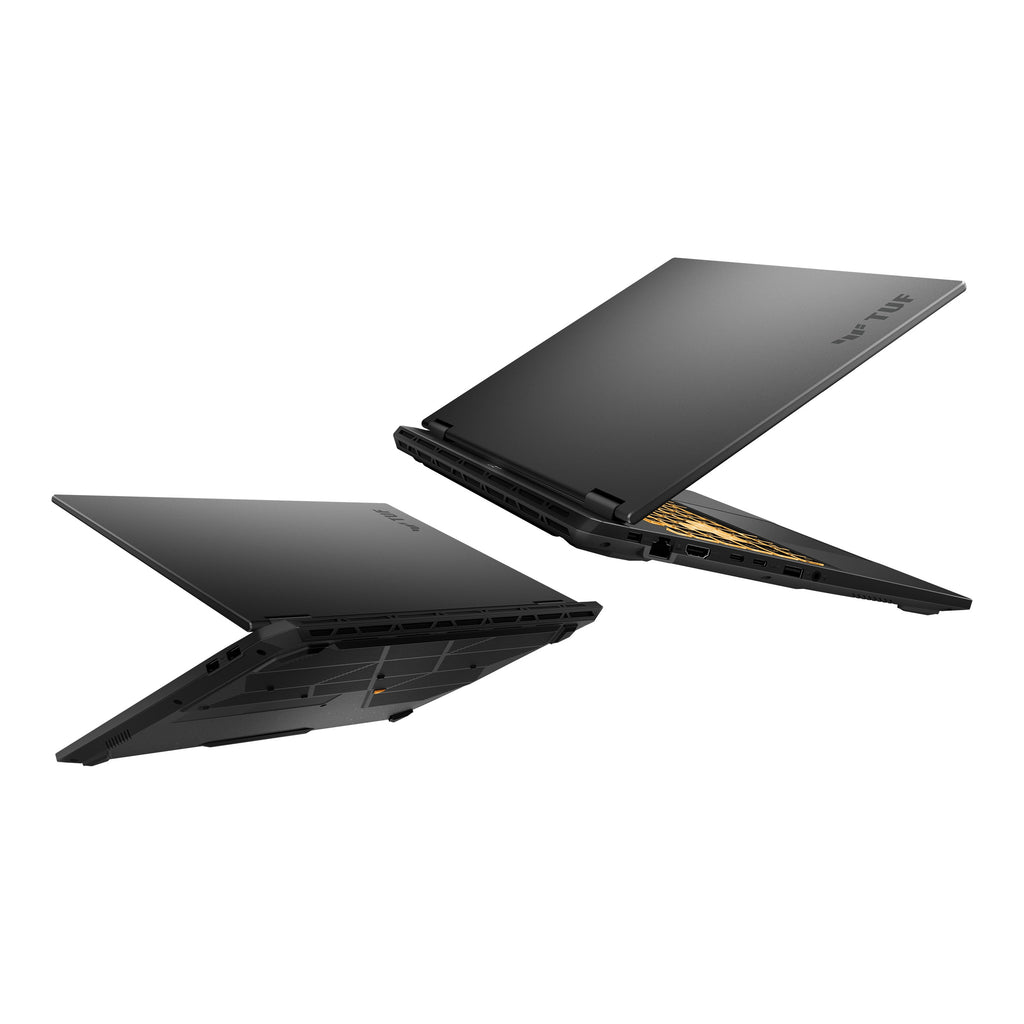

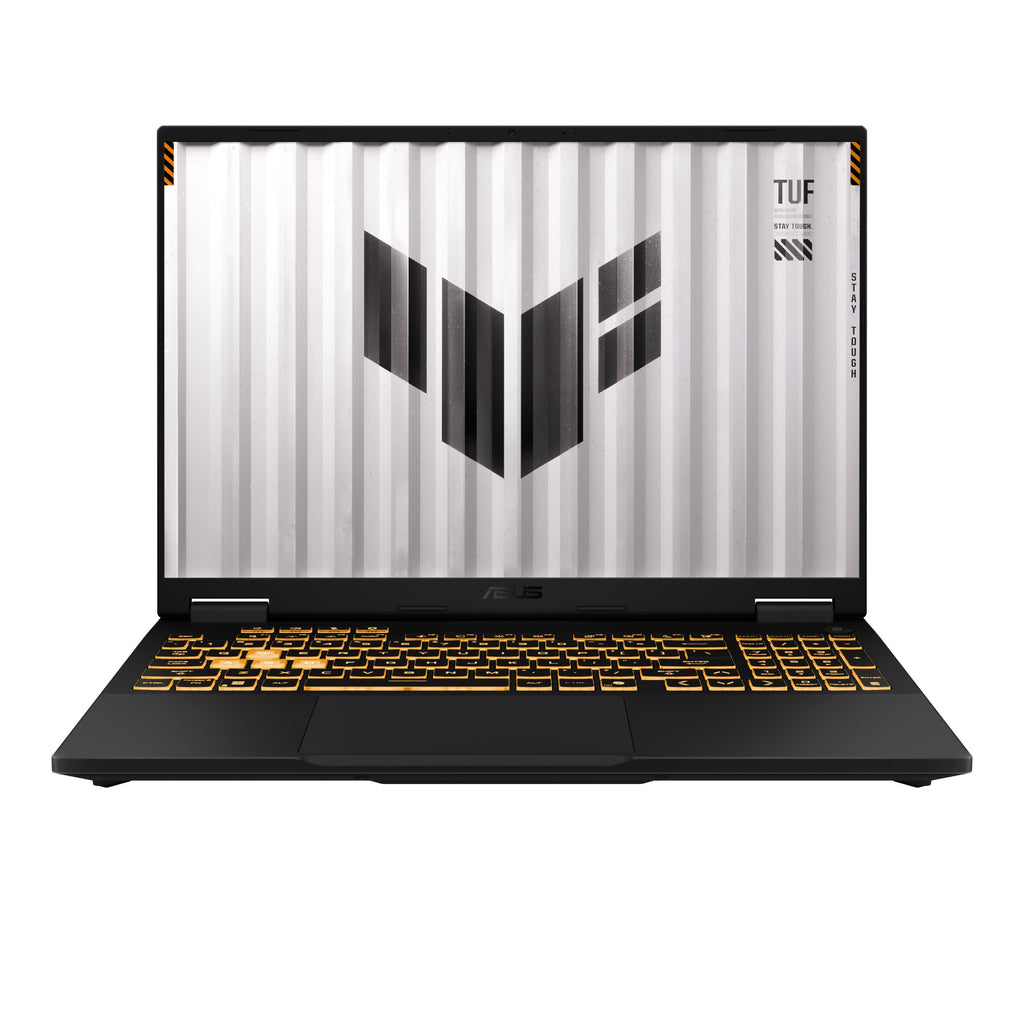

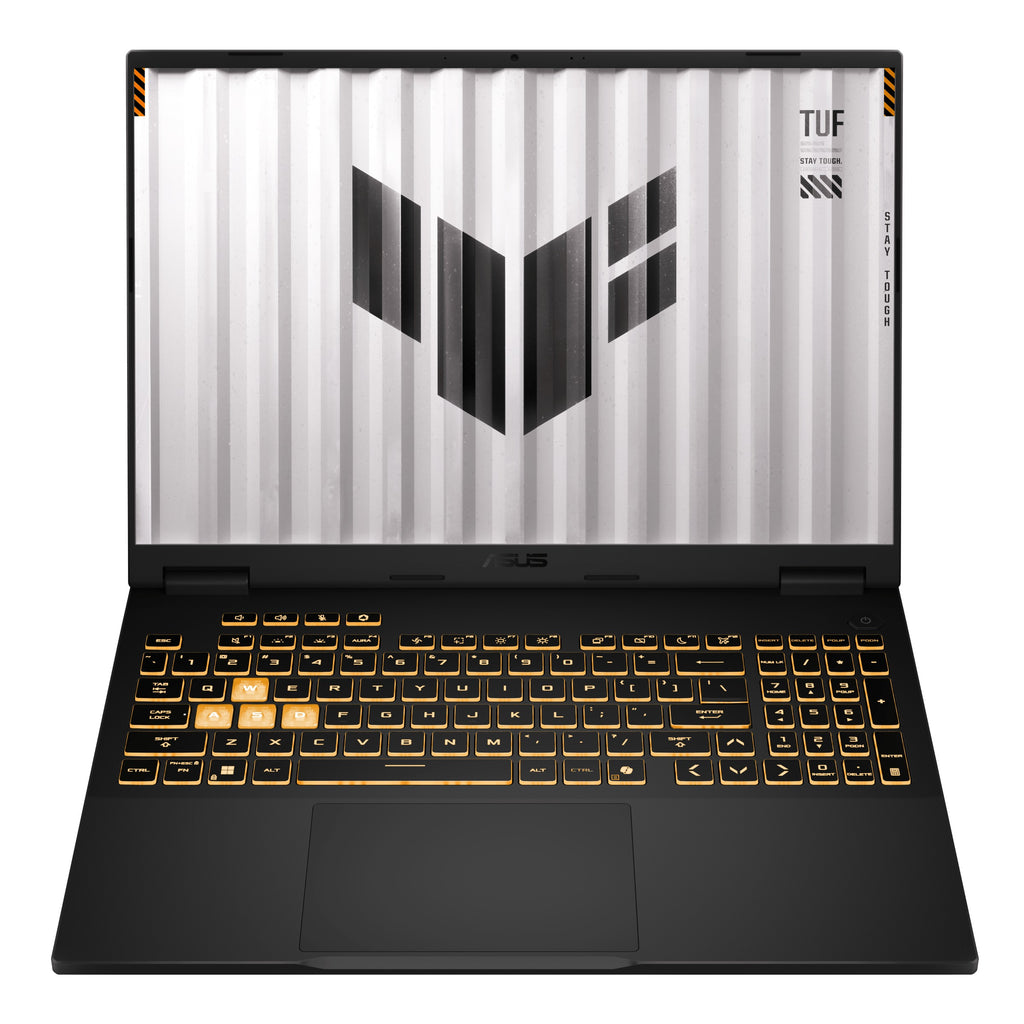

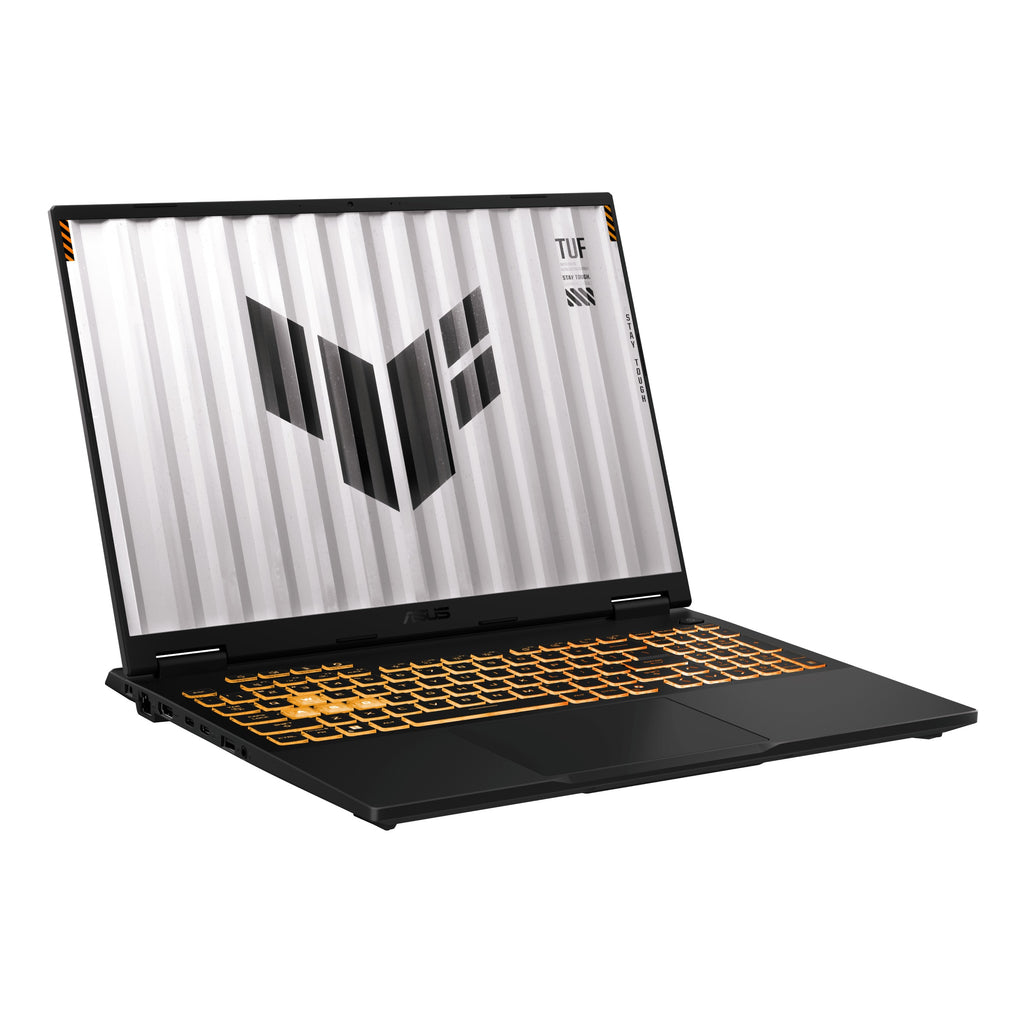

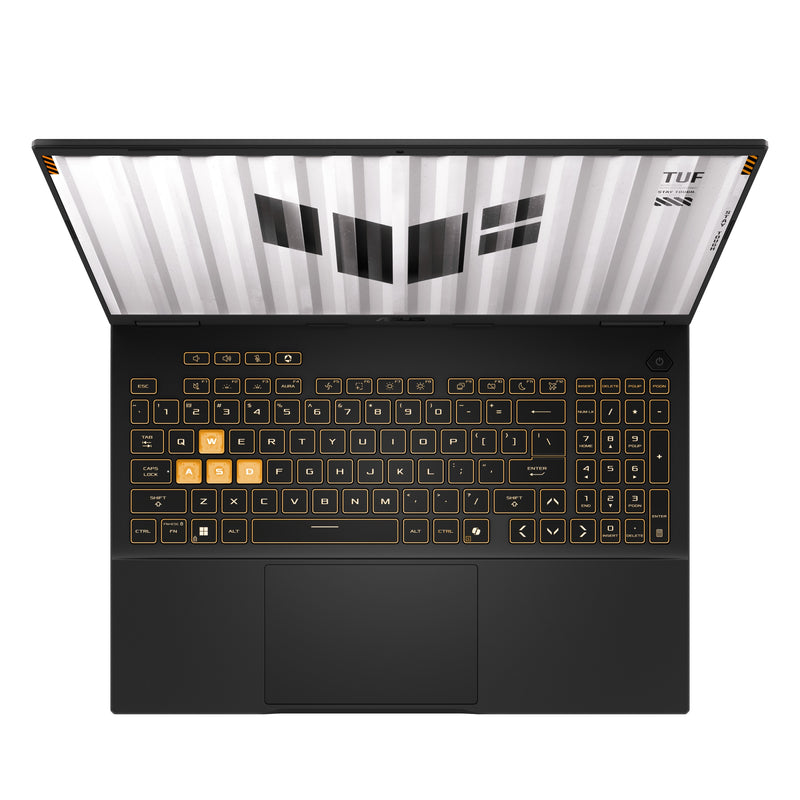

| Marketing Name | ASUS TUF Gaming F16 |
|---|---|
| Operating System | Windows 11 Home |
| Office | Microsoft Office Home 2024 + Microsoft 365 Basic |
| Color | Jaeger Gray |
| Dimension (W x D x H) | 35.4 x 26.9 x 1.79 ~ 2.73 cm (13.94" x 10.59" x 0.70" ~ 1.07") |
| Weight | 2.20 Kg (4.85 lbs) |
| Processor | Intel® Core™ i7 Processor 14650HX 2.2 GHz (30MB Cache, up to 5.2 GHz, 16 cores, 24 Threads) |
| Chipset | Mobile Intel® HM770 Express Chipsets |
| Integrated GPU | Intel® UHD Graphics |
| Discrete/Optim | MUX Switch + NVIDIA® Advanced Optimus |
| Graphic | NVIDIA® GeForce RTX™ 5070 Laptop GPU |
| Graphic Wattage | 115W (100W+15W) |
| Graphic Memory | 8GB GDDR7 |
| Panel Size | 16-inch |
| Resolution | FHD+ 16:10 (1920 x 1200, WUXGA) |
| Refresh Rate | 165Hz |
| Viewing Angle | 85/85/85/85 |
| Panel Tech | IPS-level |
| Brightness | 300 |
| Contrast Ratio | 1000:1 |
| NTSC % | 72.00% |
| SRGB % | 100.00% |
| Adobe % | 75.35% |
| Glare | Anti-glare display |
| Adaptive-Sync technology | G-Sync |
| Pantone | N/A |
| Support Dolby Vision HDR | N/A |
| On board memory | N/A |
| DIMM Memory | 16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC |
| Total System Memory | DDR5 16GB |
| Memory Slot | 2x SO-DIMM slots |
| Memory Max. | 64GB |
| Multi-channel memory technology | Support dual channel memory technology |
| Storage | 1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support | Either SATA or NVMe (2) |
| M.2 SSD Support List | M.2 512GB PCIe SSD; M.2 1TB PCIe SSD; M.2 2TB PCIe SSD |
| Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots; 2x M.2 PCIe |
| LAN | 10/100/1000 Mbps |
| Wireless | Wi-Fi 6E (802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version) |
| I/O Ports | 1x RJ45 LAN port 1x Thunderbolt™ 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps) 1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery (data speed up to 10Gbps) 3x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) |
| Display output | 1x HDMI 2.1 FRL |
| Camera | 1080P FHD IR Camera for Windows Hello |
| Mic | Built-in array microphone |
| Keyboard Type | Backlit Chiclet Keyboard 1-Zone RGB with Copilot key *Copilot in Windows (in preview) is rolling out gradually; timing varies by device and market. |
| Aura Sync | Yes |
| Touchpad | Touchpad N/A |
| Speakers | 2-speaker system |
| Audio | 1x 3.5mm Combo Audio Jack; Built-in array microphone |
| Audio Tech | AI noise-canceling technology; Dolby Atmos; Hi-Res certification (for headphone); Support Microsoft Cortana near field/far field (service suspended spring 2023) |
| Security | BIOS Administrator Password and User Password Protection; Trusted Platform Module (Firmware TPM) |
| Antivirus | McAfee® 30 days free trial |
| Battery | 90WHrs, 4S1P, 4-cell Li-ion |
| Power | Rectangle Conn, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100-240V AC, 50/60Hz universal |
| Required charging power | Min: 45W; Max: 100W *The indicated wattage demonstrates the system’s support capability as required by EU regulations. For optimal performance use the standard-wattage adapter or higher. |
| Xbox Game Pass | Xbox Game Pass for PC — 3 months (*terms and exclusions apply; offer available in eligible markets) |
| Ecolabels & Compliances | N/A |
| Reparability Index (for FR) | 9.9 |
| Reparability Index (for BNL) | 9.5 |
