Description
NEX Level Power

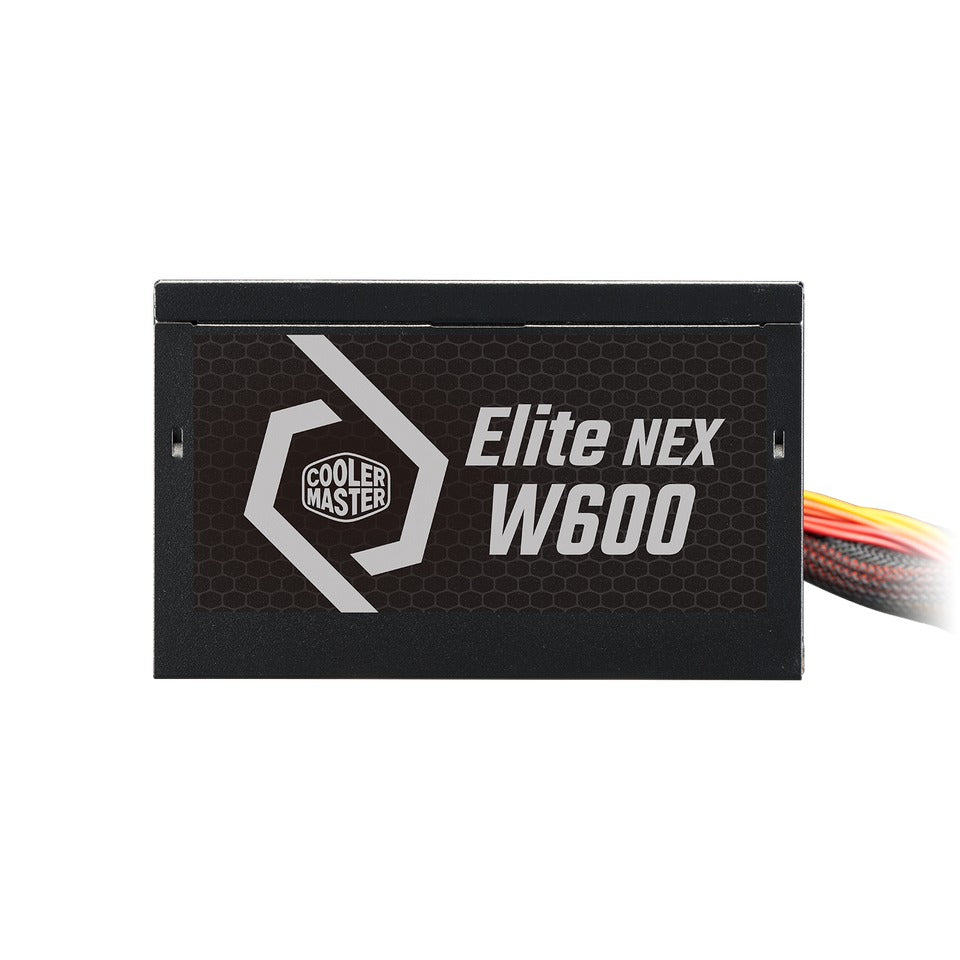

ELITE NEX White W600 230V
- Active PFC and a dual forward topology design
- Excellent temperature resistance
- High peak power tolerance
- Durability, reliability, and safety
- 80 Plus standard certified efficiency
SPECIFICATION
| Model | MPW-6001-ACBW-B |
| ATX Version | ATX 12V Ver. 2.41 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 4A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | Sleeve Fan |
| Efficiency | ≥ 85% @ Typical Load |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | ≥10ms at 100% load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / UVP / OTP / Inrush Protection |
| Regulatory | TUV, CE, CCC, EAC, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| SATA Connectors | 5 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 2 |
| Series | Elite Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus | White |
| Form Factor | ATX |
| Watts | 600W |
