Description

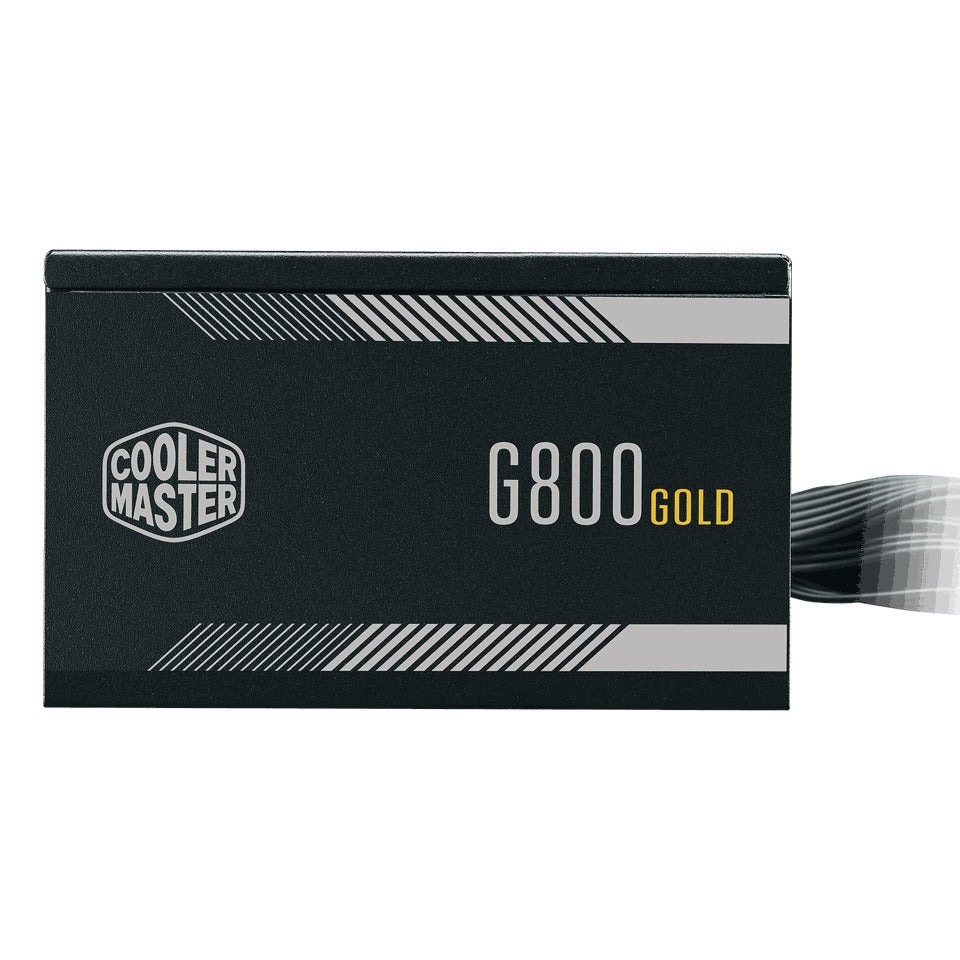

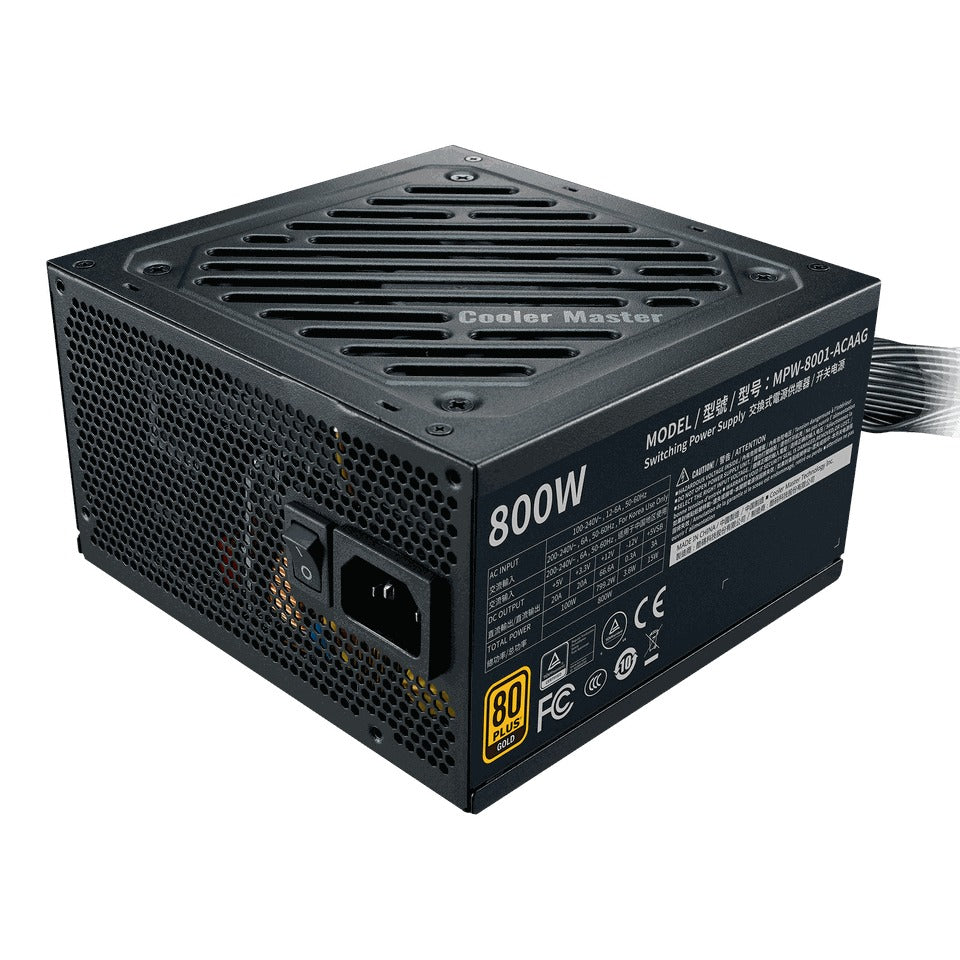

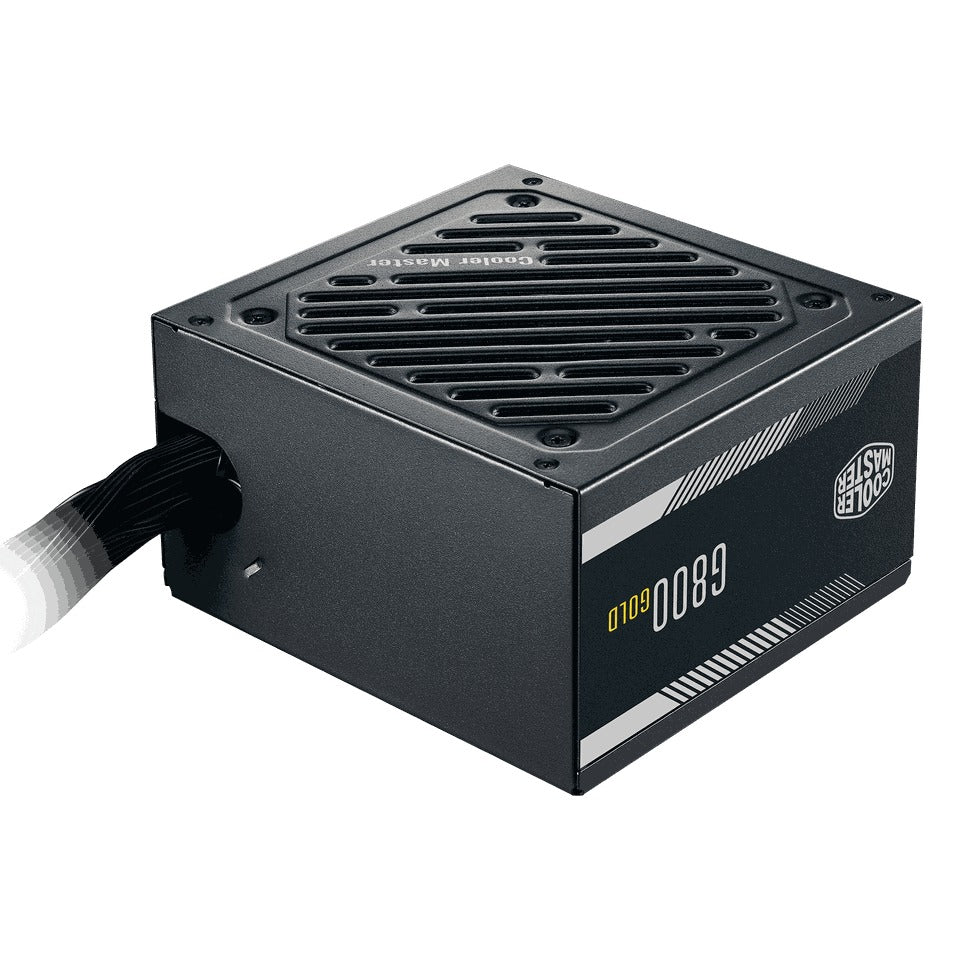

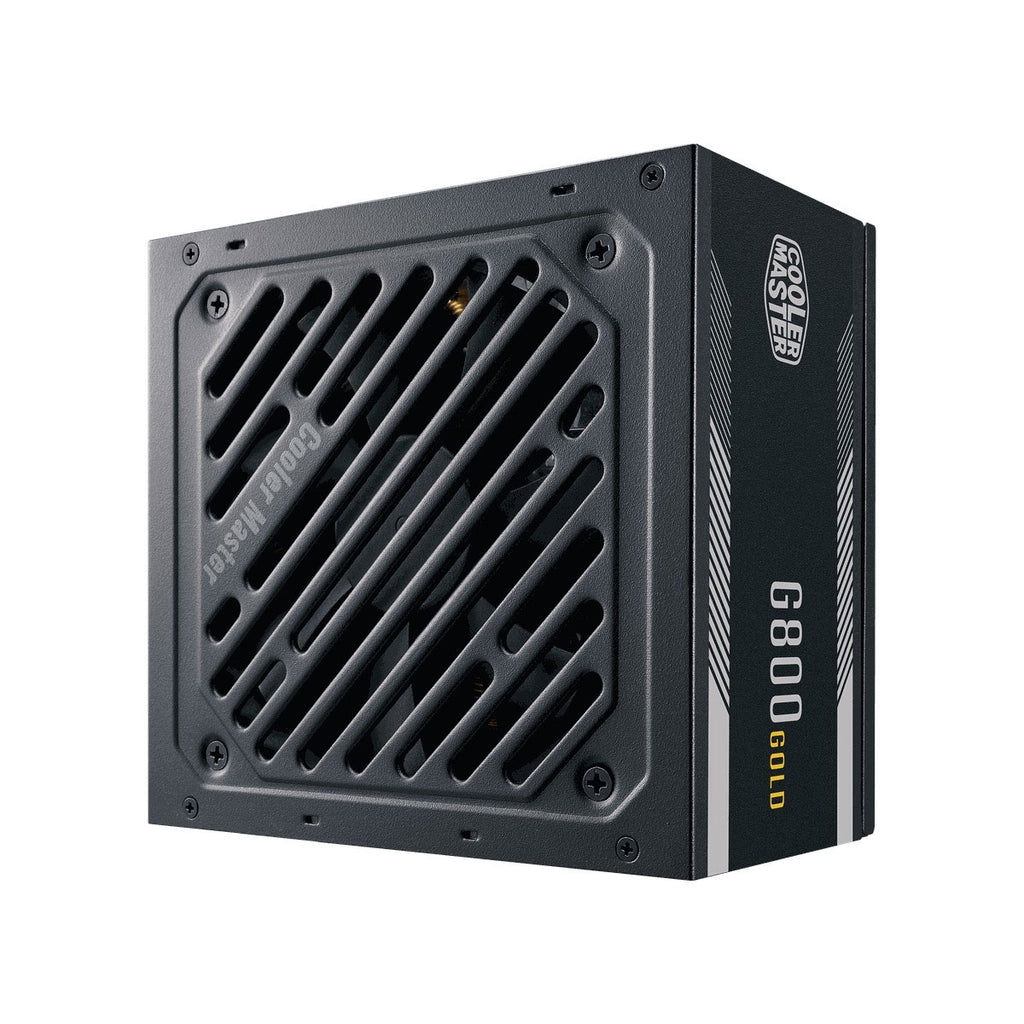

G800 Gold Entry Level 80 Plus Gold ATX Power Supply Unit
The G800 Gold consists of dependable power supply units for entry level users and system integrators.
SPECIFICATION
| Category | Above 750W |
| PFC | Active PFC |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| Power Good Signal | 100 - 150 ms |
| 80 PLUS Rating | 80 PLUS Gold |
| Fan Size | 120mm |
| MTBF | >100,000 Hours |
| Input Frequency | 47-63Hz |
| 80 Plus | Gold |
| Modular | Non Modular |
| Fan Bearing | HDB |
| Input Voltage | 100-240V |
| PCI-e 6+2 Pin Connectors | 4 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| Protections | OVP |
| ATX Version | ATX 12V V2.52 |
| Protections | OPP |
| Protections | SCP |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Protections | UVP |
| Protections | OTP |
| Protections | OCP |
| Series | G Series |
| Regulatory | CCC |
| Regulatory | CE |
| Input Current | 12-6A |
| Efficiency | ≥90% @ Typical Load |
| Regulatory | EAC |
| Regulatory | cTUVus |
| Regulatory | FCC |
| Hold Up Time | ≥15ms at 100% load |
| Regulatory | BSMI |
| Regulatory | CB |
| Regulatory | TUV |
| Regulatory | RoHS2.0 |
| Regulatory | KC+KCC |
| Regulatory | BIS |

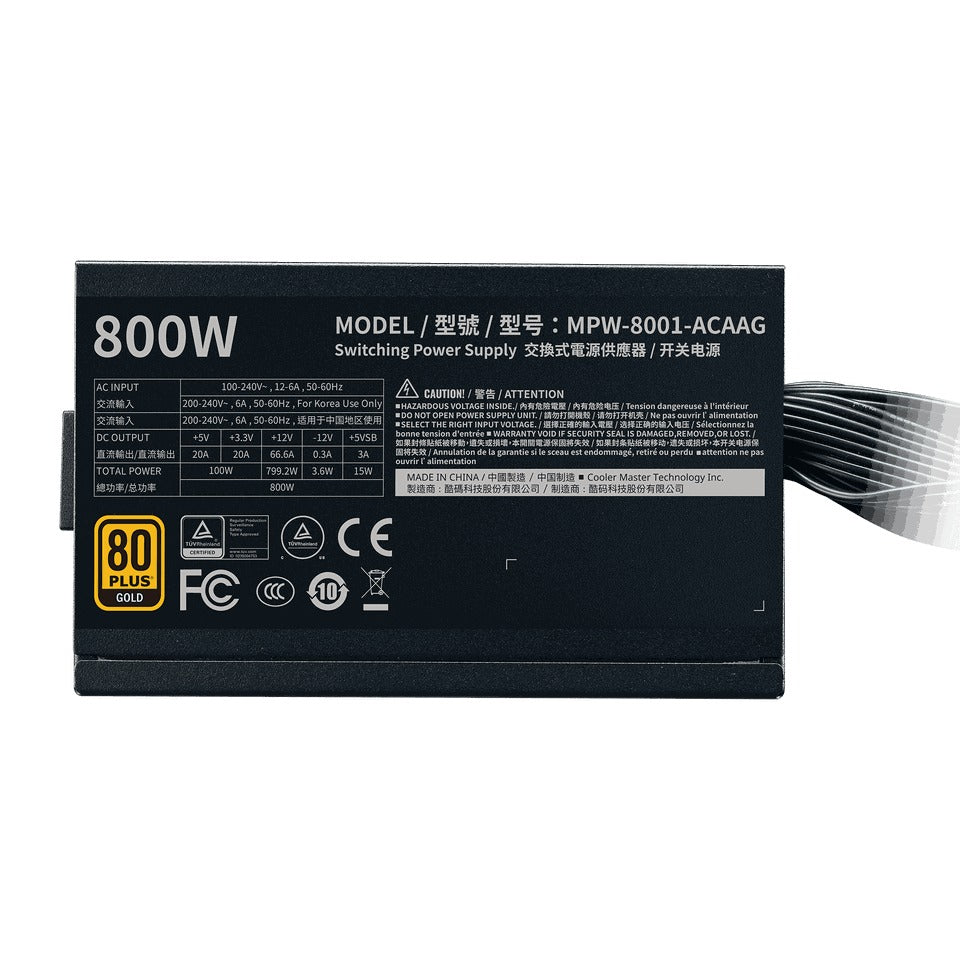

| Model | MPW-8001-ACAAG |
