Description
AK620 WH

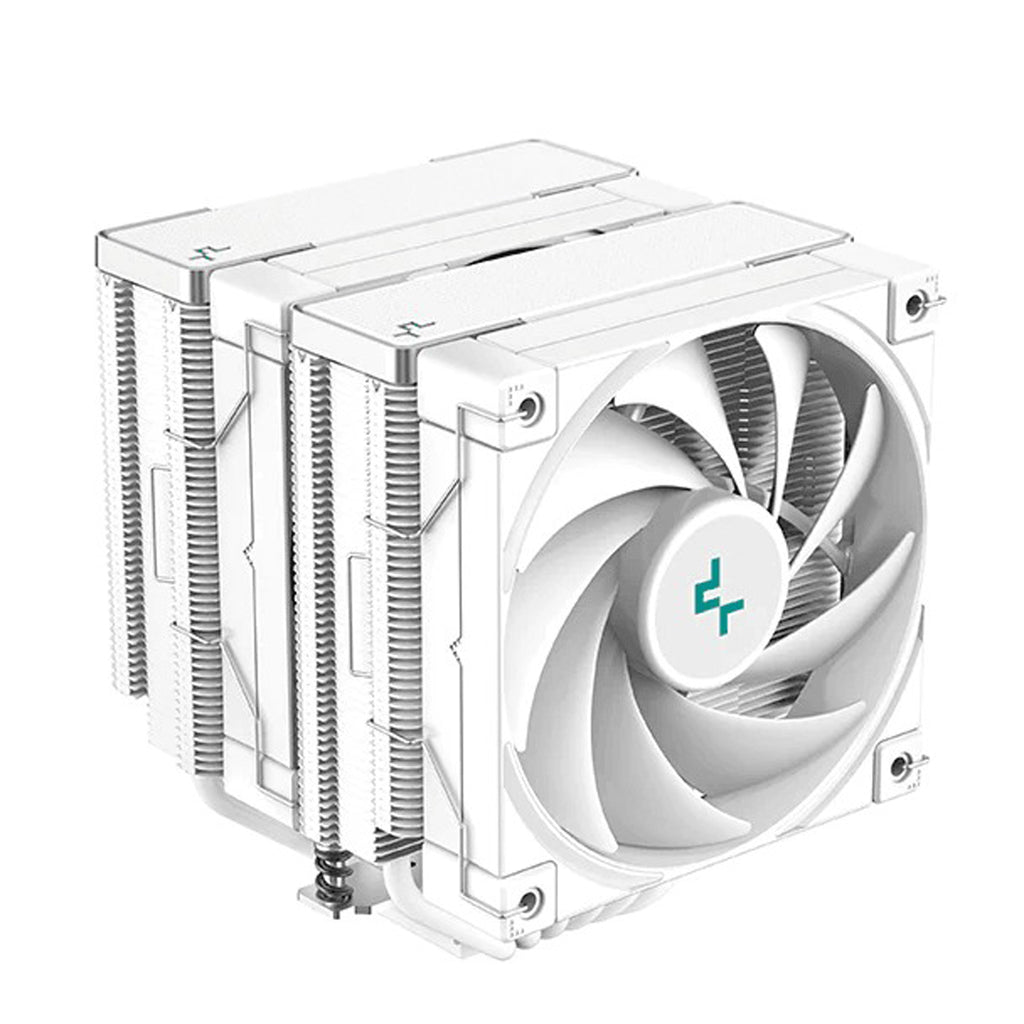

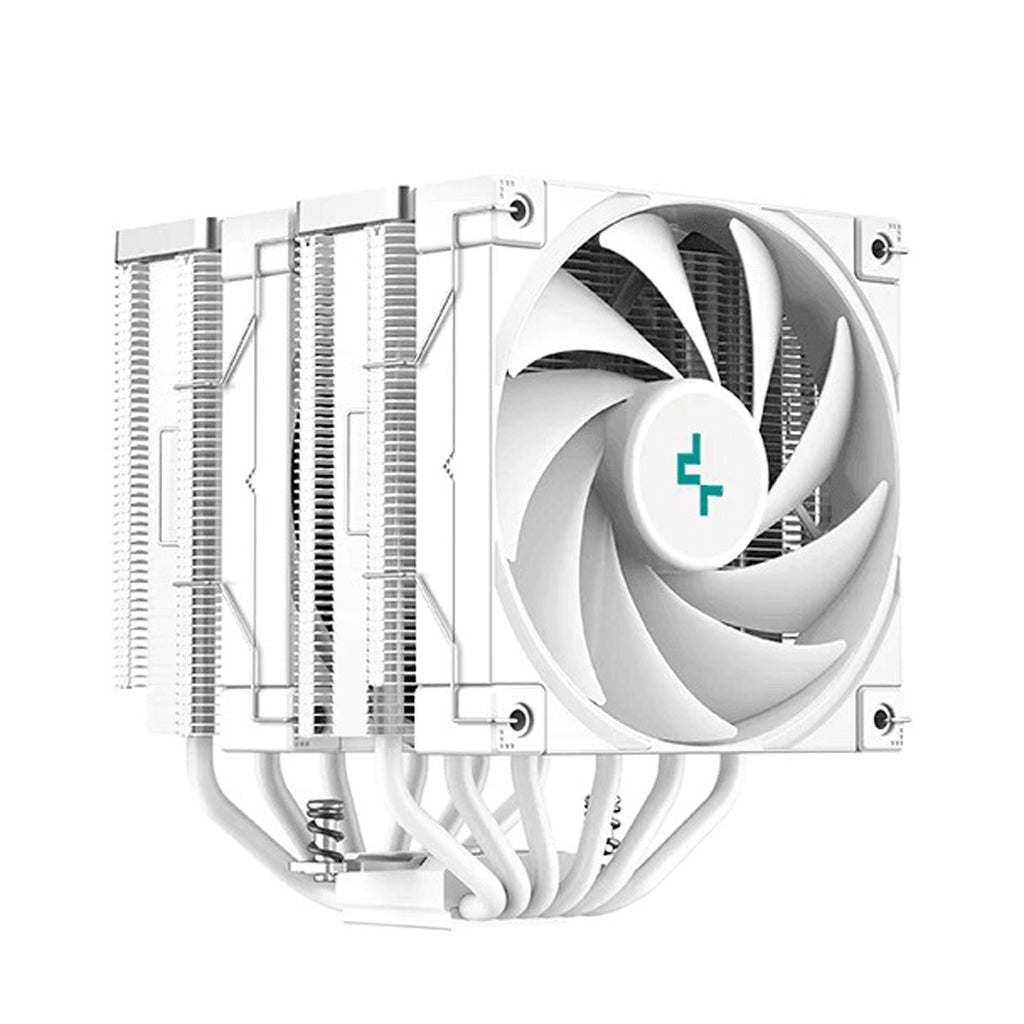

Achieve dominant cooling and silent efficiency with the DeepCool AK620 WH High Performance CPU Cooler equipped with six copper heat pipes stacked with a dense dual-tower fin array and two 120 FDB fans.
UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 WH features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.
COOL,
QUIET,
AND POWERFUL
QUIET,
AND POWERFUL

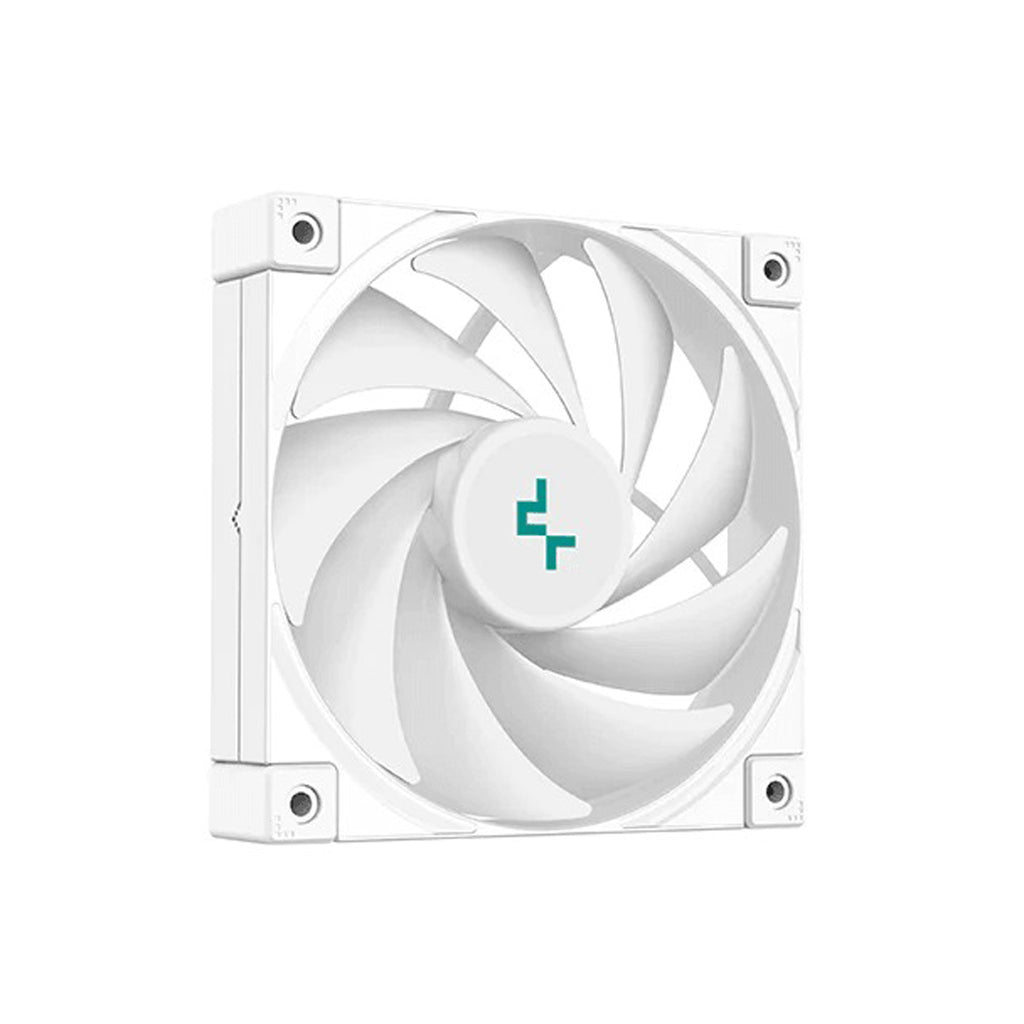

Two 120 PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
EXCEPTIONAL COOLING BY DESIGN

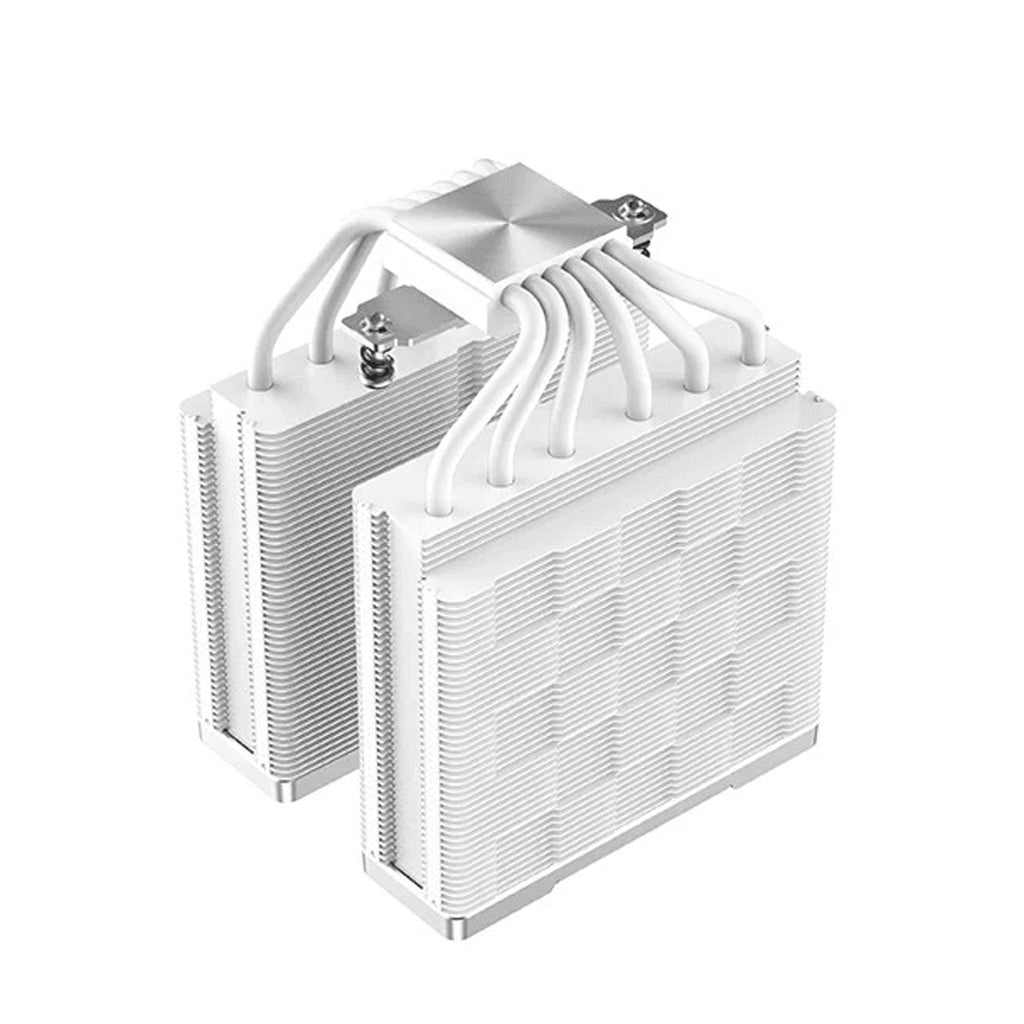

The AK620 WH features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
MULTI-PLATFORM SIMPLICITY

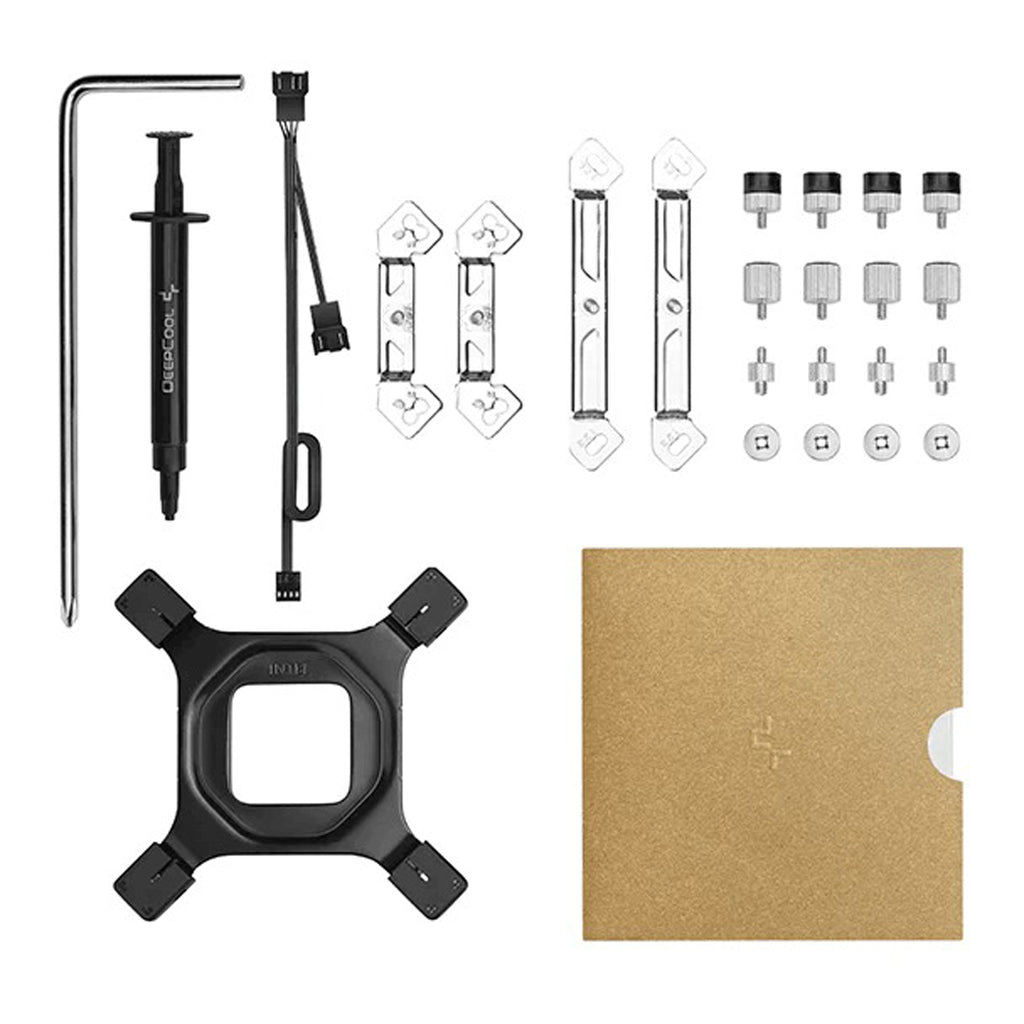

The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Product Dimensions | 129×138×160 mm |
| Heatsink Dimensions | 127×110×157 mm |
| Net Weight | 1456 g |
| Heatpipe | Ø6 mm×6 pcs |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Fan Air Pressure | 2.19 mmAq |
| Fan Noise | ≤28 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.12 A |
| Fan Power Consumption | 1.44 W |
| EAN | 6933412727453 |
| P/N | R-AK620-WHNNMT-G-1 |
