Description

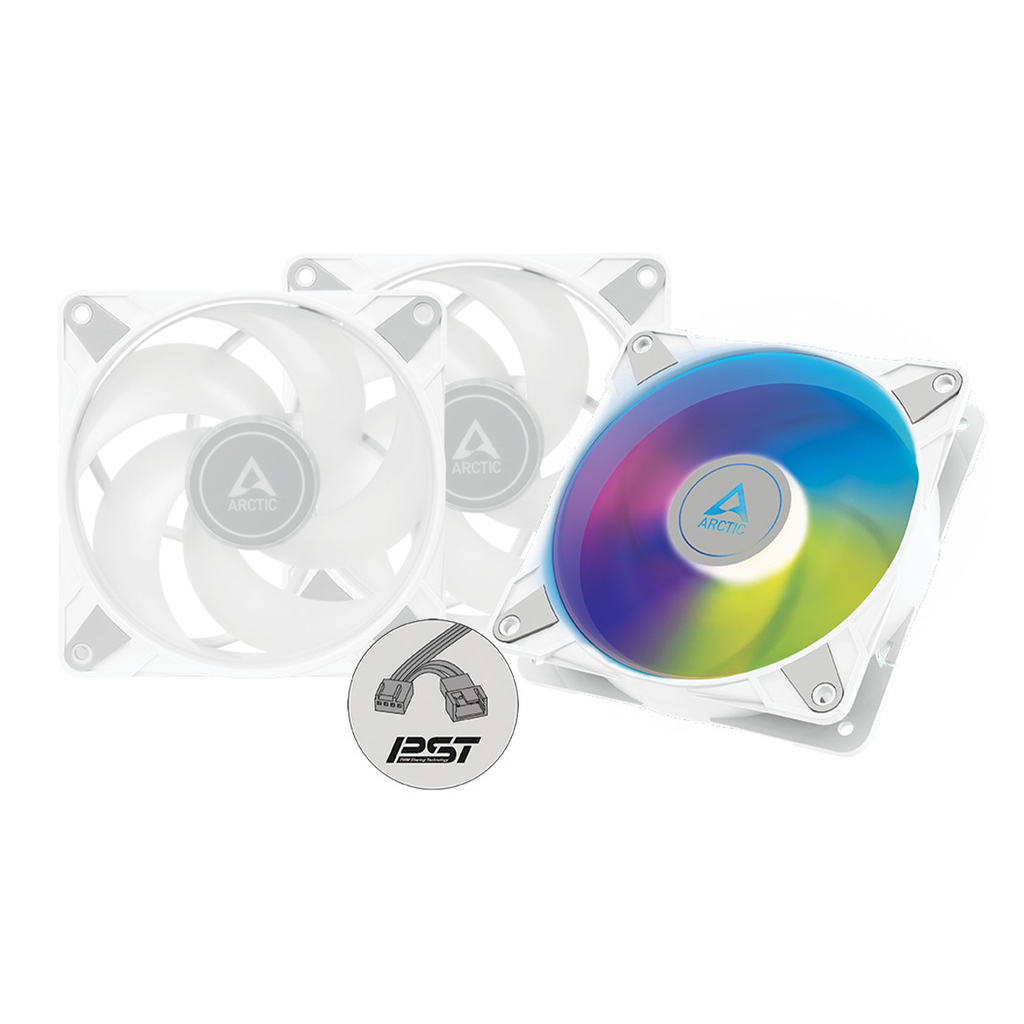

The Arctic P12 PWM PST A-RGB (White, 3-Pack) combines high static pressure performance with vivid A-RGB lighting in a sleek, semi-passive design. Ideal for radiators and cases, each fan runs quietly with PWM control, delivering precise airflow only when needed. The integrated cable splitter simplifies cable management and supports synchronized lighting across multiple fans. Perfect for clean white builds, it balances aesthetics, cooling, and efficiency.
Features:
- Addressable RGB for Full Colour Control
- 0 dB Mode — Zero rpm
- Maximum Smoothness, Minimum Vibration
- Optimised for High Static Pressure
- 200 to 2000 rpm Controlled via PWM PST
- High-Quality Bearing
- Quality You Can Rely On
Specification:
| Performance | |
|---|---|
| Fan Speed | 200—2000 rpm PWM Controlled (0 rpm below 5% PWM) |
| Airflow | 48.80 cfm | 82.91 m³/h |
| Static Pressure | 1.85 mmH2O |
| Noise Level | 0.3 Sone |
| Operating Ambient Temperature | 0—40 °C |
| Fan | |
| Fan Frame | Standard |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 5 V |
| Current | Voltage | 0.11 A | 12 V DC |
| Cable Length | 400 mm |
| RGB Specifications | |
| LEDs | 12 A-RGB LEDs |
| Connector | 3-Pin 5 V-DI-GND Connector |
| Current/Voltage | 0.4 A | 5 V |
| Cable | 400 mm Cable with 80 mm Sharing Cable, Black |
| Size & Weight | |
| Length | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 131 g |
| Packaging | |
| Width | 127 mm |
| Height | 30 mm |
| Length | 124 mm |
| Weight | 0.56 kg |
