Description
360 DEGREES OF COOL

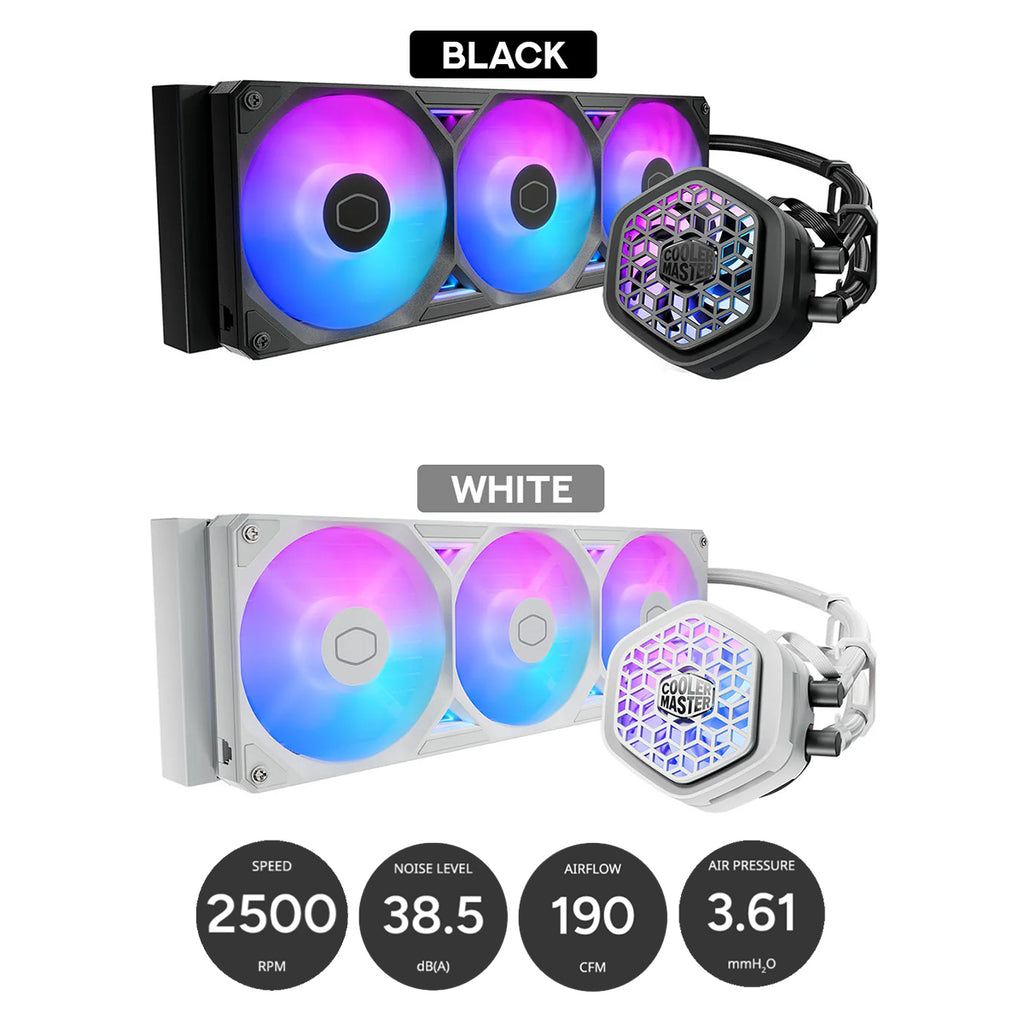

MasterLiquid Atmos II VRM FAN
- VRM Fan for enhanced cooling experience
- SickleFlow Edge ARGB fans
- Ultra-low profile pump design
- Quick and easy installation
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
| CPU Socket | AMD® AM5 / AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | (240) 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch) |
| Radiator Dimensions | (360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch) |
| Pump Dimensions | 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch) |
| Pump Profiles | Addressable Gen2 RGB |
| Pump Speed | 3400 ± 300 RPM |
| Pump MTTF | >210,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Rated Voltage | 12 VDC |
| Pump Power Consumption | 3.84 W |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Tube Length | (240) 350 mm |
| Tube Length | (360) 400 mm |
| Fan Dimensions (L x W x H) | (240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch) |
| Fan Dimensions (L x W x H) | (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch) |
| Profile | Addressable Gen 2 RGB |
| Fan Quantity | 1 PC |
| Fan Speed | 690 ~ 2500 RPM ± 15% |
| Fan Airflow | (240) 240.35 m³/h (141.4 CFM) |
| Fan Airflow | (360) 322.8 m³/h (190 CFM) |
| Fan Air Pressure | 3.61 mmH2O |
| Fan MTTF | >160,000 Hours |
| Fan Noise Level | (240) 36 dB(A) |
| Fan Noise Level | (360) 38.5 dB(A) |
| Fan Bearing Type | Loop Dynamic Bearing |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.5 A |
| Fan Safety Current | 0.8 A |
| Fan Power Consumption | 6 W |
| Radiator Size | 240 |
| Radiator Size | 360 |
| Cooler Type | Liquid Cooler |
| Series | MasterLiquid |
| VRM Fan Exterior Color | Black / White |
| VRM Fan Dimensions | 85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch) |
| VRM Fan Wire Length | 1000 mm |
| VRM Fan Fan Speed | 450~4000 RPM ±10% |
| VRM Fan Fan Airflow | 15.8 m³/h (9.3 CFM) |
| VRM Fan Fan Air Pressure | 2.8 mmH₂O |
| VRM Fan Fan Noise Level | 36 dB(A) |
| VRM Fan Fan MTTF | >50,000 Hours |
| VRM Fan Fan Bearing Type | Loop Dynamic Bearing |
| VRM Fan Fan Connector | 4-Pin PWM |
| VRM Fan Fan Rated Voltage | 12 VDC |
| VRM Fan Fan Rated Current | 0.15 A |
| VRM Fan Fan Safety Current | 0.25 A |
| VRM Fan Power Consumption | 1.8 W |
