Description

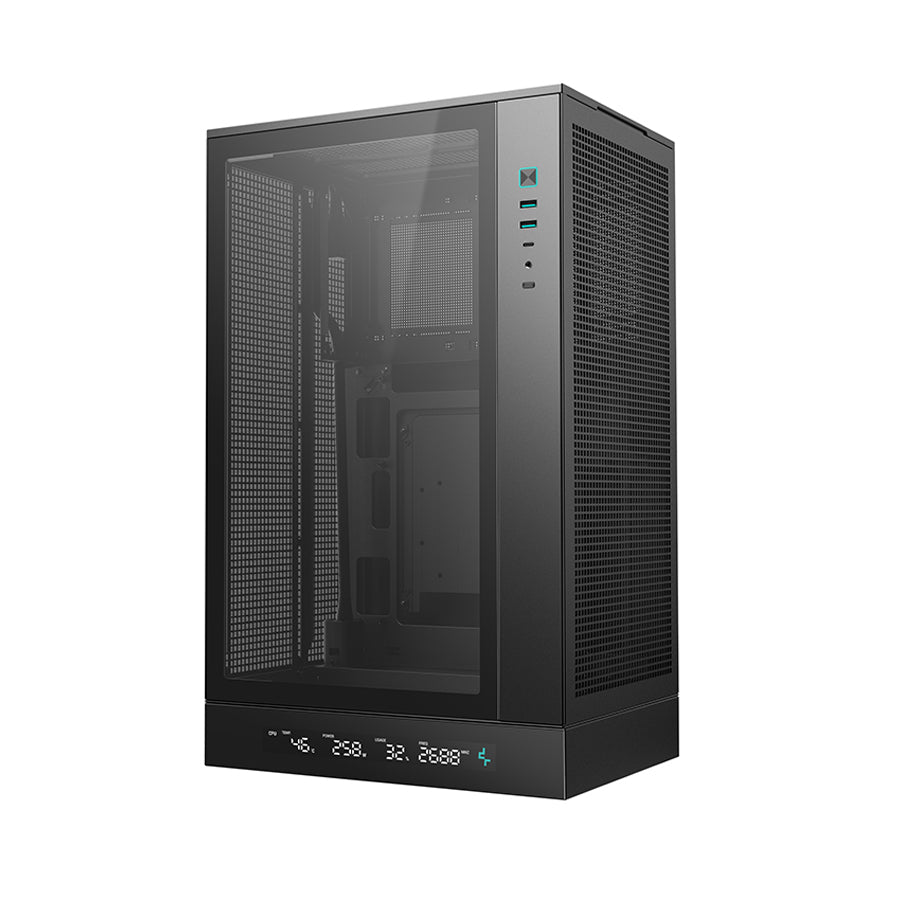

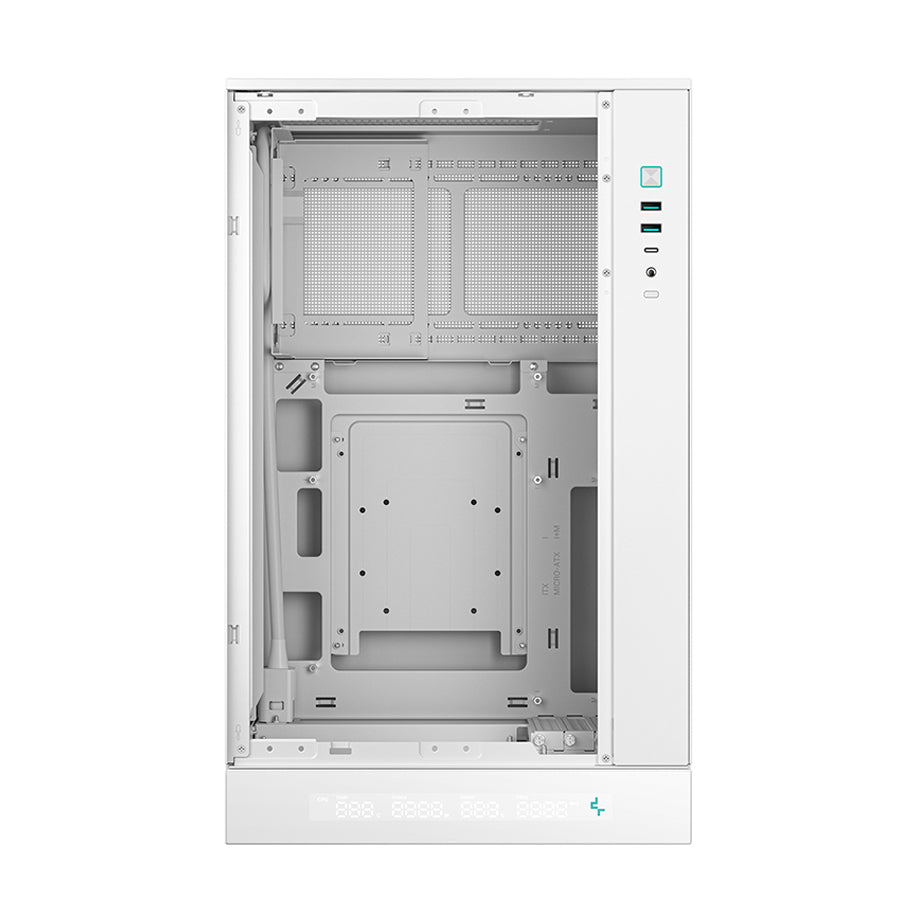

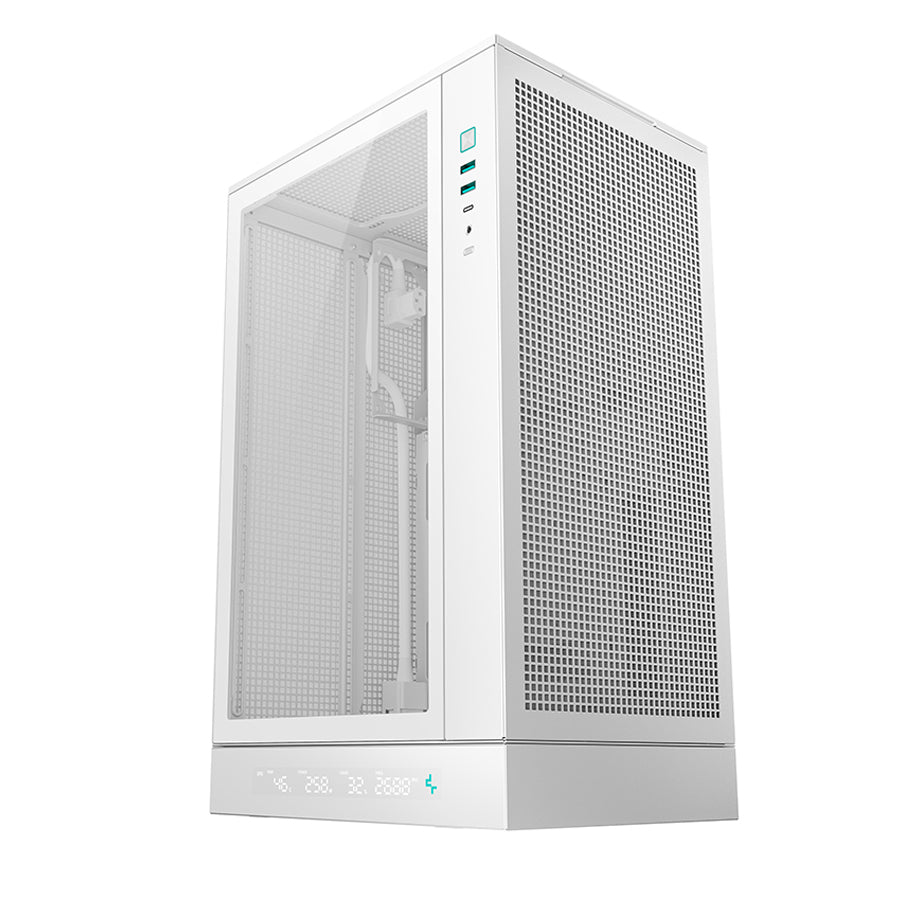

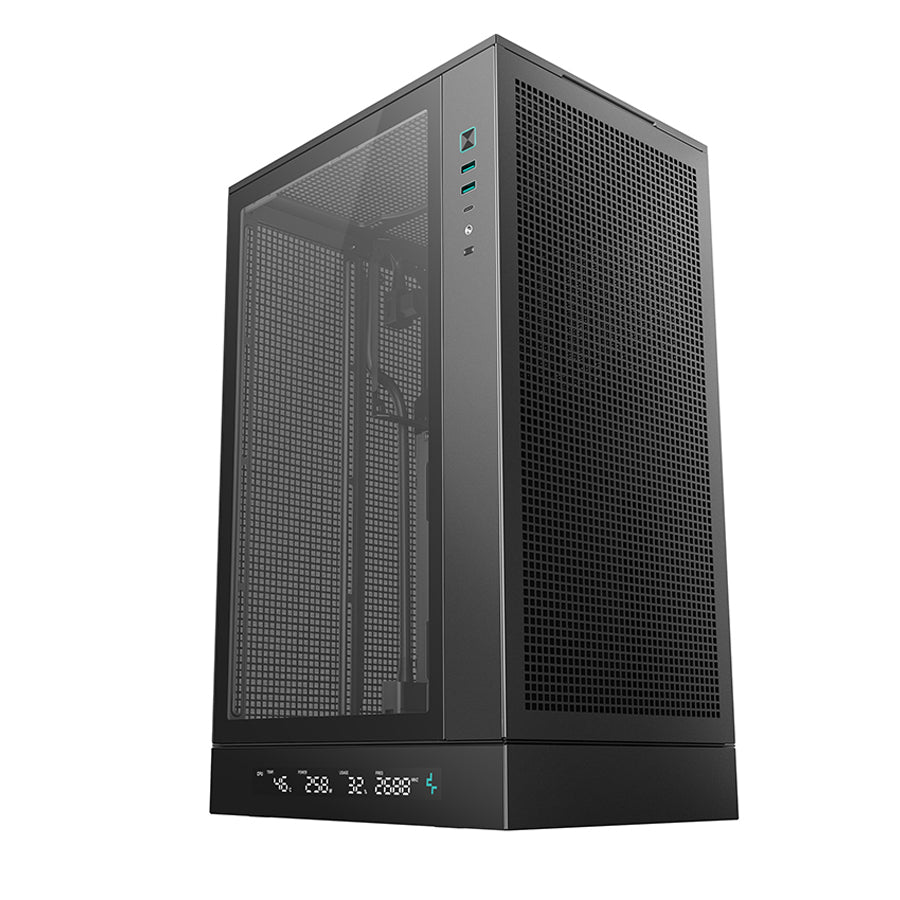

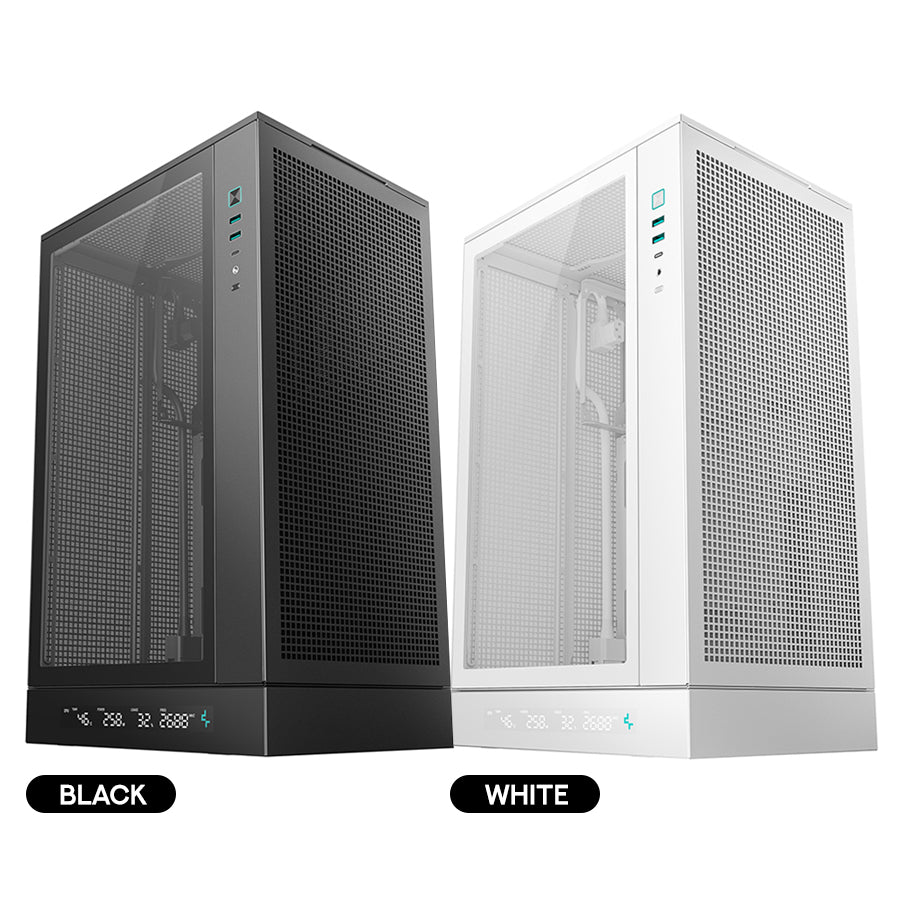

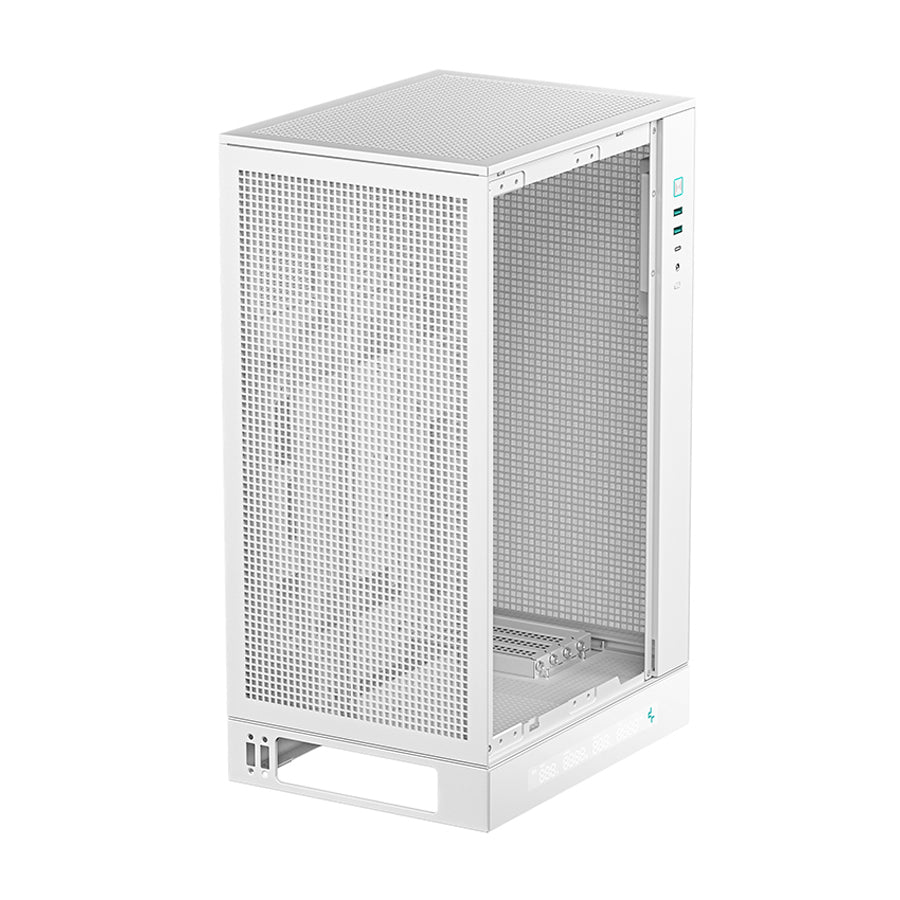

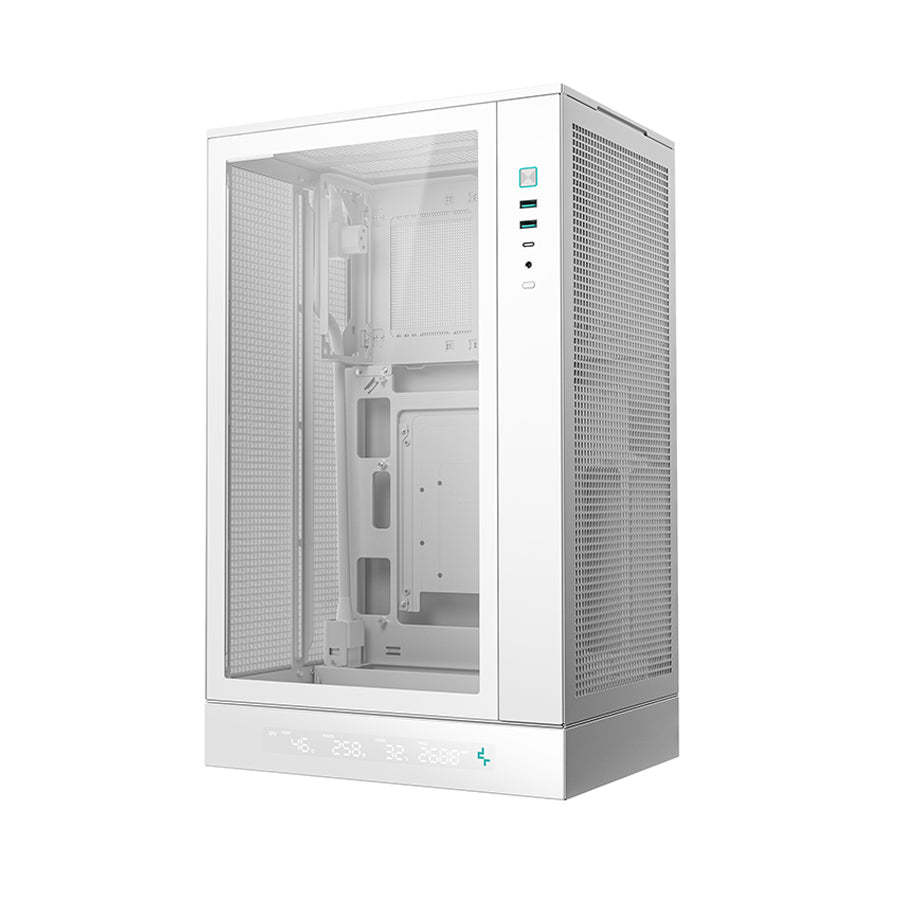

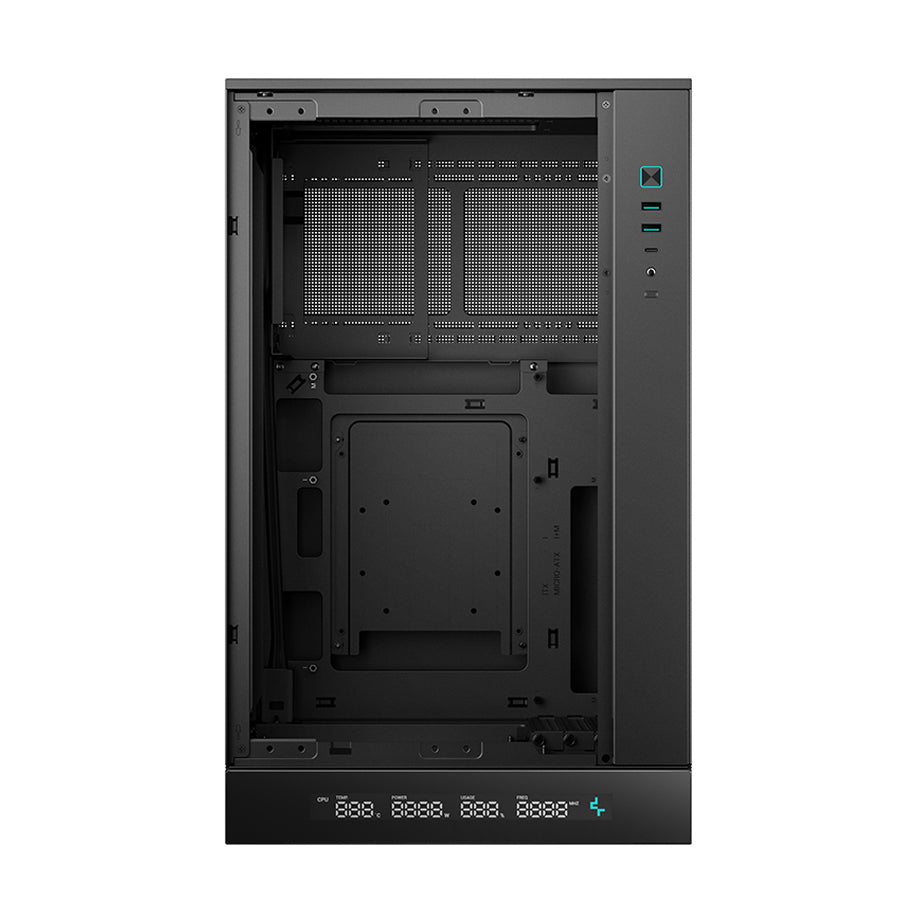

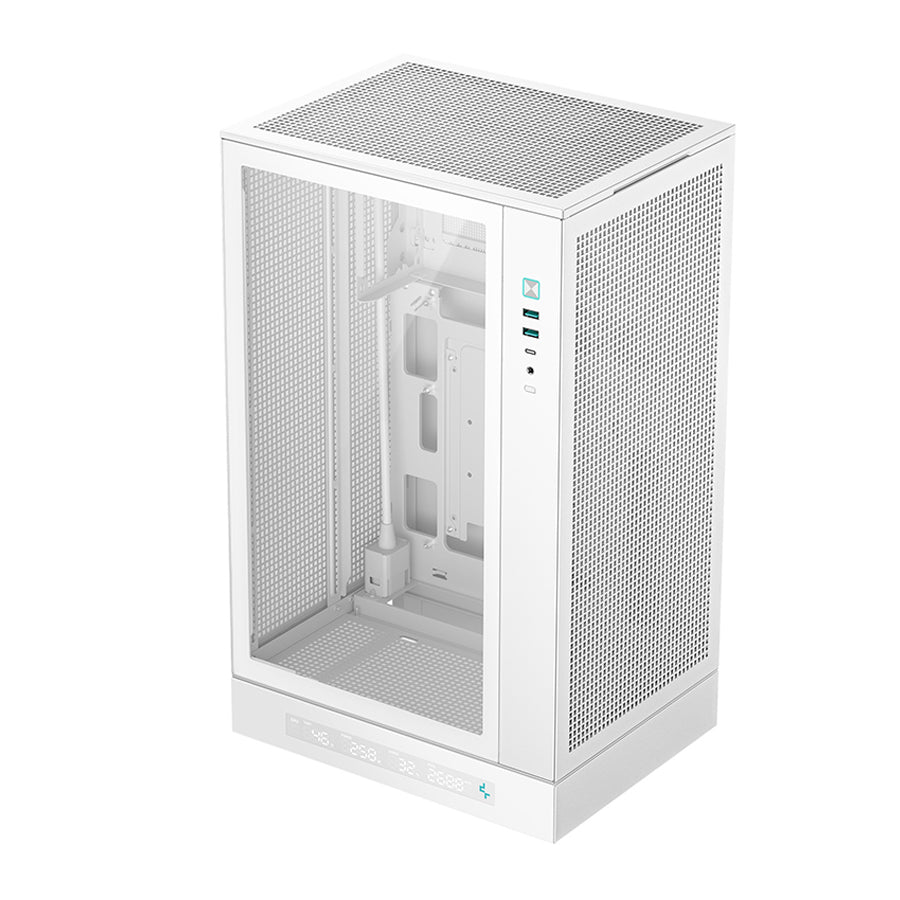

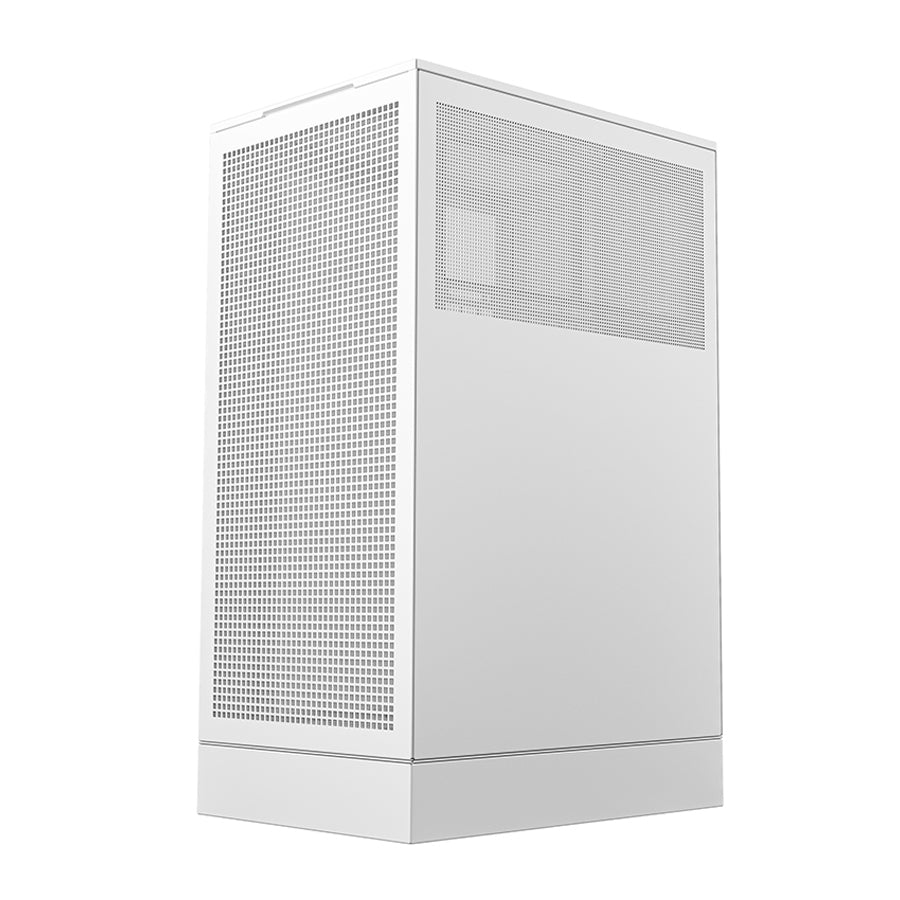

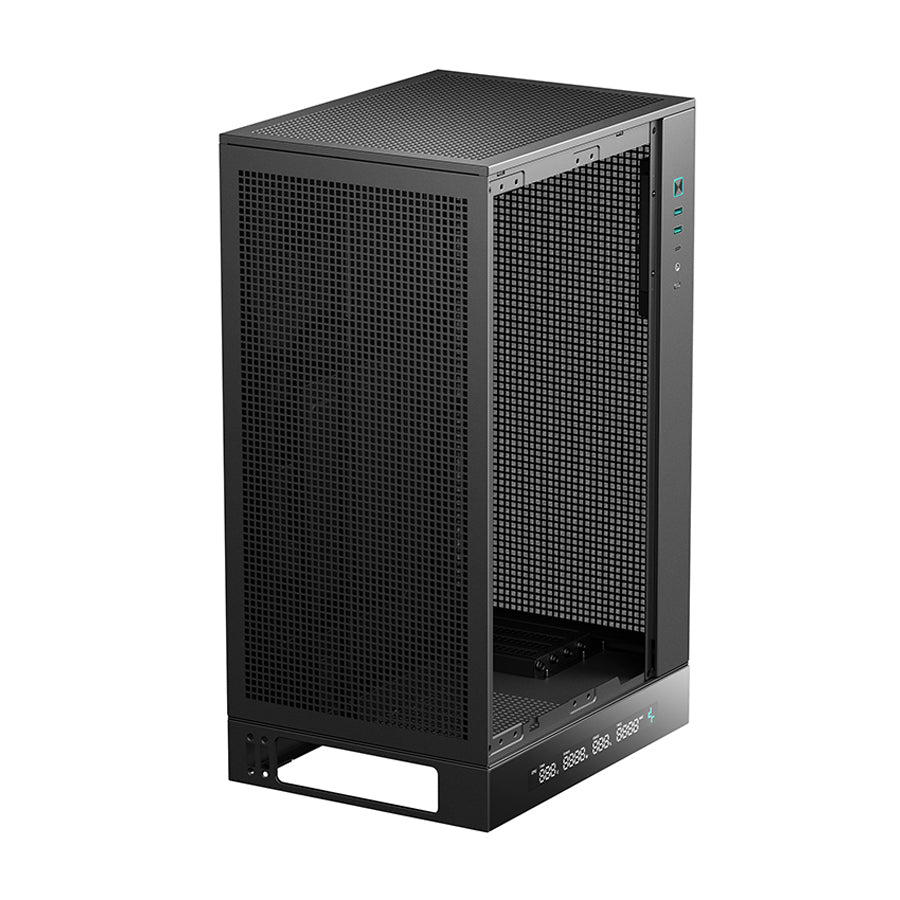

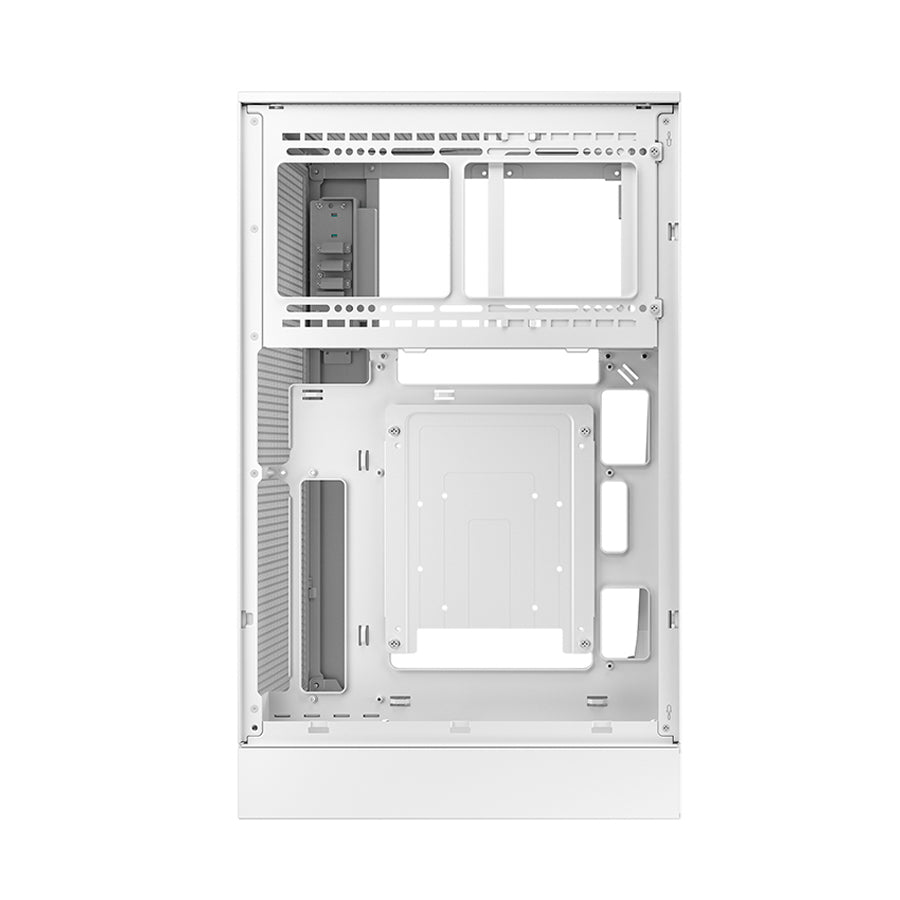

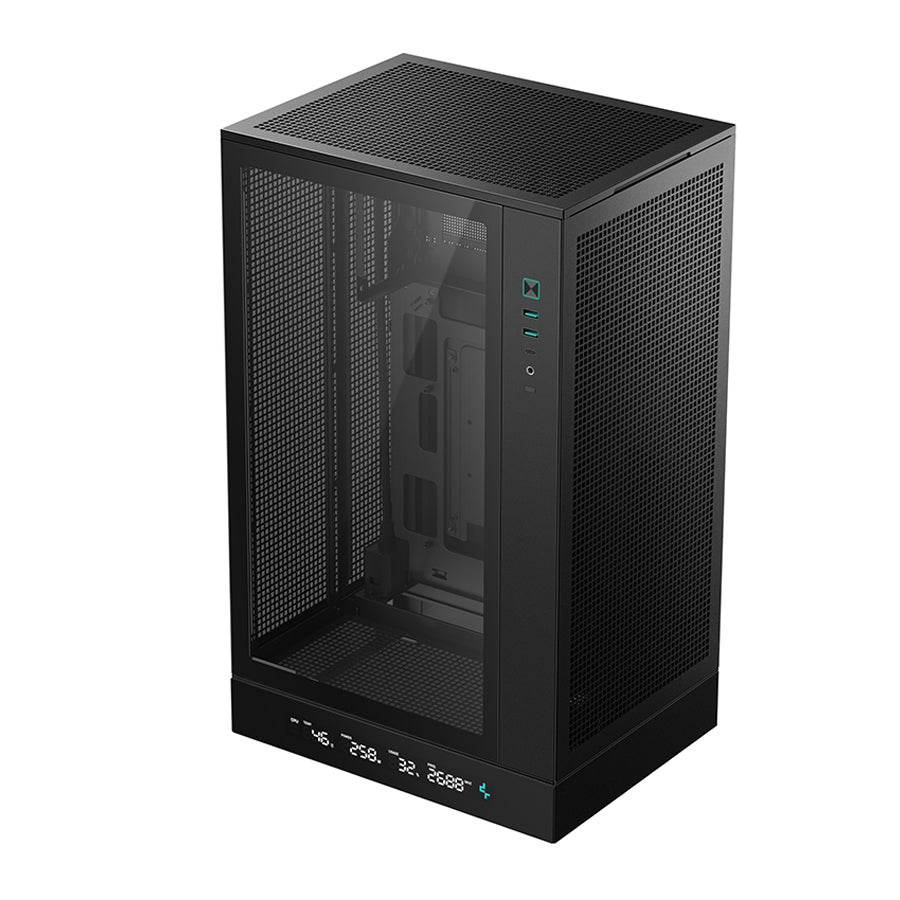

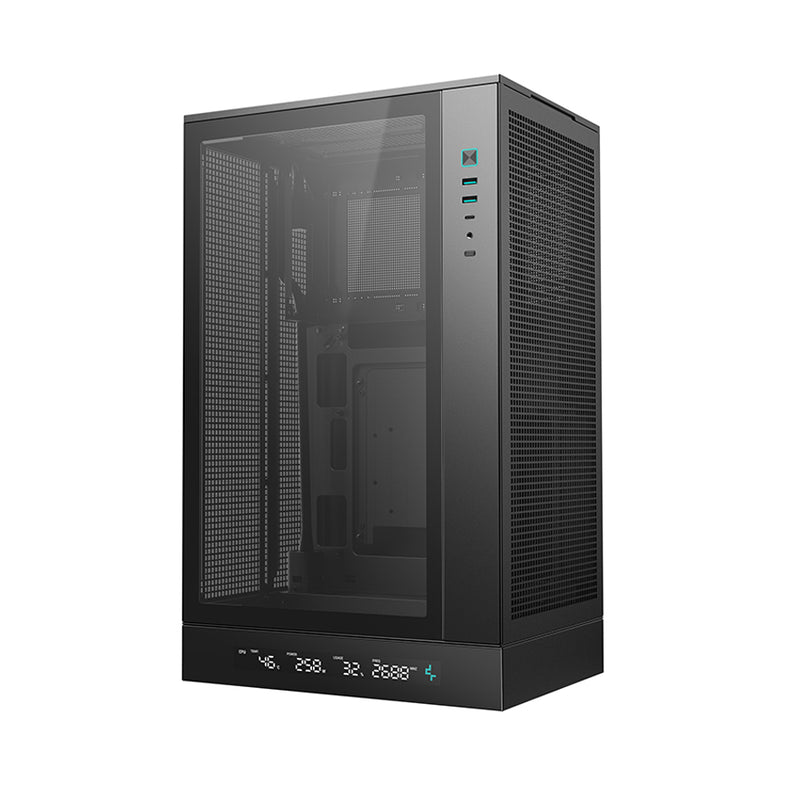

CH270 DIGITAL WH

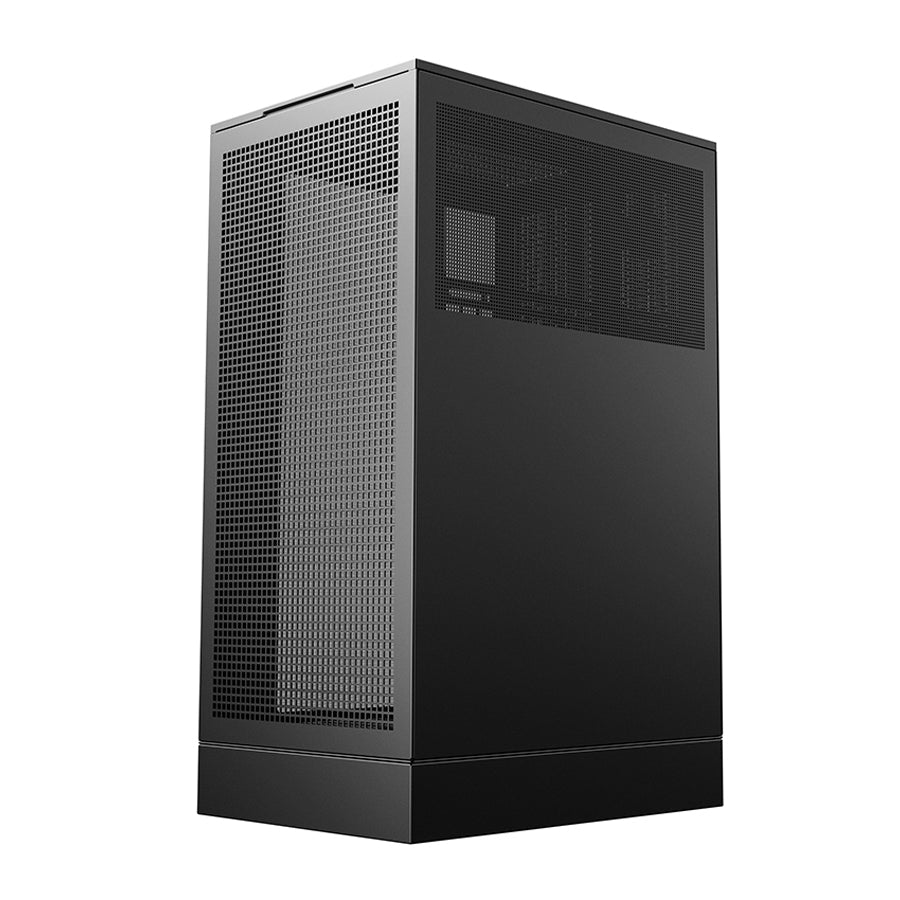

The CH270 DIGITAL WH is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.
Specifications:
| Product Dimensions | 296mm × 225mm × 486mm (L×W×H) |
| Net Weight | 5.8 Kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Front I/O Ports | USB 3.0 × 2、Gen2 Type-C × 1、Audio/Mic × 1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top: 2 × 120mm Side: 3 × 120mm / 2 × 140mm Bottom: 1 × 120mm |
| Radiator Support | Front: NA Side: 120 / 240 / 360mm Bottom: 120mm Rear: NA |
| CPU Cooler Height Limit | 174mm |
| GPU Size Limit | 388 / 413mm (No Top fans) |
| Power Supply Type | ATX PS2 (maximum length: 150mm) |
