Description
- 45-liter stand-up platform case for a minimal footprint
- Front-facing GPU installation with adjustable mounting brackets for a unique visual and cooling approach
- Independent chambered direct cooling design that brings the most effective heat dissipation for all core components
- Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip
- Includes an exterior 120mm fan mounting bracket at the rear to push fresh air into the chassis
- Includes 3 x 120mm performance fans at the side for GPU exhaust
- Supports 360mm/280mm AIO with a maximum pump height of 88.2mm
- Supports standard motherboards up to ATX size and back-connect ATX motherboards
SPECIFICATION
| MODEL | SUP01X BLACK | SUP01W WHITE |
| COLOR | Black | White |
| CASE TYPE | Small Tower Case | |
| DIMENSION | (D) 403.45mm x (W) 212mm x (H) 534mm | |
| (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet) | ||
| CAPACITY | 44.8L | |
| MATERIAL | Steel | |
| 4.0mm Tempered Glass | ||
| RISER CABLE TYPE | PCIE 4.0 | |
| MOTHERBOARD SUPPORT | ATX/M-ATX/ITX | |
| ATX Back Connect | ||
| PSU SUPPORT | ATX (Max 220mm) | |
| INCLUDED FAN | 3 x 120mm PWM | |
| FAN SUPPORT | Side 1: 3 x 120mm | |
| Side 2: 3 x 120mm or 2 x 140mm | ||
| Rear exterior: 1 x 120mm | ||
| RADIATOR SUPPORT | Side 2: 360mm or 280mm | |
| DRIVE SUPPORT | Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD | |
| Above PSU shroud:2 × 2.5” SSD | ||
| GPU LENGTH CLEARANCE | Max 400mm | |
| CPU HEIGHT CLEARANCE | Max 88.2mm | |
| EXPANSION SLOTS | 7 (for low profile card) | |
| 4 (for standard profile card with extension cable) | ||
| I/O PORTS | 1 x Power Button | |
| 1 x Reset Button | ||
| 2x USB 3.0 TYPE-A | ||
| 1x USB 3.1 TYPE-C | ||
| 1x Mic | ||
| 1 x Light Color Button (C) | ||
| 1 x Light Mode Button (M) | ||
| DUST FILTER | 1 x bottom tray | |
| 1 x front magnatic | ||
| 1 x top magnatic | ||
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D

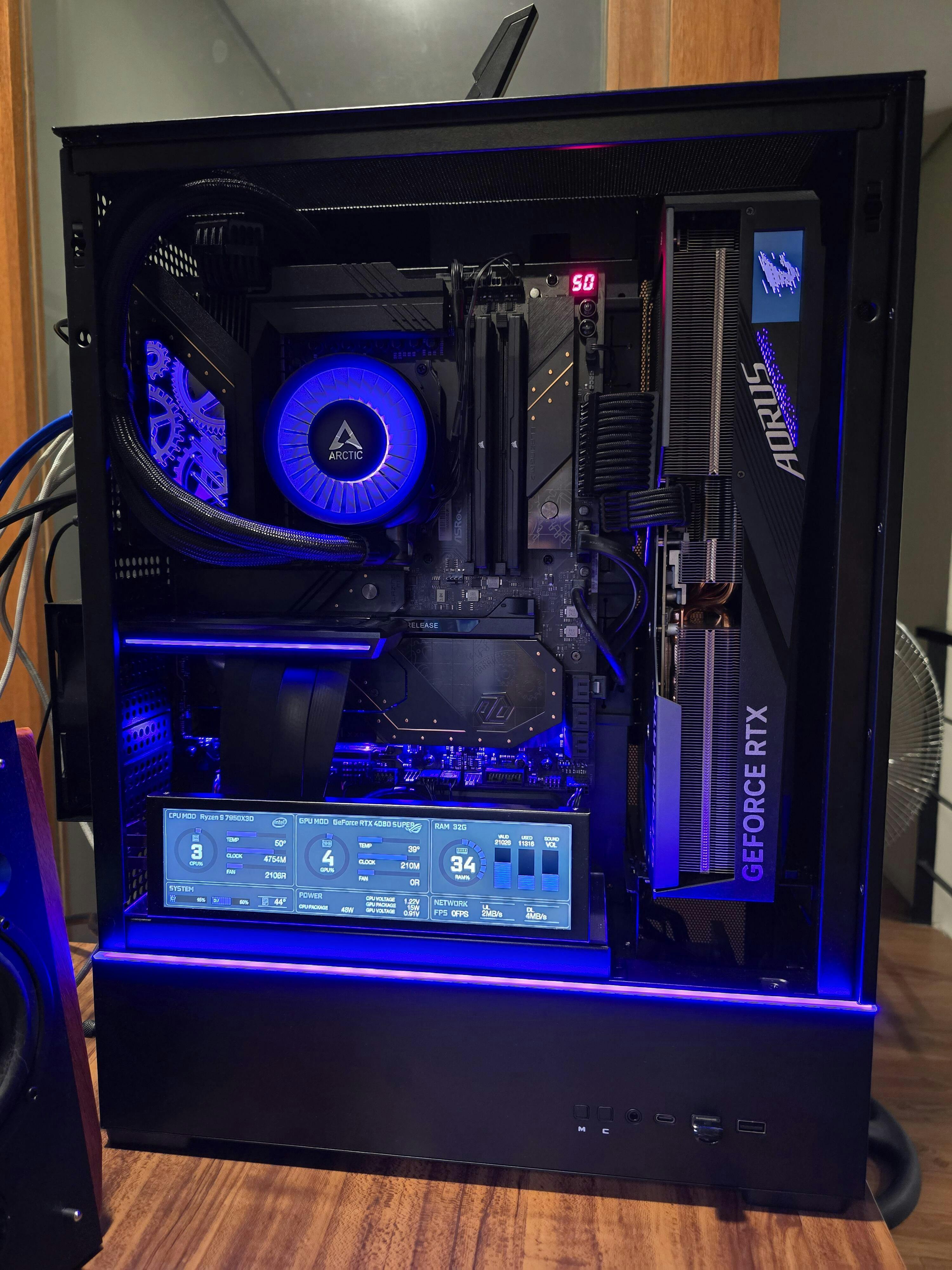

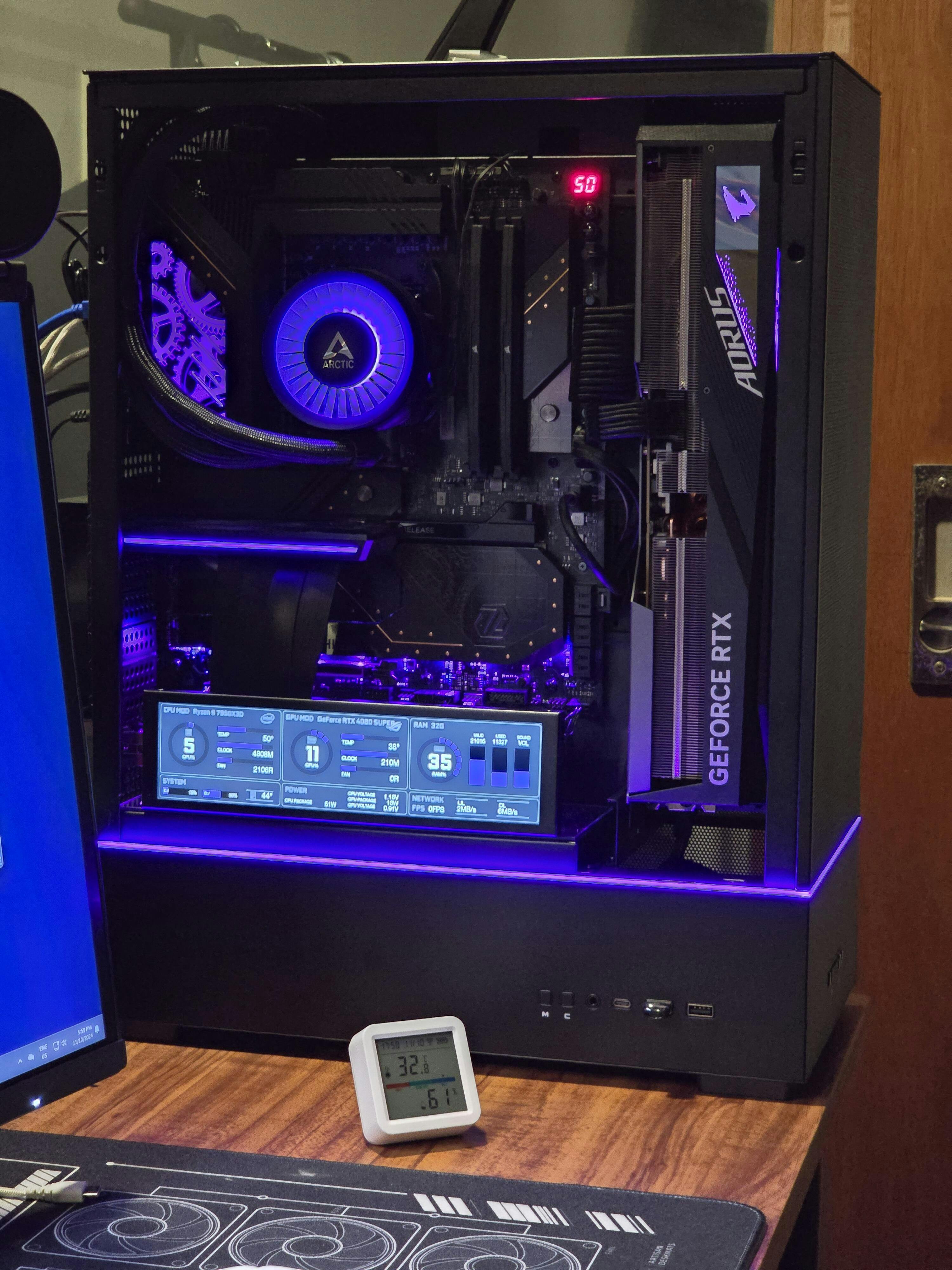

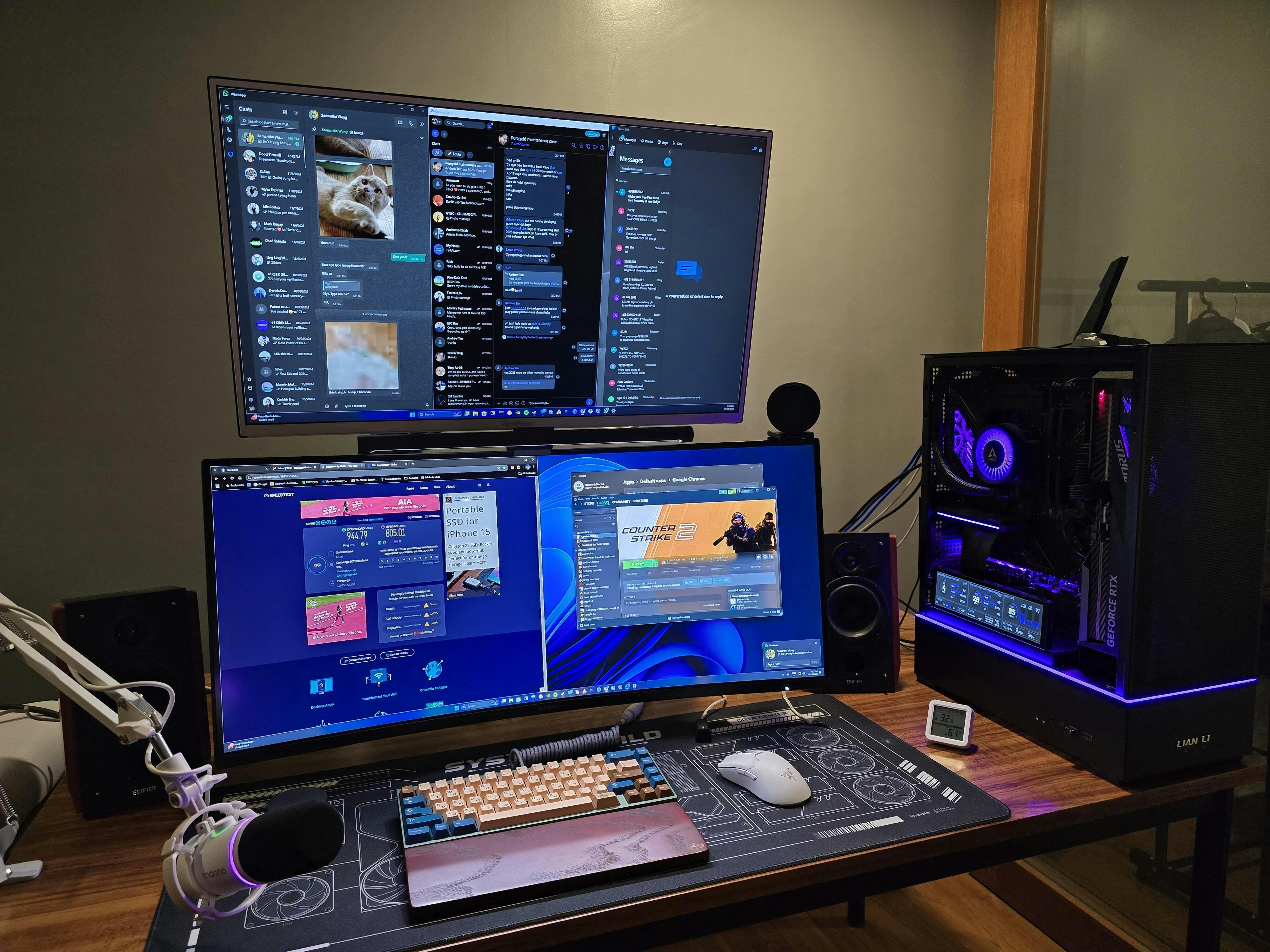

Reclaimed my desk space using this case from a Lian Li O11D Evo XL. Great temps too and same with the Evo XL, as shown in the pictures.
Build - X870E Taichi + 7950x3D + Aorus 4080 Super Master + Liqiod Freezer III 360 + P12 Max
