| Model Name | Eclipse P200A D-RGB |
| Model | PH-EC200ATG DBK_01 |
| UPC Code | 886523302186 |
| Case Dimension (W x H x D) | 205 × 365 × 400 mm / 8.1 × 14.4 × 15.7 in |
| Form Factor | Mini Tower |
| Materials | Steel Chassis, Tempered Glass |
| Motherboard Support | Mini-ITX, mini-ITX |

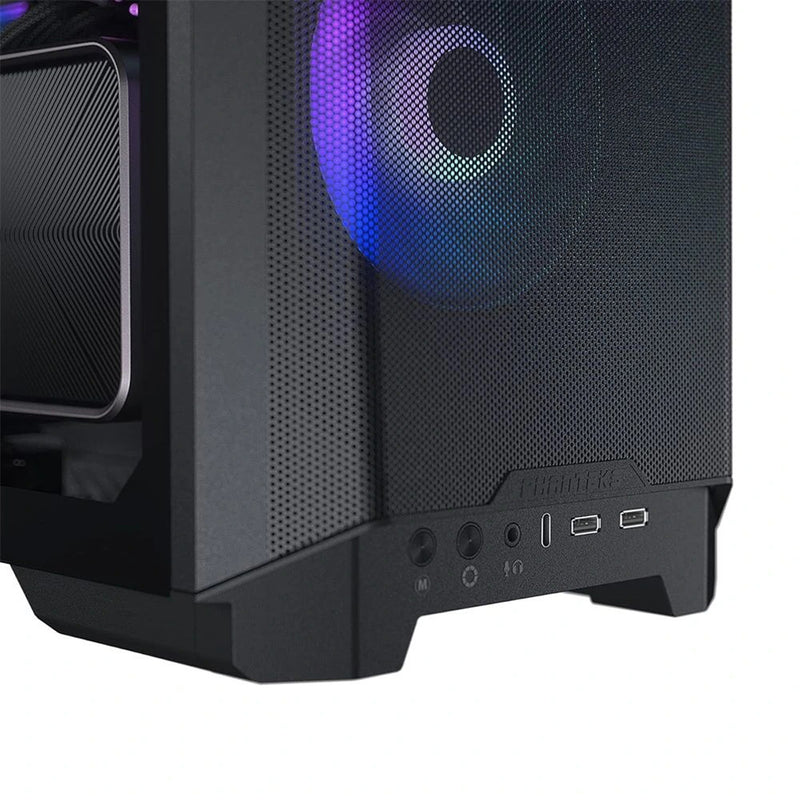

| Front I/O | USB-C GEN 2 (10Gbps) 2x USB 3.0 Microphone/Headphone LED Mode Button LED Color Button Power Button Power Switch |
| Internal Connectors | D-RGB Expansion D-RGB Third Party D-RGB-MB Adapter HD-audio USB 3.0 USB 3.2 GEN2 Type-E |
| Side Window | Tempered Glass Window |
| Vertical GPU | Yes, 3-slots (Riser Cable sold separately) |
| Internal 3.5" Bay | 4 (Stackable 3.5" Bracket sold separately/not included) |
| Internal 2.5" Bay | 4 (4x included) |
| Total Fan Mounts | 7x120 mm / 2x140 mm + 5x120 mm |
| Front Fan | 2x120 mm / 2x140 mm (2x120 mm D-RGB PWM included) |
| Side Fan | 2x120 mm |
| Rear Fan | 1x120 mm |
| Bottom Fan | 2x120 mm |
| Dust Filters | Bottom |
| Front Radiator | Up to 240 mm / Up to 280 mm |
| Side Radiator | Up to 240 mm |
| Rear Radiator | 120 mm |
| Front Radiator Clearance | 140 × 325 mm |
| Side Radiator Clearance | 120 × 279 mm |
| GPU Length | 355 mm / 13.98 in |
| GPU Thickness | 3-slot, 65 mm |
| CPU Cooler Height | 165 mm / 6.5 in |
| CPU Cooler Height with Vertical GPU | 72 mm or 92 mm depending on Vertical PCI slot position |
| PSU Length | 205 mm (190 mm recommended) |
| Package Dimension | 415 × 285 × 485 mm / 16.3 × 11.2 × 19.1 in |
| Net Weight | 5.5 kg / 12 lbs |
| Gross Weight | 6.6 kg / 15 lbs |
| Package Contents | 1x Eclipse P200A Case 2x 25° 550 Covers Bracket (for 2x 2.5" SSD) 2x SK 120mm PWM D-RGB fans 6Zip 1x Vertical GPU mount 1x Accessory Bag with necessary screws and standoffs |
