Description
| System Specifications | |
|---|---|
| Processor | AMD Ryzen™ Z2 Extreme (8C / 16T, 2 / 5GHz, 8MB L2 / 16MB L3) |
| Graphics | Integrated AMD Radeon™ Graphics |
| Chipset | AMD SoC Platform |
| Memory | 32GB Soldered LPDDR5X-8000 |
| Memory Slots | Memory soldered to systemboard, no slots |
| Max Memory | 32GB soldered memory, not upgradable |
| Storage | 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Storage Slot | One M.2 2280 PCIe® 4.0 x4 slot |
| Max Storage Support | One drive, up to 1TB M.2 2242 SSD or 2TB M.2 2280 SSD |
| Optical | None |
| Card Reader | microSD Card Reader |
| Audio Chip | High Definition (HD) Audio |
| Speakers | Stereo speakers, 2W x2 (woofers) |
| Microphone | 2x, Array |
| Camera | None |
| Battery | 74Wh |
| Power Adapter | 65W USB-C® Slim (2-pin, Wall-mount) |

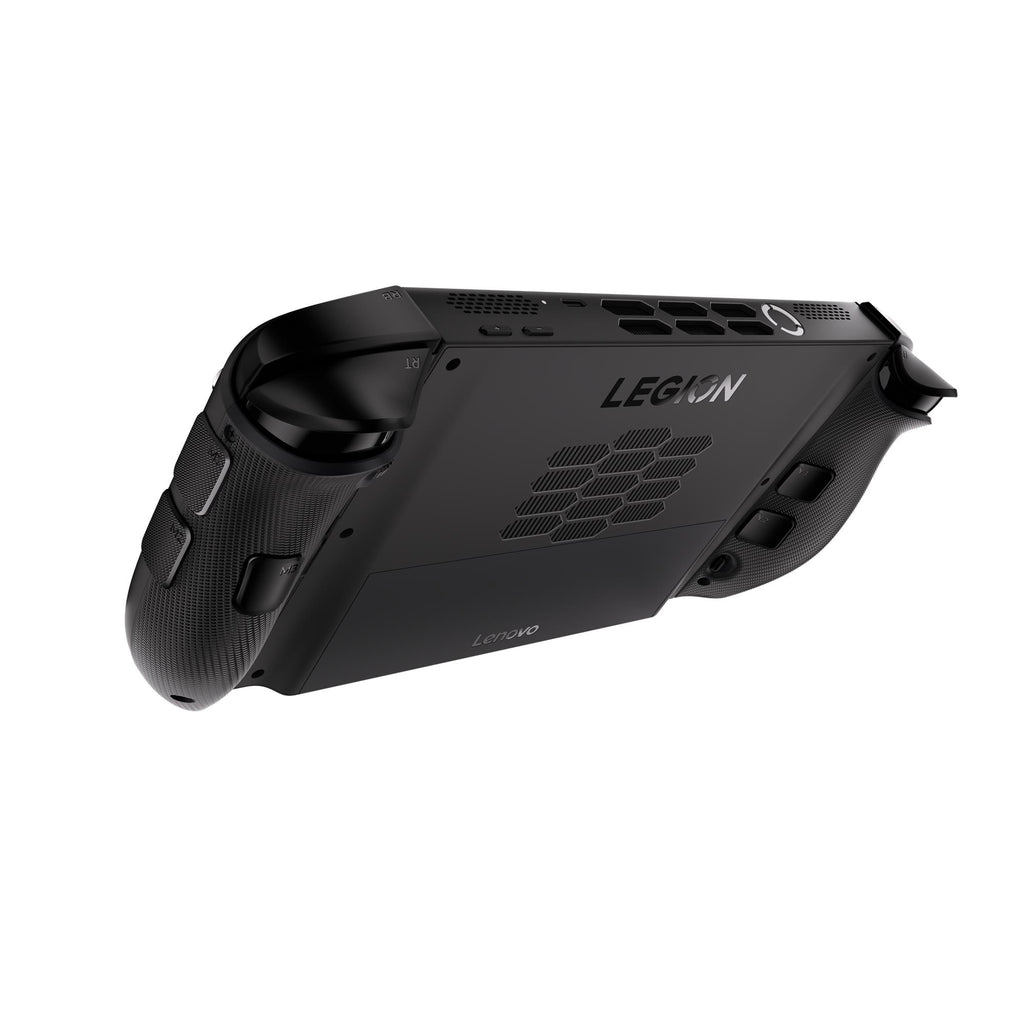

| Special Features | Legion Coldfront 2.0 cooling system |
| Display | 8.8" WUXGA (1920x1200) OLED 500nits (typical) / 1100nits (peak) Glossy / Anti-fingerprint, 100% DCI-P3, 144Hz, DisplayHDR™ True Black 1000, Corning® Gorilla® Glass 3, Low Blue Light, Touch |
| Touchscreen | In-cell, 10-point Multi-touch |
| Screen-to-Body Ratio | 85.8% AAR (active area ratio) |
| Pen | Pen Not Supported |
| Touchpad | Buttonless Mylar® surface touchpad (on the right controller), 24 x 24 mm (0.94 x 0.94 inches) |

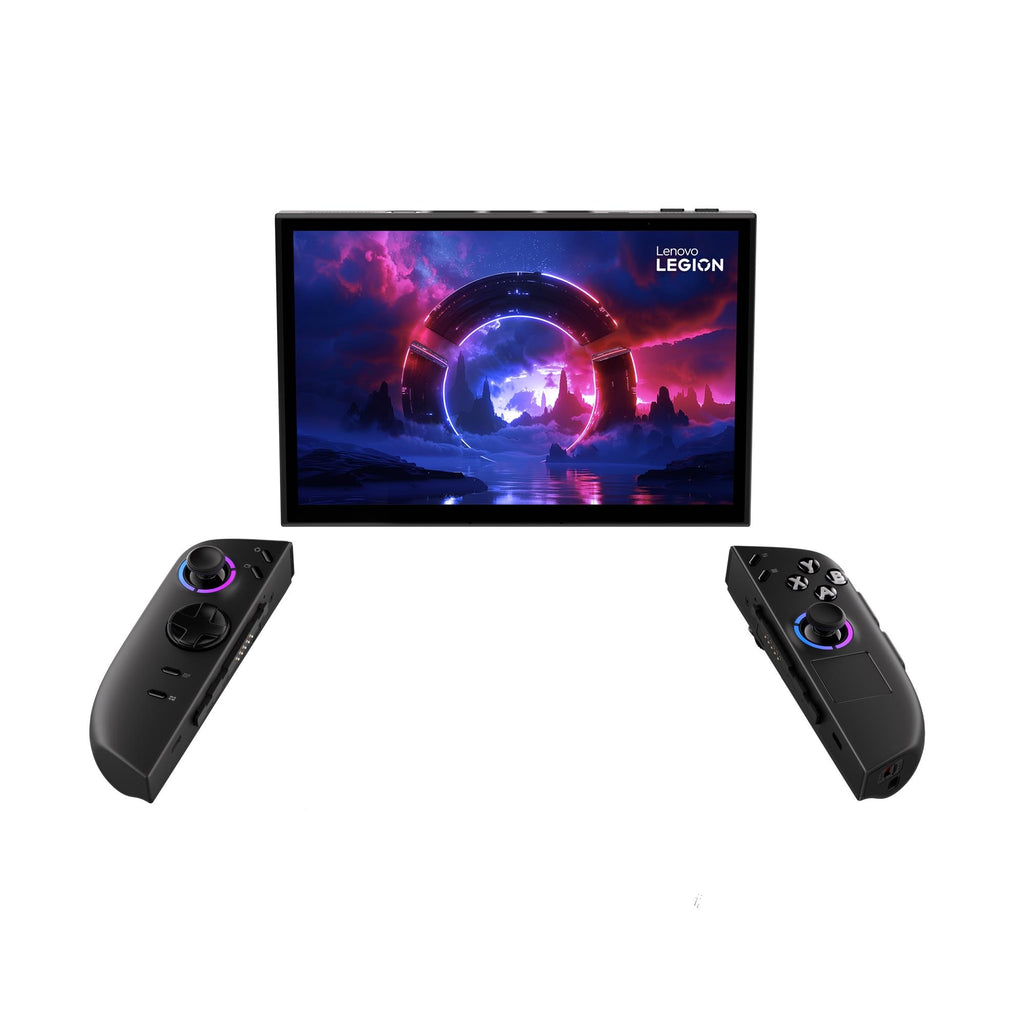

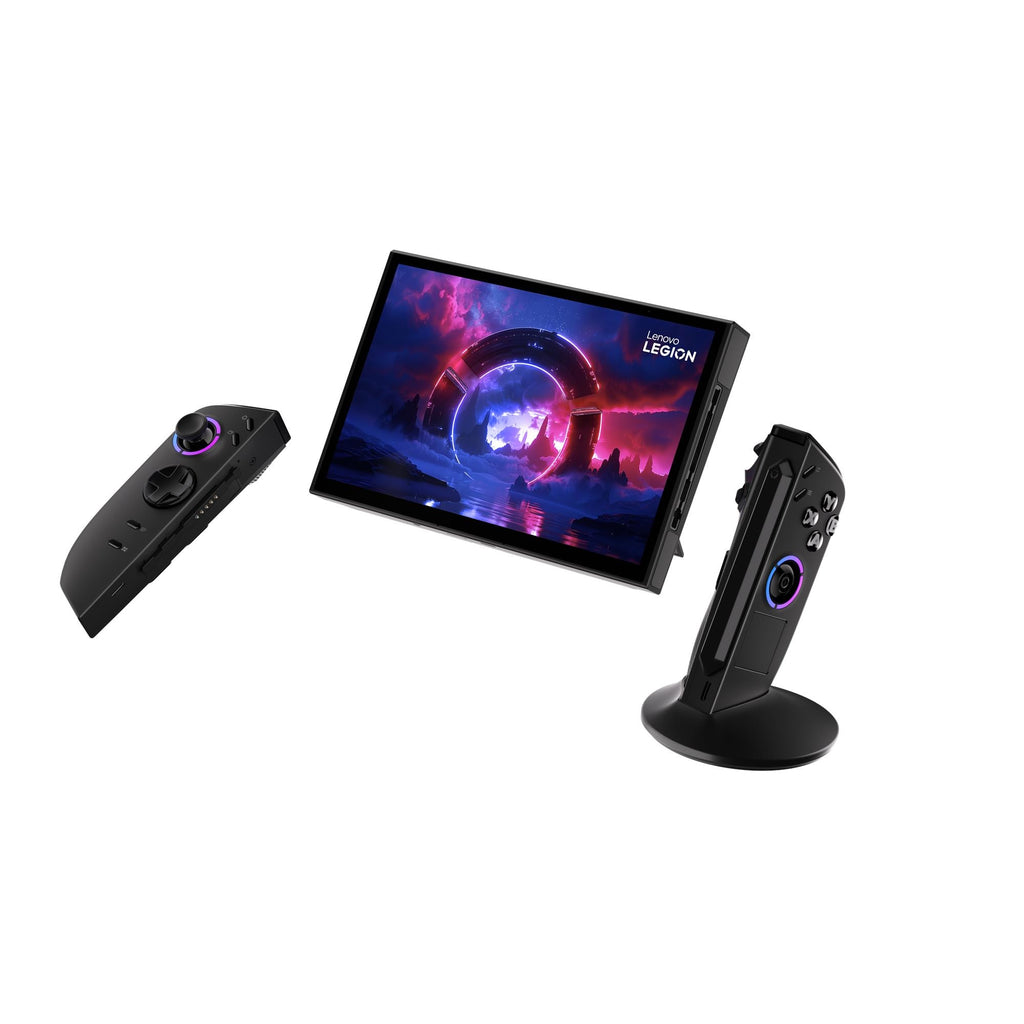

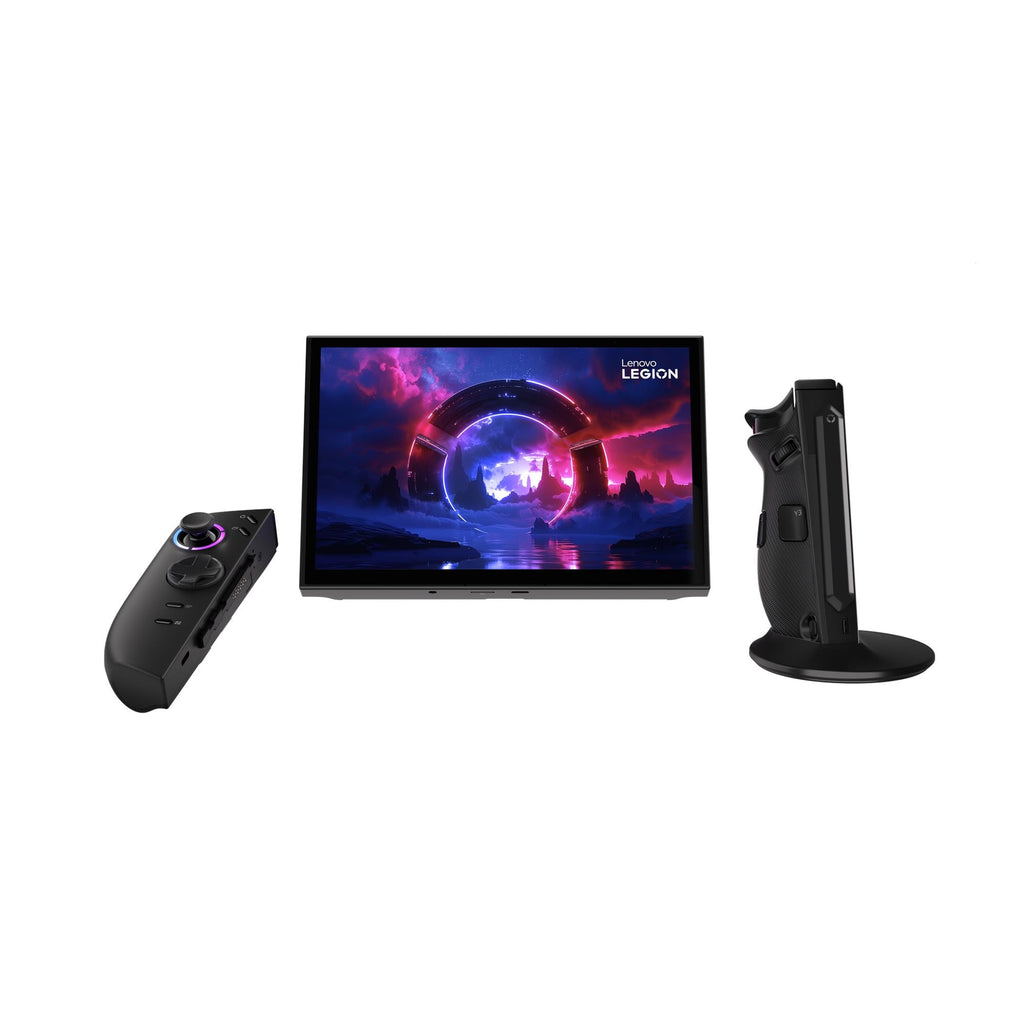

| Controls | A B X Y buttons D-pad Touchpad FPS mode switch Mouse wheel (on right controller) Left & right Joysticks Left & right release buttons LB & LT buttons RB & RT buttons Y1 & Y2 buttons M3 & Y3 buttons M1 & M2 buttons 6x function buttons |
| Dimensions (WxDxH) | Gamepad | 206 x 136.7 x 22.95 mm (8.11 x 5.38 x 0.90 inches) Gamepad with controllers | 295.6 x 136.7 x 42.25 mm (11.64 x 5.38 x 1.66 inches) |
| Weight | Gamepad with controllers | Around 920 g (2.03 lbs) Controllers only | Less than 210 g (0.46 lbs) |
| Case Color | Eclipse Black |
| Case Material | PC-ABS (Gamepad), PC-ABS (Controllers) |
| Surface Treatment | Painting (Gamepad), Painting + Special Texture (Controllers) |
| Others | Power button Volume keys |
| Operating System | Windows® 11 Home, English |
| Bundled Software | Office Trial |
| WLAN + Bluetooth | Wi-Fi® 6E, 802.11ax 2x2 + BT5.3 |
| WWAN | WWAN Not Supported |
| Ethernet | No Onboard Ethernet |
| Standard Ports | 2x USB-C® (USB4® 40Gbps), with USB PD 65-100W and DisplayPort™ 2.1 2x USB-C® (support charging only) 1x Headphone / microphone combo jack (3.5mm) 1x Card reader |
| Docking | Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion Go 8ASP2 |
| Security Chip | Firmware TPM 2.0 Enabled |
| Fingerprint Reader | Touch Style, Integrated in Power Button |
