Description

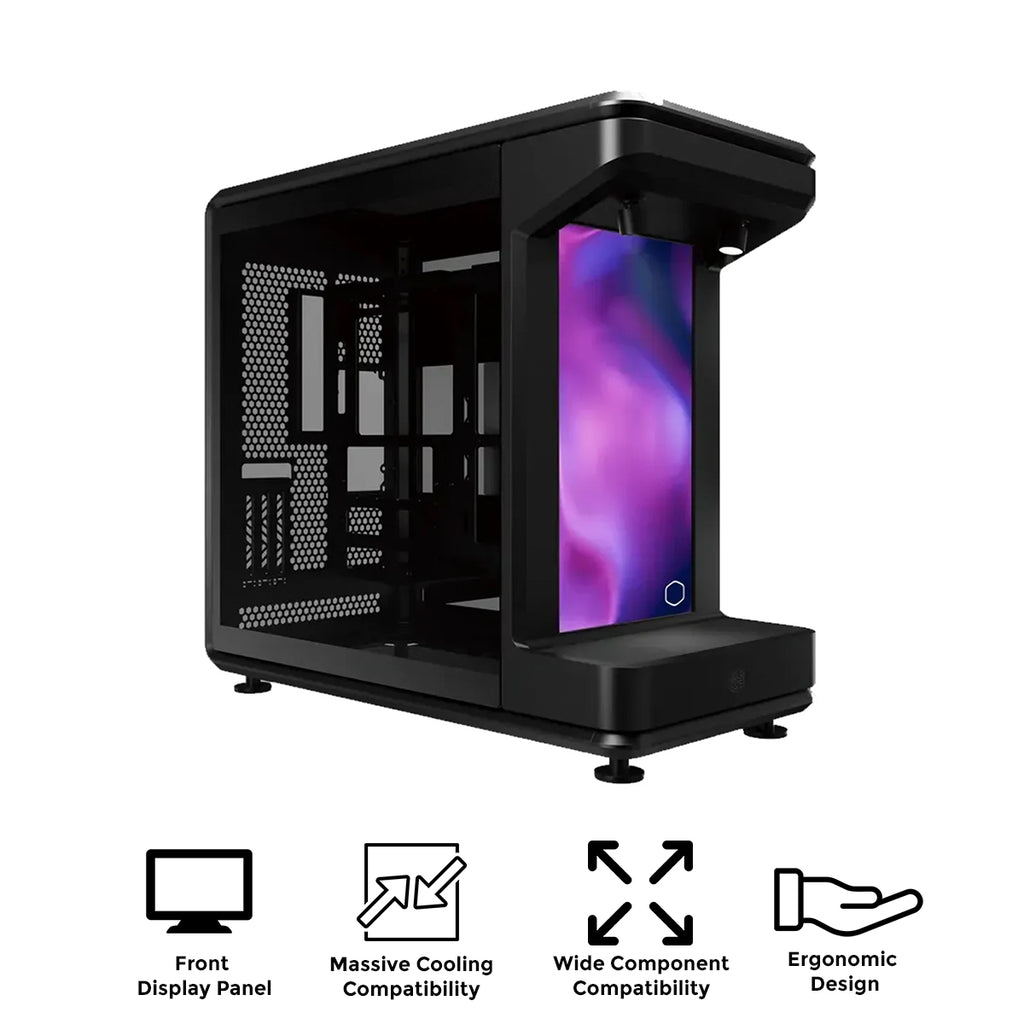

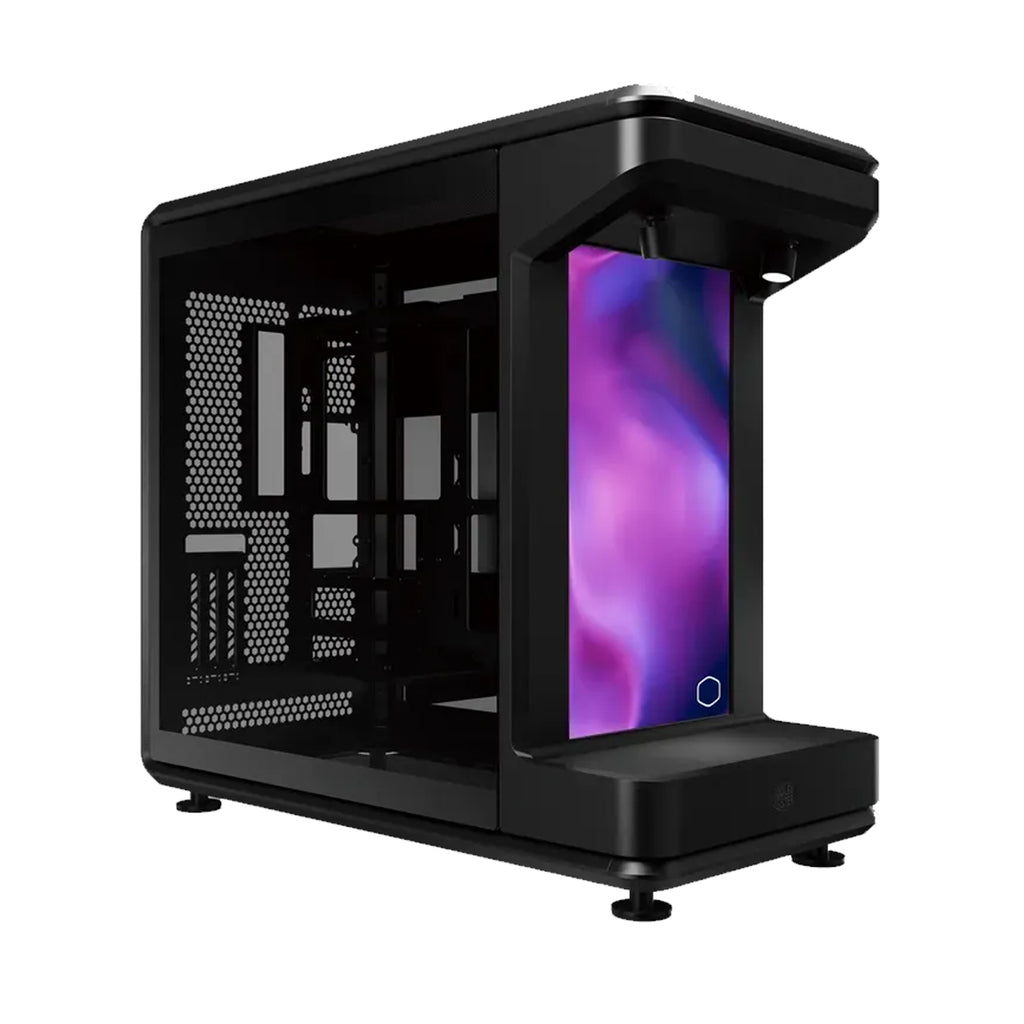

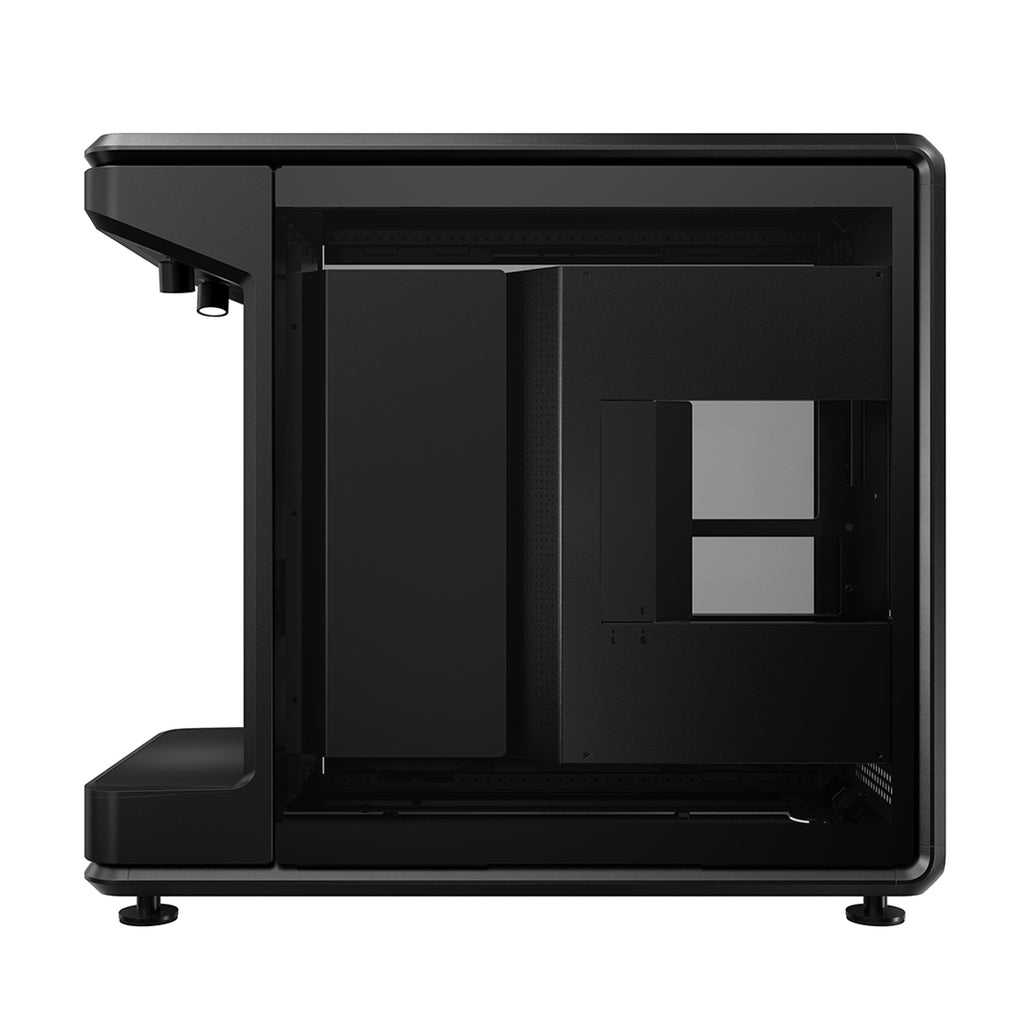

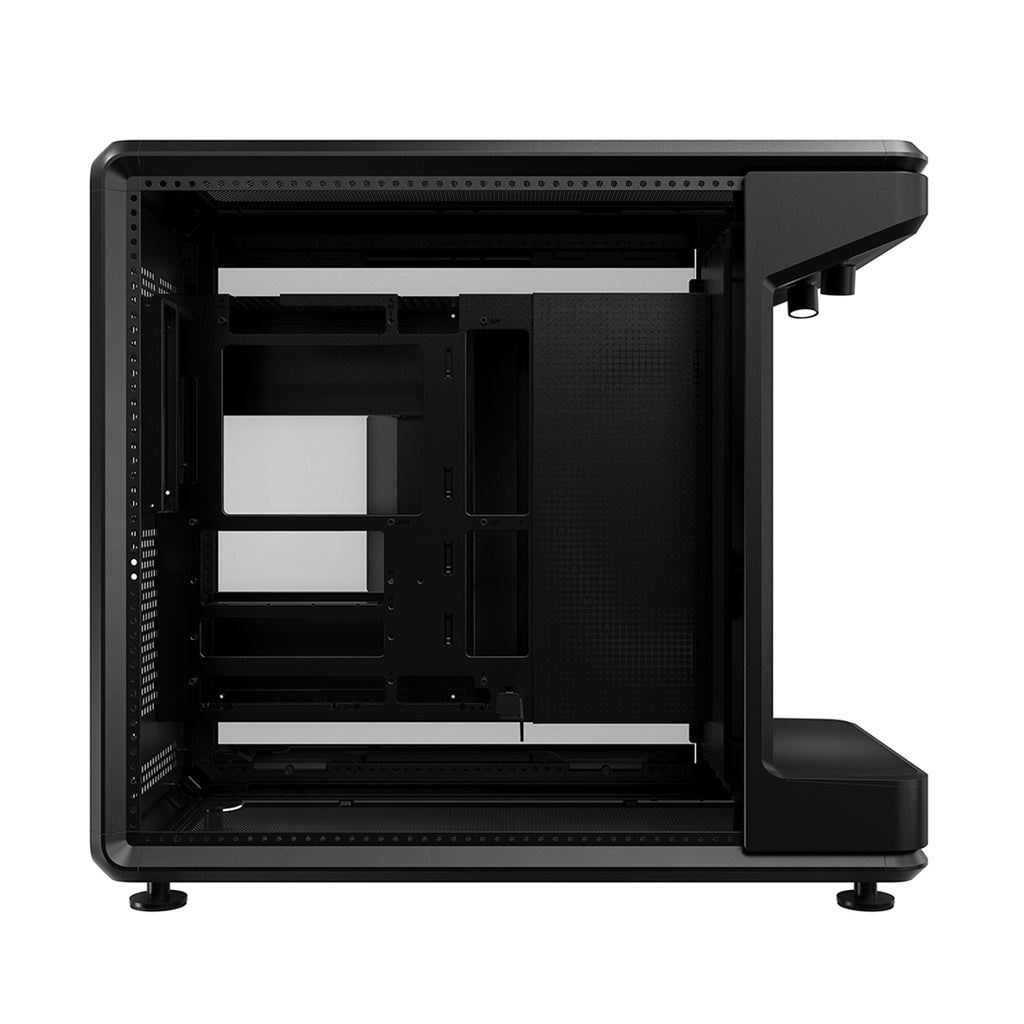

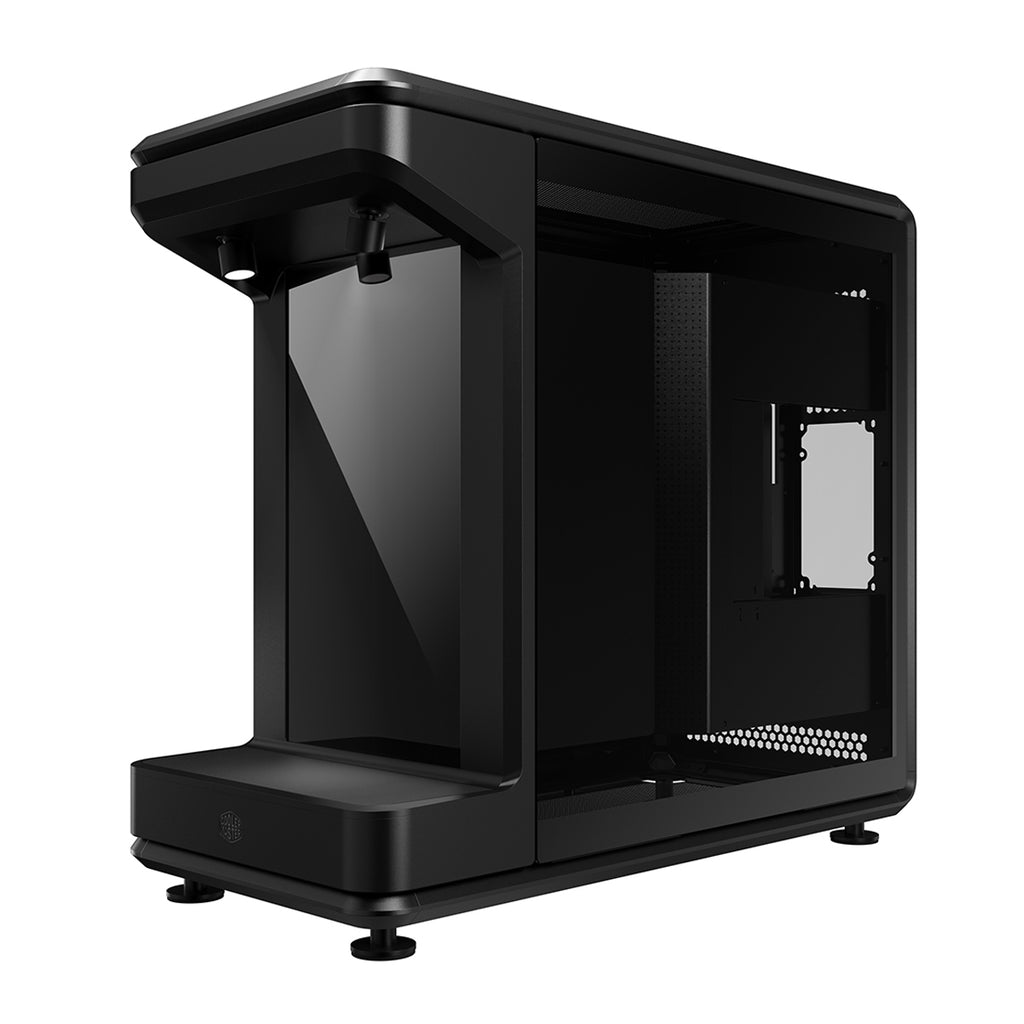

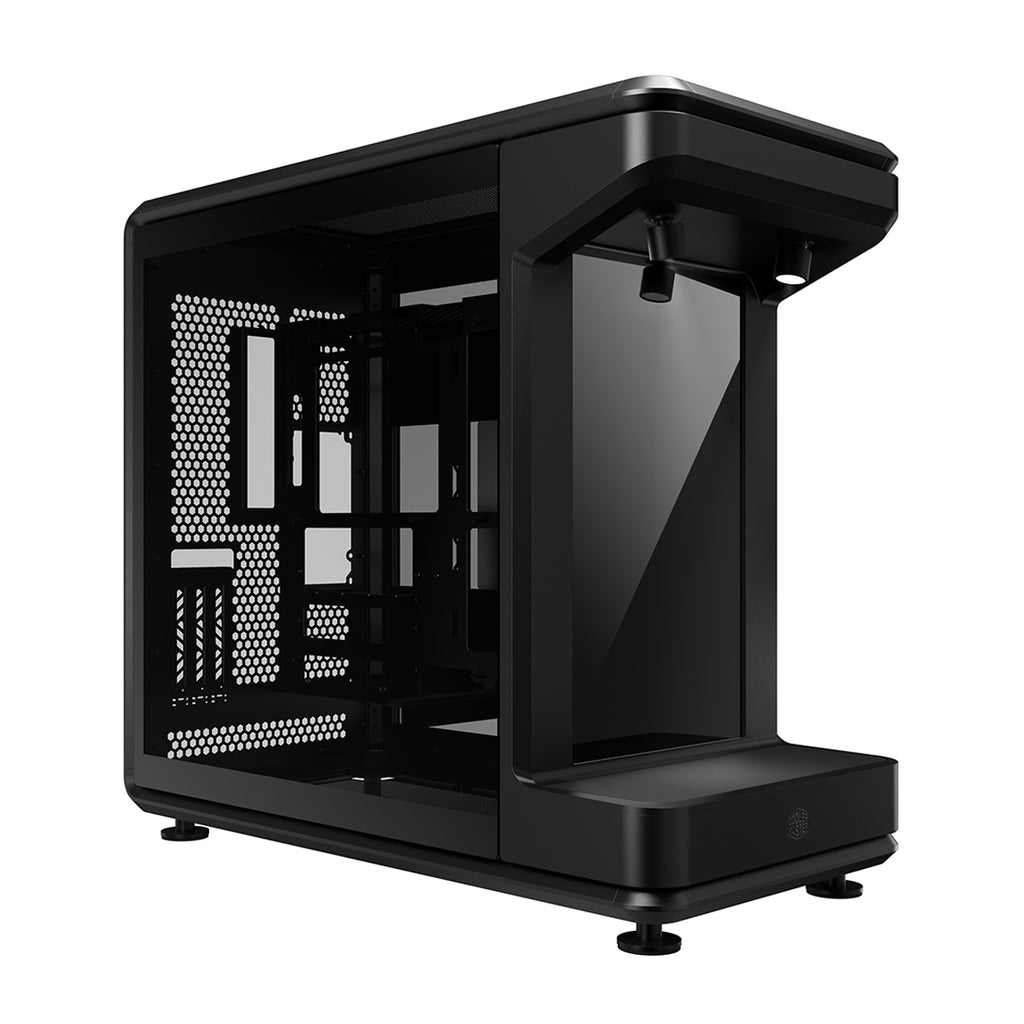

| Product Name | MasterFrame 360 Stage LCD |
| Product Number | MF360-KHNN-S02 |
| Colour | Black |
| Materials - Exterior | SGCC |
| Materials - Side Panel (Right / Left) | TG / TG |
| Dimensions (L x W x H) | 549 x 291 x 581 mm (Incl. Protrusions) 511 x 291 x 581 mm (Excl. Protrusions) |
| Volume | 86 L (without panel, protrusions and feet) 93 L (with panel, protrusions and feet) |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, BTF (ATX) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 3.5 |
| Drive Bay Support – 3.5" | 0 |
| Drive Bay Support – 2.5" / 3.5" | 1x HDD or 2x SSD |
| Preinstalled Drive Bay | 1x HDD or 2x SSD |

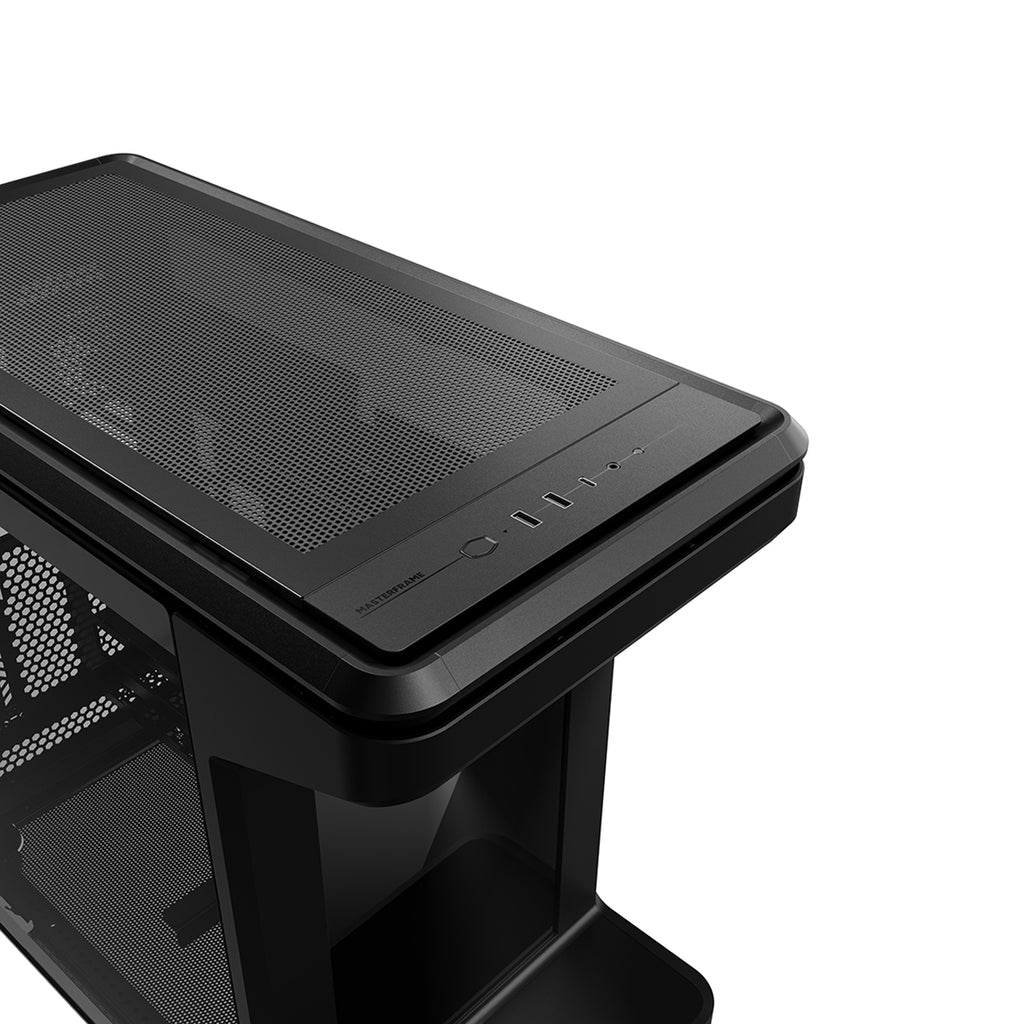

| I/O Panel – USB | 2x USB 3.2 Gen 1 Type-A (5G) 1x USB 4.0 Gen 2x2 Type-C (20G) |
| I/O Panel – Audio | 1x 3.5mm Headset Jack (Audio + Mic) |
| Fan Support – Top | 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support – Bottom | 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360 mm (Max thickness 75mm) |
| Radiator Support – Bottom | 120 / 140 / 240 / 280 / 360 mm (Max thickness 75mm) |
| Dust Filters | Mesh Only (Removable) |

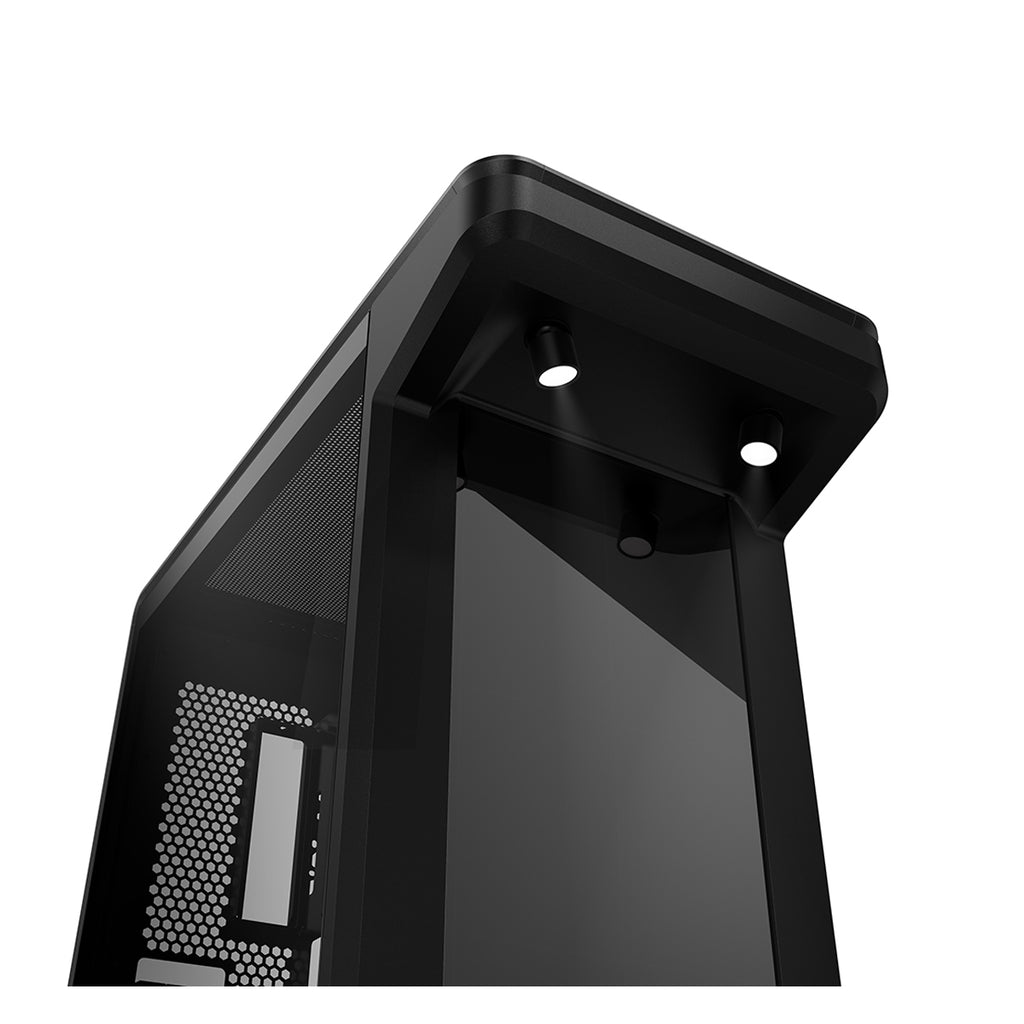

| Other Electronic Components | 1x PCI-e 5.0 Riser 2x ARGB Spotlight |

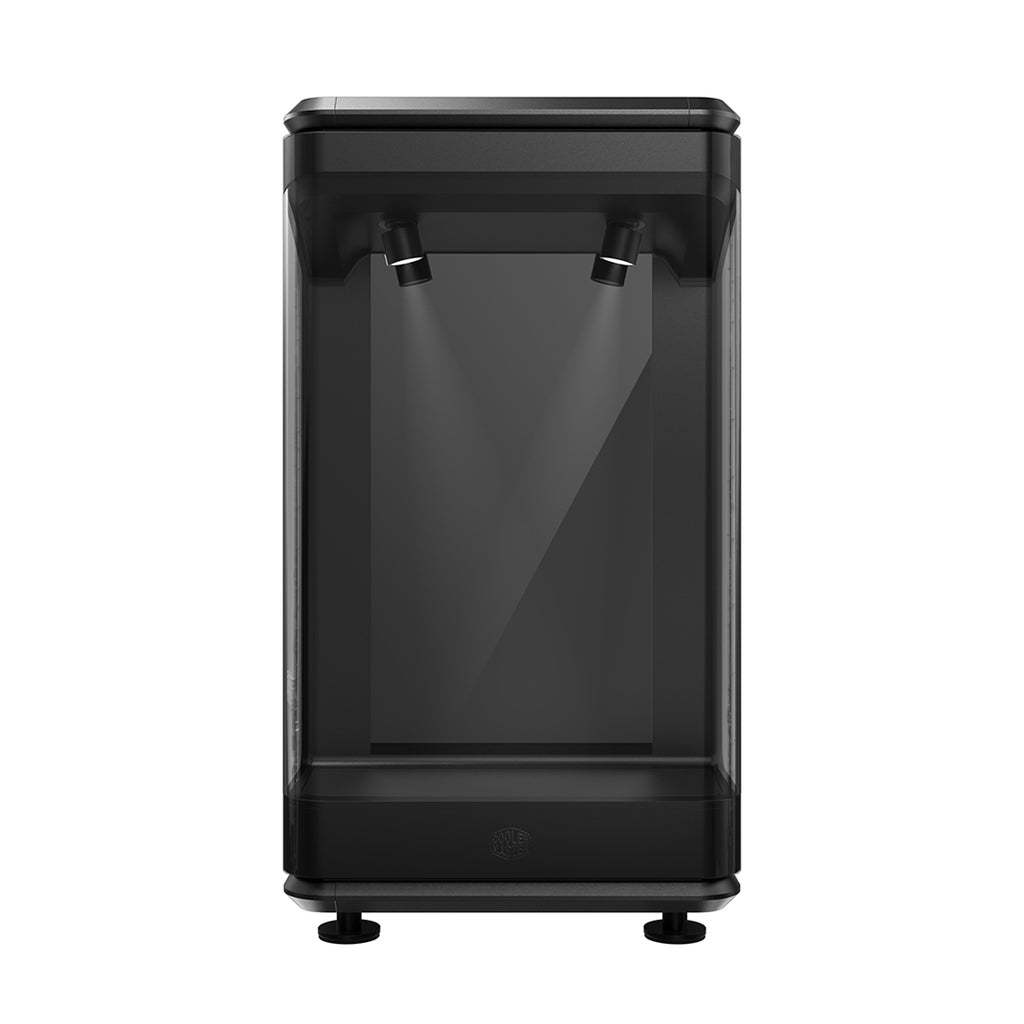

| Maximum Front Collectibles Display (H x W x D) | 328 x 290 x 110 mm |
| DIY Tank & Pump Support | Yes (Left Side) |
| Toolbox | Yes |
| Clearance – CPU Cooler | 145 mm |
| Clearance – Power Supply | 210 mm |
| Clearance – Graphics Card | 430 mm |
| Cable Routing – Behind Motherboard Tray | 110 mm |
| Size | Mid Tower |
| Series | MasterFrame Series |
