Description

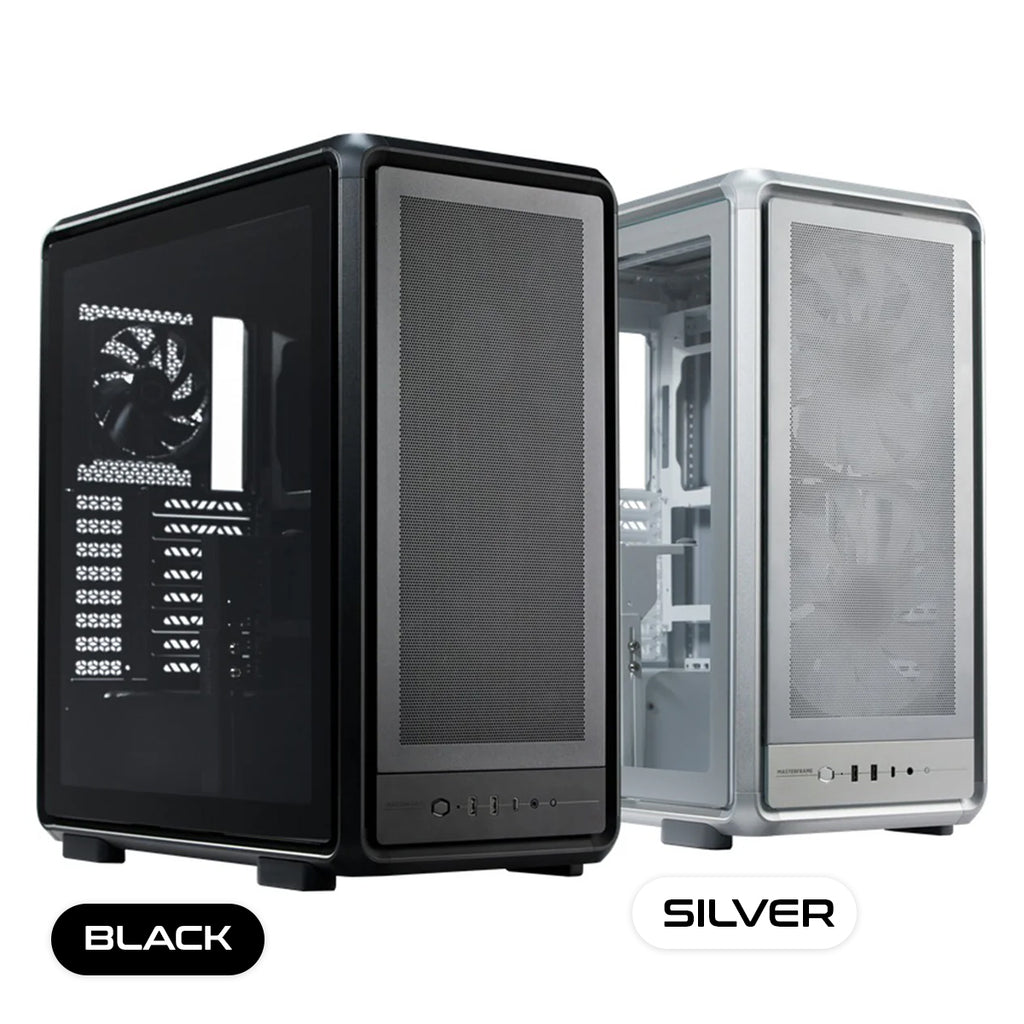

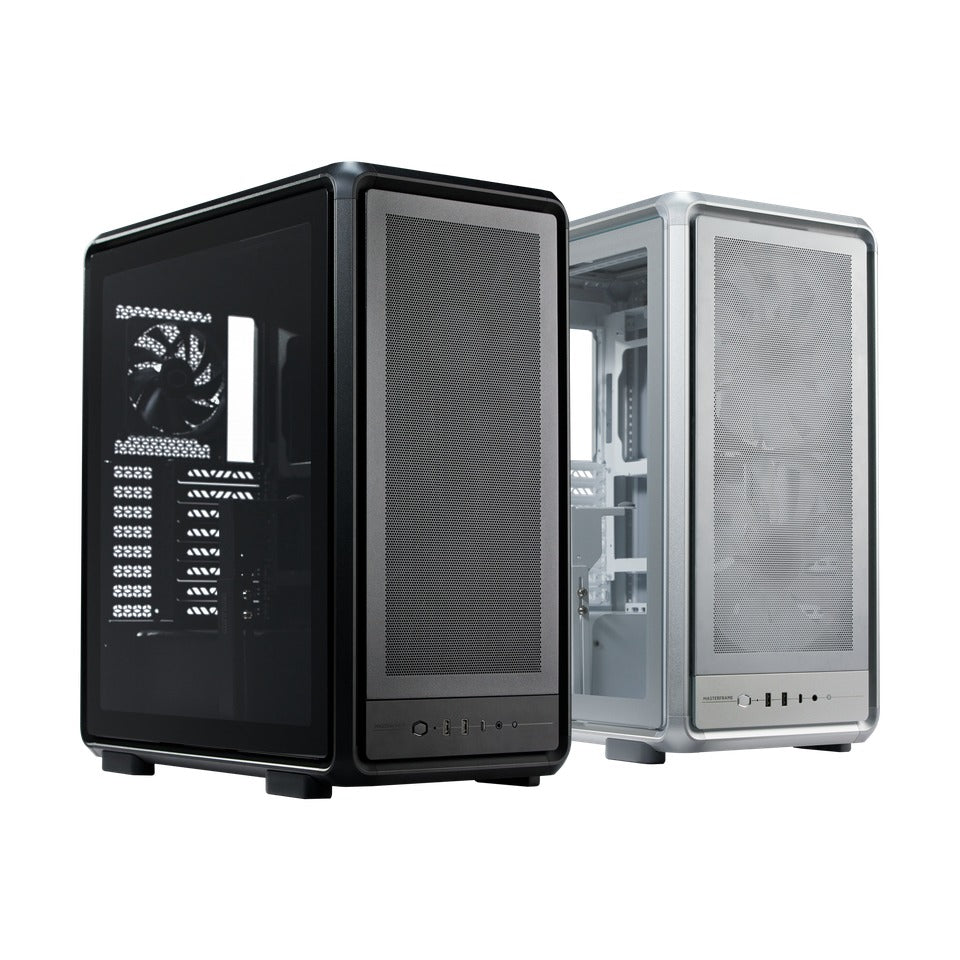

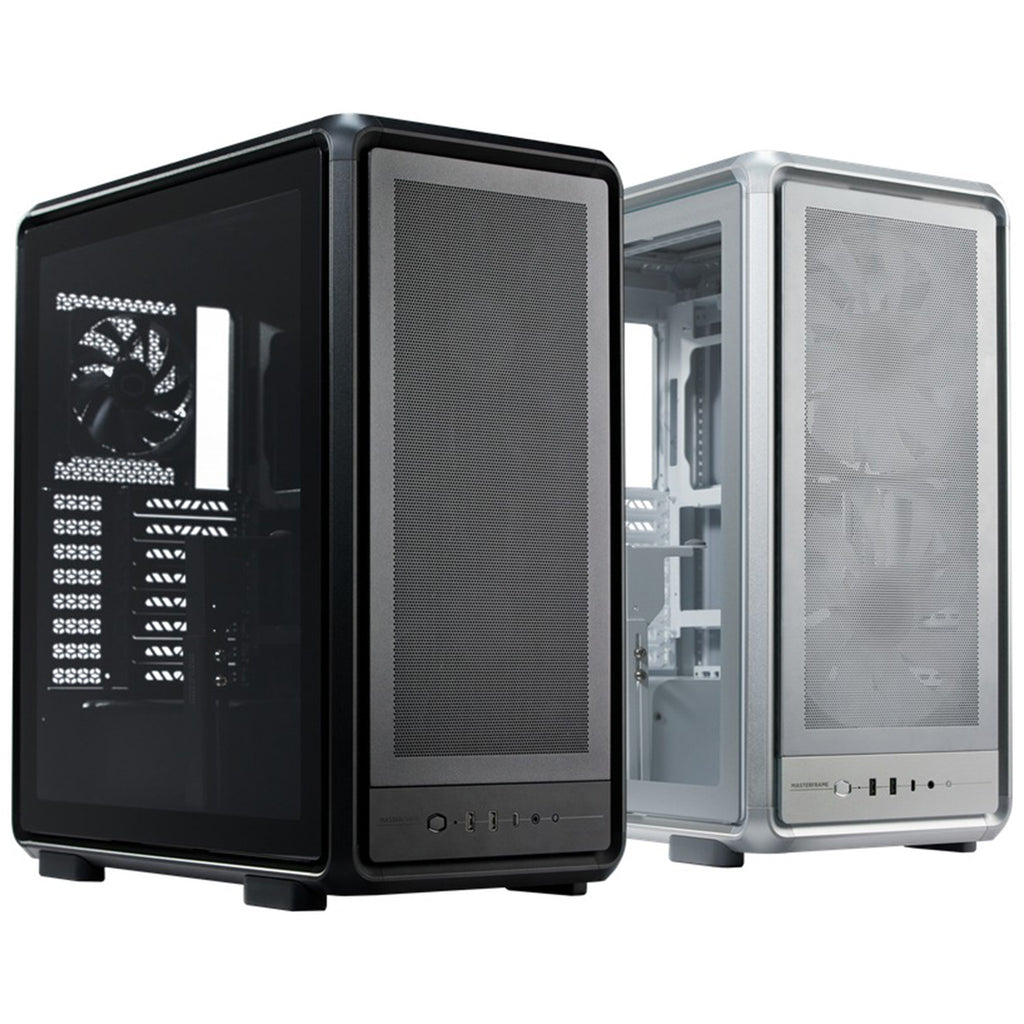

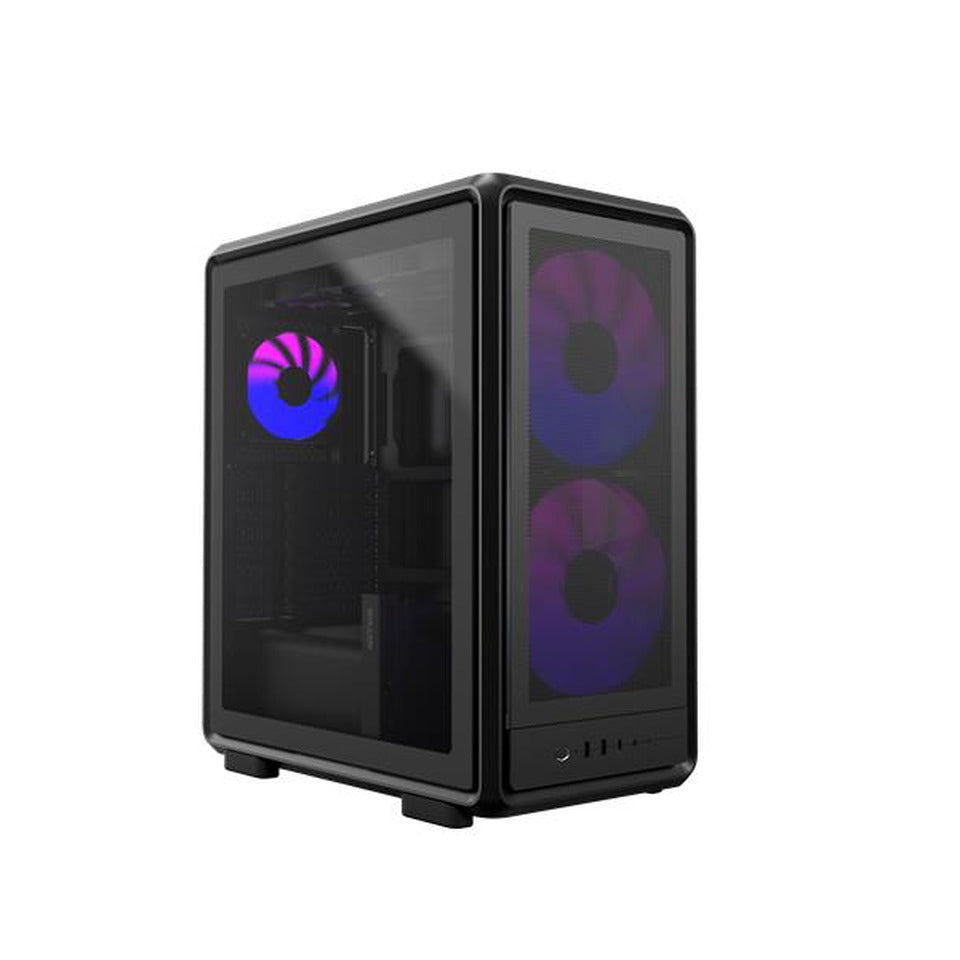

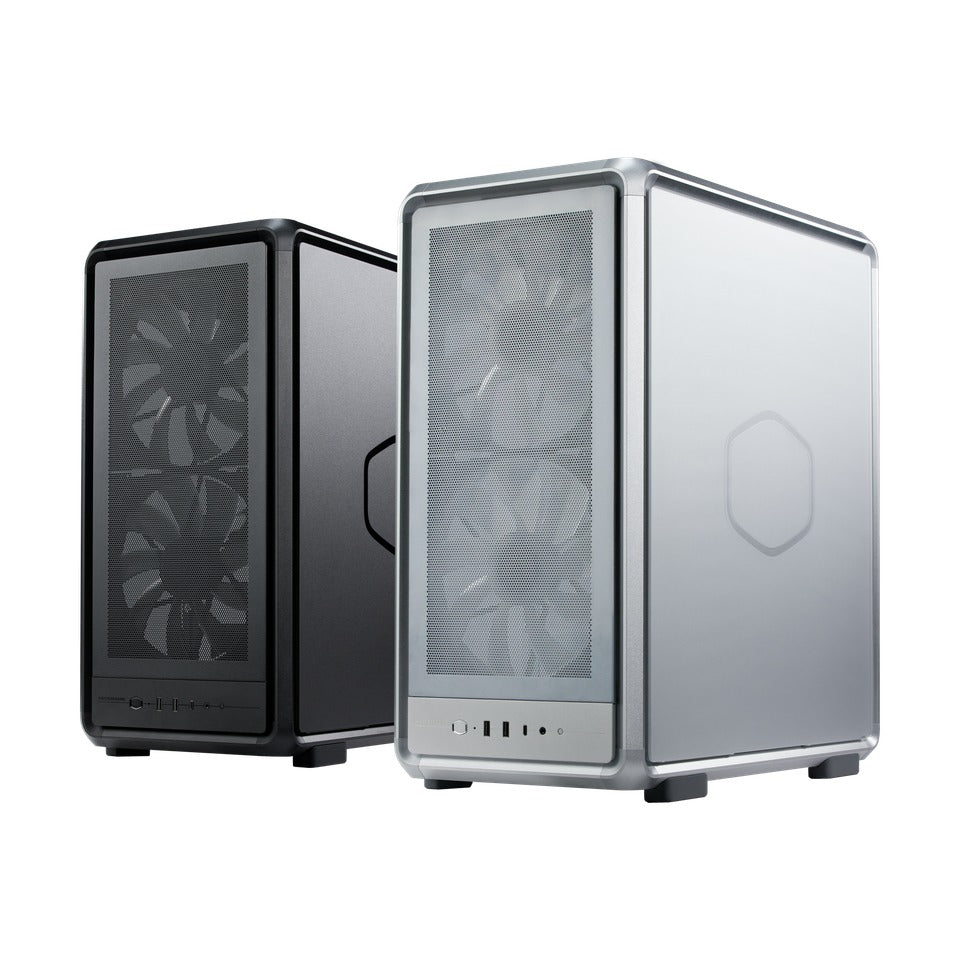

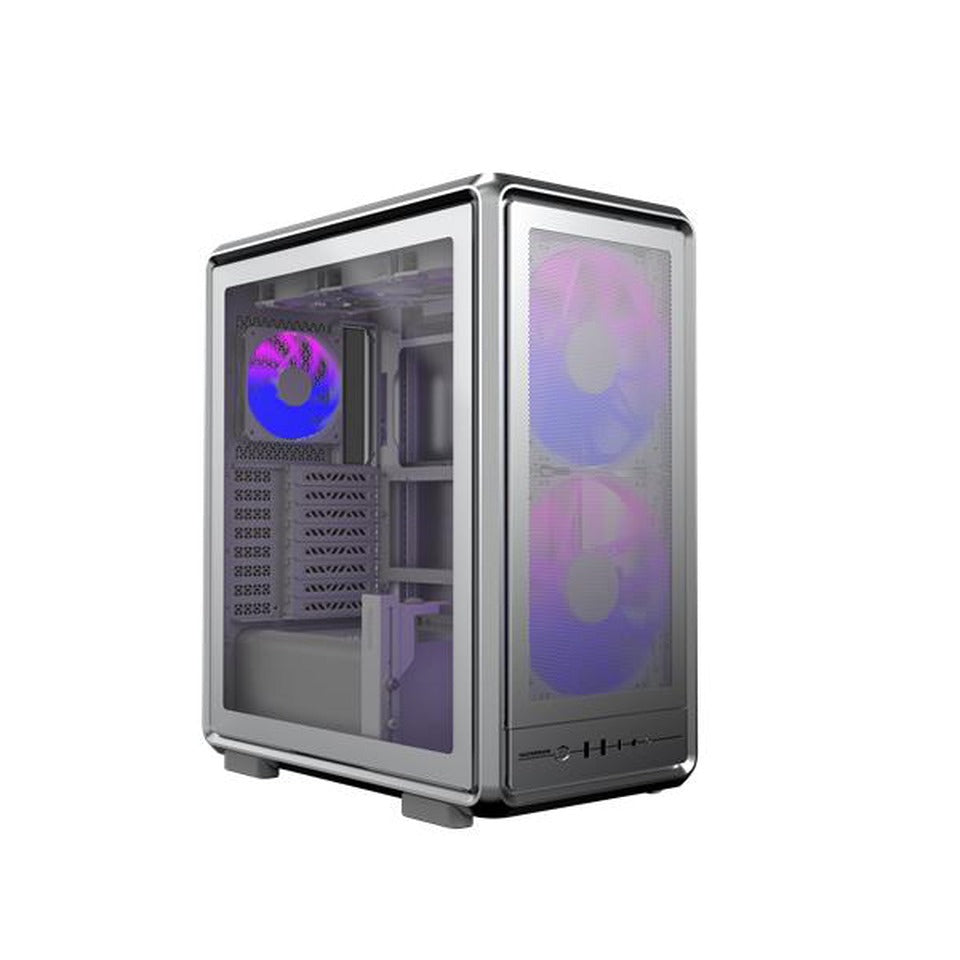

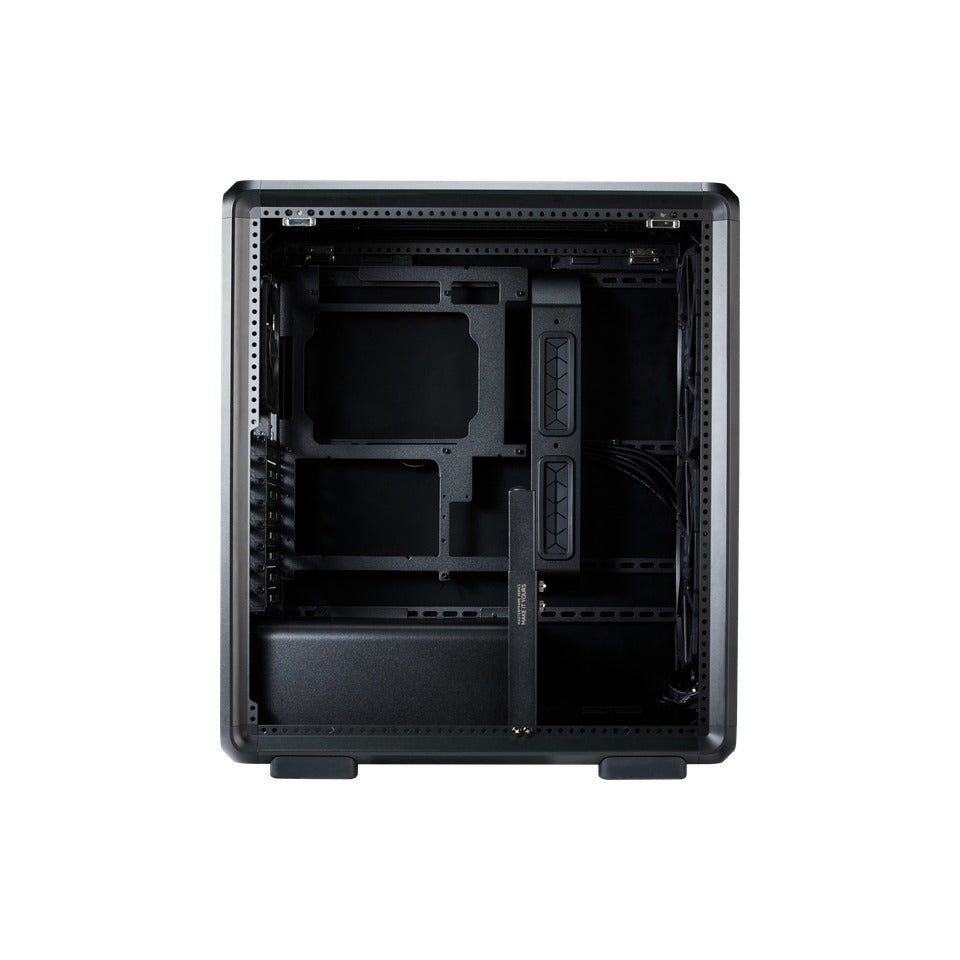

Cooler Master MasterFrame 500 Mesh Tempered Glass ATX Case (Black, Silver)
Specification:
| Model Number |
Black: MF500M-KHNN-S01 (ARGB) Silver: MF500M-SHNN-S01 (ARGB) |
| Color(s) | Black/Silver |
| Materials - Exterior | SGCC Steel, Aluminum |
| Materials - Side panel (Right / Left) | Tempered Glass |
| Dimensions (L x W x H) | 471 x 261 x 544mm (Incl. Protrusions), 471 x 244 x 514mm (Excl. Protrusions) |
| Volume | 60.9 L (Excl. Protrusions) |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 8 |
| 3.5" Drive Bays | 0 |
| 2.5" / 3.5" Drive Bays (Combo) | 1 (Bottom) |
| Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD) (remark Toolfree quantity) | 1x 2.5 or 1x 3.5 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
| Pre-installed Fans - Front | ARGB: 2x SickleFlow 200mm ARGB |
| Pre-installed Fans - Rear | ARGB: 1x 120mm ARGB, |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support - Top | 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120 mm |
| Dust Filters | Mesh Only (Removable Filters) |
| Clearance - CPU Cooler | 190 mm |
| Clearance - PSU | 235 mm |
| Clearance - Graphics Card | 390 mm |
| Included Accessories | GPU Support Bracket |
| Cable Routing - Behind Motherboard Tray | 43 mm |
| Warranty | 2 years |
| Size | Mid Tower |
| Series | MasterFrame Series |
