Description

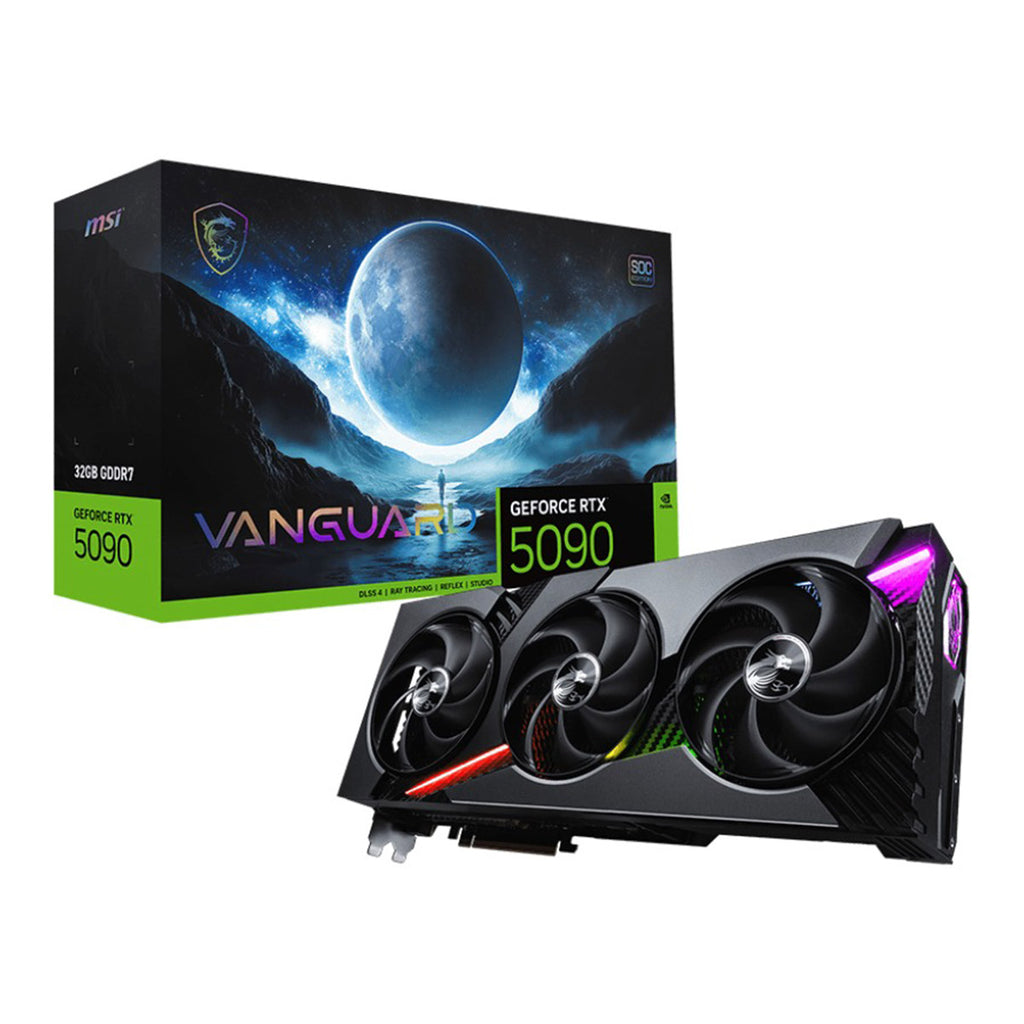

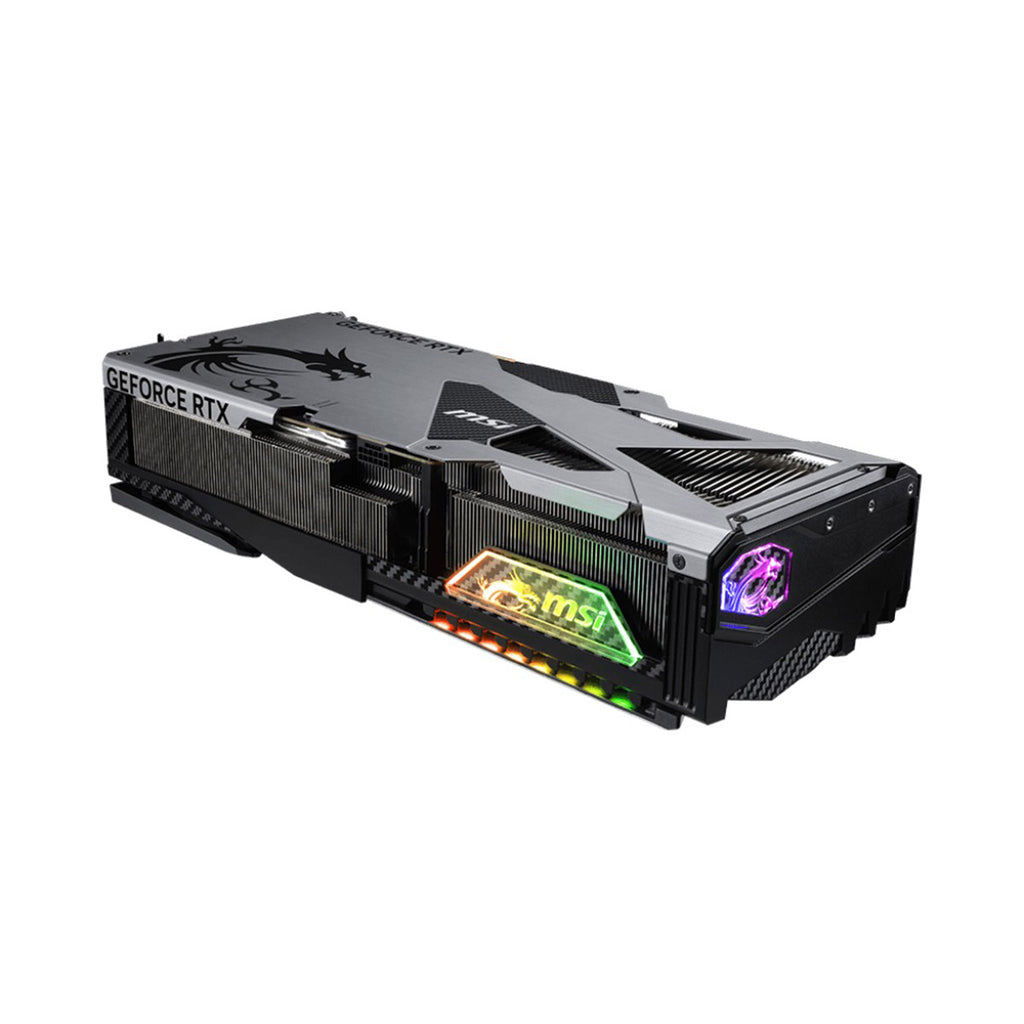

GeForce RTX™ 5090 32G VANGUARD SOC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
-
Core Clocks:
Extreme Performance: 2527 MHz (MSI Center)

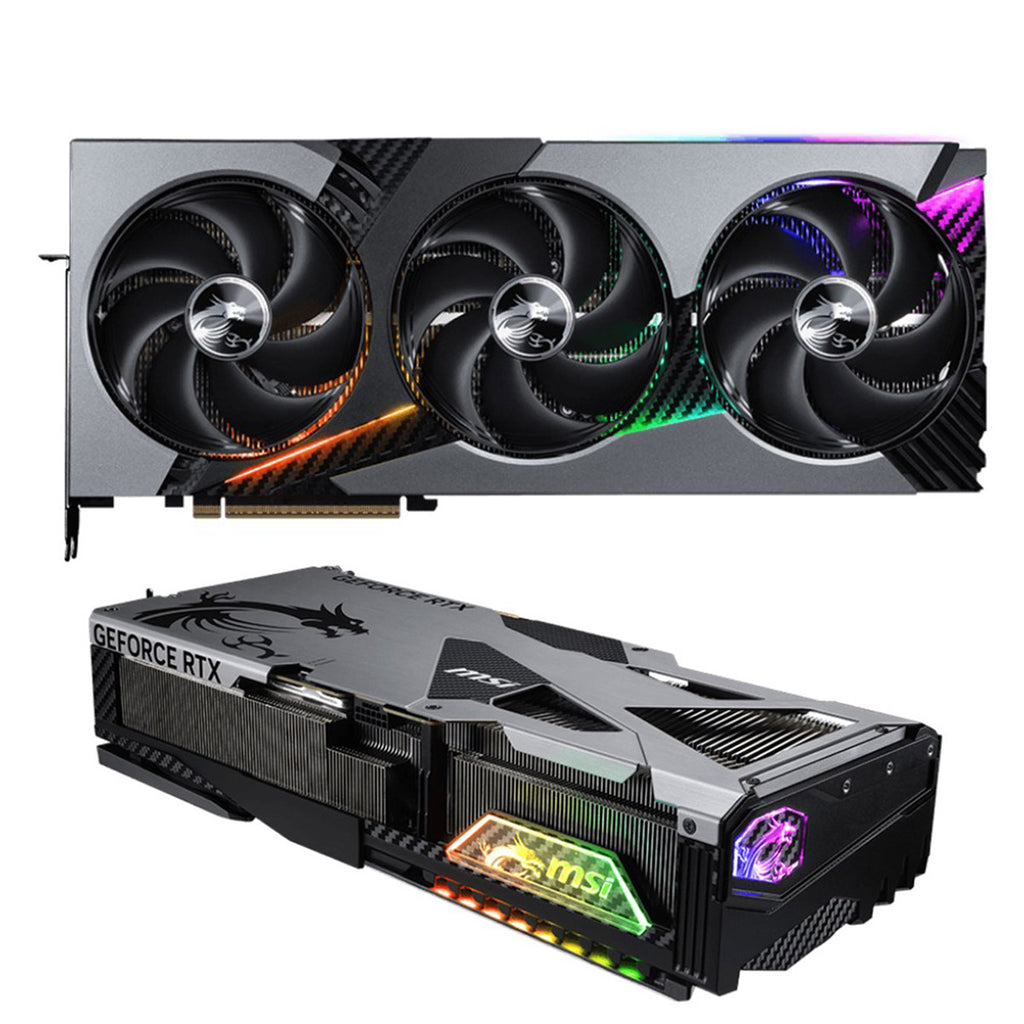

Boost: 2512 MHz (GAMING & SILENT Mode) - HYPER FROZR THERMAL DESIGN: An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Advanced Vapor Chamber: Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
- Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
- Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

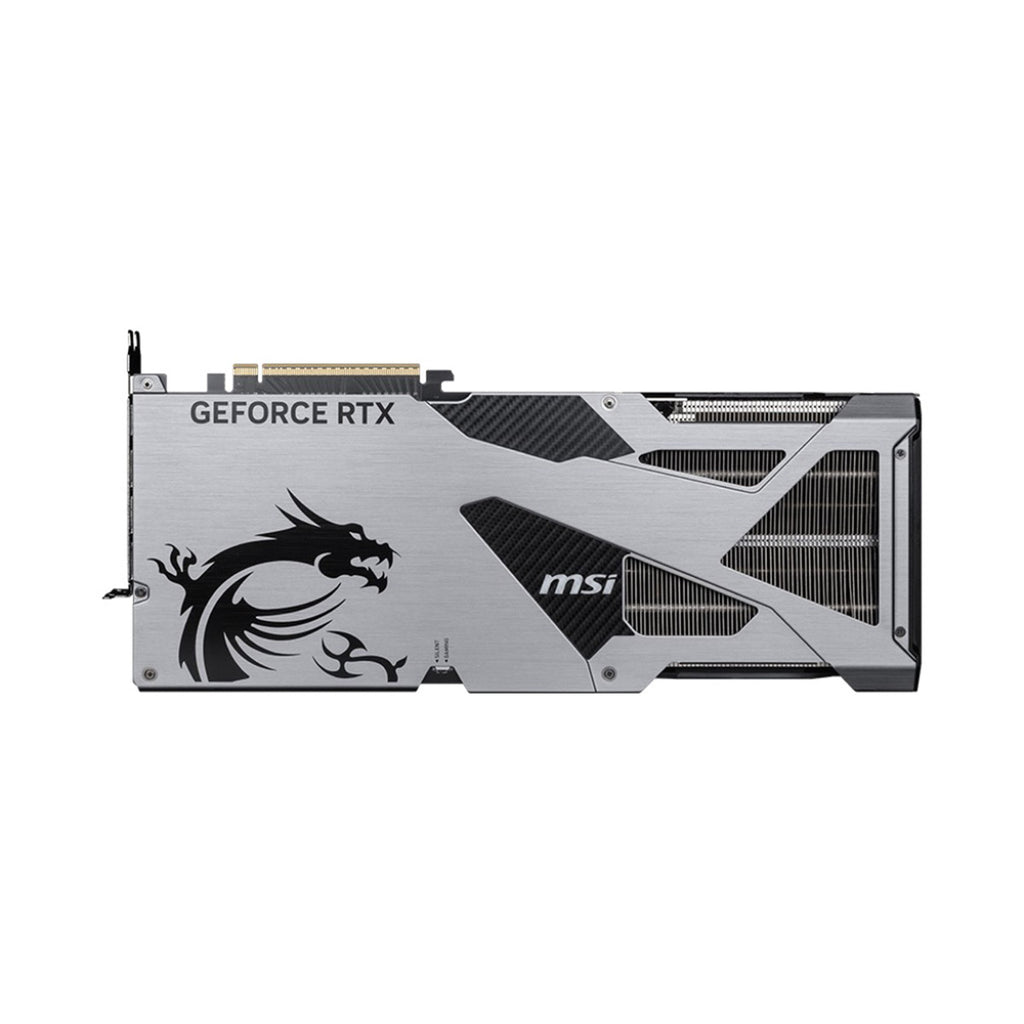

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Dual BIOS: Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
|

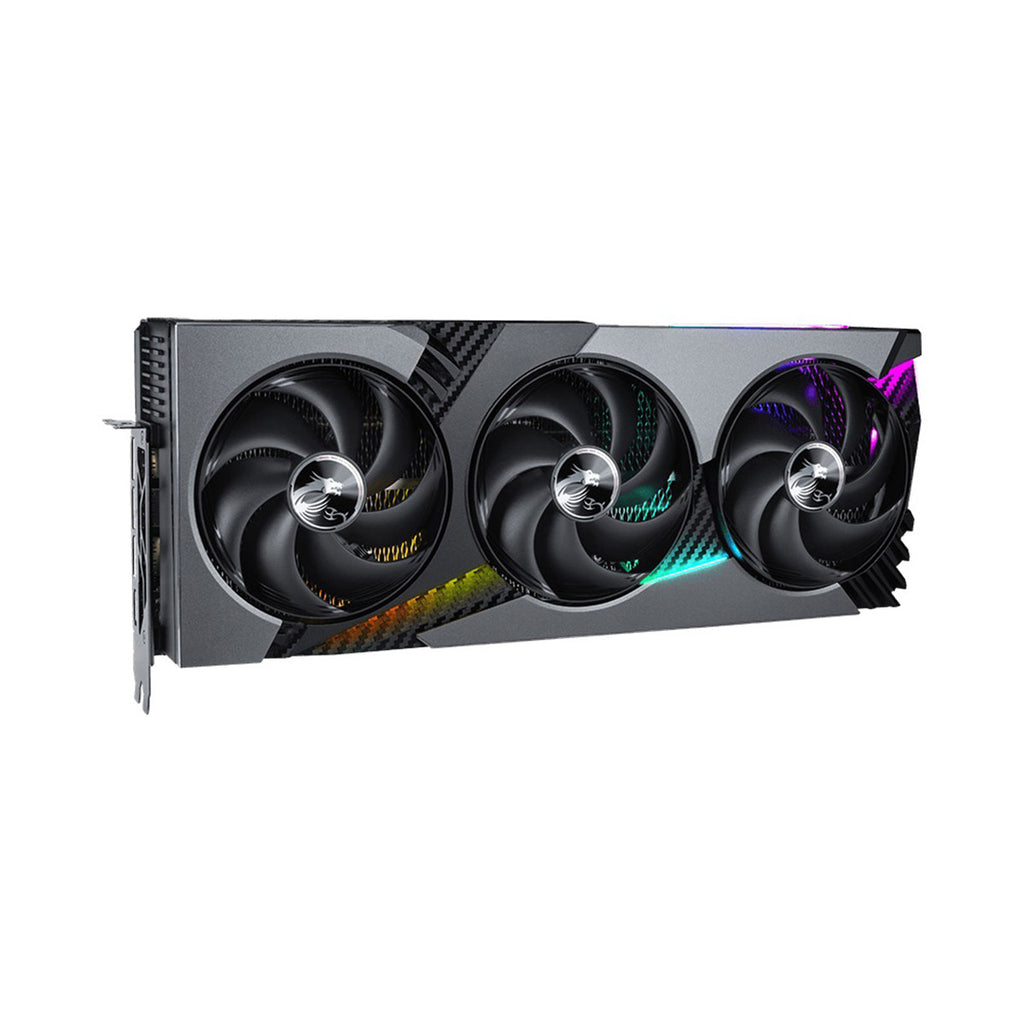

STORMFORCE FAN
The STORMFORCE Fan features seven claw-textured blades designed to enhance air pressure, while a circular arc optimizes airflow for superior cooling, minimal noise, and exceptional performance. Built with durable double ball bearings, ensuring long-lasting reliability and smooth operation, even under intense usage.
|
|
|
|
ADVANCED VAPOR CHAMBER
The built-in Vapor Chamber quickly absorbs heat from the GPU and VRAM, efficiently and uniformly transferring it to the core pipe for optimal heat dissipation.
|
|
OPTIMIZED HEAT DISTRIBUTION - CORE PIPES Core pipes feature a square-shaped contact area, engineered for maximum heat capture in conjunction with the Vapor Chamber, enhancing overall cooling efficiency. |
|
|
AIRFLOW CONTROL Strategically designed heatsink fins disrupt unwanted airflow harmonics while minimizing noise. |
Specification:
| Marketing Name | GeForce RTX™ 5090 32G VANGUARD SOC |
|---|---|
| Model Name | G5090-32VGS |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2527 MHz (MSI Center) Boost: 2512 MHz (GAMING & SILENT Mode) |
| CUDA® CORES | 21760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512bit |

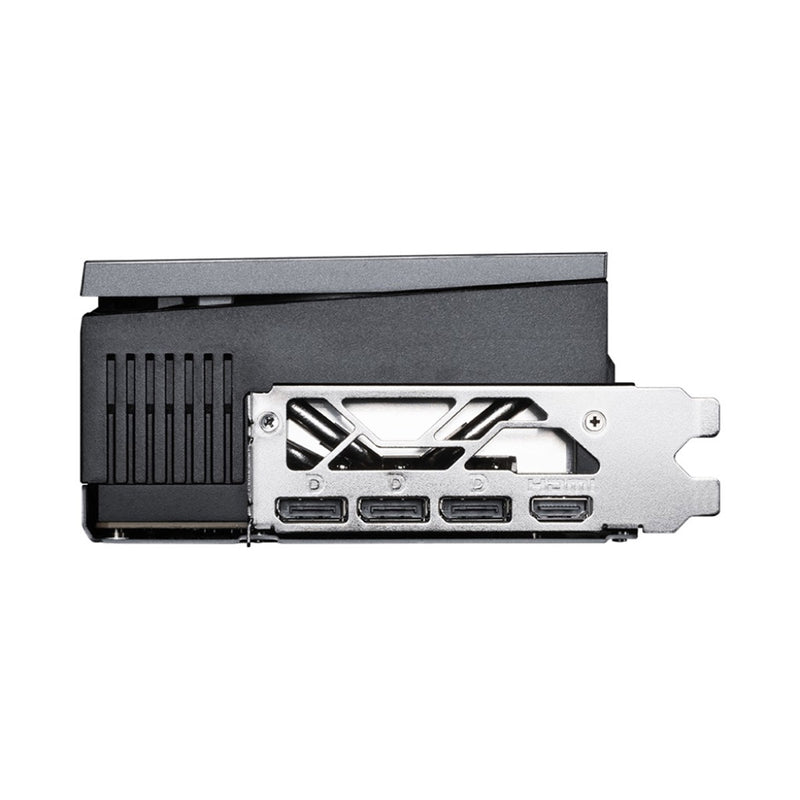

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 575W |

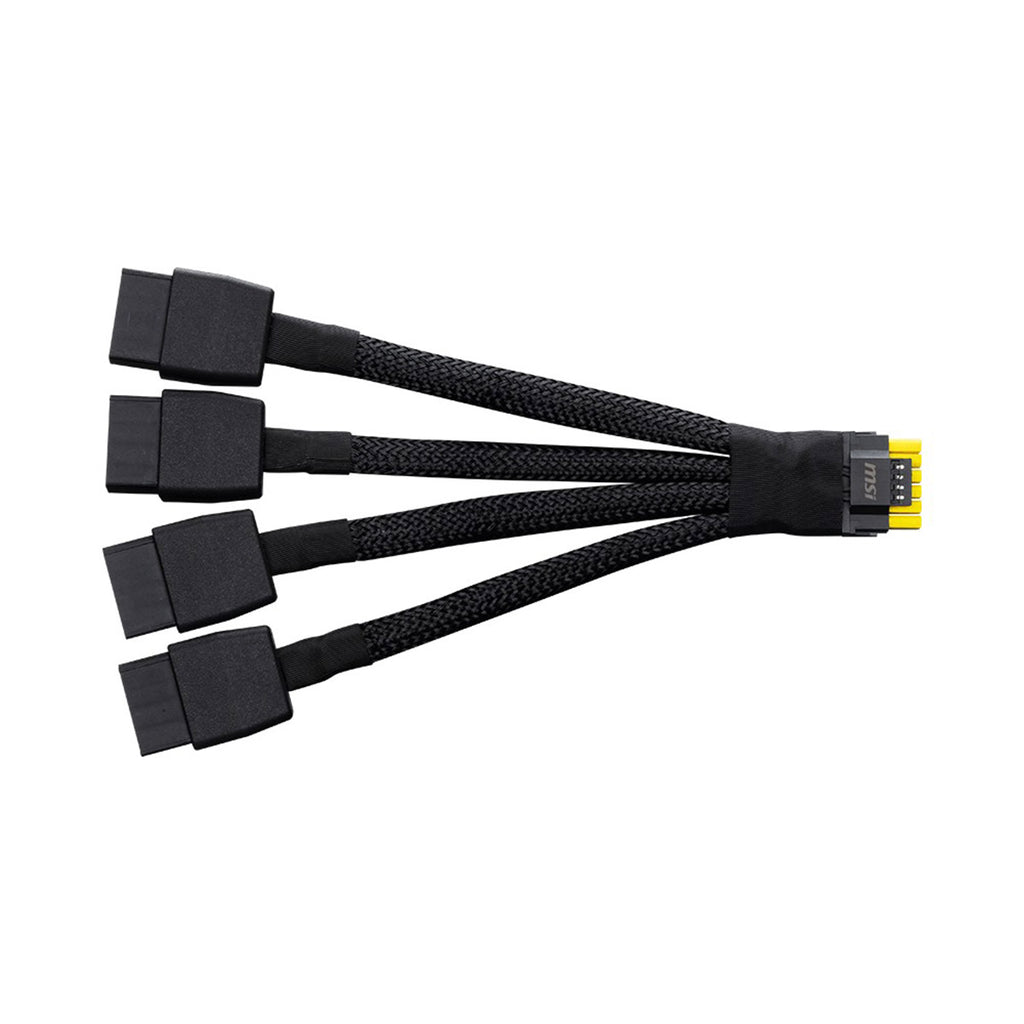

| Power connectors | 16-pin x 1 (ATX 3.1 PSU recommended) |
| Recommended PSU | 1000W |
| Card Dimension (mm) | 357 x 151 x 76 mm |
| Weight (Card / Package) | 2407 g / 3302 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
