Description

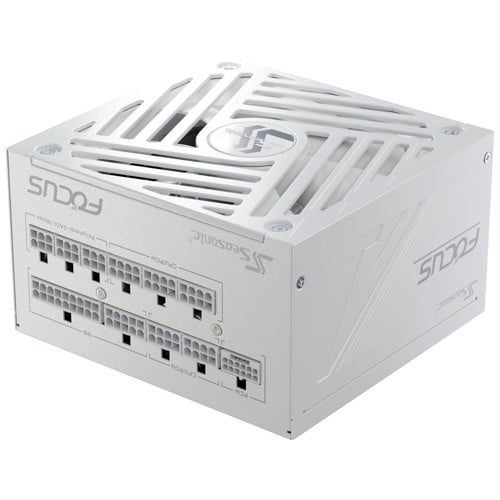

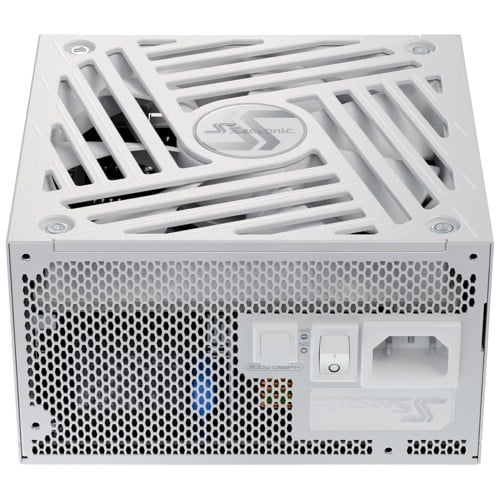

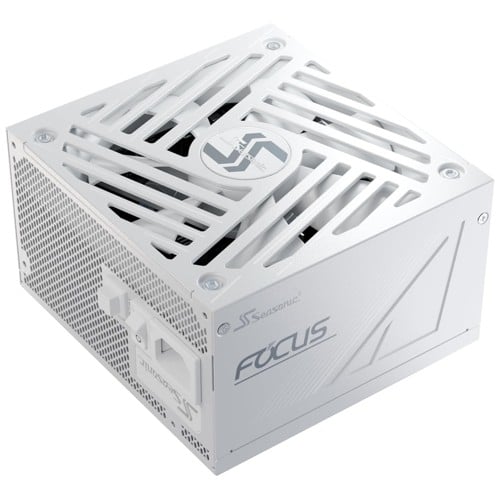

Elevate your gaming or professional PC with the Seasonic Focus GX-850 ATX 3 V4 White SRP-FGX851-A5A32SF, a fully modular power supply delivering 850 watts of continuous power with 80 PLUS Gold certification for 90 percent efficiency at 50 percent load. Designed for modern systems, it features a robust 70A +12V rail and high-quality 105°C-rated Japanese capacitors to support demanding components, including NVIDIA RTX 30 and 40 series GPUs, with one 12V-2×6 PCIe 5.1 connector, one PCIe 6+2 pin connector, and one EPS connector. The 120mm fluid dynamic bearing fan with S3FC, including fanless mode, ensures silent operation under low to medium loads with a 50,000-hour lifespan, ideal for compact ATX builds. Comprehensive protections including OPP, OVP, UVP, OCP, OTP, and SCP safeguard your hardware, while the OptiSink design enhances heat dissipation for improved reliability. Fully modular individual white cables with a braided pattern, including one 12V-2×6 connector, streamline cable management for a clean, stylish build. ATX 3.1 and PCIe 5.1 compliance ensure compatibility with next-gen hardware, while a DC-to-DC converter design with active PFC maximizes efficiency. Supporting a full-range 100-240V AC input, it’s perfect for global use in gaming and workstation setups. With a 100,000-hour MTBF, compliance with Energy Star, RoHS, and ErP Lot 6 standards, and a 10-year warranty, the Seasonic Focus GX-850 delivers reliable performance and efficiency for your PC build.,
Specification:
| Model | Seasonic Focus GX-850 ATX 3 V4 White (SRP-FGX851-A5A32SF) |
| Total Power | 850 Watts |
| Efficiency Rating | 80 PLUS Gold (90% efficiency at 50% load) |
| Modular | Fully Modular |
| Rail Design | Single +12V rail (70A) |
| Capacitors | 105°C-rated Japanese capacitors |
| Connectors | 1 x 12V-2x6 (PCIe 5.1), 1 x PCIe 6+2 pin, 1 x EPS |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) |
| Fan Control | S3FC (includes Fanless Mode) |
| Heat Dissipation | OptiSink design |
| Protections | OPP, OVP, UVP, OCP, OTP, SCP |
| Standards Compliance | ATX 3.1, PCIe 5.1, Energy Star, RoHS, ErP Lot 6 |
| Cables | Individual white cables with braided pattern |
| Input Voltage | Full-range 100-240V AC |
| MTBF | 100,000 hours |
