Description

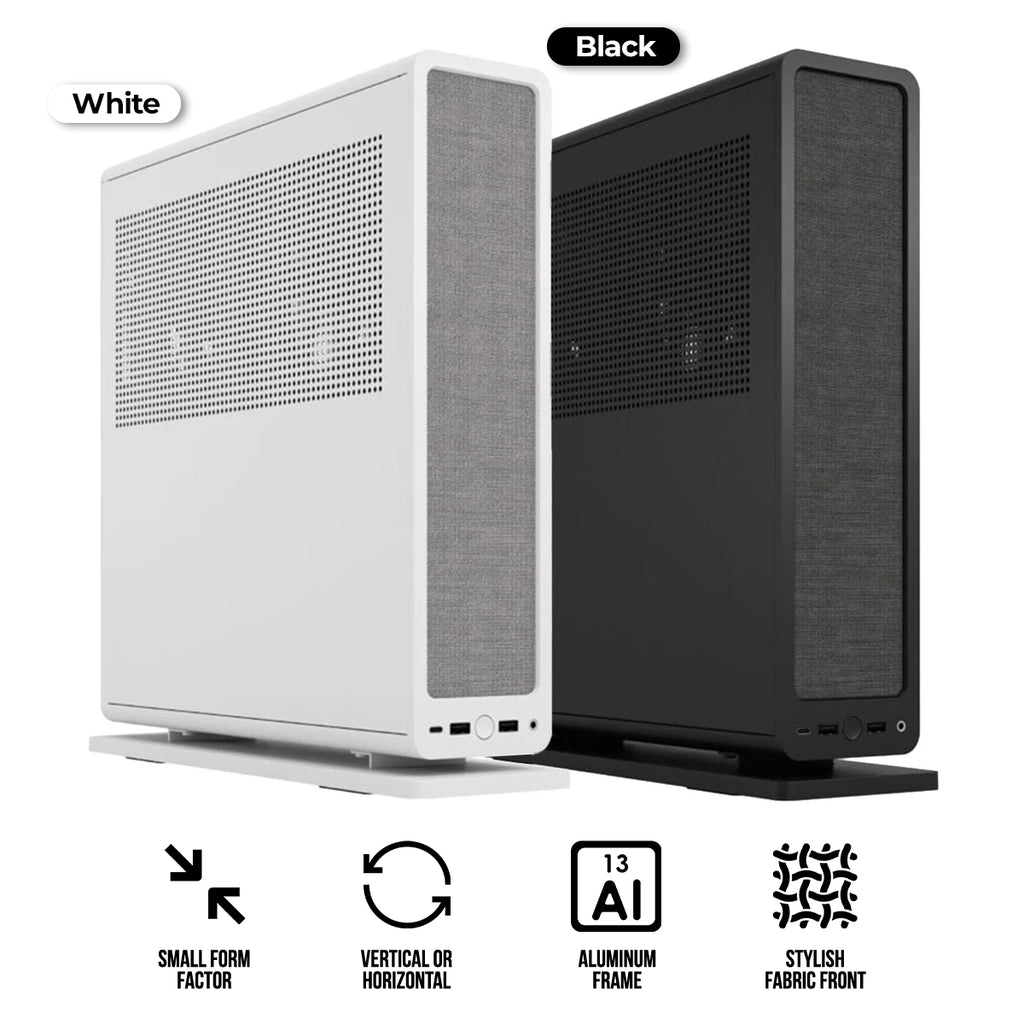

Ridge
An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
SPECIFICATION
| Dedicated 2.5" drive mounts | 4x included, 4x positions total |
| Expansion slots | 3-slot |
| Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED |
| Total fan mounts | 2x 120/140 mm and 3x 80 mm |
| Side fan | 2x 120/140 mm (2x PWM Aspect fan 140 mm included) |
| Top fan | 3x 80 mm (not included) |
| Cable routing space | 13,8 mm (behind PSU) |
| Tool-less slide with thumbscrew lock | Side panels |
| Captive thumbscrews | Side panels |
| Left side panel | Steel |
| Right side panel | Steel |
| Motherboard compatibility | Mini ITX |
| Power supply type | SFX, SFX-L |
| Side radiator | 120 mm when ≤175mm long GPUs are installed (280 mm without GPU) |
| PSU max length | SFX-L |
| GPU max length | 325 mm with SSD installed. 335 mm without SSD installed. |
| GPU max height | 125 mm with top fan(s) installed, 137 mm without top fans |
| GPU max thickness | 57 mm with 2x 140 mm fans installed, 82 mm without side fans |
| CPU cooler max height | 70 mm |
| SFF-Ready Enthusiast GeForce Cards | Yes |
| *Note | If you wish to use the Ridge PCIe 4.0 riser card together with a PCIe 5.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen4 for best system stability. |
| Case dimensions | Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm |
| Case dimensions w/o feet/protrusions/screws | 355 x 95 x 375 mm |
