Description
Specifications:
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | Support for DDR5 up to 9000(O.C) MT/s; 4 x DDR5 DIMM sockets (up to 256 GB); Dual channel architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Support for AMD EXPO™ and XMP |
| Onboard Graphics | 2 x USB4® Type-C® (3840x2160@240 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x front HDMI (1920x1080@30 Hz) |
| Audio | Realtek® ALC1220 CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out; Back panel line out supports DSD audio |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Qualcomm® Wi-Fi 7 QCNCM865; 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz); BLUETOOTH 5.4; 320MHz wireless standard support |
| Expansion Slots | 1 x PCIe 5.0 x16 (PCIEX16); 1 x PCIe 4.0 x4 (PCIEX4); 1 x PCIe 3.0 x2 (PCIEX2) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2, type 25110/22110/2580/2280); 1 x M.2 (PCIe 5.0 x4/x2, type 22110/2280); 2 x M.2 (PCIe 4.0 x4/x2, type 22110/2280); 4 x SATA 6Gb/s; RAID 0/1/5/10 support |
| USB | 2 x USB4® Type-C® (back); 1 x USB 3.2 Gen 2 Type-C® (back); 1 x USB 3.2 Gen 2x2 Type-C® (internal); 5 x USB 3.2 Gen 2 Type-A (back); 3 x USB 3.2 Gen 1 (back); Internal headers for USB 3.2 Gen 1 and USB 2.0/1.1 |
| Internal I/O Connectors | 24-pin ATX; 2 x 8-pin 12V; 1 x PCIe power; Multiple Fan/Pump headers; 3 x Addressable RGB Gen2; 1 x RGB; 4 x M.2; 4 x SATA; Front panel audio; USB headers; TPM; Noise/Temp sensors |

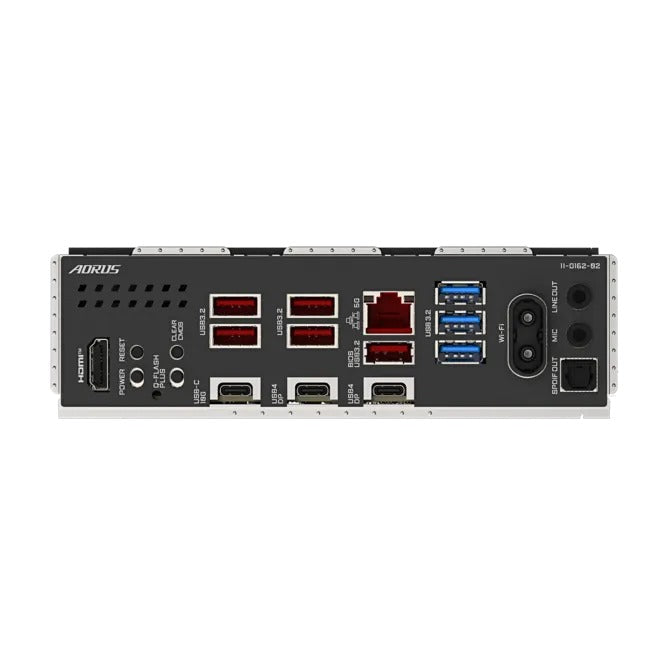

| Back Panel Connectors | 1 x HDMI; Reset/Power/Clear CMOS/Q-Flash Plus buttons; 5 x USB 3.2 Gen 2 Type-A; 1 x USB 3.2 Gen 2 Type-C®; 2 x USB4® Type-C®; 1 x RJ-45; 3 x USB 3.2 Gen 1; 2 x Antenna; 2 x Audio; 1 x S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning, Fan speed control, Noise detection |
| BIOS | 1 x 512 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
