Description

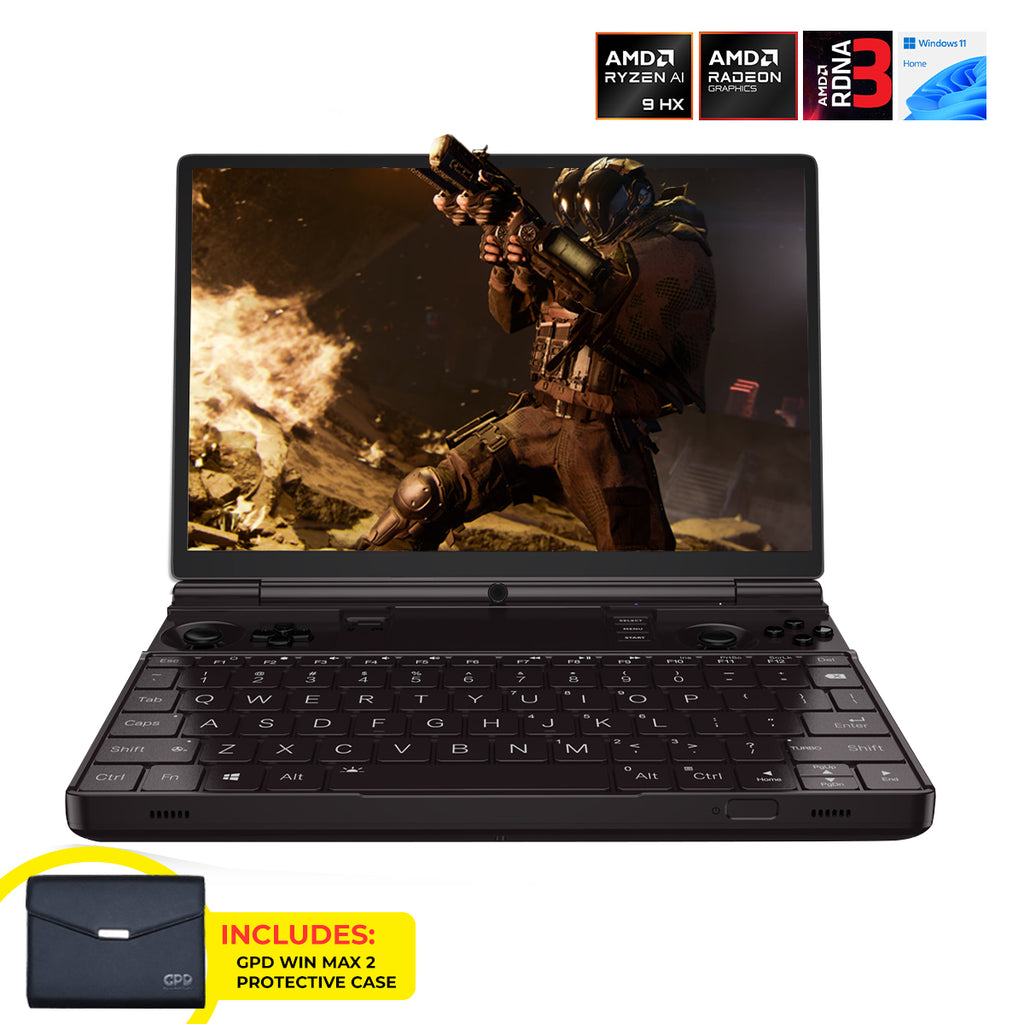

Experience ultimate portable power with the GPD Win Max 2 2025, featuring the cutting-edge AMD Ryzen AI 9 HX 370, stunning 10.1" WQXGA IPS display, ultra-fast 32GB LPDDR5X RAM, and a massive 2TB SSD. Paired with Radeon 890M (RDNA 3.5) graphics, this Windows 11 handheld gaming PC delivers console-level performance anywhere—now bundled with a premium GPD Win Max 2 Protective Case for secure travel.
Specifications:
| Basic Information | |
|---|---|
| Product Name | WIN Max 2 (2025) |
| Launch Date | Handheld Gaming Laptop |
| Operating System | Pre-installed With Windows 11 Home 24H2 |
| Display | |
| Screen Type | Corning Gorilla Glass 5，IPS Technology |
| Characteristic | Full Screen |
| Touch Panel | 10-point Touch Control |
| Screen Size | 10.1 inches |
| Frequency | 60Hz |
| Aspect Ratio | 16：10 |
| Screen Resolution | 2560 × 1600 |
| Pixels Per Inch | 299 PPI (RGB) |
| CPU | |
| Product model | AMD Ryzen™ AI 9 HX 370 |
| CPU Architecture | Zen 5 + Zen 5C（Strix Point） |
| Process Size | 4nm |
| # of CPU Cores / # of Threads | 12C / 24T |
| Base Clock | 2.0 GHz |
| Max. Boost Clock | 5.1 GHz |
| Total Cache | 36.75MB |
| NPU Architecture | XDNA 2 |
| AI Performance | 50 TOPS |
| Total Processor Performance | 80 TOPS |
| TDP | 15W-35W |
| GPU | |
| Processor Graphics | AMD Radeon™ 890M |
| Graphics Frequency | 2900 MHz |
| Compute Units | 16 CU |
| Shading Units | 1024 |
| Floating-point Performance | 23.76 TFLOPS (FP16) / 11.88 TFLOPS (FP32) / 742.4 GFLOPS (FP64) |
| Pixel Rate | 92.80 GPixel/s |
| Texture Rate | 185.6 GTexel/s |
| Storage | |
| Memory | 32GB |
| Memory Types | LPDDR5x 7500 MT/s |
| Memory Dual Channel | Dual channels |
| Hard Disk Type | M.2 SSD |
| Hard Disk Ports | M.2（Socket 3）× 2 |
| Supported Specifications | M.2 NVMe 2280 × 1 M.2 NVMe 2230 × 1 (Default Empty) |
| Standard Capacity | 1TB × 1 |
| Bus Specification | PCIe 4.0 × 4 |
| Transfer Protocol | NVMe 1.3 / 1.4 |
| Multimedia Support | |
| Audio System | Built-in Audio Chipset |
| Loudspeakers | Built-in 4 Super Linear Speakers |
| Webcam | 2MP, 1612×1212, Super Wide-angle, High Refresh Rate |
| Microphone | Built-in Microphone |
| Network Communications | |
| 4G LTE Module | Supports Onboard Card Slot (Separate Purchase Required) |
| SIM Card Type | Nano-SIM, Single SIM |
| 4G Network | TD-LTE, FDD-LTE |
| 3G Network | WCDMA / TD-SCDMA / CDMA |
| 2G Network | GSM |
| Supported Frequency Bands | 2G: GSM900/1800MHz 3G: WCDMA B1/B8, TD-SCDMA B34/B39, CDMA BC0 4G: LTE TDD B34/B38/B39/B40/B41, LTE FDD B1/B3/B5/B8 |
| Wi-Fi | Wi-Fi 6 / Wi-Fi 6E (802.11ax, Dual band) 2×2 |
| MU-MIMO | Supports |
| Bluetooth | BT 5.3 |
| I/O Ports | |
| Video / Data / Charging | USB4 × 2 Oculink × 1 HDMI 2.1 × 1 USB 3.2 Gen 2 Type-A × 2 |
| SD Slot | SD 4.0, UHS-II, V90, 312MB/s |
| microSD Slot | SD 3.0, UHS-I, V30, A2, 160/120MB/s Mutually exclusive with SD Slot |
| Audio Port | 3.5mm Combo Jack |
| Speaker Hole | Yes, on both sides |
| BIOS Reset Port | Supports |
| I/O Device | |
| Power Switch | Power Button + Fingerprint Unlock |
| Keyboard | QWERTY Backlit, 2-Level Brightness |
| Indicator Lamp | Charging / Running / CapsLock / Fan Switch |
| TouchPad | Microsoft Precision TouchPad (PTP) |
| Mouse | Joystick (Gamepad/Mouse Modes) |
| Joystick | Hall Sensor Sticks, No Dead Zone, L3/R3 Support |
| Game Controls | |
| Game Accessories Buttons | Analog Triggers, ABXY / △○×□, Select, Start, Xbox Menu |
| Game Function Buttons | Siamese Arrow Keys |
| D-Pad | Siamese Arrow Keys |
| Handle Vibration | Dual Linear Motors |
| Sensor | Six-axis (Gravity + Gyroscope) |
| Other Keys | Handle/Mouse Switch, 2 Custom Buttons |
| Battery | |
| Battery Type | Lithium Polymer Battery |
| Battery Capacity | 67Wh |
| Battery Life | Intensive: 2.5h Moderate: 6–8h Light: 9h |
| Appearance | |
| Weight | 1005g |
| Size | 227 × 160 × 23 mm |
| Shell Material | 6061 Aluminum-magnesium Alloy, LG-DOW 121H Aviation ABS |
| Covers | Magnetic Suction Type |
| Shell Color | Black |
| Thermal Design | Active cooling with PC-grade fan + dual heat pipes |
