Description

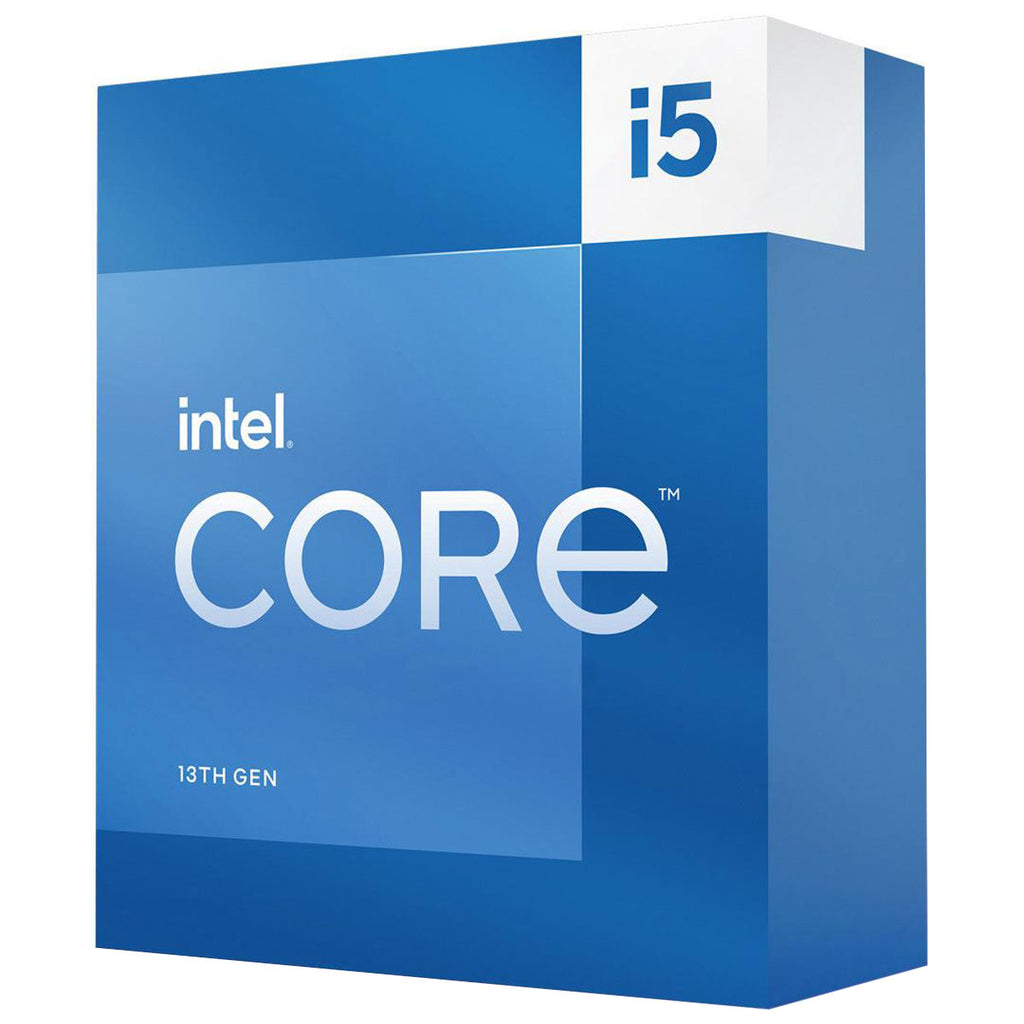

Intel®️ Core™️ i5 13500 (4.8GHz max clock speed), 14 Cores (6 Performance-cores, 8 Efficient-cores), 20 Thread CPU, Socket LGA 1700, 24MB SmartCache, 65W processor base power, BX8071513500. Retail Box including fan, heatsink and thermal paste.
Features
Get immersed.
From multiplayer showdowns to epic adventures, get closer to your games than ever before with Intel’s innovative architecture.
Designed for the needs of today's gamers.
The latest version of performance hybrid architecture will push your gameplay beyond performance, giving you the power to do it all.
6 Performance-cores
Unleashes the capability to optimize the latest games and gaming software.
4 Efficient-cores
Provides multitasking power to work, play, and mostly importantly game together.
Intel Thread Director
Keep your gaming free of interruptions by making sure background tasks don't slow you down.
Personalise your PC.
13th Gen Intel Core desktop processors deliver the broad platform support that allows you to optimise your PC using the latest gaming technologies.
Expanded memory options
Support for both DDR4 and DDR5 gives you control over your memory configuration.
Build out your setup
Support for Thunderbolt 4 technology offers a simple and fast way to connect peripherals.
Competitive connectivity
Connect quickly and without interference with support for Intel Killer Wi-Fi 6/6E (Gig+).
You set the max
Enhanced overclocking for both sets of cores allow you to customise your performance.
Specifications
| Product Collection | 13th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-13500 |
CPU
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 20 |
| Max Turbo Frequency | 4.80 GHz |
| Performance-core Max Turbo Frequency | 4.80 GHz |
| Efficient-core Max Turbo Frequency | 3.50 GHz |
| Performance-core Base Frequency | 2.50 GHz |
| Efficient-core Base Frequency | 1.80 GHz |
| Cache | 24 MB Intel® Smart Cache |
| Total L2 Cache | 11.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 154 W |
Memory
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 76.8 GB/s |
| ECC Memory Supported ‡ | Yes |
Processor Graphics
| Processor Graphics ‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
Expansion Options
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4 | 2x8+4 |
| Max # of PCI Express Lanes | 20 |
Advanced Technologies
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
Security & Reliability
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
