Description
Specifications:

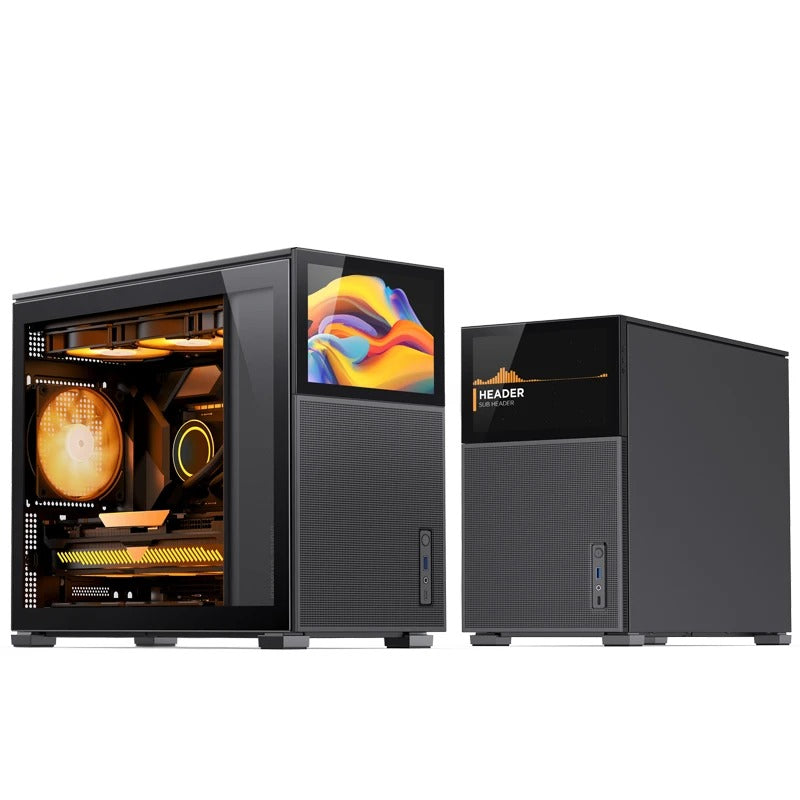

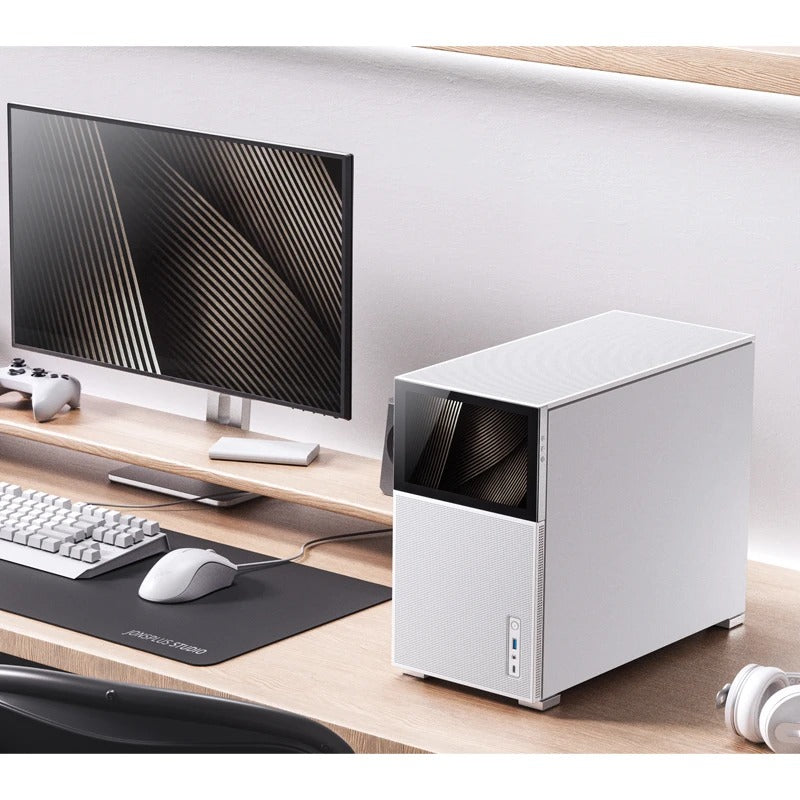

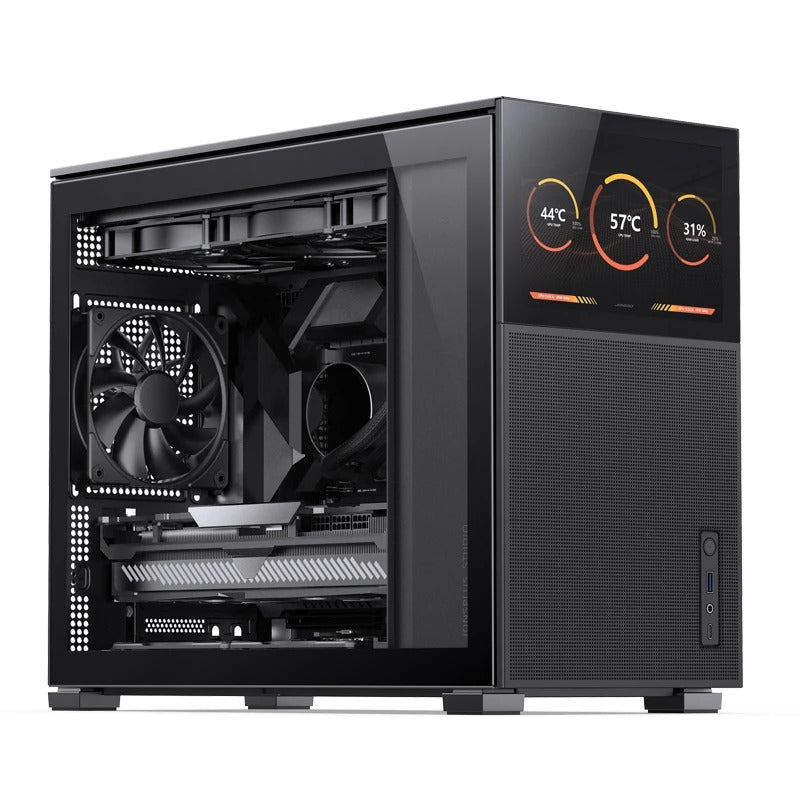

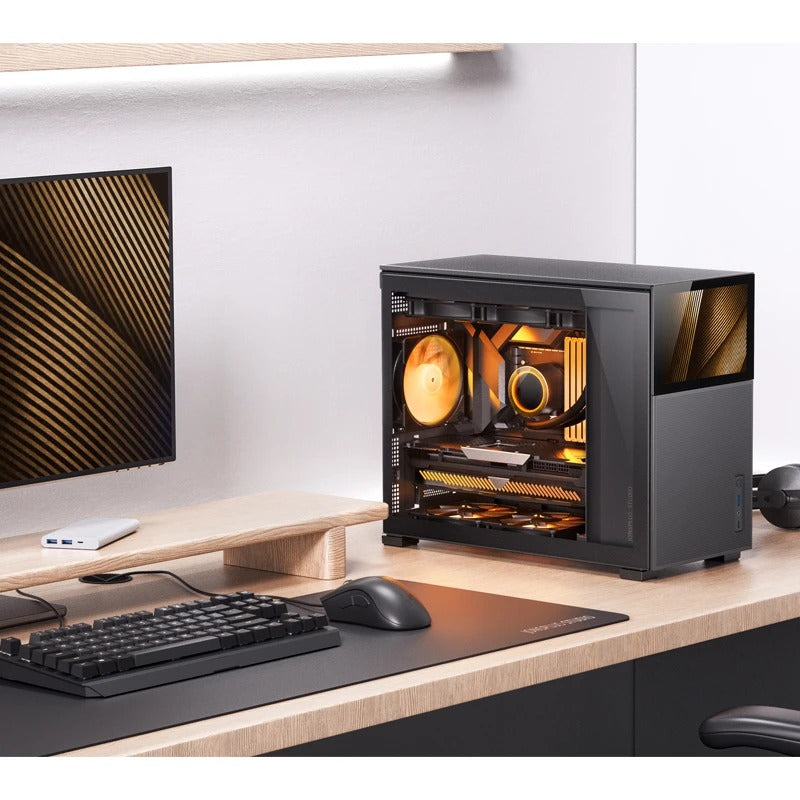

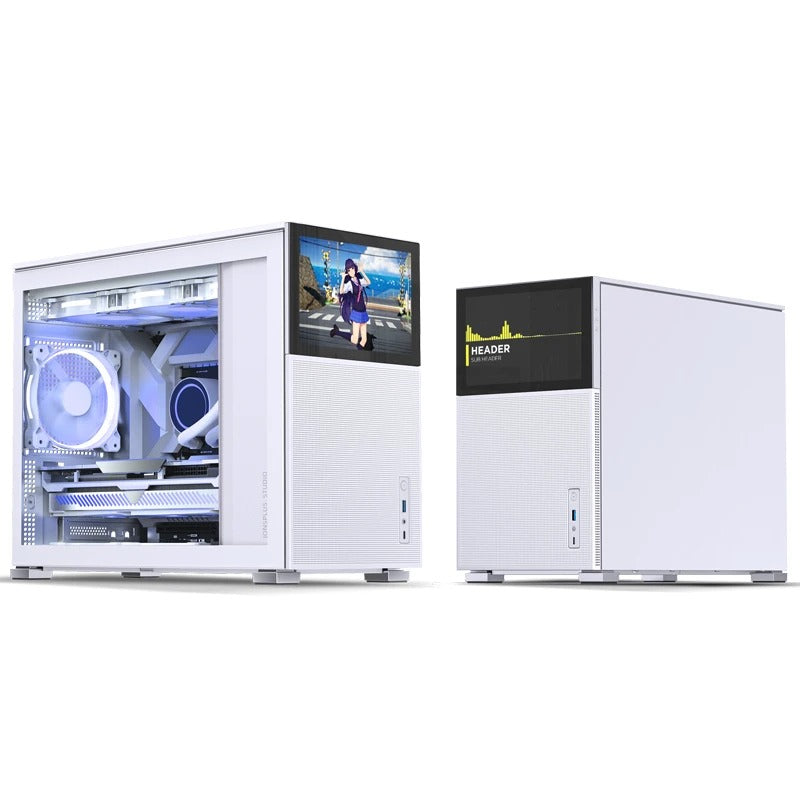

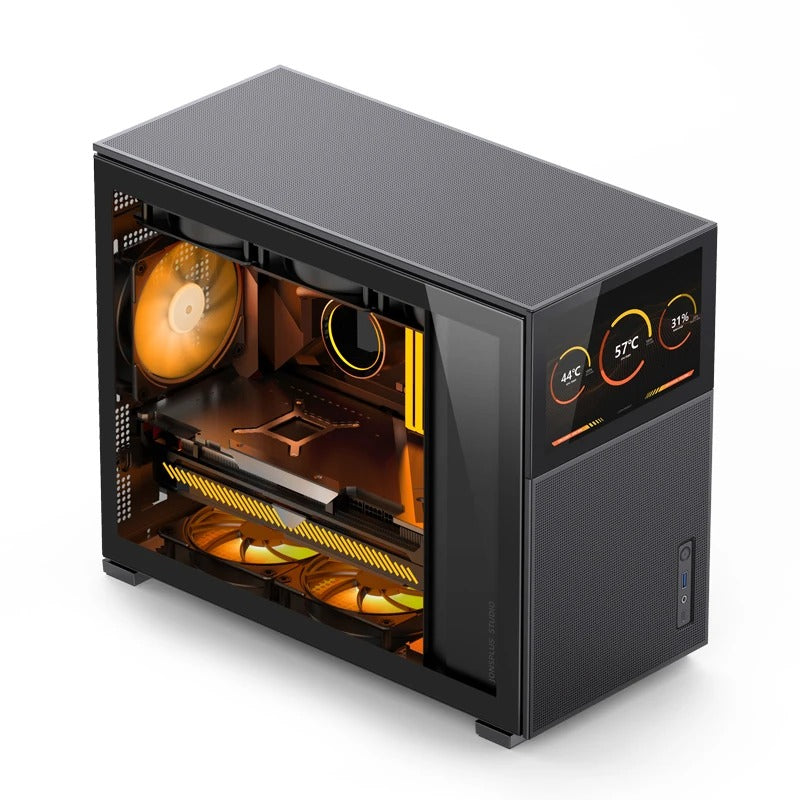

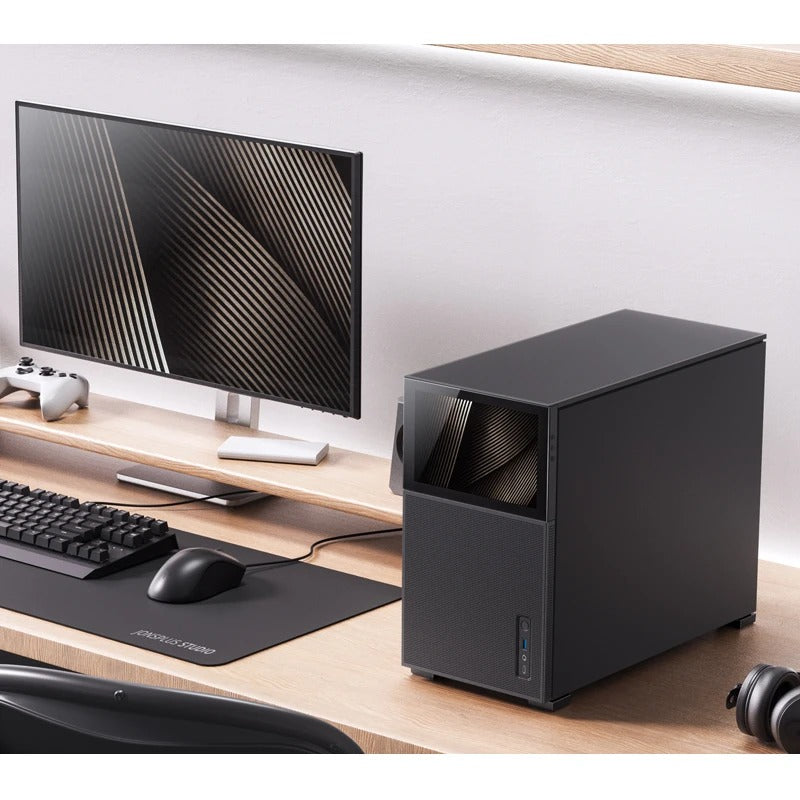

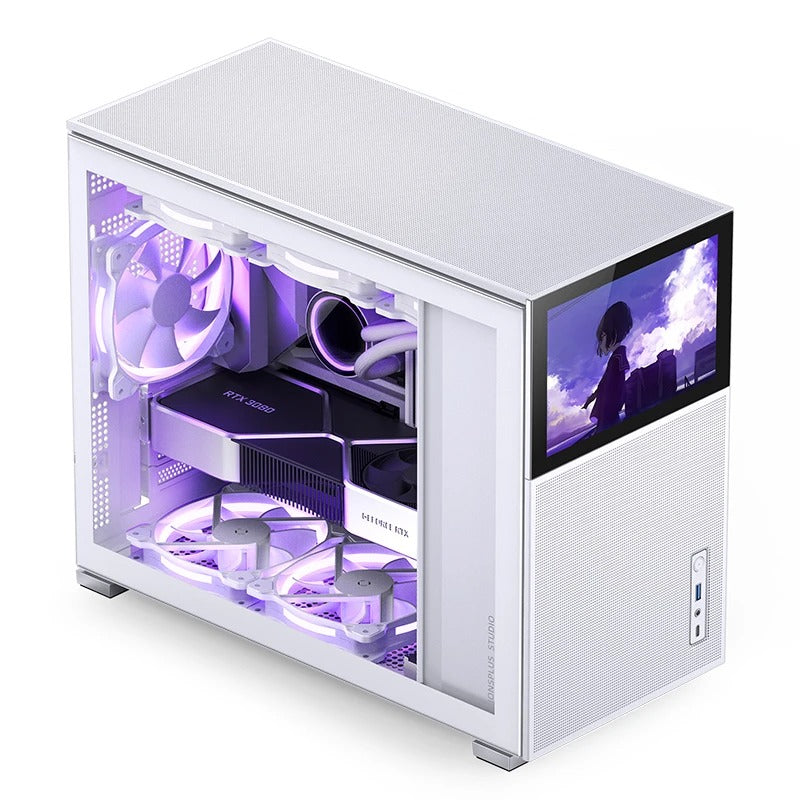

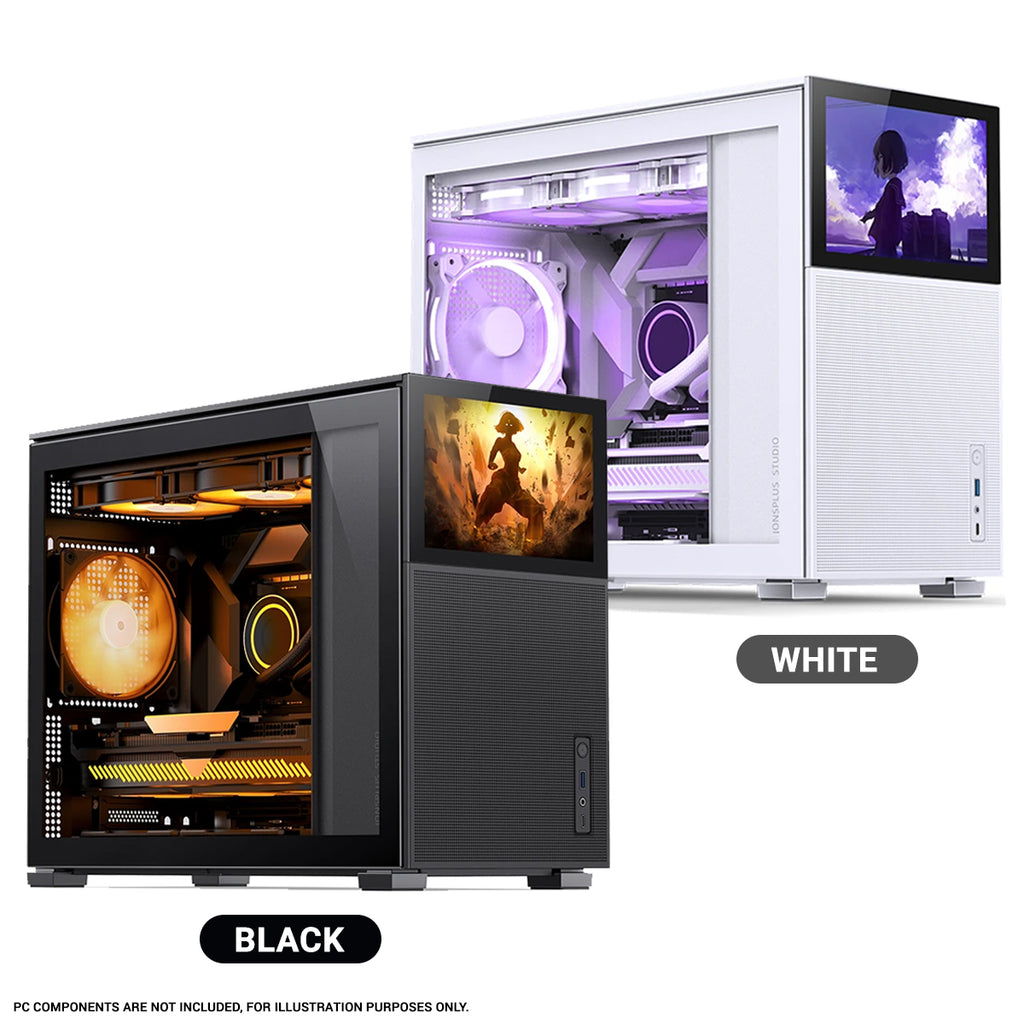

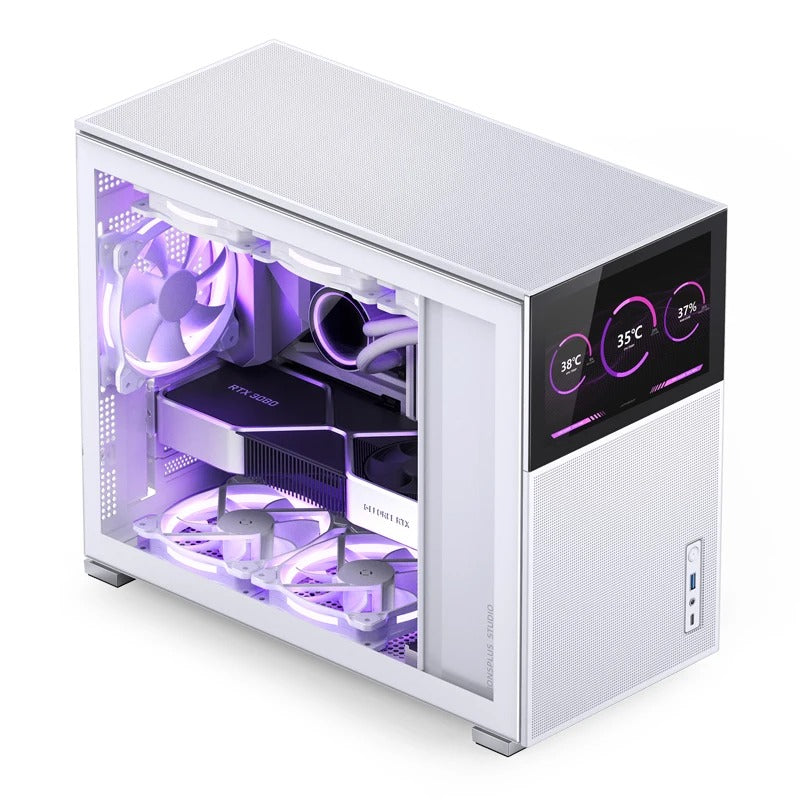

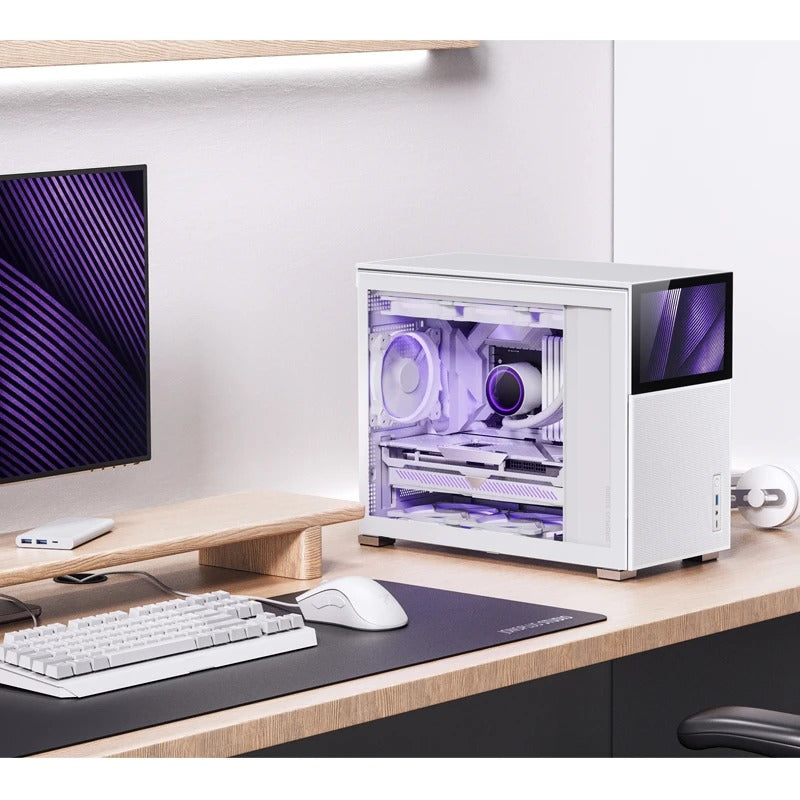

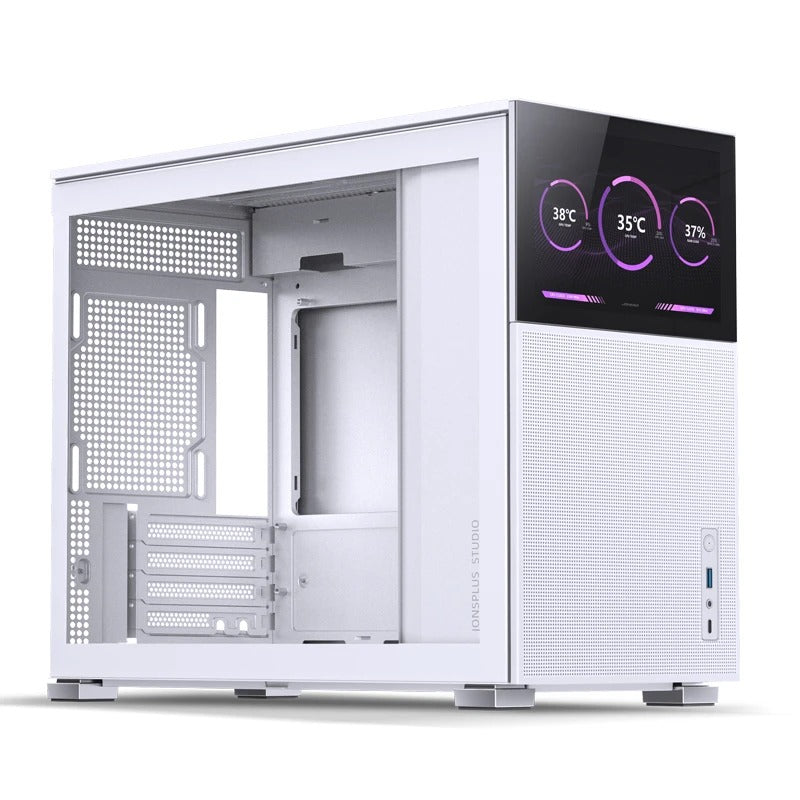

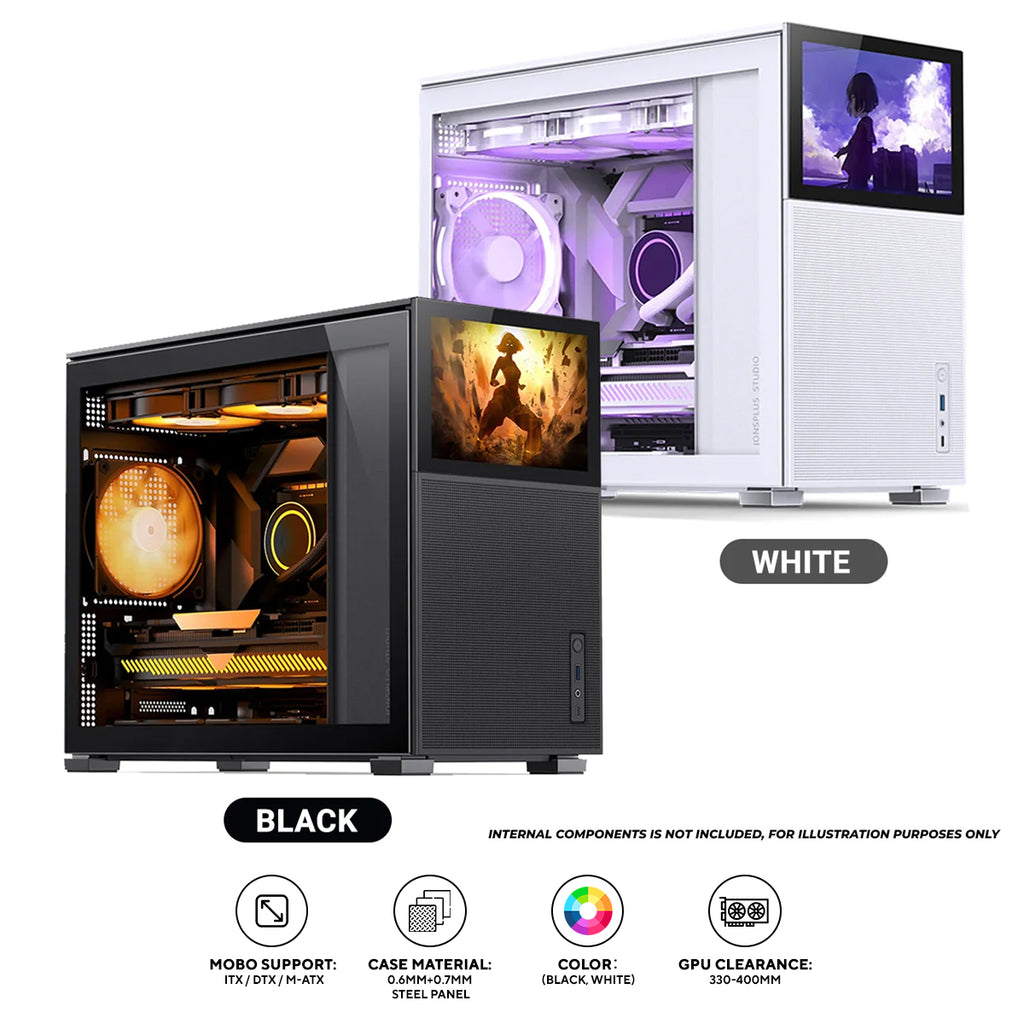

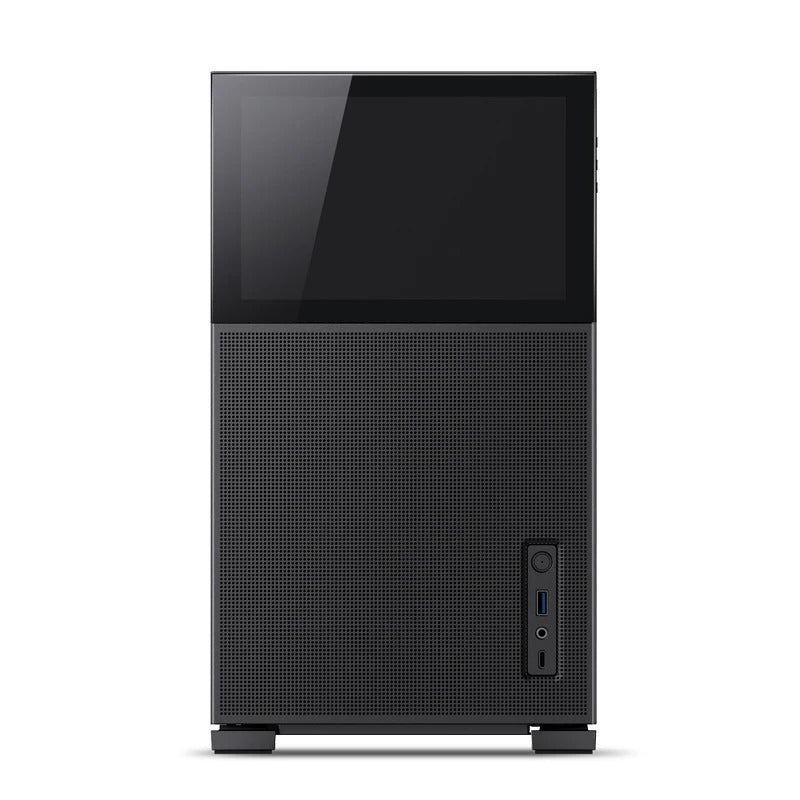

| Jonsbo D31 Mesh M-ATX Computer Case |
|
| Dimension: |
Dimension: 205mm (W) * 347.5mm(H) *440mm(D) (Vol: 31.3L) *Depth does not include the PCI brackets outside the chassis, height does not include case stand |
| Material： | 0.6mm+0.7mm steel panel |
| Drive Bay： | 2.5〞SSD*2+3.5〞HDD*1 |
| Motherboard： | ITX / DTX / M-ATX |
| PCI expansion slots： | 4 |
| Front I/O： | USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1 |
| Power supply support： | ATX |
| CPU cooler support： | 168mm |
| Graphics card support： | 330-400mm |
| Fan mounting position： | Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1 |
| Radiator support： | Top 240/280/360*1 Rear 120*1 Bottom 240/360*1 |
| Weight: | Net 6.4KG |

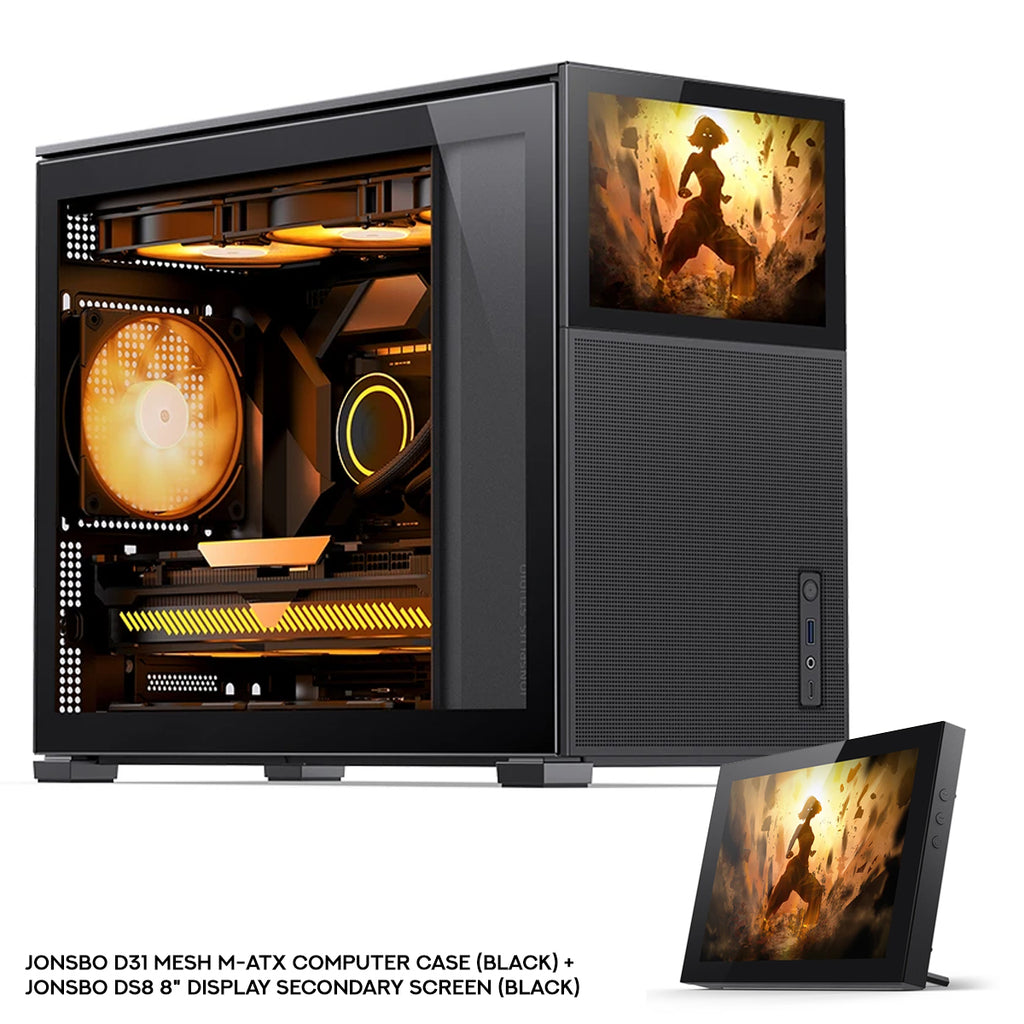

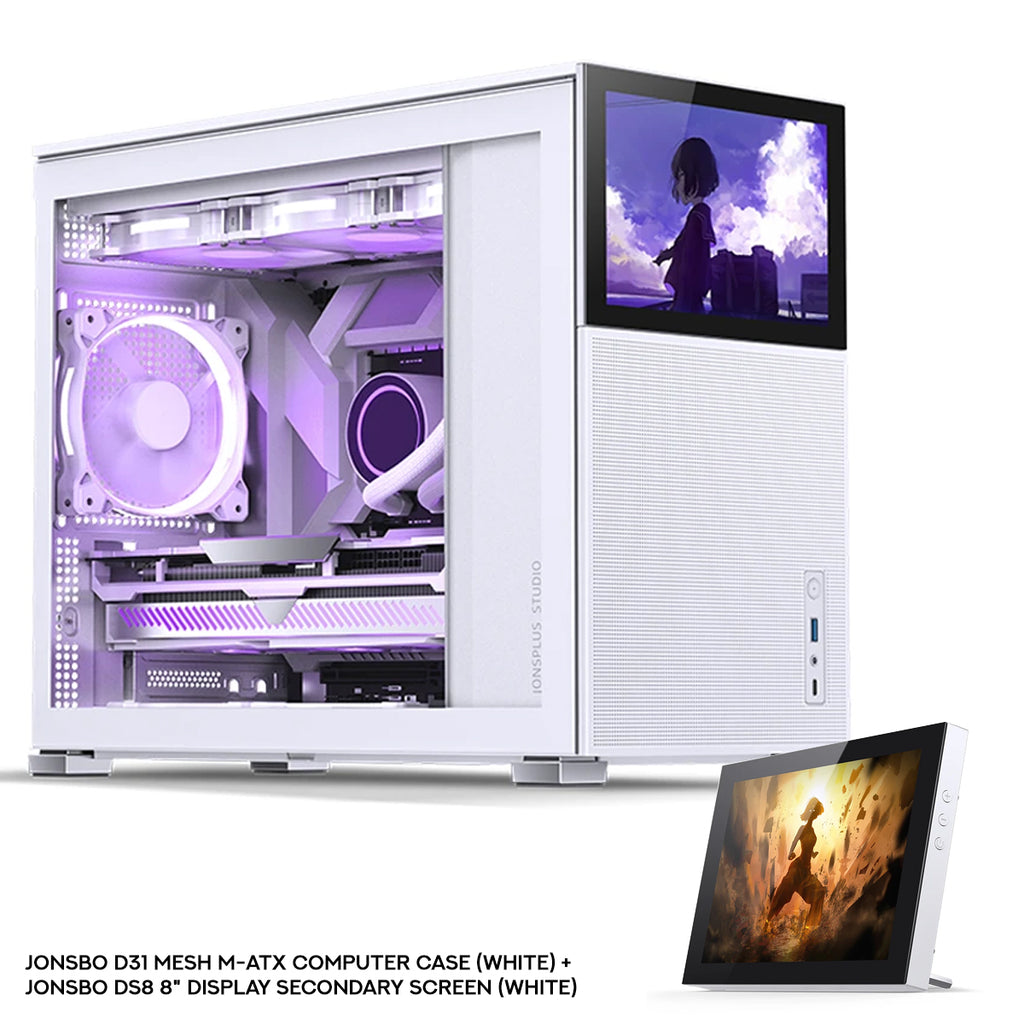

| Jonsbo DS8 8" Display Secondary Screen | |
| Dimension： | 24.6mm(W) * 131.7(H) * 205.3(L) |
| Display size： | 8" Color TFT-LCD |
| Colors： | 16.7M |
| Resolution： | 1280*800 |
| Response Time： | 30ms(Typ.) |
| Brightness： | 300cd/m2(Typ.) |
| Contrast Ratio： | 1000（Typ.） |
| I/O： | MINI-HDMI*1(Video Signal) Type-C*1 |
| Refresh Rate(max.)： | 60Hz |
| Working Temperture： | 0-50℃ |
