Description
Specifications:
| Model： | D32 PRO |

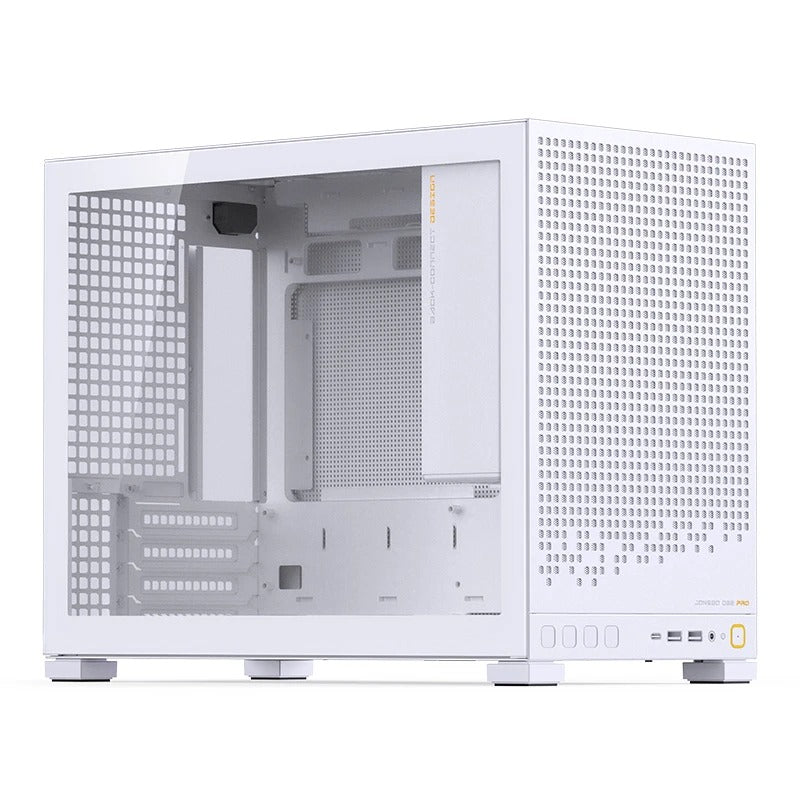

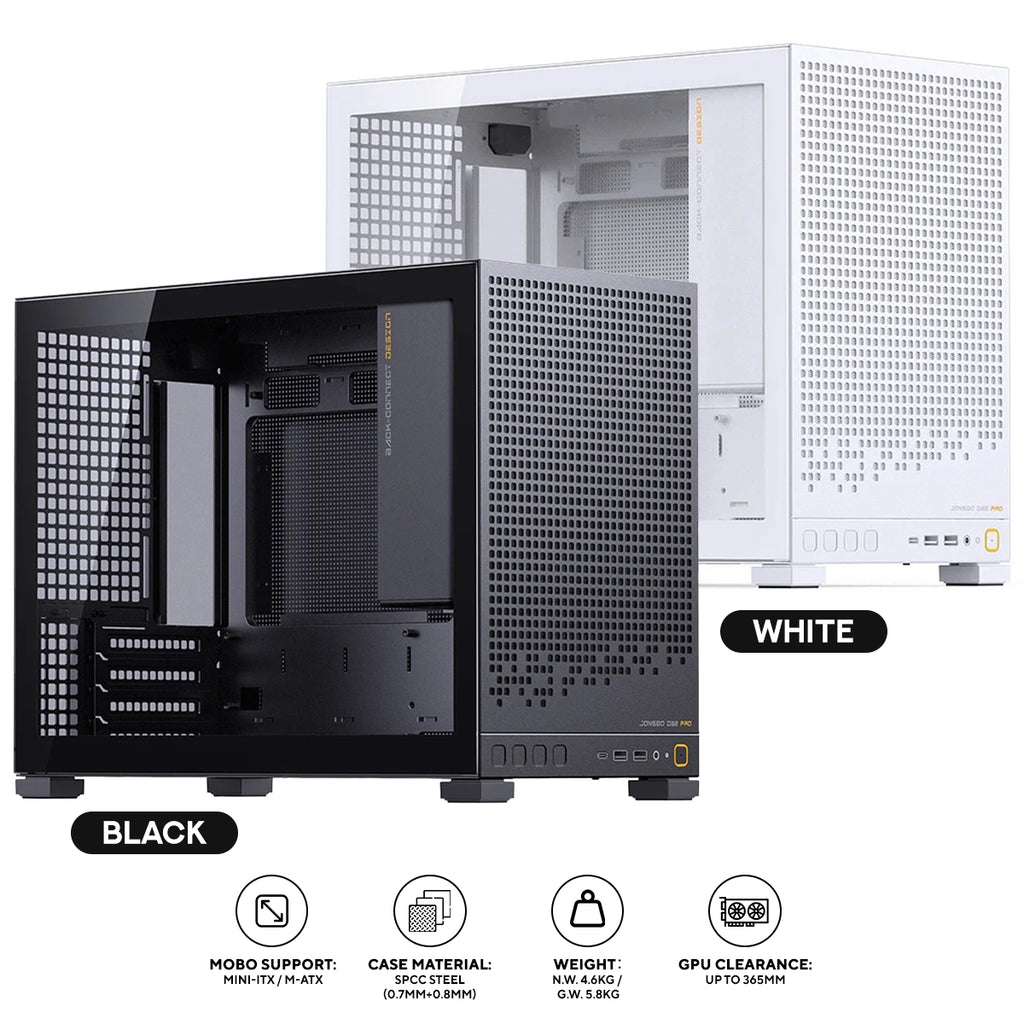

| Color： | White |
| Dimensions (w/o feet and other protrusions): | 384mm x 207mm x 302mm (depth/width/height) |
| Dimensions (with feet and other protrusions): | 396mm x 207mm x 314mm (depth/width/height) |
| Case Material： | SPCC Steel(0.7mm+0.8mm) |

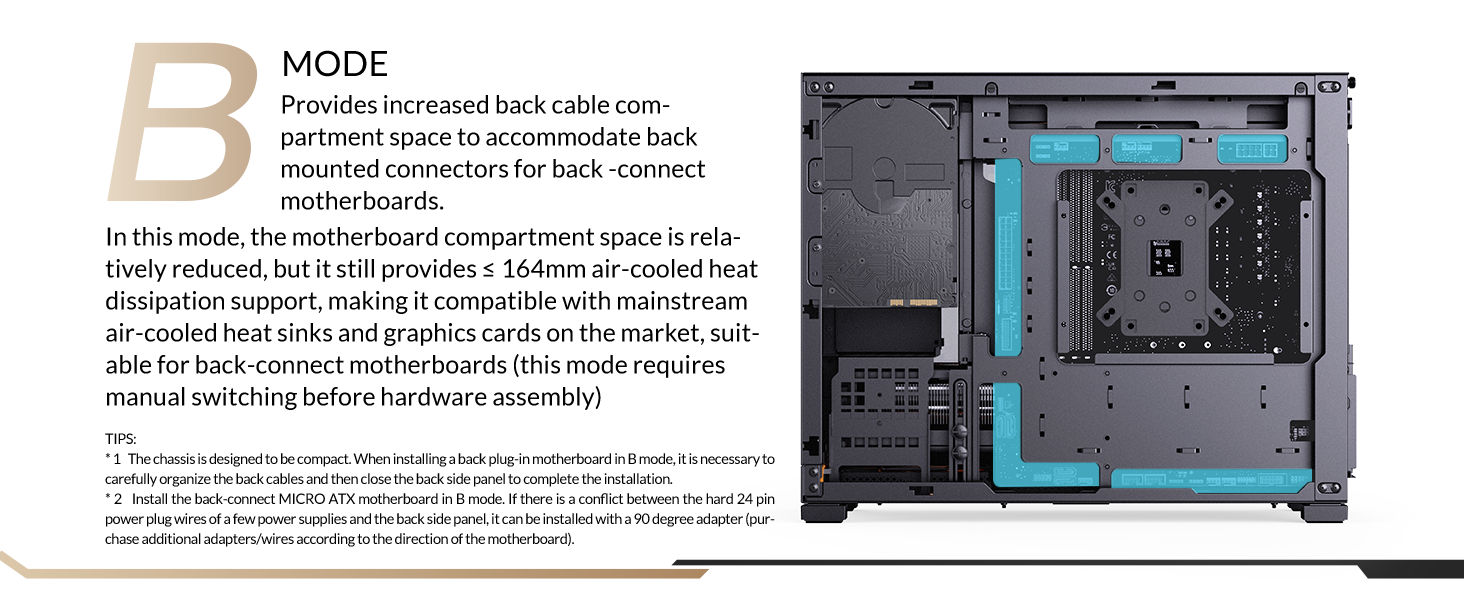

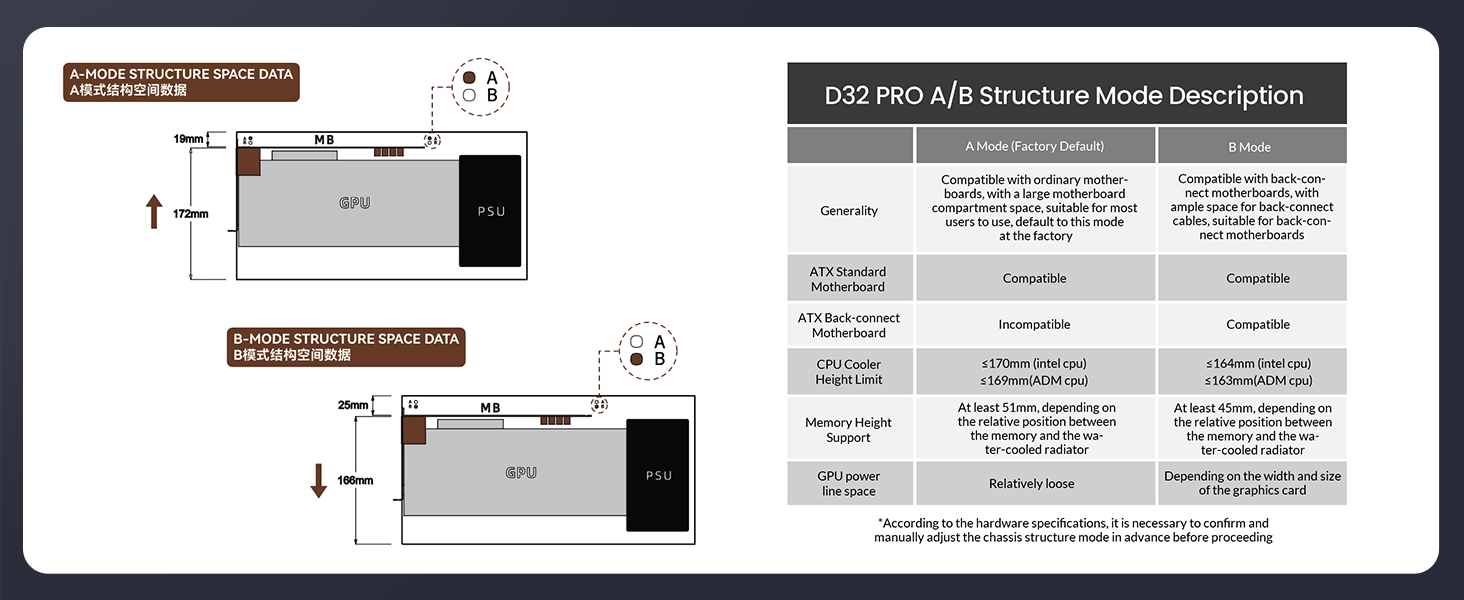

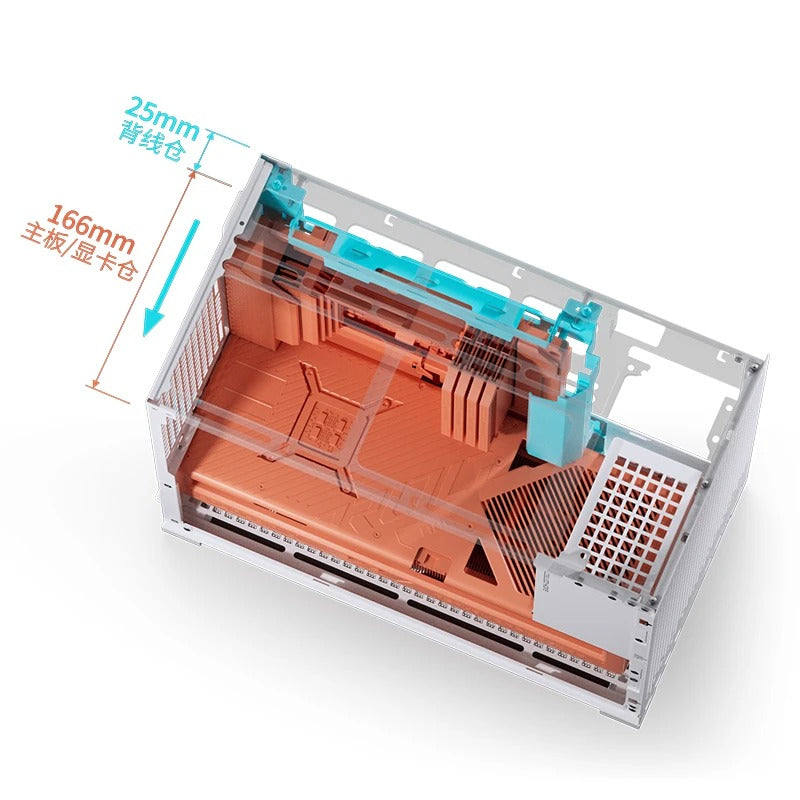

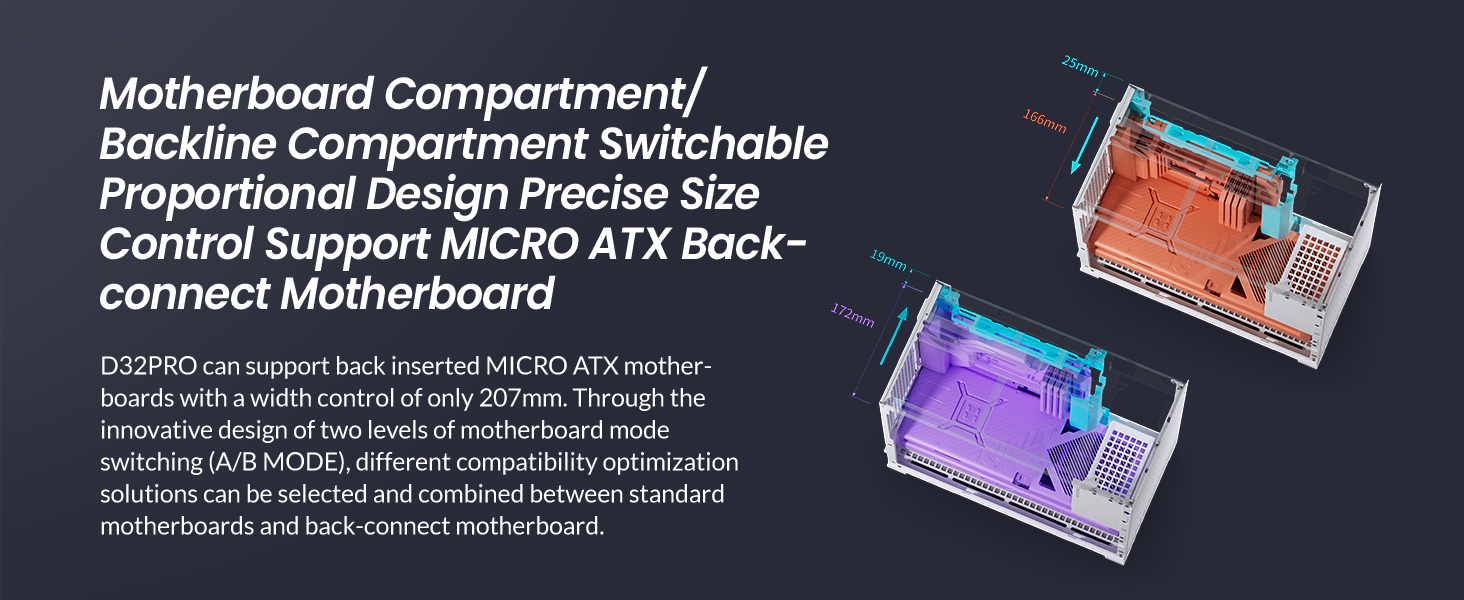

| Motherboard Support: | Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, the chassis needs to be switched to B mode) |

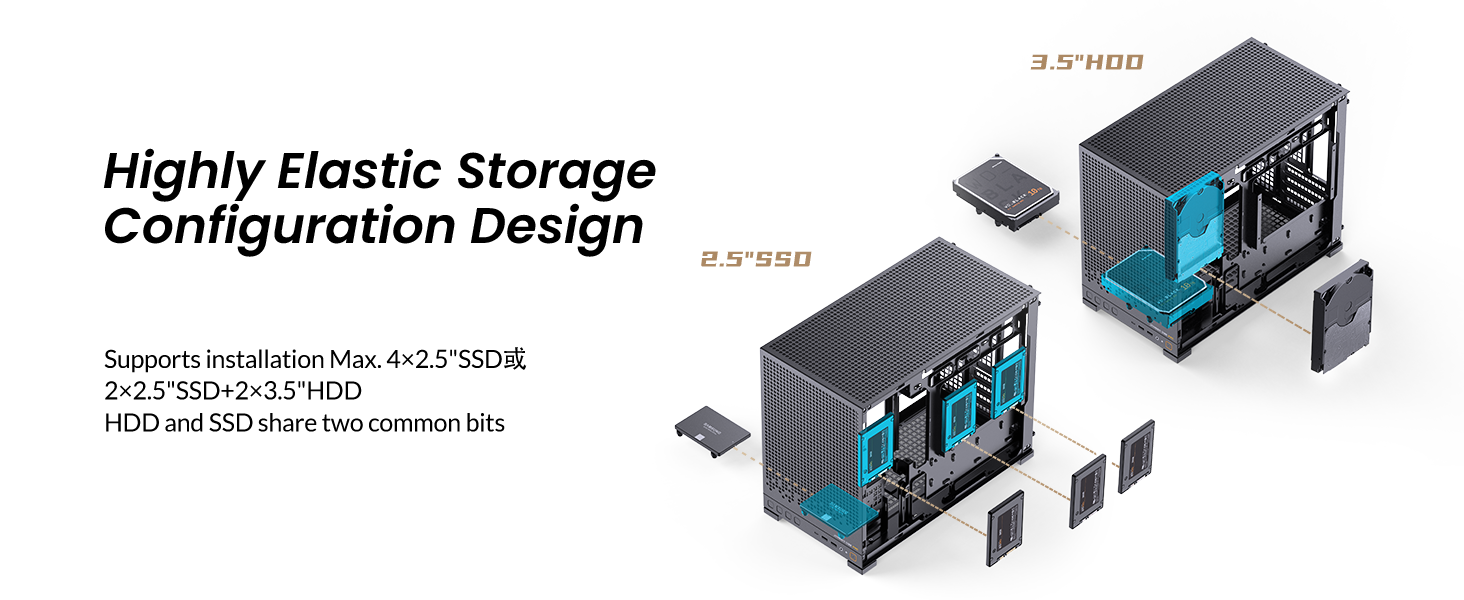

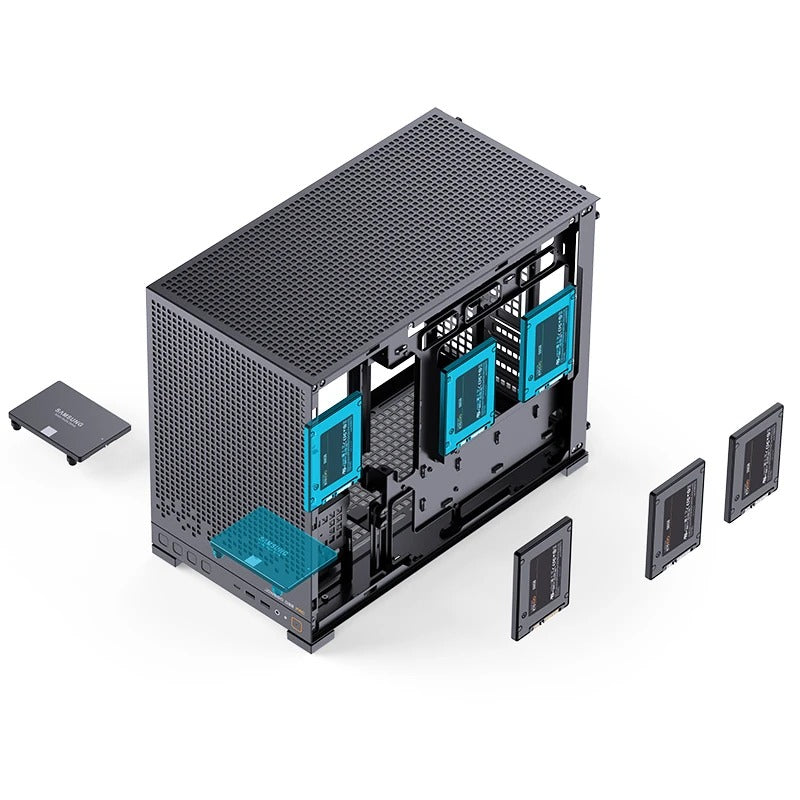

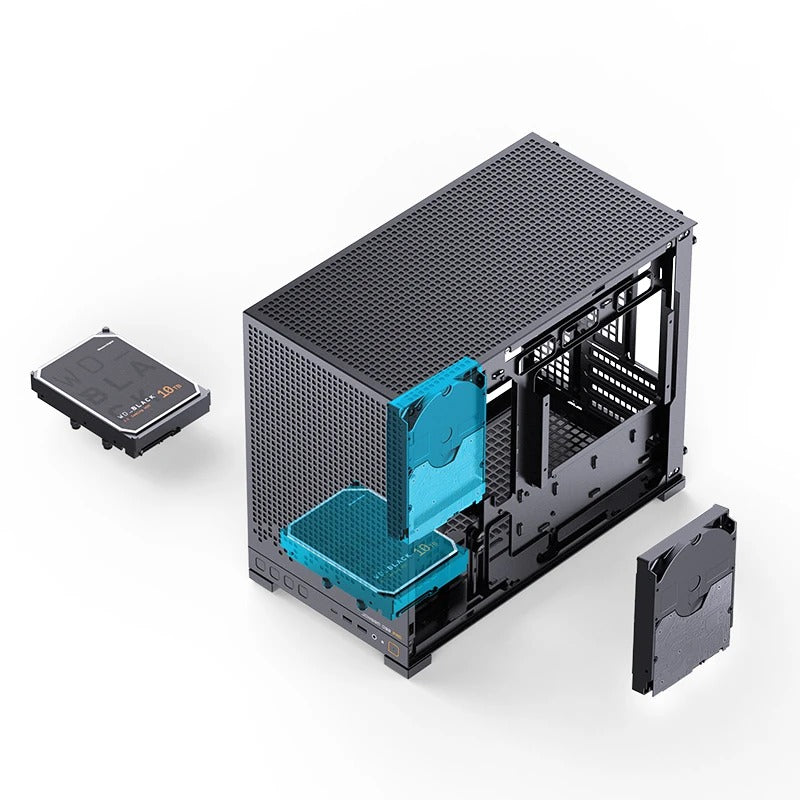

| Drive Bay： | 2.5": up to 4, depends on other hardware configurations 3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations |

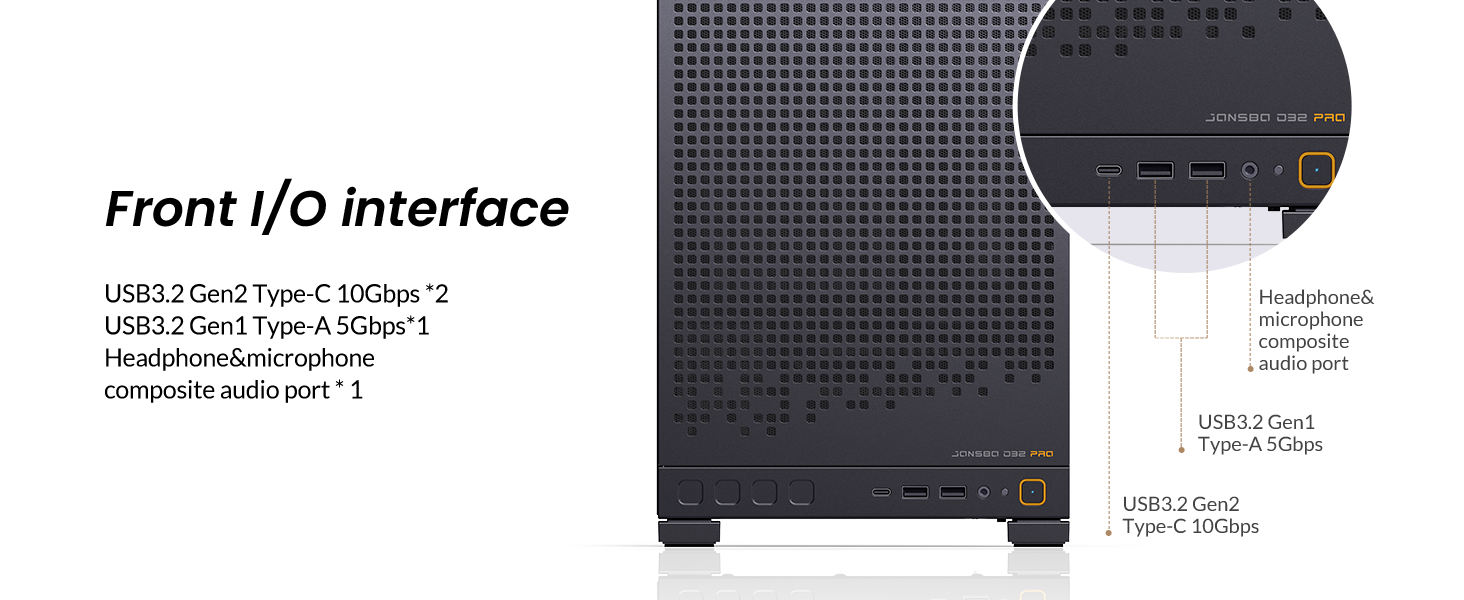

| Front IO Port： | USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1 |

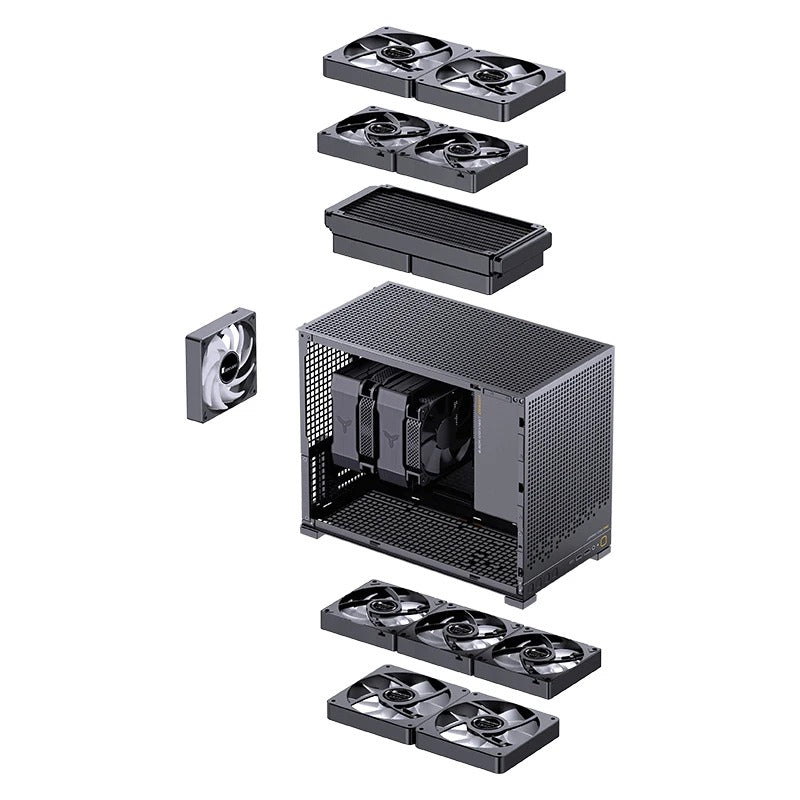

| FAN | Top: 2 x 120mm / 2 x 140mm Rear: 1 x 120mm Bottom: 3 x 120mm / 2 x 140mm, depends on other hardware configurations |
| Radiator support： | Top，up to 240mm |

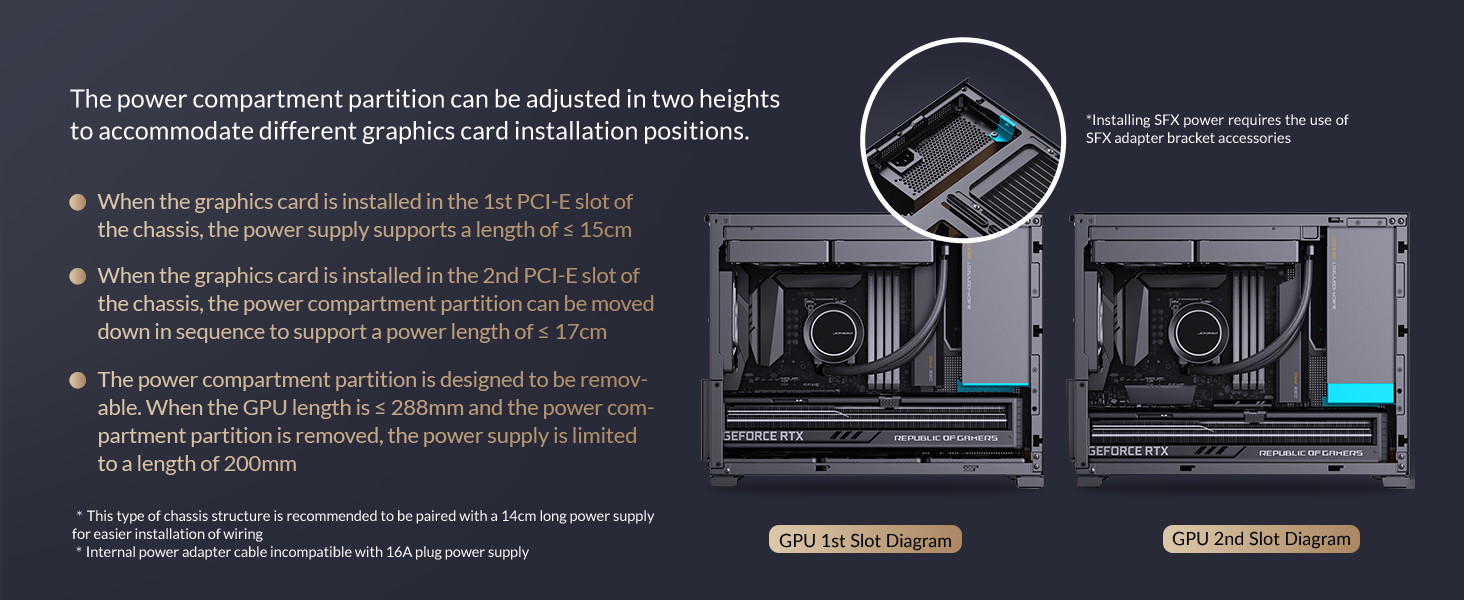

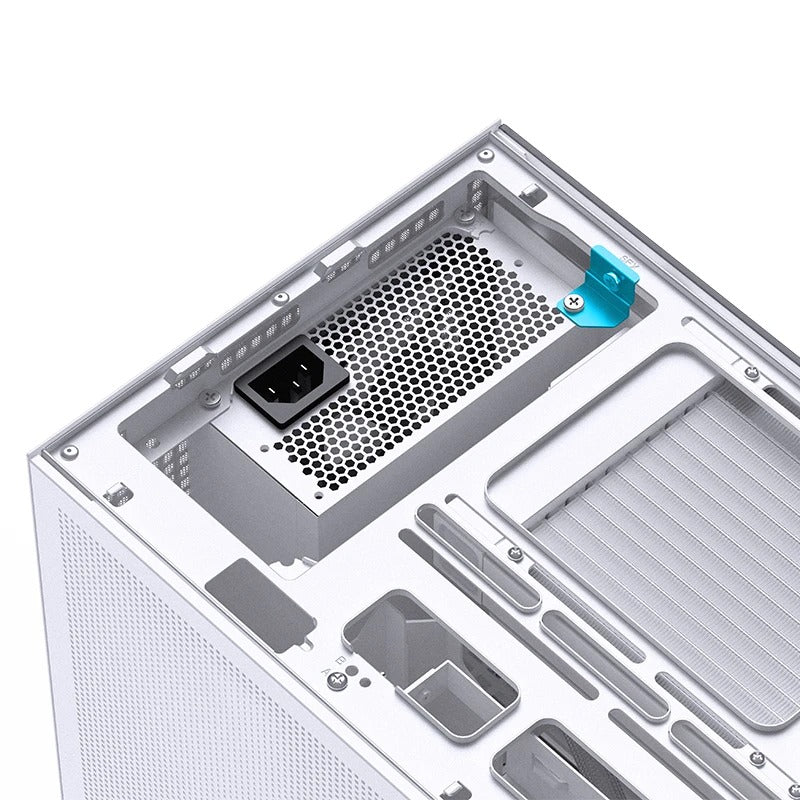

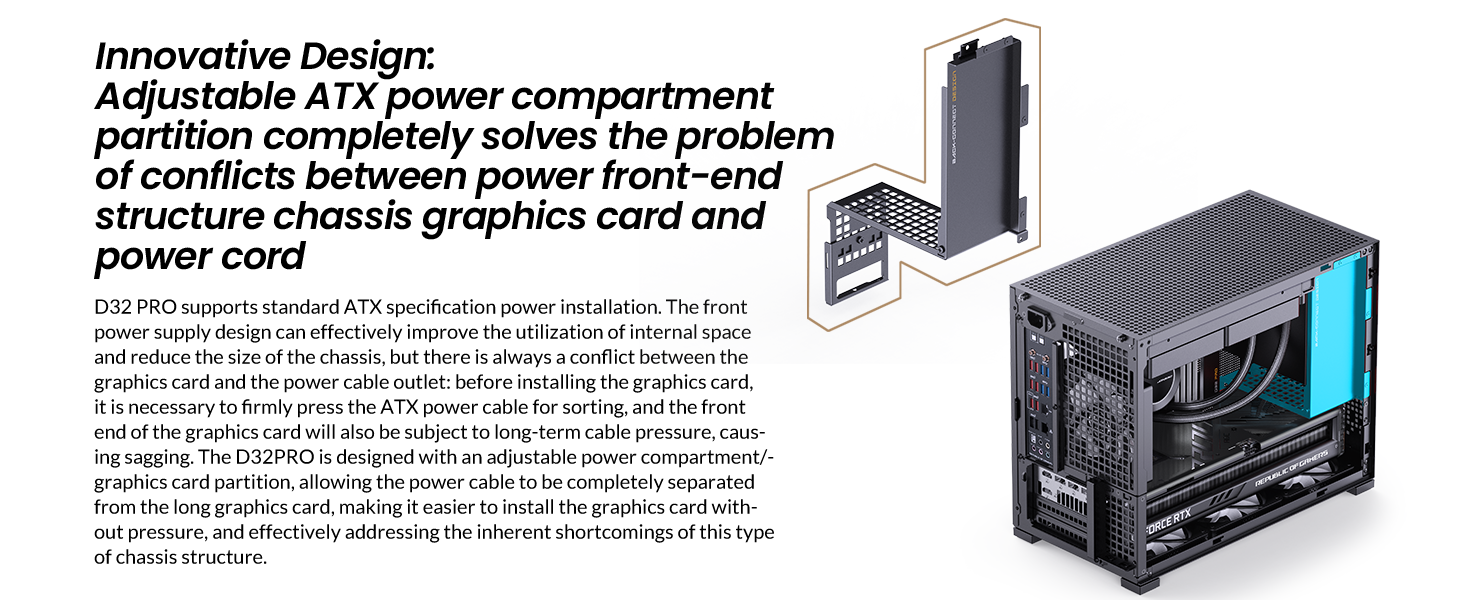

| ATX PS2 PSU Clearance： | • When the GPU is installed in the first PCI-E slot of the chassis, the maximum length of the power supply is 150mm, and the recommended length is ≤140mm • When the GPU is installed in the second PCI-E slot of the chassis, the maximum length of the power supply is 170mm, and the recommended length is ≤160mm *This mounting position depends on the motherboard, please refer to the motherboard specifications • When the GPU length is ≤288mm and the power compartment partition is removed, the power supply length is limited to 200mm (not compatible with 16A plugs) SFX PSU Support：SFX / SFX-L |

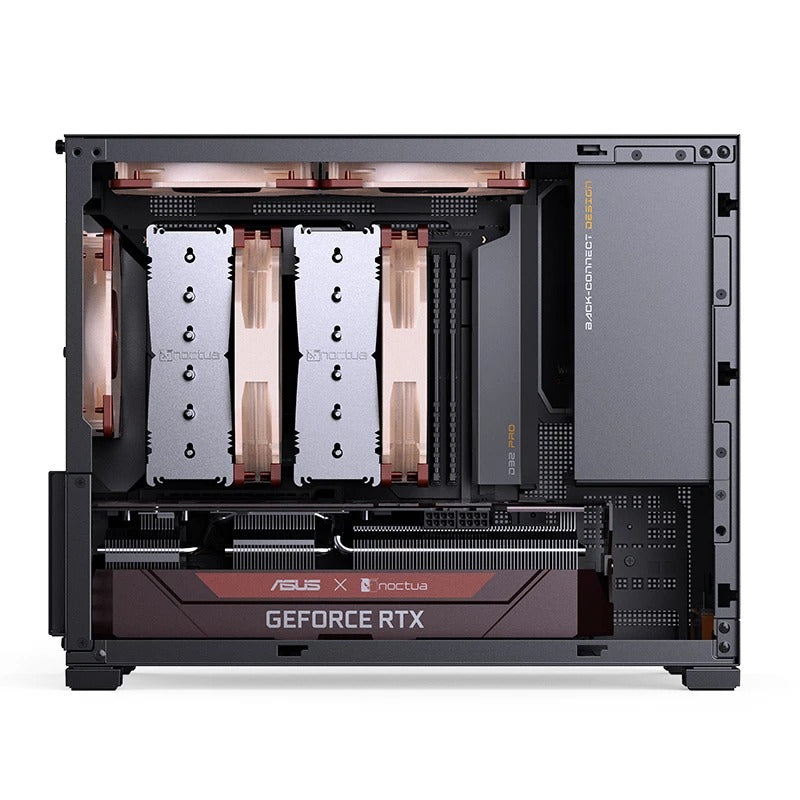

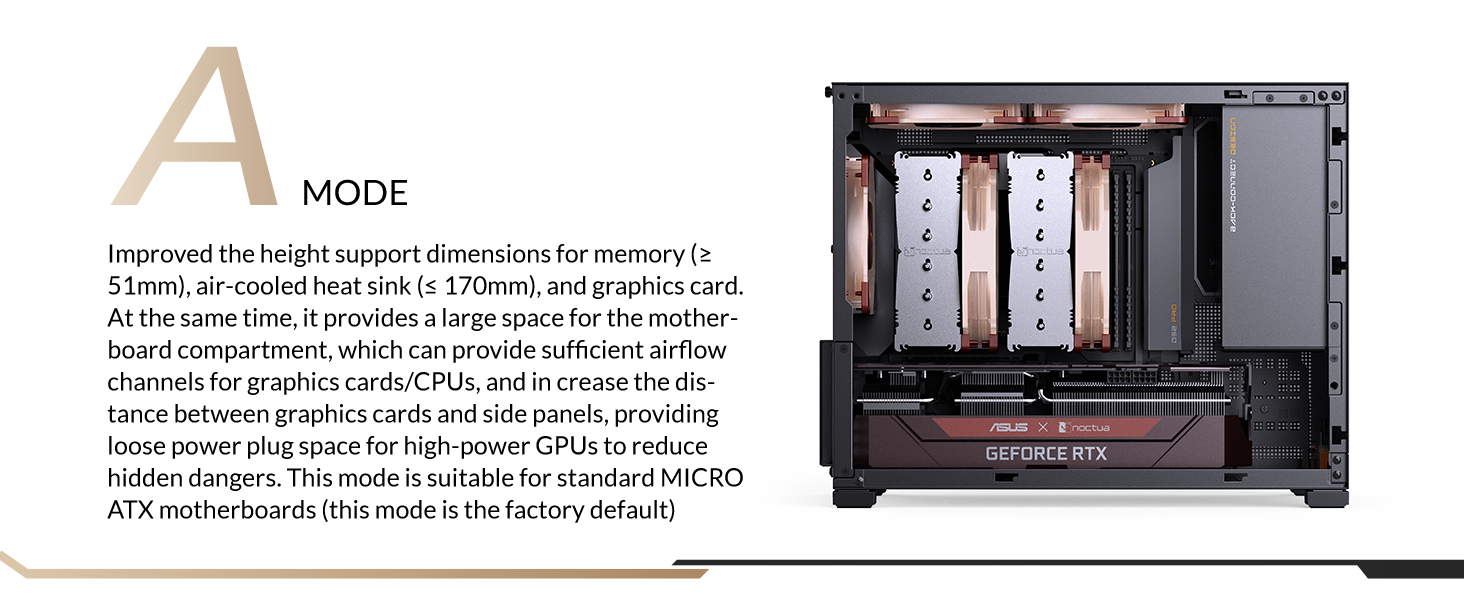

| CPU Air Cooler Clearance： | In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU) In B mode, the height limit is 164mm (Intel CPU) or 163mm (AMD CPU) |

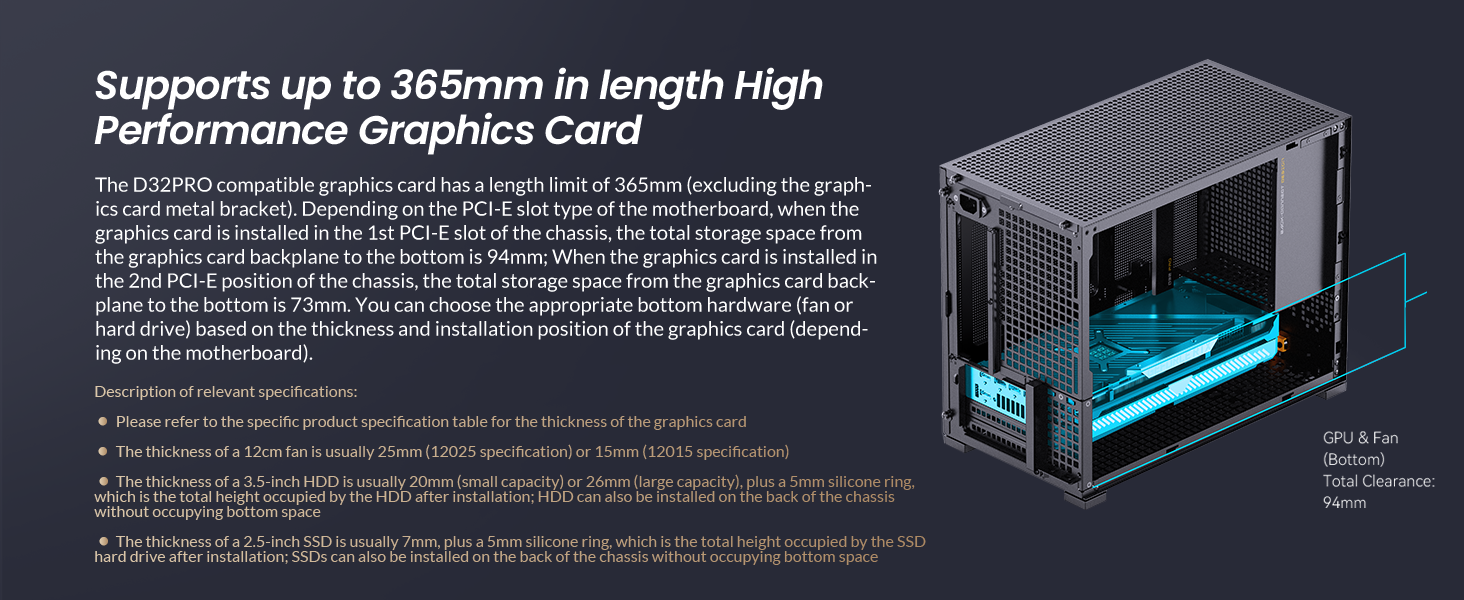

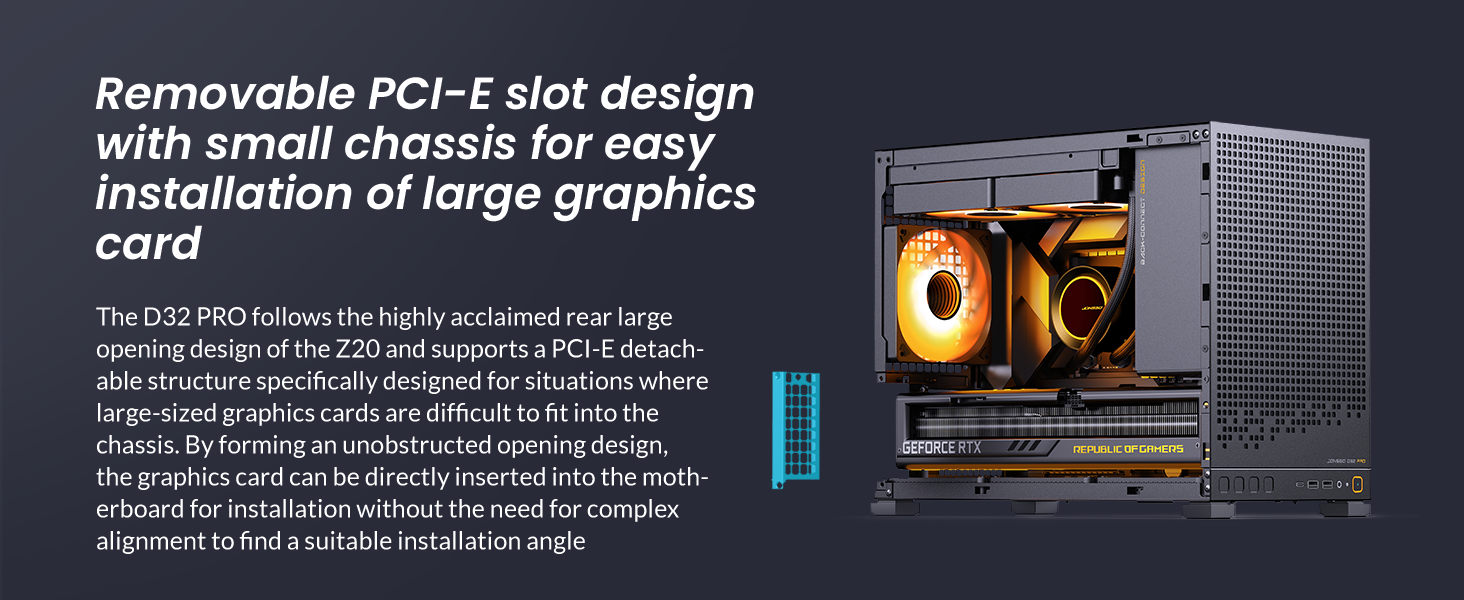

| GPU Clearance： | Up to 365mm |
| Weight： | N.W. 4.6kg / G.W. 5.8kg |
