Description

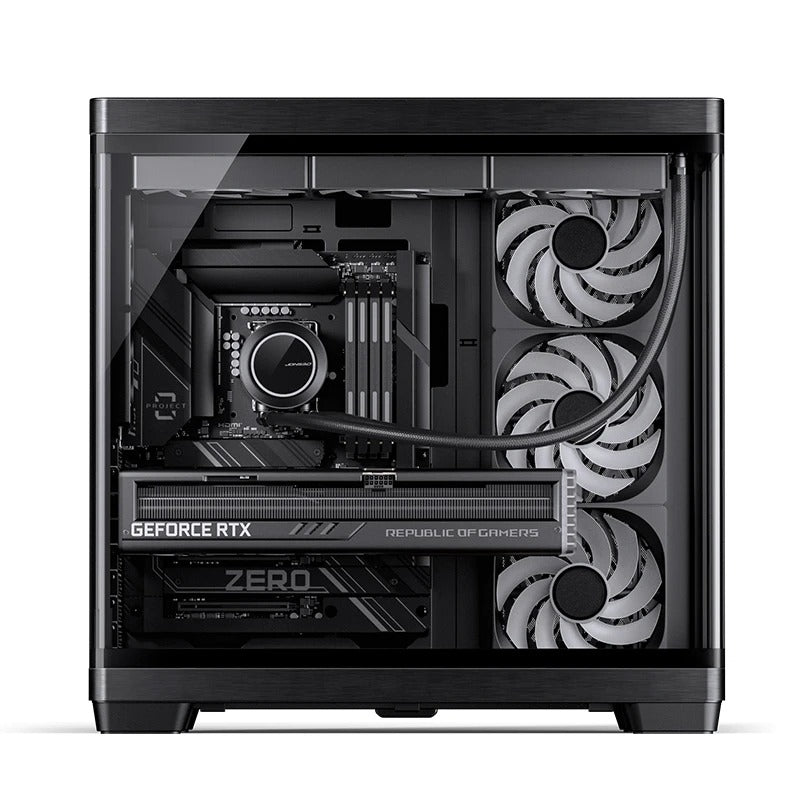

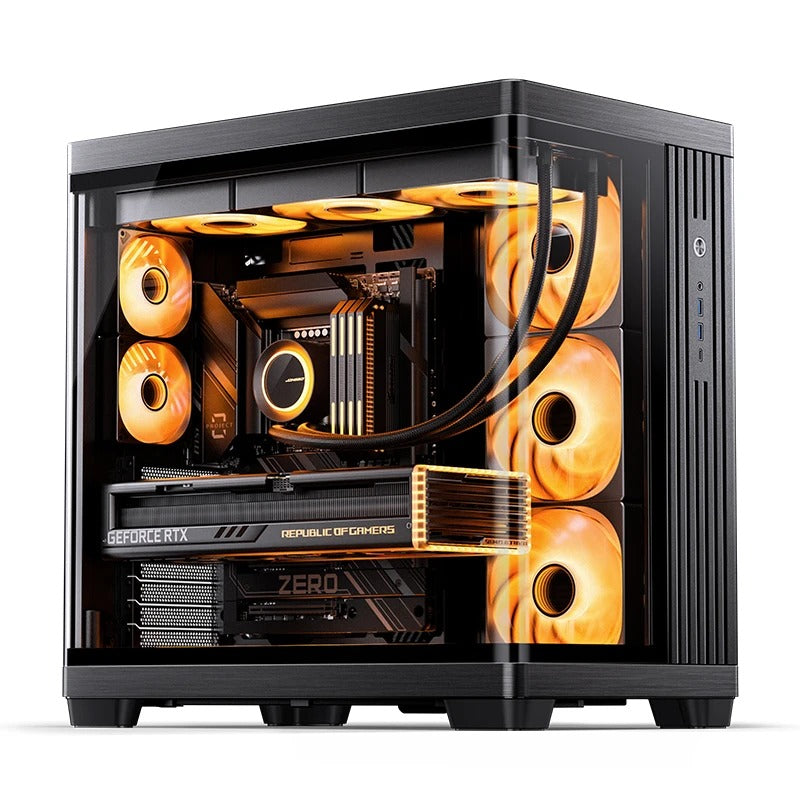

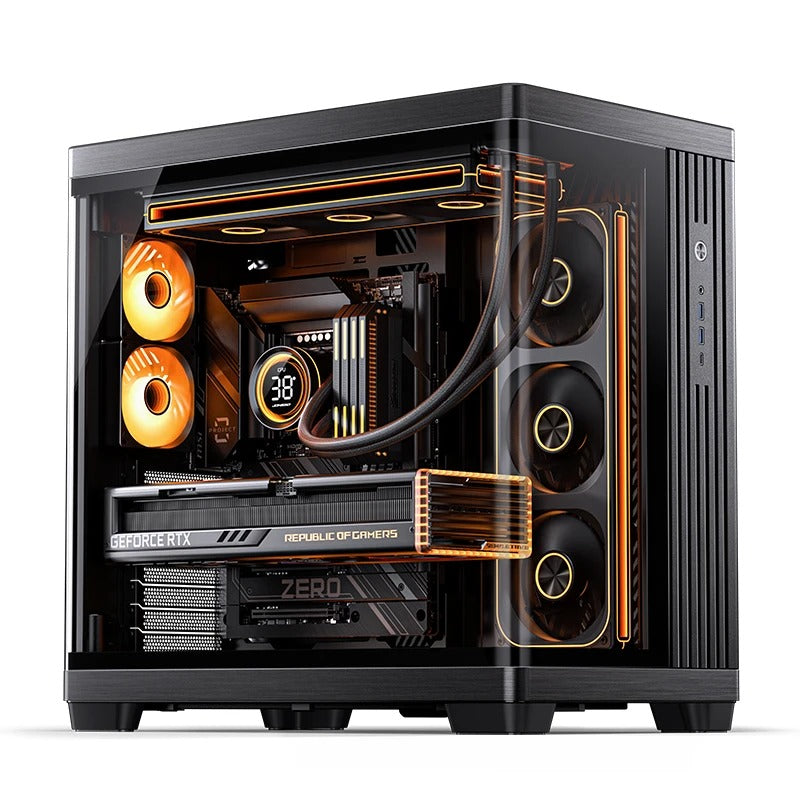

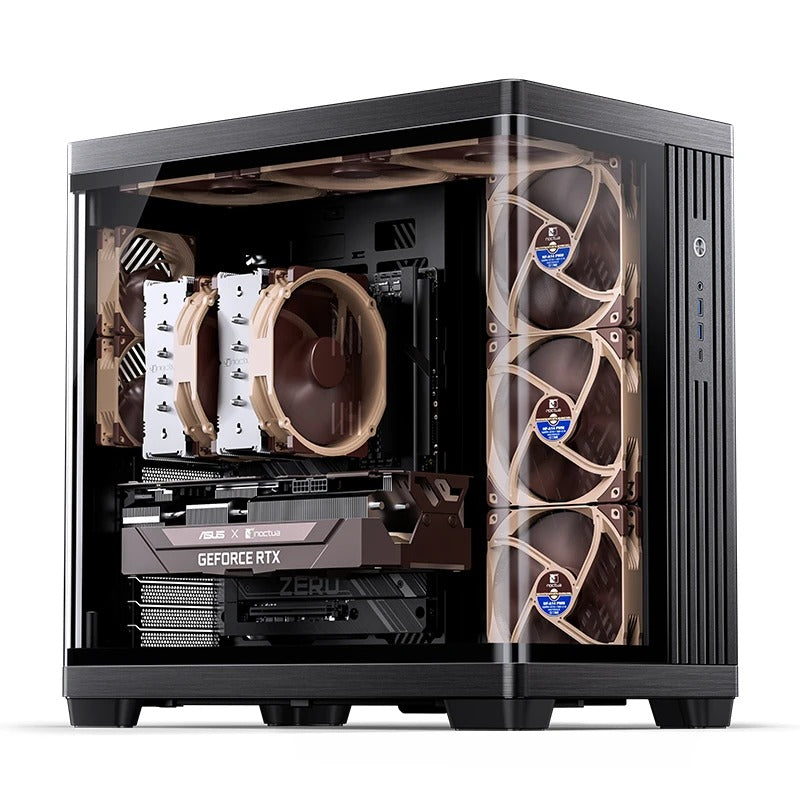

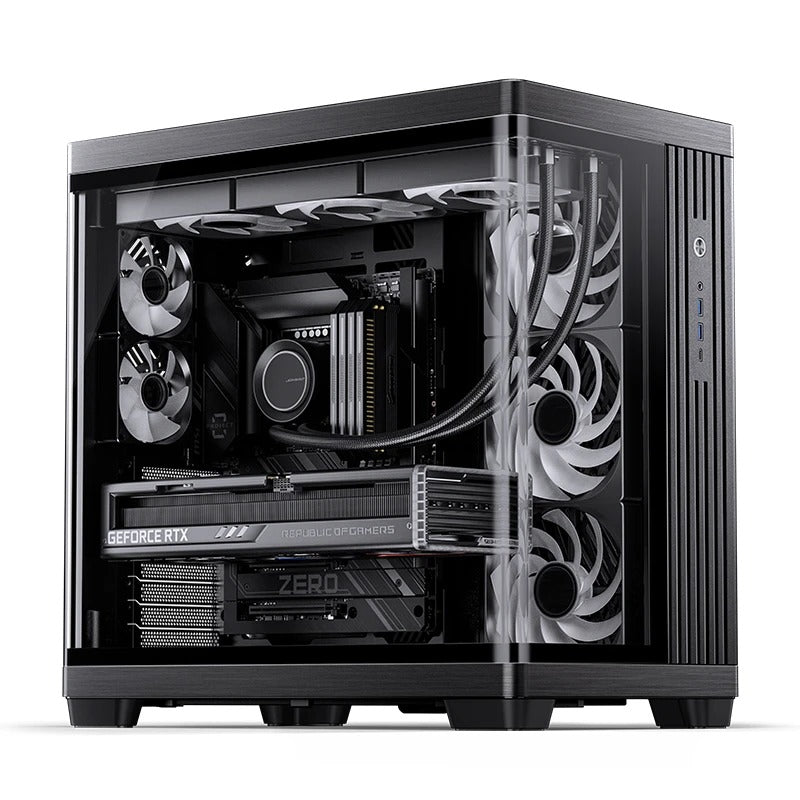

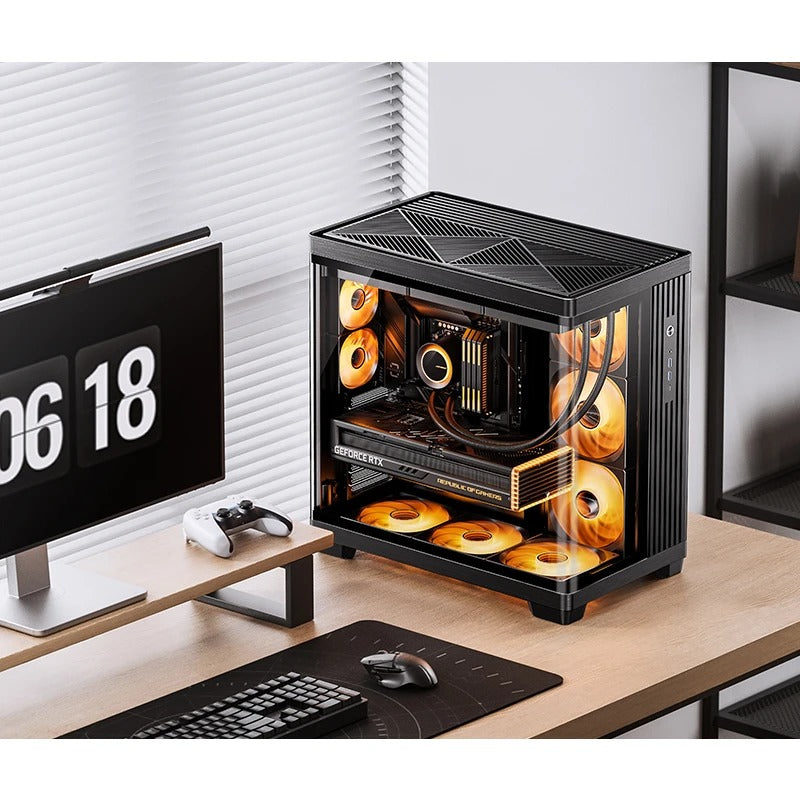

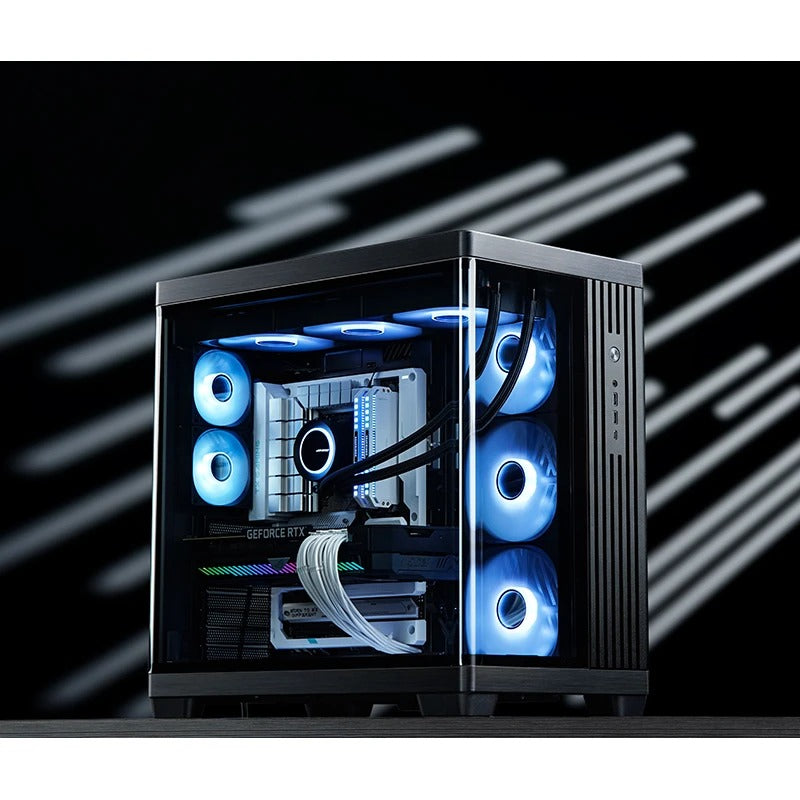

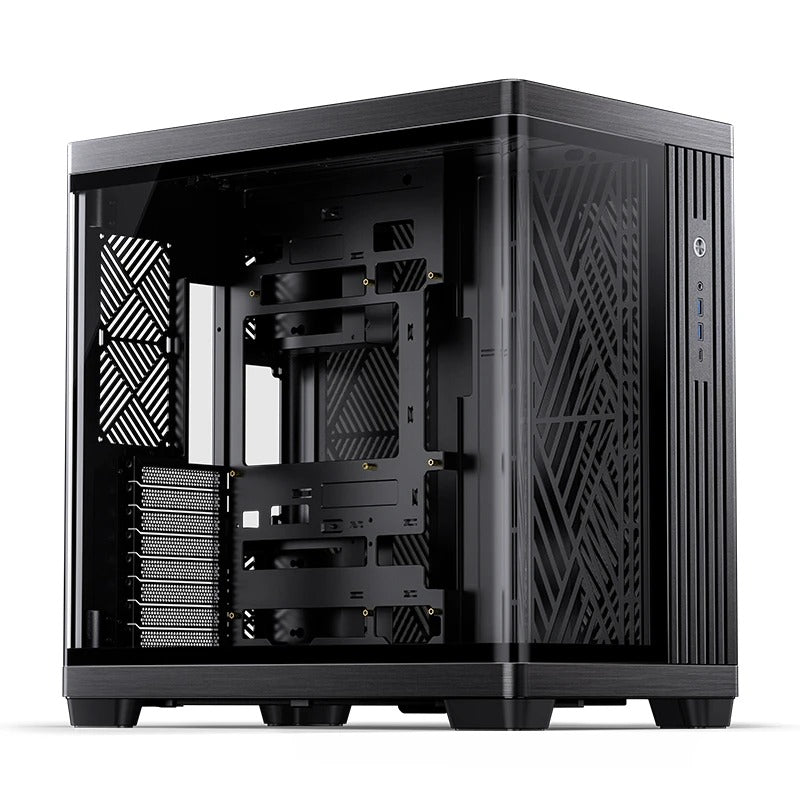

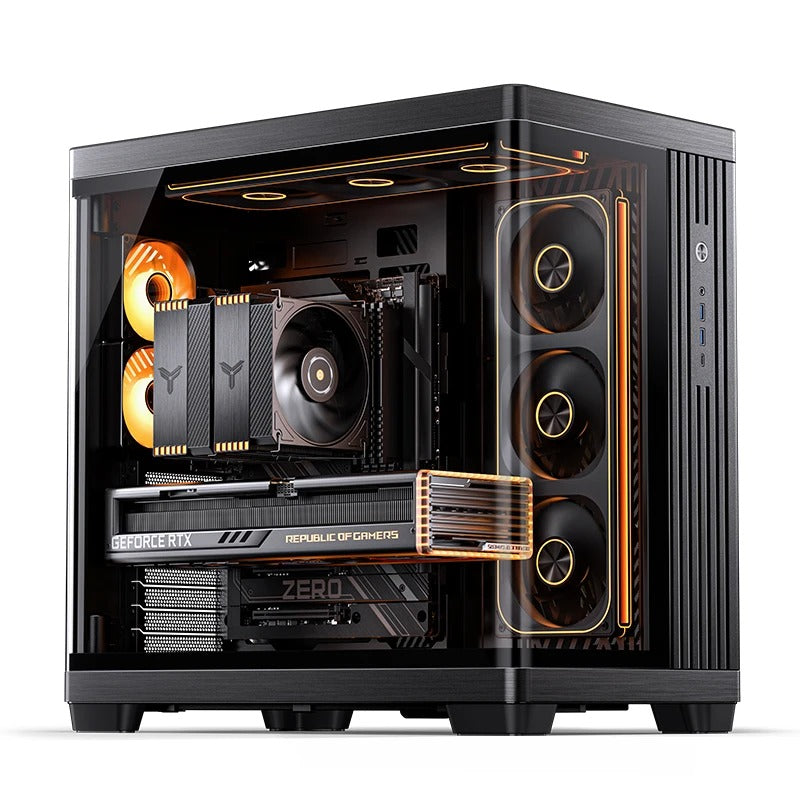

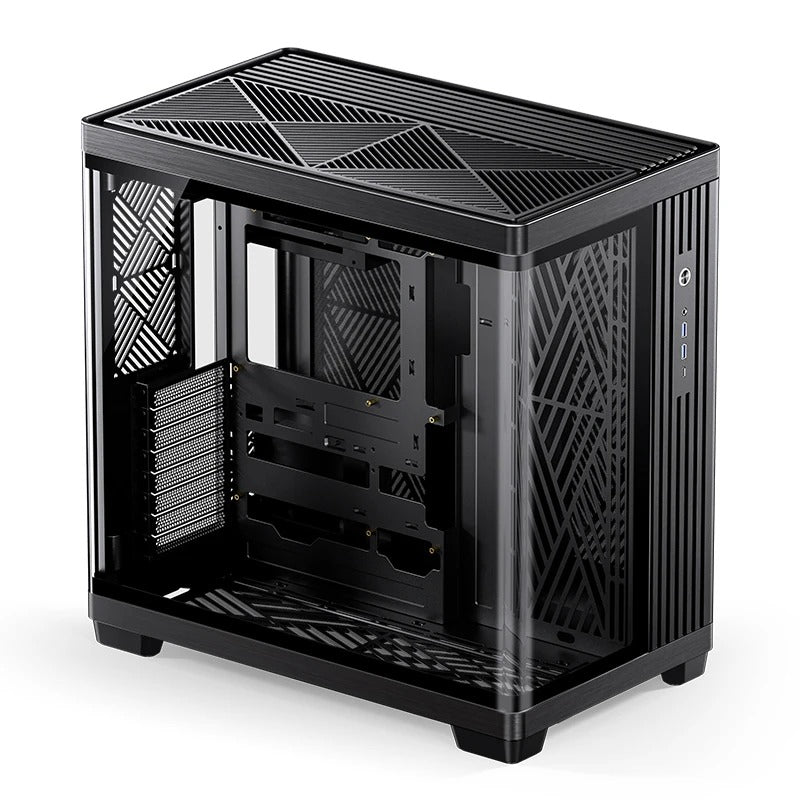

Jonsbo TK-4: The Panoramic View Mid-Tower Showcase

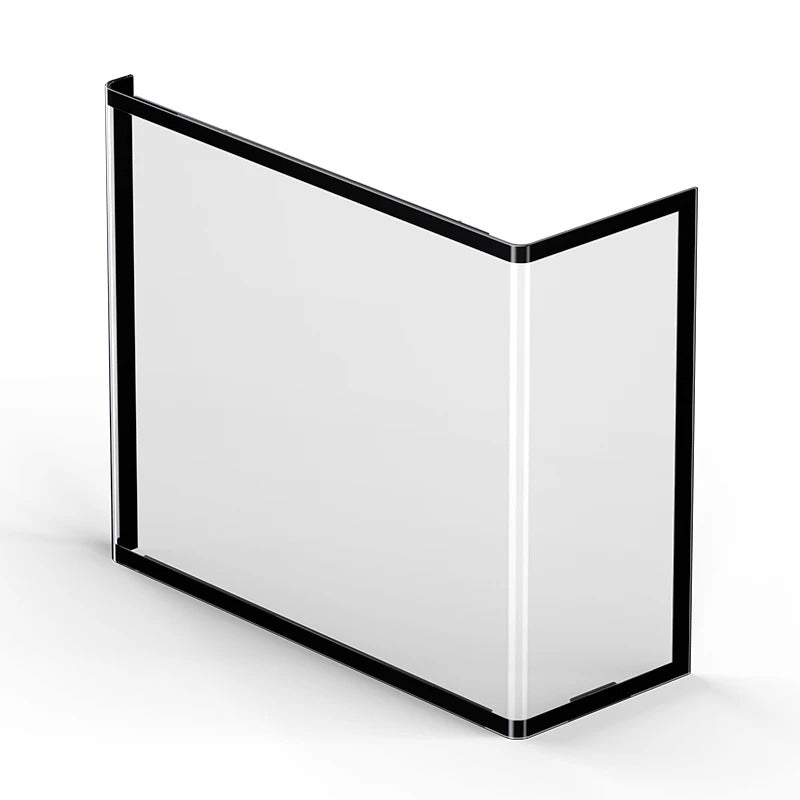

The Jonsbo TK-4 Black is designed to be the ultimate stage for high-end components. With its captivating panoramic glass design and massive component support, the TK-4 is a full-featured mid-tower built for enthusiasts who want to showcase their powerful builds and elaborate cooling solutions.
Specifications:
| Model | TK-4 |
| Color | Black |
| Dimension | 495mm (D) × 298.6mm (W) × 495mm (H) |
| Material | SGCC 1.0mm Steel / 4mm Glass / AL 2.0mm |
| Motherboard | ITX / M-ATX / ATX |

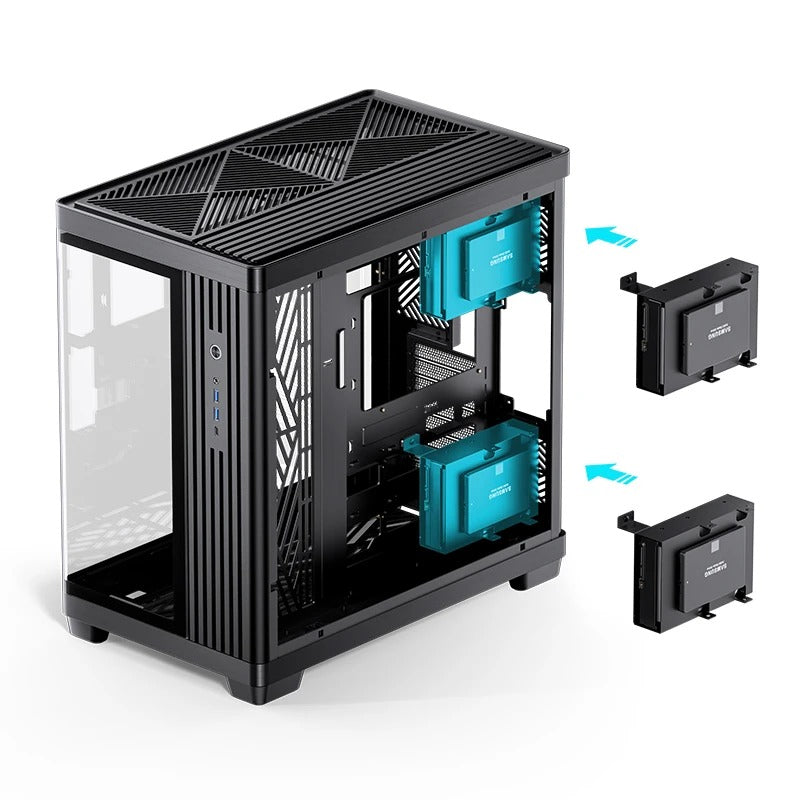

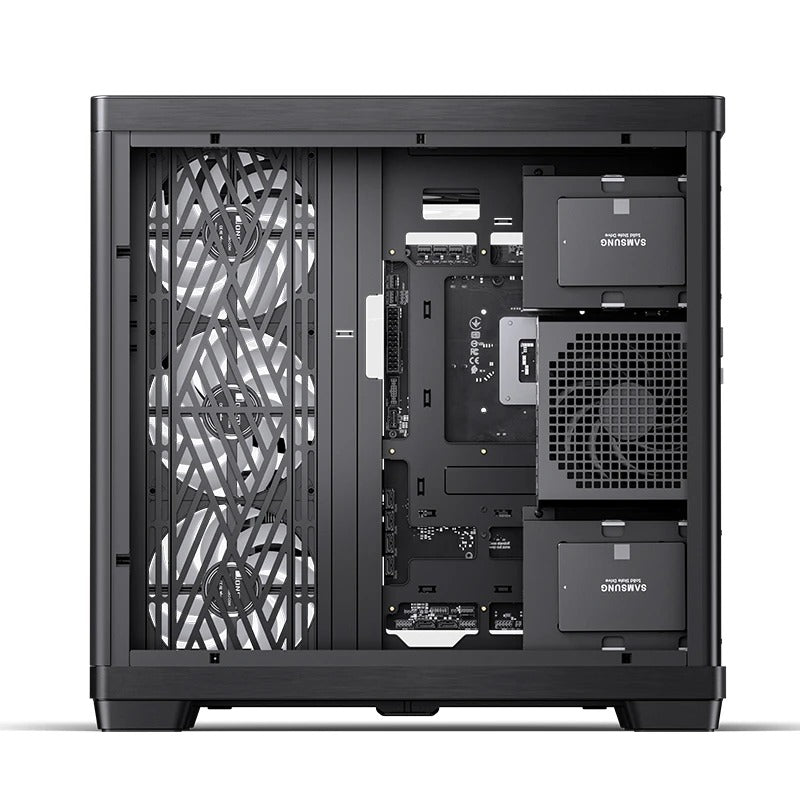

| Drive Bay | 2.5" SSD × 2 + 3.5" HDD × 2 / 3.5" HDD × 4 |
| Fan | Top: 120mm × 3 / 140mm × 3 (optional) Bottom: 120mm × 3 / 140mm × 3 (optional) Side: 120mm × 3 / 140mm × 3 (optional) Back: 92mm × 2 (optional) |
| Water Cooling | Top: 360mm × 1 or 420mm × 1 (optional) Bottom: 360mm × 1 or 420mm × 1 (optional) |
| Power Supply | ATX ≤ 200mm |
| CPU Cooler | 175mm |
| Video Card | ≤ 460mm |

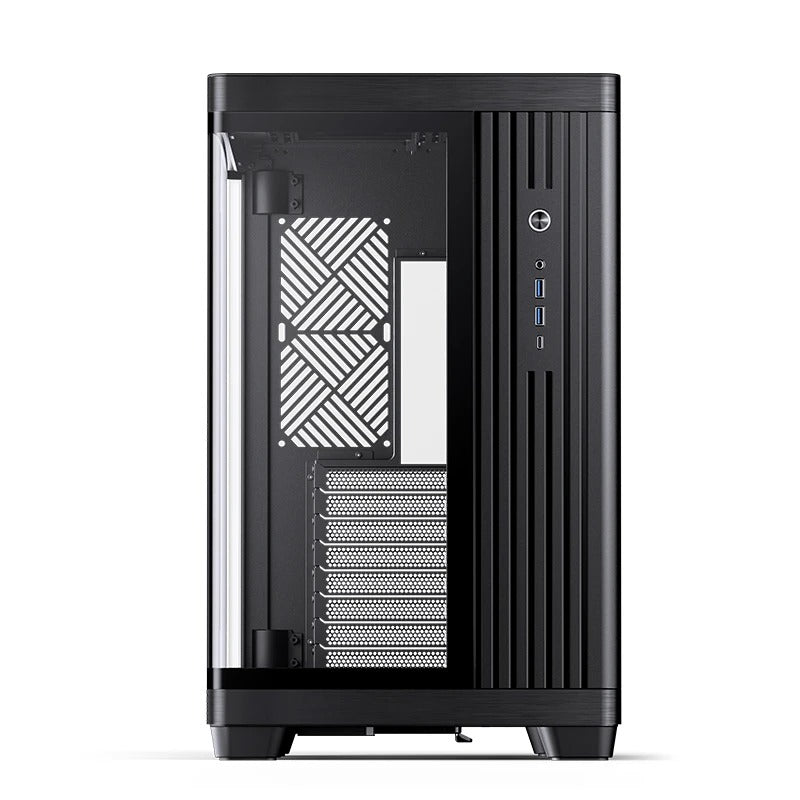

| Front I/O Port | USB3.2 Gen2 Type-C × 1 / USB3.0 × 1 / AUDIO × 1 + MIC × 1 (2 in 1) |
| Expansion Slot | 8 |
| Weight | Net 10.72kg |
