Description

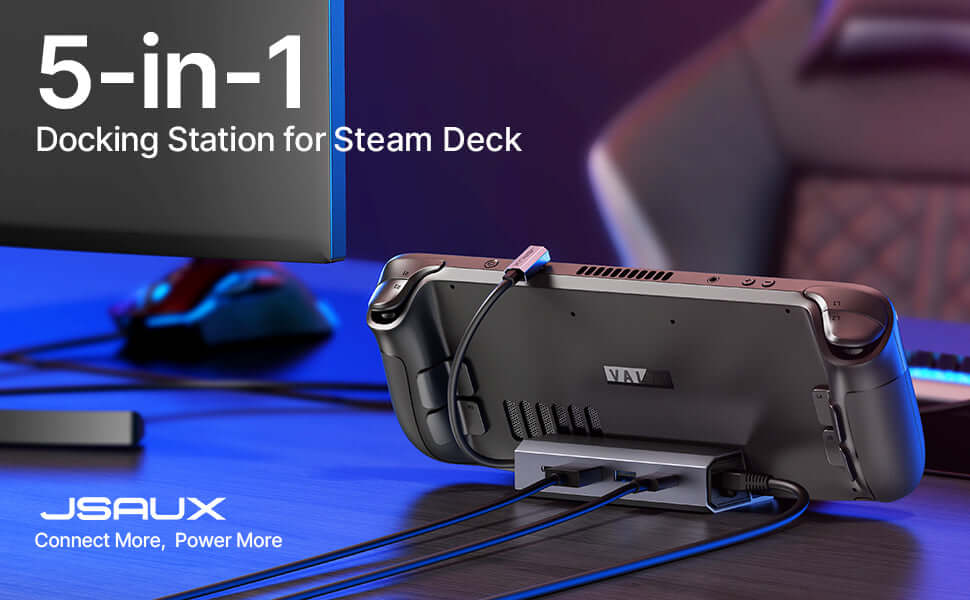

5-in-1 Docking Station

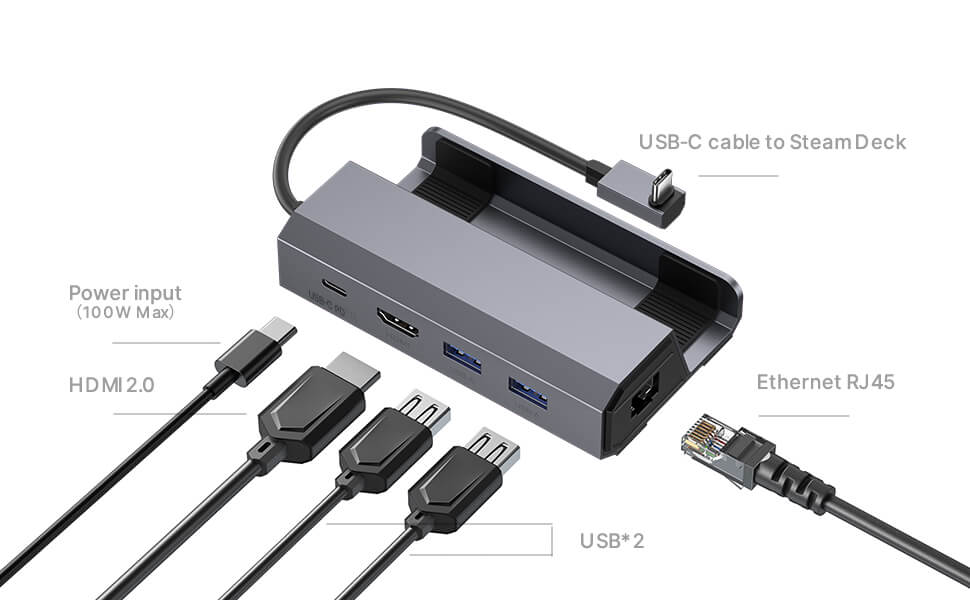

- 5-in-1 Docking Station for Steam Deck and ROG Ally: Features 4K@60Hz HDMI output, 100 Mbps RJ45/Ethernet input, USB-C charging, and dual USB-A 2.0 ports.
- Enhanced Visuals: Enjoy sharper and smoother visuals with the 4K@60Hz HDMI 2.0 output when connecting to an external 4K monitor.
- Full-Speed Steam Deck Charging: Supports 100W Max power delivery, ensuring your Steam Deck charges at full speed when used with the original charger.
- All-in-One Convenience: Combining a hub and stand, eliminates the need for separate accessories. It streamlines your setup and keeps your gaming area organized.
- Compatibility: Supports Steam Deck, Steam Deck OLED, ROG Ally, Leigon Go,MSI Claw. (Not compatible with ROG Ally X)
Note:
- It is recommended to use a 100W charger to better experience ROG Ally’s high-performance 30W mode.
- This product is not compatible with the AYA NEO console and can not guarantee 30W Turbo Mode for ROG Ally, as it depends on the charger used. For more details on compatible devices check the product Specs below
SPECIFICATION
| Interface | Hardware Interface USB Type C, Ethernet, HDMI, USB 2.0 |
| Dimensions | 4.45 x 2.64 x 1.1 inches |
| Number of Ports | USB-A 2.0*2、PD USB-C*1、HDMI 2.0*1、RJ45*1 |
| Wattage: 100 watts | |
| HDMI: 4K 60Hz / 2K 120Hz | |
| PD（USB-C）: PD 100W Max, Only supports PD USB-C interface input, compatible with PD2.0, 3.0 | |
| RJ45：100Mbps | |
| USB-A: Support 480Mbps transmission, 5V/1A, | |
| Material | TPE+Aluminum |
| Weight | 140g |
| Compatible Devices | Supports Steam Deck, Steam Deck OLED, ROG Ally, Legion Go, MSI Claw. |
| NOTE: | |
| NOT compatible with AYA NEO console. Cannot guarantee 30W Turbo Mode for ROG Ally. It may require a charger over 65W, based on current information. Ultimately, enabling 30W Turbo Mode depends on the specific charger used. | |
| NOTE | It got 100 Mbps Ethernet & USB 2.0 instead of the Gigabit Ethernet & USB 3.0. |
| NOT compatible with Protective Case with Kickstand, Please ensure that the thickness of your protective case is less than 2mm. | |
| When your Steam Deck is connected to Docking Station, you need to adjust its resolution after entering desktop mode in order to achieve 4K output. | |
| Since many games themselves are not well adapted in handheld mode, you may not be able to adjust the 4K resolution if you enter the game from handheld mode. We recommend that you restart the game and open the game you want in desktop mode to complete the 4K output. | |
| If you want to achieve 4K@60Hz output, be sure to use an HDMI 2.0 cable or higher standard version. Also, please use as few cable adapters as possible, as using too many cable adapters can cause signal degradation, resulting in the inability to output 4K signal. | |
| When you are docking your steam deck and need to connect high power external devices, please make sure you connect your PD charge to the docking staion to ensure that you can power the high power external devices. (Steam Deck and Docking Station cannot power high power external devices by themselves). | |
| Do not use HDMI to DisplayPort cables or adapters please. | |
| When running big games, too high image can put a large burden on the Steam Deck, which may be not capable of handling such high power consumption.You can reduce the picture quality of the game appropriately to reduce the latency of the external device during the game. | |
| If you need to use HDMI Switch (the 8K one is better), make sure that the HDMI cable at both ends of it does not exceed 6.6 Feet. |
